Page 1417 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . REQUIRED SPECIAL TOOL MD998054: Oil Pressure Switch Socket Wrench MD998717: Crankshaft Front Oil Seal Installer REMOVAL SERVICE POINT << A >> OIL P

Page 1418 of 3870

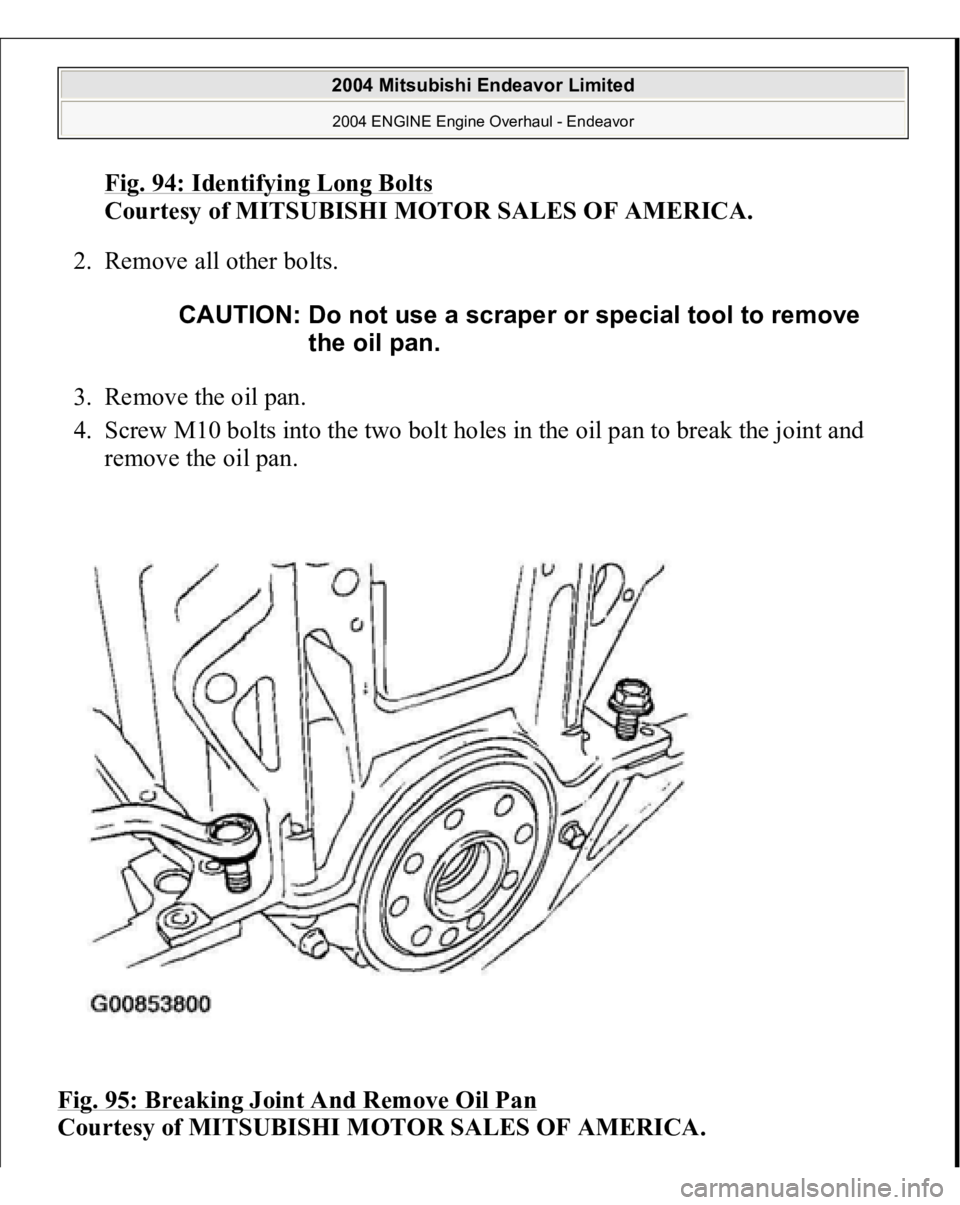

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 94: Identifying Long Bolt s Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Remove all other bolts. 3. Remove the oil pan. 4. Screw M10 bolts into the two bolt holes in the oil pan to brea

Page 1419 of 3870

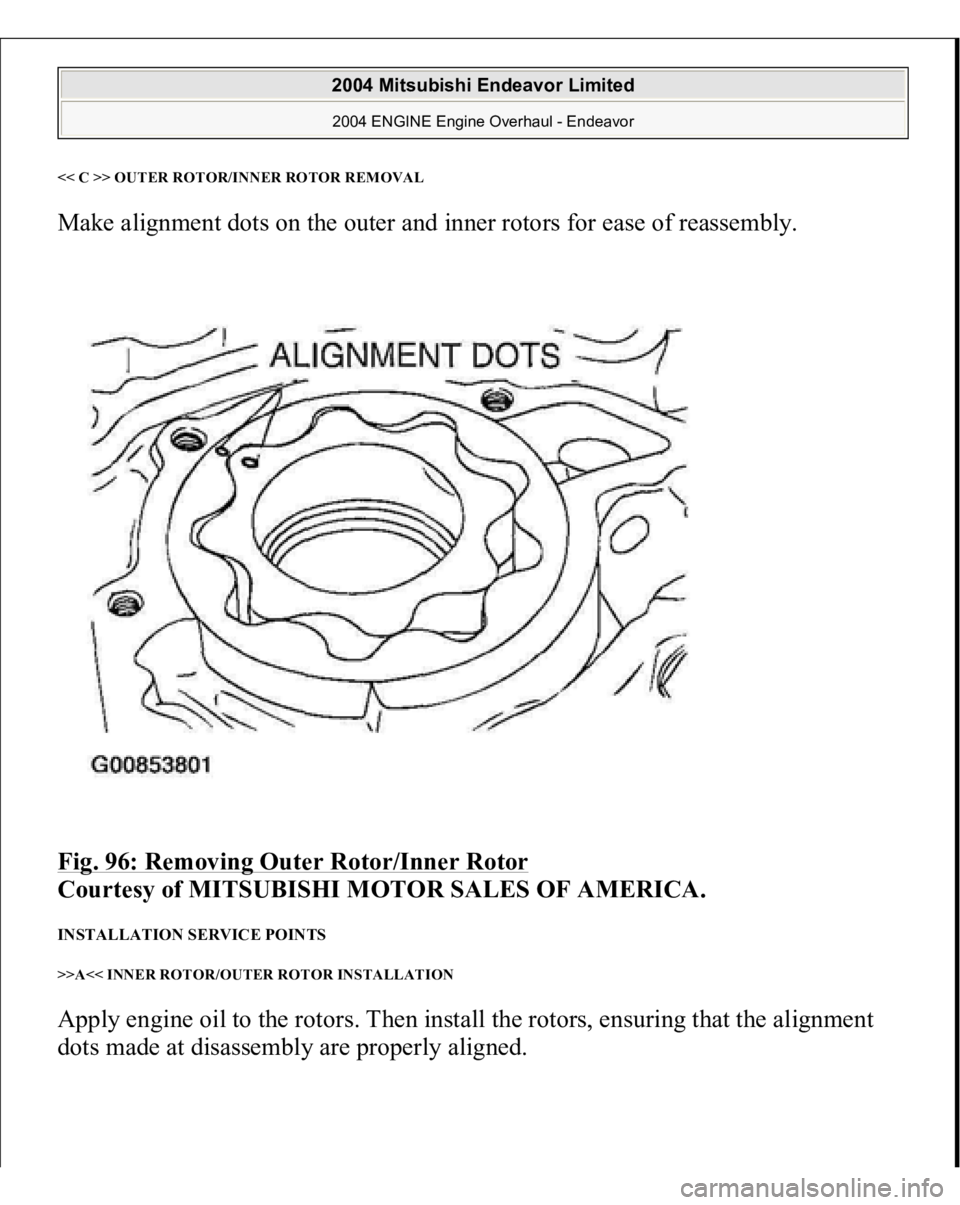

MITSUBISHI ENDEAVOR 2004 Service Repair Manual << C >> OUTER ROTOR/INNER ROTOR REMOVALMake alignment dots on the outer and inner rotors for ease of reassembly. Fig. 96: Removing Outer Rotor/Inner Rotor Courtesy of MITSUBISHI MOTOR SALES OF AMER

Page 1420 of 3870

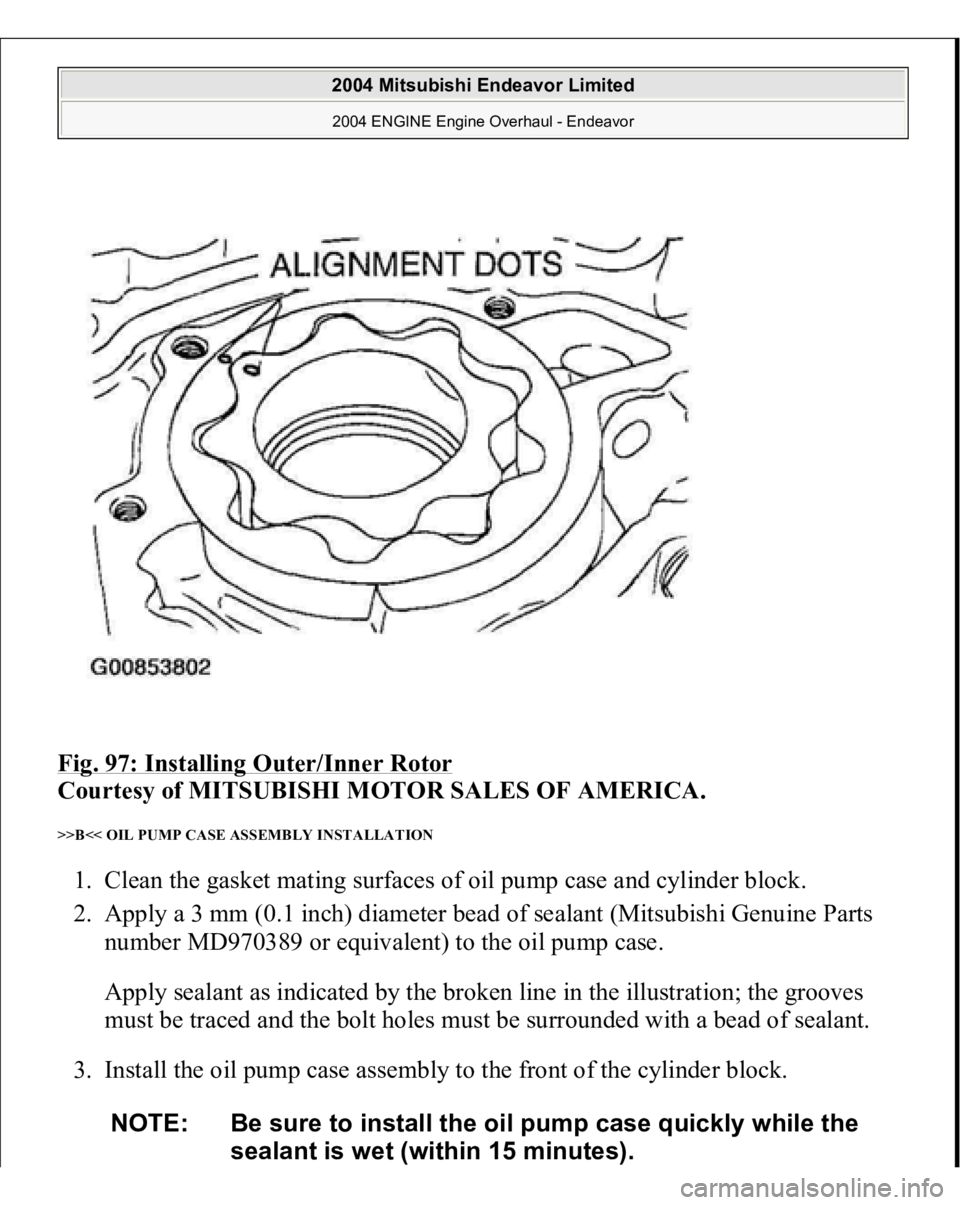

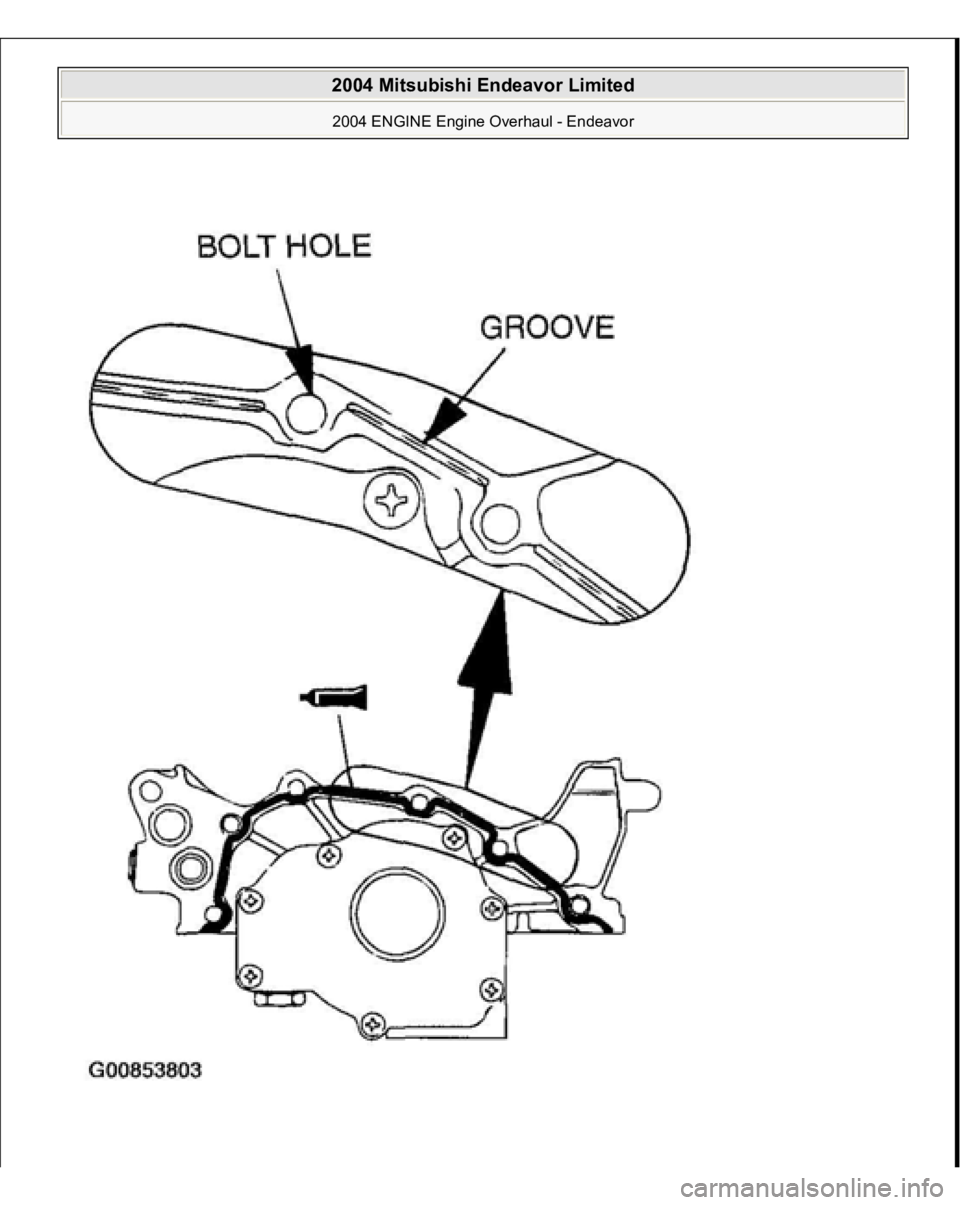

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 97: Installing Outer/Inner Rotor Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>B<< OIL PUMP CASE ASSEMBLY INSTALLATION 1. Clean the gasket mating surfaces of oil pump case and cylinder bloc

Page 1421 of 3870

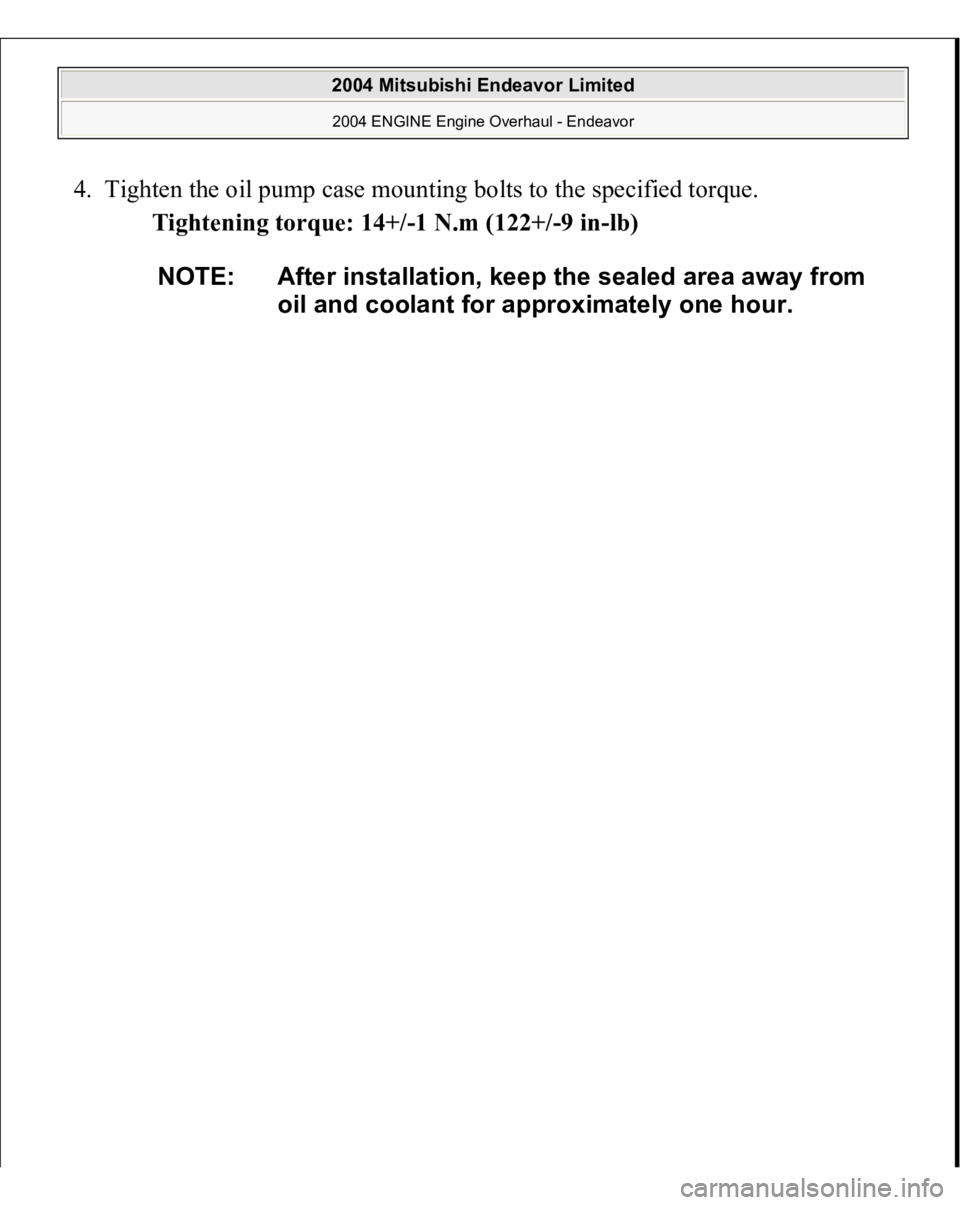

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 4. Tighten the oil pump case mounting bolts to the specified torque. Tightening torque: 14+/-1 N.m (122+/-9 in-lb) NOTE: After installation, keep the sealed area away from oil and coolant for appro

Page 1422 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Page 1423 of 3870

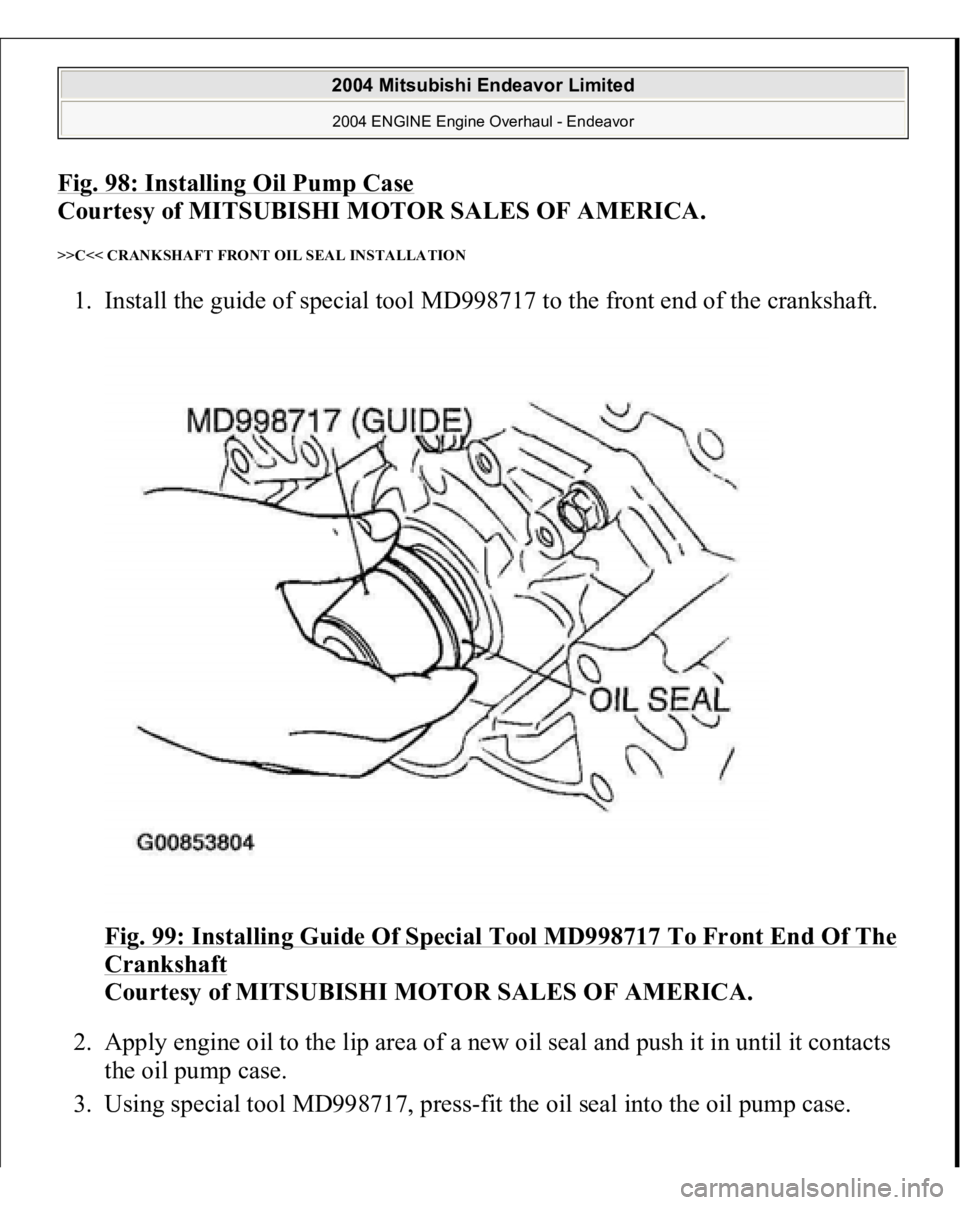

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 98: Installing Oil Pump Case Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>C<< CRANKSHAFT FRONT OIL SEAL INSTALLATION 1. Install the guide of special tool MD998717 to the front end of the c

Page 1424 of 3870

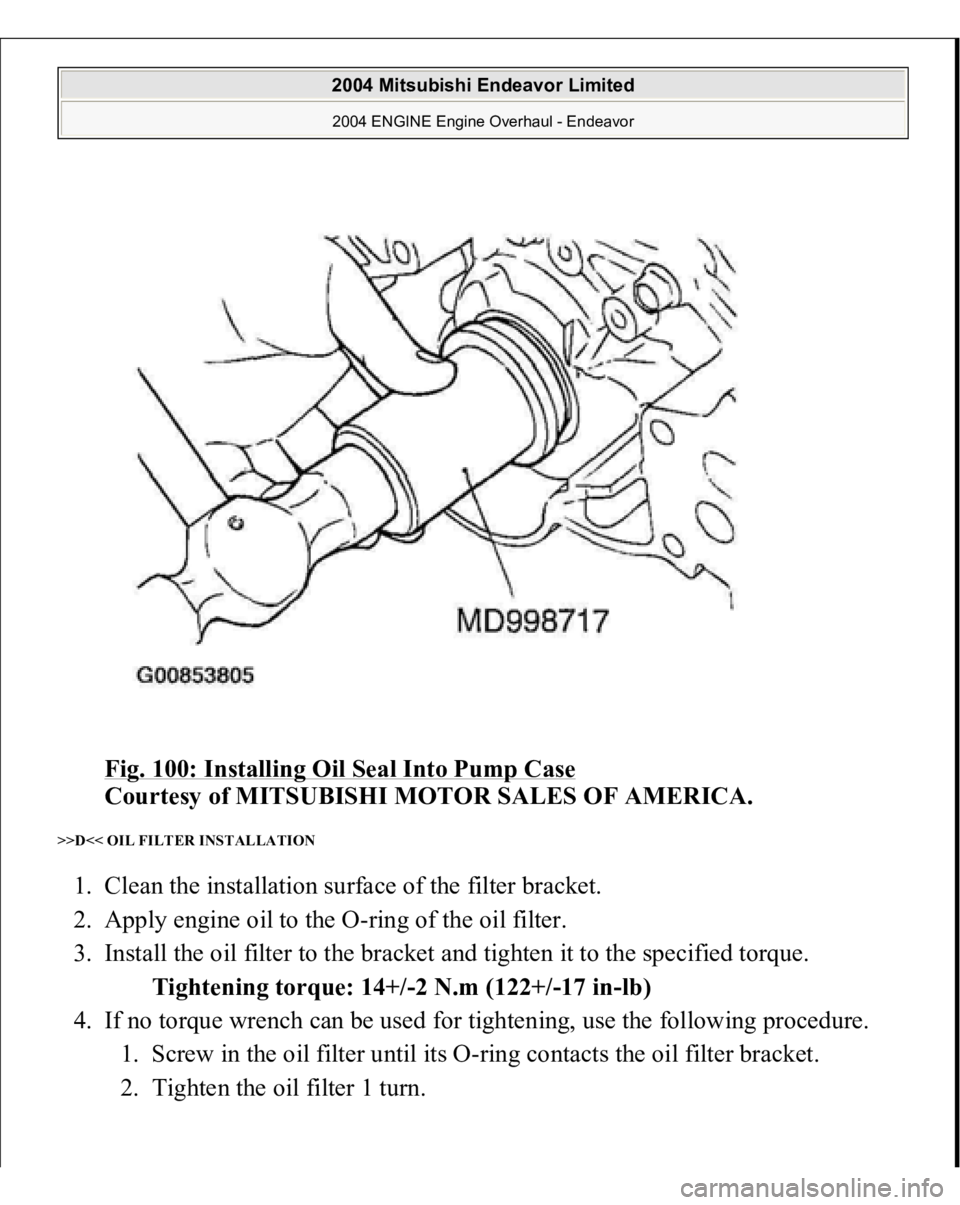

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 100: Installing Oil Seal Into Pump Case Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>D<< OIL FILTER INSTALLATION 1. Clean the installation surface of the filter bracket. 2. Apply engine
