Page 481 of 3870

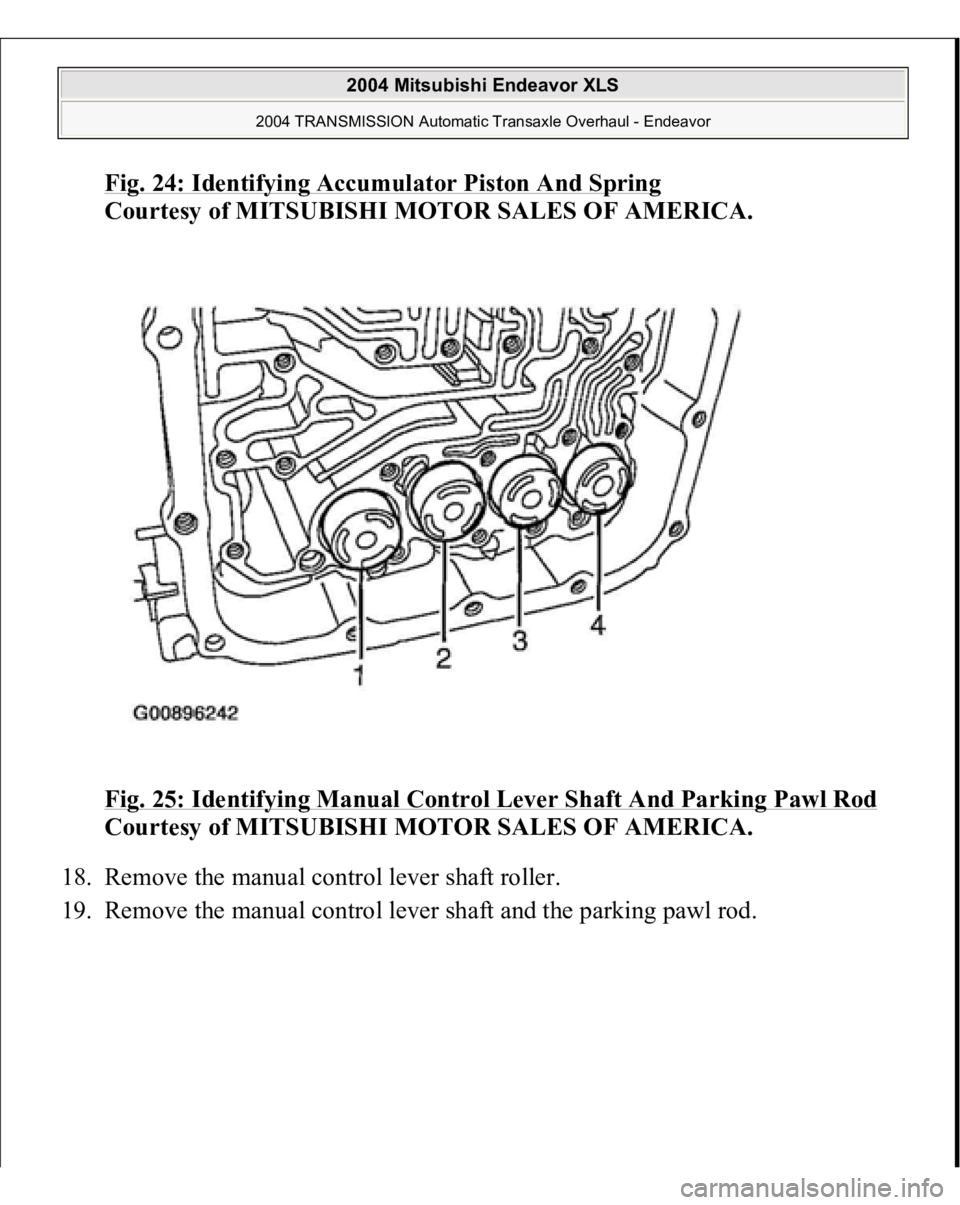

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 24: Identifying Accumulator Piston And Spring Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 25: Identifying Manual Control Lever Shaft And Parking Pawl Rod Courtesy of MITSUBISHI MOTOR

Page 482 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 26: Identifying Torque Converter Housing Mounting Bolts Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 20. Remove the torque converter housing mounting bolts (18 pieces), and then remove the

Page 483 of 3870

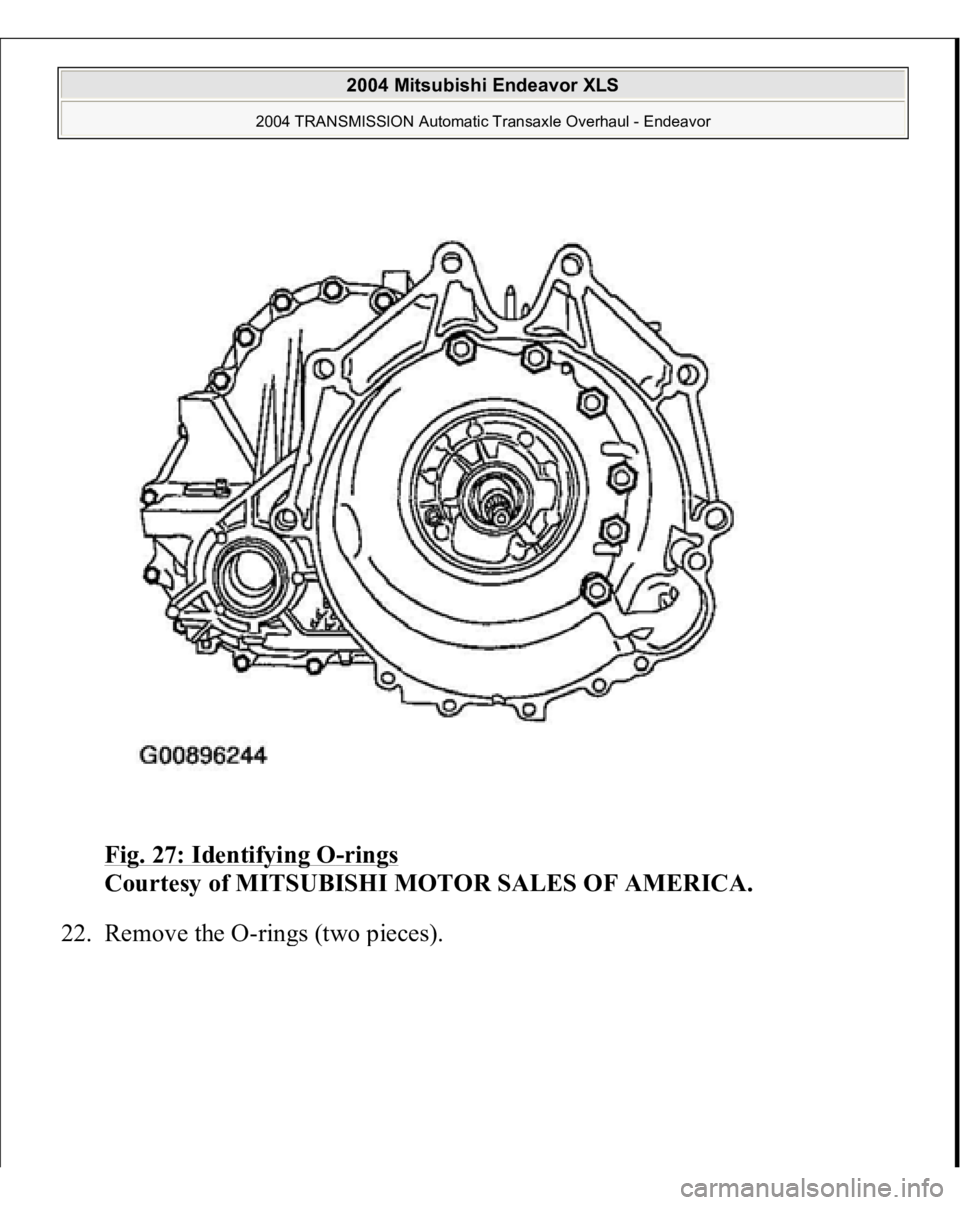

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 27: Identifying O -rings Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 22. Remove the O-rin gs (two pieces ). 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul

Page 484 of 3870

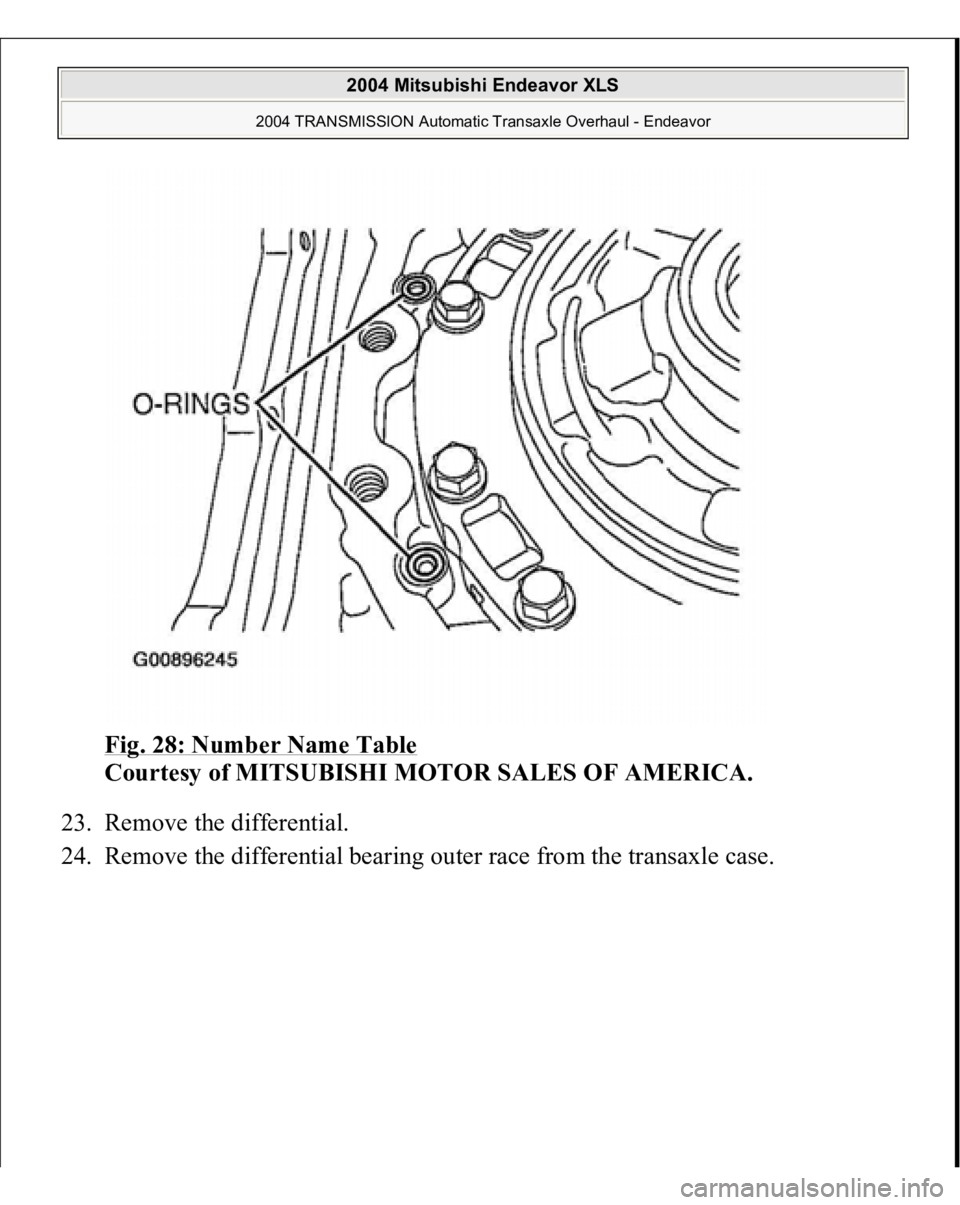

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 28: Number Name Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 23. Remove the differential. 24. Remove the differential bearing outer race from the transaxle case. 2004 Mitsubishi E

Page 485 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 29: Removing Differential Bearing Outer Race From Transaxle Case Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 25. Remove the oil filter. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Au

Page 486 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 30: Removing Oil Filter Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 26. Remove the oil pump mounting bolts (six pieces). 27. Install s pecial tool MD998333 in hole "A". 2004 Mi

Page 487 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 31: Removing Oil Pump Mounting Bolts Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 28. Turn special tools MD998333 to remove the oil pump. 29. Remove the oil pum p gasket. 2004 Mitsubis

Page 488 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 32: Turning Special Tools MD998333 To Removing Oil Pump Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 30. Remove thrust washer number 1. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Aut
