Page 2041 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 30: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2042 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Ignition switch: ON 3. Check the data list. Item 03: air thermo sensor. Check that the passenger room temperature matches the displayed value o

Page 2043 of 3870

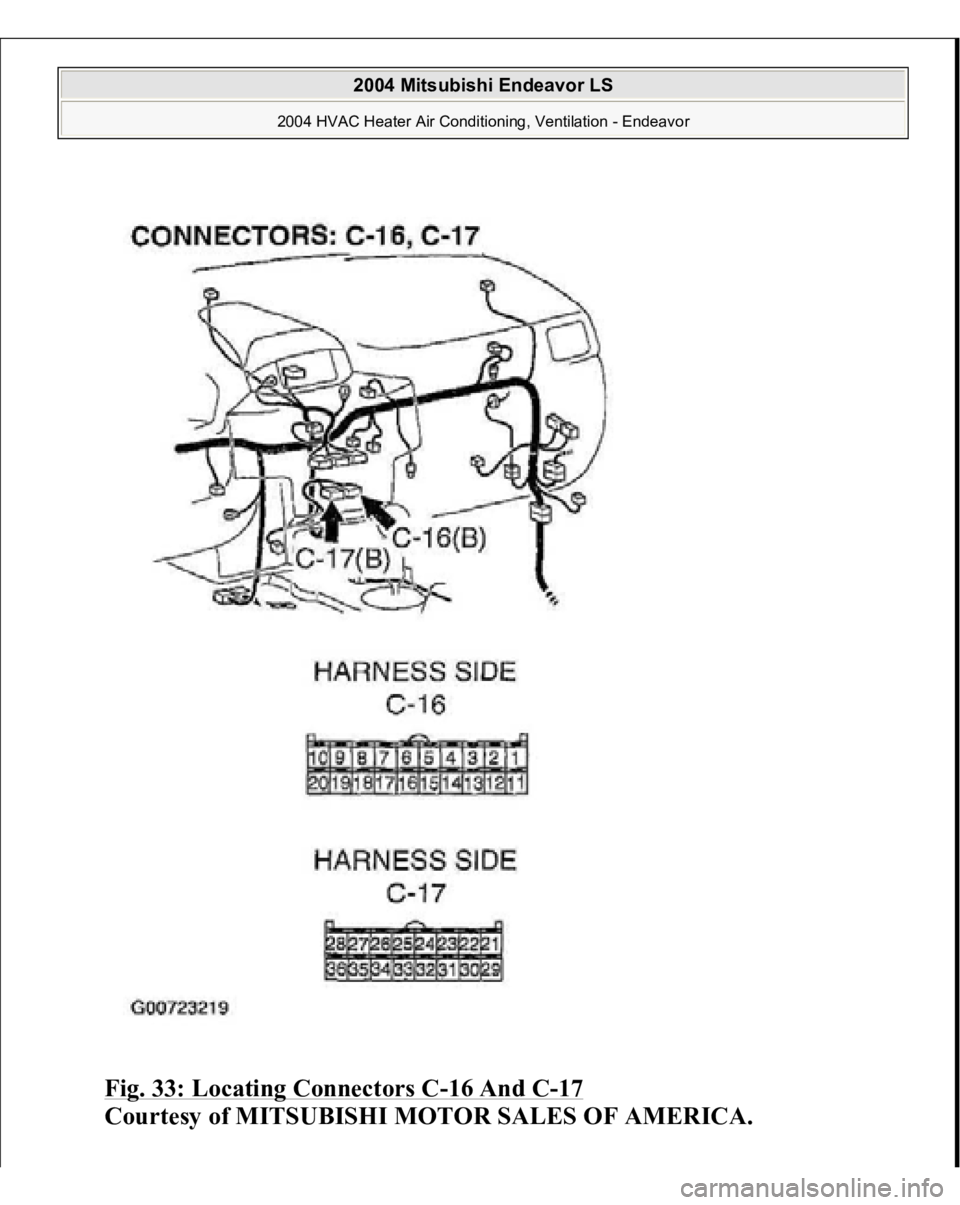

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 31: Locating Connectors C -16 And C -17 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2044 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 32: Locating Connector C -122 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 5. Check the wiring harness between A/C-ECU connector C-16 (terminal 20), C-17 (terminal 24) and air thermo

Page 2045 of 3870

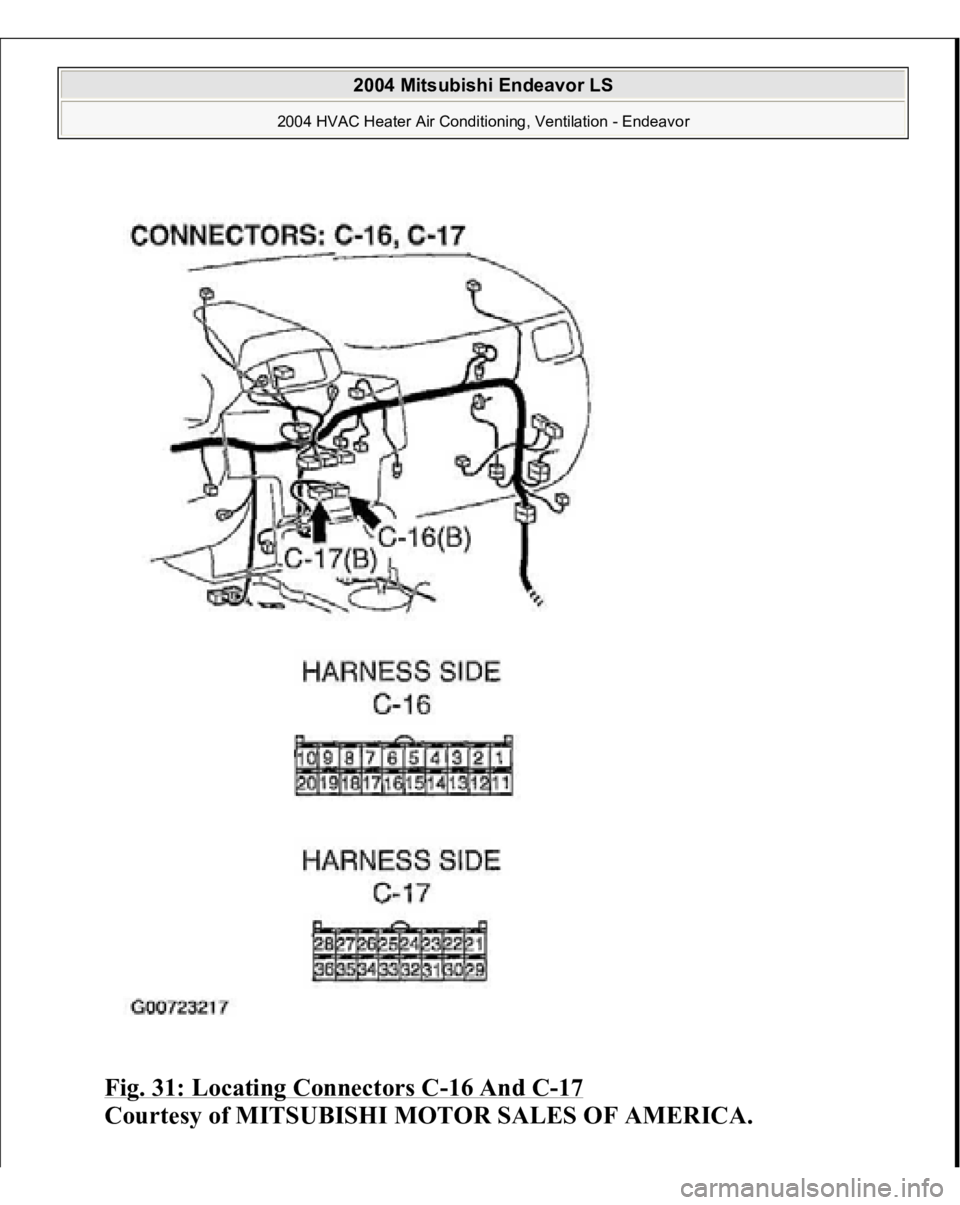

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 33: Locating Connectors C -16 And C -17 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2046 of 3870

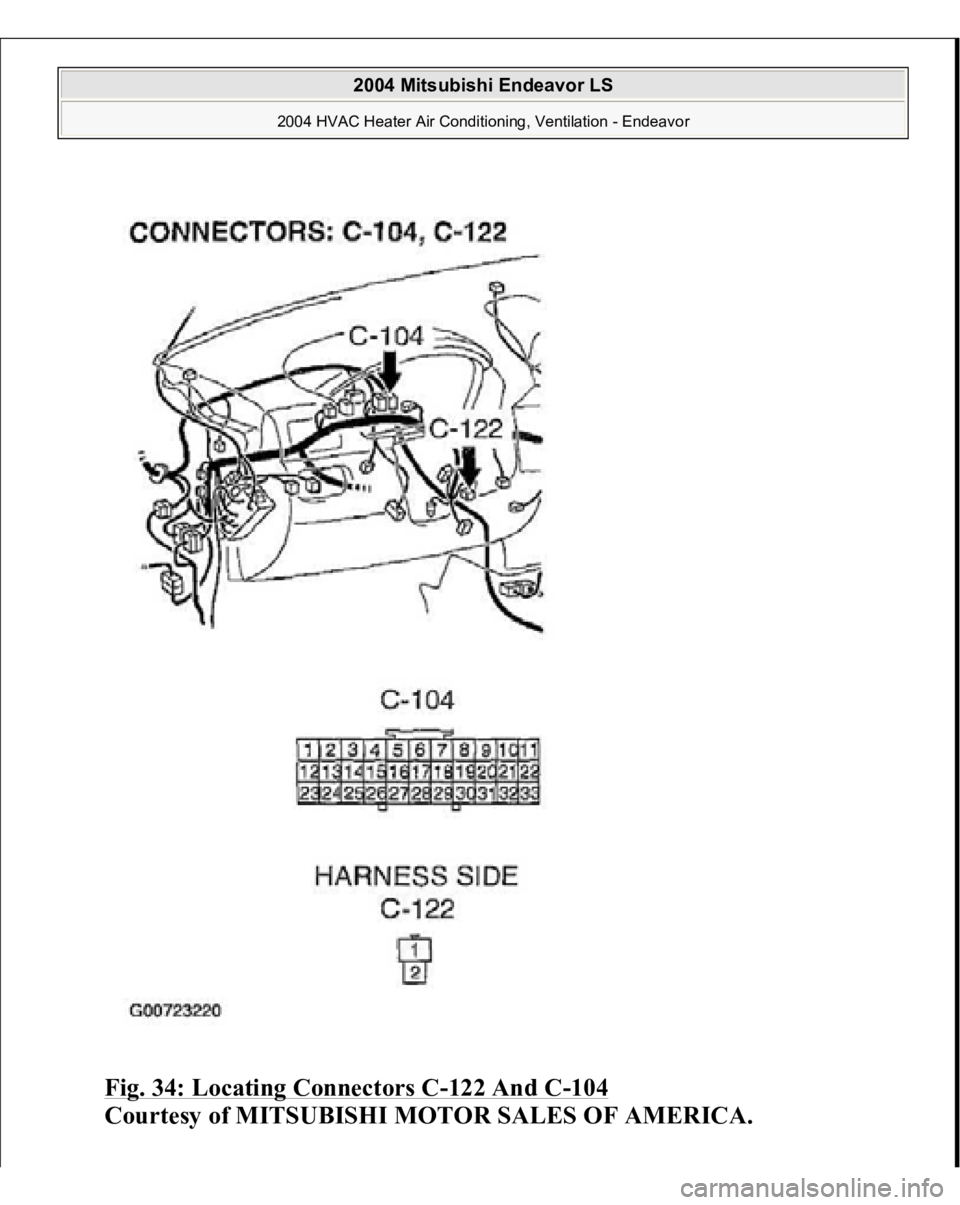

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 34: Locating Connectors C -122 And C -104 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2047 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the wiring harness between A/C-ECU connector C-16 (terminal 20), C-17 (terminal 23) and air thermo sensor connector C-122 (terminals 1 and 2) in good condition? YES: Go to Step 6. NO: R

Page 2048 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 35: Locating Connector C -122 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Measure the resistance between connector terminals 1 and 2 under at least two different temperatures. The resi
