Page 977 of 3870

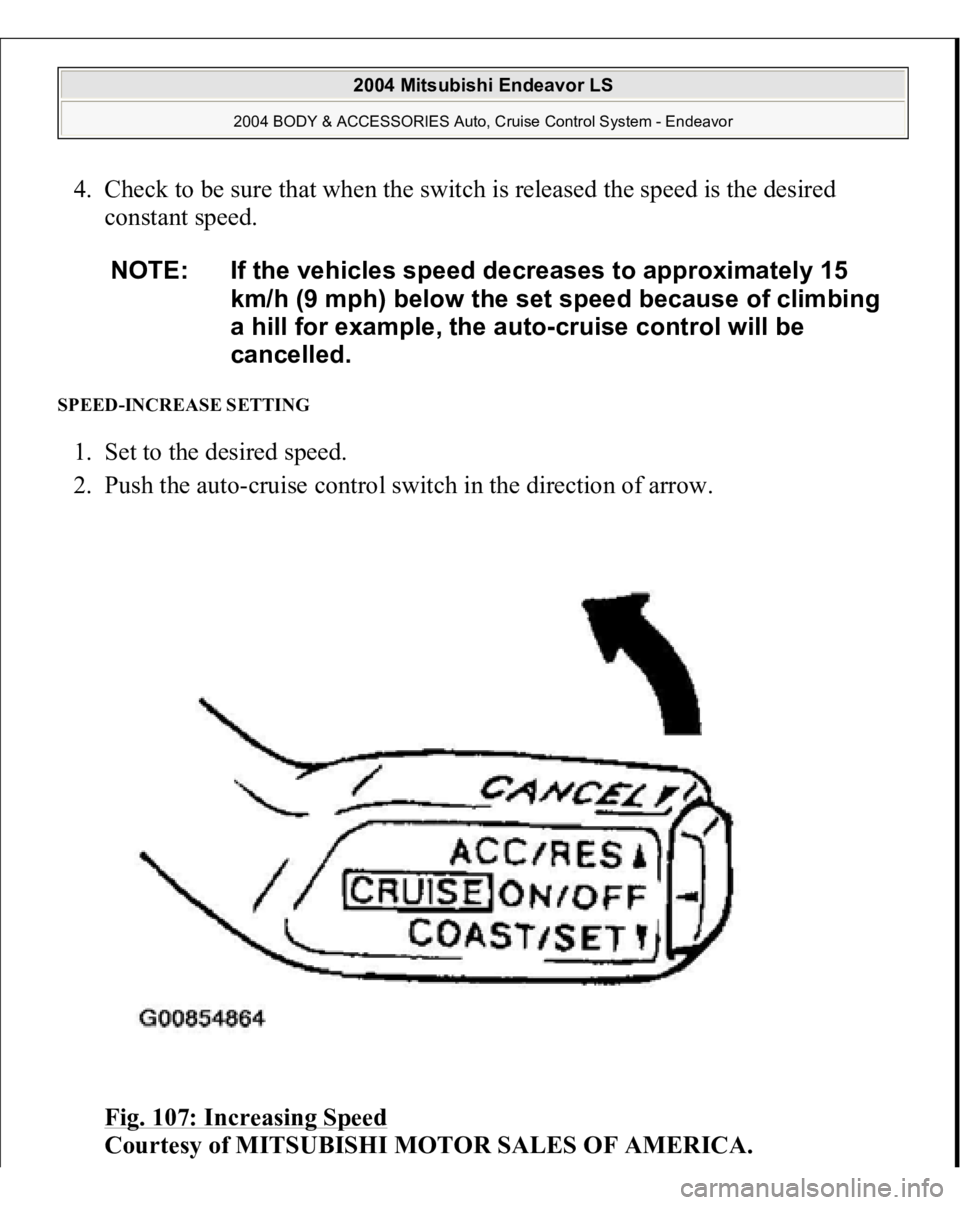

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 4. Check to be sure that when the switch is released the speed is the desired constant speed. SPEED-INCREASE SETTING 1. Set to the desired speed. 2. Push the auto-cruise control switch in the direc

Page 978 of 3870

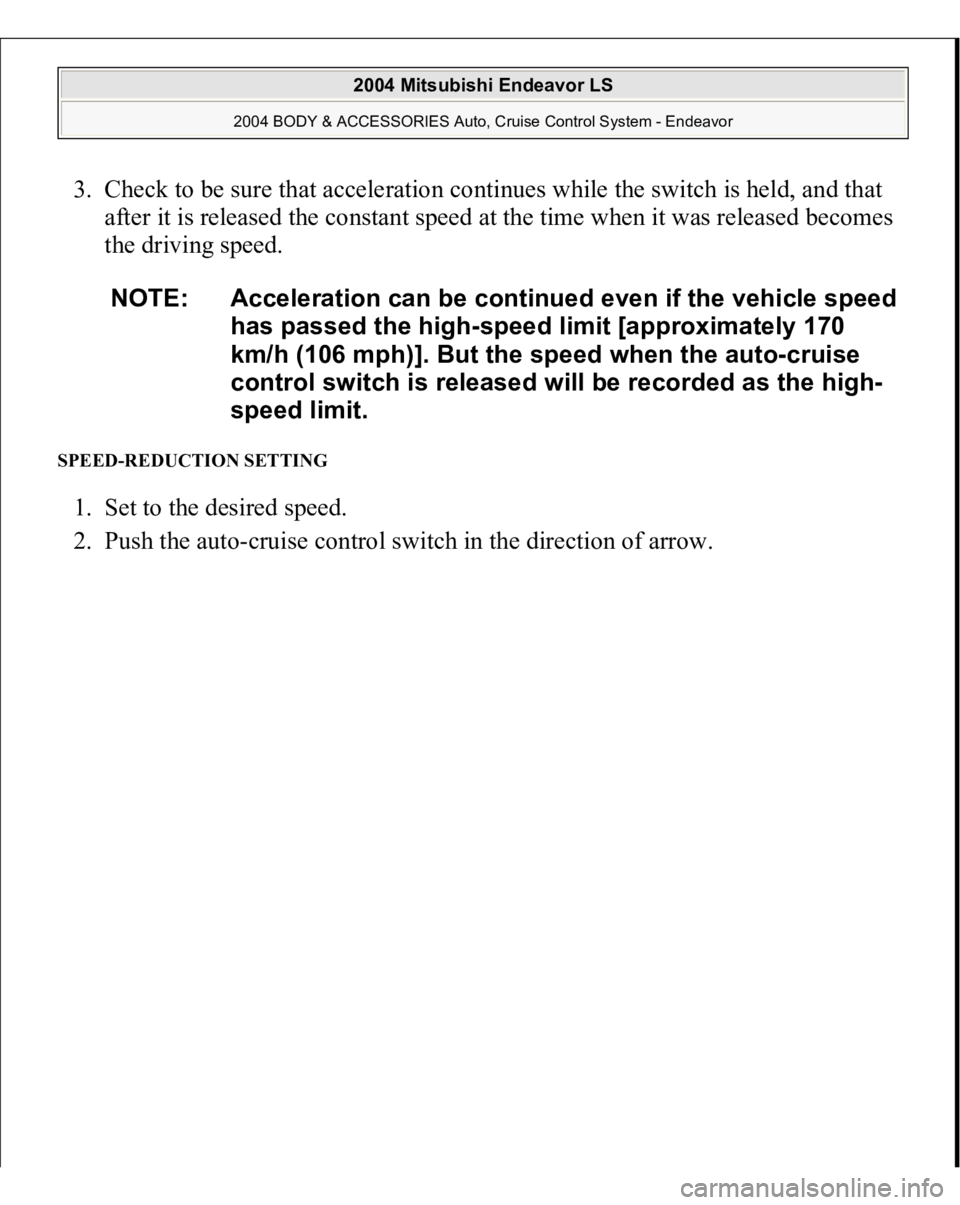

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. Check to be sure that acceleration continues while the switch is held, and that after it is released the constant speed at the time when it was released becomes the driving speed. SPEED-REDUCTION

Page 979 of 3870

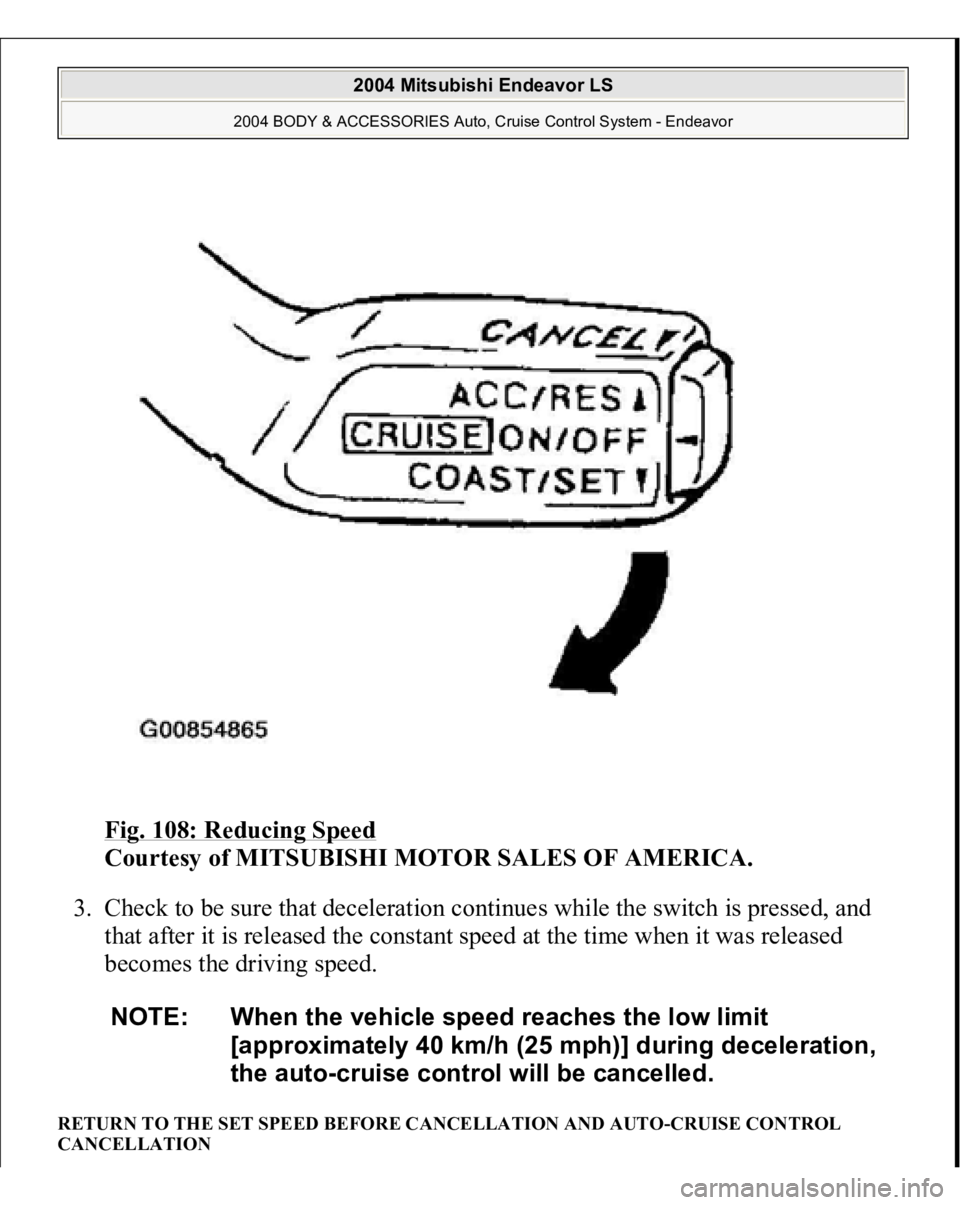

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 108: Reducing Speed Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Check to be sure that deceleration continues while the switch is pressed, and that after it is released the constant spee

Page 980 of 3870

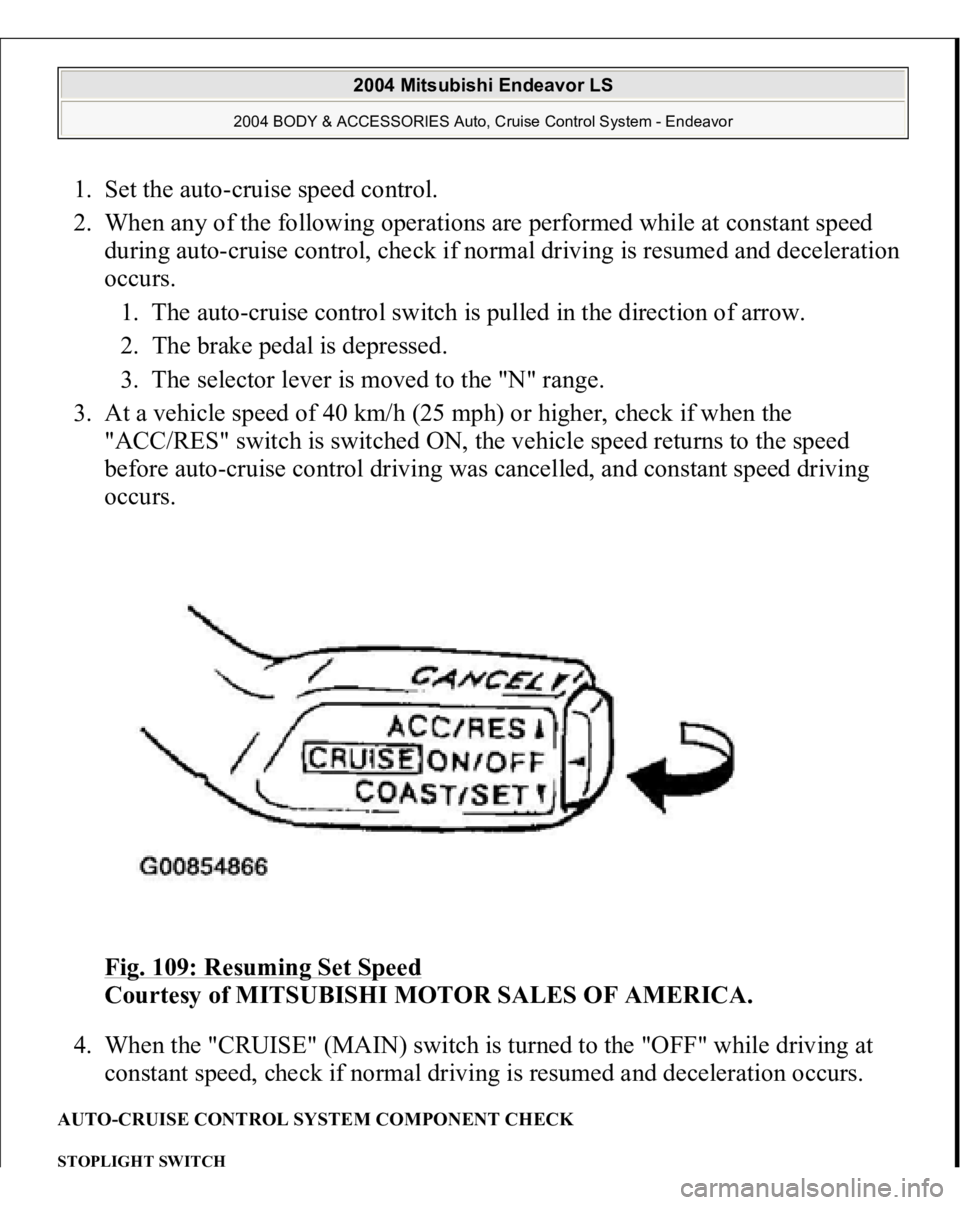

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Set the auto-cruise speed control. 2. When any of the following operations are performed while at constant speed during auto-cruise control, check if normal driving is resumed and deceleration

Page 981 of 3870

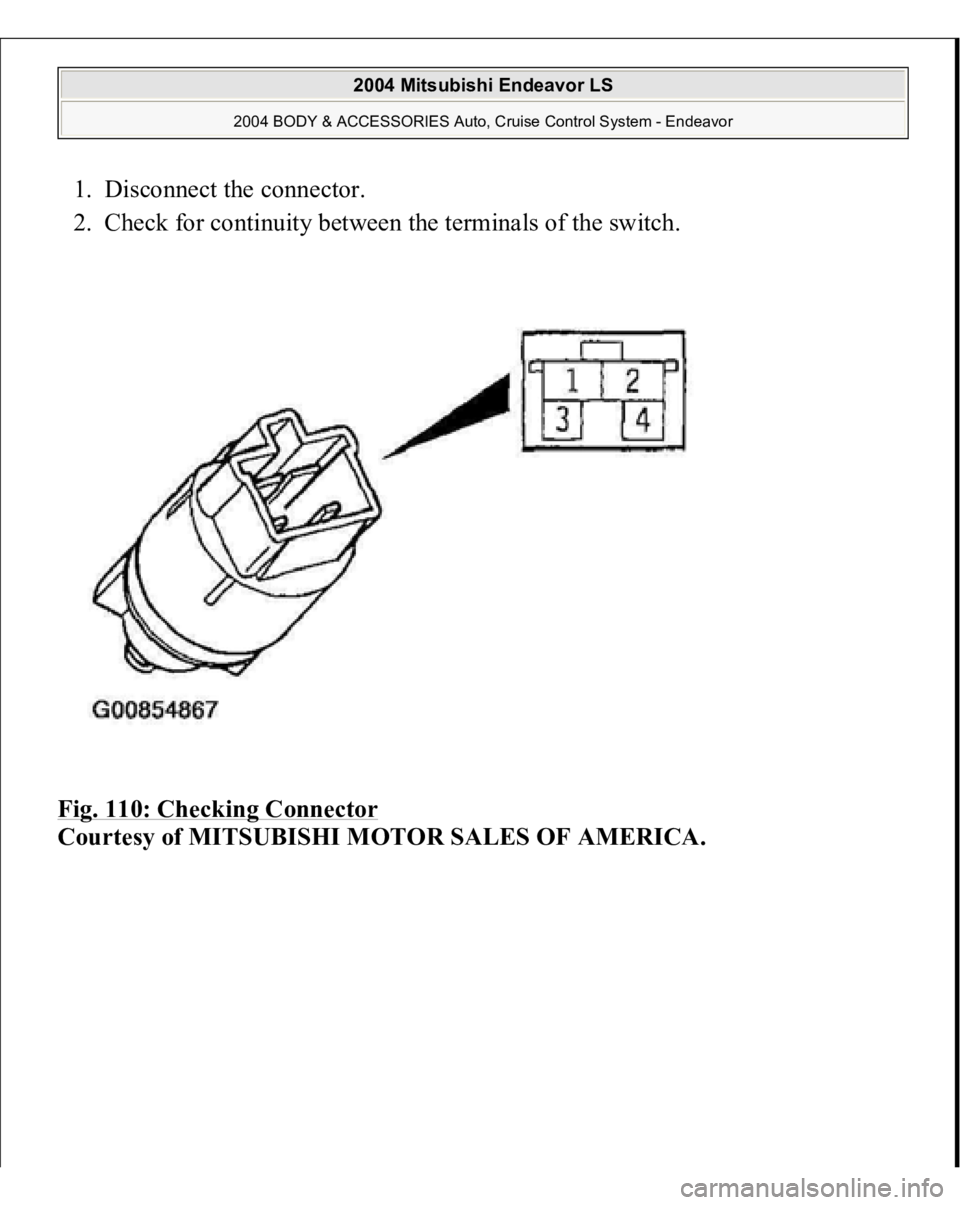

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Disconnect the connector. 2. Check for continuity between the terminals of the switch. Fig. 110: Checking Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor L

Page 982 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 111: Identifying Condition Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. TRANSMISSION RANGE SWITCH ("N" POSITIN) Refer to ESSENTIAL SERVICE . THROTTLE POSITION SENSOR Refer to

Page 983 of 3870

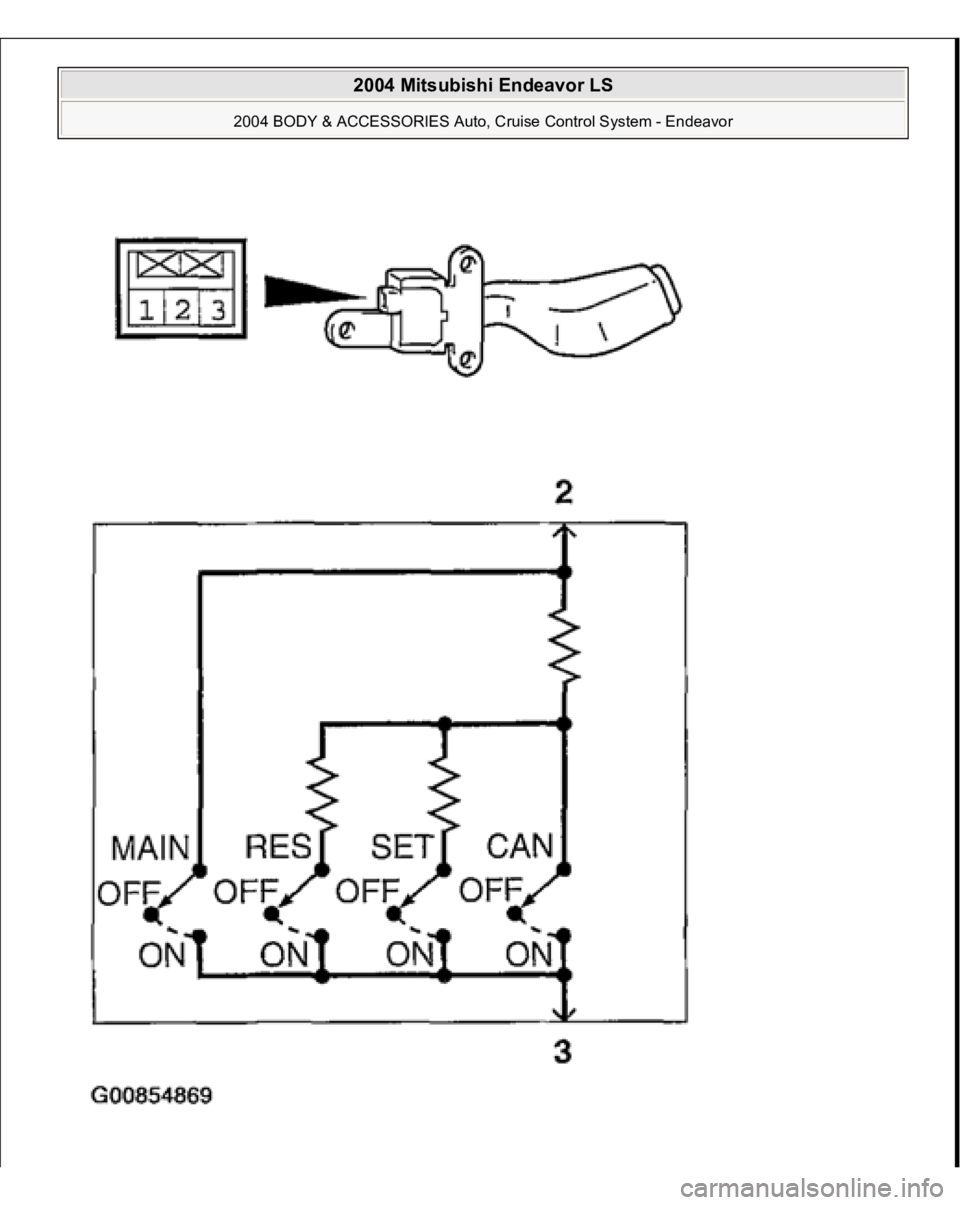

MITSUBISHI ENDEAVOR 2004 Service Repair Manual pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control Syst

Page 984 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
