Page 2977 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 41: Filling Grease Inside Boot Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>D>> DOJ BOOT/DOJ BOOT BAND INSTALLATION 1. Position the DOJ outer race so that the distance between the boot ban

Page 2978 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 42: Positioning DOJ Outer Race Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Remove part of the DOJ boot from the DOJ outer race to release the air pressure inside the boot. DIFFERENTIA

Page 2979 of 3870

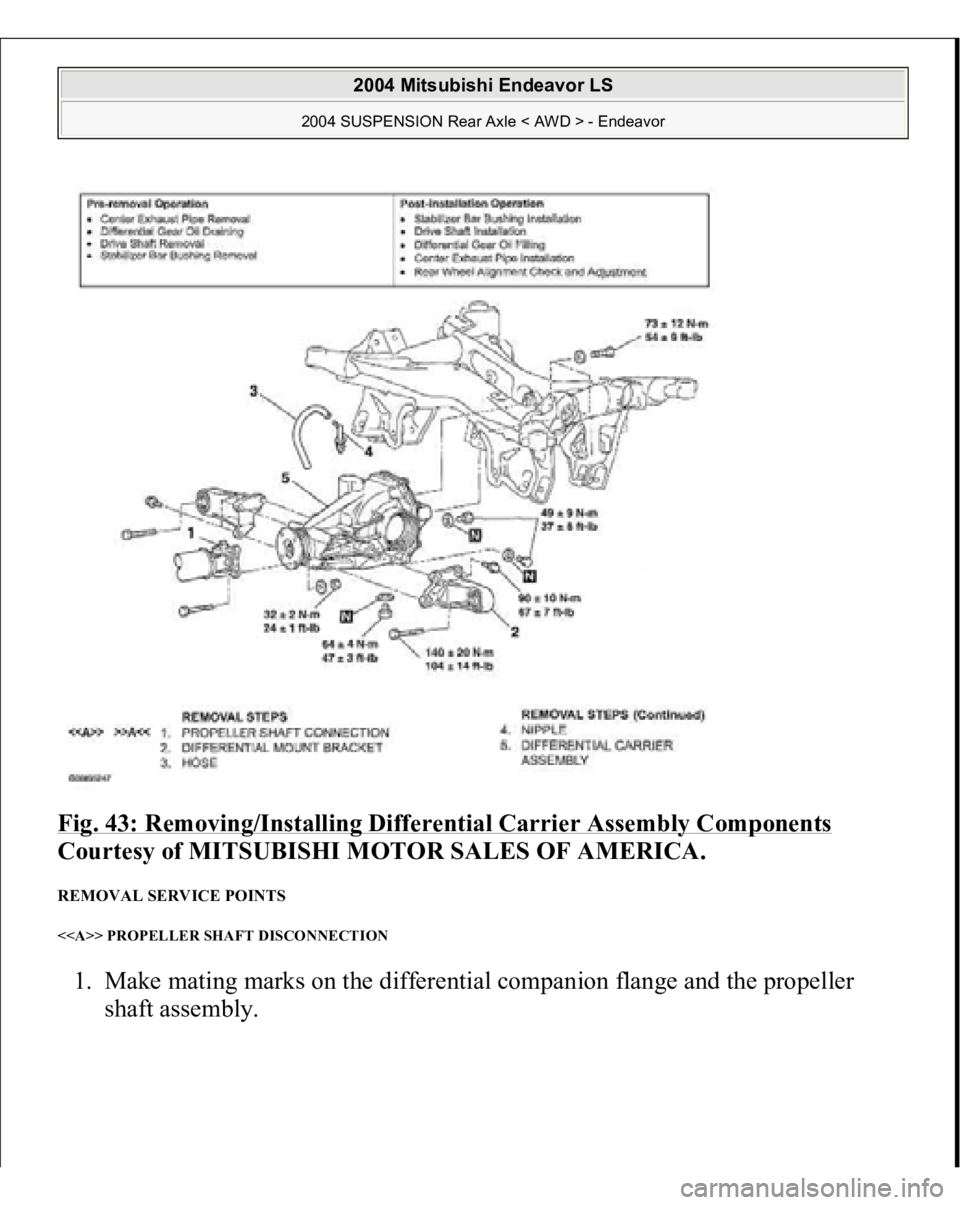

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 43: Removing/Installing Differential Carrier Assembly Components Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE POINTS <<A>> PROPELLER SHAFT DISCONNECTION 1. Make mating marks

Page 2980 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 44: Mating Marks On Differential Companion Flange Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Suspend the removed propeller shaft from the body with a wire to prevent bending. INSTALL

Page 2981 of 3870

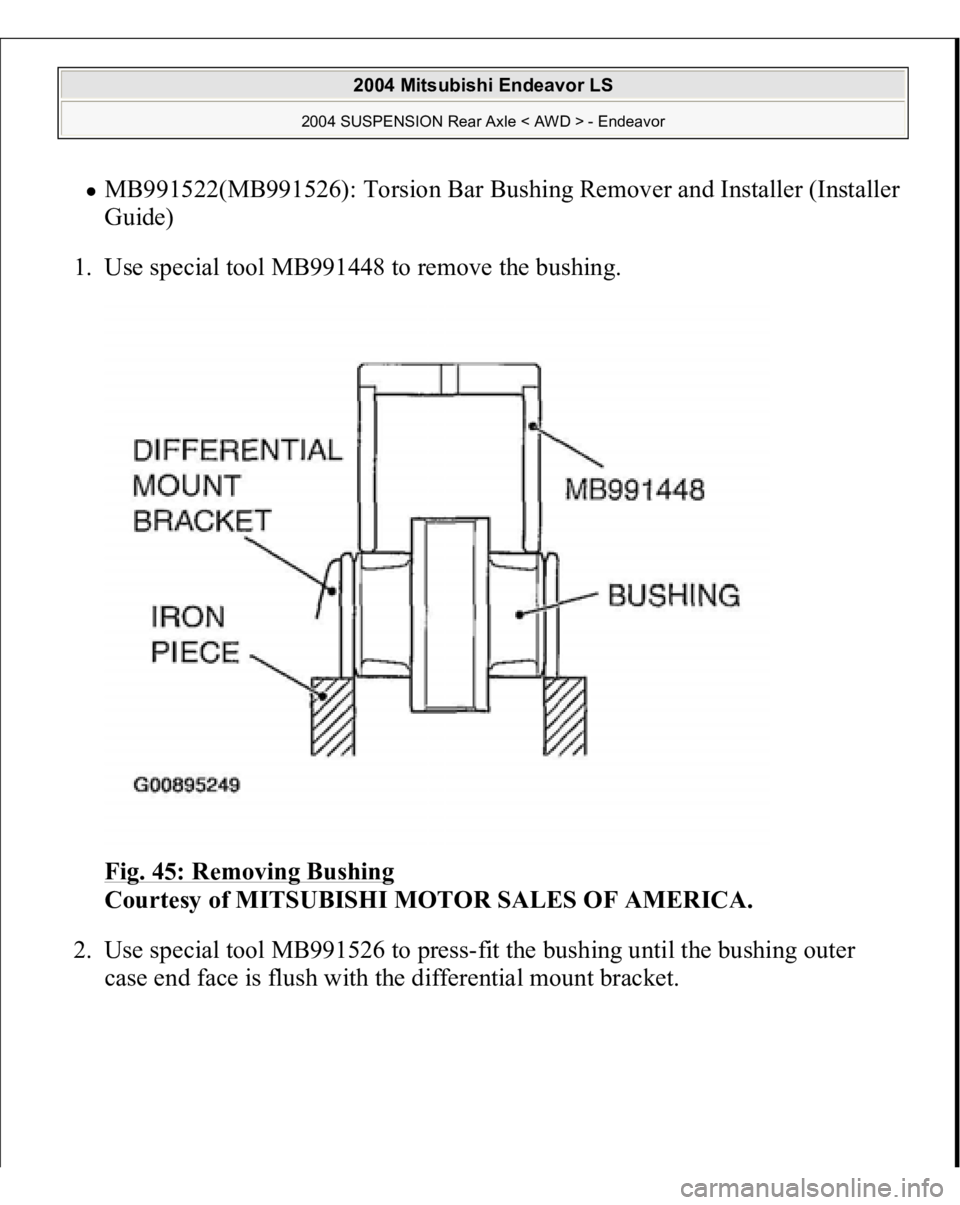

MITSUBISHI ENDEAVOR 2004 Service Repair Manual MB991522(MB991526): Torsion Bar Bushing Remover and Installer (Installer Guide) 1. Use special tool MB991448 to remove the bushing. Fig. 45: Removing Bushing Courtesy of MITSUBISHI MOTOR SALES O

Page 2982 of 3870

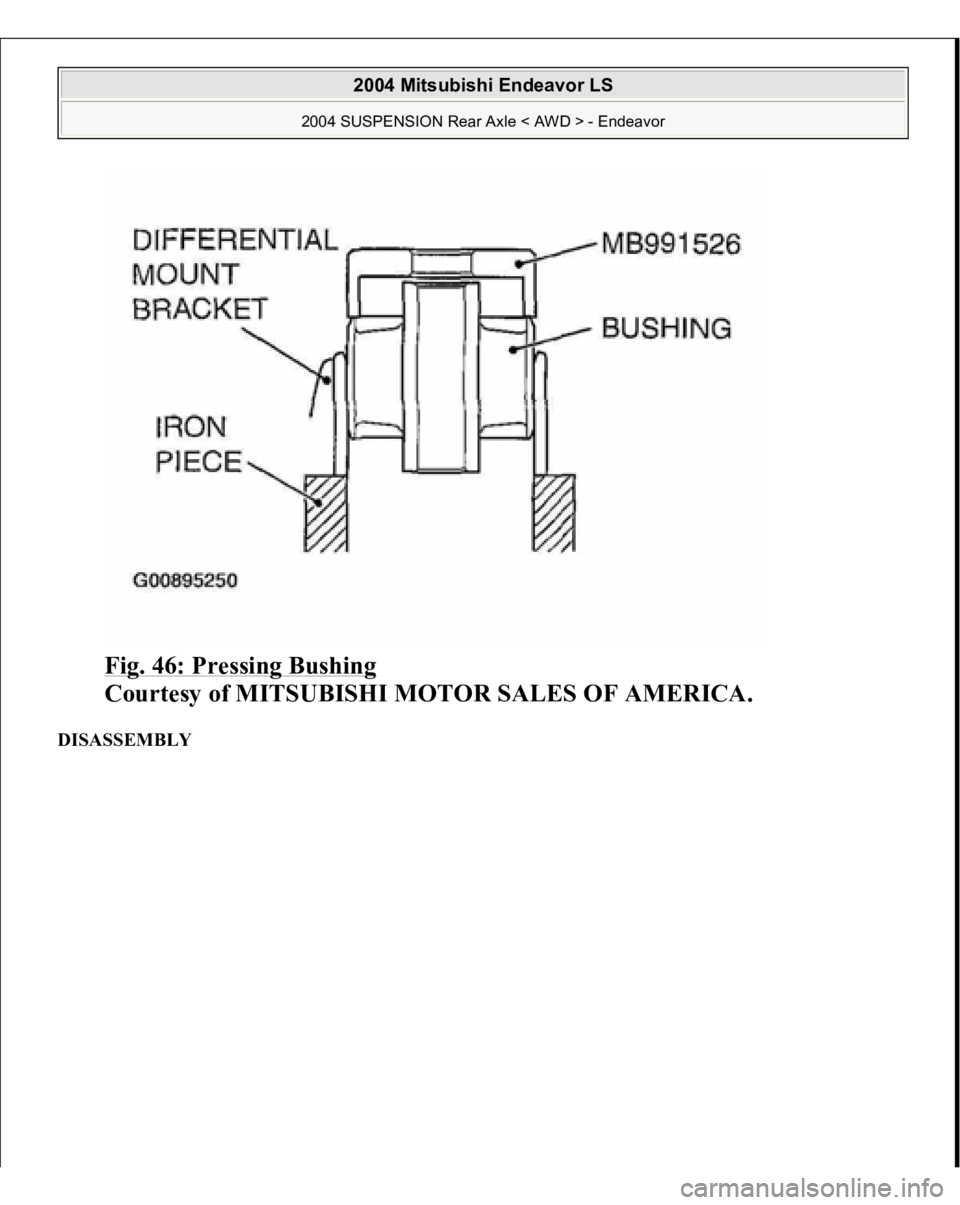

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 46: Pressing Bushing Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DISASSEMBLY 2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear Axle < AWD > - Endeavor

Page 2983 of 3870

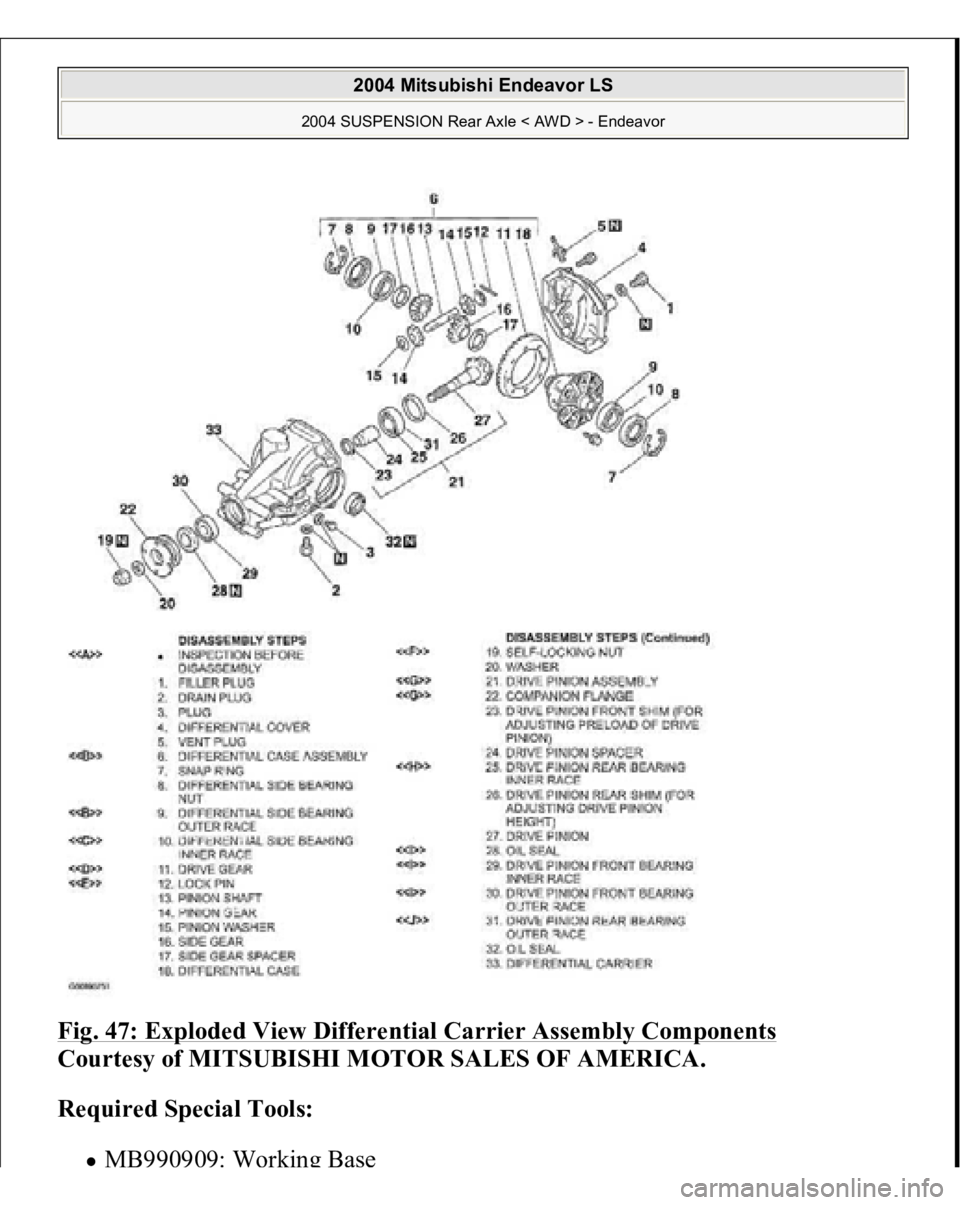

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 47: Exploded View Differential Carrier Assembly Components Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Required Special Tools: MB 990909: Wo rkin g Base 2004 Mitsubishi Endeavor LS

Page 2984 of 3870

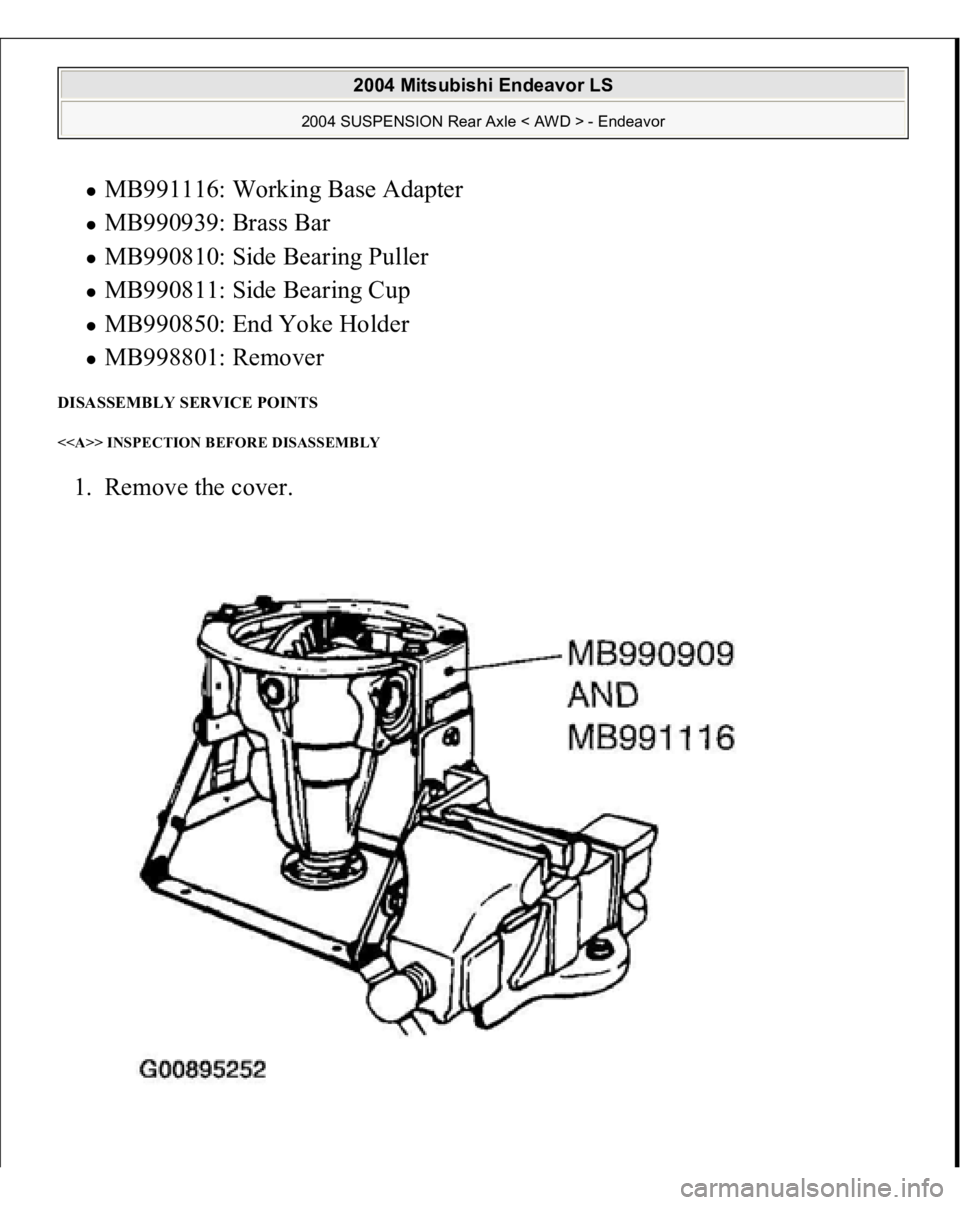

MITSUBISHI ENDEAVOR 2004 Service Repair Manual MB991116: Working Base Adapter MB990939: Brass Bar MB990810: Side Bearing Puller MB990811: Side Bearing Cup MB990850: End Yoke Holder MB998801: Remover DISASSEMBLY SERVICE POINTS <<A>> INSPECTI
