Page 537 of 3870

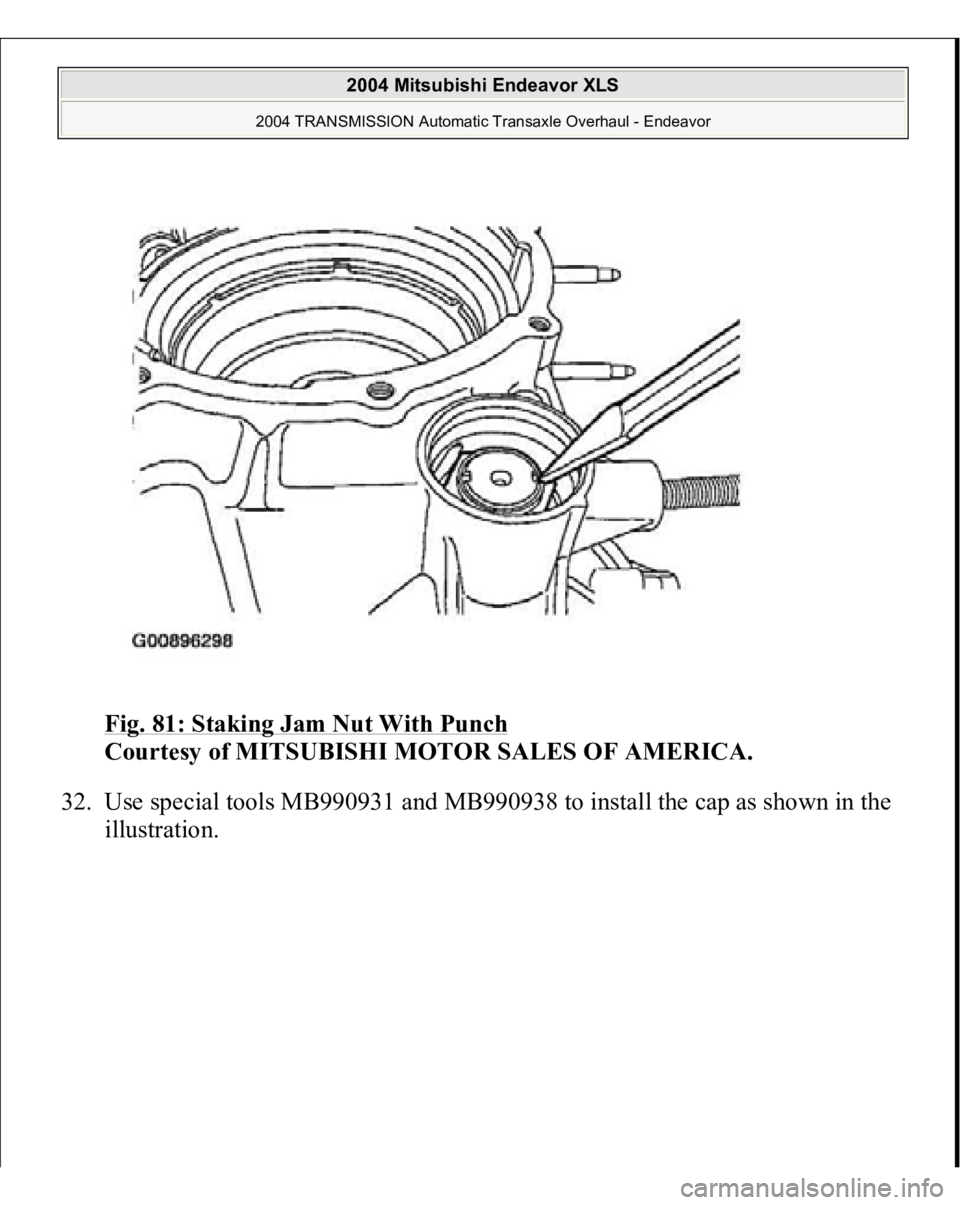

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 81: Staking Jam Nut With Punch Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 32. Use special tools MB990931 and MB990938 to install the cap as shown in the illustration. 2004 Mitsubishi E

Page 538 of 3870

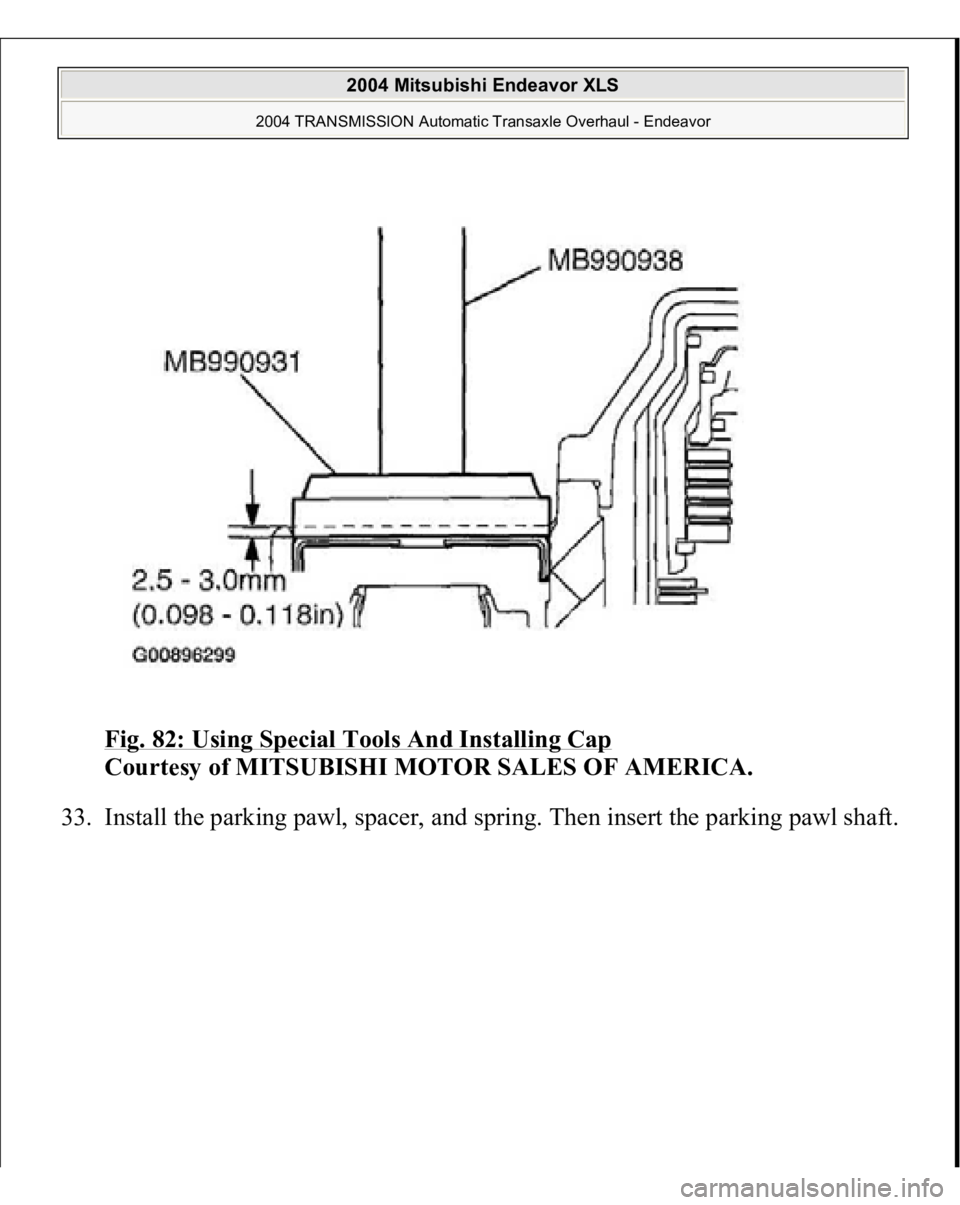

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 82: Using Special Tools And Installing Cap Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 33. Install the parkin g pawl, s pacer, and s prin g. Then insert the parkin g pawl shaft. 2004 M

Page 539 of 3870

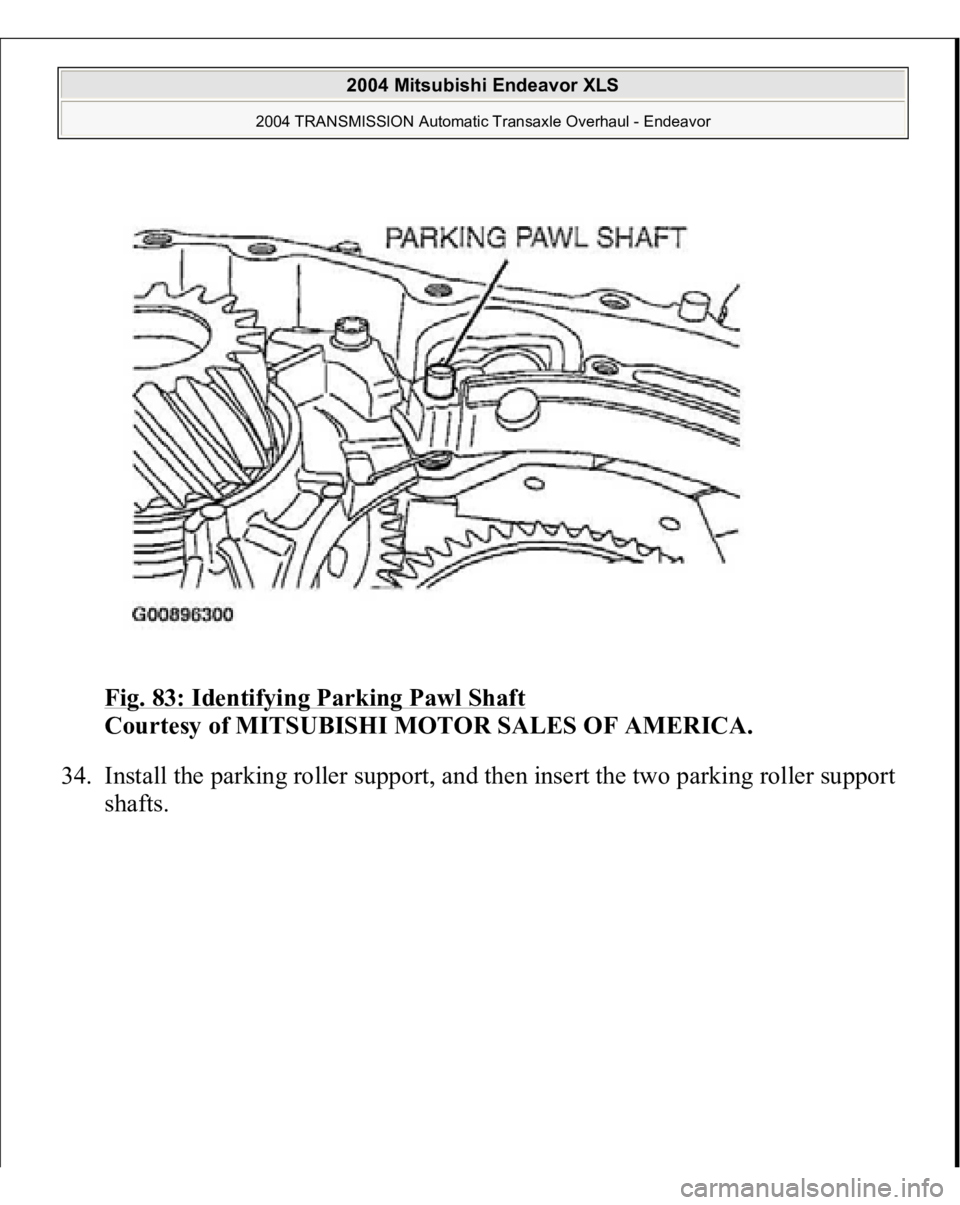

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 83: Identifying Parking Pawl Shaft Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 34. Install the parking roller support, and then insert the two parking roller support shafts. 2004 Mitsub

Page 540 of 3870

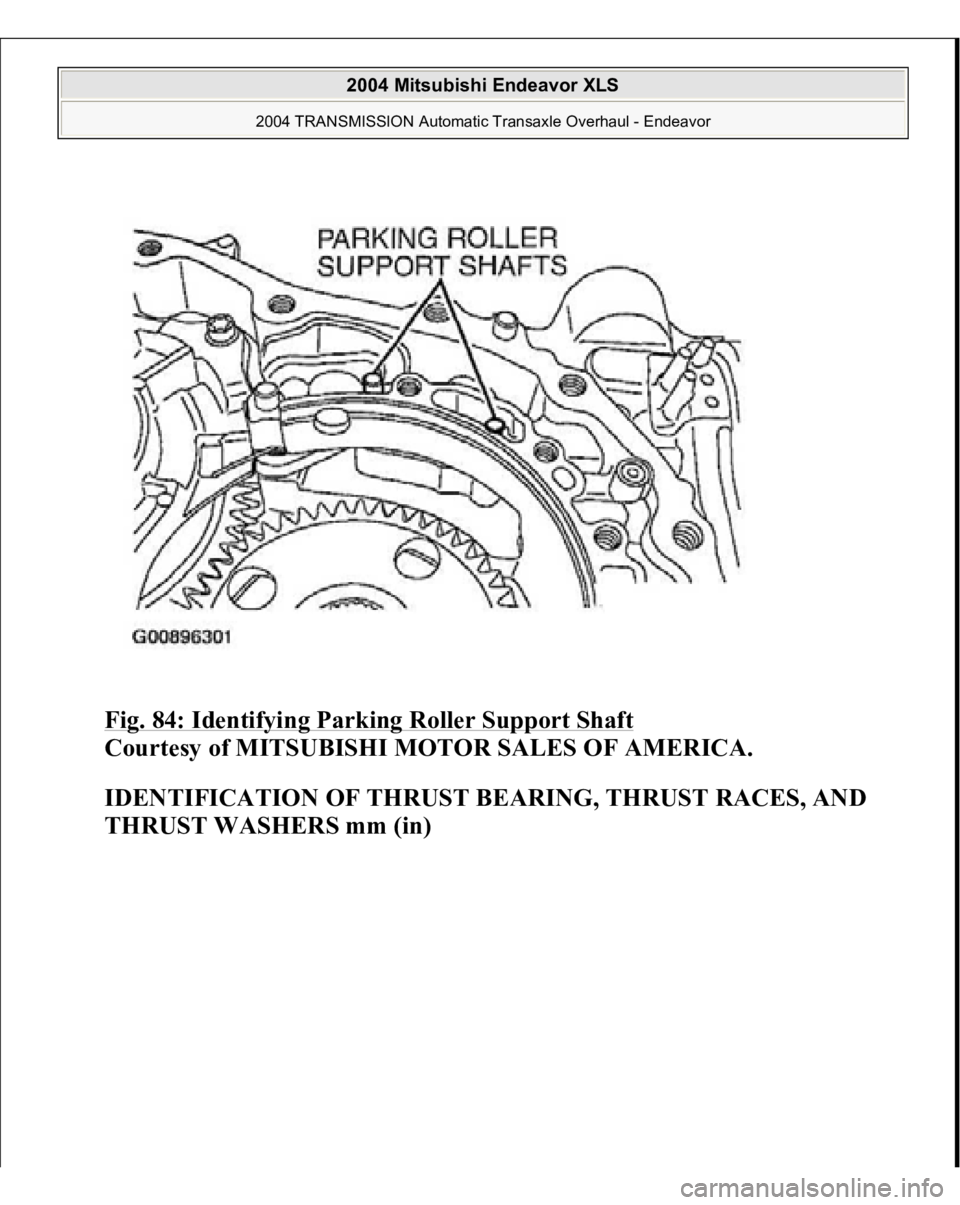

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 84: Identifying Parking Roller Support Shaft Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. IDENTIFICATION OF THRUST BEARING, THRUST RACES, AND THRUST WASHERS mm (in) 2004 Mitsubishi Endeav

Page 541 of 3870

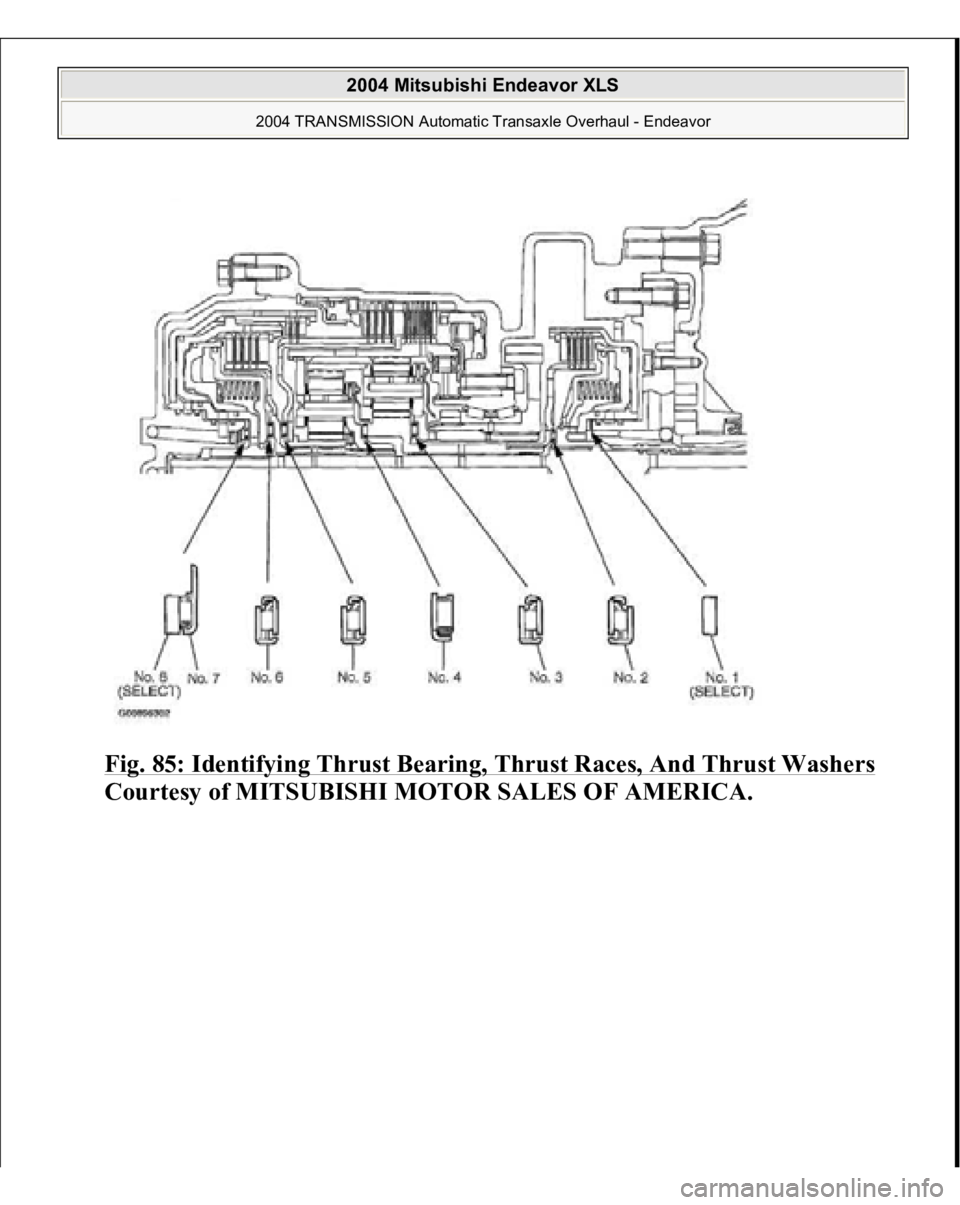

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 85: Identifying Thrust Bearing, Thrust Races, And Thrust Washers Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul -

Page 542 of 3870

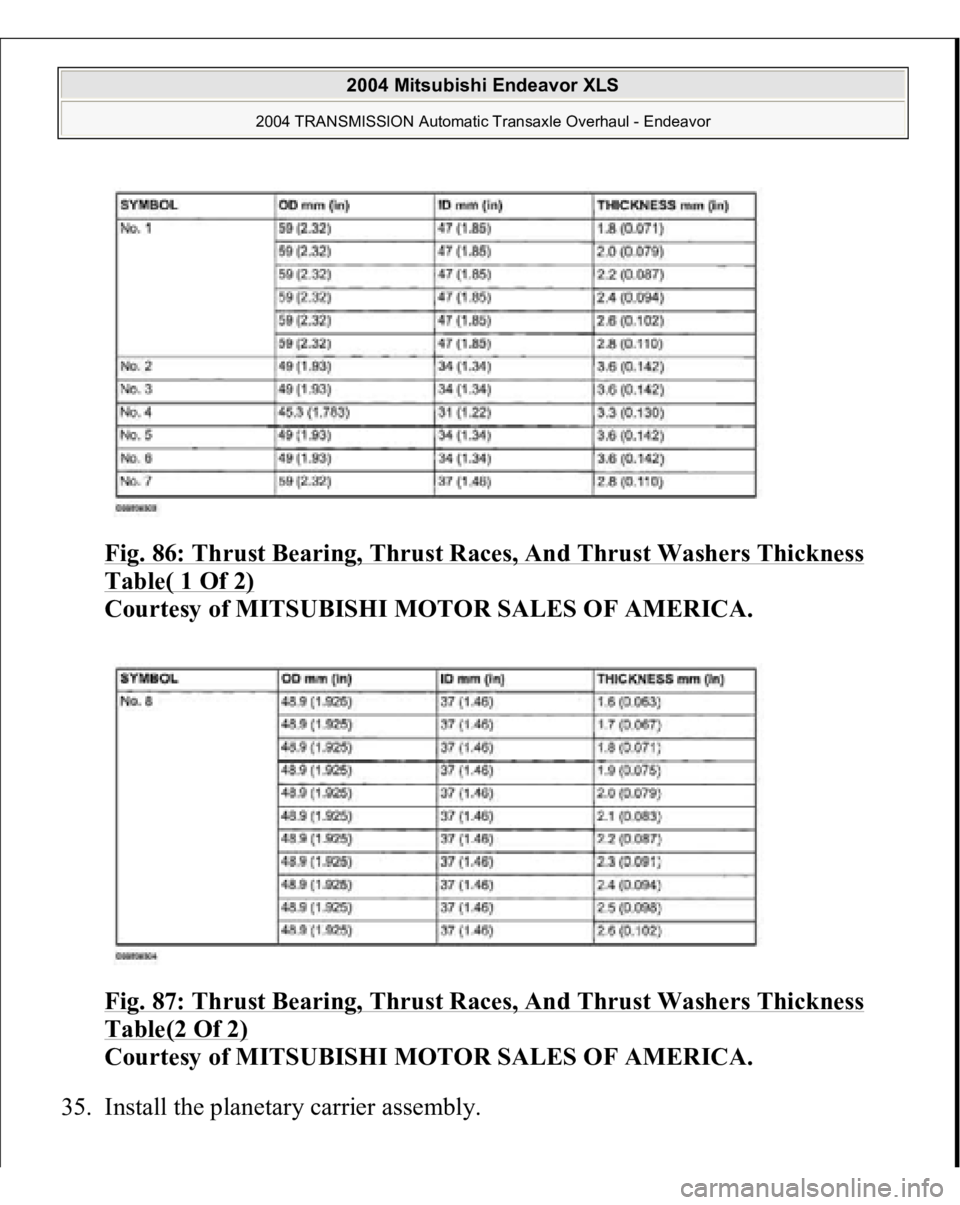

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 86: Thrust Bearing, Thrust Races, And Thrust Washers Thickness Table( 1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 87: Thrust Bearing, Thrust Races, And Thrust Washers Thickness

Page 543 of 3870

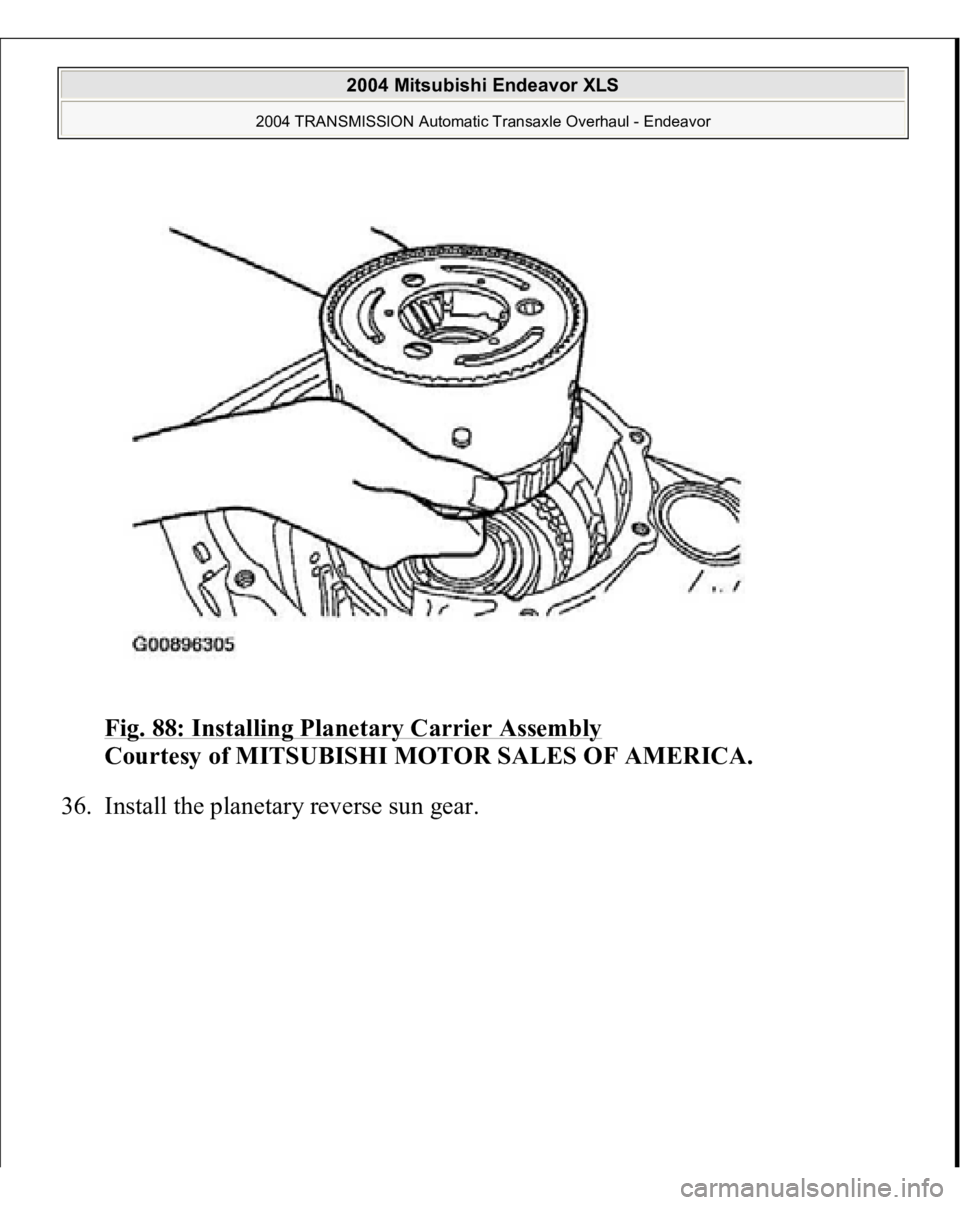

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 88: Installing Planetary Carrier Assembly Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 36. Install the planetar y reverse sun gear. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Autom

Page 544 of 3870

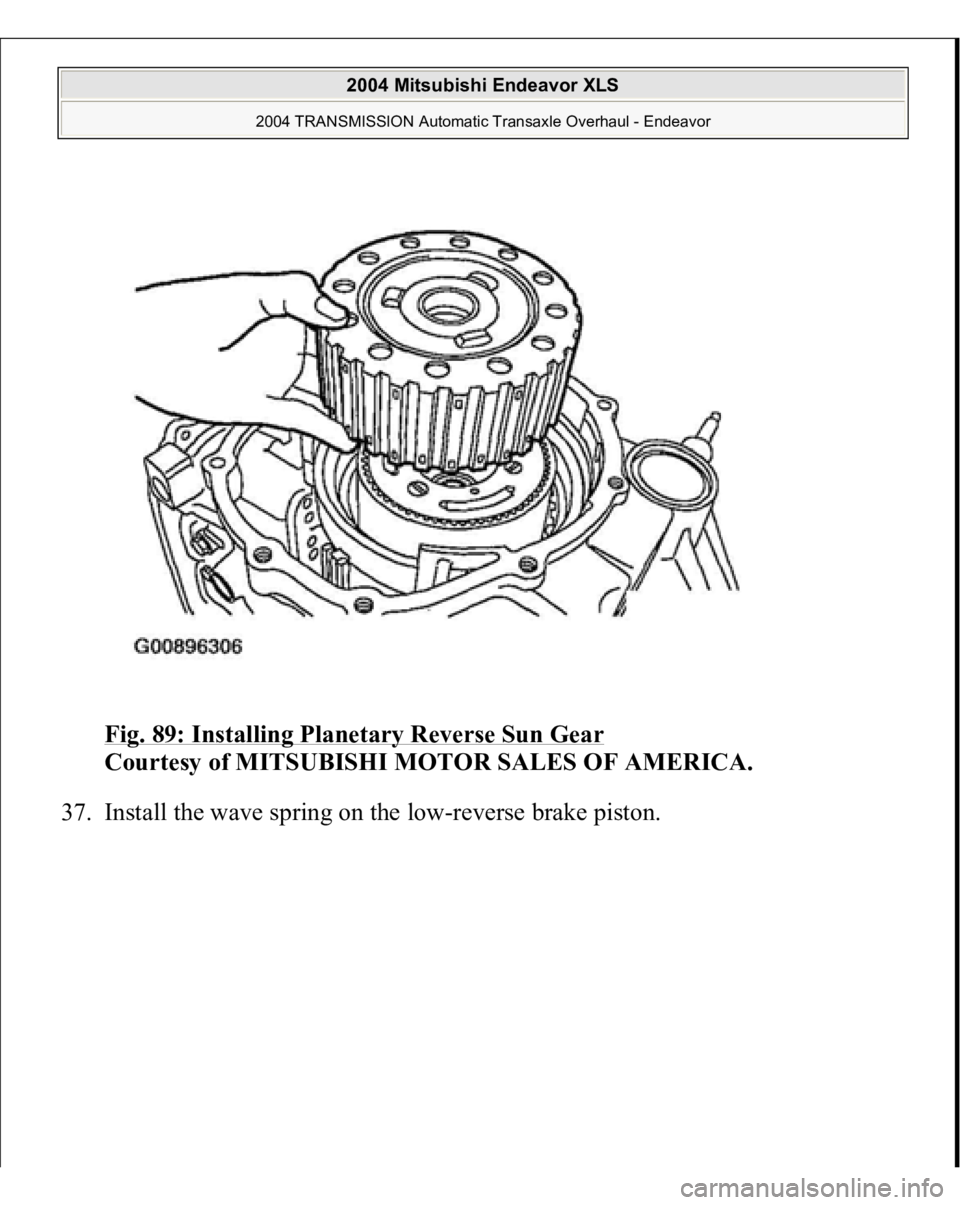

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 89: Installing Planetary Reverse Sun Gear Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 37. Install the wave s prin g on the low-reverse brake piston. 2004 Mitsubishi Endeavor XLS 2004 T
