Page 3385 of 3870

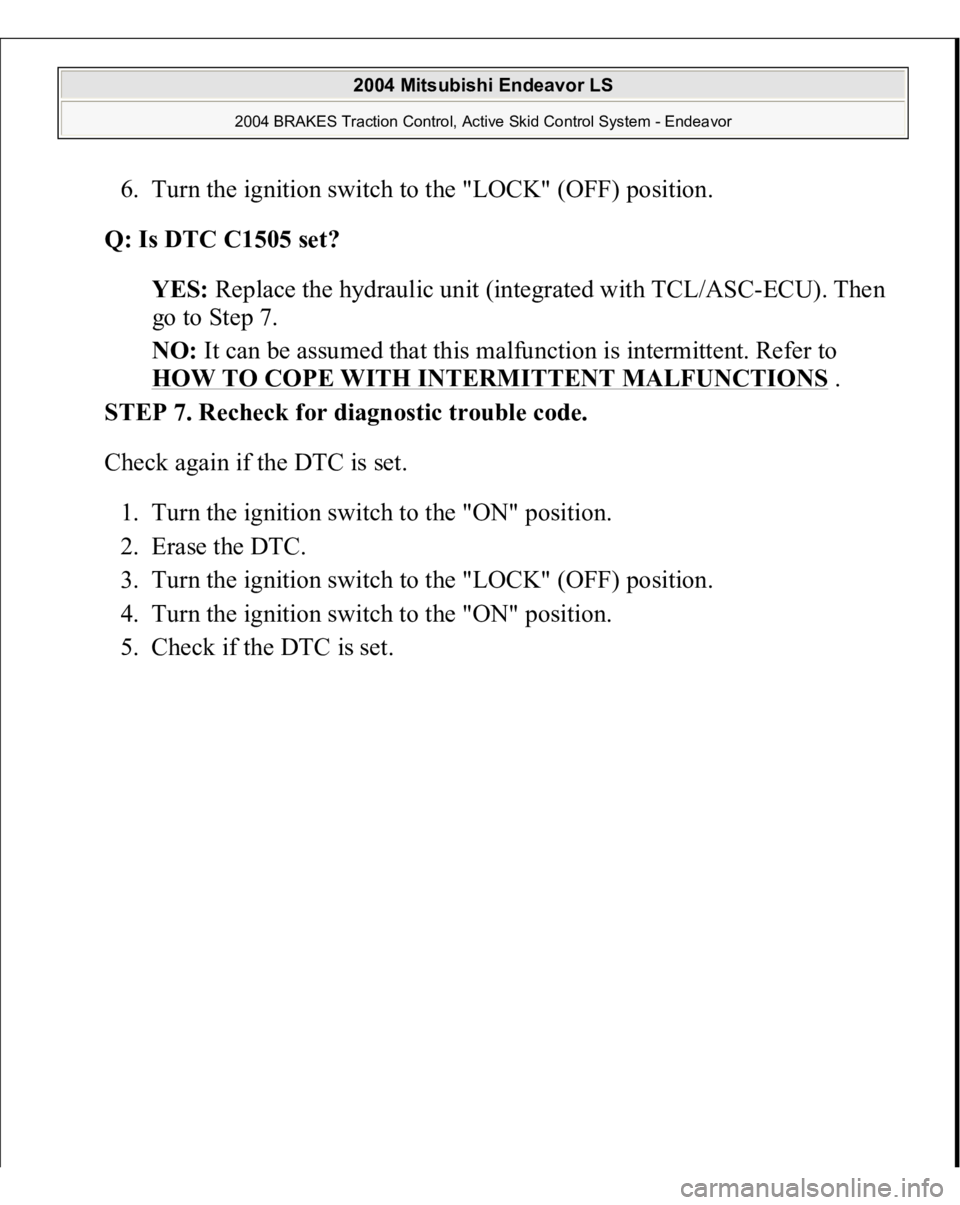

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1505 set? YES: Replace the hydraulic unit (integrated with TCL/ASC-ECU). Then go to Step 7. NO: It can be assumed th

Page 3386 of 3870

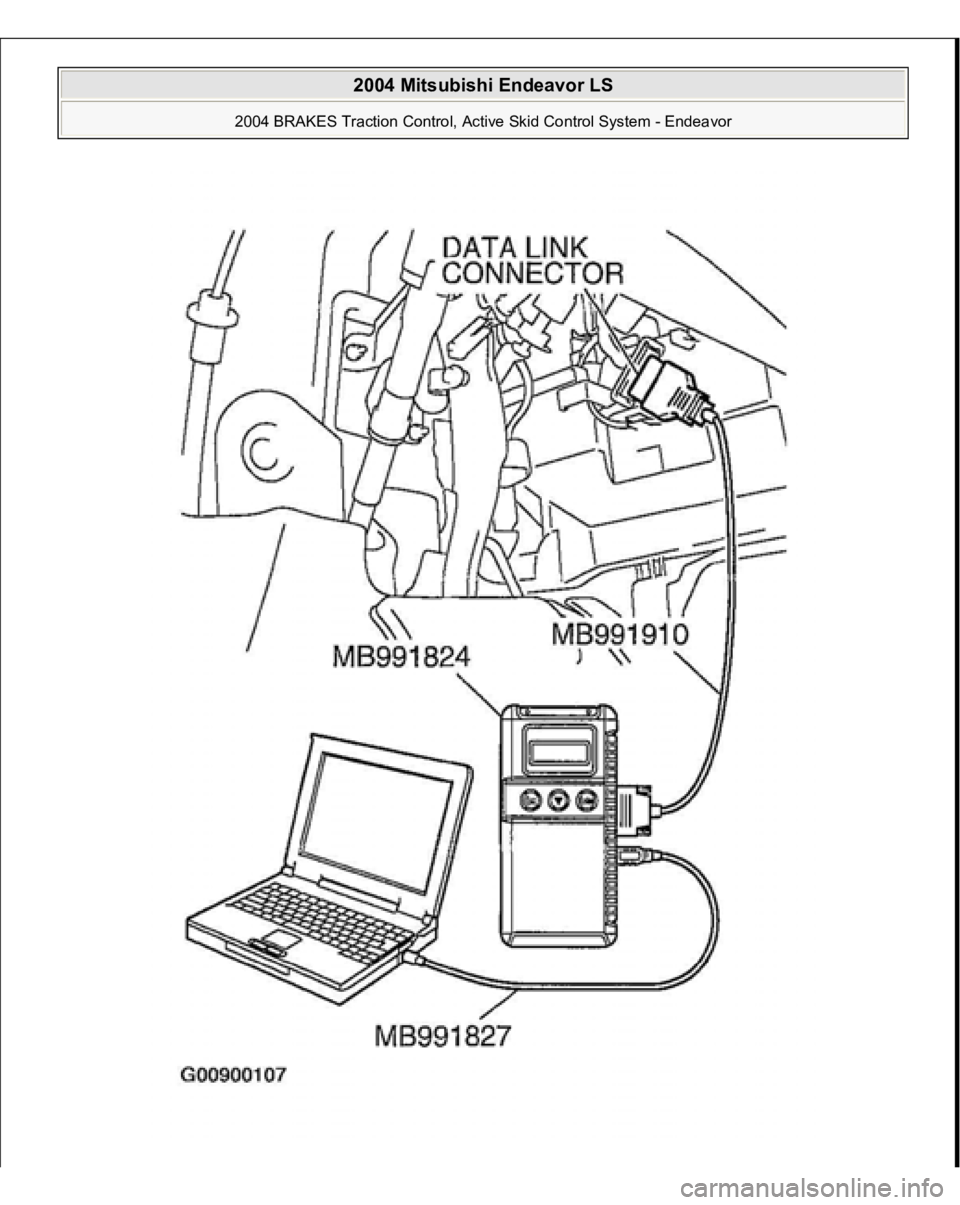

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3387 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 171: Rechecking For Diagnostic Trouble Code Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1505 set? YES: Go to

Page 3388 of 3870

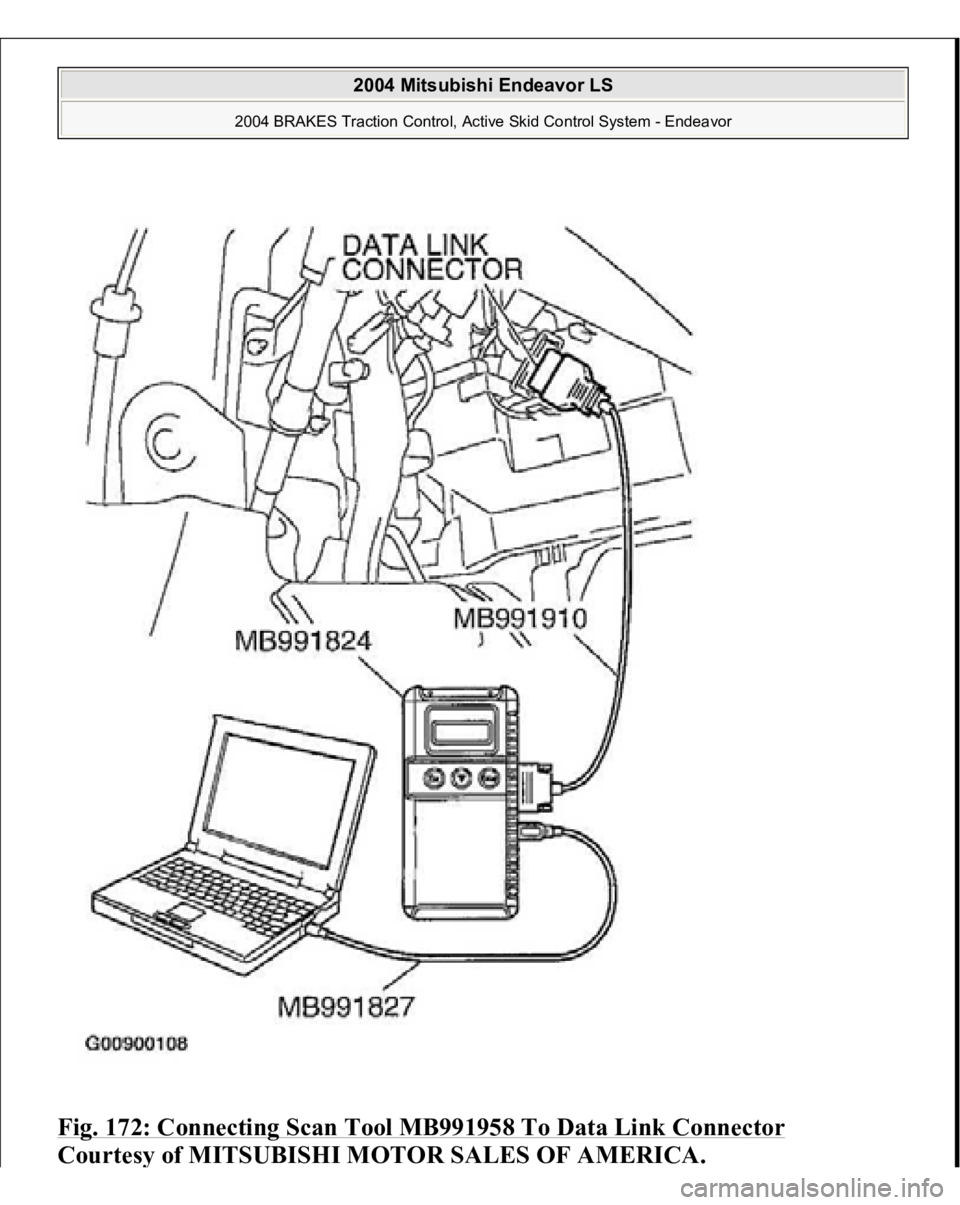

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 172: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control Syste

Page 3389 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual TCL/ASC DTC SET CONDITION S The TCL/ASC-ECU always monitors itself while the system is working. If the ECU detects any faults, it will set this DTC. TROUBLESHOOTING HINTS (The most likely causes for

Page 3390 of 3870

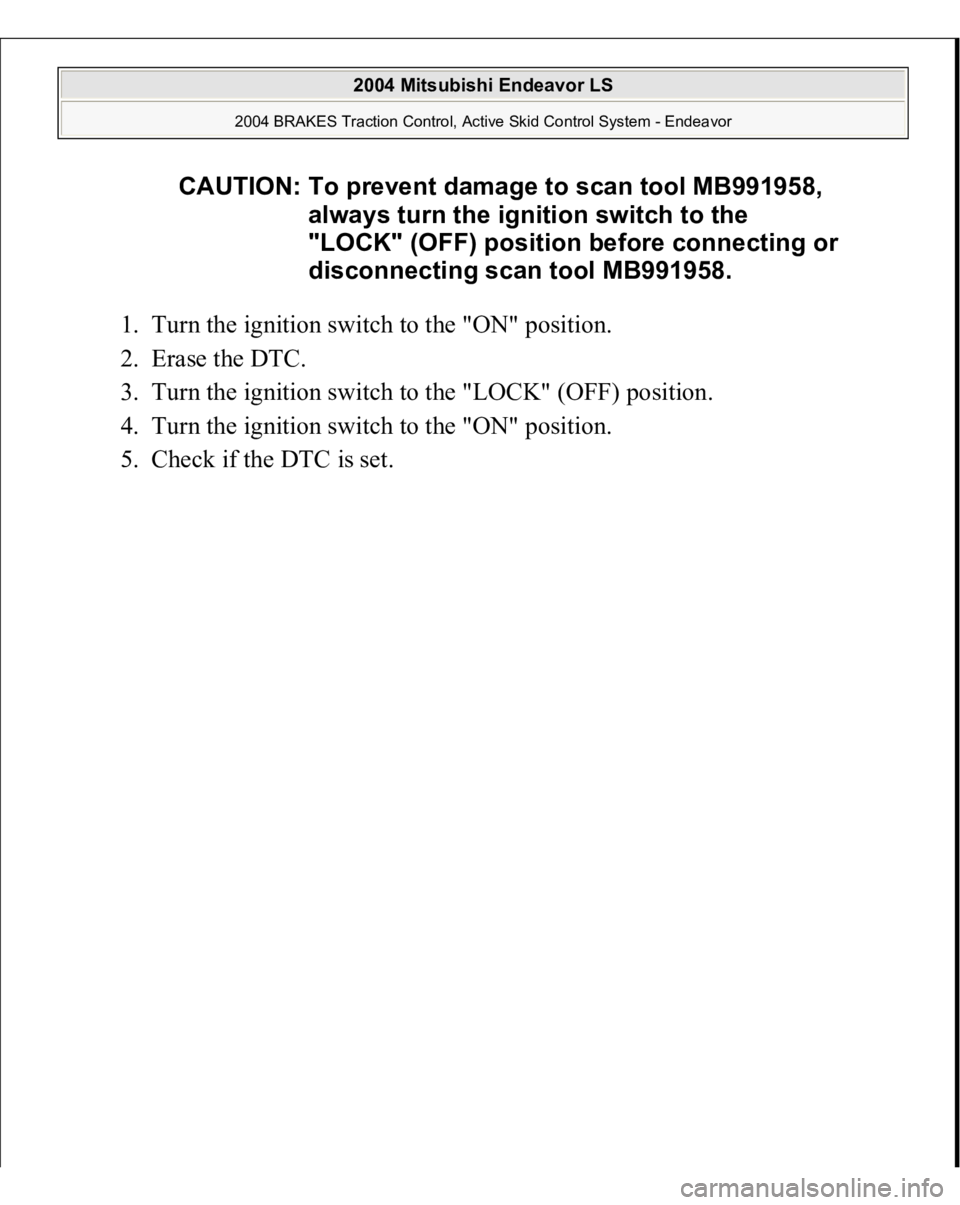

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Turn the ignition switch to the "ON" position. 2. Erase the DTC. 3. Turn the ignition switch to the "LOCK" (OFF) position. 4. Turn the ignition switch to the "ON" posi

Page 3391 of 3870

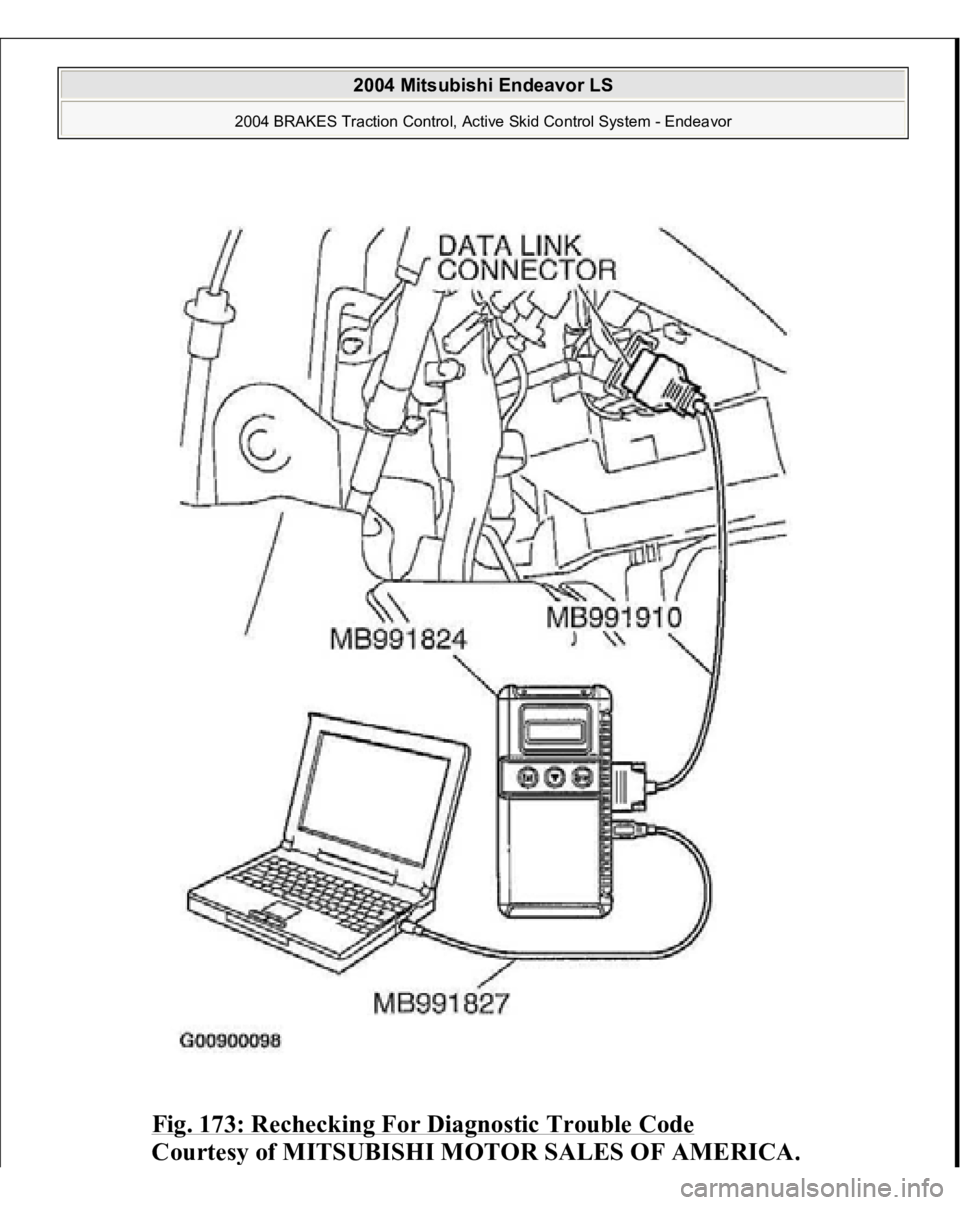

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 173: Rechecking For Diagnostic Trouble Code Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3392 of 3870

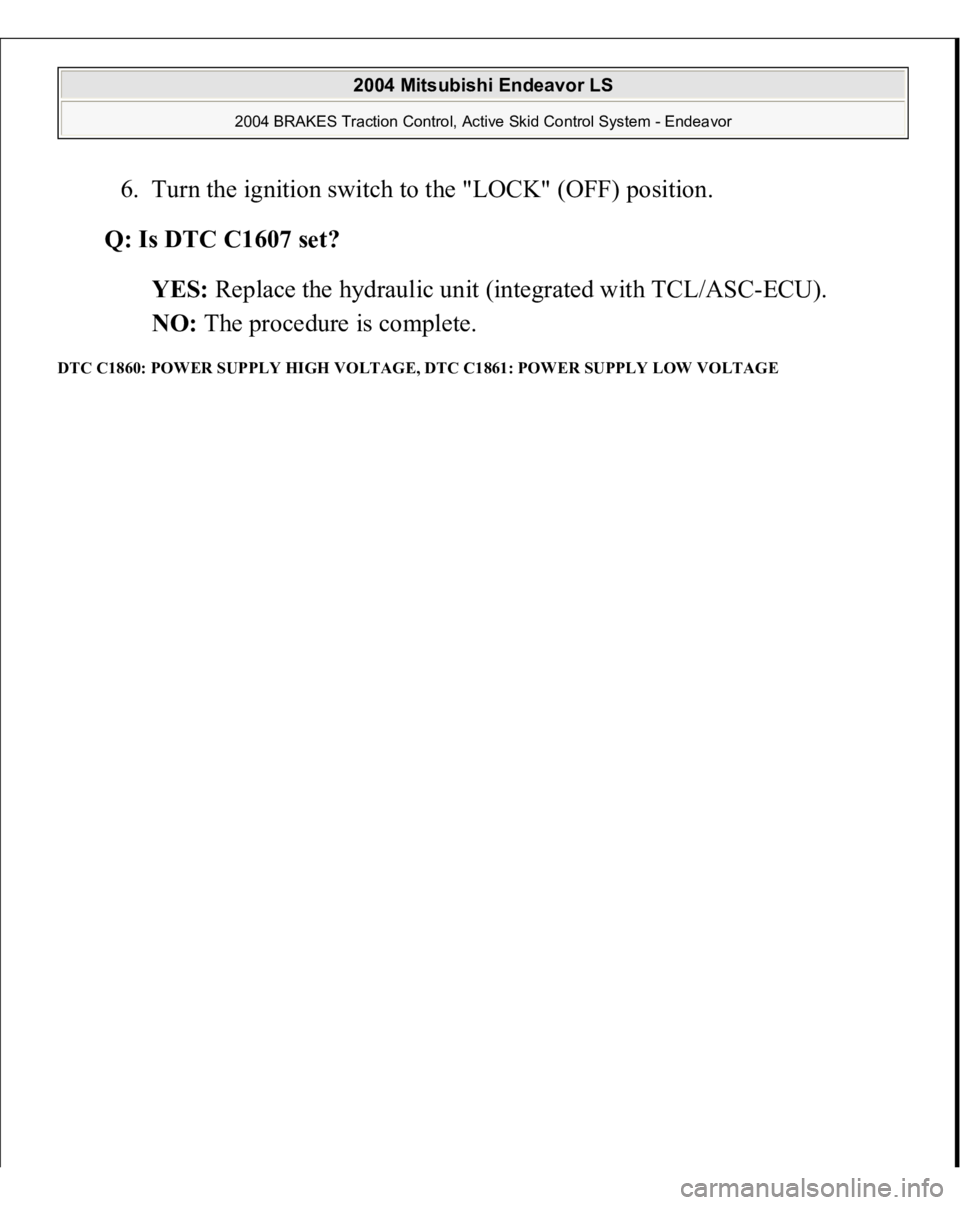

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1607 set? YES: Replace the hydraulic unit (integrated with TCL/ASC-ECU). NO: The procedure is complete. DTC C1860:
