2004 MITSUBISHI ENDEAVOR differential

Fig. 26: Identifying Torque Converter Housing Mounting Bolts

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
20. Remove the torque converter housing mounting bolts (18 pieces), and then
remove the torque converter housing.
21. Remove the differential bearing outer race and spacer from the torque
converter housing.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Fig. 28: Number Name Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
23. Remove the differential.
24. Remove the differential bearing outer race from the transaxle case.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Fig. 29: Removing Differential Bearing Outer Race From Transaxle Case

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
25. Remove the oil filter.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Fig. 118: Installing Oil Filter

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
73. Use special tools MB990936 and MB990938 to tap the differential bearing
outer race in the transaxle case.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

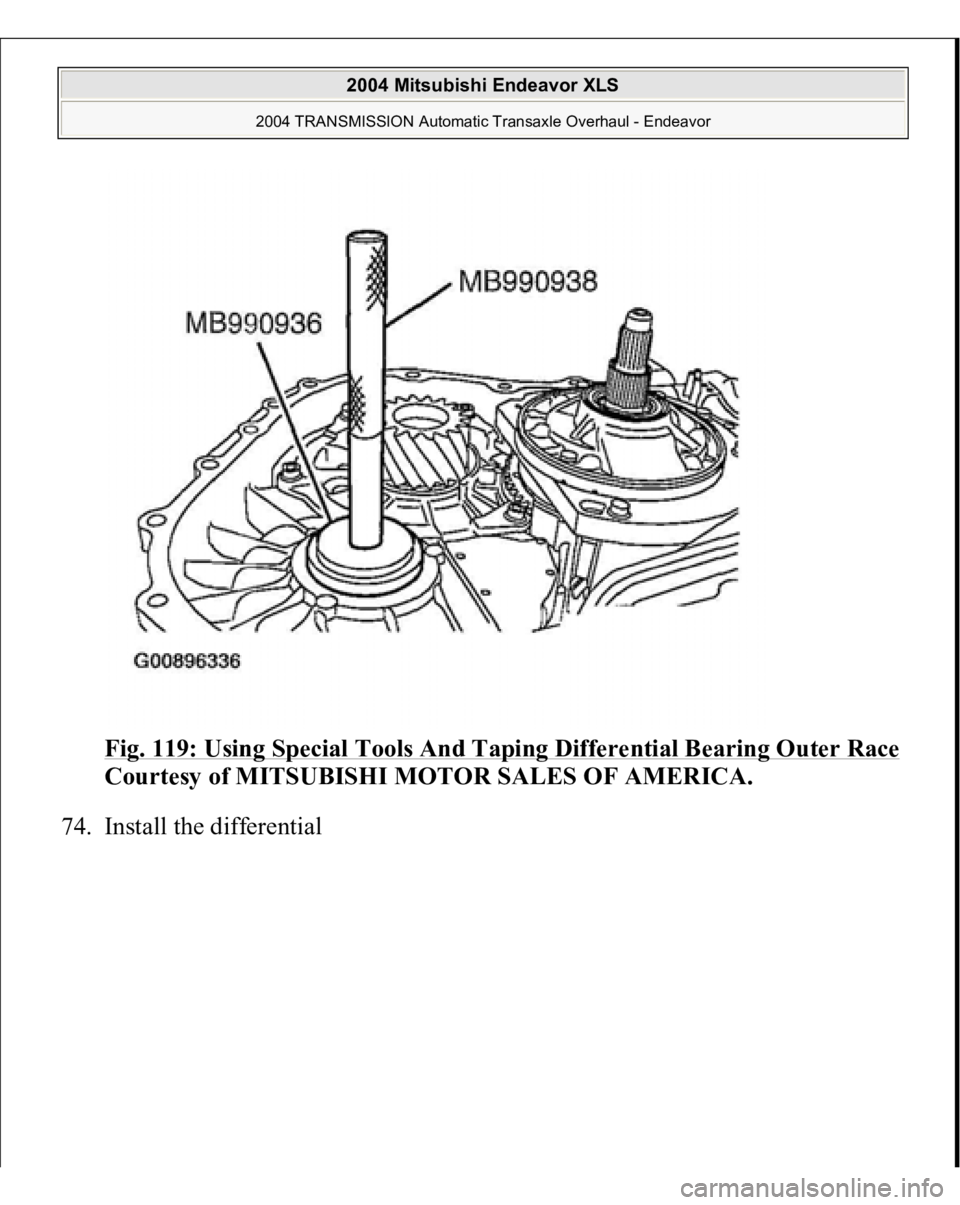

Fig. 119: Using Special Tools And Taping Differential Bearing Outer RaceCourtesy of MITSUBISHI MOTOR SALES OF AMERICA.
74. Install the differential

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

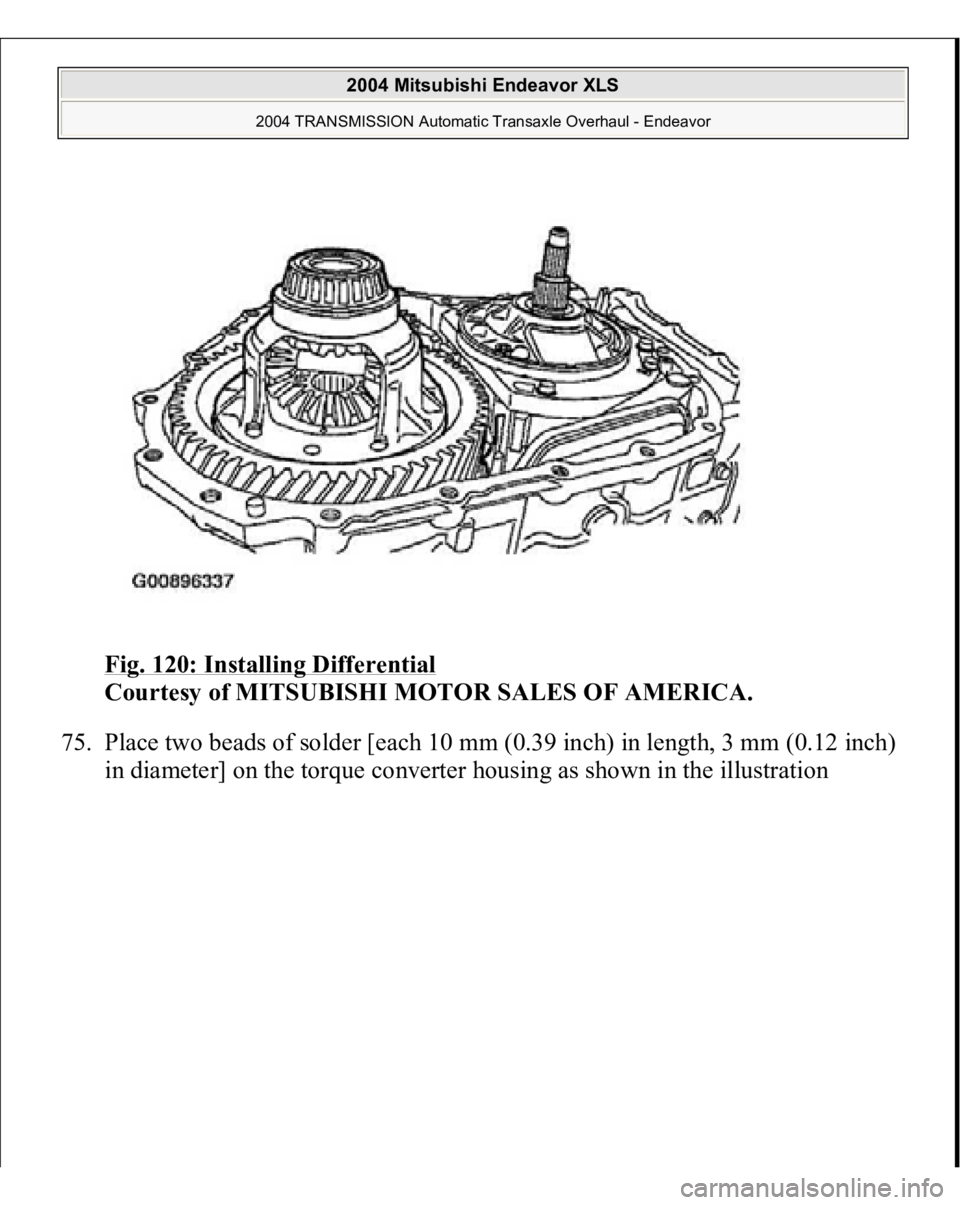

Fig. 120: Installing Differential

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
75. Place two beads of solder [each 10 mm (0.39 inch) in length, 3 mm (0.12 inch)
in diameter] on the tor
que converter housin
g as shown in the illustration

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Fig. 121: Placing Two Beads Of Solder On Torque Converter Housing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
76. Use special tools MB990936 and MB990938 to press in the differential bearing
outer race into the tor
que converter housin
g.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Fig. 122: Using Special Tools And Pressing In Differential Bearing Outer Race Into Torque Converter Housing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
77. Install the torque converter housing to the transaxle case without applying
sealant. Tighten its mounting bolts to the specified torque.
Tightening torque: 48 +/- 6 N.m (35 +/- 4 ft-lb)
78. Loosen all the bolts, and remove the torque converter housing. Then remove
the outer race and the crushed solders.
