Page 1425 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 101: Installing Oil Filter Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>E<< ENGINE OIL PRESSURE SWITCH 1. Apply 3M< SD >TM< /SD > AAD Part number 8672 or equivalent to the thread of engi

Page 1426 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 102: Applying 3M AAD Part Number 8672 To Thread Of Engine Oil Pressure Switch Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Tighten the engine oil pressure switch together with the oil fil

Page 1427 of 3870

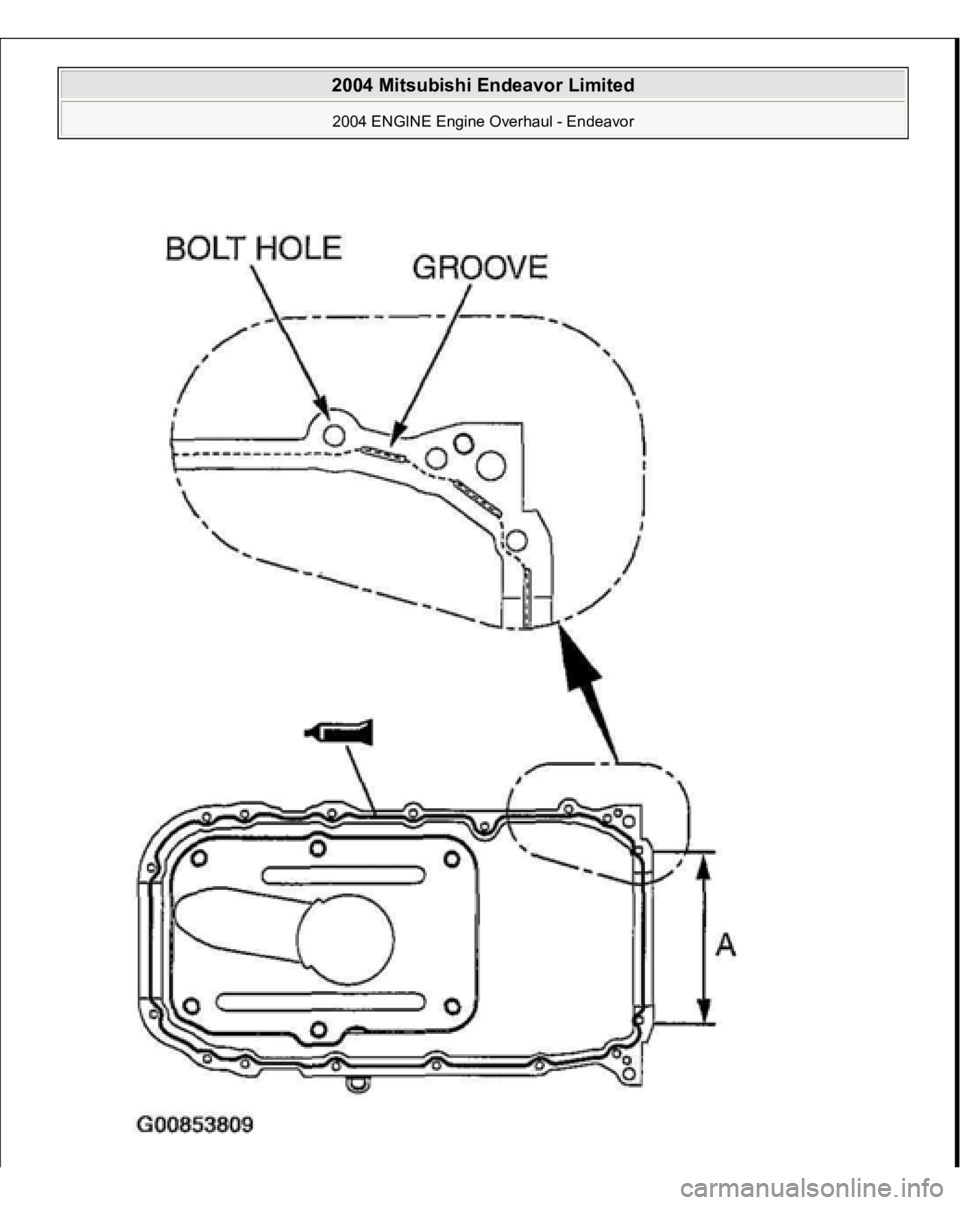

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 103: Tightening Engine Oil Pressure Switch Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>F<< OIL PAN, UPPER INSTALLATION 1. Clean both gasket surfaces of the upper oil pan and cylinder bloc

Page 1428 of 3870

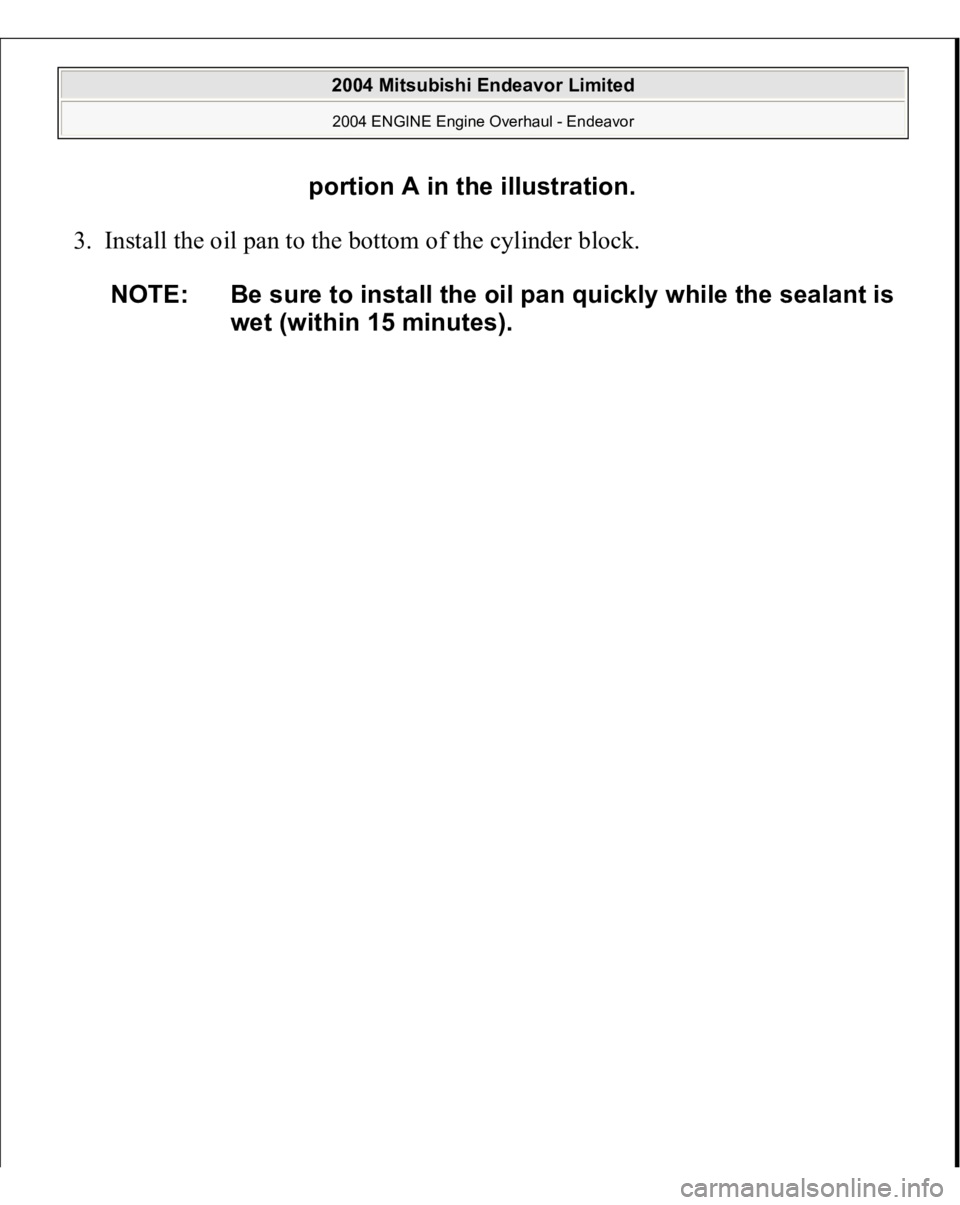

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. Install the oil pan to the bottom of the cylinder block. portion A in the illustration. NOTE: Be sure to install the oil pan quickly while the sealant is wet (within 15 minutes). 2004 Mitsubish

Page 1429 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Page 1430 of 3870

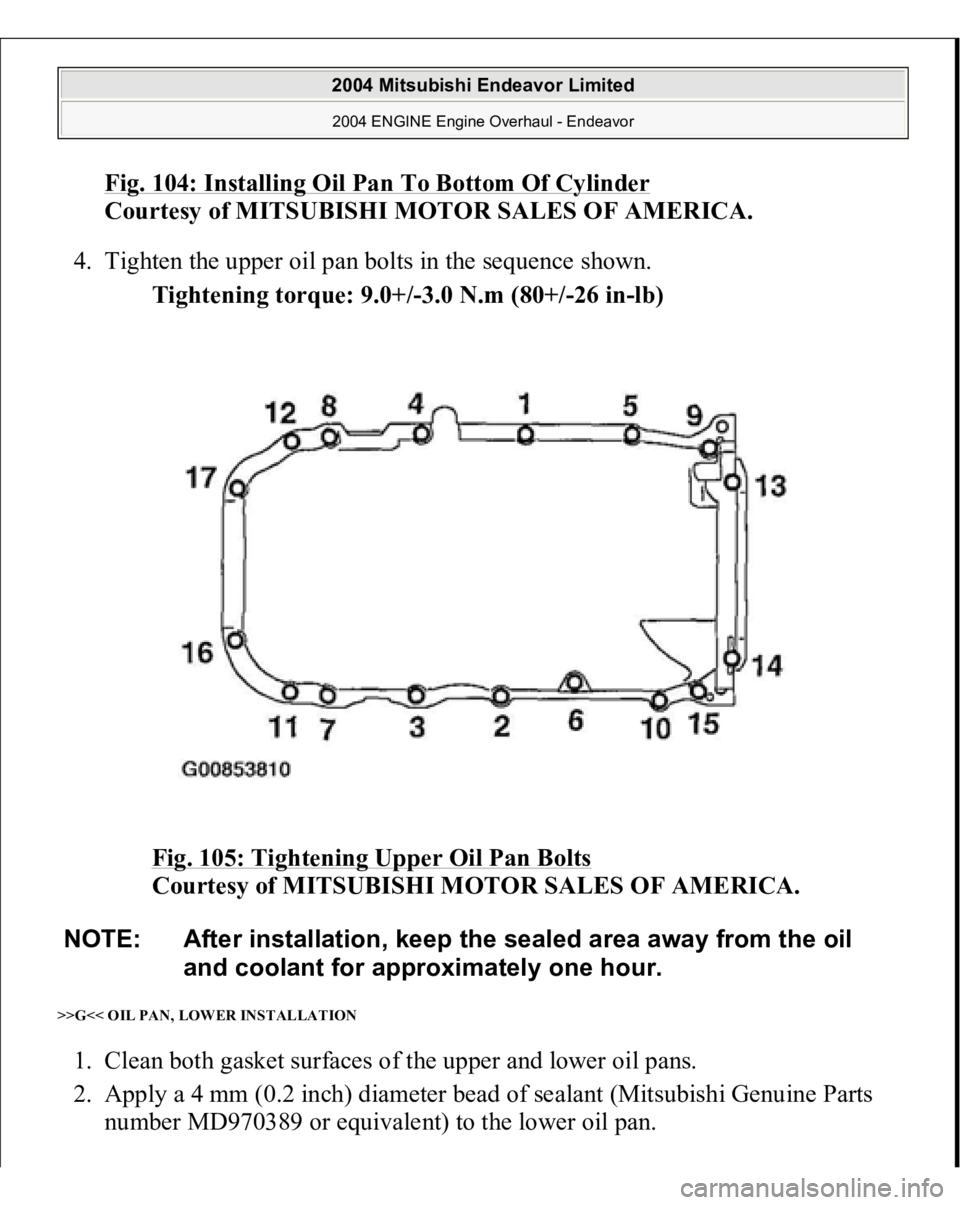

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 104: Installing Oil Pan To Bottom Of Cylinder Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 4. Tighten the upper oil pan bolts in the sequence shown. Tightening torque: 9.0+/-3.0 N.m (80+/-2

Page 1431 of 3870

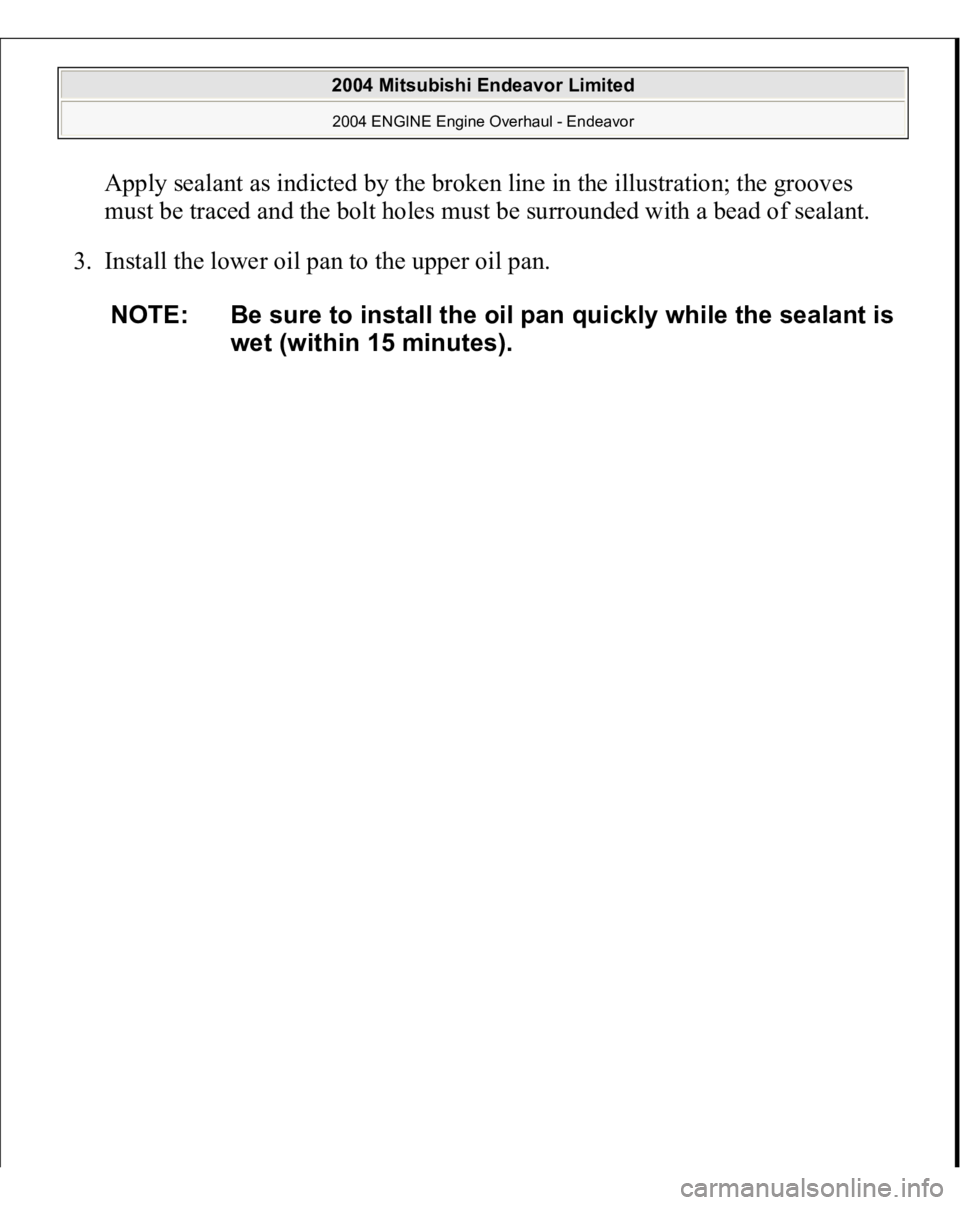

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Apply sealant as indicted by the broken line in the illustration; the grooves must be traced and the bolt holes must be surrounded with a bead of sealant. 3. Install the lower oil pan to the upper o

Page 1432 of 3870

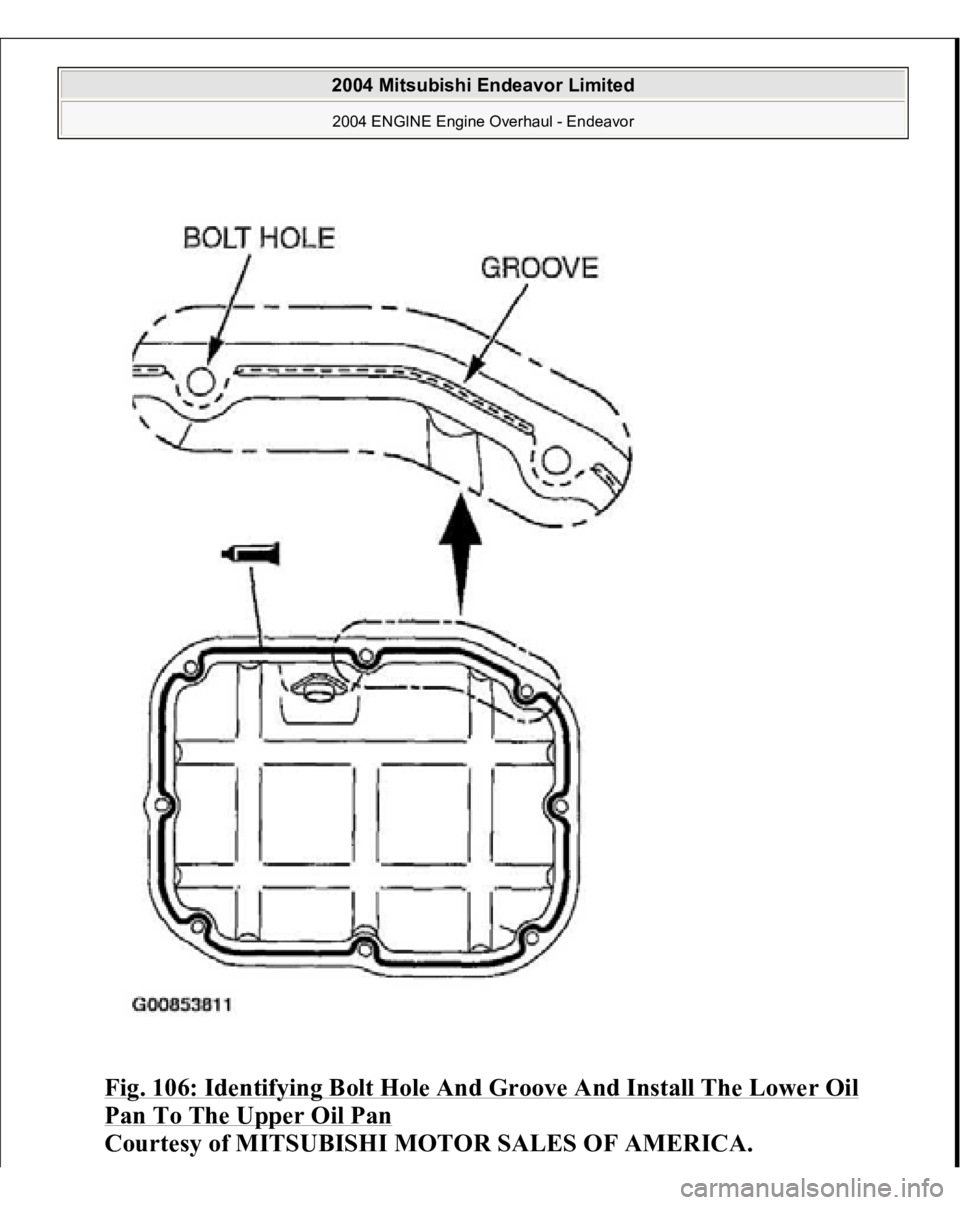

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 106: Identifying Bolt Hole And Groove And Install The Lower Oil Pan To The Upper Oil Pan Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine O
