Page 1049 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door - Endeavor

Page 1050 of 3870

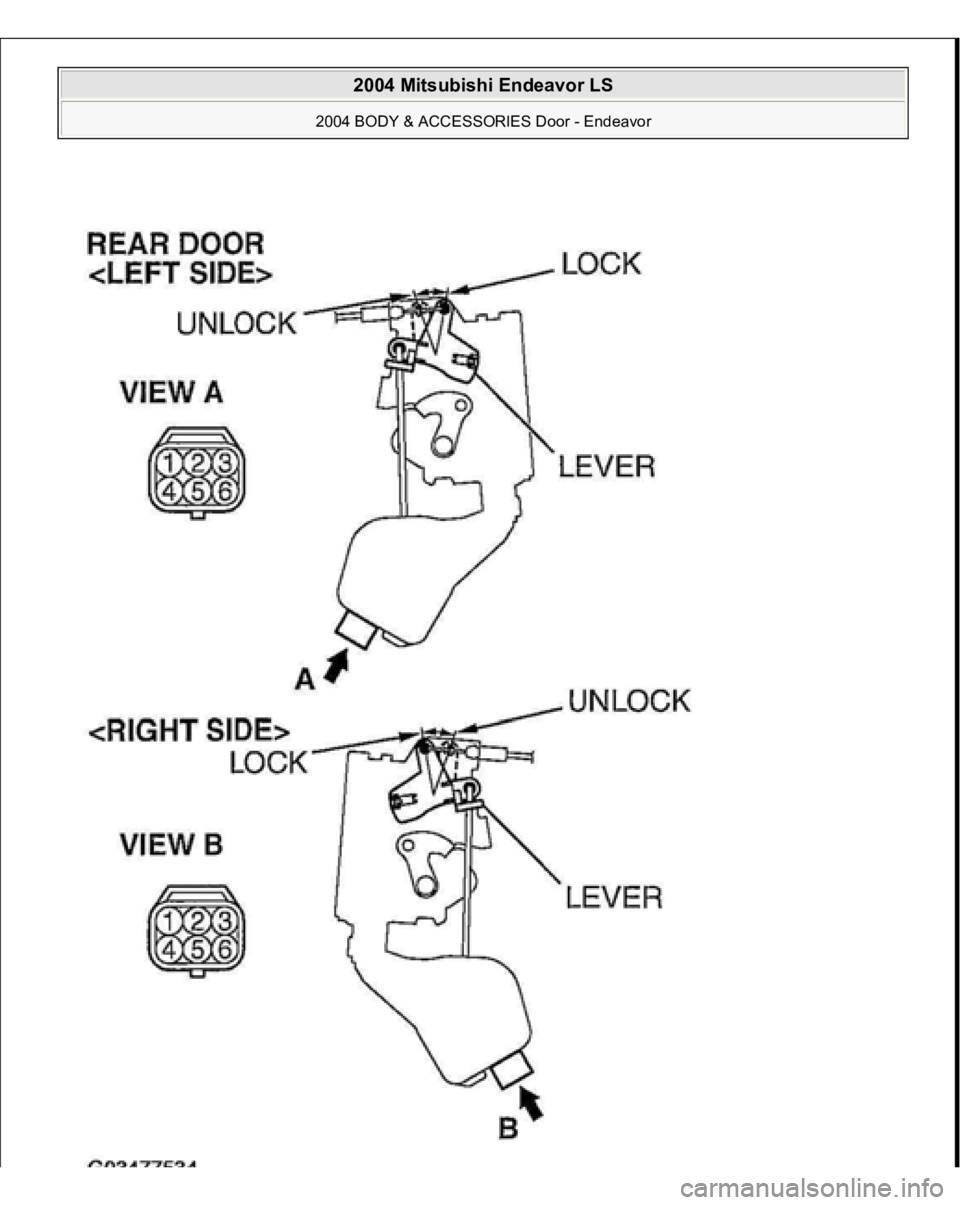

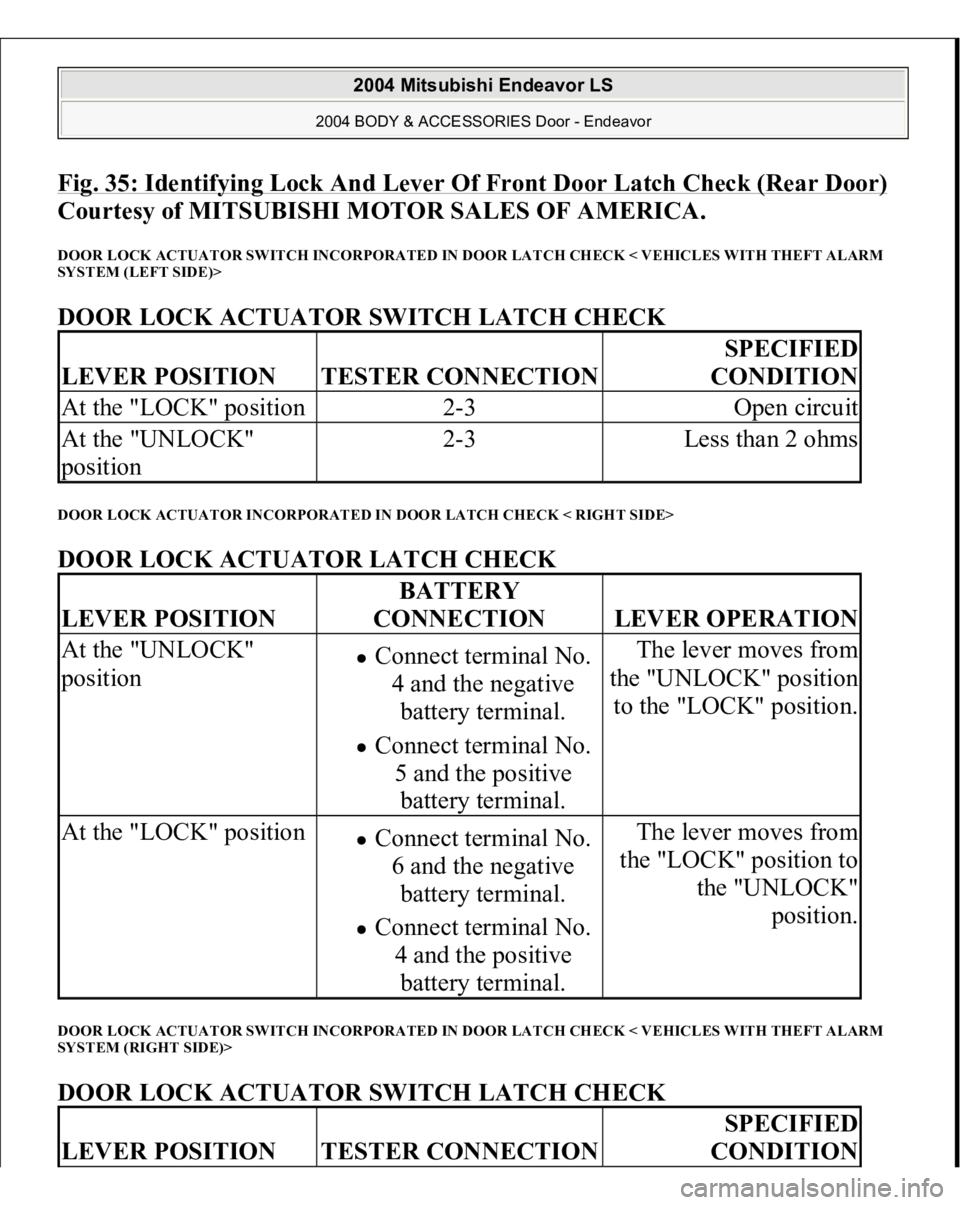

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 35: Identifying Lock And Lever Of Front Door Latch Check (Rear Door) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DOOR LOCK ACTUATOR SWITCH INCORPORATED IN DOOR LATCH CHECK < VEHICLES WITH T

Page 1051 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DOOR LOCK KEY CYLINDER SWITCH CHECK DOOR LOCK KEY CYLINDER SWITCH CHECK At the "LOCK" position 1-2 Open circuit At the "UNLOCK" position 1-2 Less than 2 ohms SWITCH POSITION TESTER CO

Page 1052 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 36: Locating Door Lock Key Cylinder Switch Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CENTRAL DOOR LOCK SWITCH CONTINUITY CHECK Remove the power window switch (Refer to DOOR GLASS AND REGU

Page 1053 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual CENTRAL DOOR LOCK SWITCH CONTINUITY CHEC K Fig. 37: Identifying Door Lock Switch (Driver Side) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. < PASSENGER'S SIDE > CENTRAL DOOR LOCK SWITCH CONT

Page 1054 of 3870

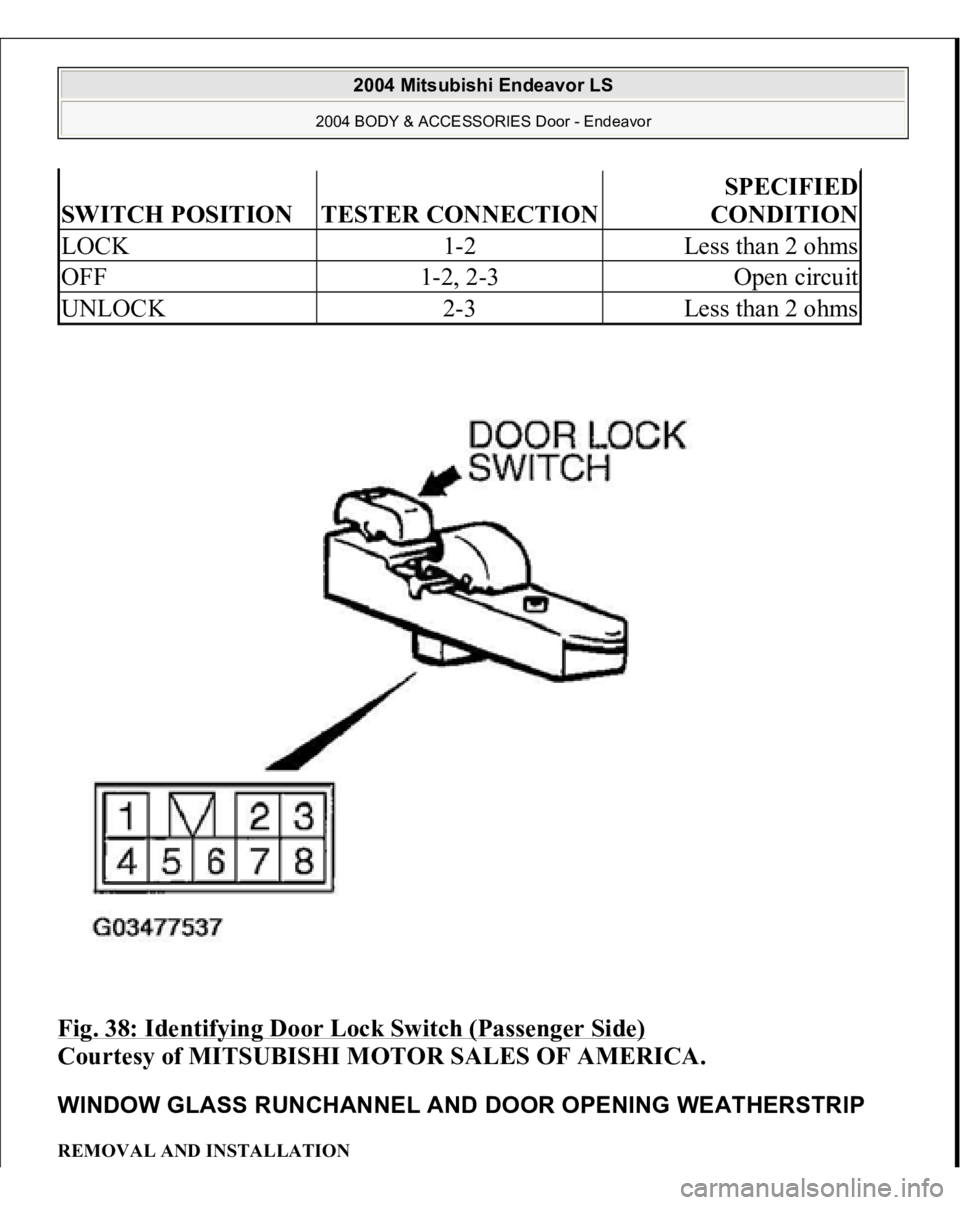

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 38: Identifying Door Lock Switch (Passenger Side) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP REMOVAL AND INSTALLATION SWITCH POSITION

Page 1055 of 3870

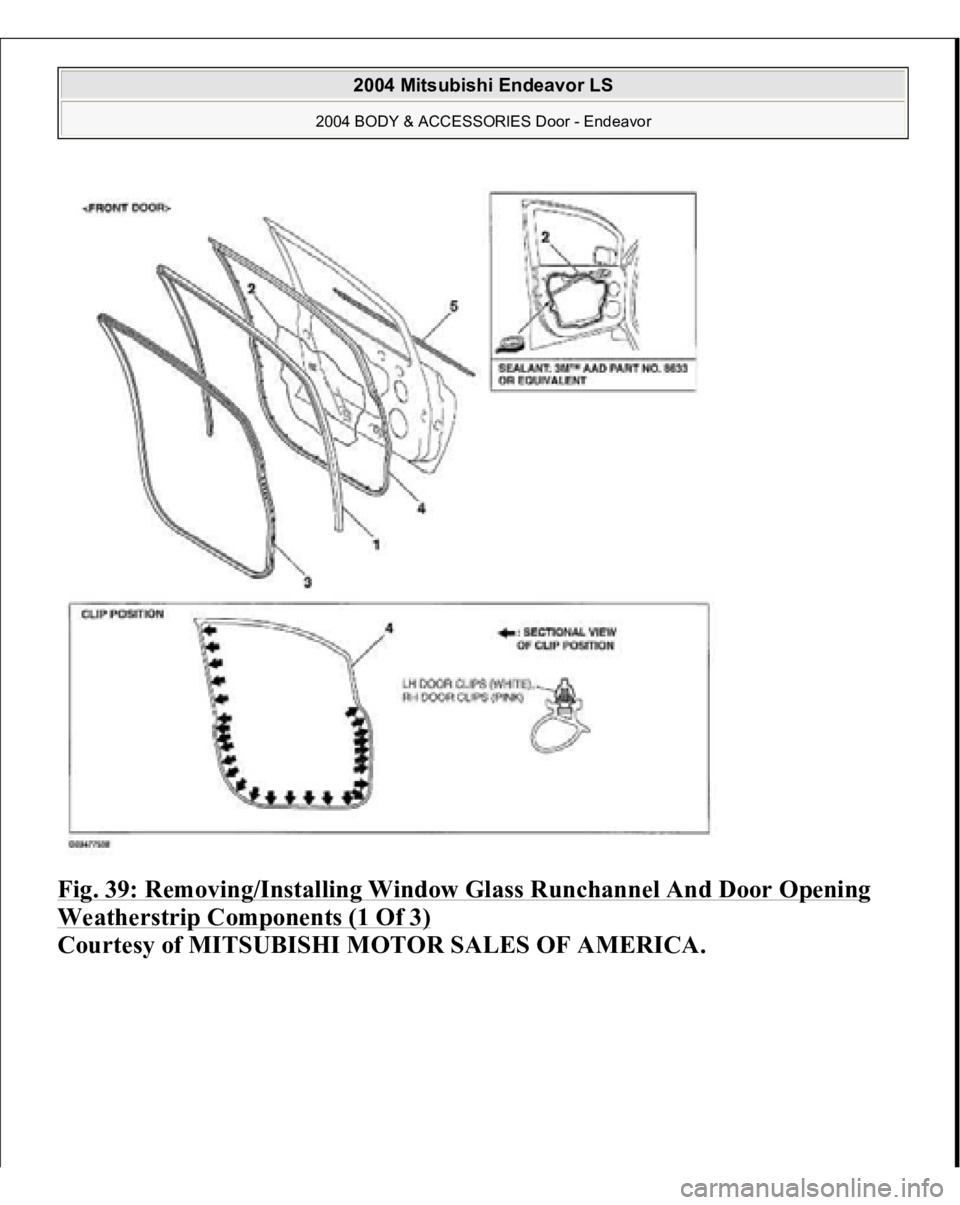

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 39: Removing/Installing Window Glass Runchannel And Door Opening Weatherstrip Components (1 Of 3) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCES

Page 1056 of 3870

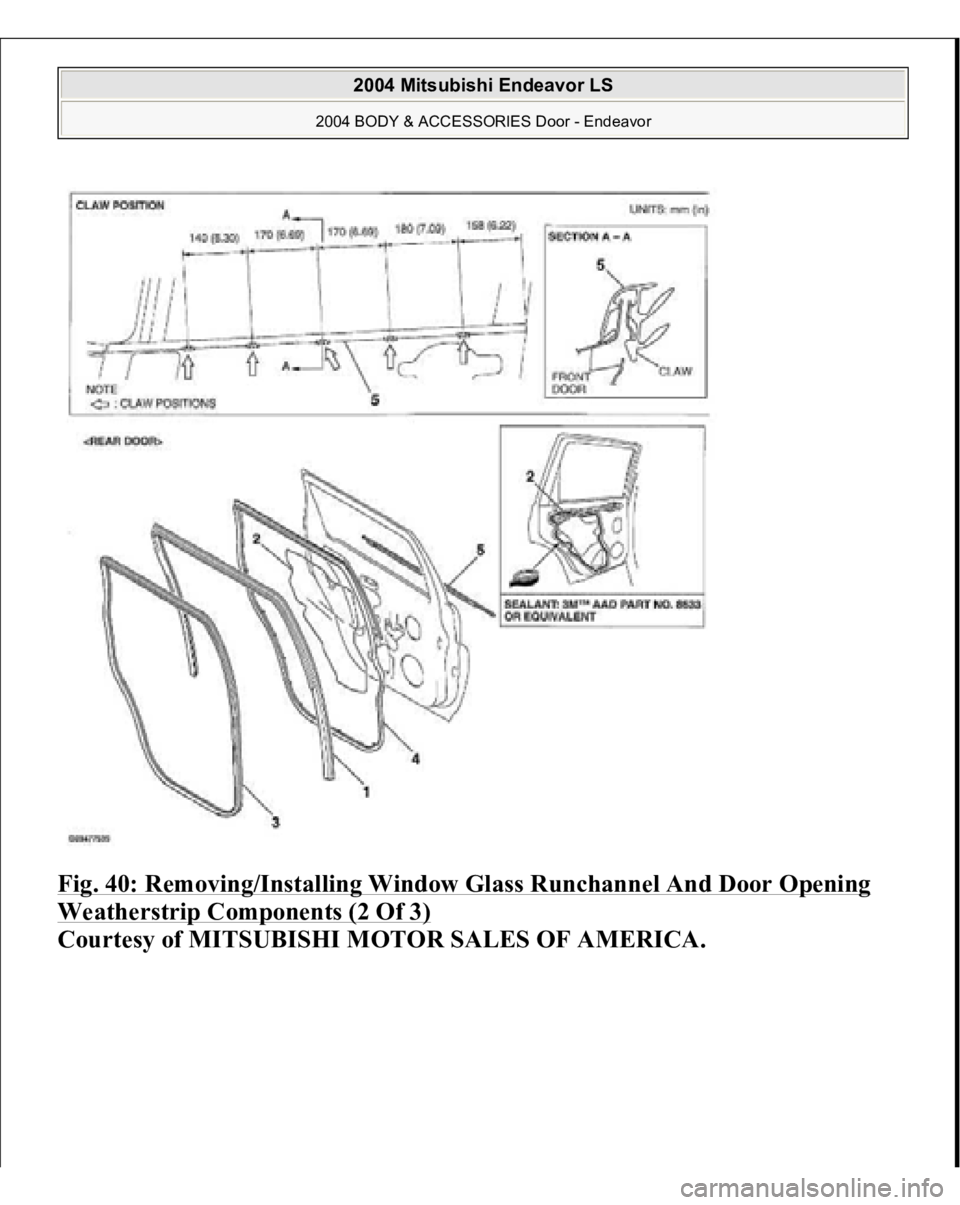

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 40: Removing/Installing Window Glass Runchannel And Door Opening Weatherstrip Components (2 Of 3) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCES
