Page 3041 of 3870

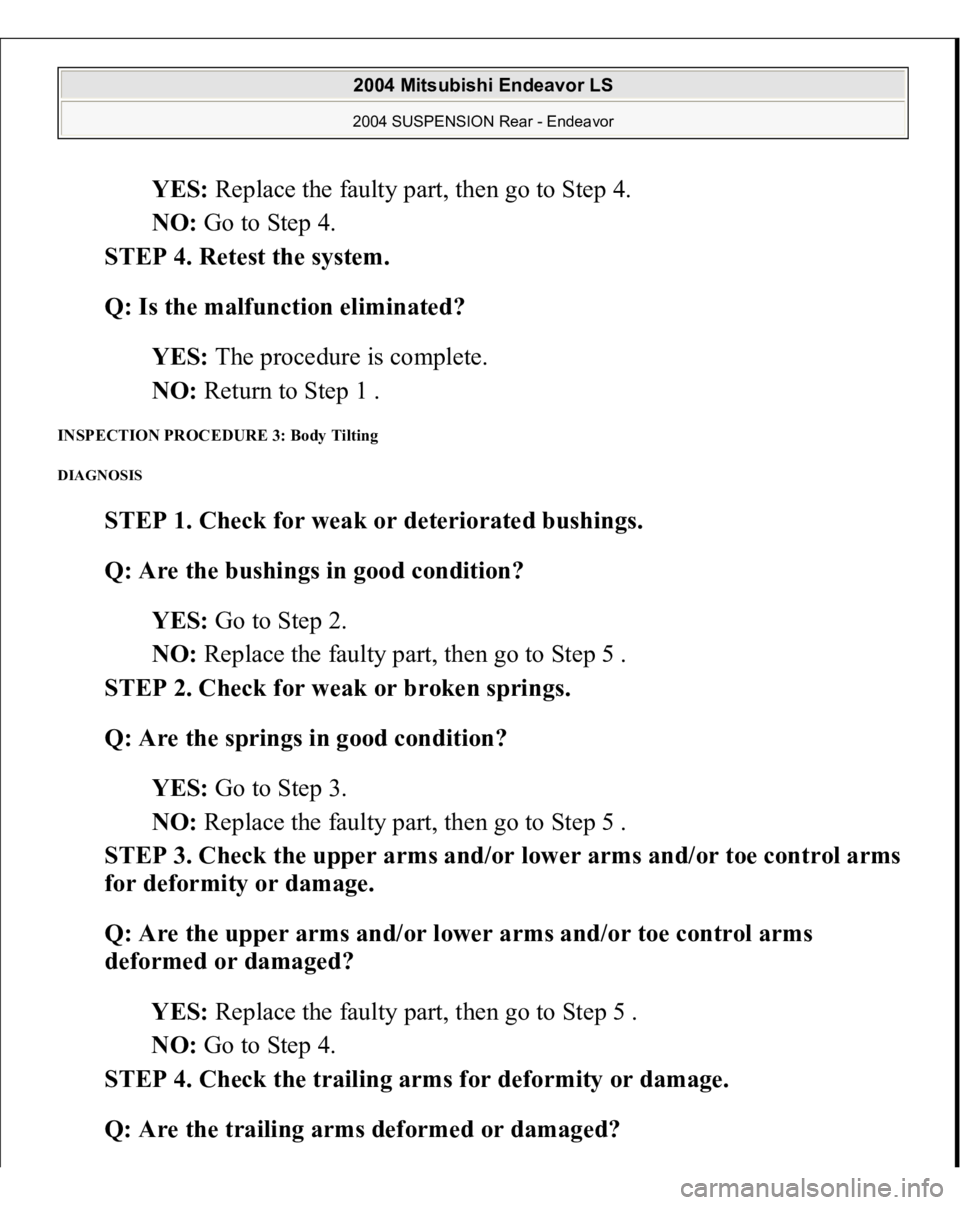

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Replace the faulty part, then go to Step 4. NO: Go to Step 4. STEP 4. Retest the system. Q: Is the malfunction eliminated? YES: The procedure is complete. NO: Return to Step 1 . INSPEC

Page 3042 of 3870

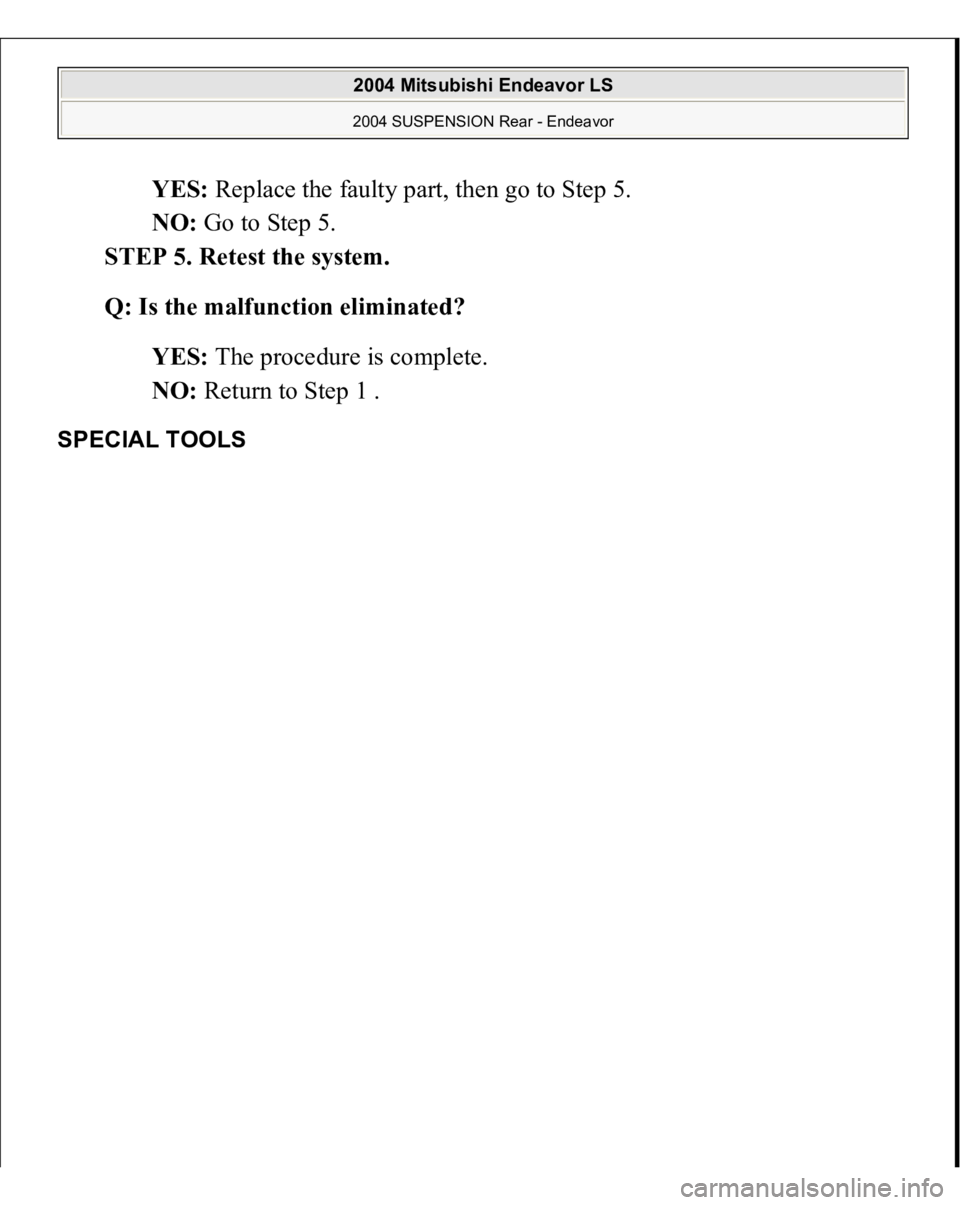

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Replace the faulty part, then go to Step 5. NO: Go to Step 5. STEP 5. Retest the system. Q: Is the malfunction eliminated? YES: The procedure is complete. NO: Return to Step 1 . SPECIA

Page 3043 of 3870

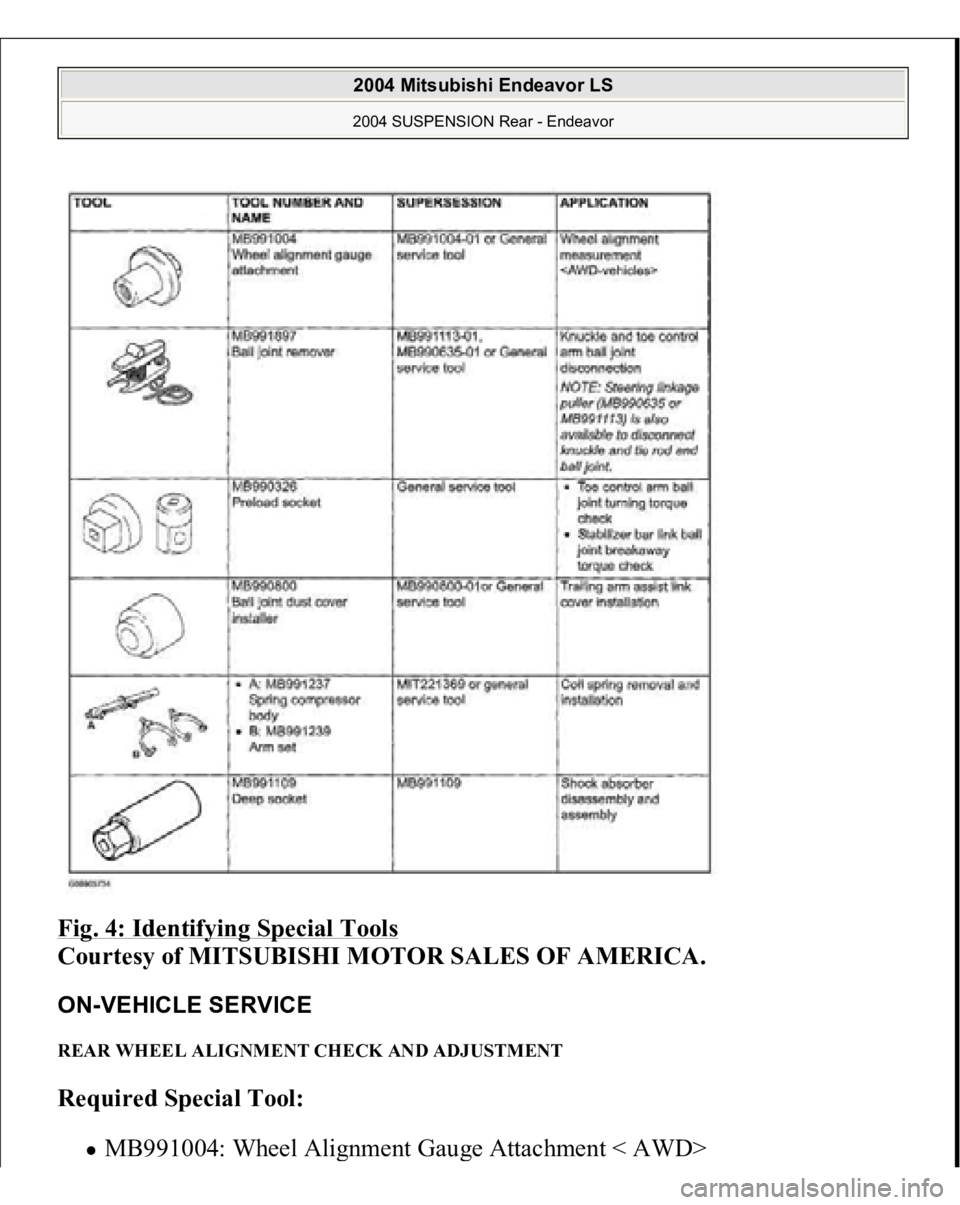

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 4: Identifying Special Tools Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ON-VEHICLE SERVICE REAR WHEEL ALIGNMENT CHECK AND ADJUSTMENT Required Special Tool: MB991004: Wheel Ali gnment Gau

Page 3044 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Attaching Camber/Caster/Kingpin Gauge To Drive Shaft Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CAUTION: For AWD-vehicles, never subject the wheel bearings to the vehicle load when the

Page 3045 of 3870

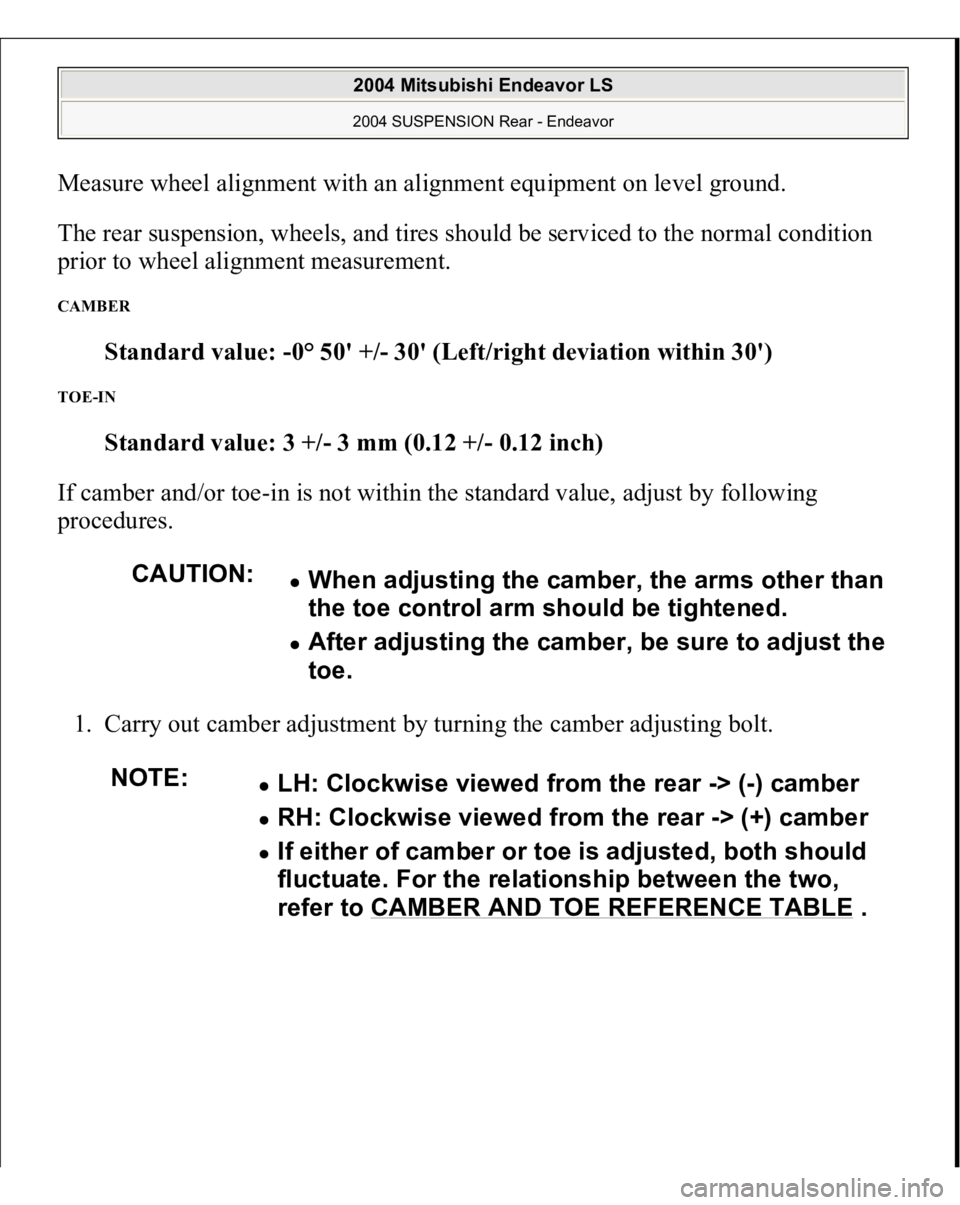

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Measure wheel alignment with an alignment equipment on level ground. The rear suspension, wheels, and tires should be serviced to the normal condition prior to wheel alignment measurement. CAMBER S

Page 3046 of 3870

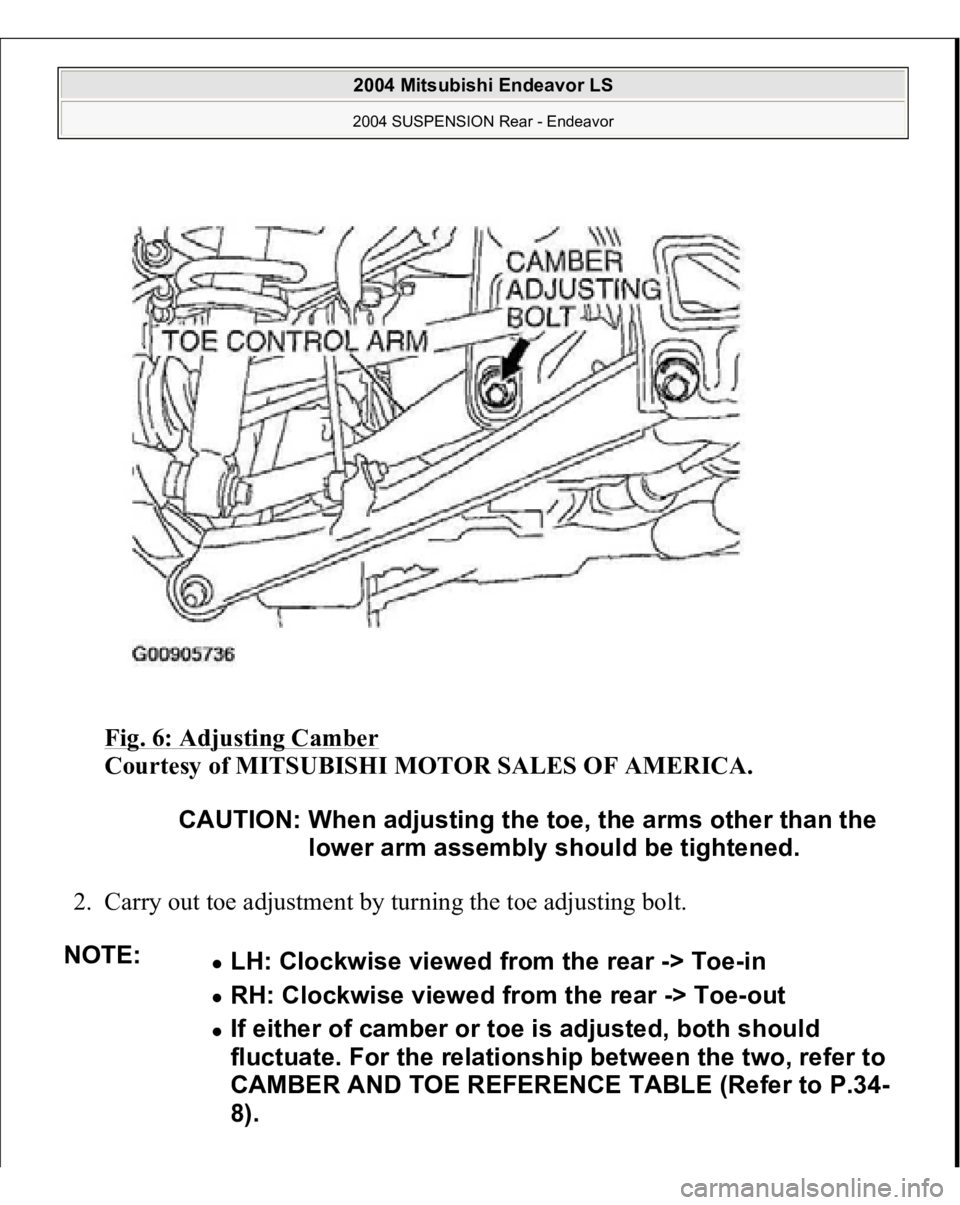

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 6: Adjusting Camber Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Carry out toe adjustment by turning the toe adjusting bolt. CAUTION: When adjusting the toe, the arms other than the lo

Page 3047 of 3870

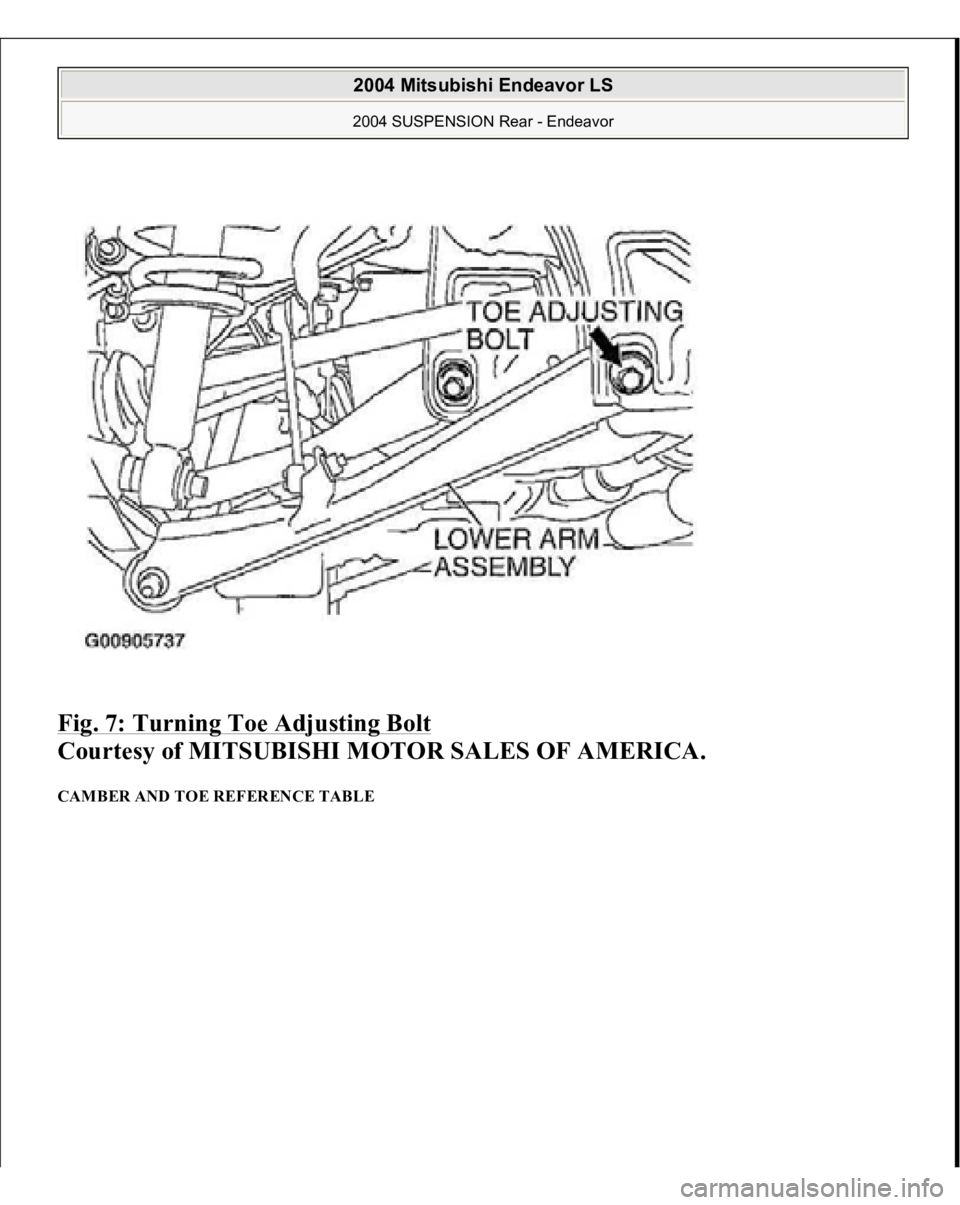

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: Turning Toe Adjusting Bolt Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CAMBER AND TOE REFERENCE TABLE 2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor

Page 3048 of 3870

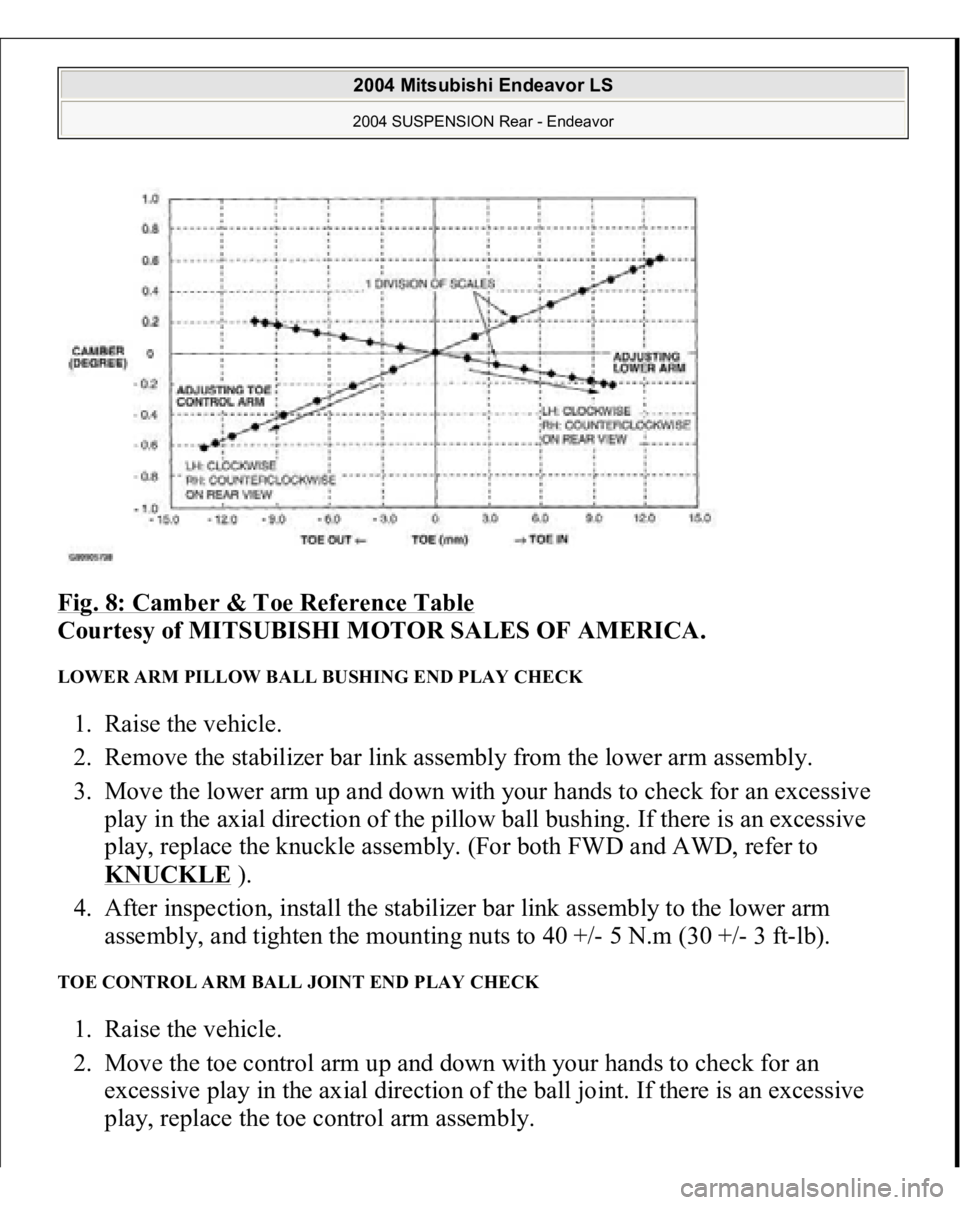

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 8: Camber & Toe Reference Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. LOWER ARM PILLOW BALL BUSHING END PLAY CHECK 1. Raise the vehicle. 2. Remove the stabilizer bar link assembly f
