Page 3681 of 3870

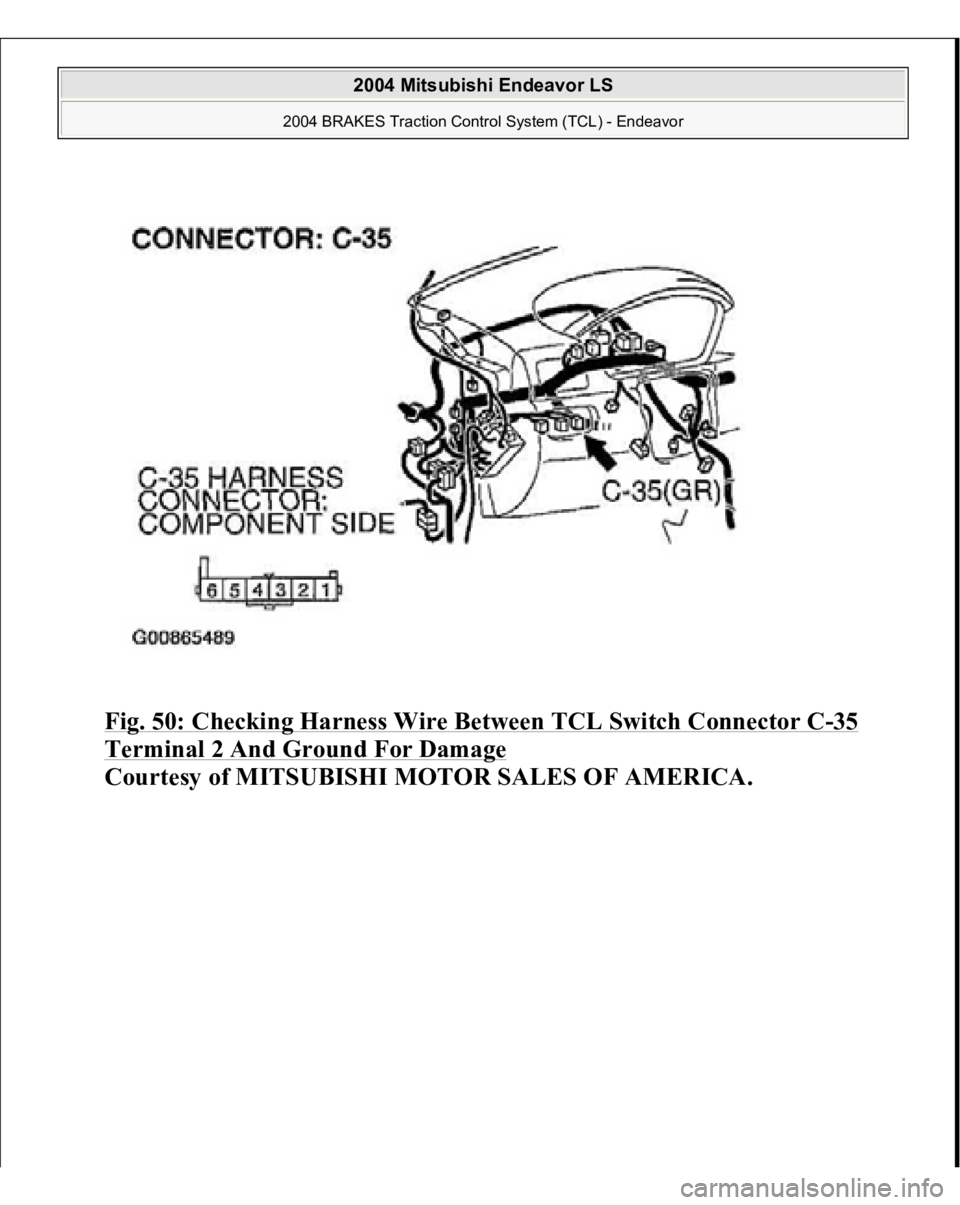

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 50: Checking Harness Wire Between TCL Switch Connector C -35 Terminal 2 And Ground For Damage Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction

Page 3682 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 51: Identifying A/T Selector Lever Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 6. Retest the system Q: Is TCL system cancelled when the TCL switch is push on? YES: It can be assumed

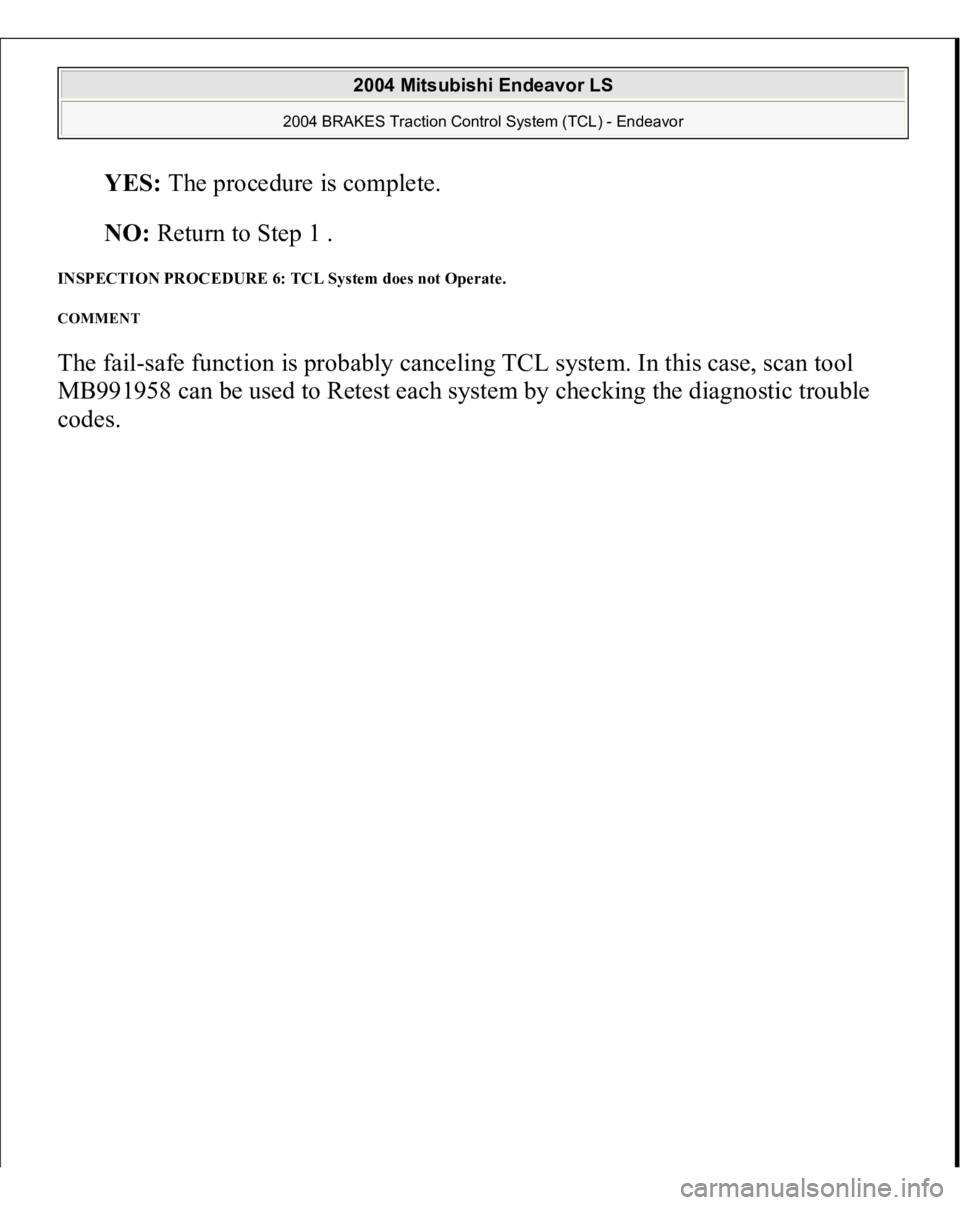

Page 3683 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES : The procedure is complete. NO: Return to Step 1 . INSPECTION PROCEDURE 6: TCL System does not Operate. COMMENT The fail-safe function is probably canceling TCL system. In this case, scan tool

Page 3684 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 52: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control System (TCL) - Endeavor

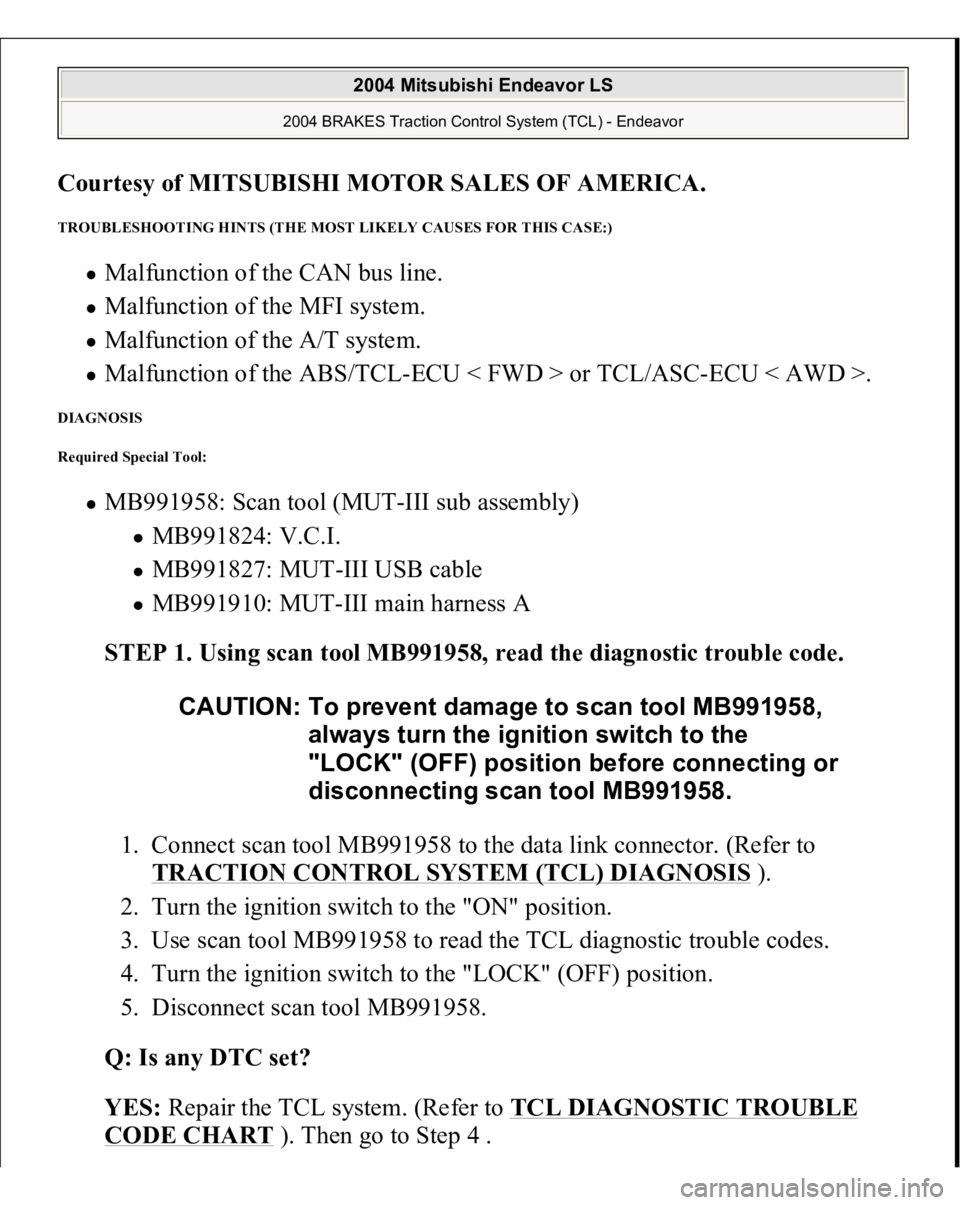

Page 3685 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THIS CASE:) Malfunction of the CAN bus line. Malfunction of the MFI system. Malfunction of the A/T

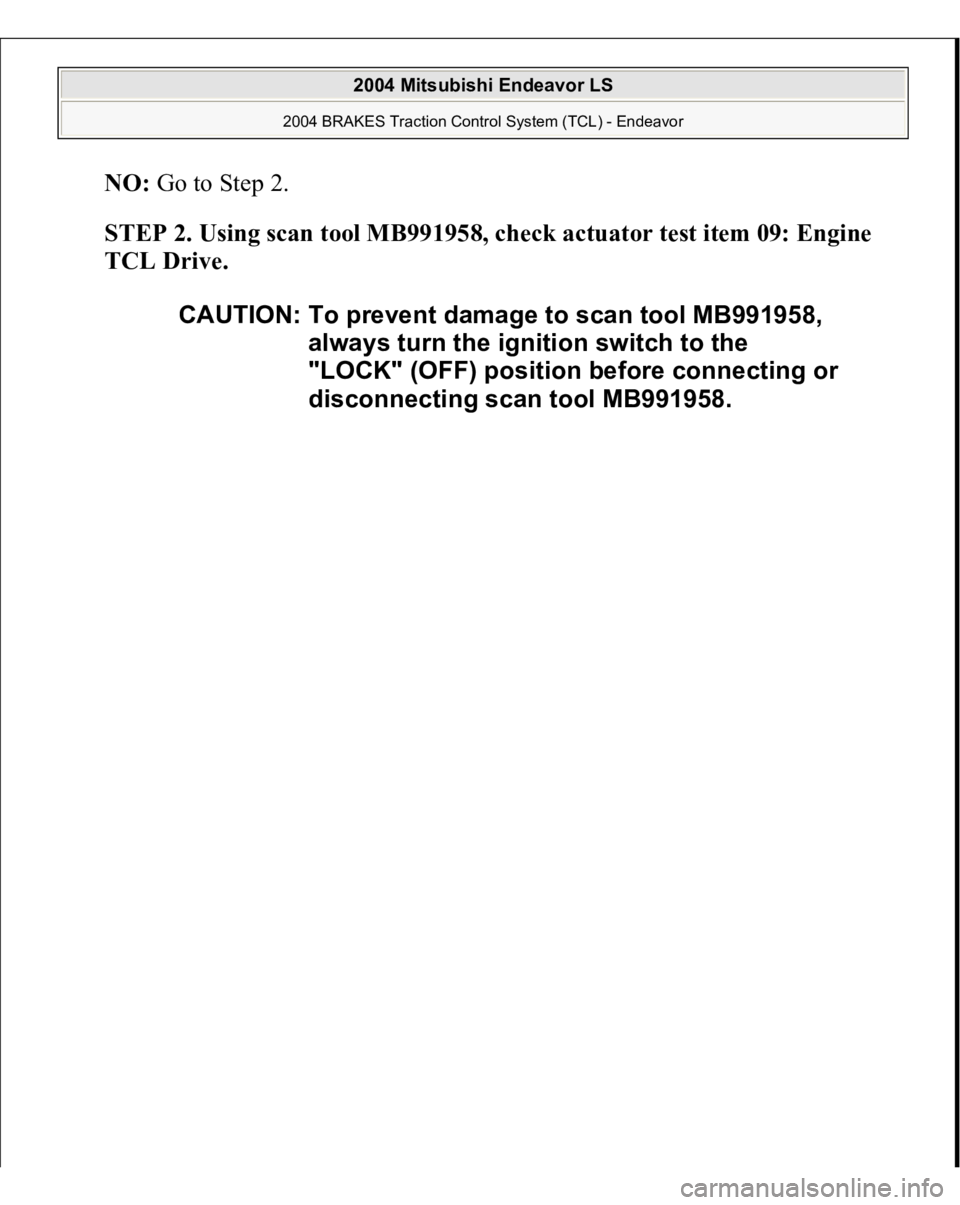

Page 3686 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO : Go to Step 2. STEP 2. Using scan tool MB991958, check actuator test item 09: Engine TCL Drive. CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "L

Page 3687 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 53: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control System (TCL) - Endeavor

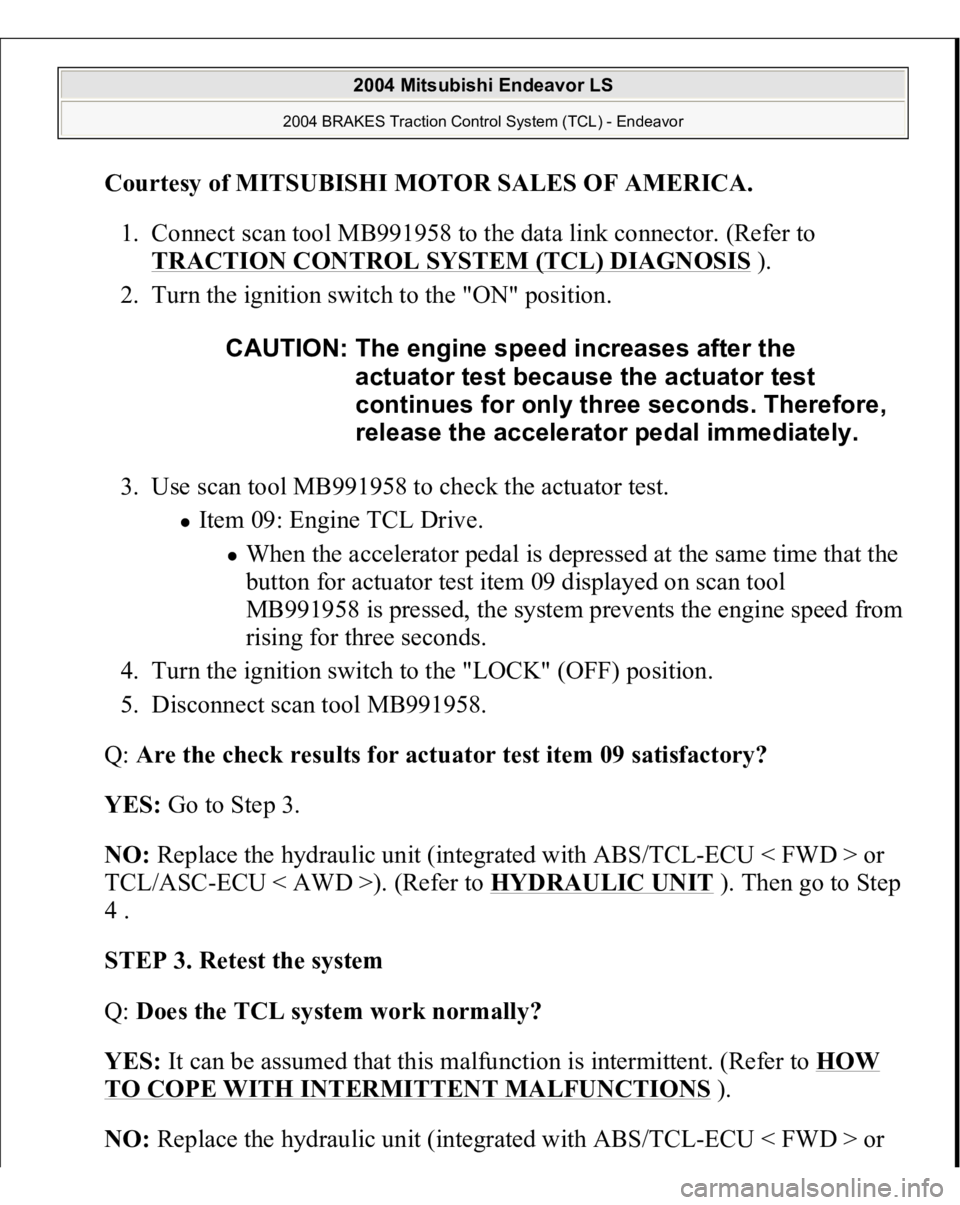

Page 3688 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 1. Connect scan tool MB991958 to the data link connector. (Refer to TRACTION CONTROL SYSTEM (TCL) DIAGNOSIS ). 2. Turn the ignition switch to the &#
