Page 3481 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3482 of 3870

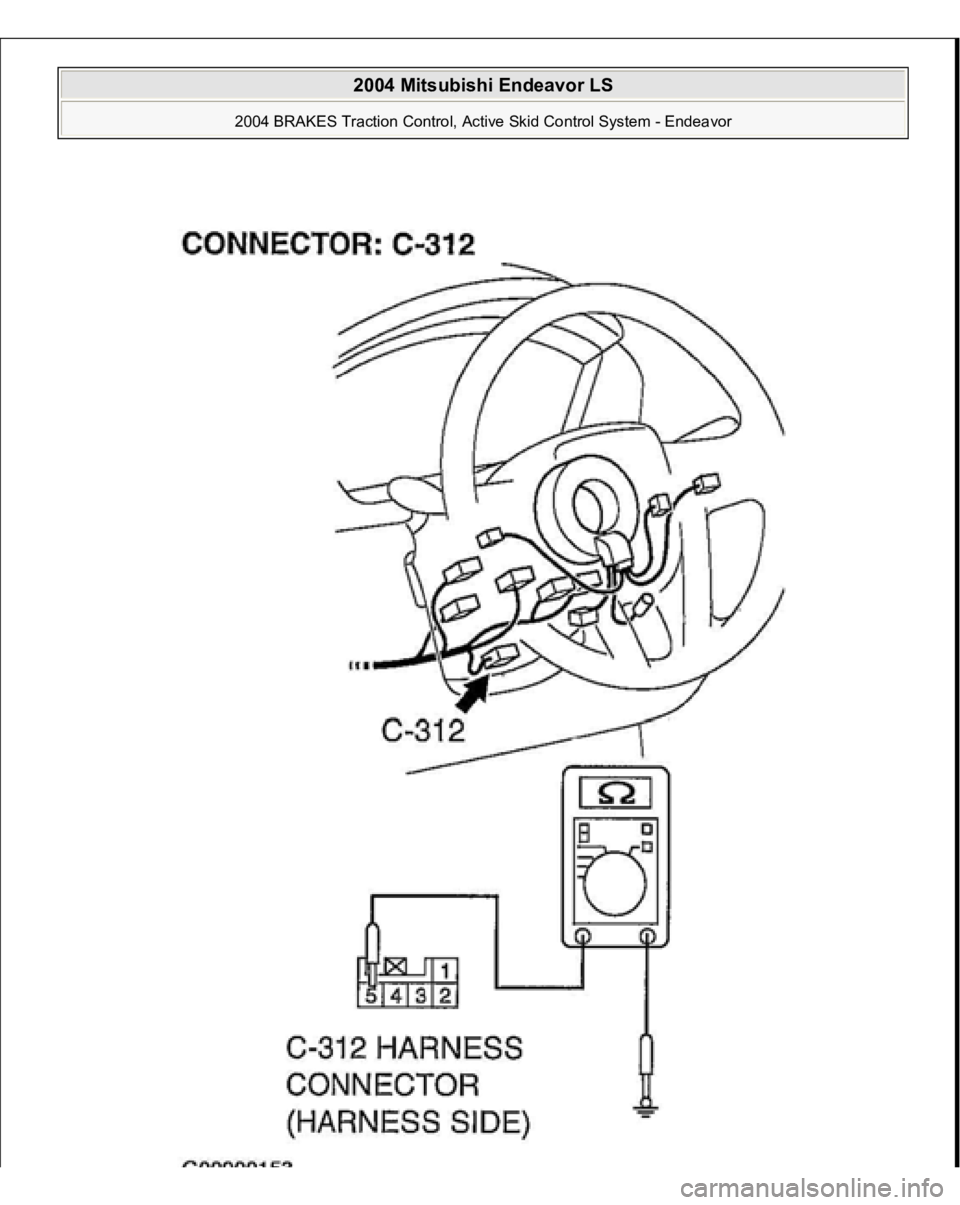

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 218: Measuring Resistance At Steering Wheel Sensor Connector C-312 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the measured resistance 2 ohms or less? YES: Go to Step 5. NO: Go to

Page 3483 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: An open circuit may be present in the ground circuit. Repair the wiring harness between steering wheel sensor connector C-312 terminals 5 and the body ground. Then go to Step 8. NO: Repair or

Page 3484 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO: Go to Step 1. INSPECTION PROCEDURE 5: G and yaw rate sensor power supply system 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3485 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 220: G And Yaw Rate Sensor Power Supply Circuit Diagram & Connector Identification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 221: Identifying Connectors: C -214, C -215 Courtesy of

Page 3486 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Malfunction of the G and yaw rate sensor DIAGNOSIS Required Special Tools: MB991958: Scan Tool (MUT-III Sub Assembly) MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cab

Page 3487 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 222: Measuring Voltage At G And Yaw Rate Sensor 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3488 of 3870

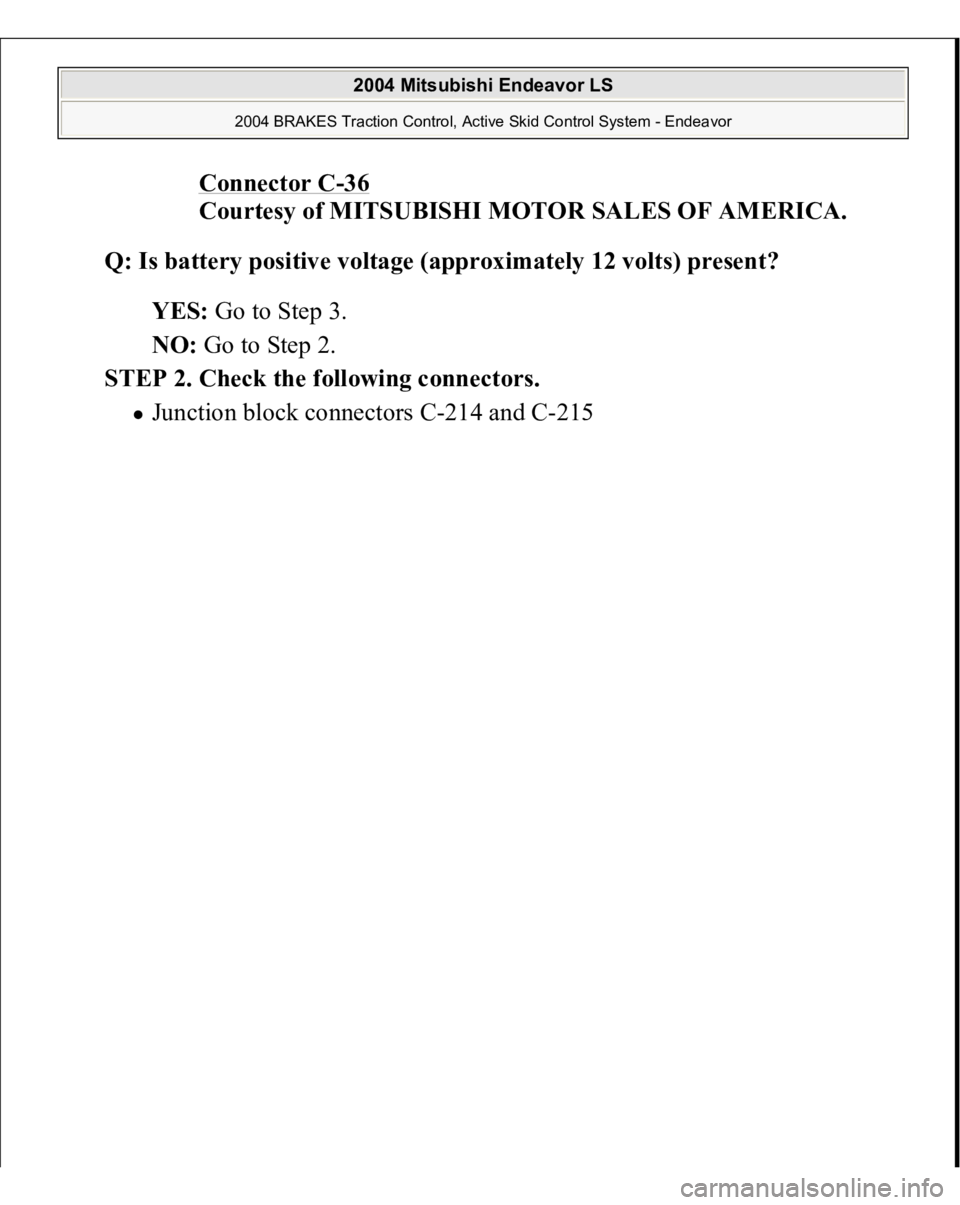

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Connector C -36 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is battery positive voltage (approximately 12 volts) present? YES: Go to Step 3. NO: Go to Step 2. STEP 2. Check the following
