Page 1913 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 2: Identifying Lubrication Points (AWD - Right Hand Axle Shaft) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. FWD For lubrication points, see Fi g. 3 . 2004 Mitsubishi Endeavor LS 2004 D

Page 1914 of 3870

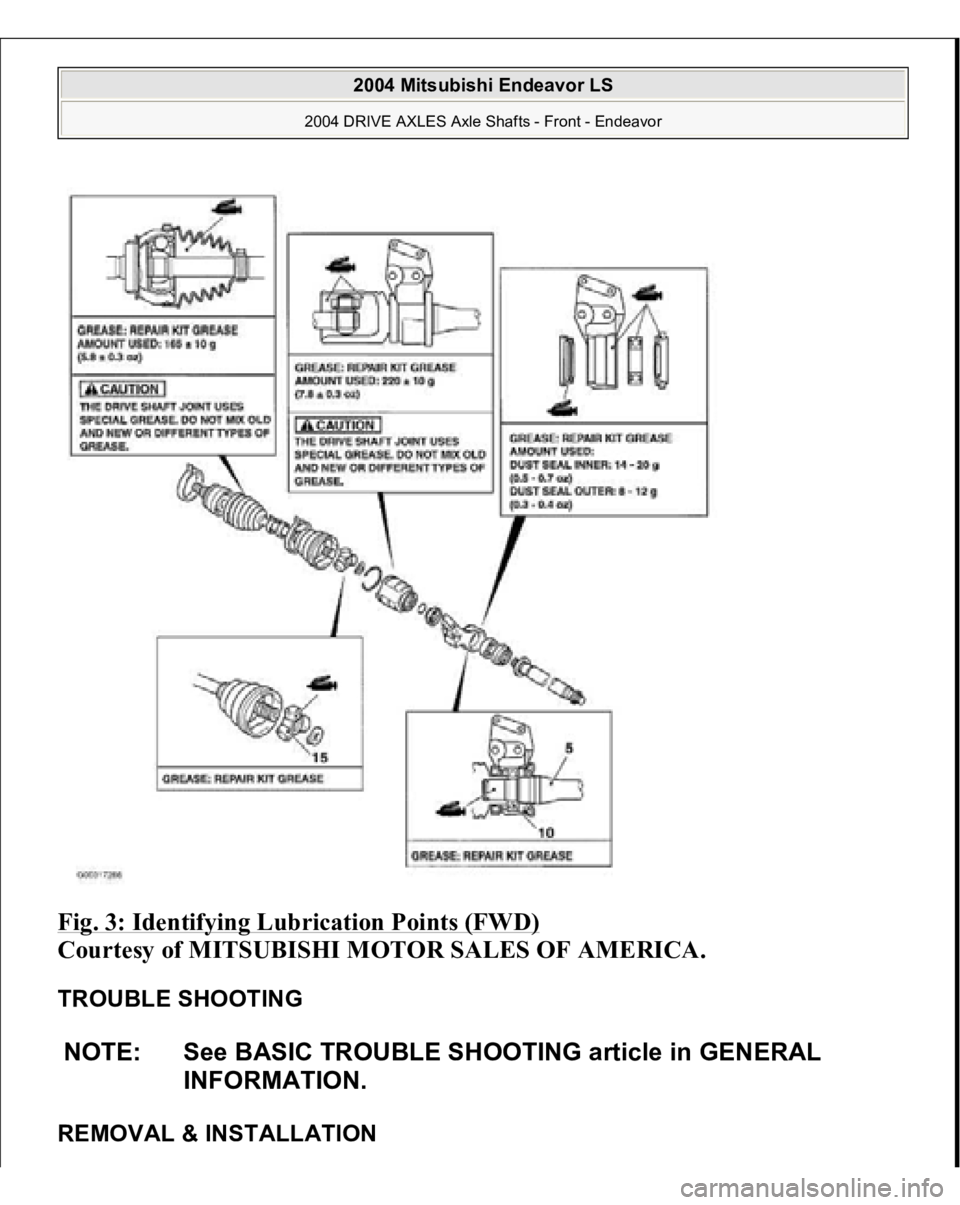

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Identifying Lubrication Points (FWD) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. TROUBLE SHOOTING REMOVAL & INSTALLATIONNOTE: See BASIC TROUBLE SHOOTING article in GENERAL INFORMATION.

Page 1915 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual AXLE SHAFTS Removal & Installation For removal and installation of axle shafts, see Fig. 4 . NOTE: Before removing axle shaft, remove front cover and side under cover, and drain automatic transmiss

Page 1916 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 4: Removing & Installing Axle Shafts Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Removal Service Points 2004 Mitsubishi Endeavor LS 2004 DRIVE AXLES Axle Shafts - Front - Endeavor

Page 1917 of 3870

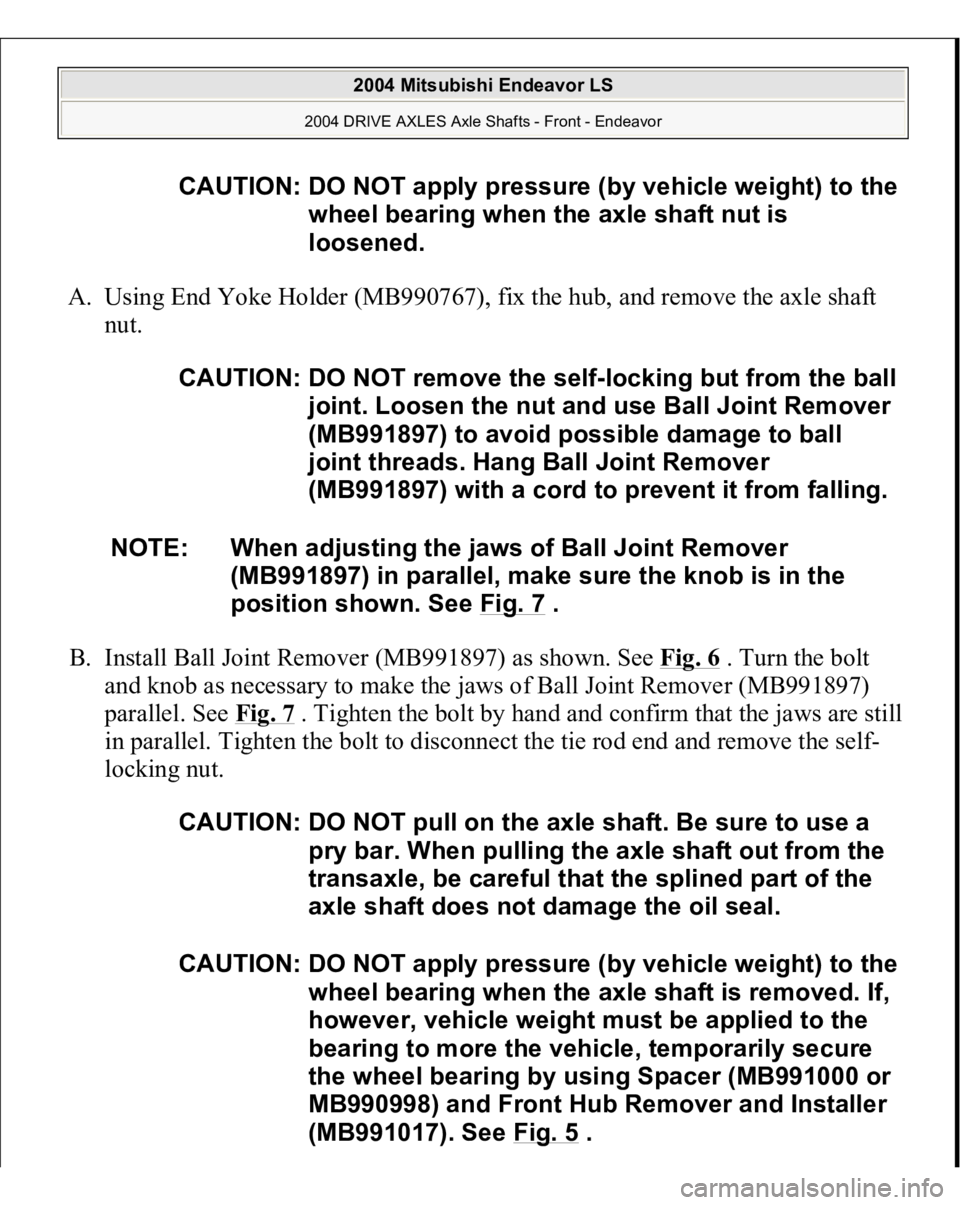

MITSUBISHI ENDEAVOR 2004 Service Repair Manual A. Using End Yoke Holder (MB990767), fix the hub, and remove the axle shaft nut. B. Install Ball Joint Remover (MB991897) as shown. See Fig. 6 . Turn the bolt and knob as necessary to make the jaw

Page 1918 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual C. Using Puller Shaft (MB990242), Puller Bar (MB990244), Puller Body (MB991354), and End Yoke Holder (MB990767), push out the axle shaft assembly and inner shaft assembly (if equipped) from the hub.

Page 1919 of 3870

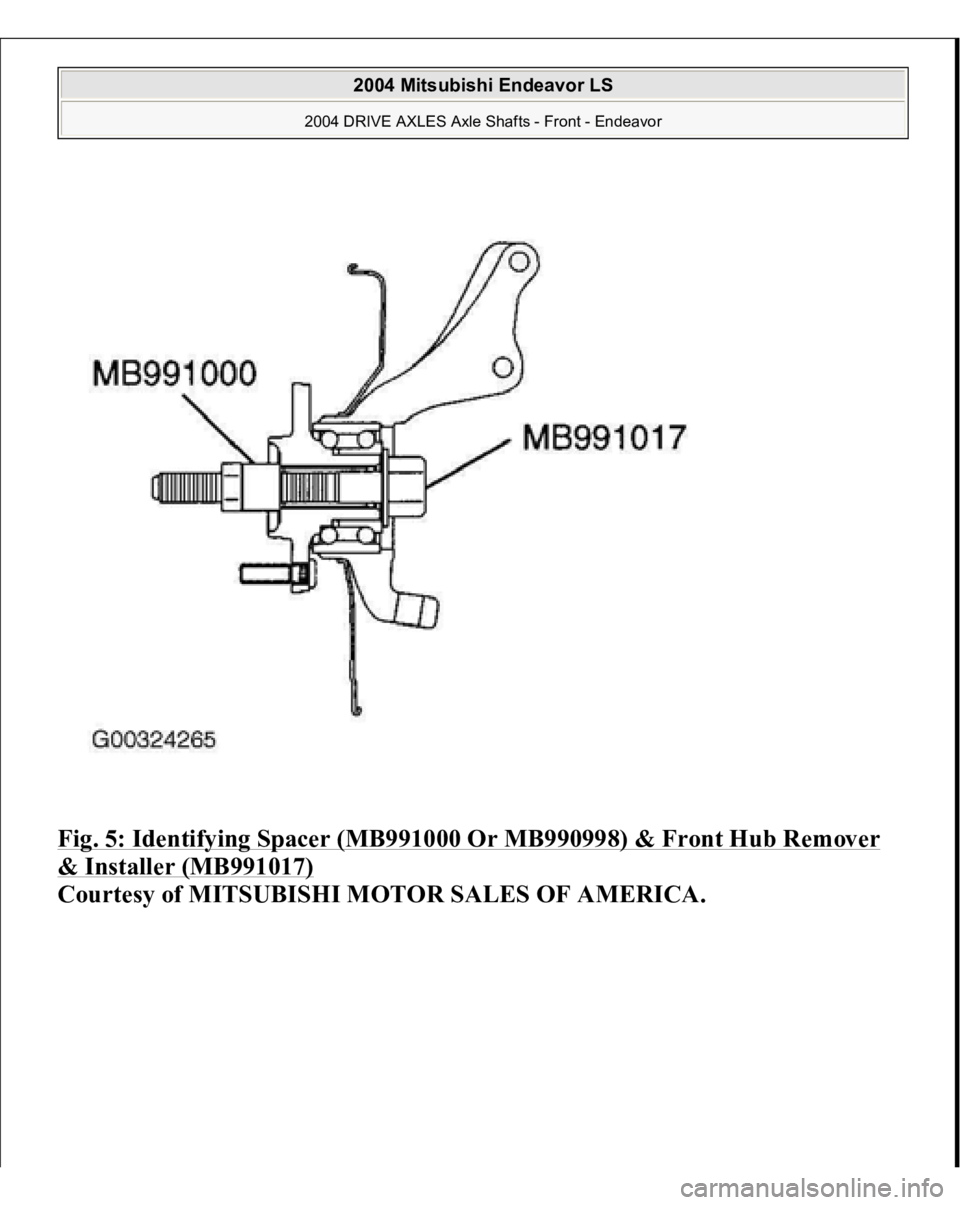

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Identifying Spacer (MB991000 Or MB990998) & Front Hub Remover & Installer (MB991017) Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 DRIVE AXLES Axle Sha

Page 1920 of 3870

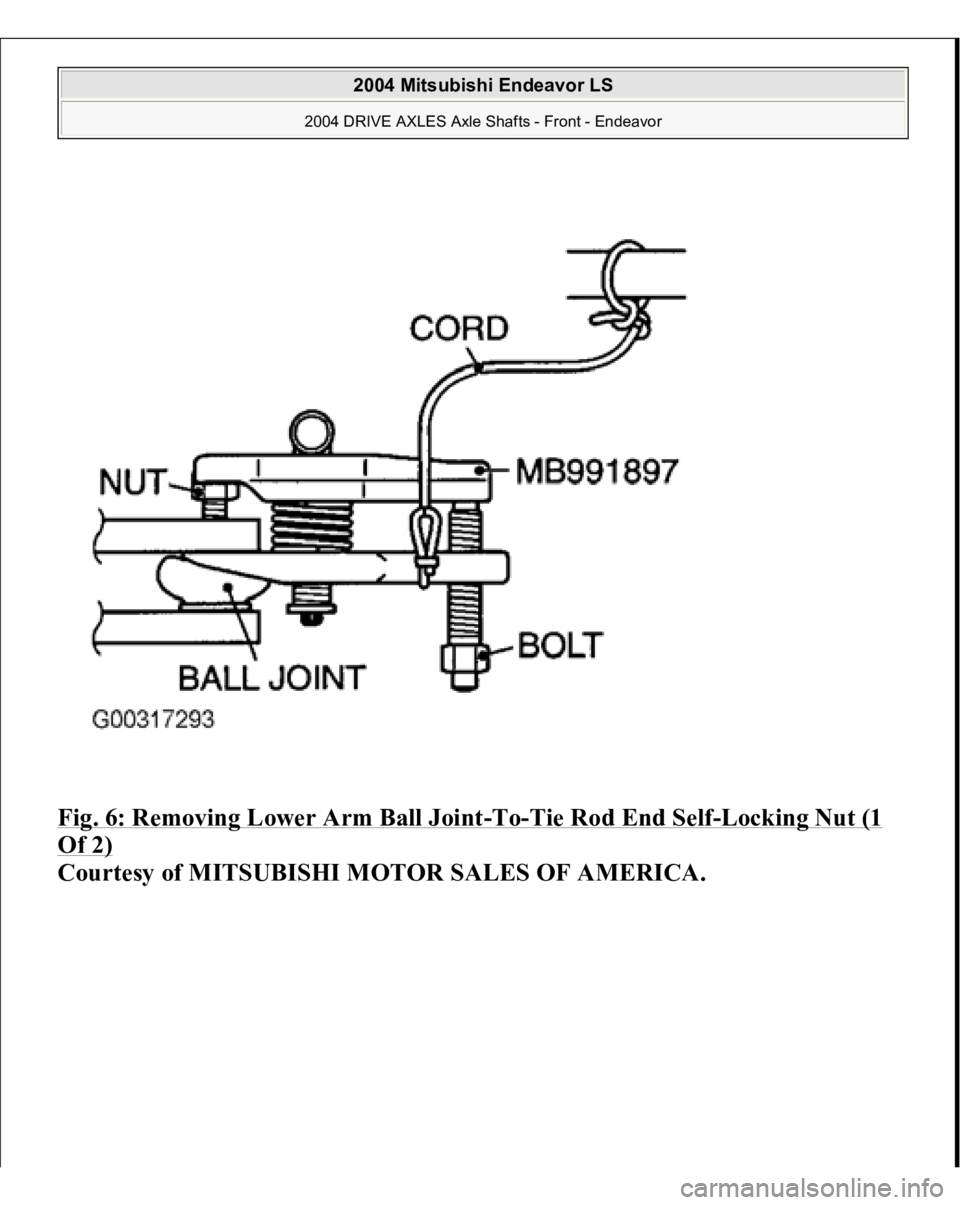

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 6: Removing Lower Arm Ball Joint -To -Tie Rod End Self -Locking Nut (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 DRIVE AXLES Axle Shafts - Front
