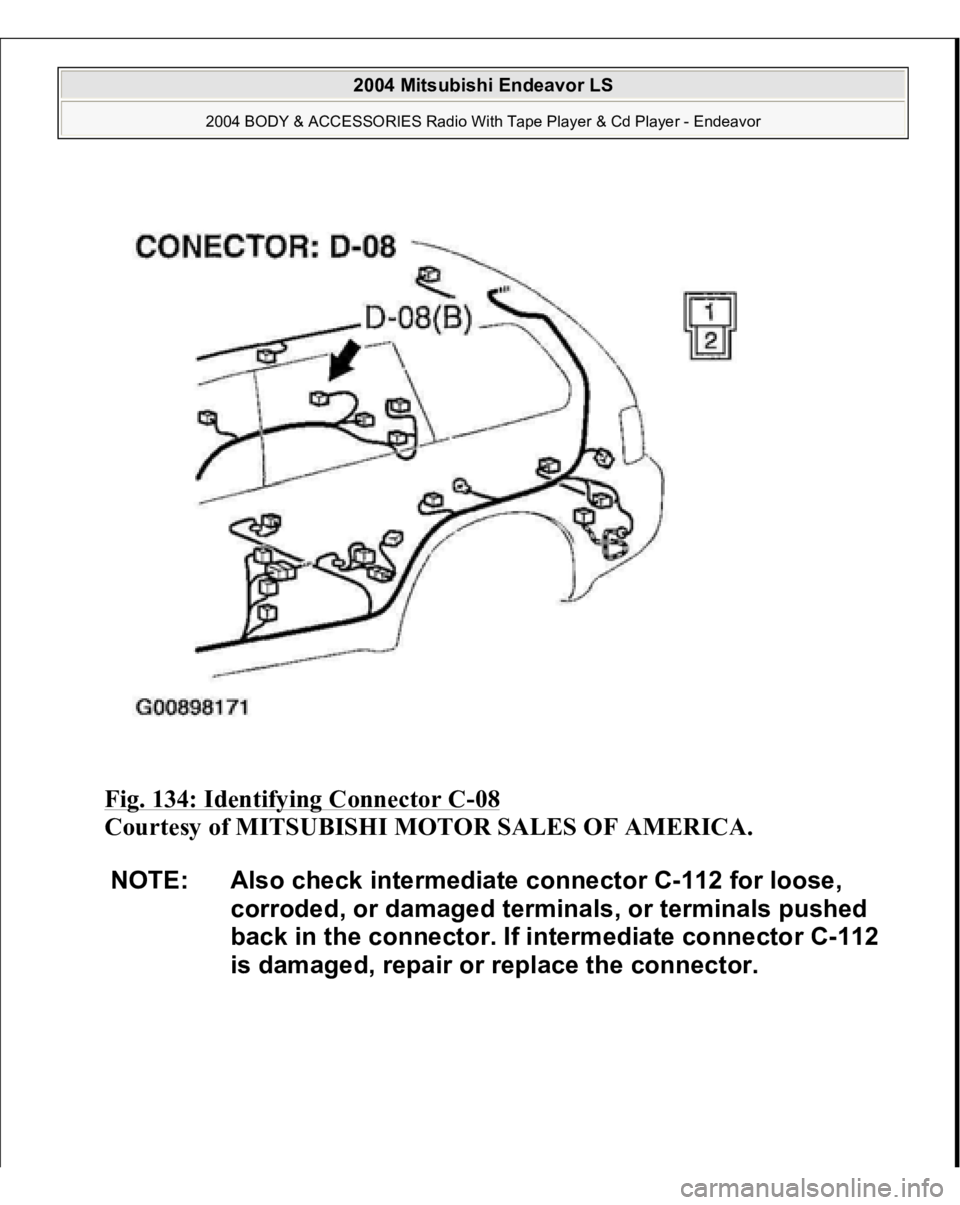

Page 1769 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 134: Identifying Connector C -08 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. NOTE: Also check intermediate connector C-112 for loose, corroded, or damaged terminals, or terminals pushed ba

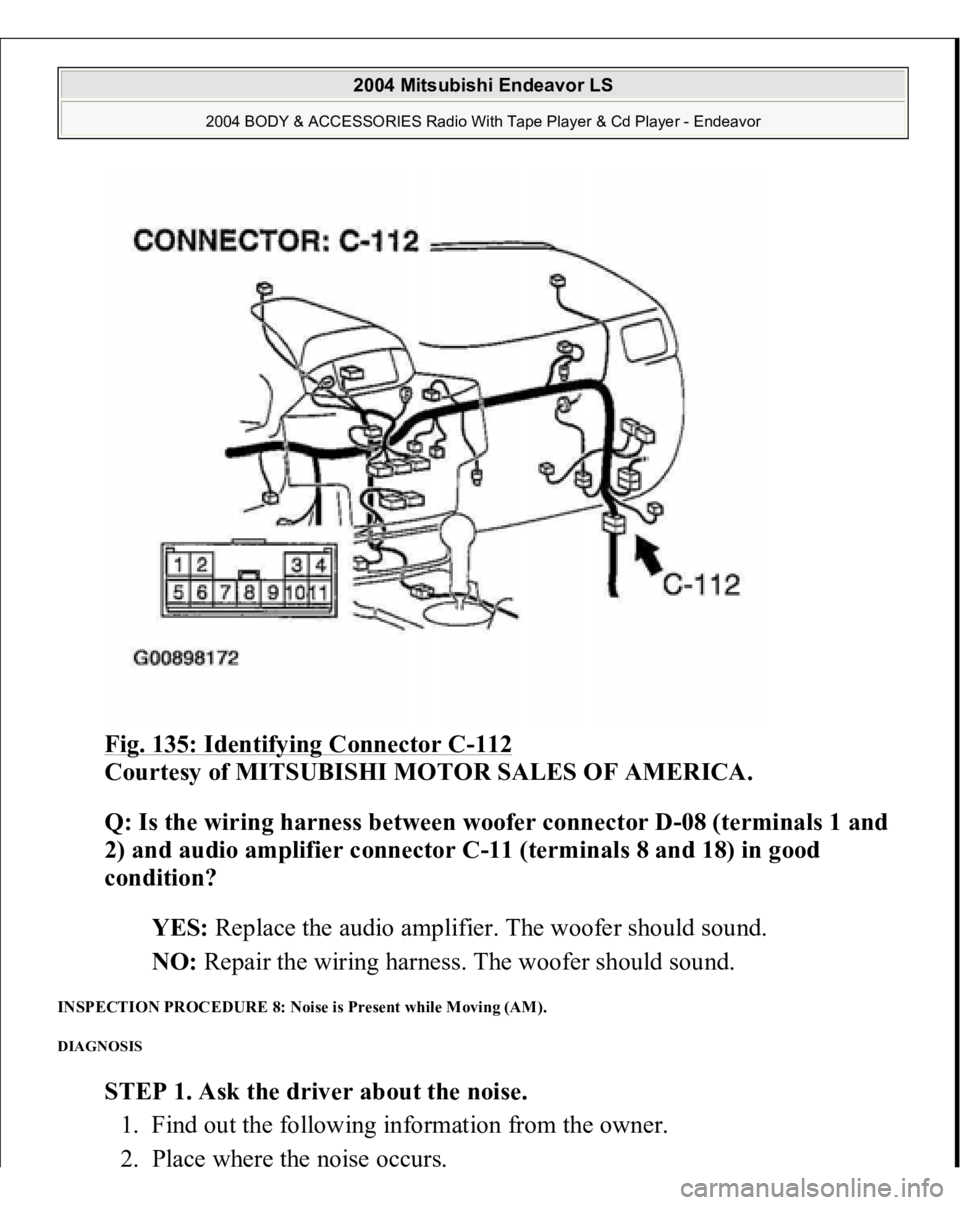

Page 1770 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 135: Identifying Connector C -112 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between woofer connector D-08 (terminals 1 and 2) and audio amplifier connector C-11

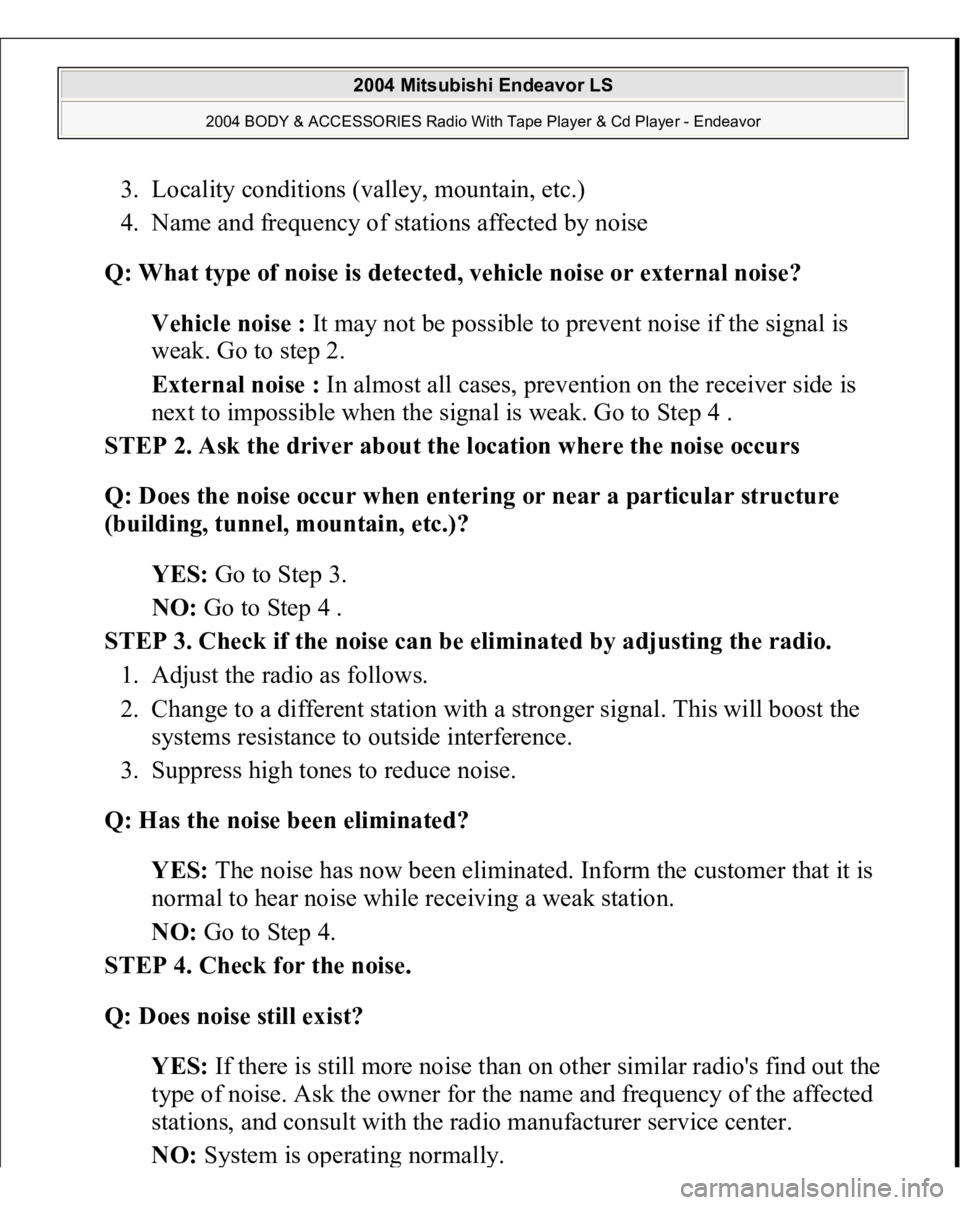

Page 1771 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. Locality conditions (valley, mountain, etc.) 4. Name and frequency of stations affected by noise Q: What type of noise is detected, vehicle noise or external noise? Vehicle noise : It may not

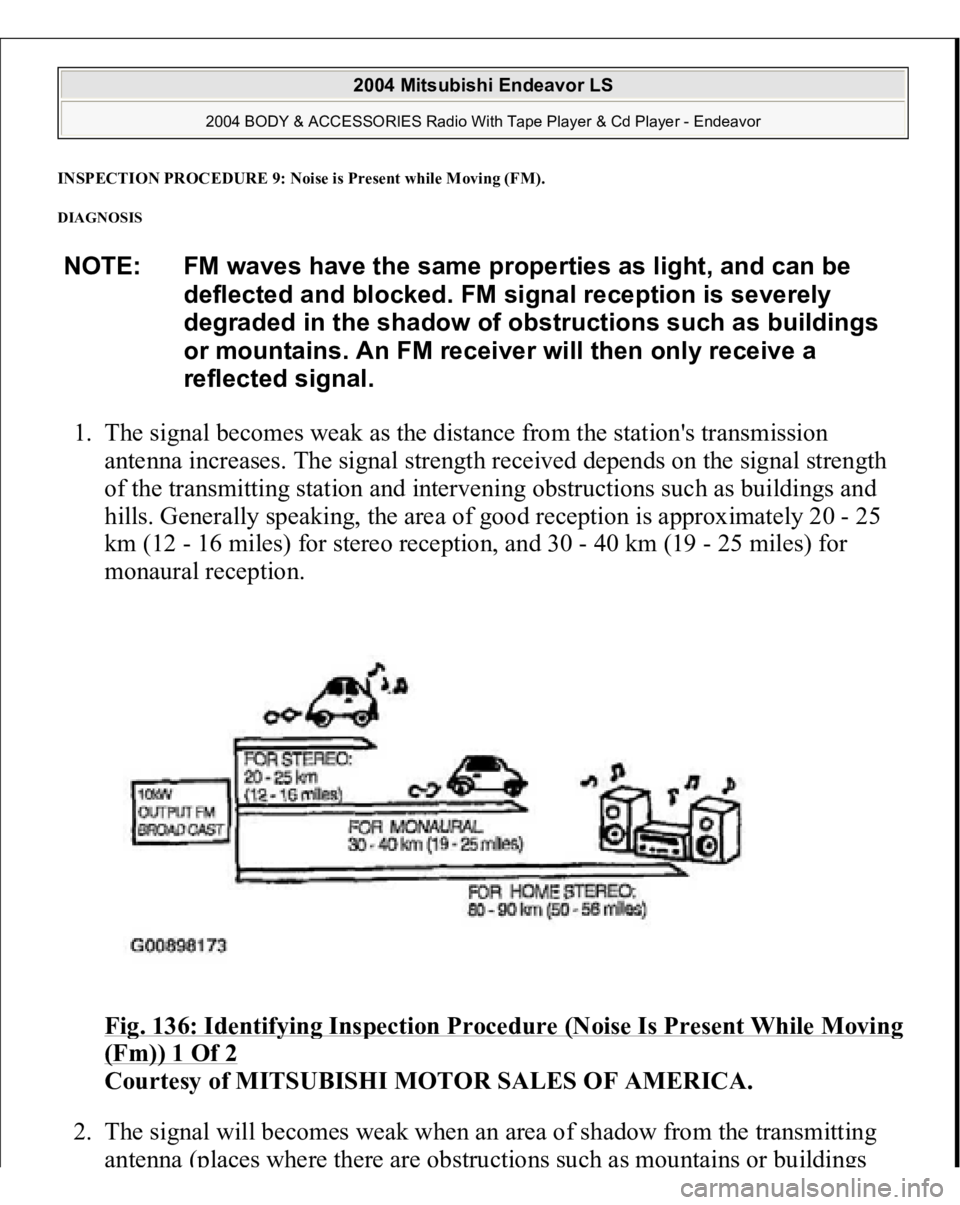

Page 1772 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual INSPECTION PROCEDURE 9: Noise is Present while Moving (FM) . DIAGNOSIS 1. The signal becomes weak as the distance from the station's transmission antenna increases. The signal strength received d

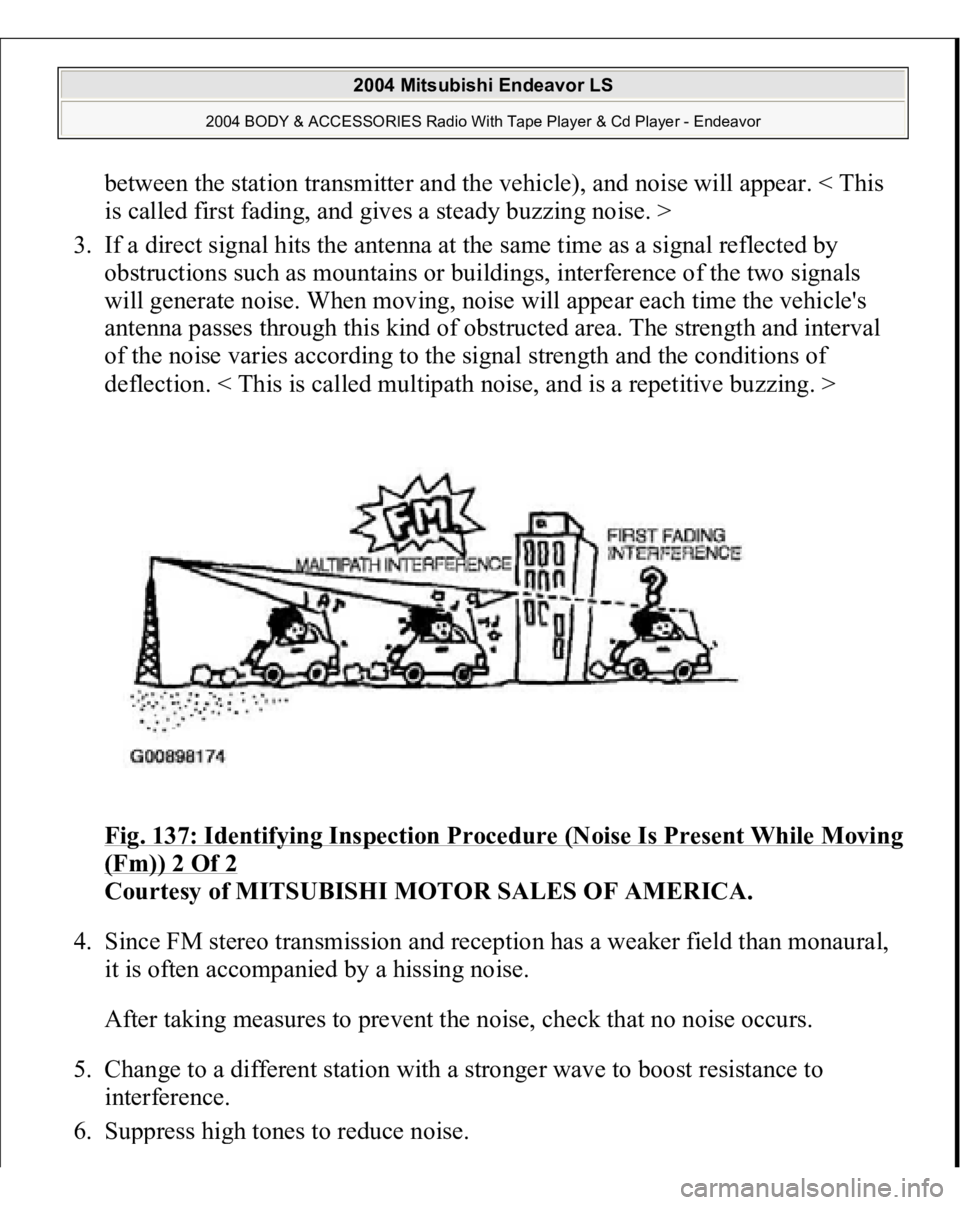

Page 1773 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual between the station transmitter and the vehicle), and noise will appear. < This is called first fading, and gives a steady buzzing noise. > 3. If a direct signal hits the antenna at the same time a

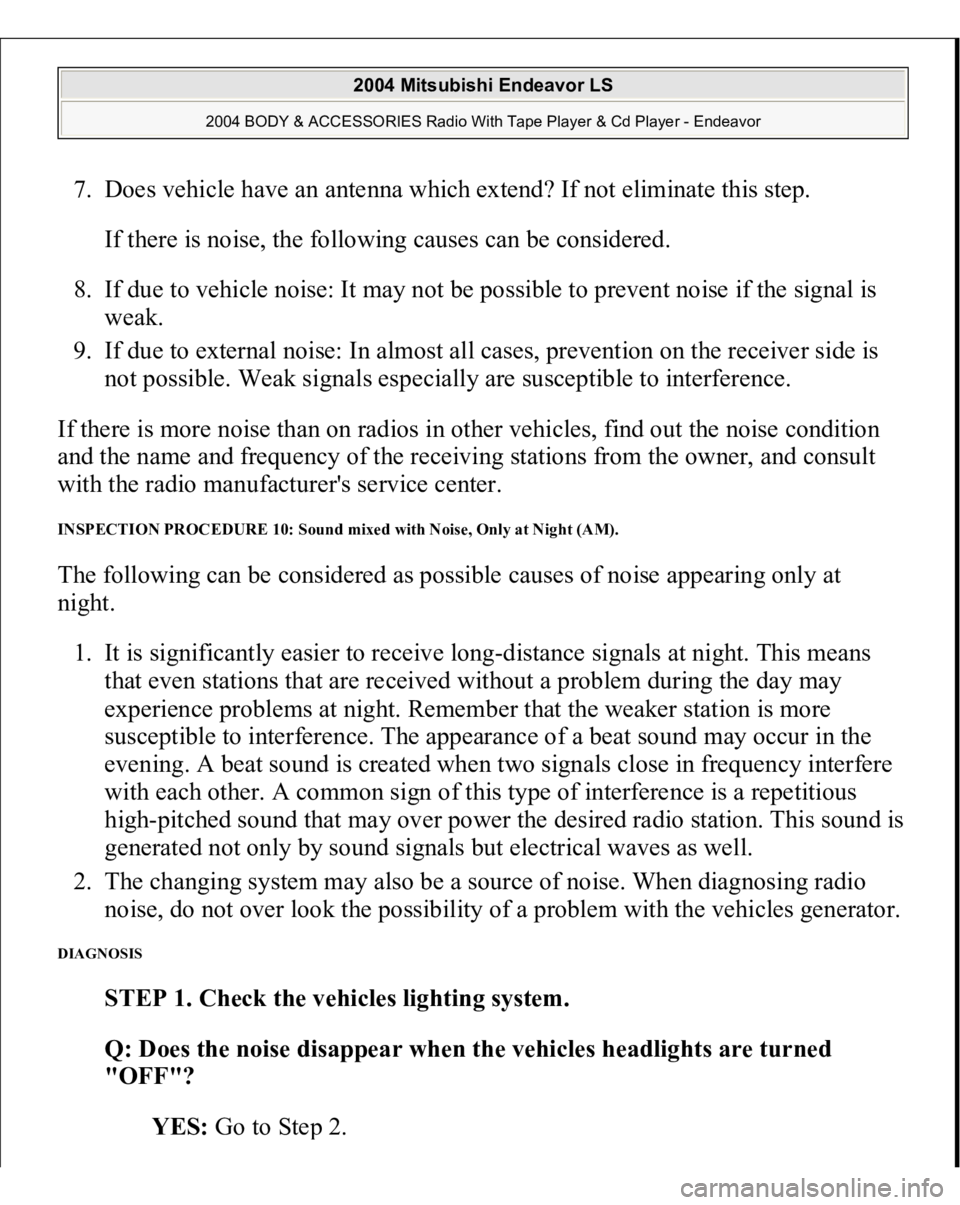

Page 1774 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 7. Does vehicle have an antenna which extend? If not eliminate this step. If there is noise, the following causes can be considered. 8. If due to vehicle noise: It may not be possible to prevent noi

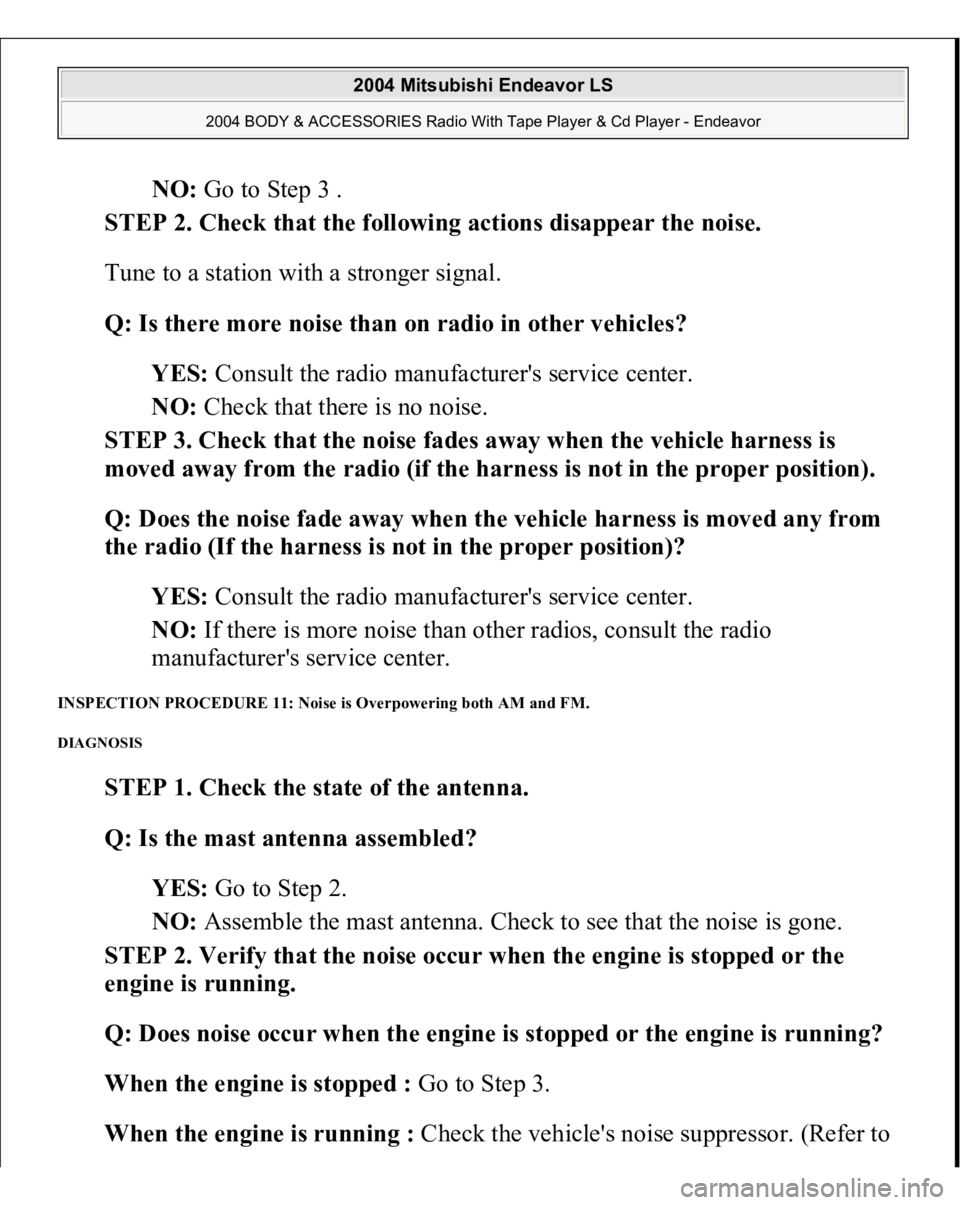

Page 1775 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO: Go to Step 3 . STEP 2. Check that the following actions disappear the noise. Tune to a station with a stronger signal. Q: Is there more noise than on radio in other vehicles? YES: Consult th

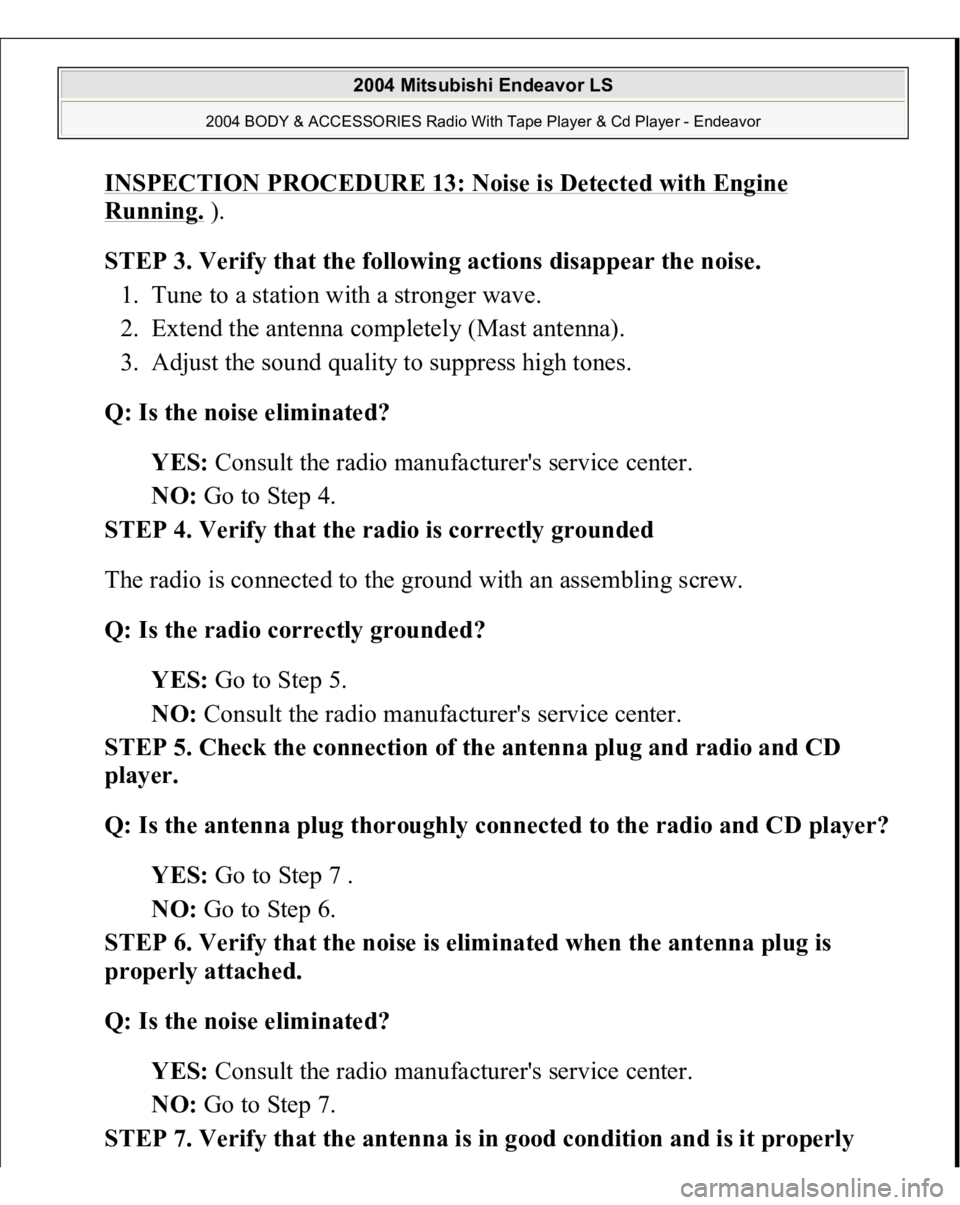

Page 1776 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual INSPECTION PROCEDURE 13: Noise is Detected with Engine Running. ). STEP 3. Verify that the following actions disappear the noise. 1. Tune to a station with a stronger wave. 2. Extend the antenna
