Page 1977 of 3870

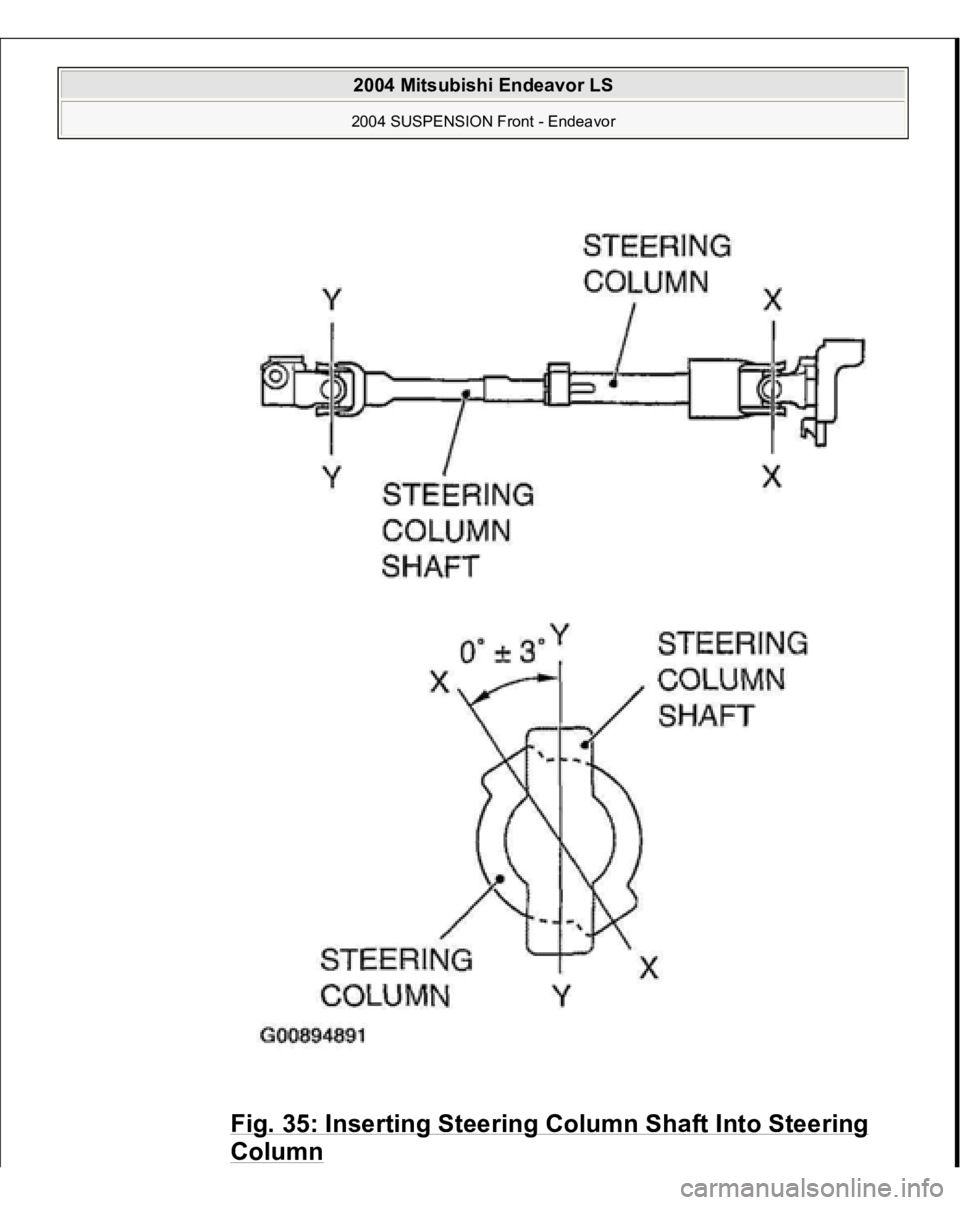

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 35: Inserting Steering Column Shaft Into Steering Column 2004 Mitsubishi Endeavor LS 2004 SUSPENSION Front - Endeavor

Page 1978 of 3870

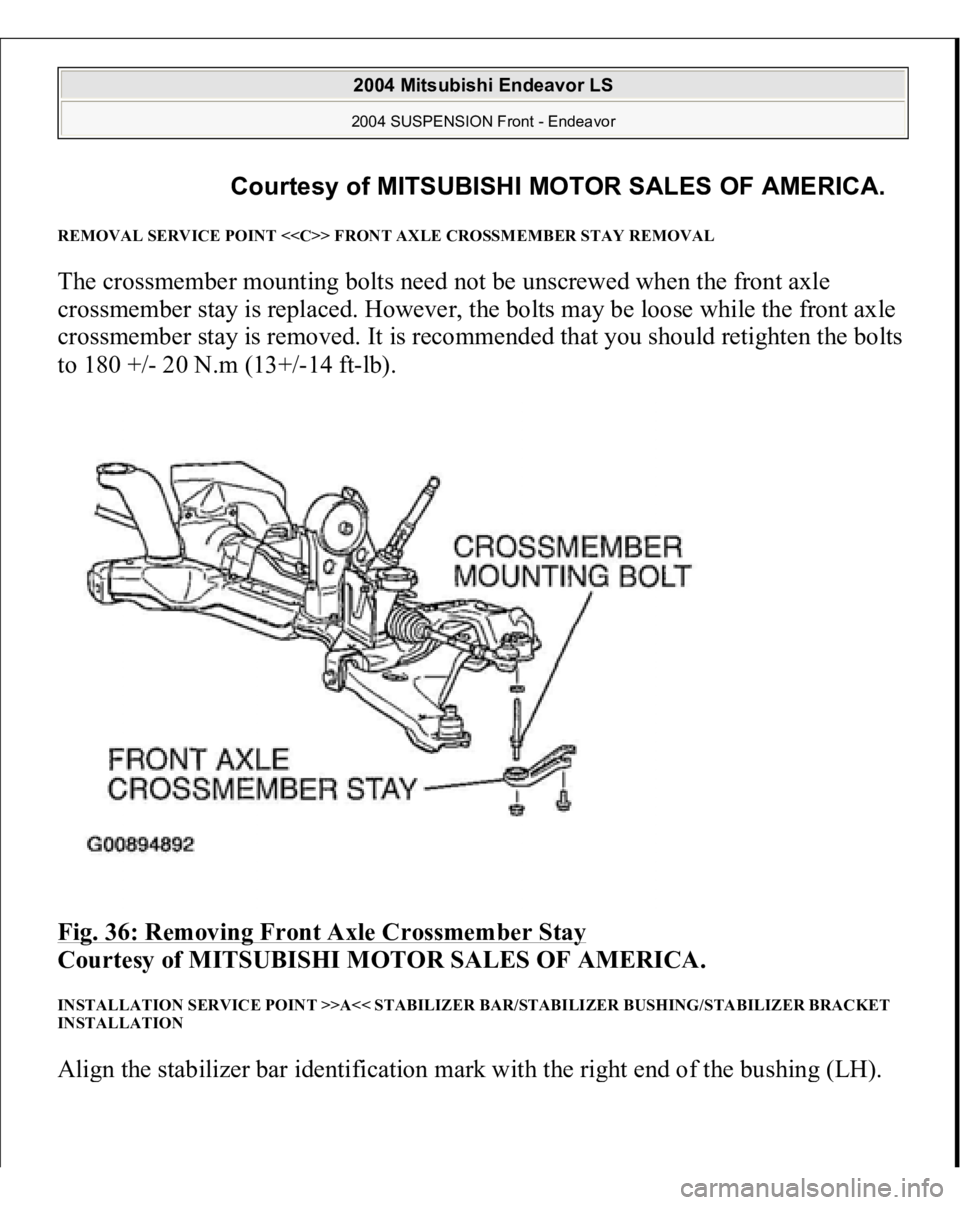

MITSUBISHI ENDEAVOR 2004 Service Repair Manual REMOVAL SERVICE POINT <<C>> FRONT AXLE CROSSMEMBER STAY REMOVAL The crossmember mounting bolts need not be unscrewed when the front axle crossmember stay is replaced. However, the bolts may be loose

Page 1979 of 3870

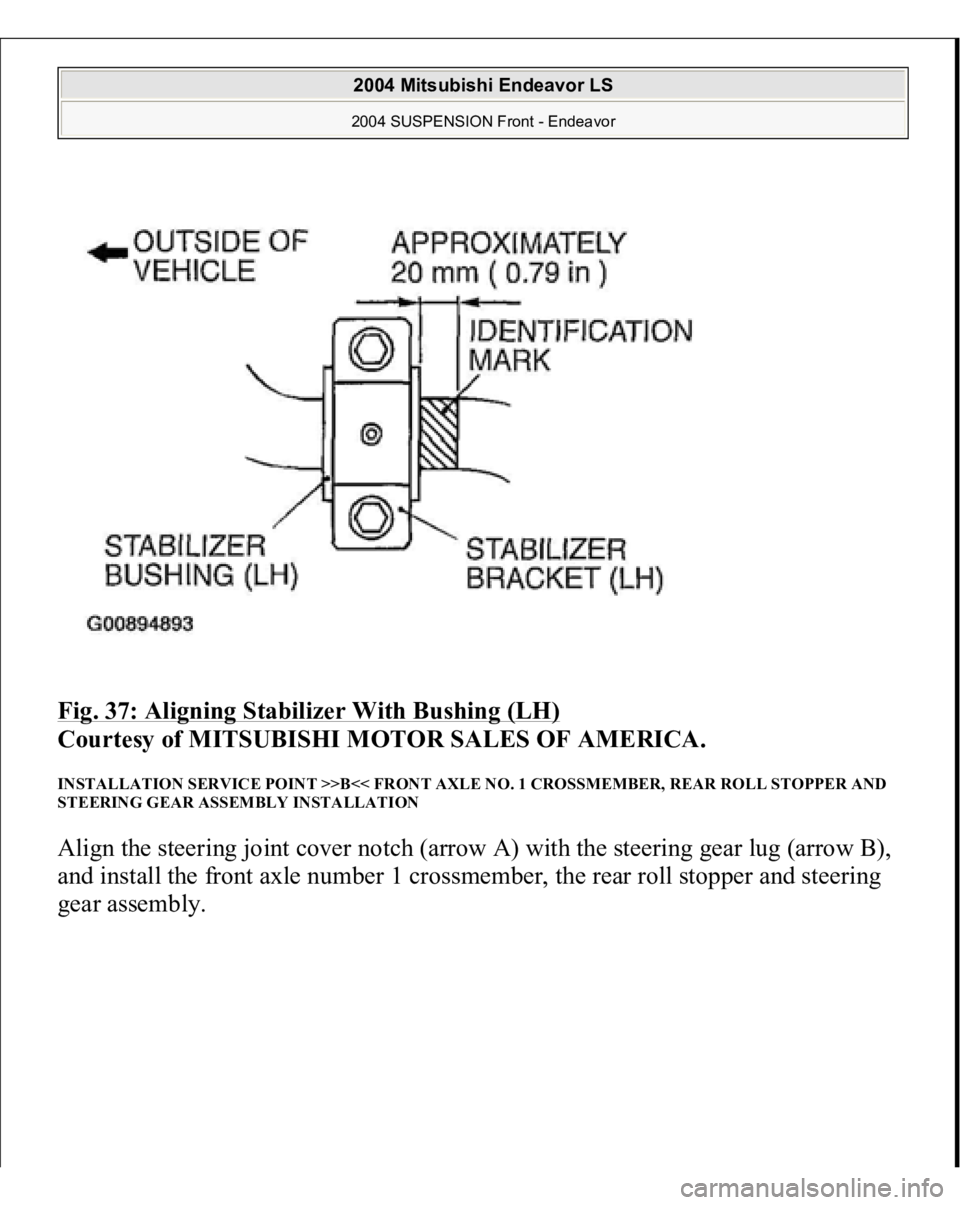

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 37: Aligning Stabilizer With Bushing (LH) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINT >>B<< FRONT AXLE NO. 1 CROSSMEMBER, REAR ROLL STOPPER AND STEERING GEAR ASS

Page 1980 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 38: Aligning Steering Joint Cover Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINT <<C>> FRONT AXLE CROSSMEMBER STAY/SELF-LOCKING NUT INSTALLATION Ensure that the cro

Page 1981 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 39: Installing Front Axle Crossmember Stay Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSPECTION Check the stabilizer bushings for wear and deterioration. Check the stabilizer bar for de

Page 1982 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 40: Measuring Ball Joint Breakaway Torque Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Standard value: 3.4 - 9.0 N.m (30 - 80 in-lb) 2. When the measured value exceeds the standard value,

Page 1983 of 3870

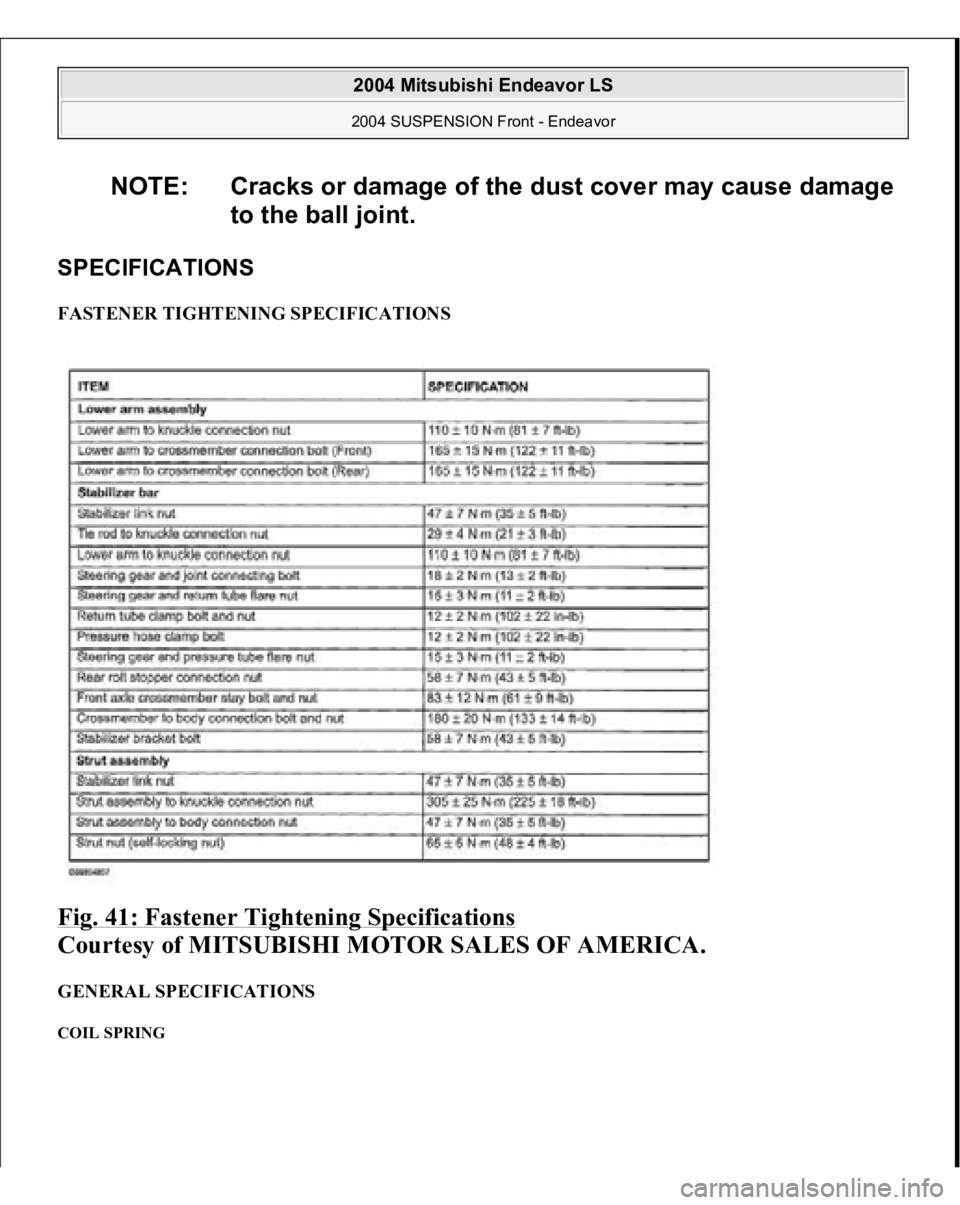

MITSUBISHI ENDEAVOR 2004 Service Repair Manual SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS Fig. 41: Fastener Tightening Specifications Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. GENERAL SPECIFICATIONS COIL SPRING NOTE: Cracks or dama

Page 1984 of 3870

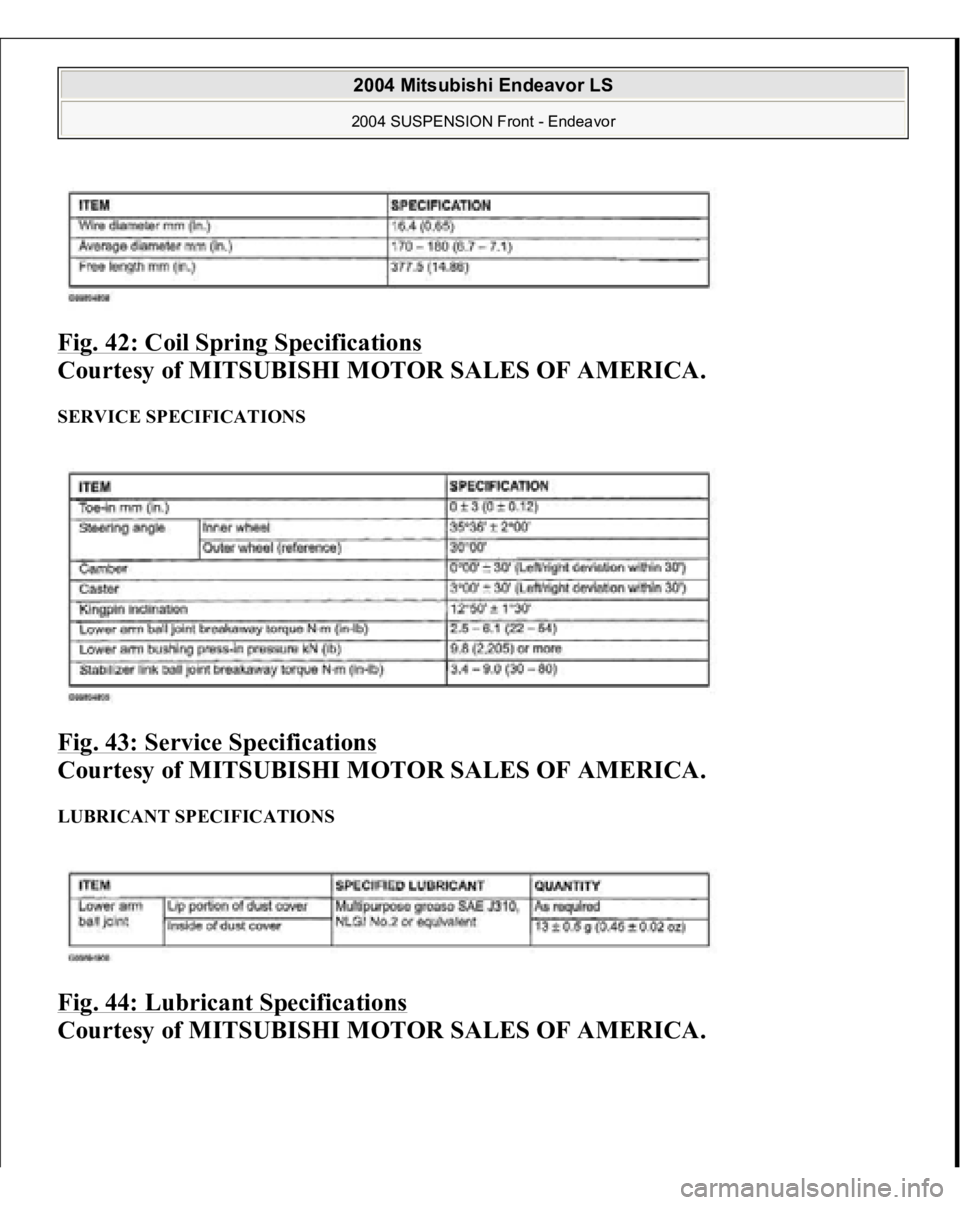

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 42: Coil Spring Specifications Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SERVICE SPECIFICATIONS Fig. 43: Service Specifications Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. LUBRICANT
