Page 2273 of 3870

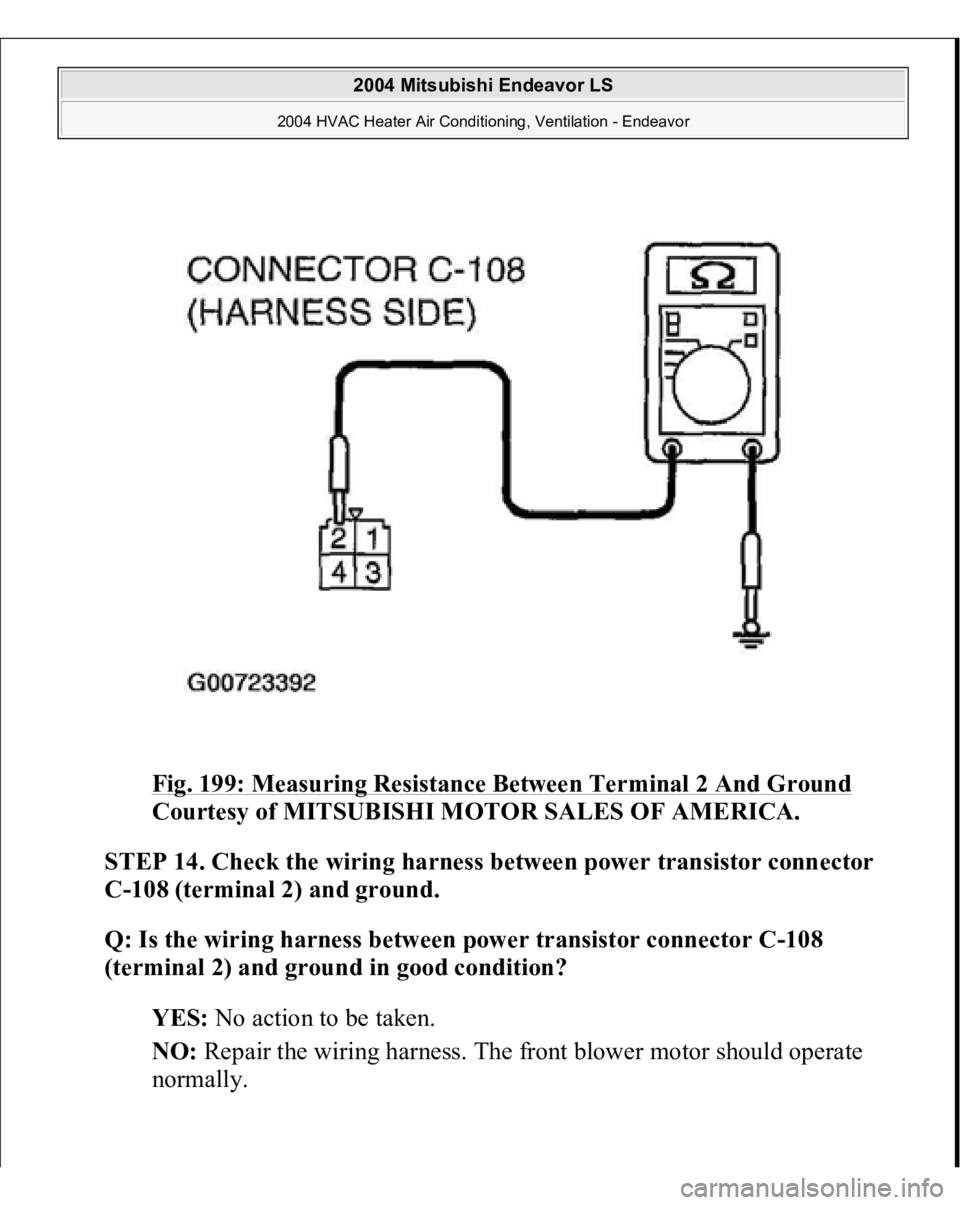

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 199: Measuring Resistance Between Terminal 2 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 14. Check the wiring harness between power transistor connector C-108 (terminal 2)

Page 2274 of 3870

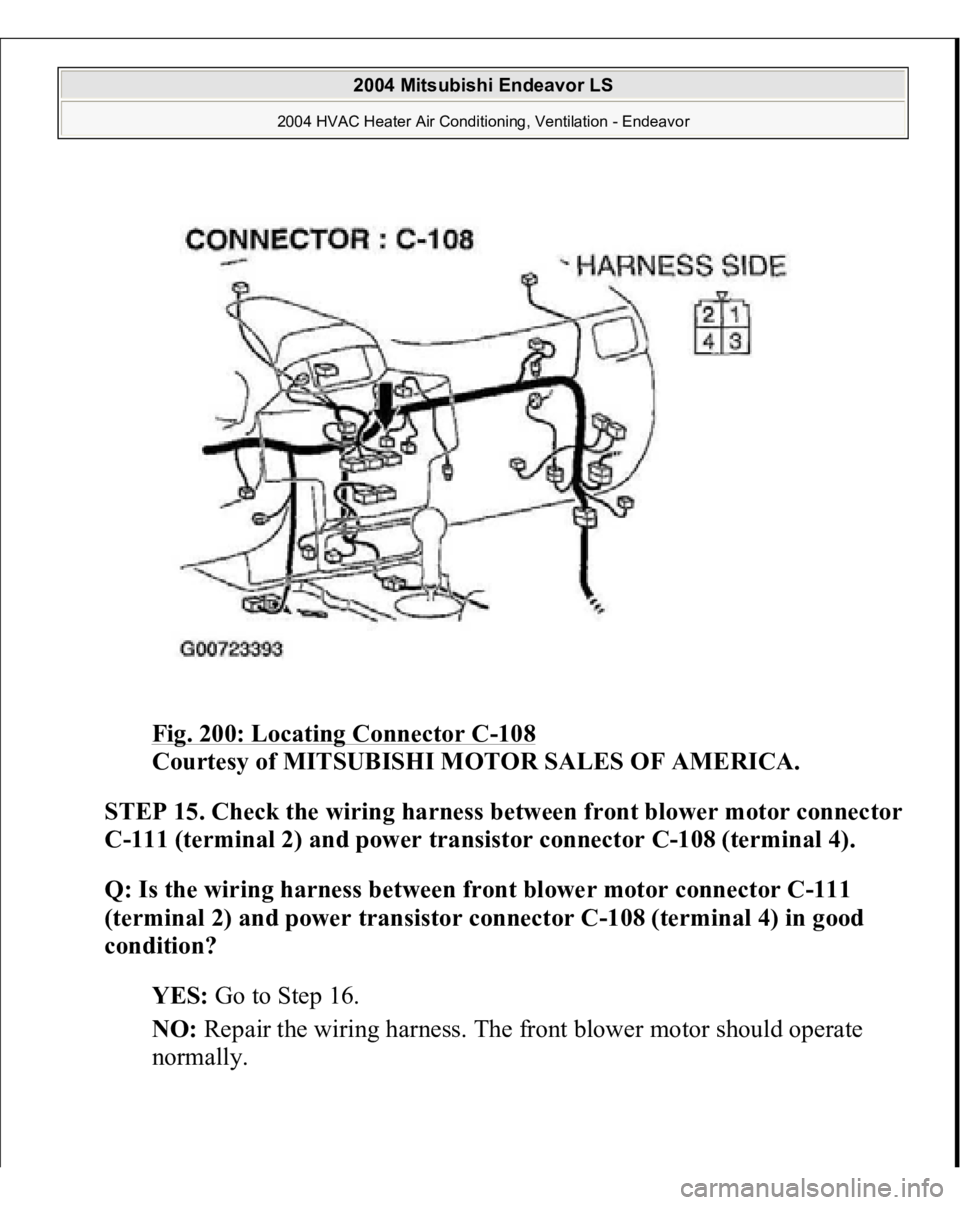

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 200: Locating Connector C -108 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 15. Check the wirin g harness between front blower motor connector C-111 (terminal 2) and power transistor

Page 2275 of 3870

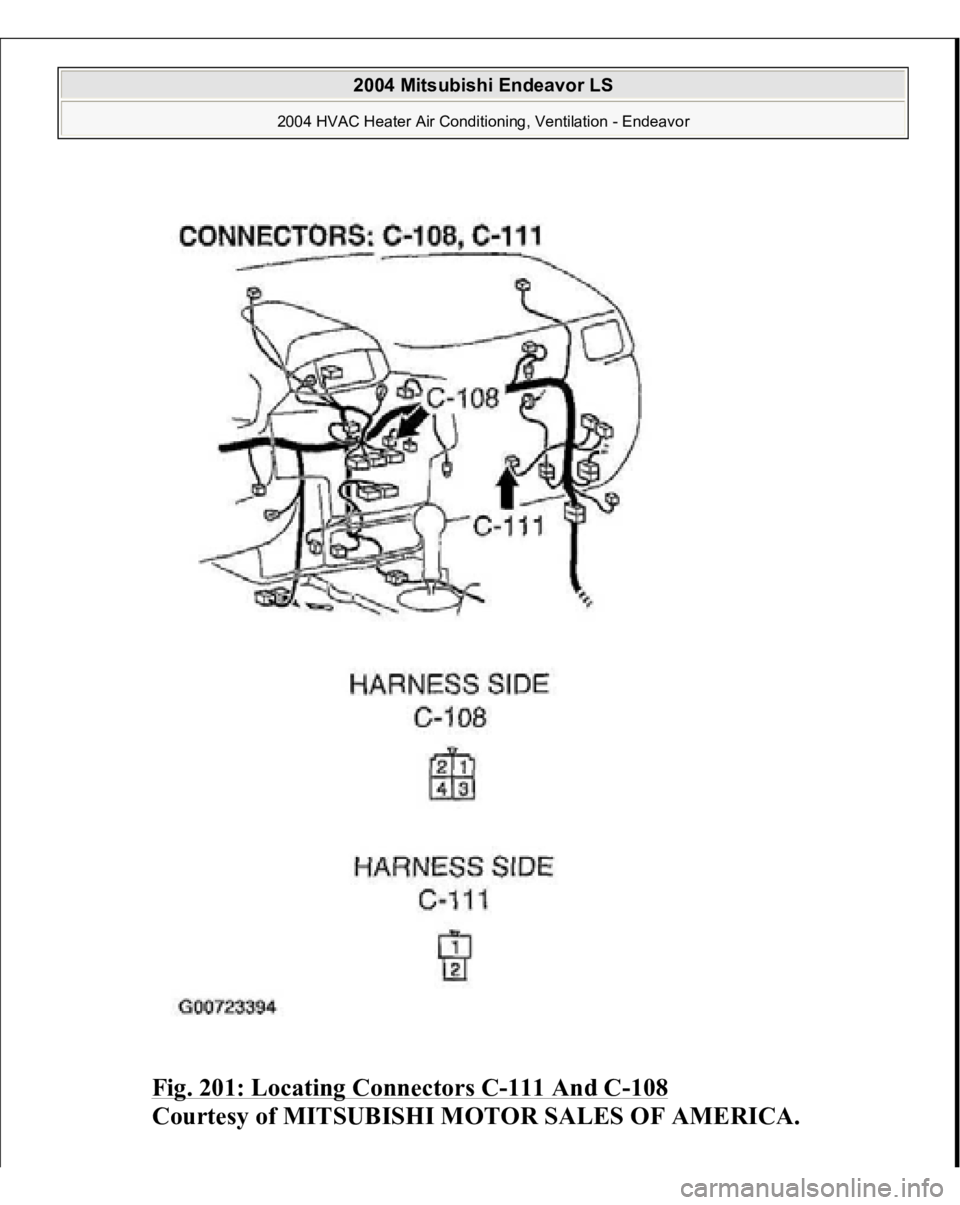

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 201: Locating Connectors C -111 And C -108 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2276 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 16. Check the wiring harness between A/C-ECU connector C-16 (terminals 17 and 18) and power transistor connector C-108 (terminals 1 and 3). Q: Is the wiring harness between A/C-ECU connector

Page 2277 of 3870

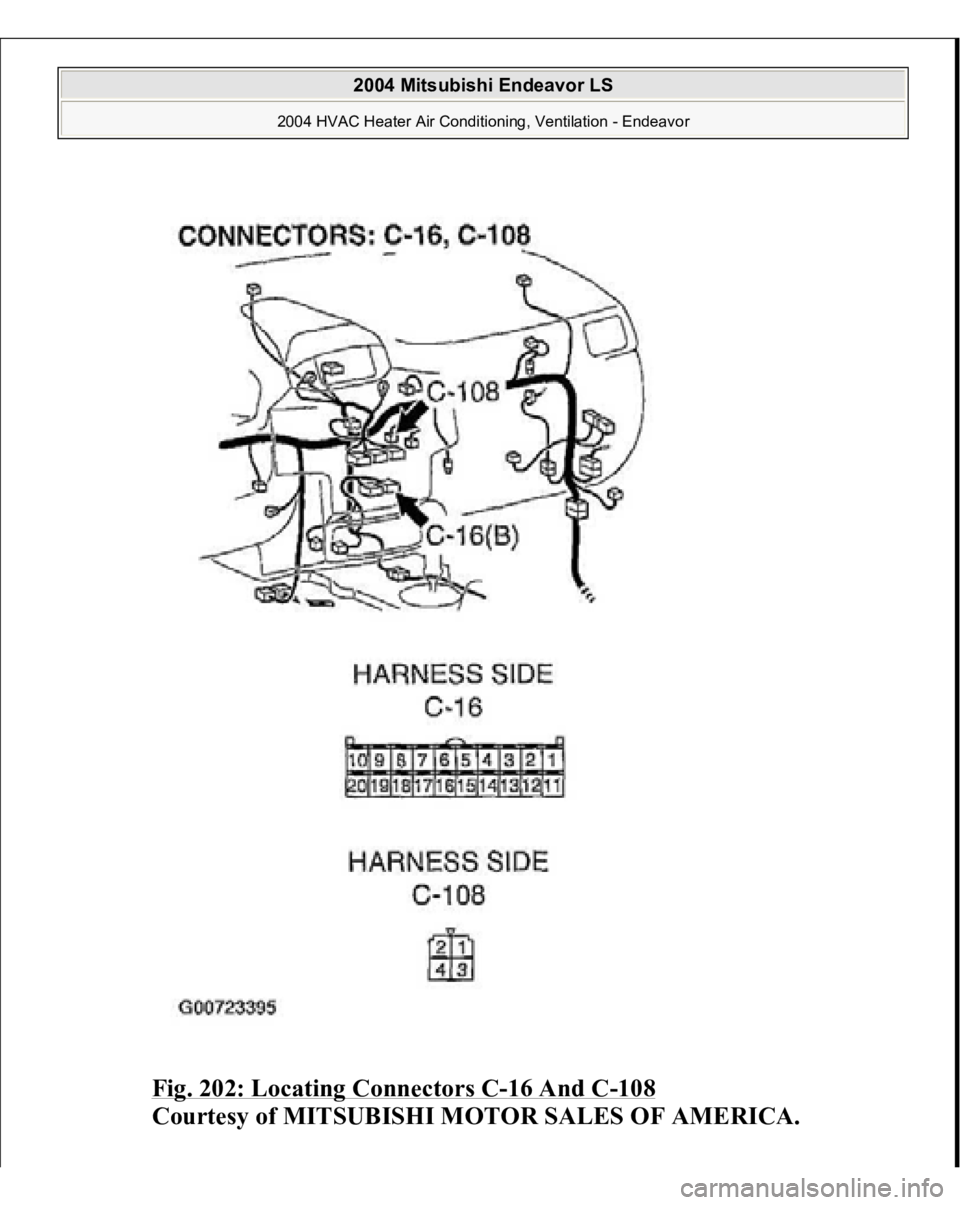

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 202: Locating Connectors C -16 And C -108 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2278 of 3870

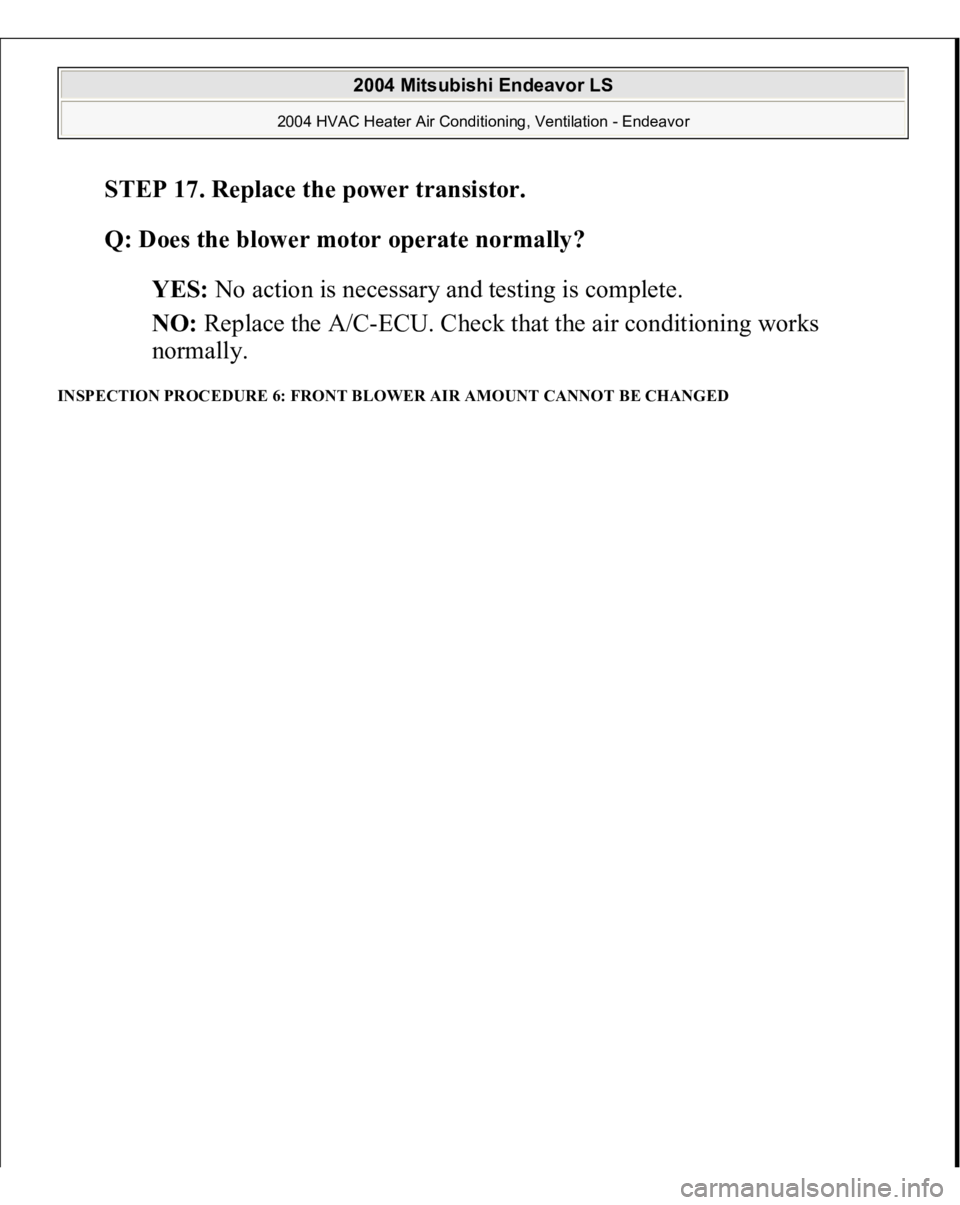

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 17. Replace the power transistor. Q: Does the blower motor operate normally? YES: No action is necessary and testing is complete. NO: Replace the A/C-ECU. Check that the air conditioning

Page 2279 of 3870

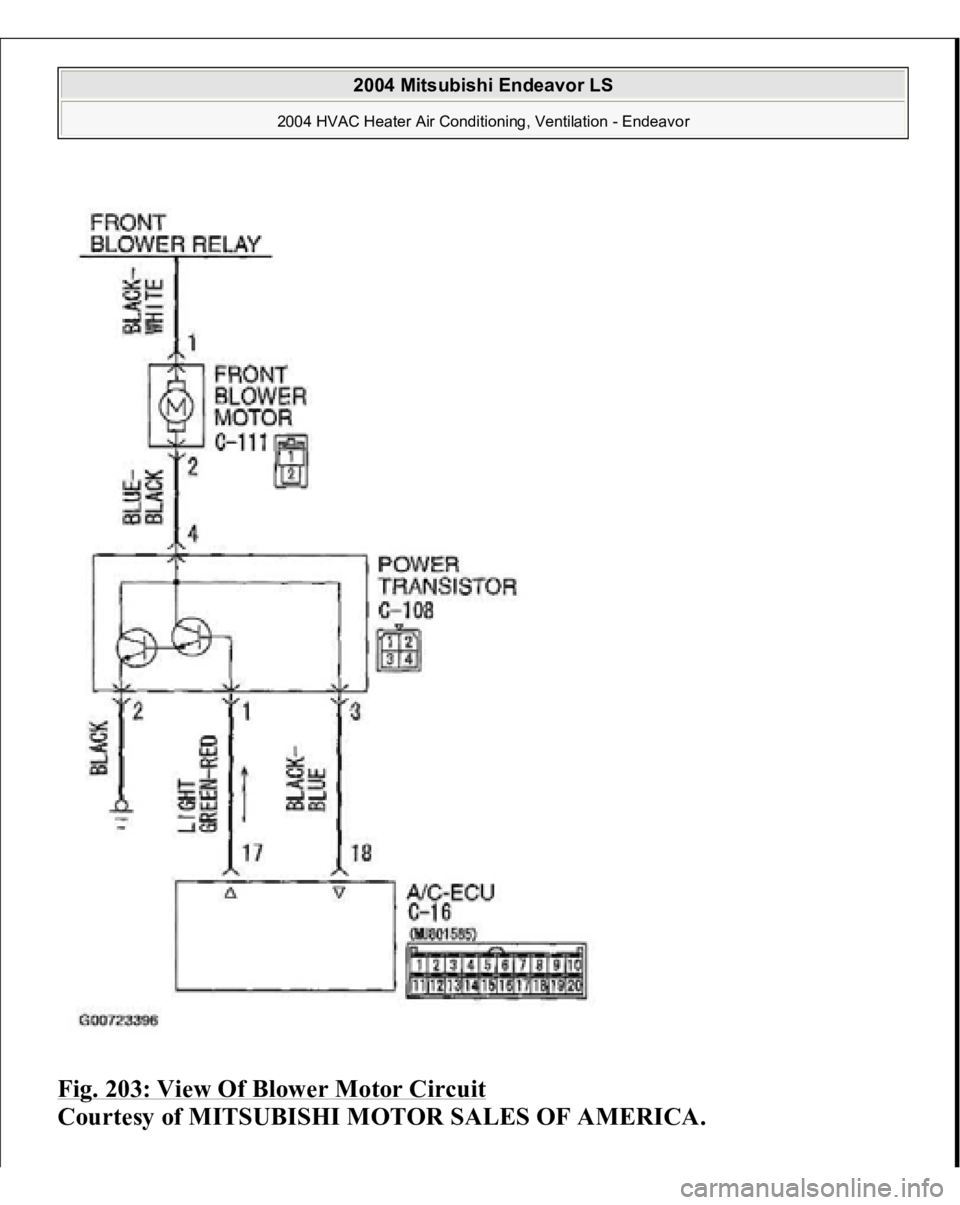

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 203: View Of Blower Motor Circuit Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2280 of 3870

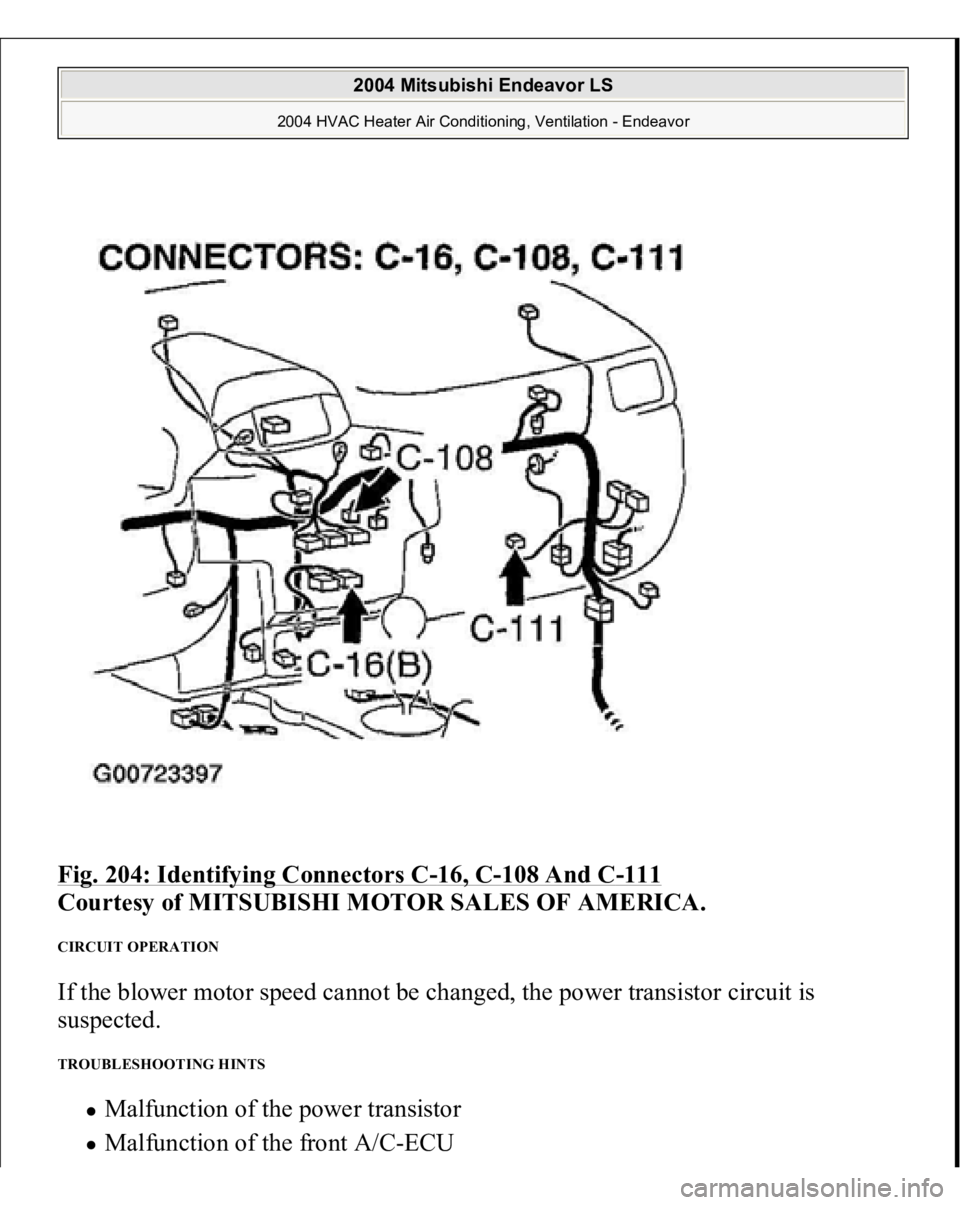

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 204: Identifying Connectors C -16, C -108 And C -111 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION If the blower motor speed cannot be changed, the power transistor circuit
