2004 MITSUBISHI ENDEAVOR Service Repair Manual

lightstorquehornclutchbattery locationwheelbase
Popular search:
Power window wiringintroWoofercheck oilWiring diagramAnchorFigure 37
Previous
Next
Load previous 8 pages

Page 857 of 3870

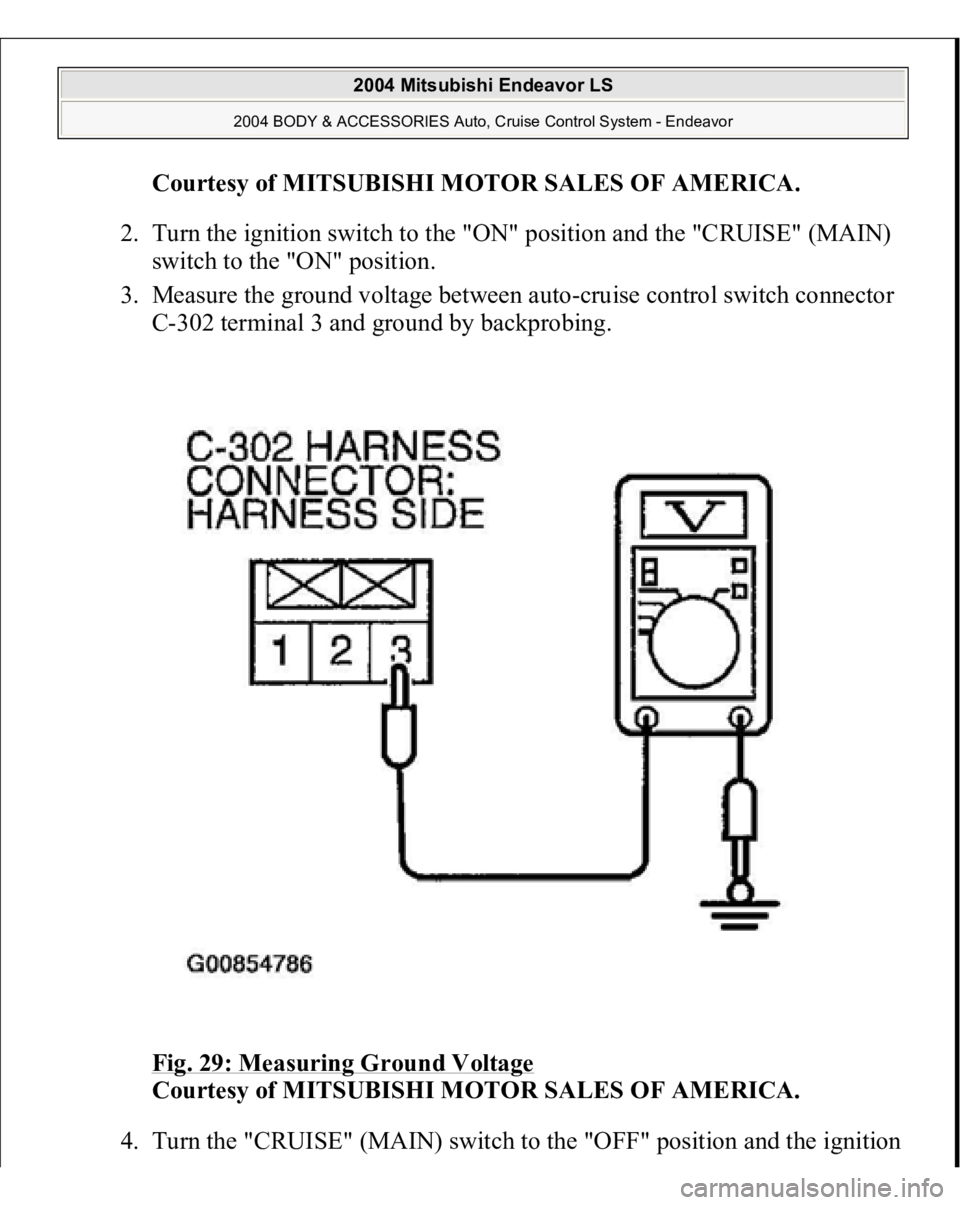

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position and the "CRUISE" (MAIN) switch to the "ON" position. 3. Measure the ground

Page 858 of 3870

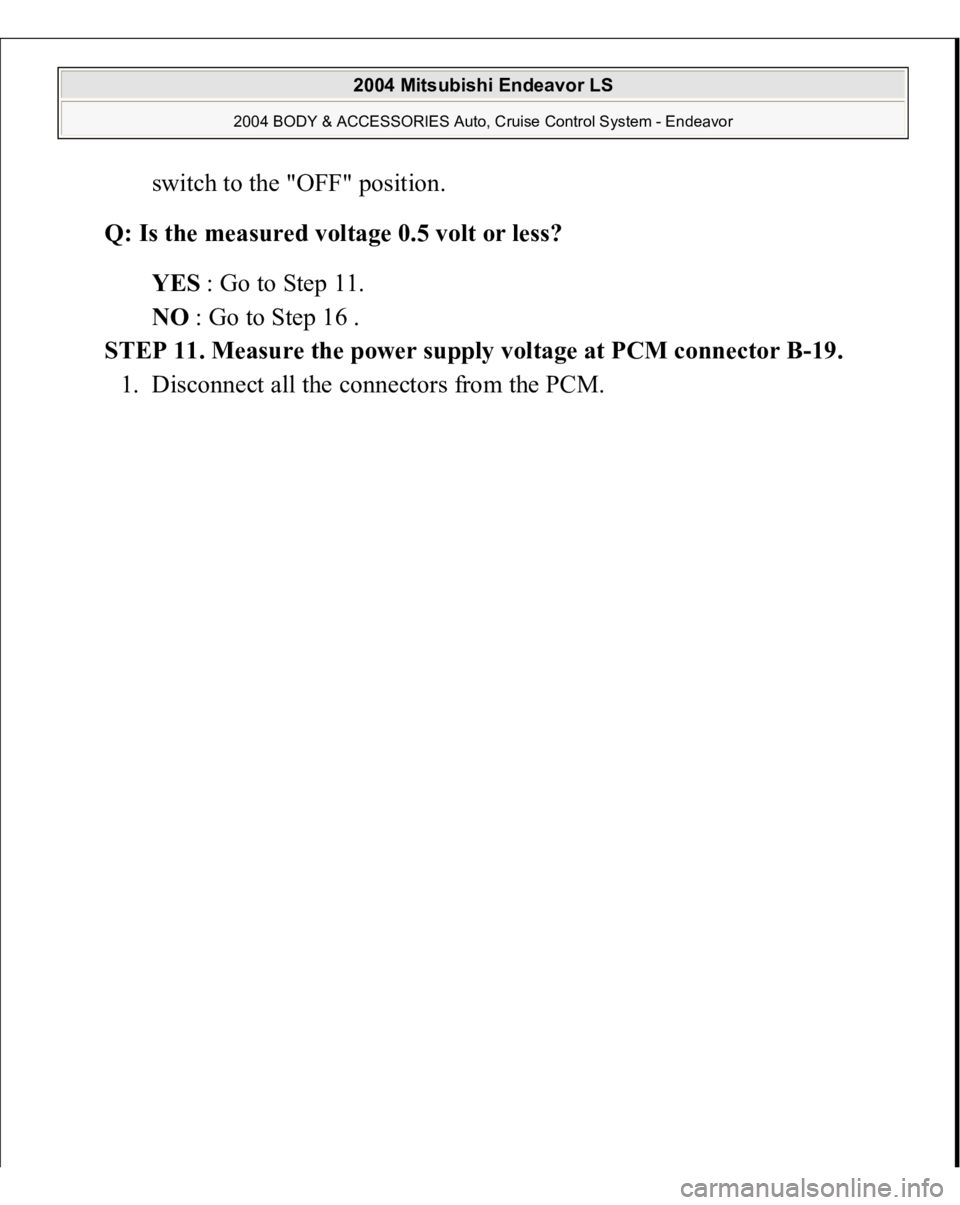

MITSUBISHI ENDEAVOR 2004 Service Repair Manual switch to the "OFF" position. Q: Is the measured voltage 0.5 volt or less? YES : Go to Step 11. NO : Go to Step 16 . STEP 11. Measure the power supply voltage at PCM connector B-19. 1

Page 859 of 3870

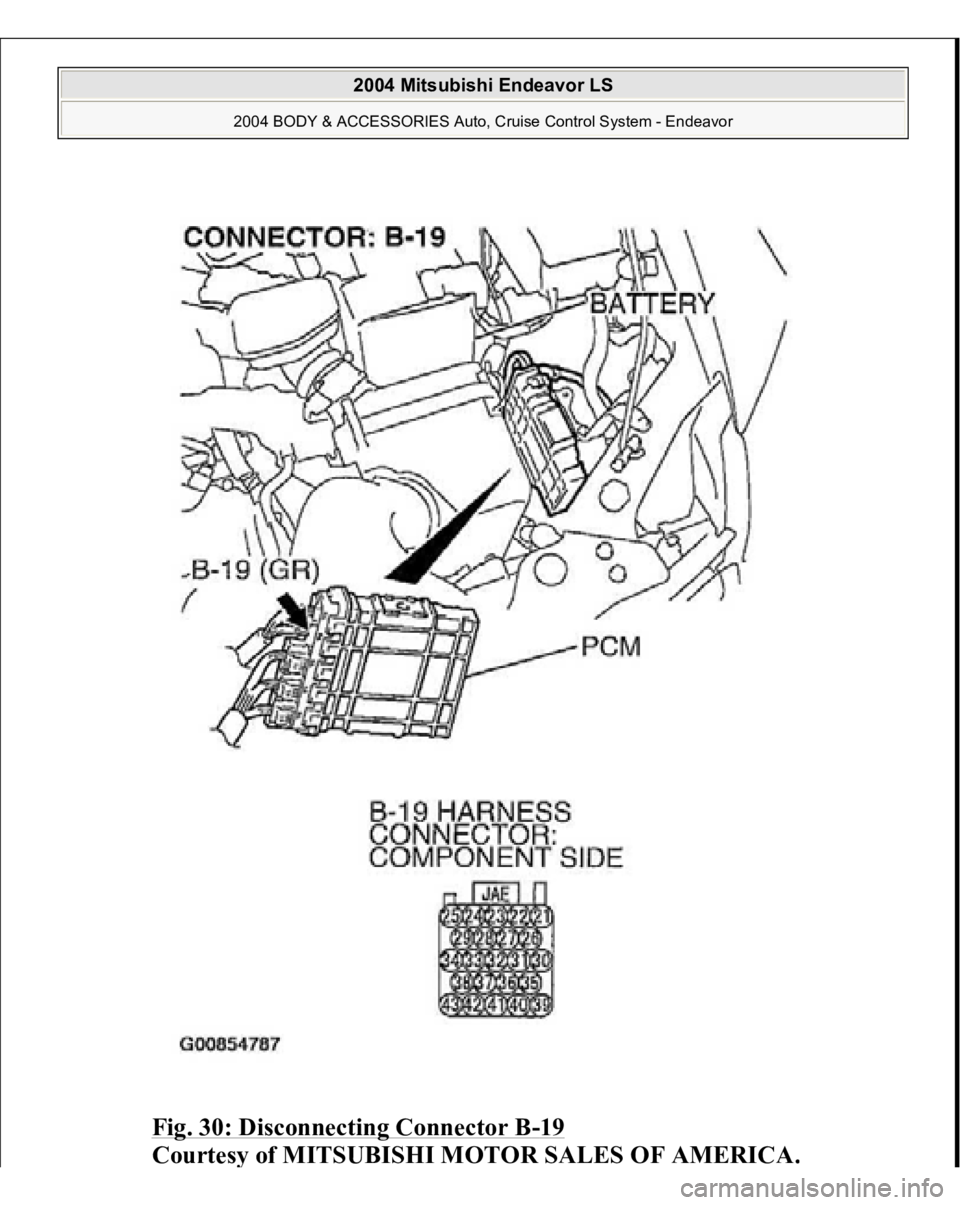

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 30: Disconnecting Connector B -19 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 860 of 3870

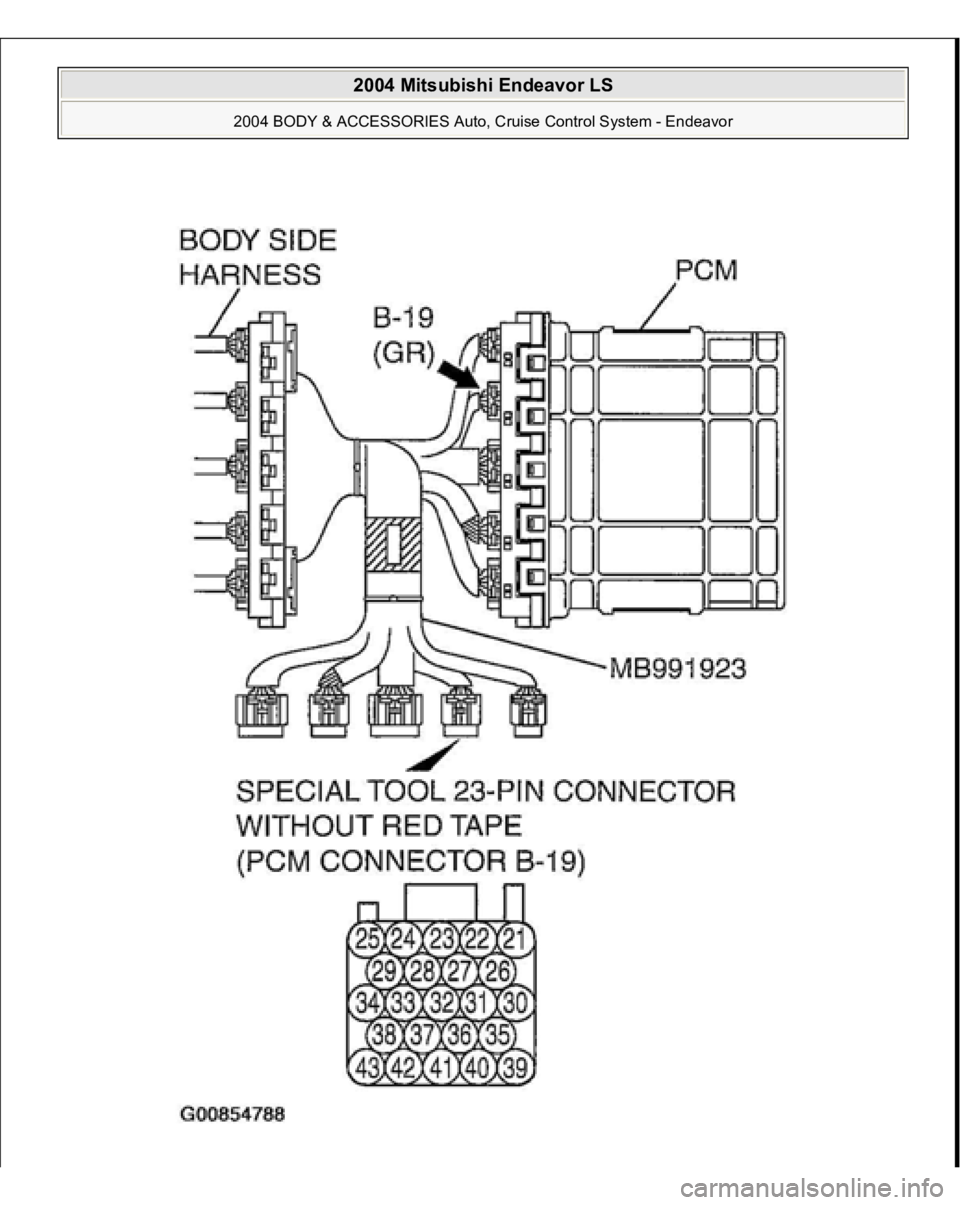

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Connect special tool MB991923 (check harness) between the PCM and the bod y-side harness connector. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 861 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 862 of 3870

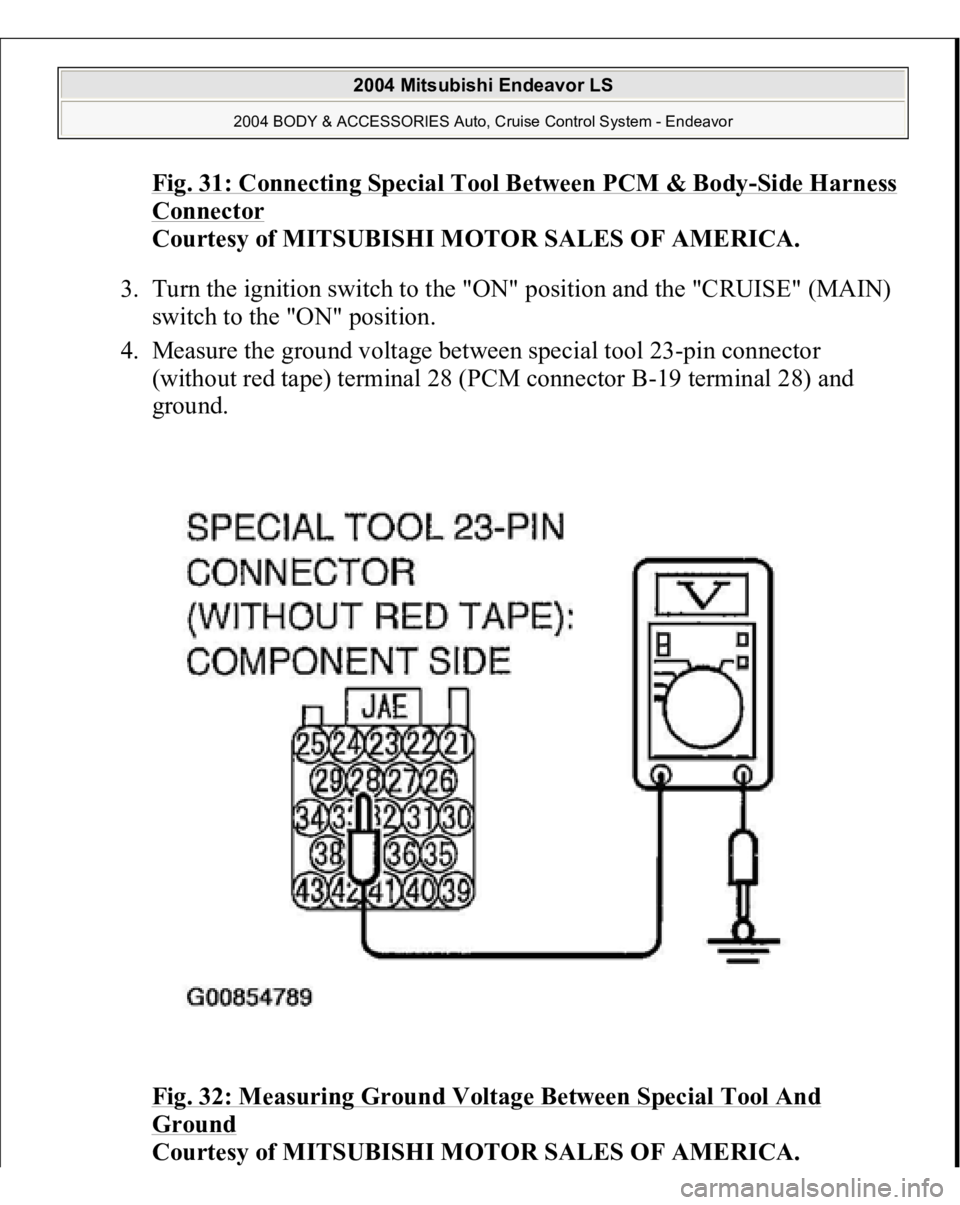

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 31: Connecting Special Tool Between PCM & Body -Side Harness Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Turn the ignition switch to the "ON" position and the "CRU

Page 863 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 5. Turn the "CRUISE" (MAIN) switch to the "OFF" position the ignition switch to the "OFF" position. Q: Is the measured voltage 0.5 volt or less? YES : Go to Step 12. NO

Page 864 of 3870

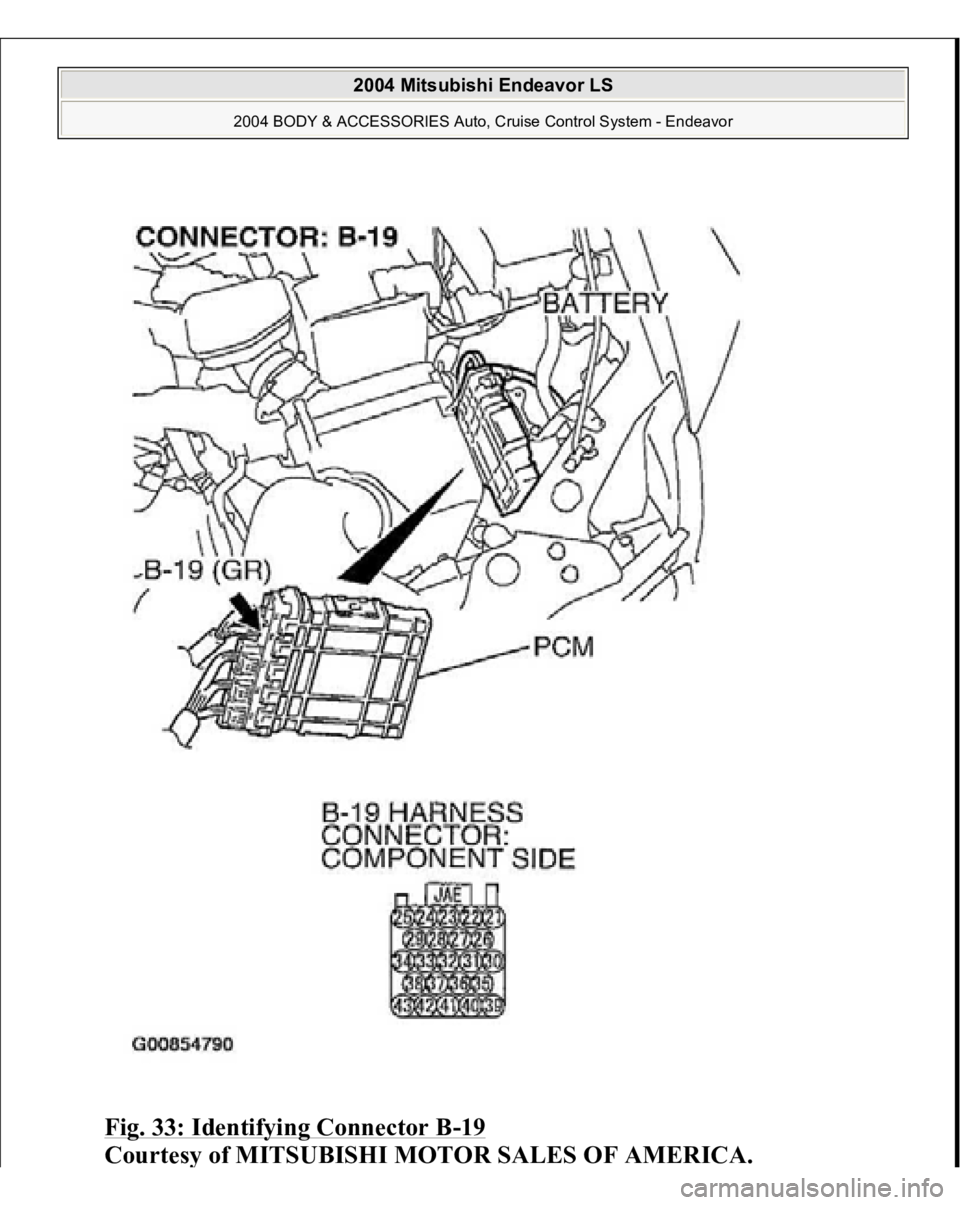

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 33: Identifying Connector B -19 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
Load next 8 pages
