Page 3001 of 3870

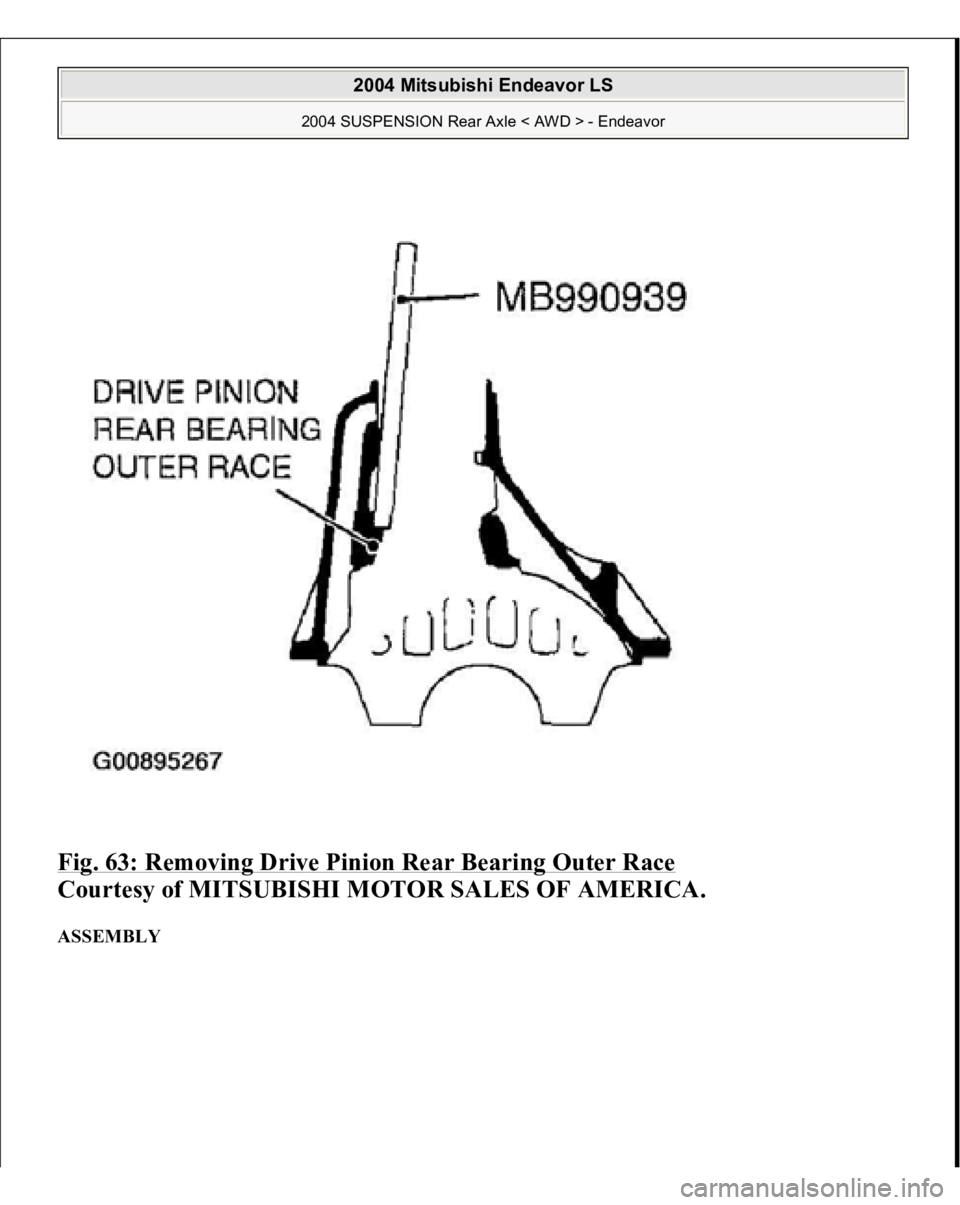

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 63: Removing Drive Pinion Rear Bearing Outer Race Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY 2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear Axle < AWD > - Endeavor

Page 3002 of 3870

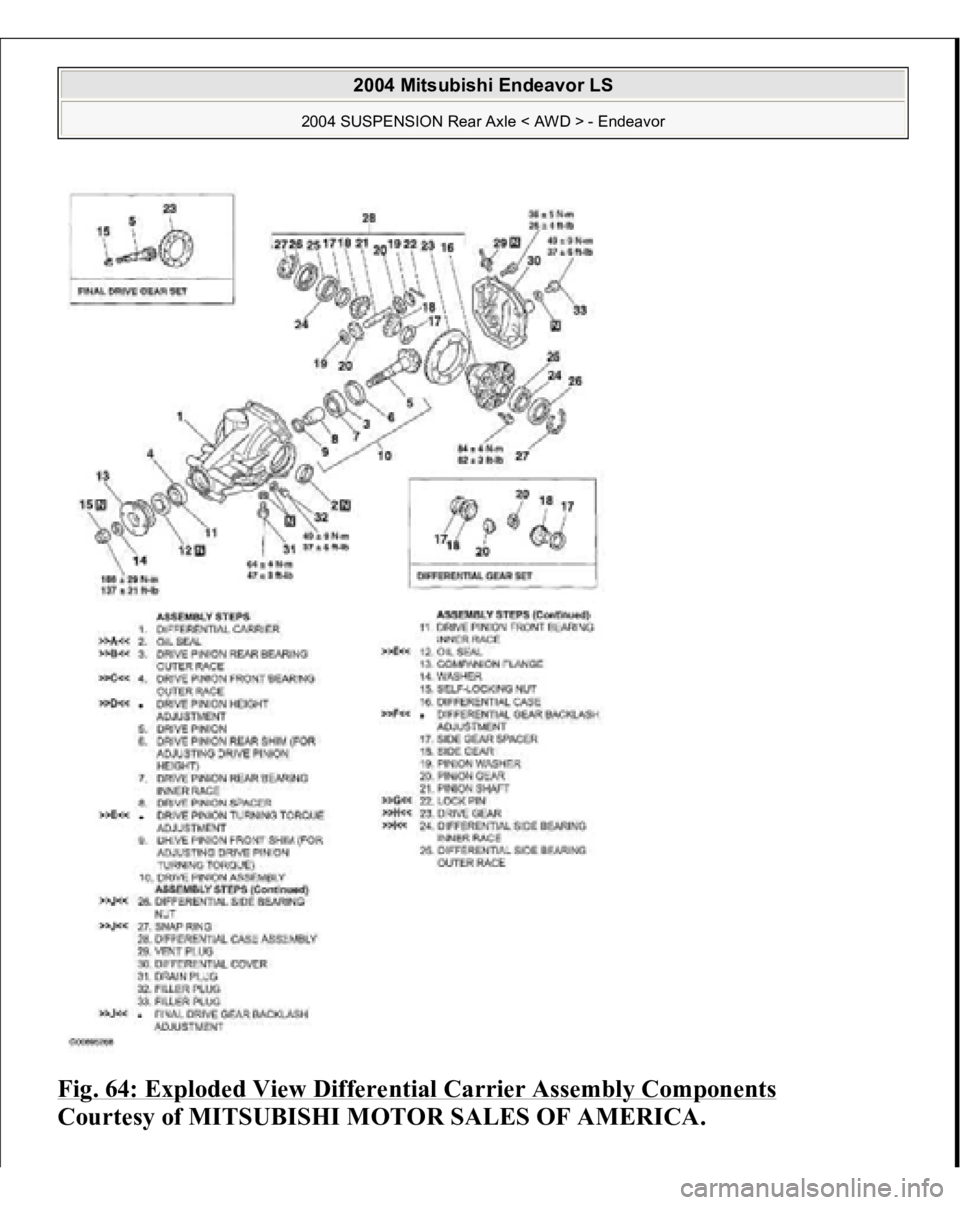

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 64: Exploded View Differential Carrier Assembly Components Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear Axle < AWD > - Endeavor

Page 3003 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Required Special Tools: MB990938: Bar MB991380: Oil Seal Installer MB990936: Installer Adapter MB990934: Installer Adapter MB990901: Drive Pinion Setting Gauge Set MB991378: Drive Pinion Settin

Page 3004 of 3870

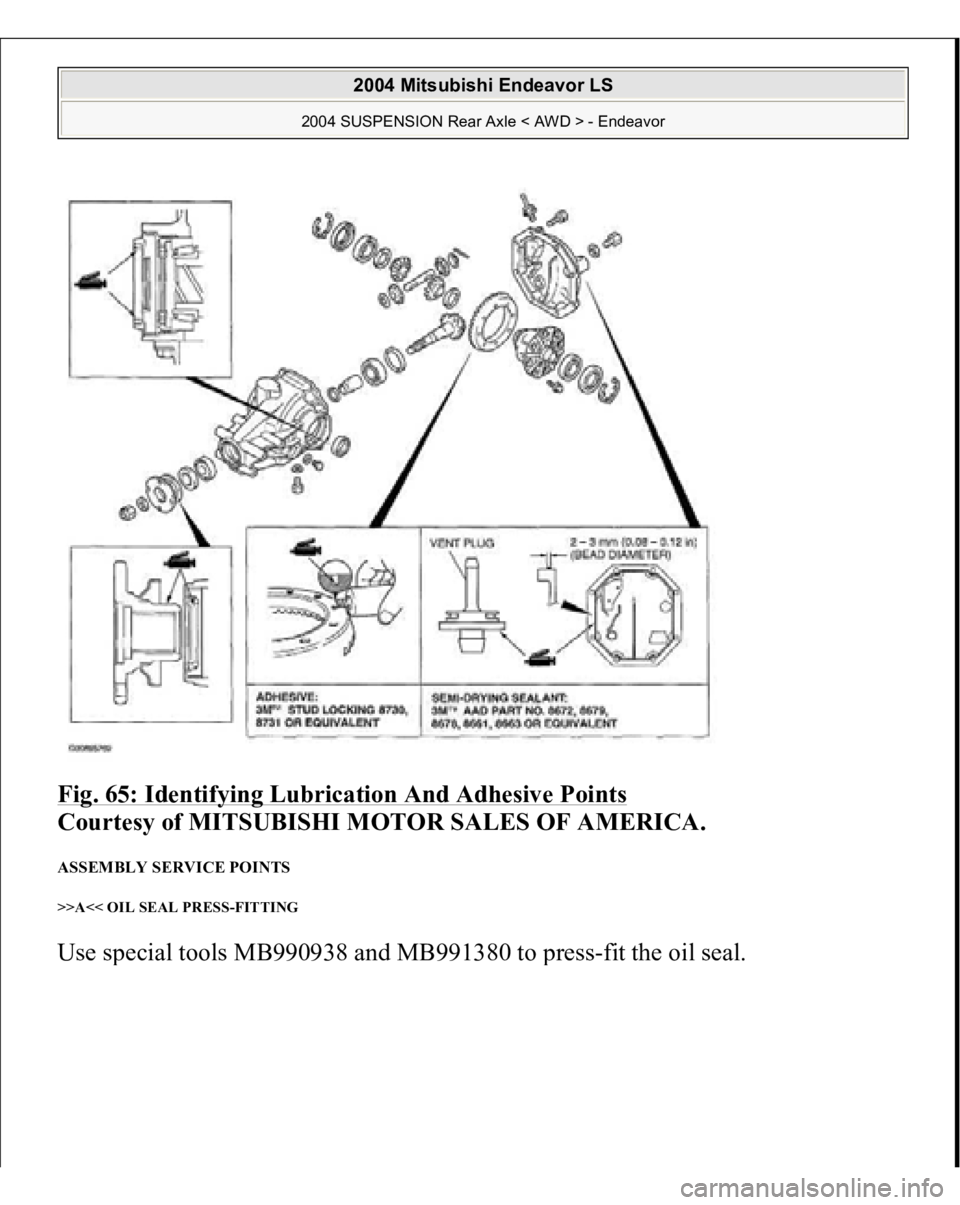

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 65: Identifying Lubrication And Adhesive Points Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINTS >>A<< OIL SEAL PRESS-FITTING Use s pecial tools MB990938 and MB991380 to

Page 3005 of 3870

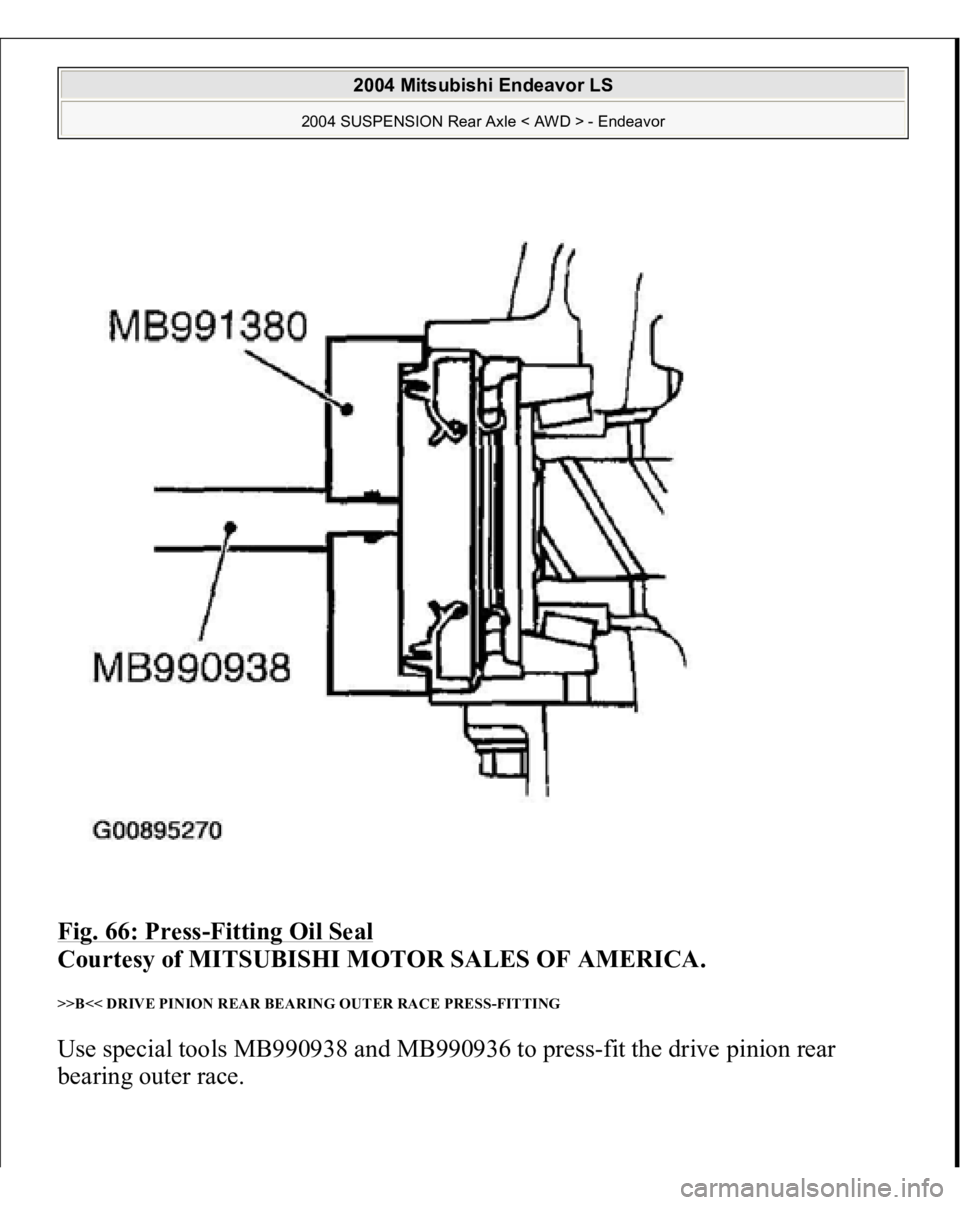

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 66: Press -Fitting Oil Seal Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>B<< DRIVE PINION REAR BEARING OUTER RACE PRESS-FITTING Use special tools MB990938 and MB990936 to press-fit the dri

Page 3006 of 3870

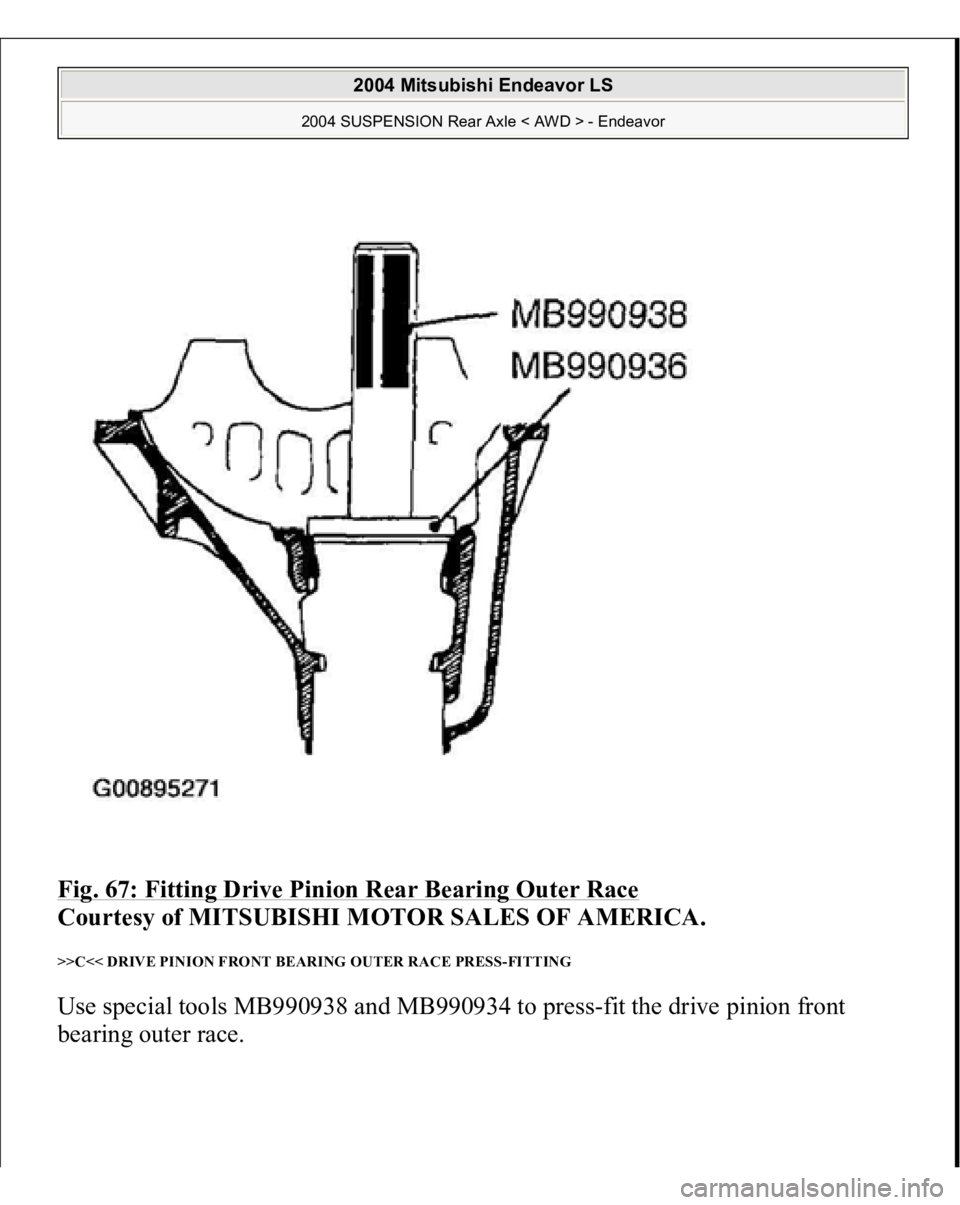

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 67: Fitting Drive Pinion Rear Bearing Outer Race Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>C<< DRIVE PINION FRONT BEARING OUTER RACE PRESS-FITTING Use special tools MB990938 and MB99093

Page 3007 of 3870

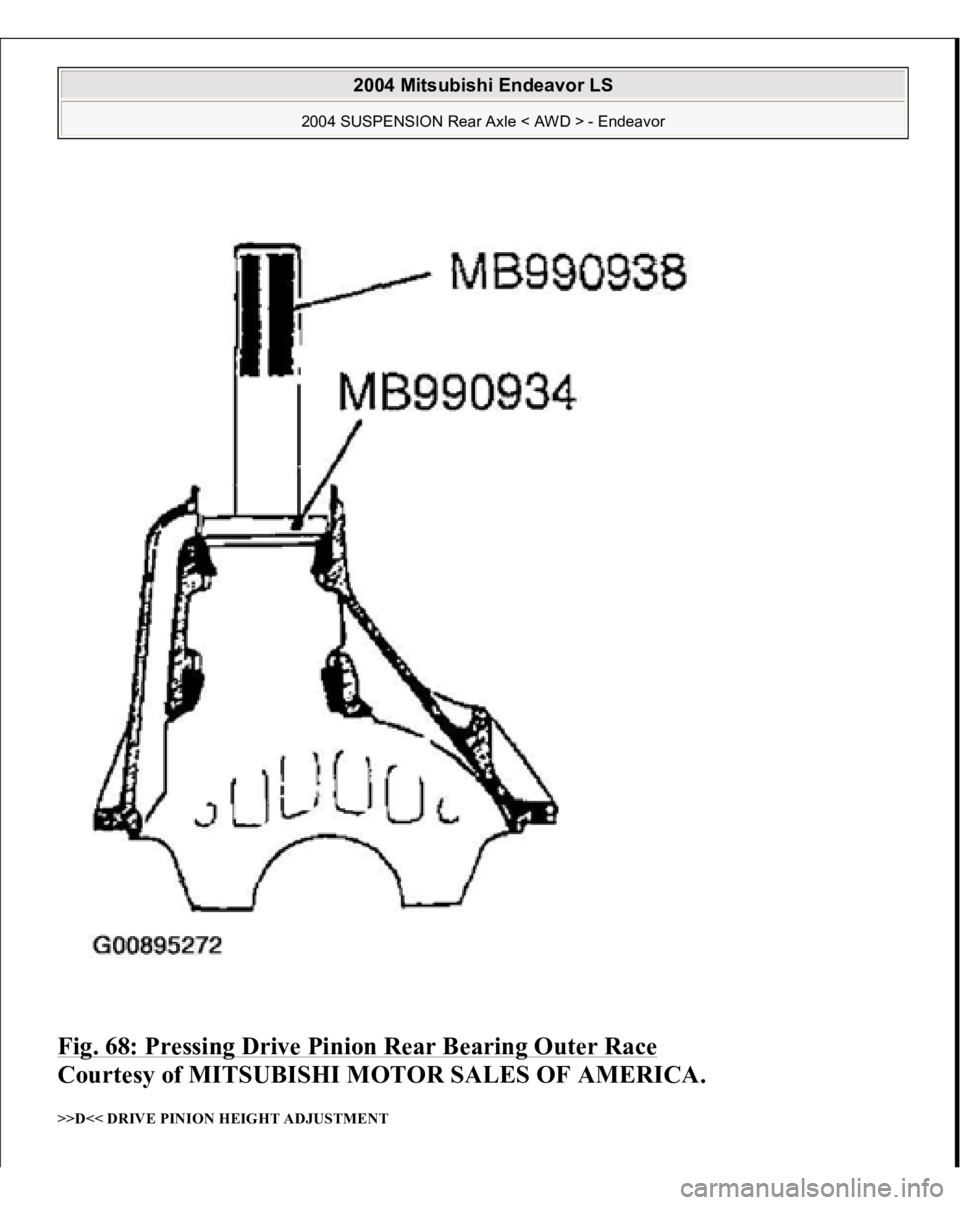

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 68: Pressing Drive Pinion Rear Bearing Outer Race Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>D<< DRIVE PINION HEIGHT ADJUSTMENT 2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear Axle <

Page 3008 of 3870

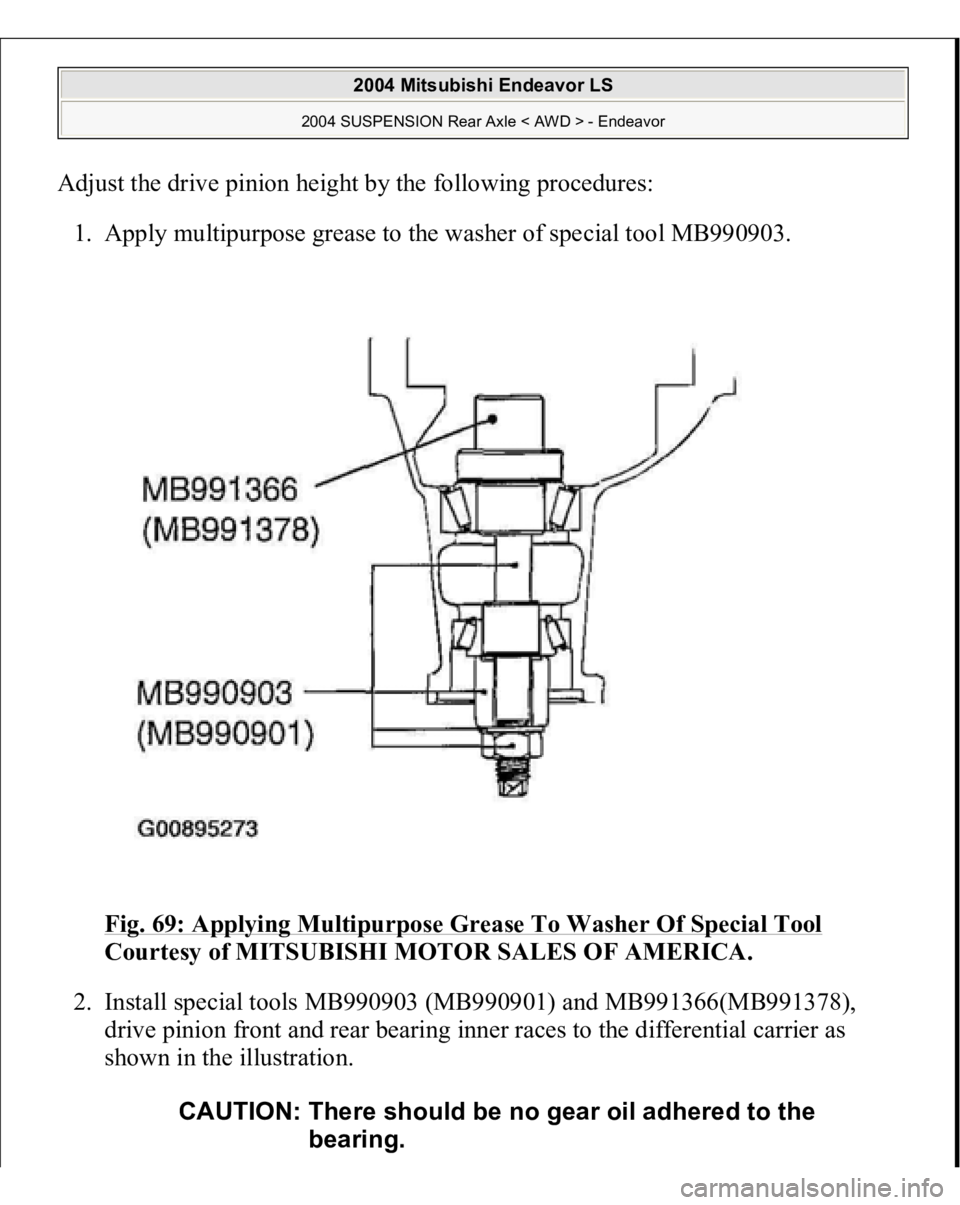

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Adjust the drive pinion height by the following procedures: 1. Apply multipurpose grease to the washer of special tool MB990903. Fig. 69: Applying Multipurpose Grease To Washer Of Special Tool Cou
