Page 2785 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 39: Identifying Connector E -14 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door Mirror - Endeavor

Page 2786 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 BRAKES Parking Brakes - Endeavor GENERAL DESCRIPTION The parking brakes are a mechanical rear wheel brake design. The foot pedal is depressed to lock and release the parking brake for easier op

Page 2787 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 1: Identifying Parking Brakes Assembly Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. PARKING BRAKE DIAGNOSIS INTRODUCTION If the parking brake is faulty, parking brake effort will become insu

Page 2788 of 3870

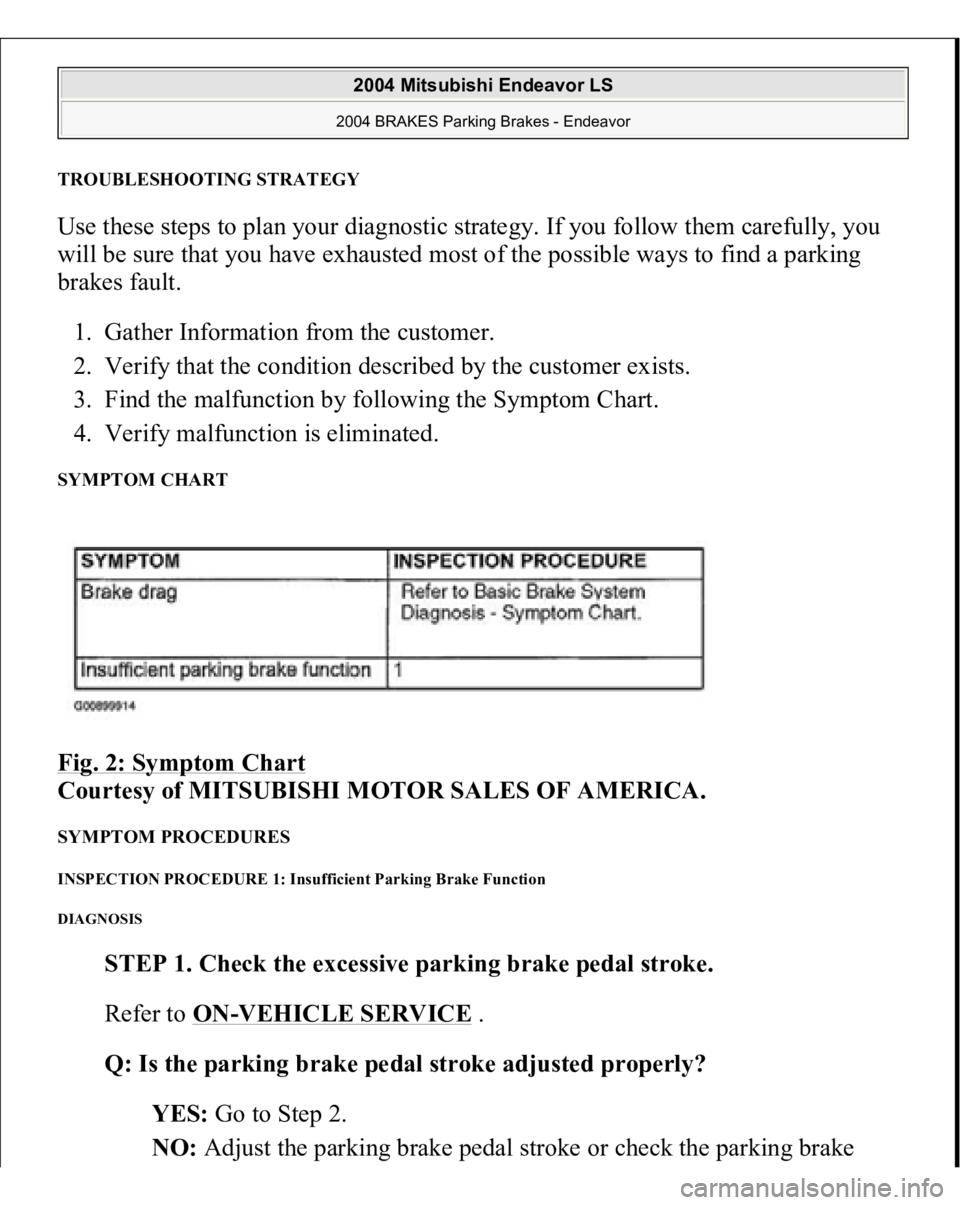

MITSUBISHI ENDEAVOR 2004 Service Repair Manual TROUBLESHOOTING STRATEG Y Use these steps to plan your diagnostic strategy. If you follow them carefully, you will be sure that you have exhausted most of the possible ways to find a parking brakes

Page 2789 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual cable routing. Then go to Step 5 . STEP 2. Check the parking brake cable for sticking. Q: Is the parking brake cable stuck? YES: Replace the cable. Then go to Step 5 . NO: Go to Step 3. STEP

Page 2790 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Depress the parking brake pedal with a force of 196 - 245 N (44 - 55 pounds) and count the number of notches. Standard value: 1 notch 2. If the parking brake pedal stroke is not within the stan

Page 2791 of 3870

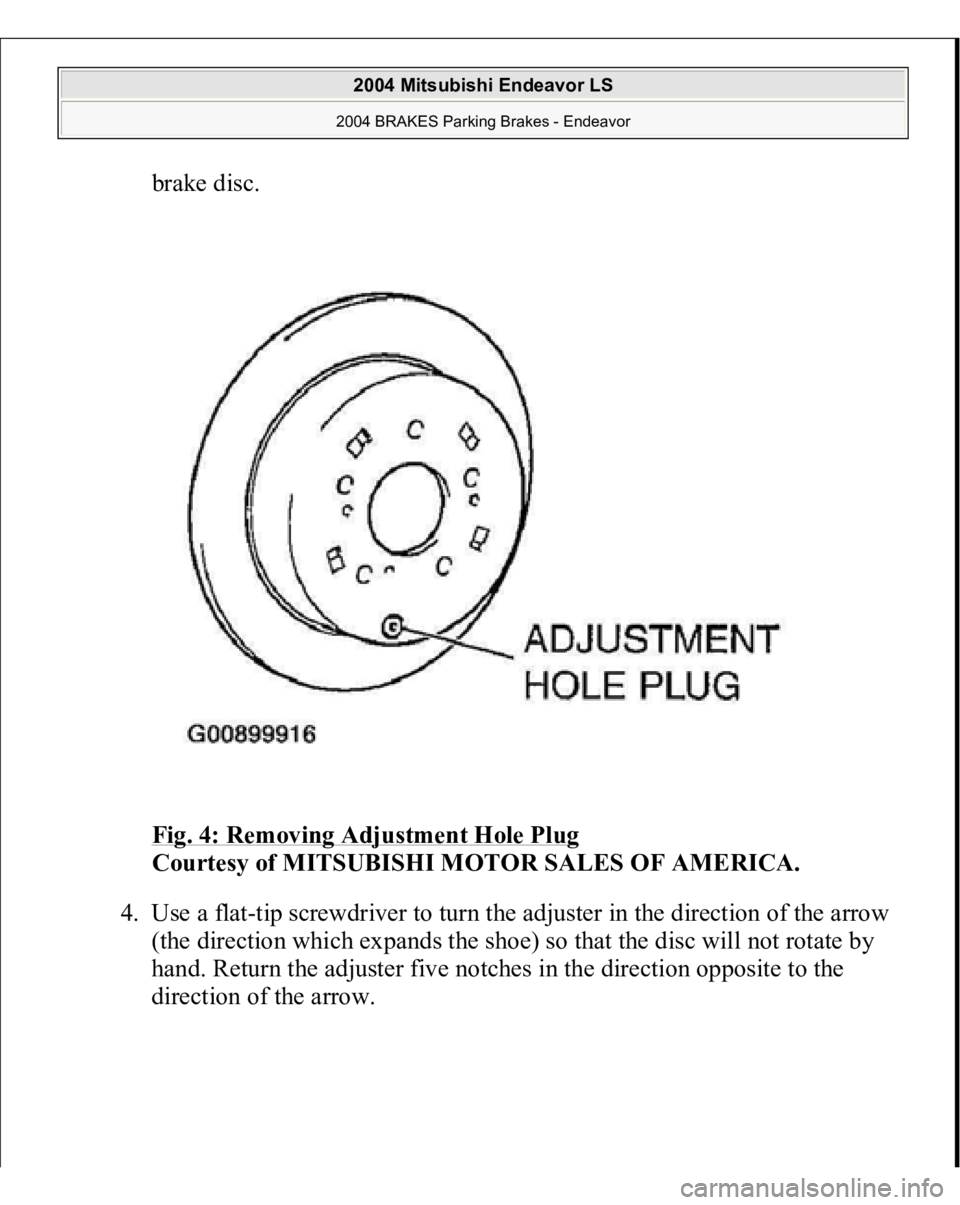

MITSUBISHI ENDEAVOR 2004 Service Repair Manual brake disc. Fig. 4: Removing Adjustment Hole Plug Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 4. Use a flat-tip screwdriver to turn the adjuster in the direction of the arrow (the direction wh

Page 2792 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Turning Adjuster In Direction Of Arrow Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 5. Install the rear wheels, and then tighten the wheel nuts to 98 +/- 10 Nm (73 +/- 7 ft-lb). 6. Turn
