MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 14: Installing Tripod Joint (TJ) Boot Bands (Small & Large) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Disassembly Service Points (Front Wheel Drive) A. Wipe off grease from the spider ass

Page 1930 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual C. Using Bar (Snap-In Type) (MB990938) and Installer Adapter (MB990930), remove the center bearing from the center bracket. See Fig. 17 . D. Wipe off grease from the shaft spline. When reusing the

Page 1931 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 DRIVE AXLES Axle Shafts - Front - Endeavor

Page 1932 of 3870

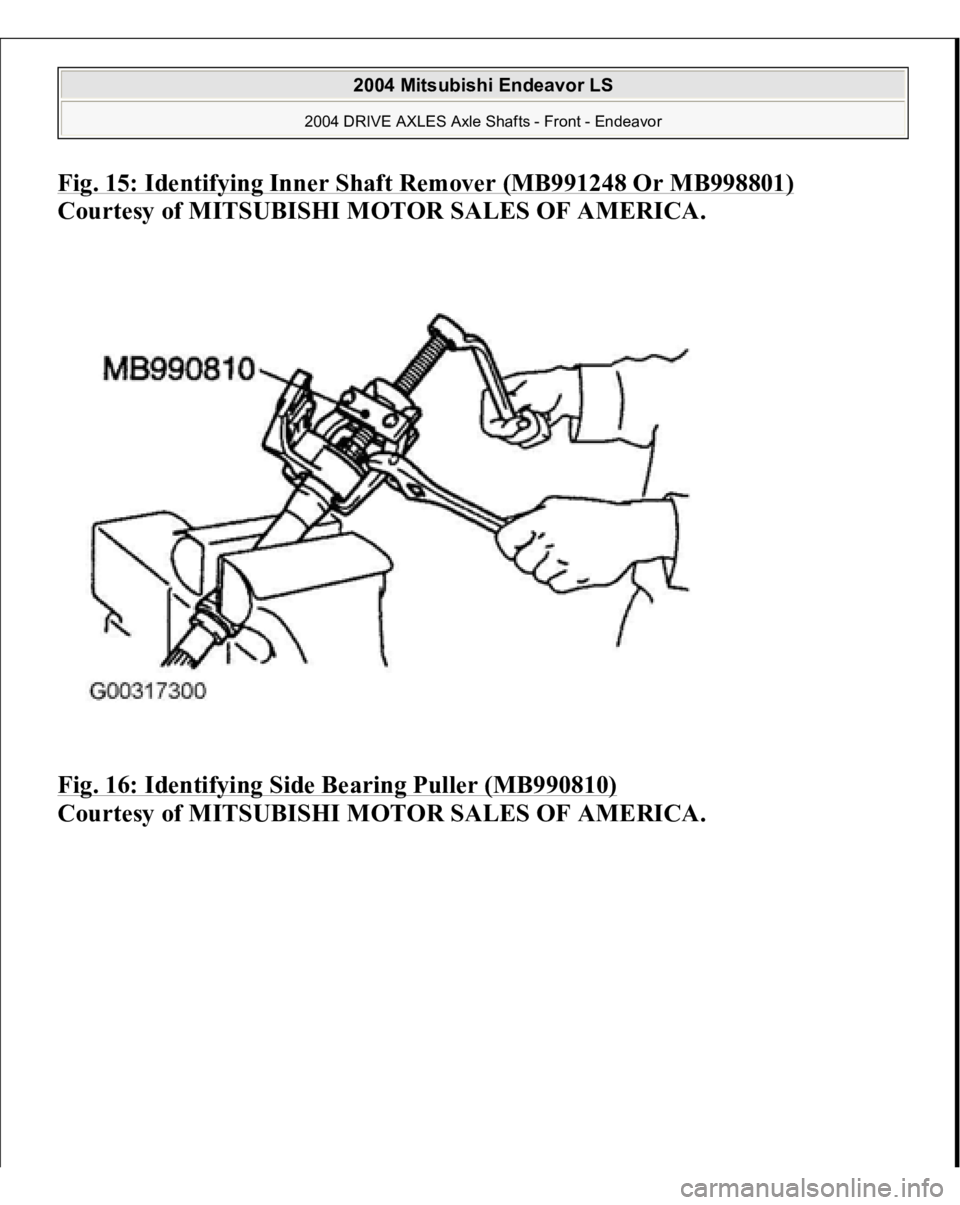

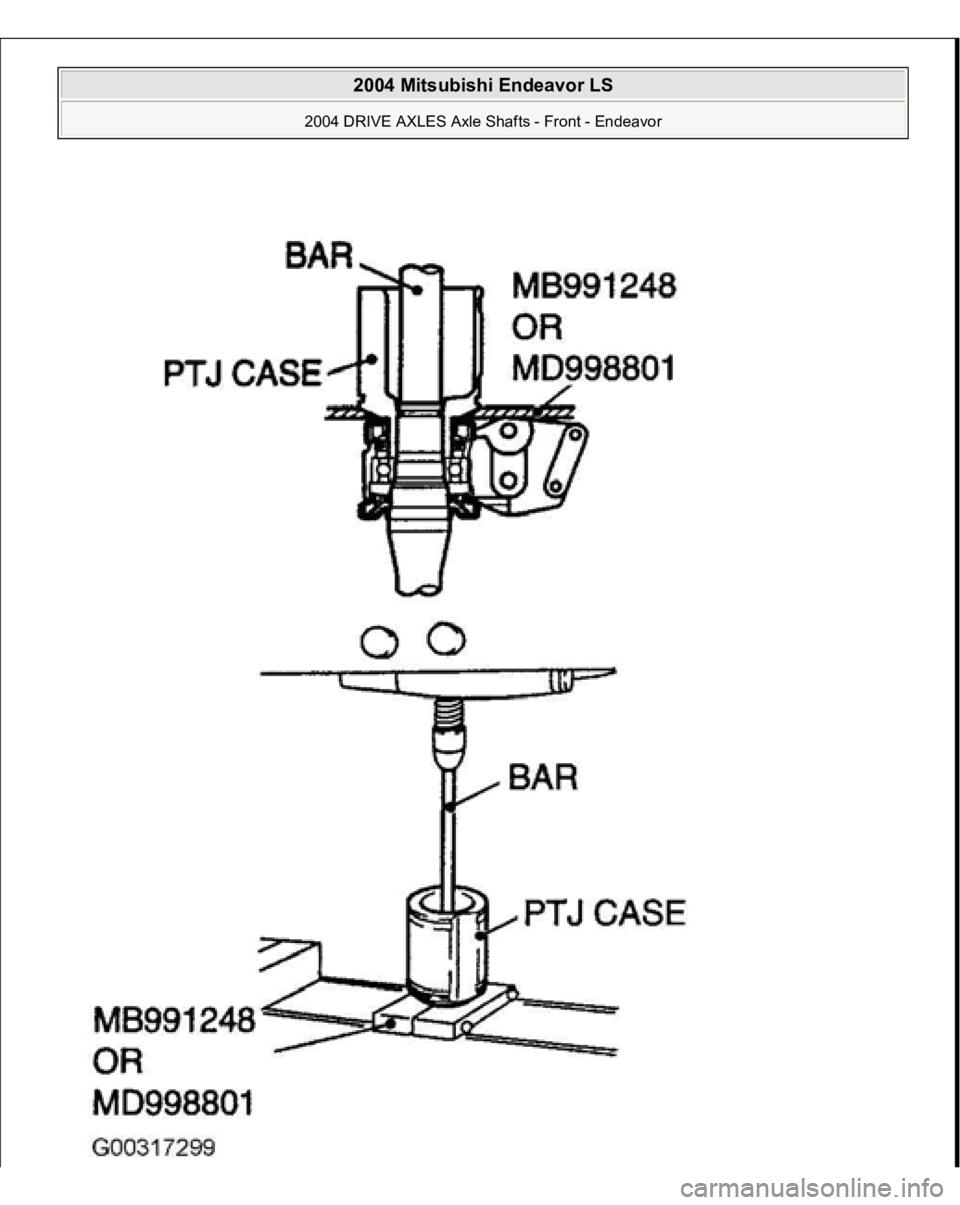

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 15: Identifying Inner Shaft Remover (MB991248 Or MB998801) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 16: Identifying Side Bearing Puller (MB990810) Courtesy of MITSUBISHI MOTOR SAL

Page 1933 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 17: Removing Center Bearing Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Reassembly (Front Wheel Drive) A. Wrap plastic tape around the shaft spline, and then install the small and the PTJ

Page 1934 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual the direction of the spline chamfered side. See Fig. 13 . C. Using Bar (Snap-In Type) (MB990938) and Installer Adapter (MB990932), press-fit the center bearing into the center bearing bracket. See

Page 1935 of 3870

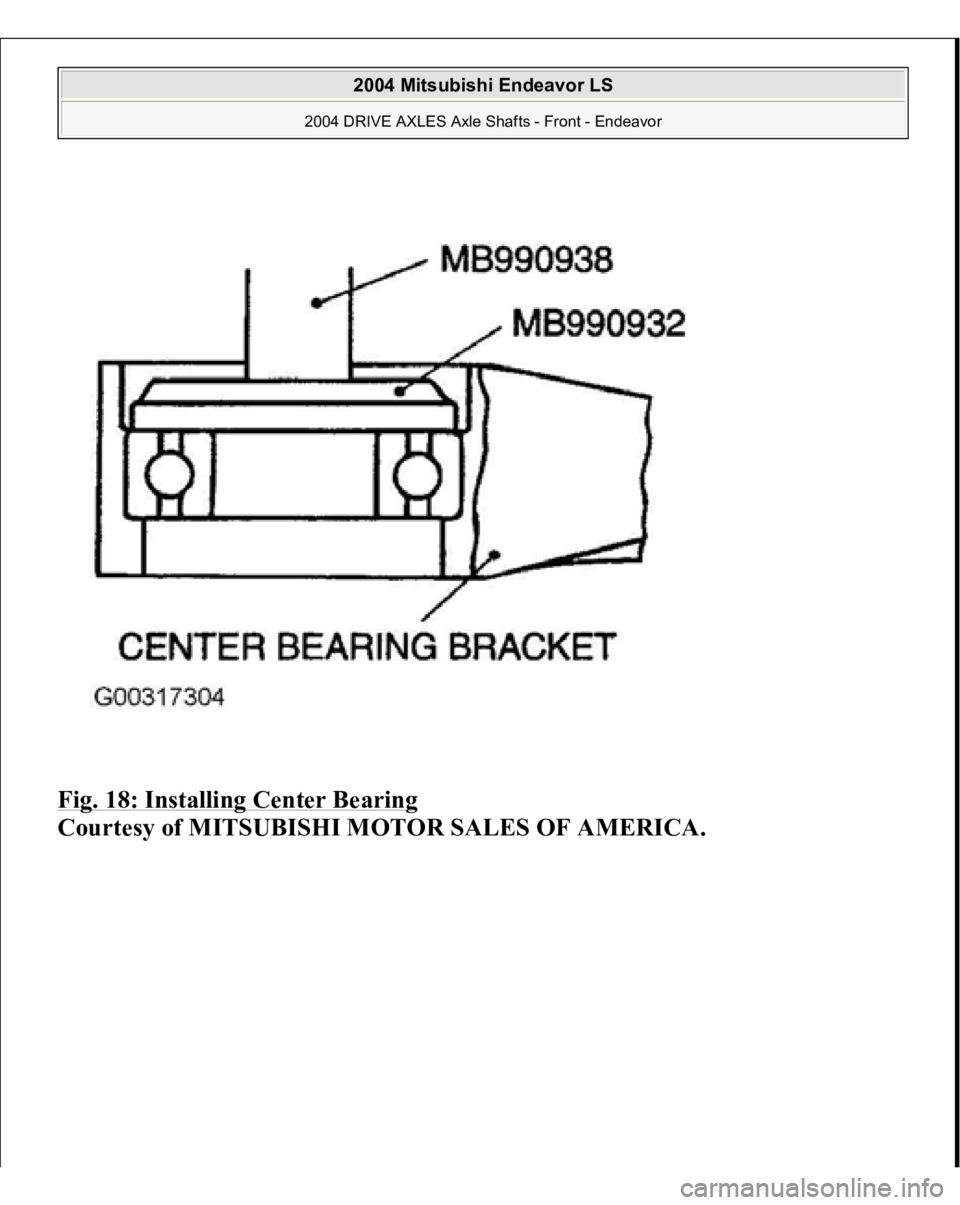

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 18: Installing Center Bearing Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 DRIVE AXLES Axle Shafts - Front - Endeavor

Page 1936 of 3870

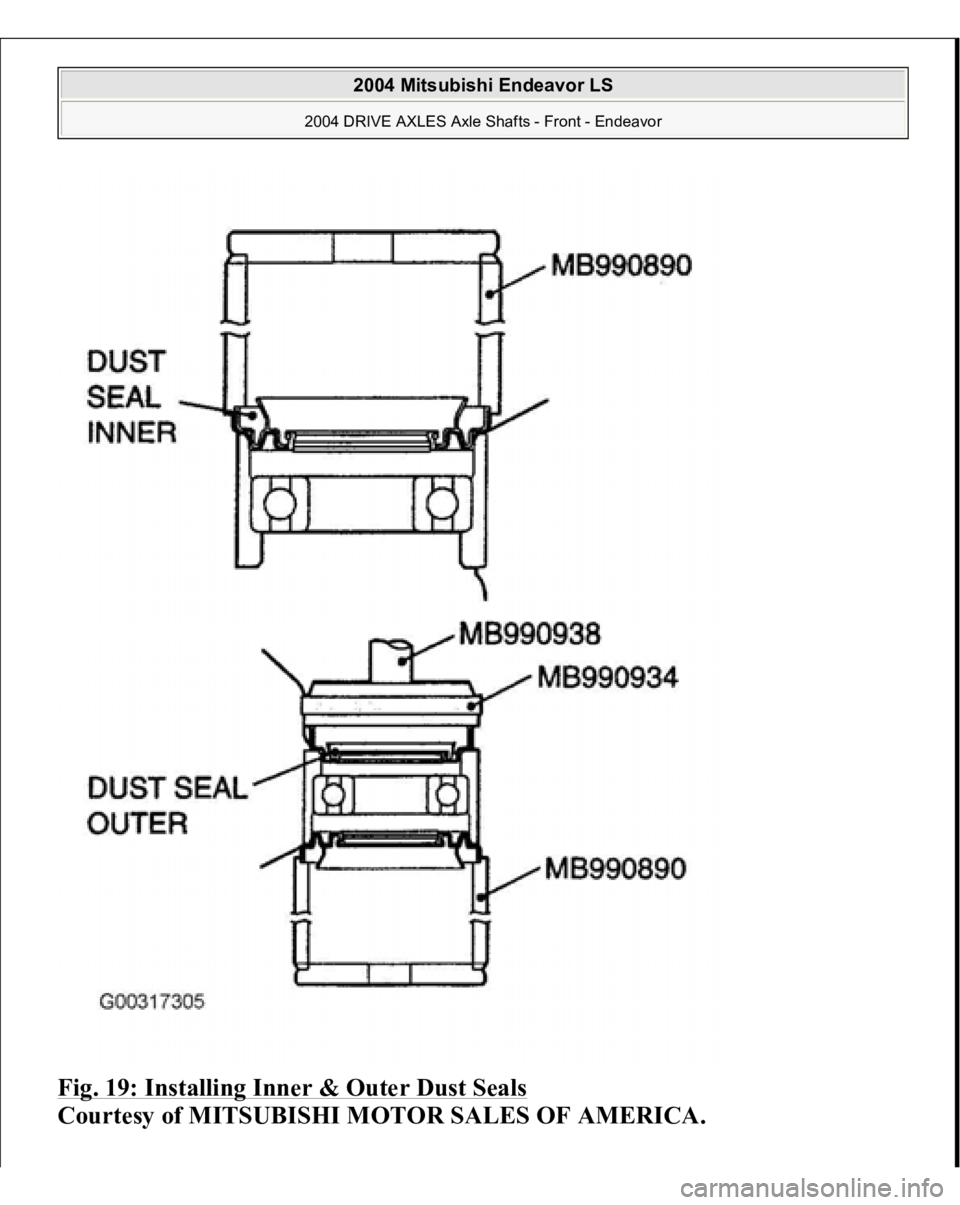

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 19: Installing Inner & Outer Dust Seals Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 DRIVE AXLES Axle Shafts - Front - Endeavor
