Page 769 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor

Page 770 of 3870

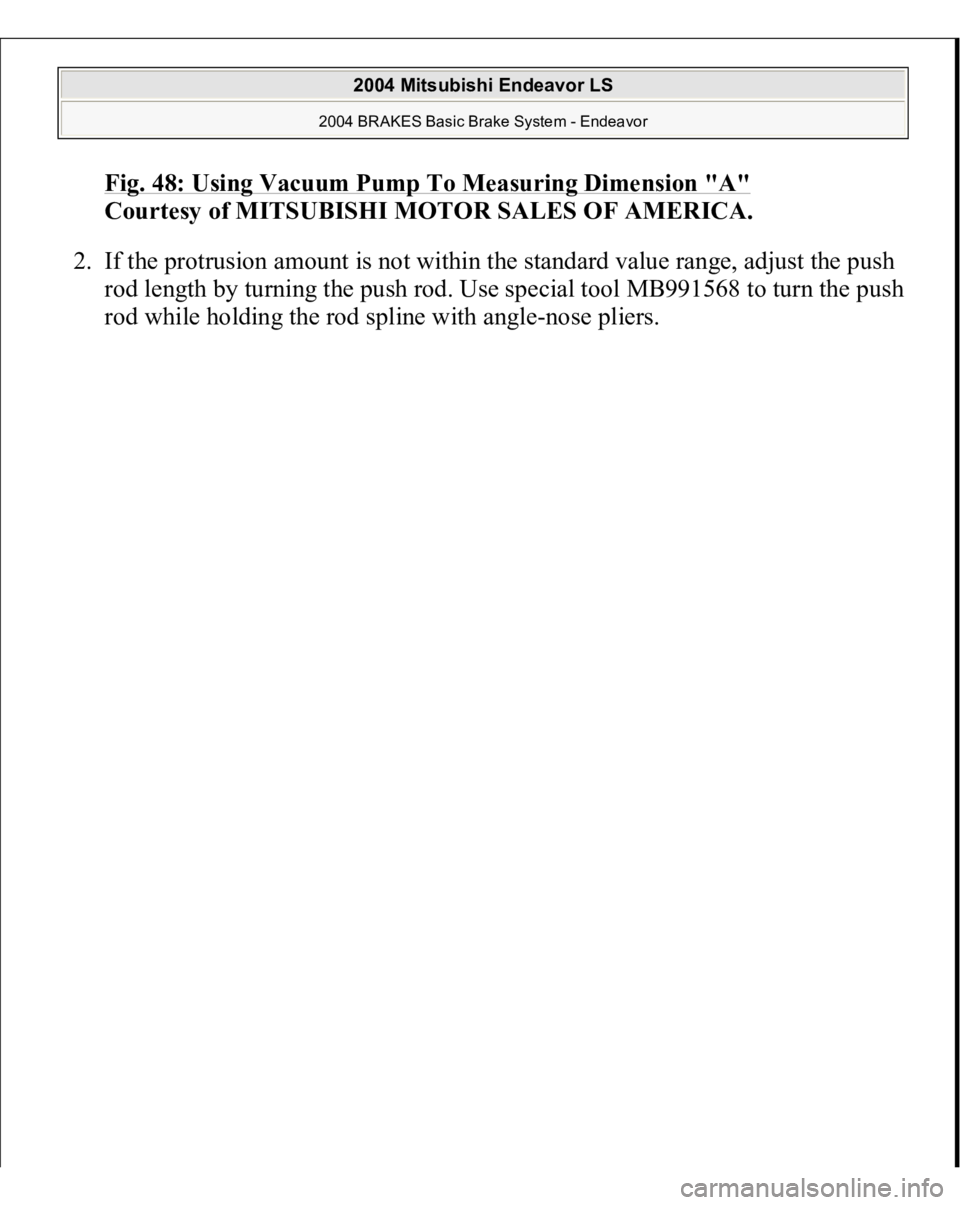

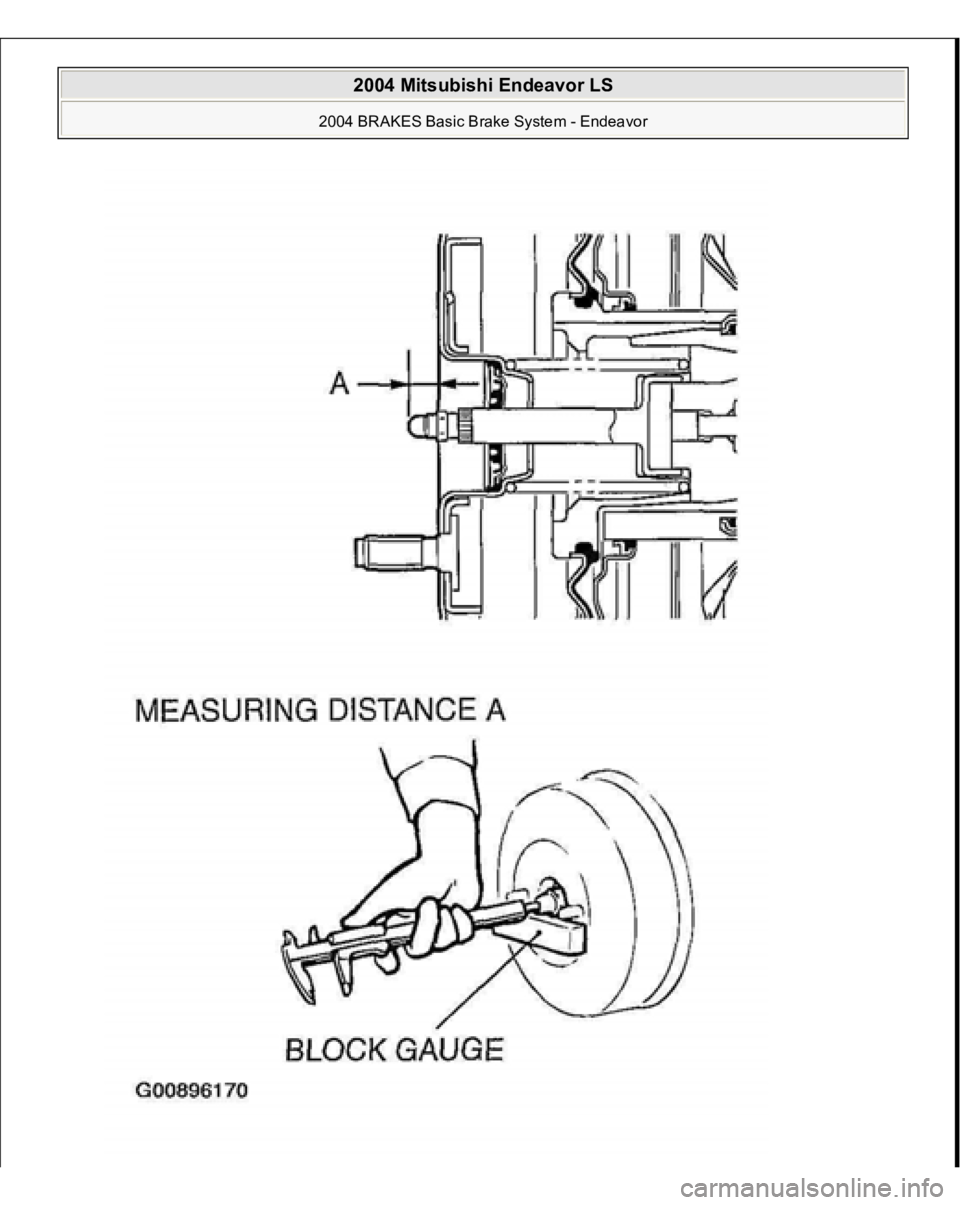

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 48: Using Vacuum Pump To Measuring Dimension "A" Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. If the protrusion amount is not within the standard value range, adjust the push rod

Page 771 of 3870

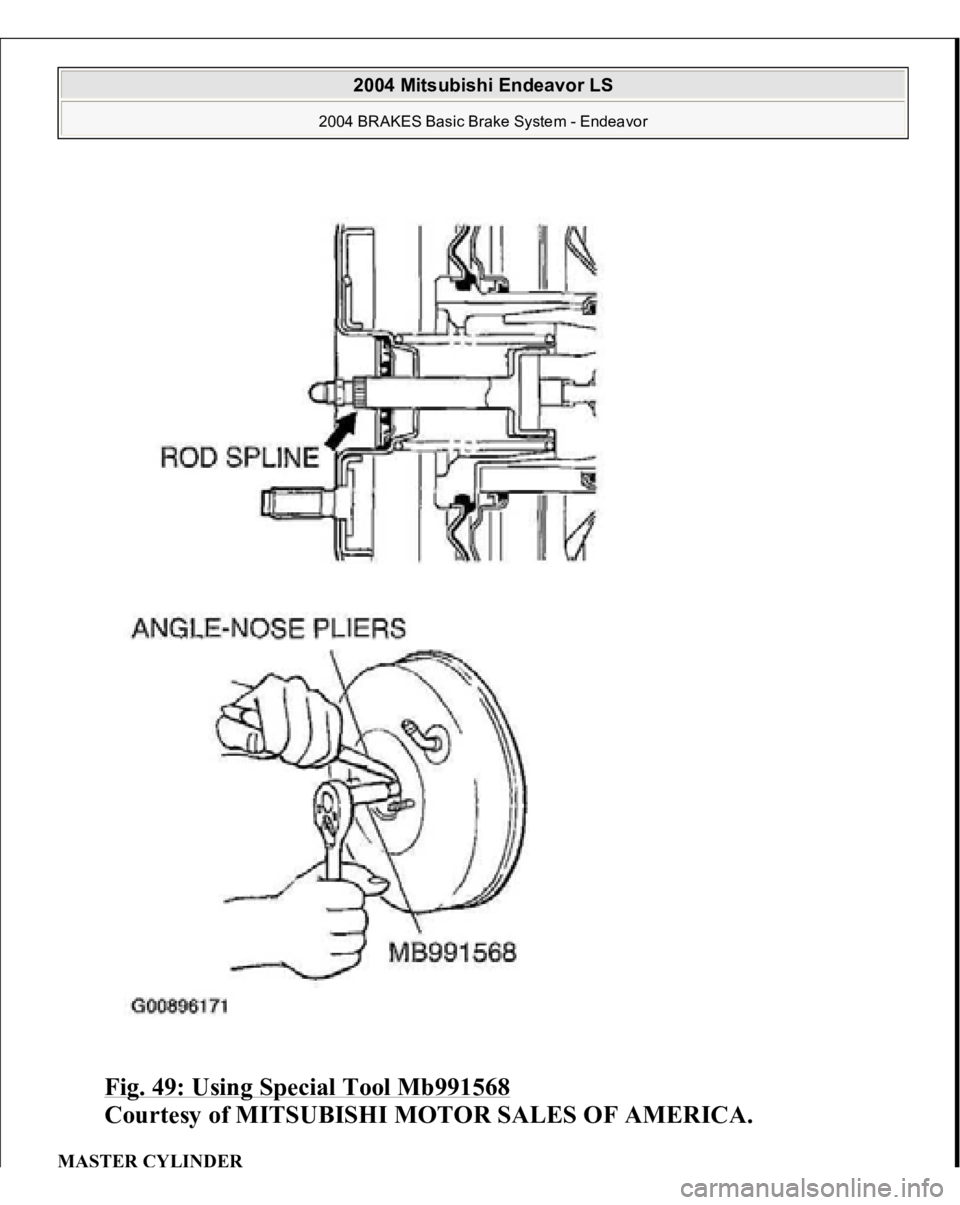

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 49: Using Special Tool Mb991568 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. MA STER CYLI NDER 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor

Page 772 of 3870

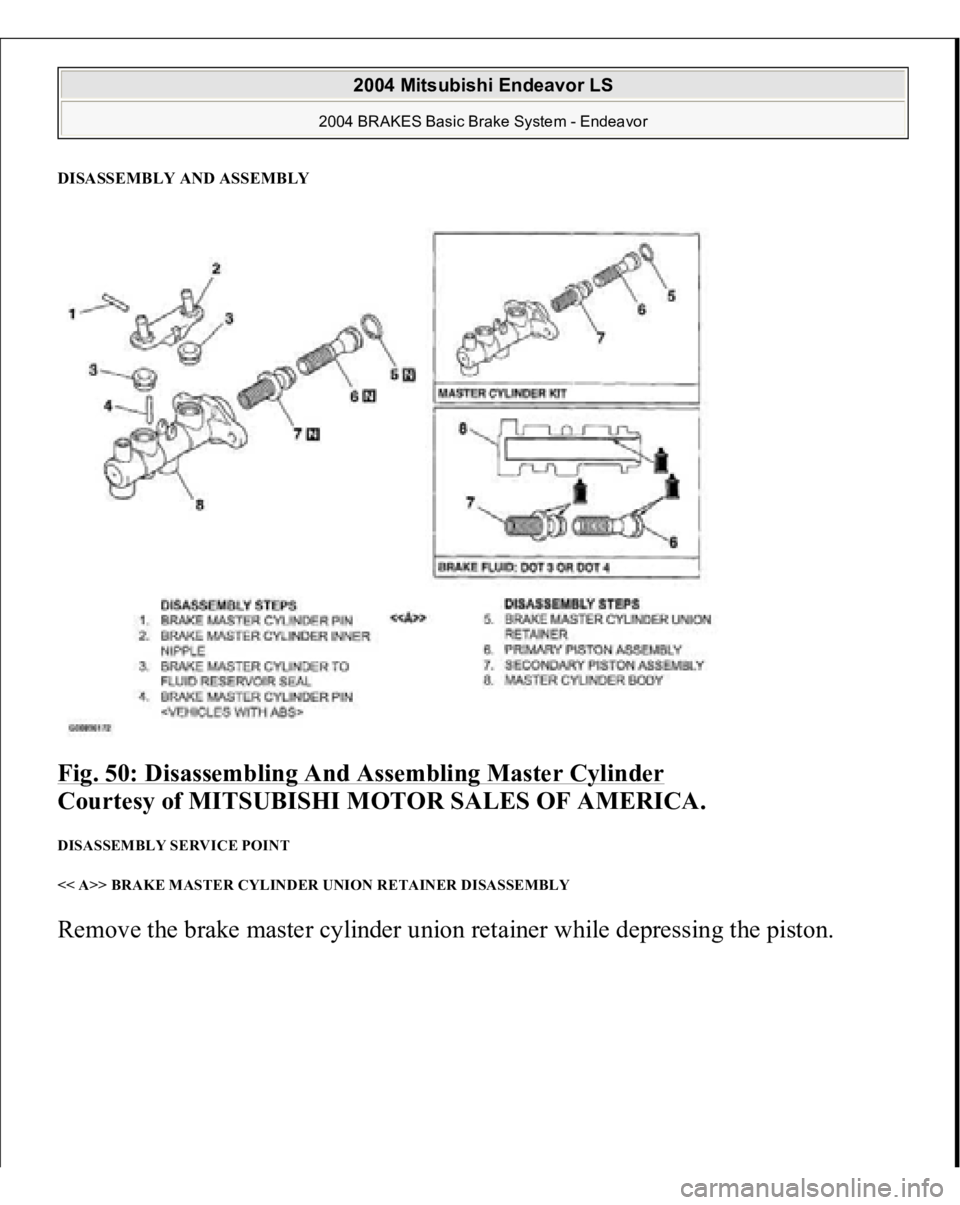

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DISASSEMBLY AND ASSEMBLY Fig. 50: Disassembling And Assembling Master Cylinder Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DISASSEMBLY SERVICE POINT << A>> BRAKE MASTER CYLINDER UNION RETAINER

Page 773 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 51: Disassembling Brake Master Cylinder Union Retainer Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSPECTION Check the inner surface of master cylinder body for rust or pitting. Check th

Page 774 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 52: Removing/Installing Disc Brake Assembly Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINT >>A<< BRAKE CALIPER ASSEMBLY INSTALLATION 1. In order to measure the brake

Page 775 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual torque in the forward direction. Record hub torque with pads removed. Fig. 53: Measuring Hub Torque Without Pads Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. After re-installing the caliper s

Page 776 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Start the engine and hold the brake pedal down for 5 seconds. [Pedal depression force: approximately 200 N (45 pound)] 2. Stop the engine. 3. Turn the brake disc forward 10 times. 4. Use a s
