Page 937 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 83: Connecting Scan Tool To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 938 of 3870

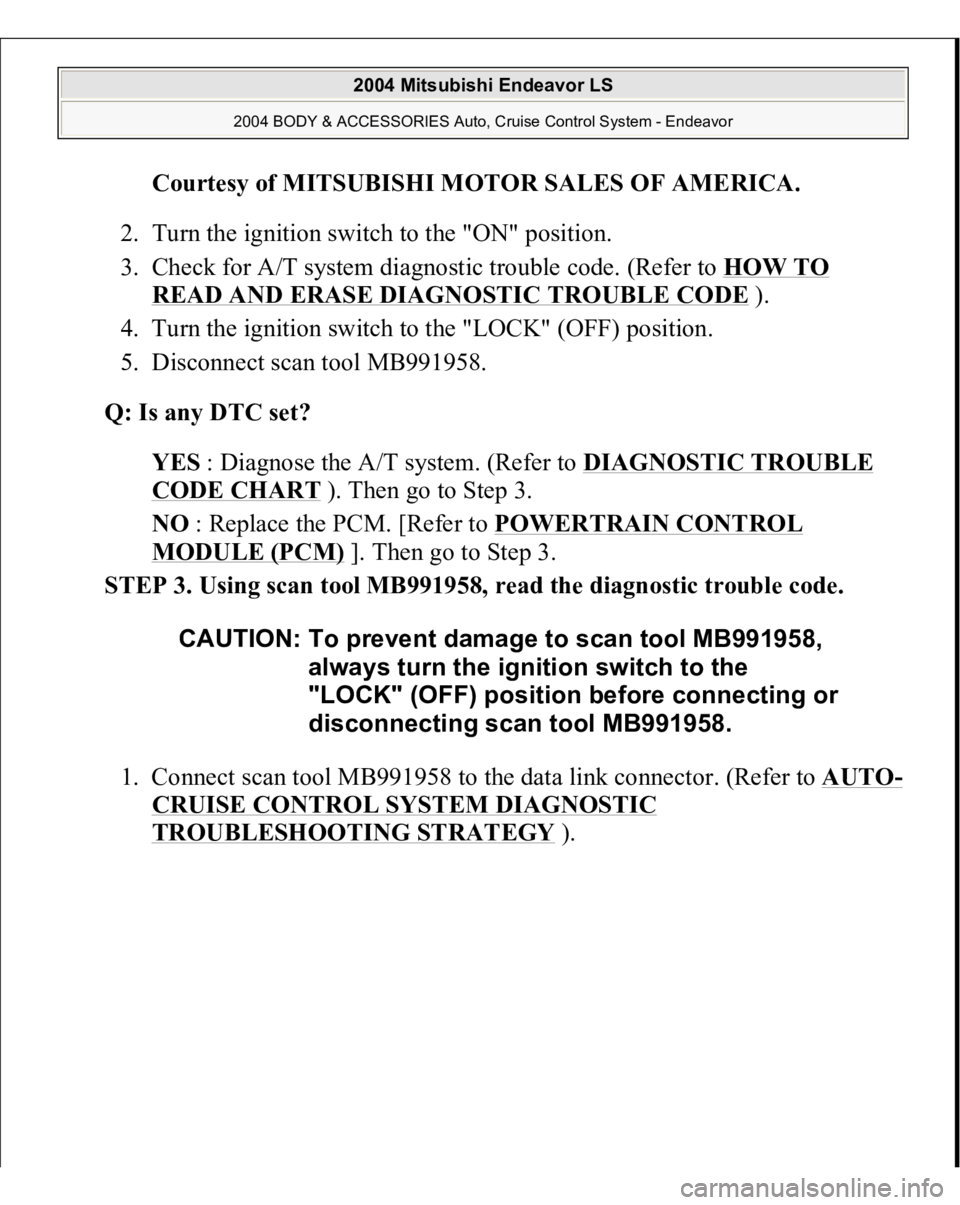

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Check for A/T system diagnostic trouble code. (Refer to HOW TO READ AND ERASE DIAGNOSTI

Page 939 of 3870

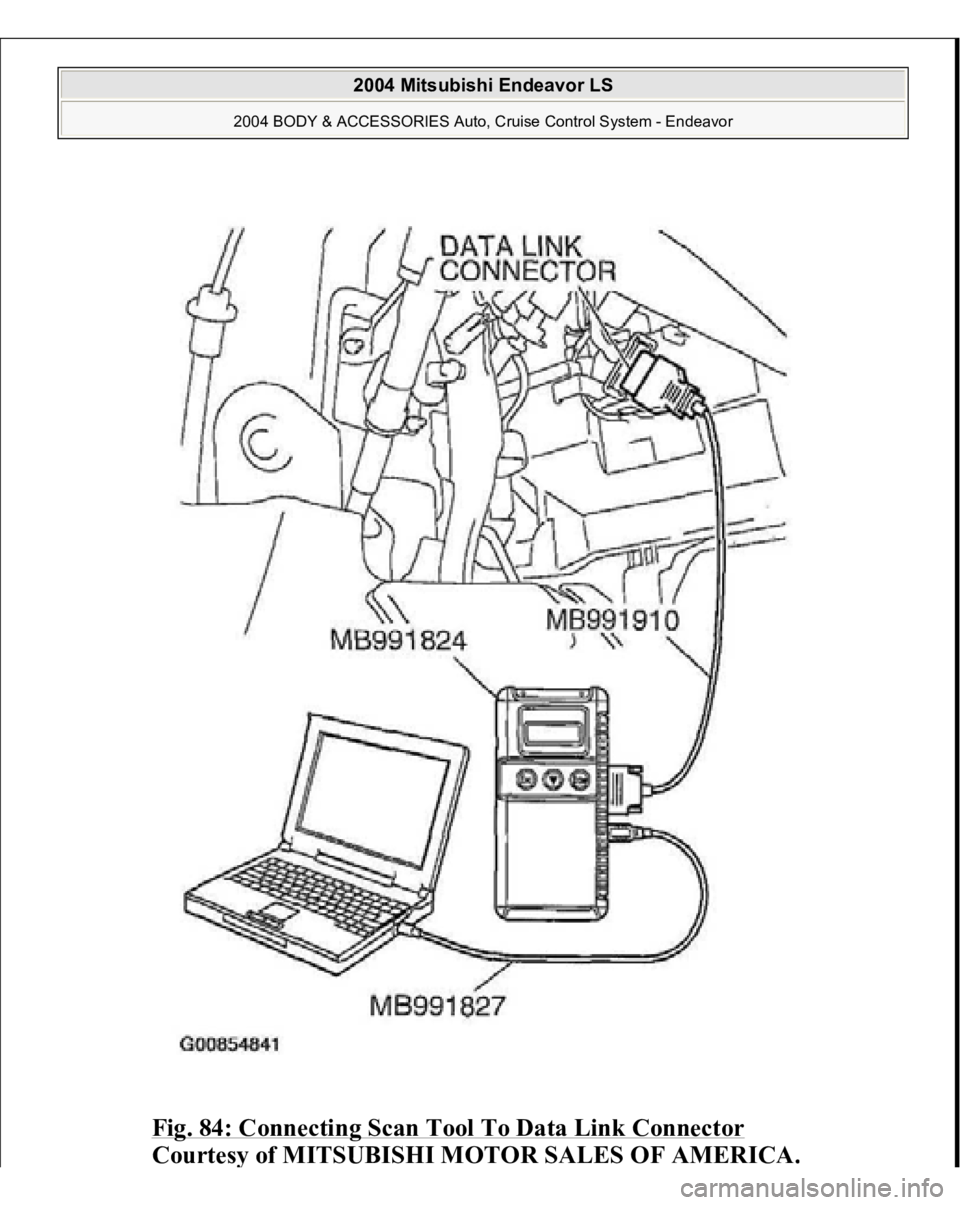

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 84: Connecting Scan Tool To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 940 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Set scan tool MB991958 to read the diagnostic trouble codes. 4. Turn the ignition switch to the "LOCK" (OFF) position. 5. Dis

Page 941 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual INSPECTION PROCEDURE 1: WHEN THE BRAKE PEDAL IS DEPRESSED, AUT O-CRUISE CONTROL IS NOT CANCELLED COMMENT The stoplight switch circuit is suspected. TROUBLESHOOTING HINTS (The most likely causes for

Page 942 of 3870

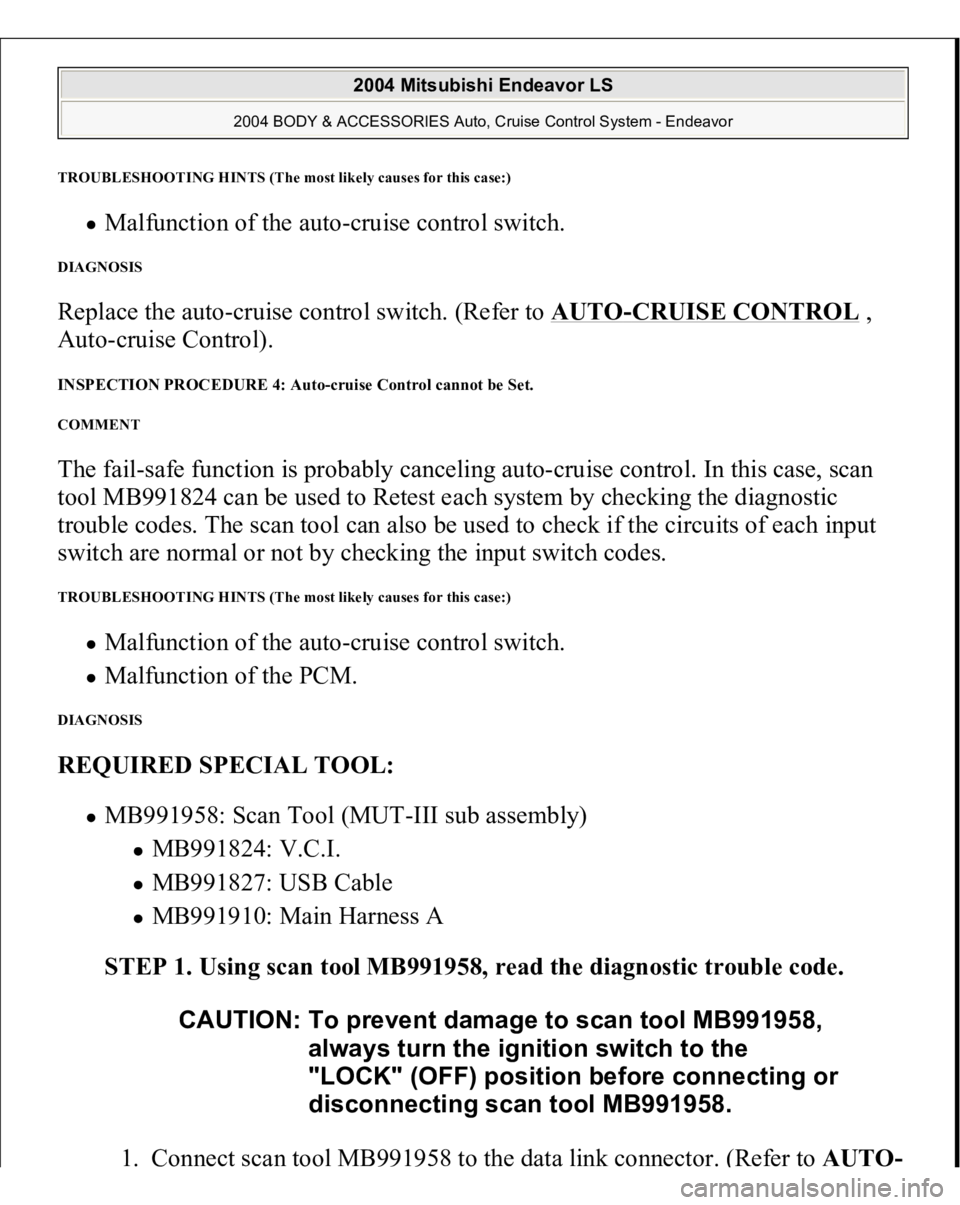

MITSUBISHI ENDEAVOR 2004 Service Repair Manual TROUBLESHOOTING HINTS (The most likel y causes for this case: ) Malfunction of the auto-cruise control switch. DIAGNOSIS Replace the auto-cruise control switch. (Refer to AUTO -CRUISE CONTROL , Au

Page 943 of 3870

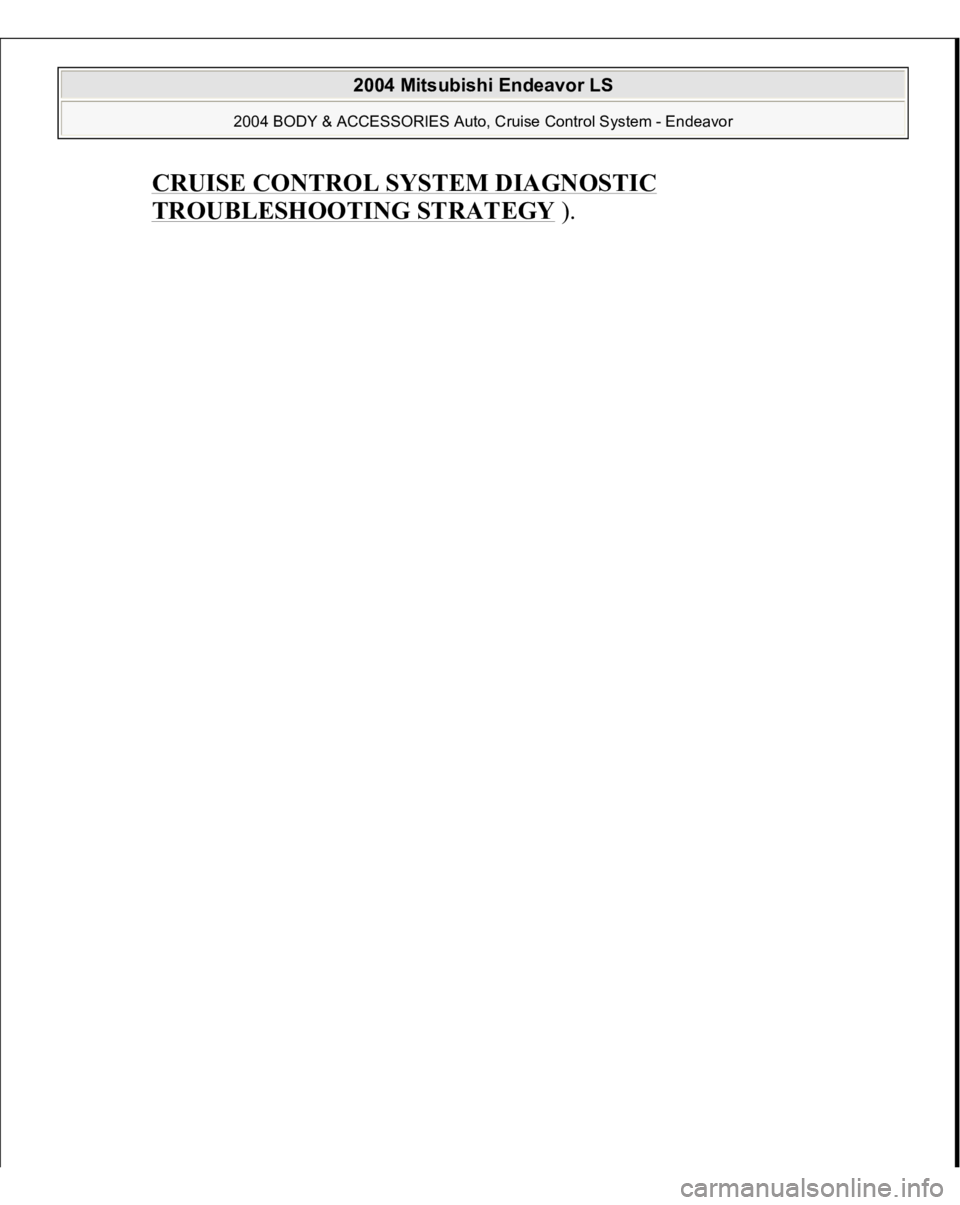

MITSUBISHI ENDEAVOR 2004 Service Repair Manual CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY ). 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 944 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 86: Connecting Scan Tool To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
