Page 1865 of 3870

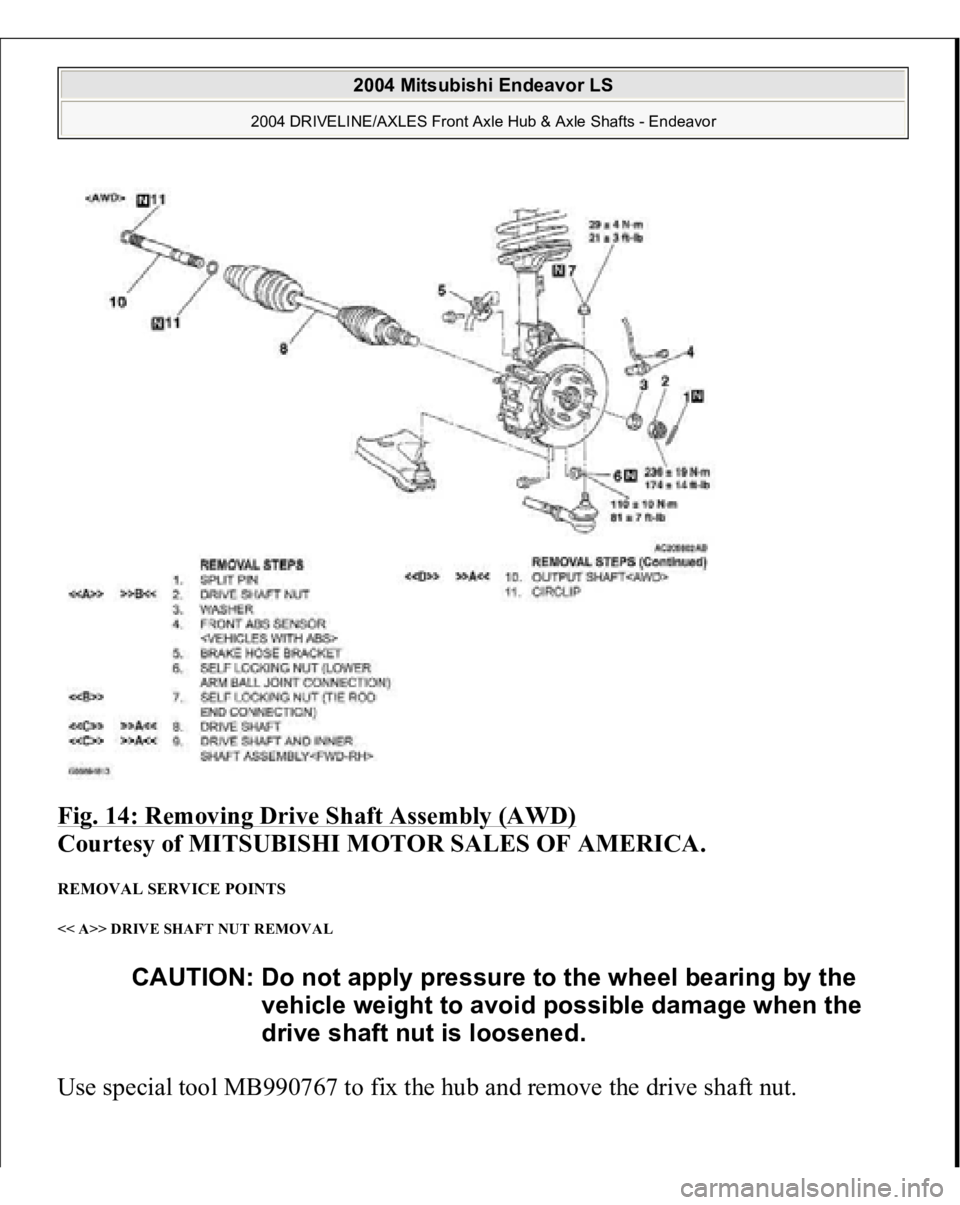

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 14: Removing Drive Shaft Assembly (AWD) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE POINTS << A>> DRIVE SHAFT NUT REMOVAL Use special tool MB990767 to fix the hub and remove

Page 1866 of 3870

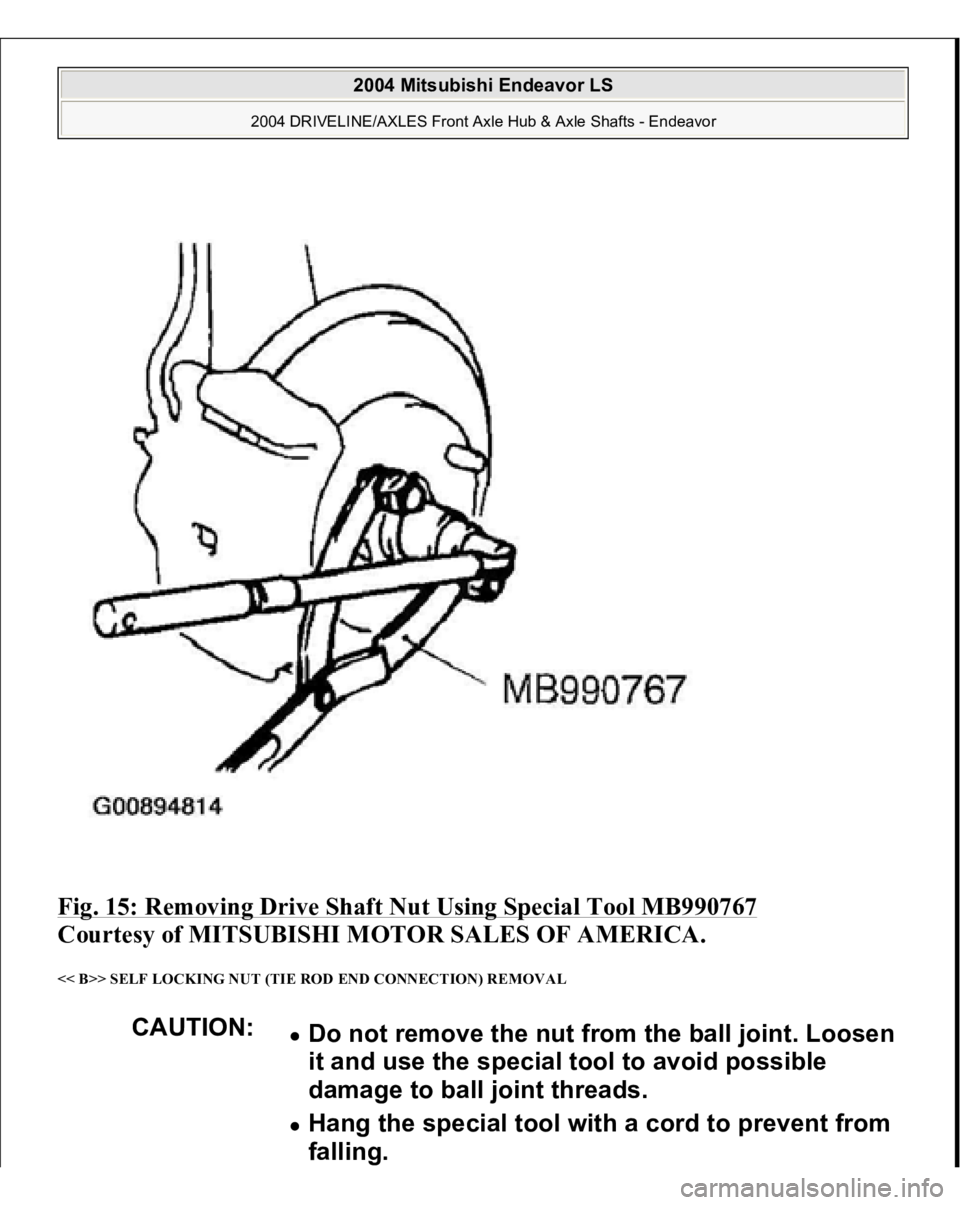

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 15: Removing Drive Shaft Nut Using Special Tool MB990767 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. << B>> SELF LOCKING NUT (TIE ROD END CONNECTION) REMOVAL CAUTION: Do not remove the nut

Page 1867 of 3870

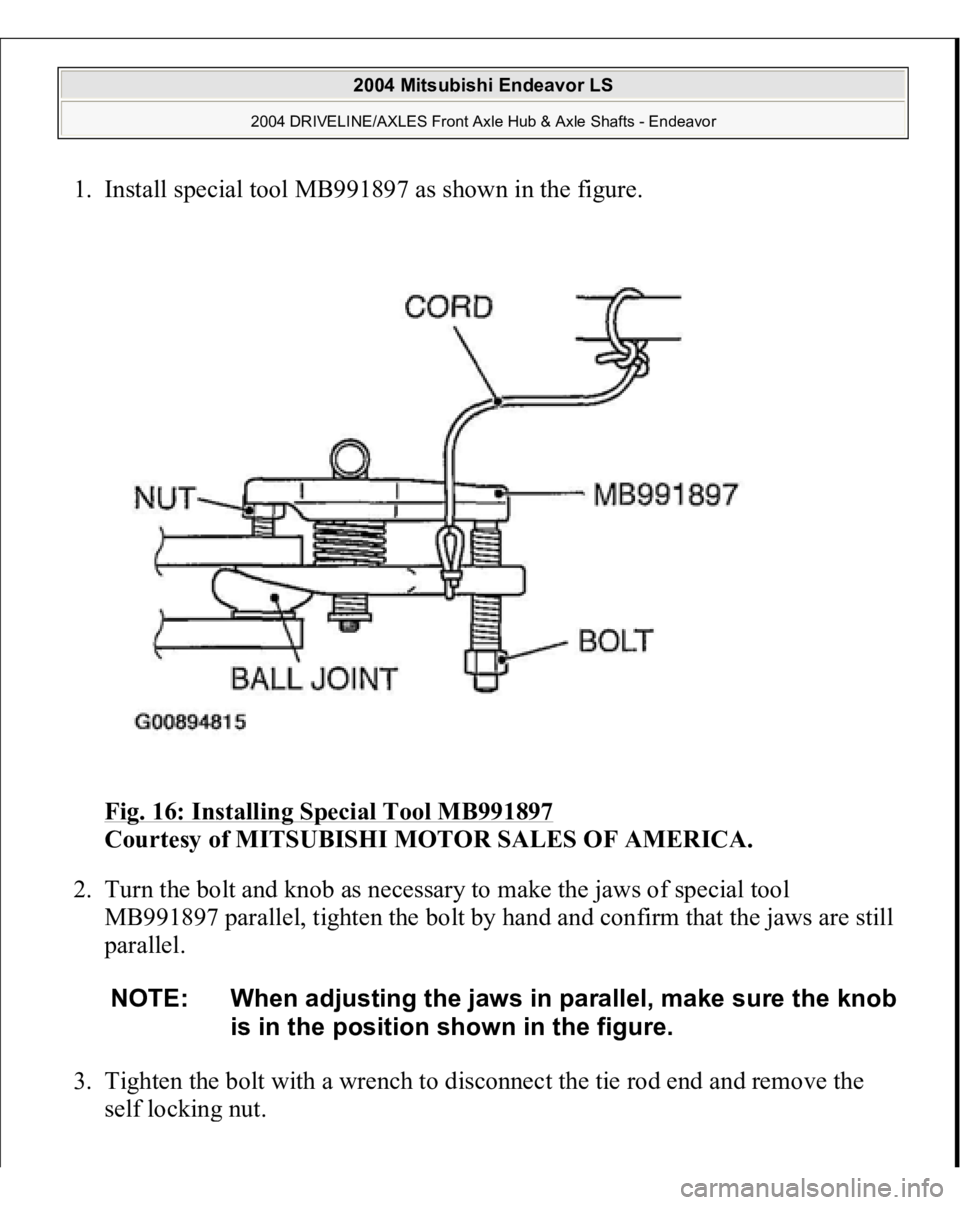

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Install special tool MB991897 as shown in the figure. Fig. 16: Installing Special Tool MB991897 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Turn the bolt and knob as necessary to make the

Page 1868 of 3870

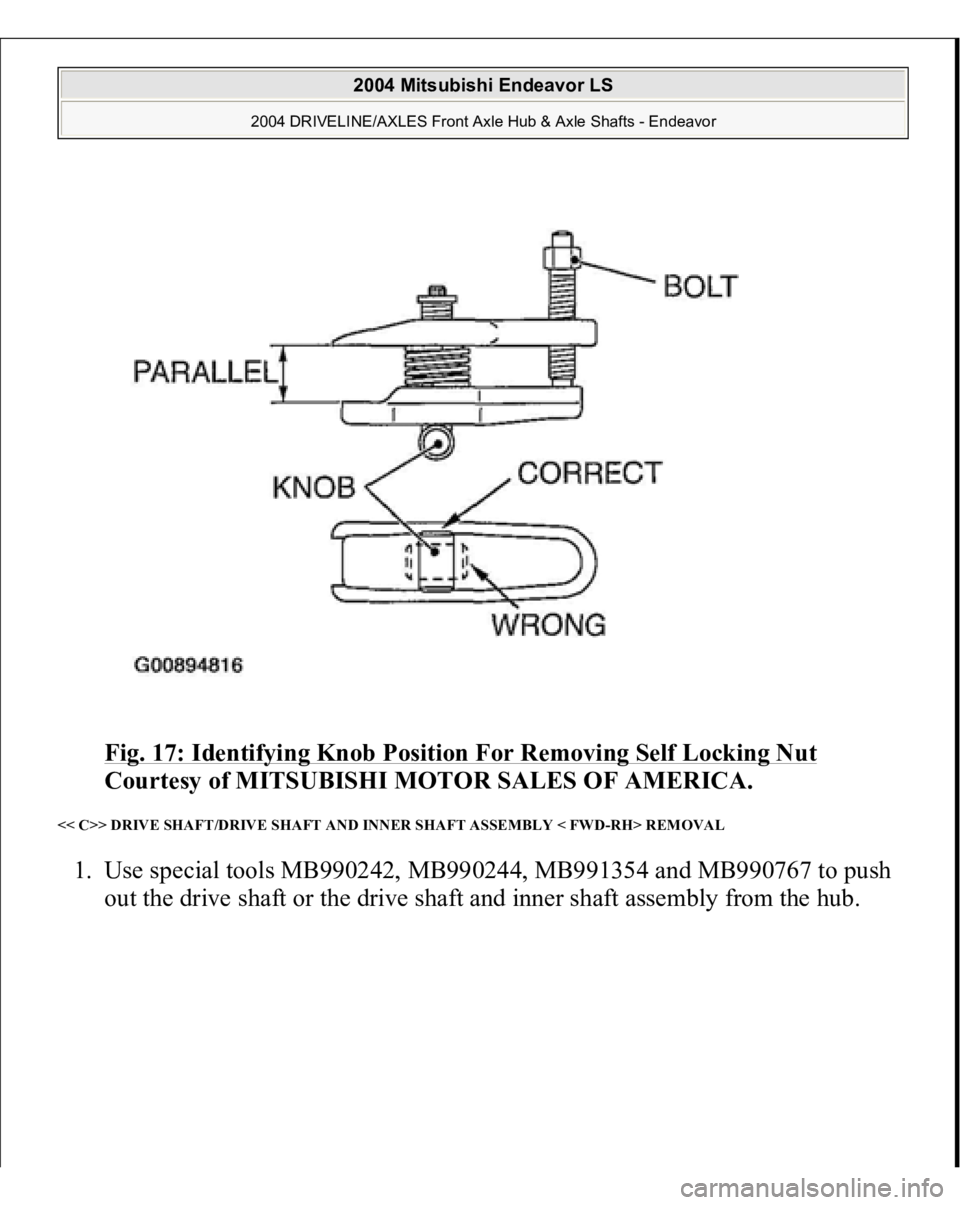

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 17: Identifying Knob Position For Removing Self Locking Nut Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. << C>> DRIVE SHAFT/DRIVE SHAFT AND INNER SHAFT ASSEMBLY < FWD-RH> REMOVAL 1. Use spec

Page 1869 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 18: Pushing Out Drive Shaft And Inner Shaft Assembly From Hub Using Special Tools Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Remove the drive shaft from the hub by pulling the bottom of

Page 1870 of 3870

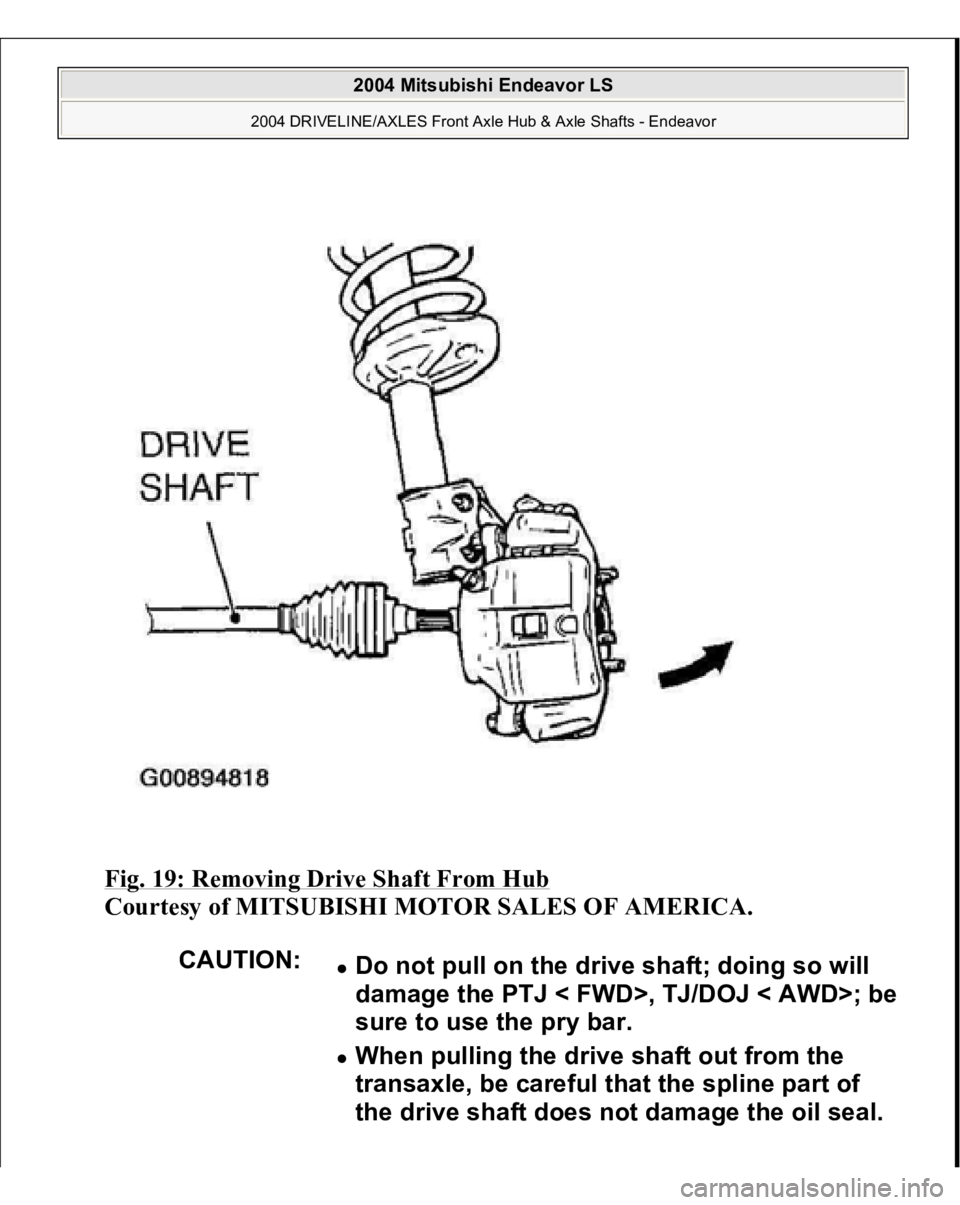

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 19: Removing Drive Shaft From Hub Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CAUTION: Do not pull on the drive shaft; doing so will damage the PTJ < FWD>, TJ/DOJ < AWD>; be sure to use t

Page 1871 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. Insert a pry bar between the transaxle case and the drive shaft, and then pry and remove the drive shaft from the transaxle. Fig. 20: Inserting Pry Bar Between Transaxle Case And Drive Shaft Co

Page 1872 of 3870

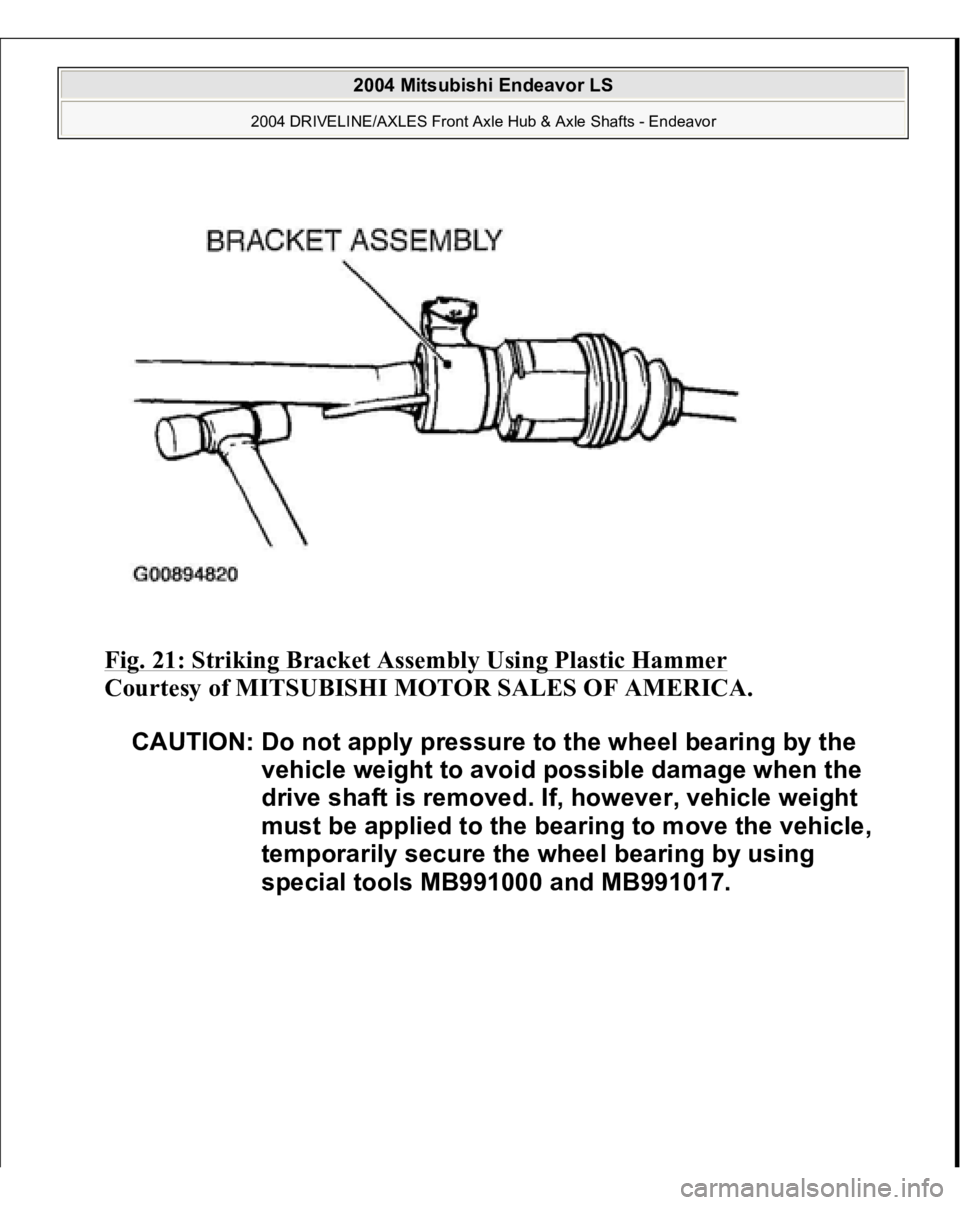

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 21: Striking Bracket Assembly Using Plastic Hammer Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CAUTION: Do not apply pressure to the wheel bearing by the vehicle weight to avoid possible d
