Page 3297 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 123: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3298 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. 4. Turn the ignition switch to the "LOCK" (OFF) pos

Page 3299 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 124: Rechecking For Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3300 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1290 set? YES: Replace the hydraulic unit (integrated with TCL/ASC-ECU

Page 3301 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 125: Brake Warning Light Circuit Diagram & Connector Identification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnost

Page 3302 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual CIRCUIT OPERATION The meter-ECU detects the brake fluid level switch ON/OFF and controls the brake warning light ON/OFF. The TCL/ASC-ECU and the meter-ECU are connected each other via a CAN bus lin

Page 3303 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A MB991952: ABS Check Harness STEP 1. Using scan tool MB991958, diagnose the CAN bus

Page 3304 of 3870

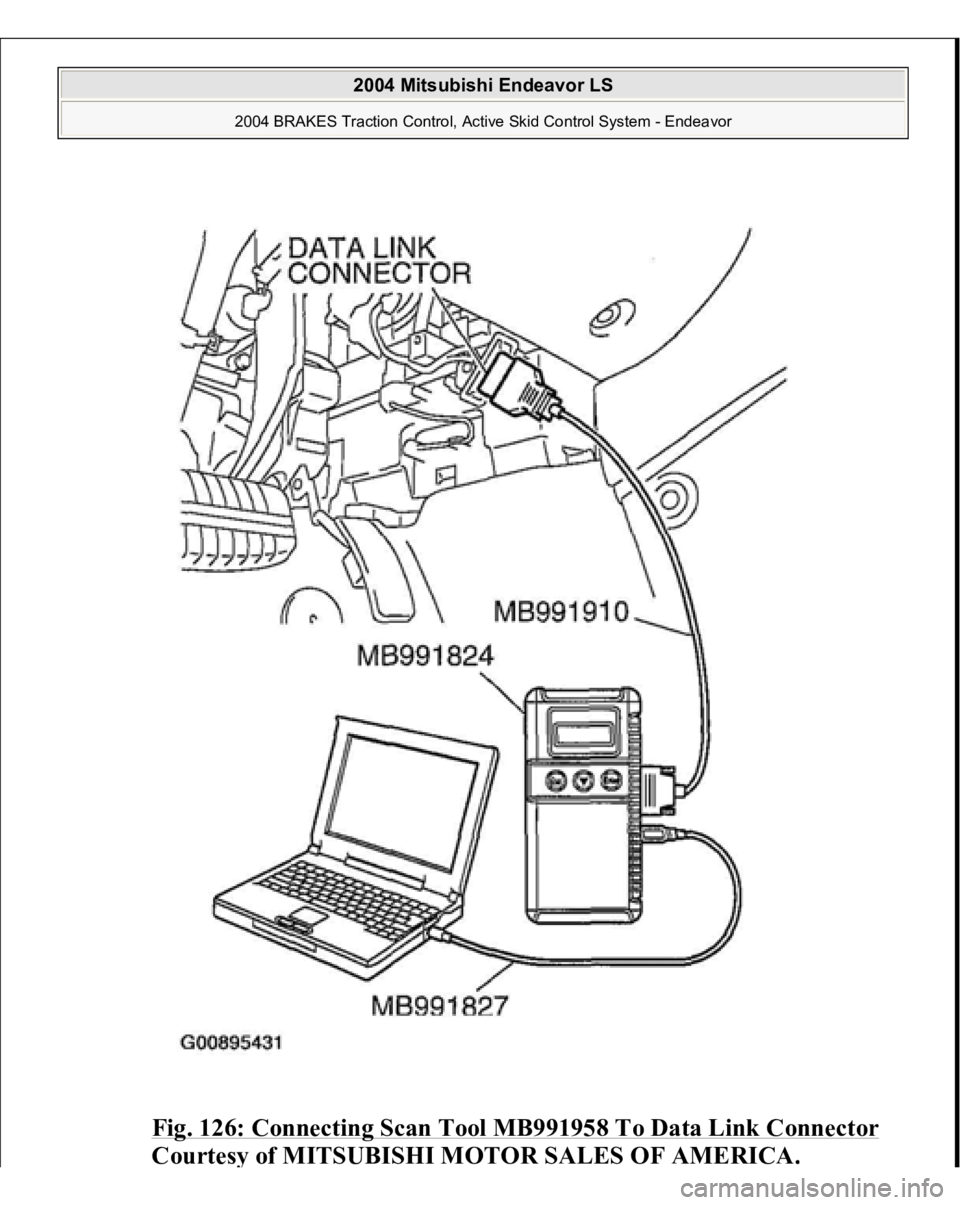

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 126: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control Syste
