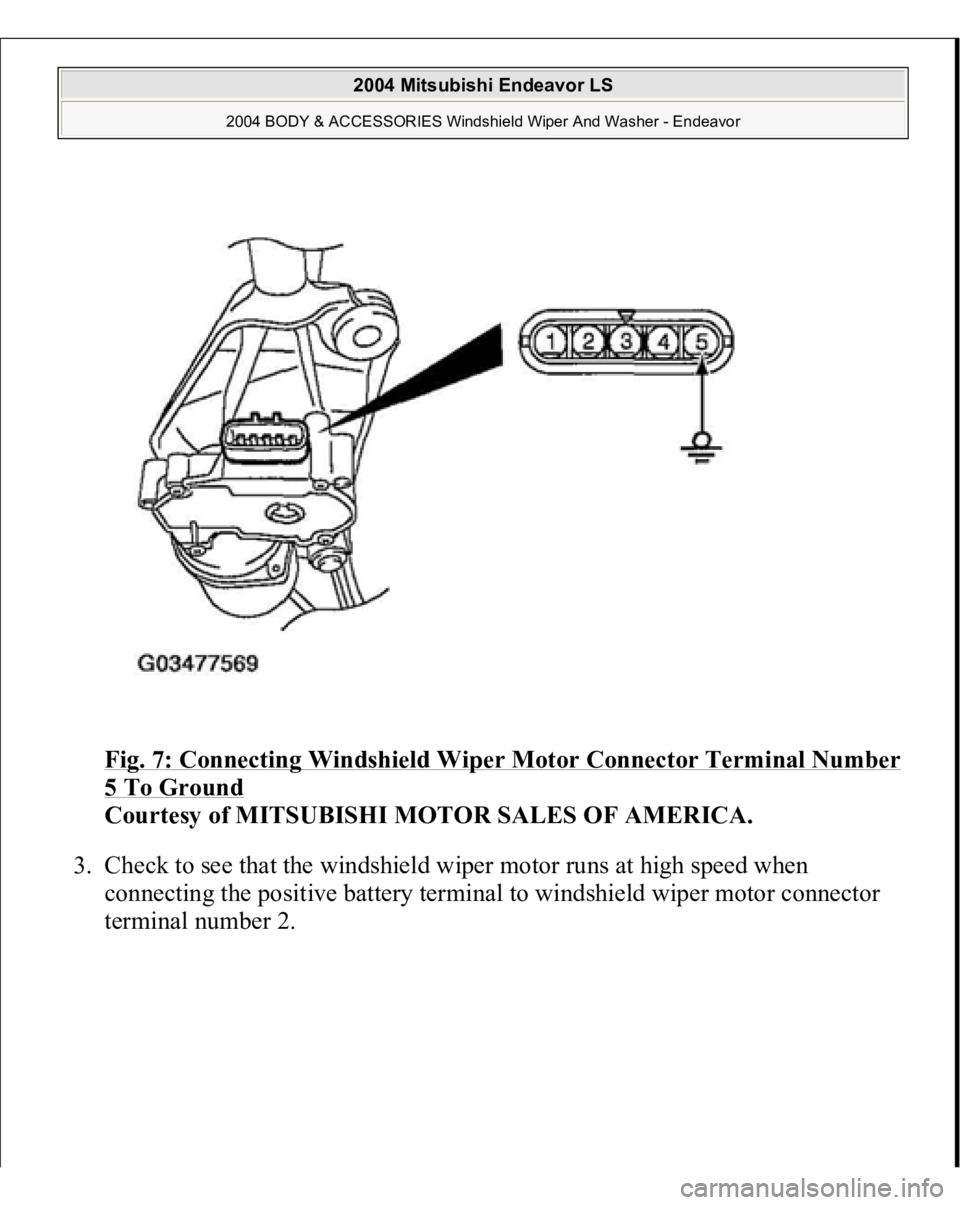

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: Connecting Windshield Wiper Motor Connector Terminal Number 5 To Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Check to see that the windshield wiper motor runs at high speed whe

Page 3746 of 3870

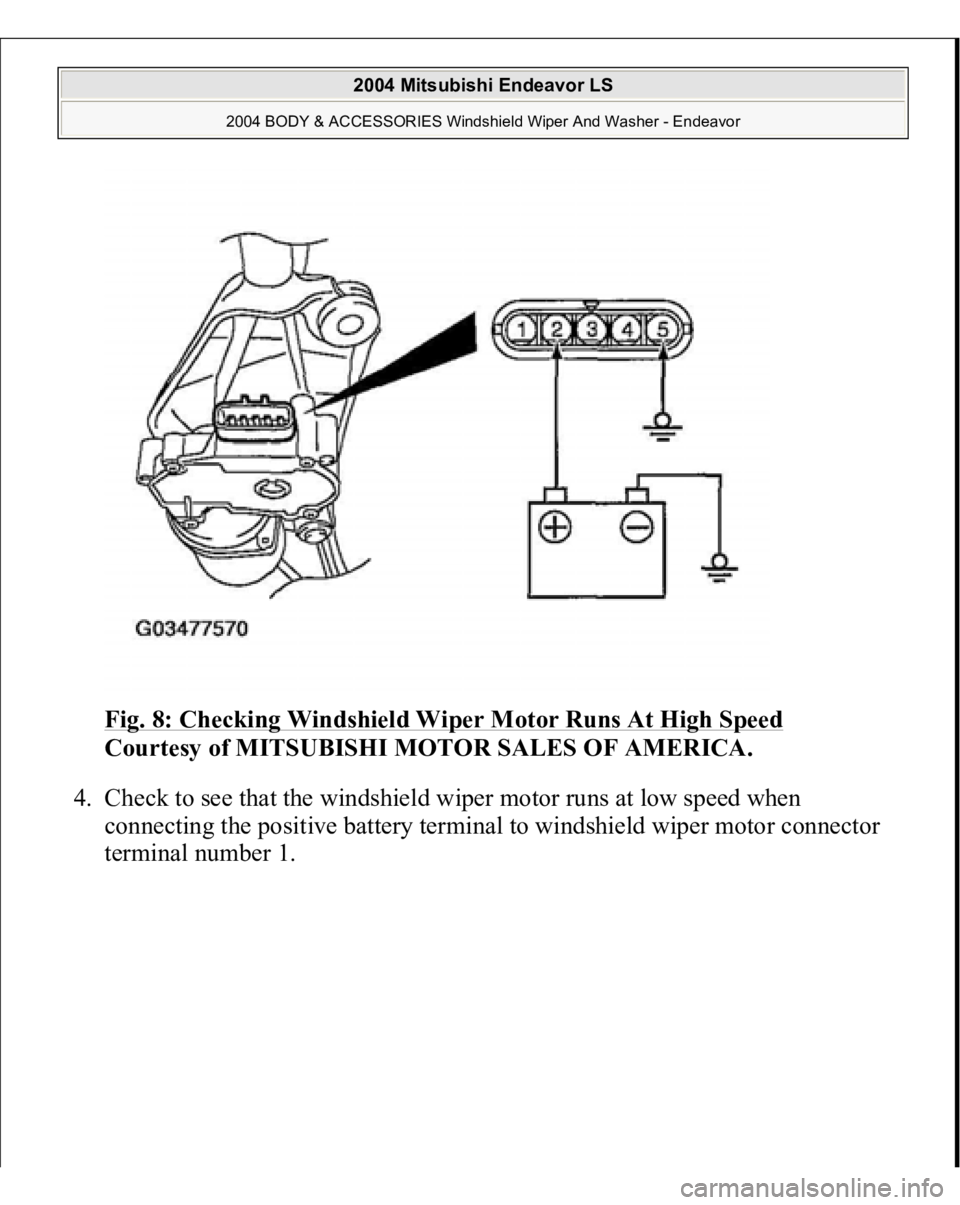

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 8: Checking Windshield Wiper Motor Runs At High Speed Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 4. Check to see that the windshield wiper motor runs at low speed when connecting the posi

Page 3747 of 3870

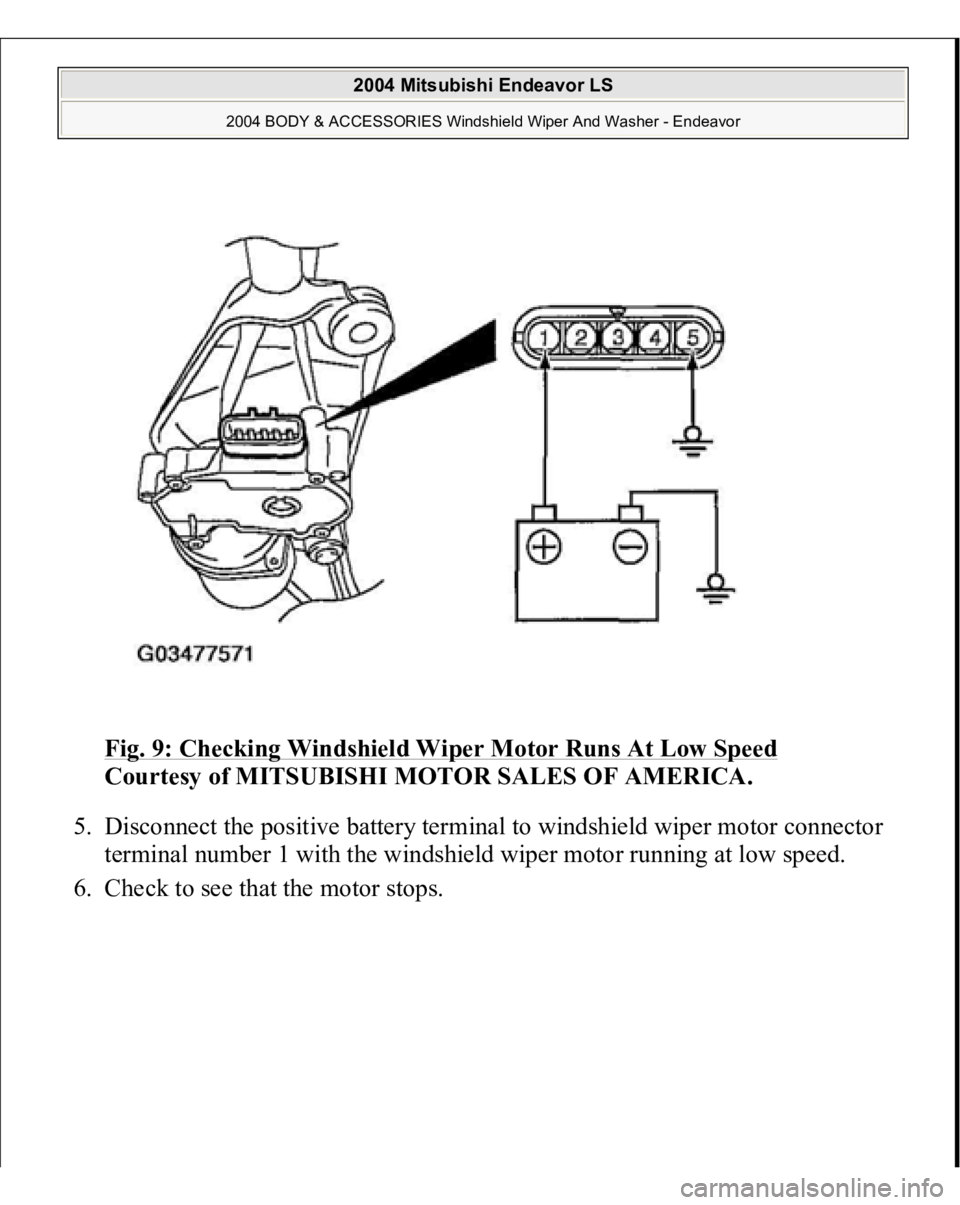

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 9: Checking Windshield Wiper Motor Runs At Low Speed Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 5. Disconnect the positive battery terminal to windshield wiper motor connector terminal nu

Page 3748 of 3870

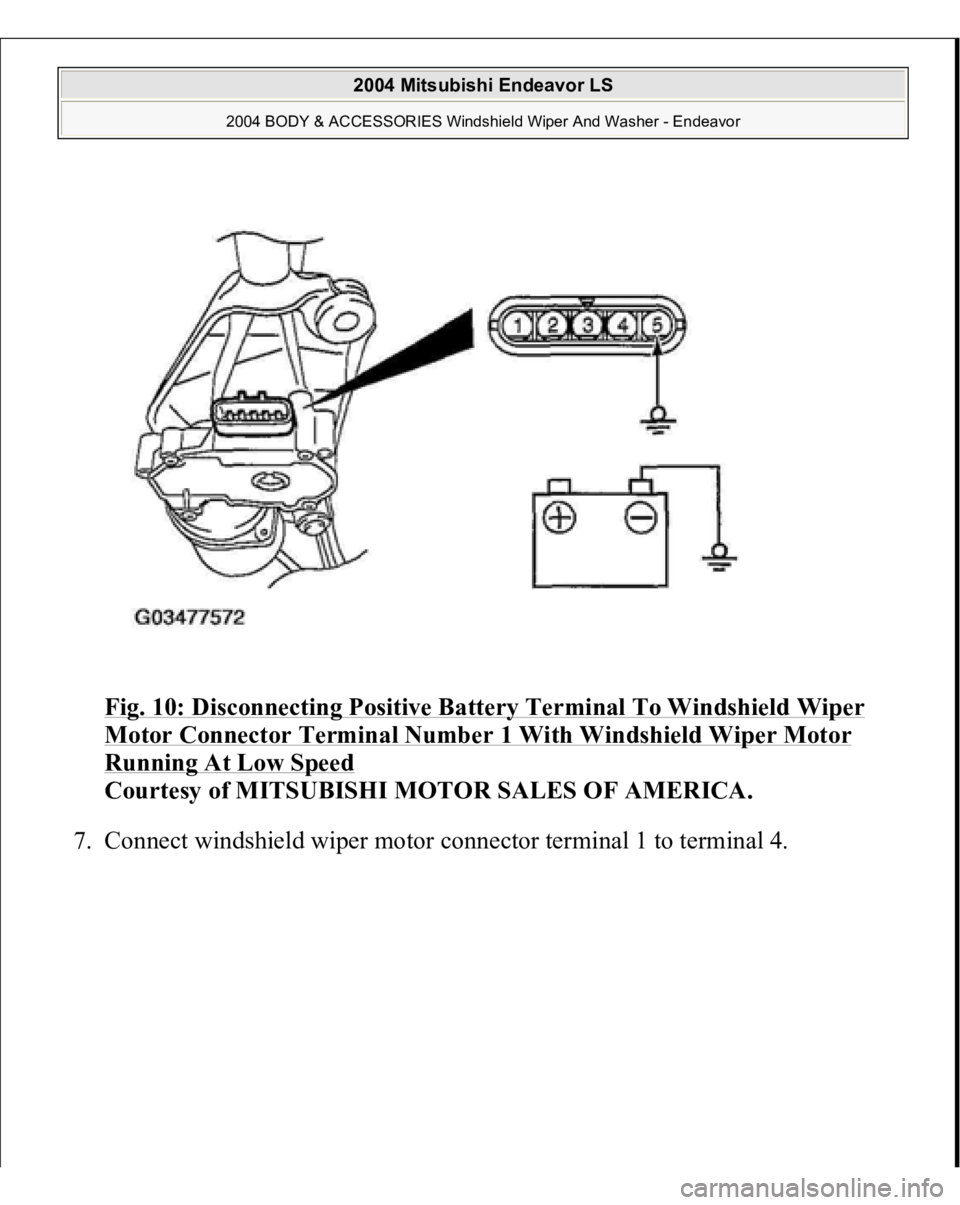

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 10: Disconnecting Positive Battery Terminal To Windshield Wiper Motor Connector Terminal Number 1 With Windshield Wiper Motor Running At Low Speed Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Page 3749 of 3870

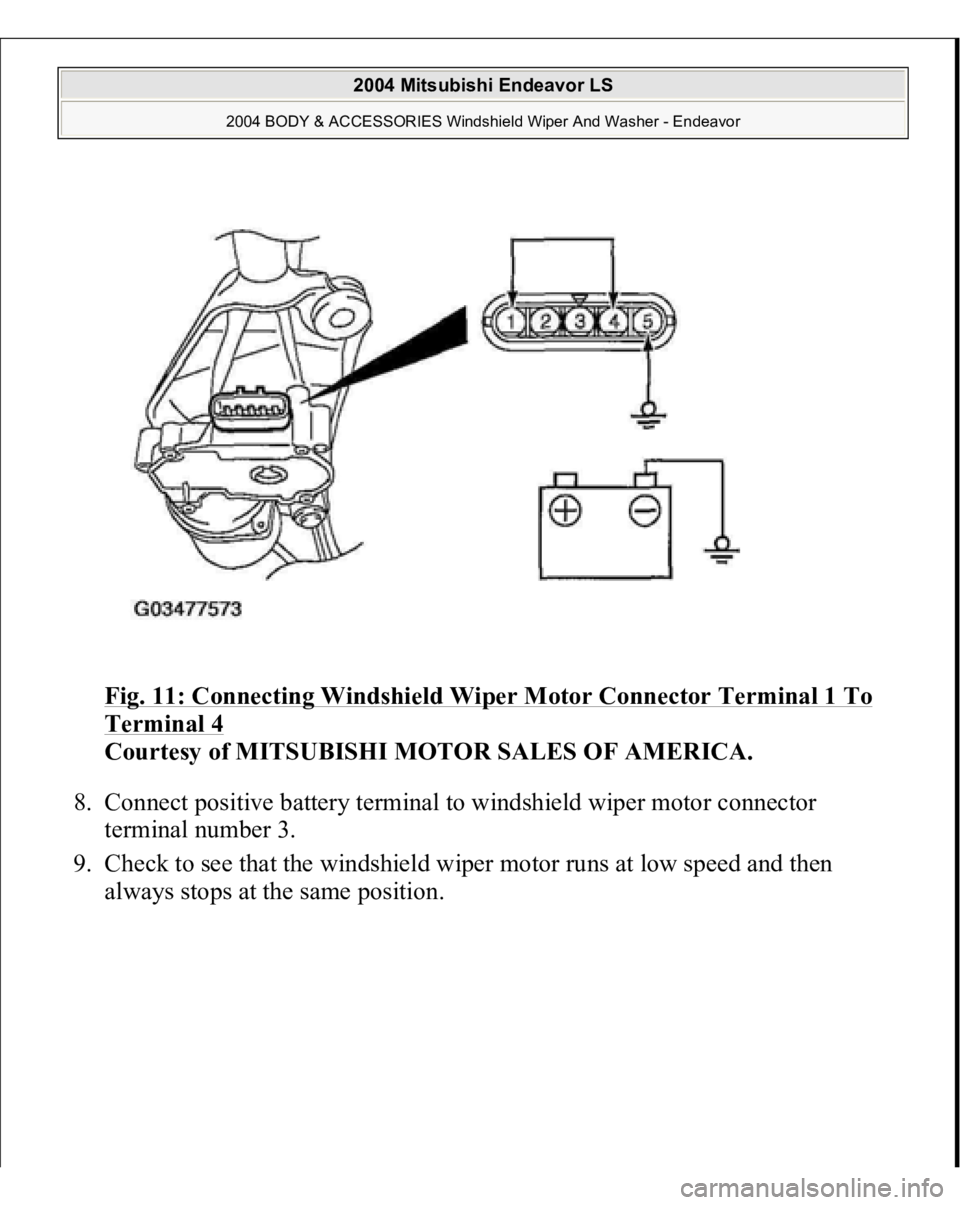

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 11: Connecting Windshield Wiper Motor Connector Terminal 1 To Terminal 4 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 8. Connect positive battery terminal to windshield wiper motor connector

Page 3750 of 3870

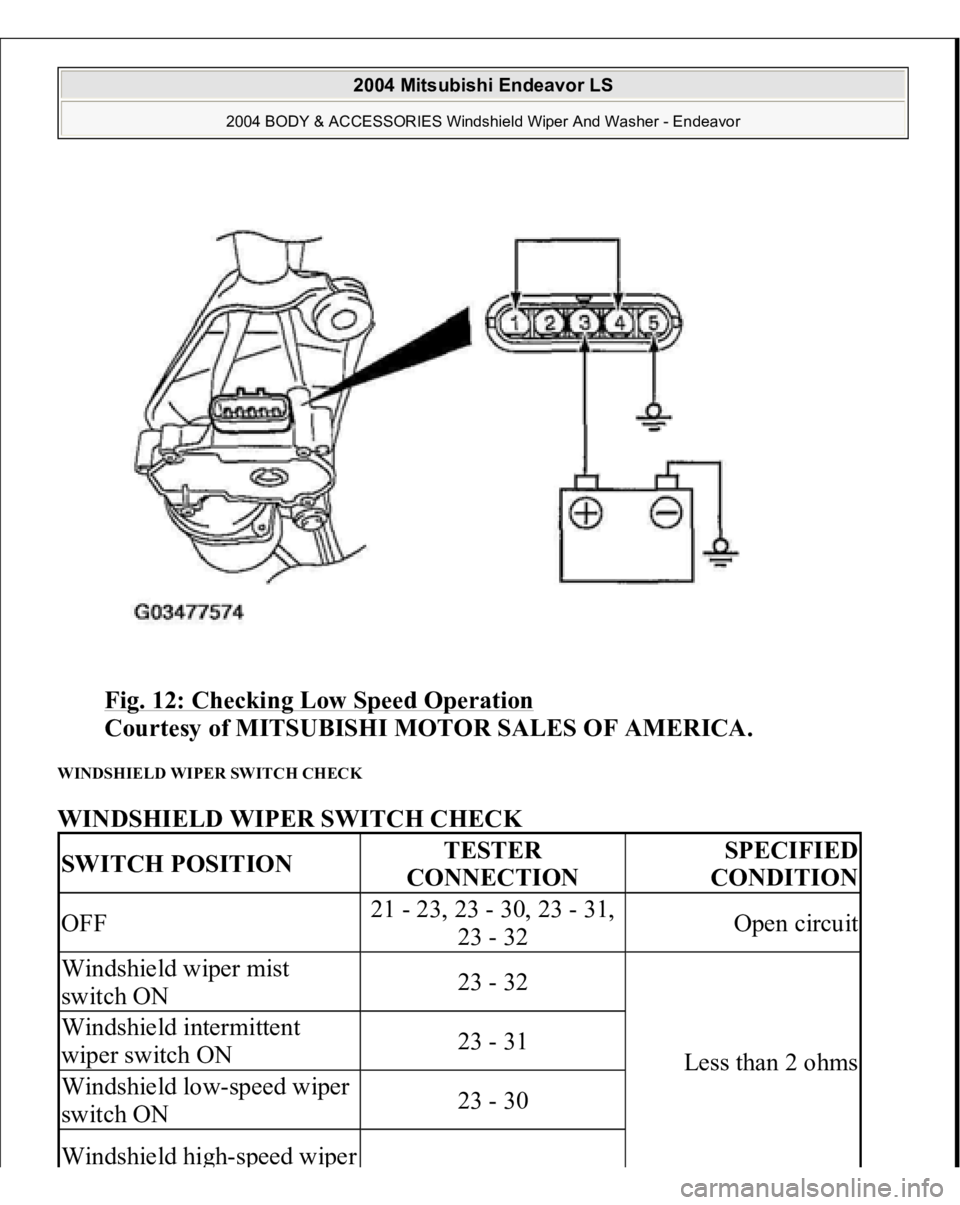

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 12: Checking Low Speed Operation Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. WINDSHIELD WIPER SWITCH CHECK WINDSHIELD WIPER SWITCH CHECK SWITCH POSITION TESTER CONNECTION SPECIFIED CONDIT

Page 3751 of 3870

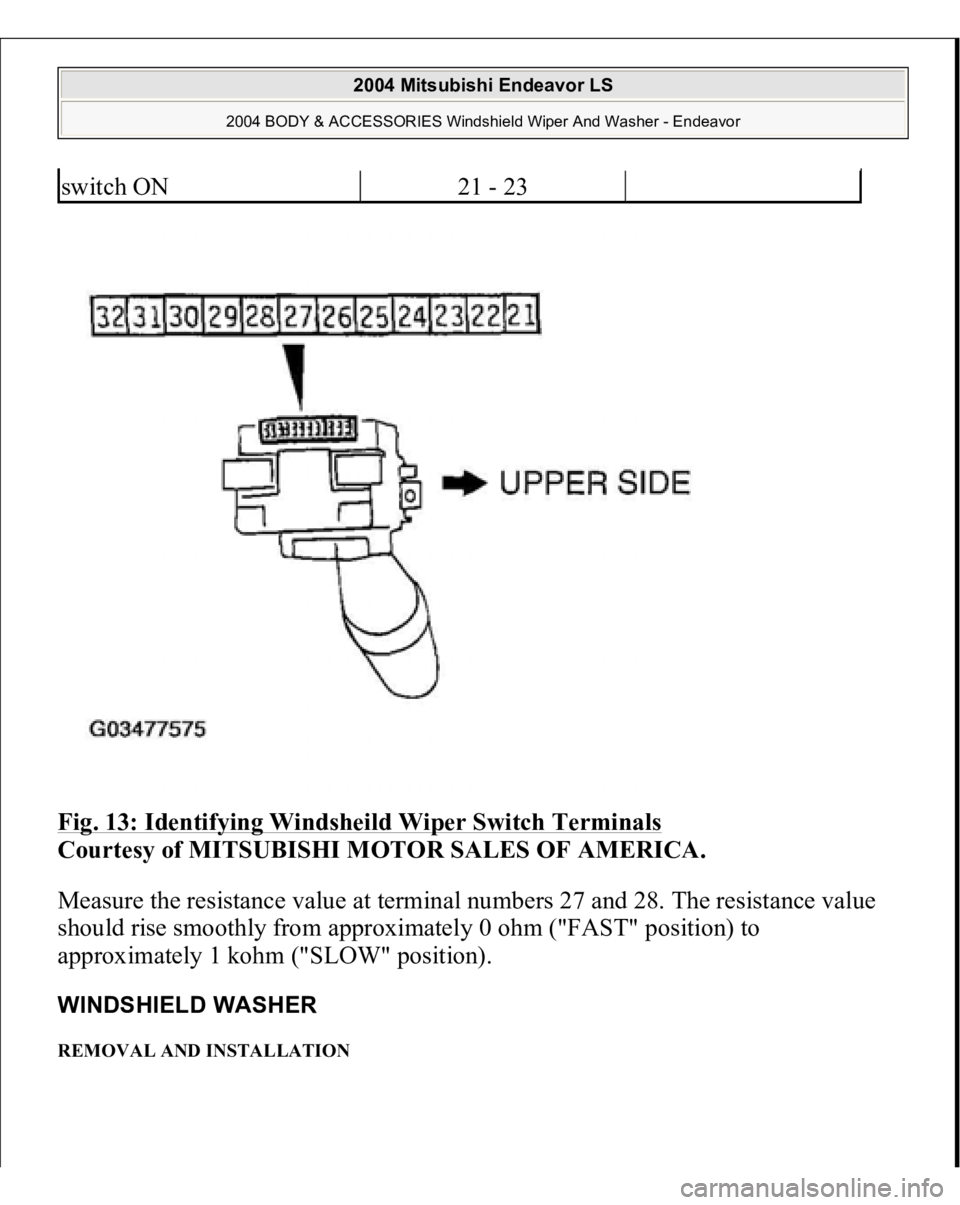

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 13: Identifying Windsheild Wiper Switch Terminals Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Measure the resistance value at terminal numbers 27 and 28. The resistance value should rise s

Page 3752 of 3870

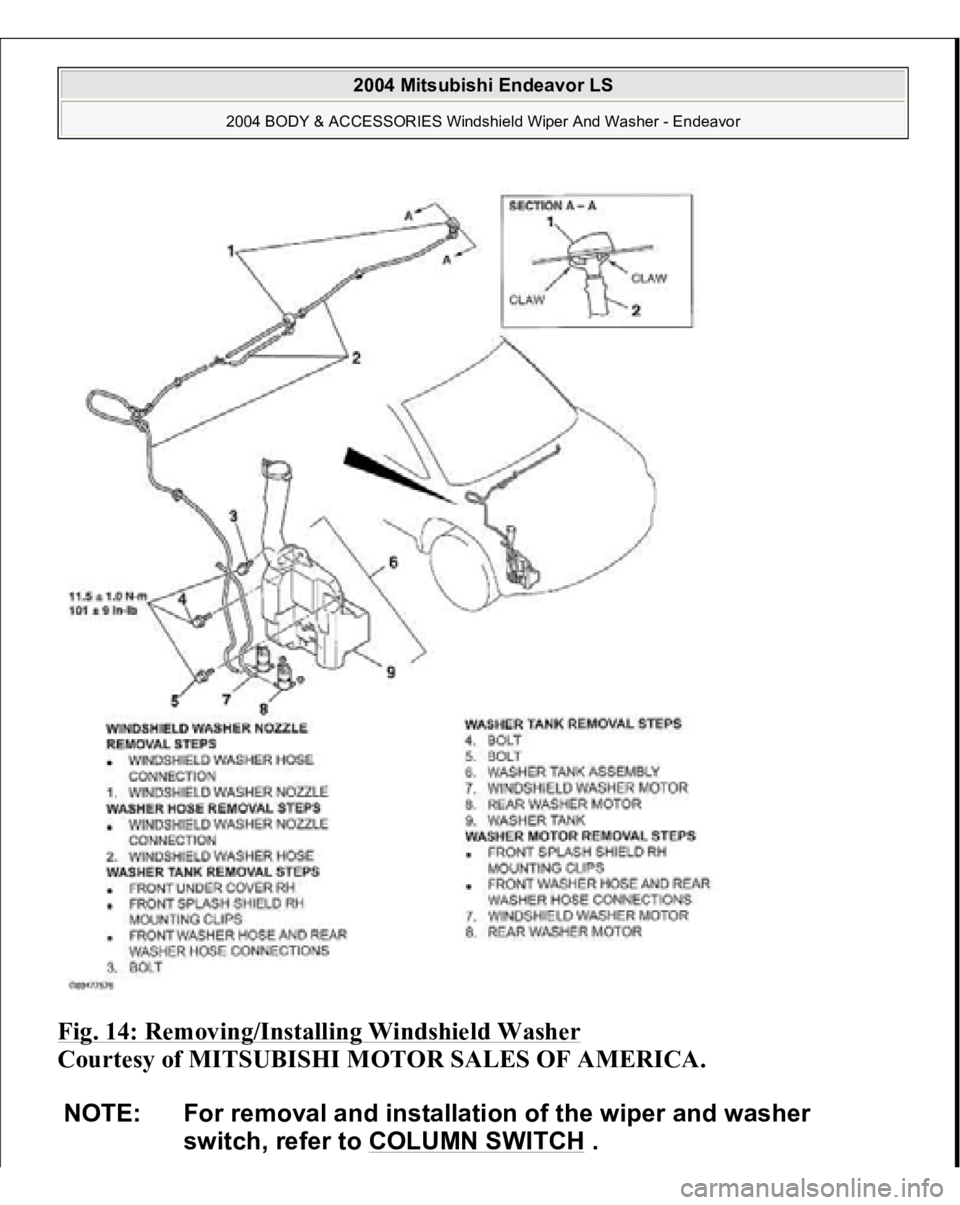

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 14: Removing/Installing Windshield Washer Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. NOTE: For removal and installation of the wiper and washer switch, refer to COLUMN SWITCH . 2004 Mi
