MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 3. Check for looseness of the caliper installation bolt. 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor

Page 722 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor

Page 723 of 3870

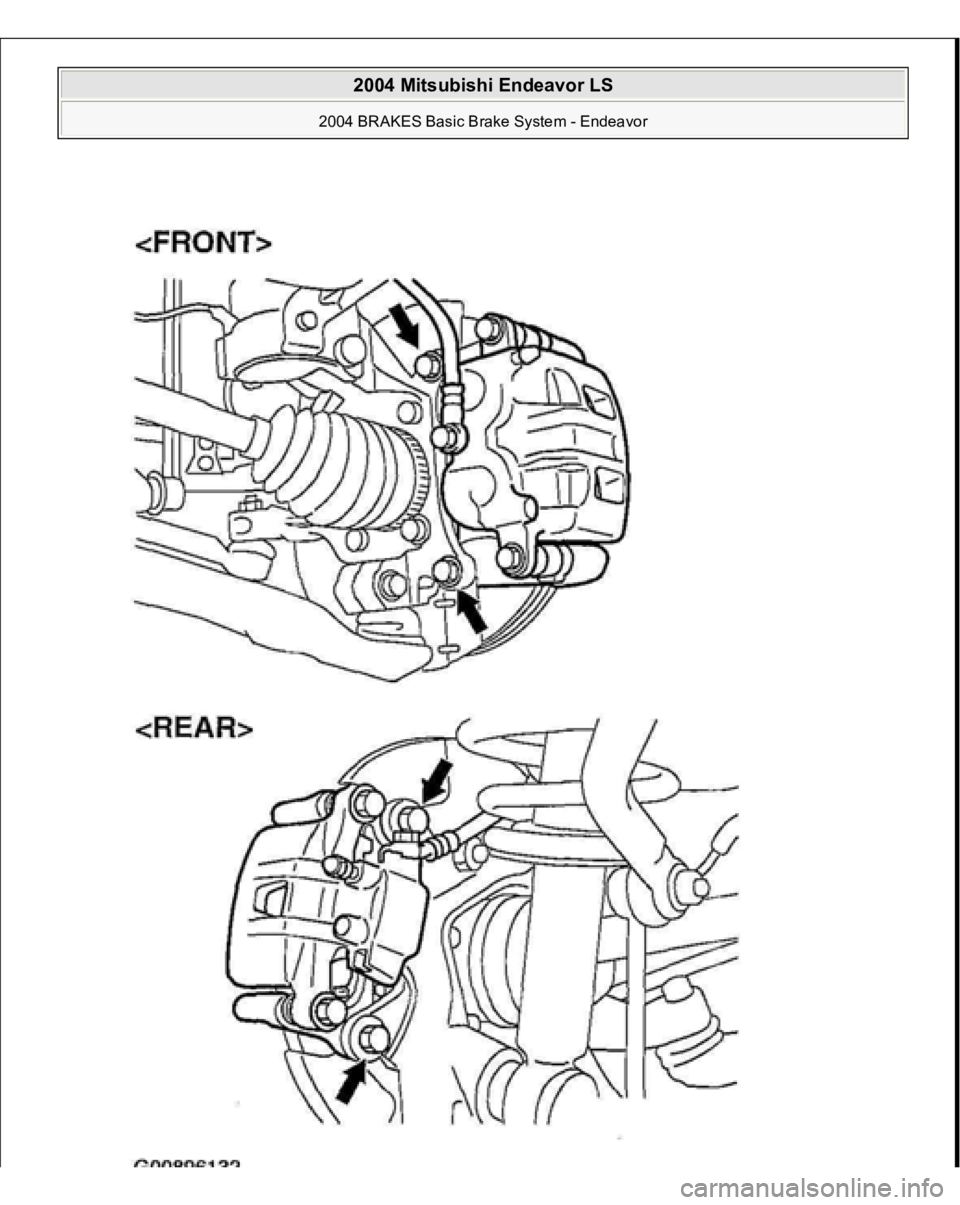

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 10: Checking Looseness Of Caliper Installation Bol t Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the caliper installation bolt loose? YES: Tighten to 100 +/- 10 N.m (74 +/- 7 ft-lb)

Page 724 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Fig. 12: Measuring Wheel Bearings For End Play (Rear) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Limit: 0.05 mm (0.002 inch) Q: Does the measu

Page 725 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 5. Recheck symptom. Q: Is the symptom eliminated? YES: The procedure is complete. NO: Start over at Step 1 . If a new symptom surfaces, refer to the SYMPTOM CHART . SPECIAL TOOLS Fig. 13

Page 726 of 3870

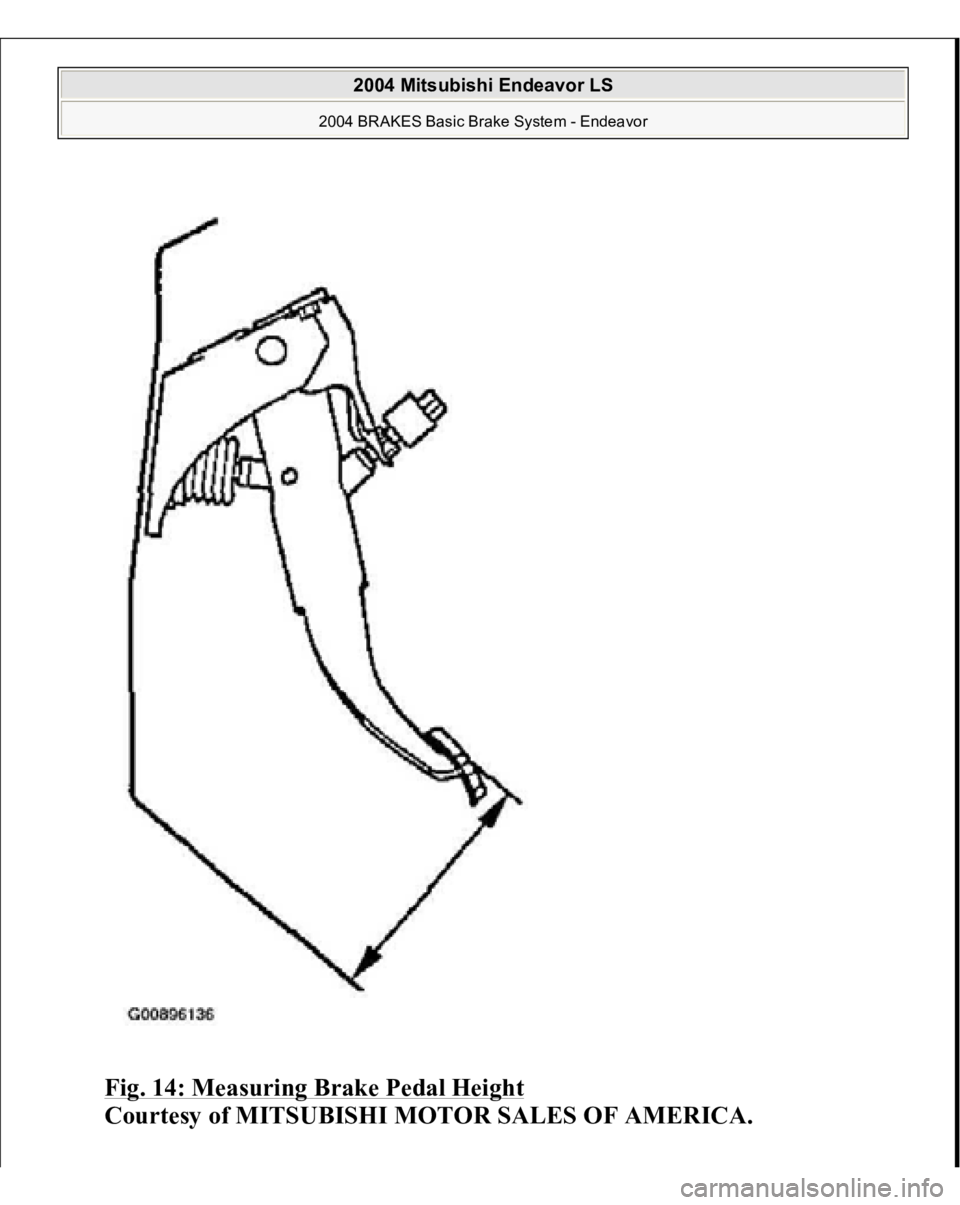

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 14: Measuring Brake Pedal Height Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor

Page 727 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. If the brake pedal height is not within the standard value, follow the procedure below. 1. Disconnect the stoplight switch connector. 2. Remove the brake booster (Refer to MASTER CYLINDER ASSE

Page 728 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 15: Adjusting Brake Pedal Height By Turning Clevis Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 6. Screw in the stop light switch until its thread contacts the stopper, and fix the stop lig
