Page 625 of 3870

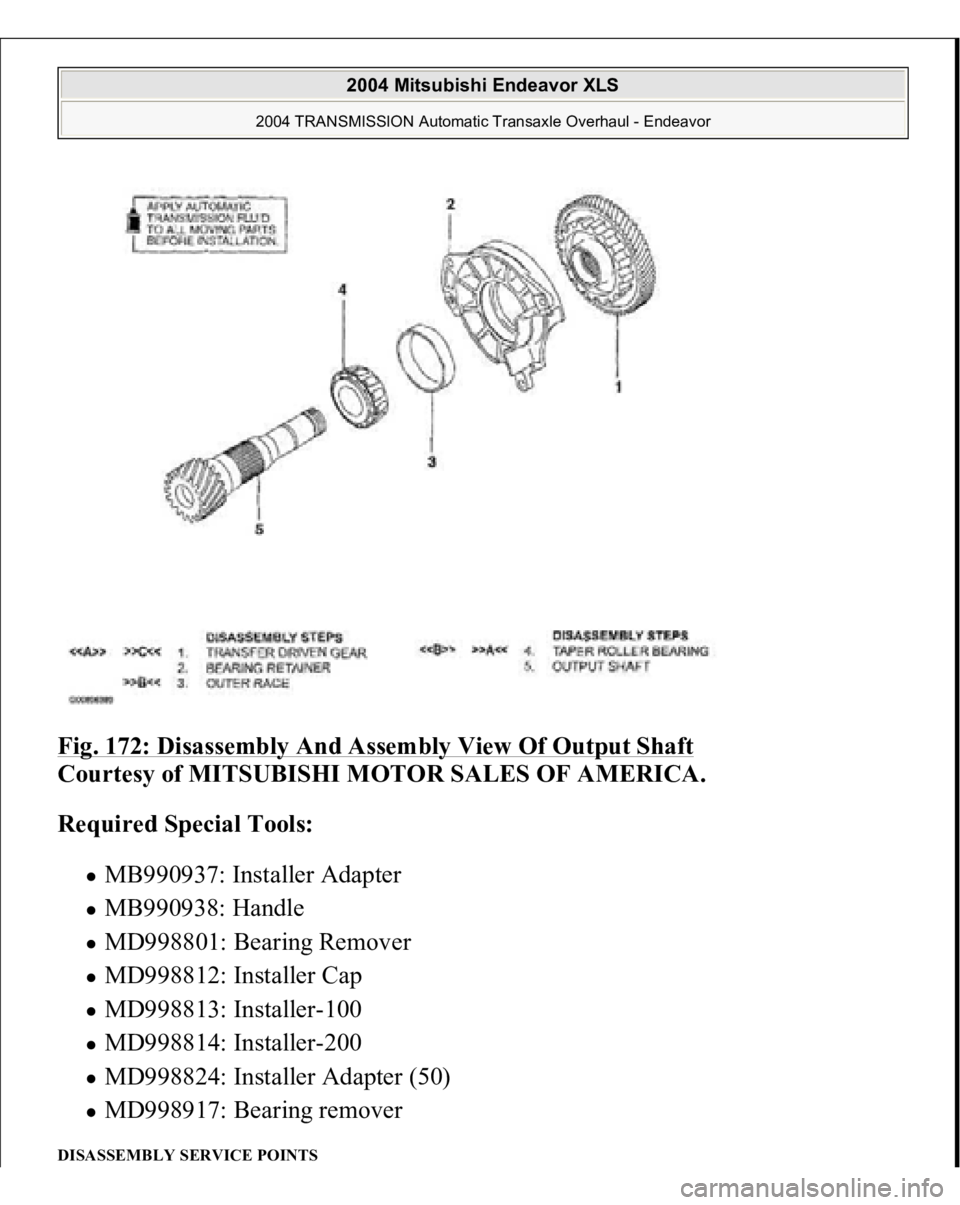

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 172: Disassembly And Assembly View Of Output Shaft Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Required Special Tools: MB990937: Installer Adapter MB990938: Handle MD998801: Bearing Rem

Page 626 of 3870

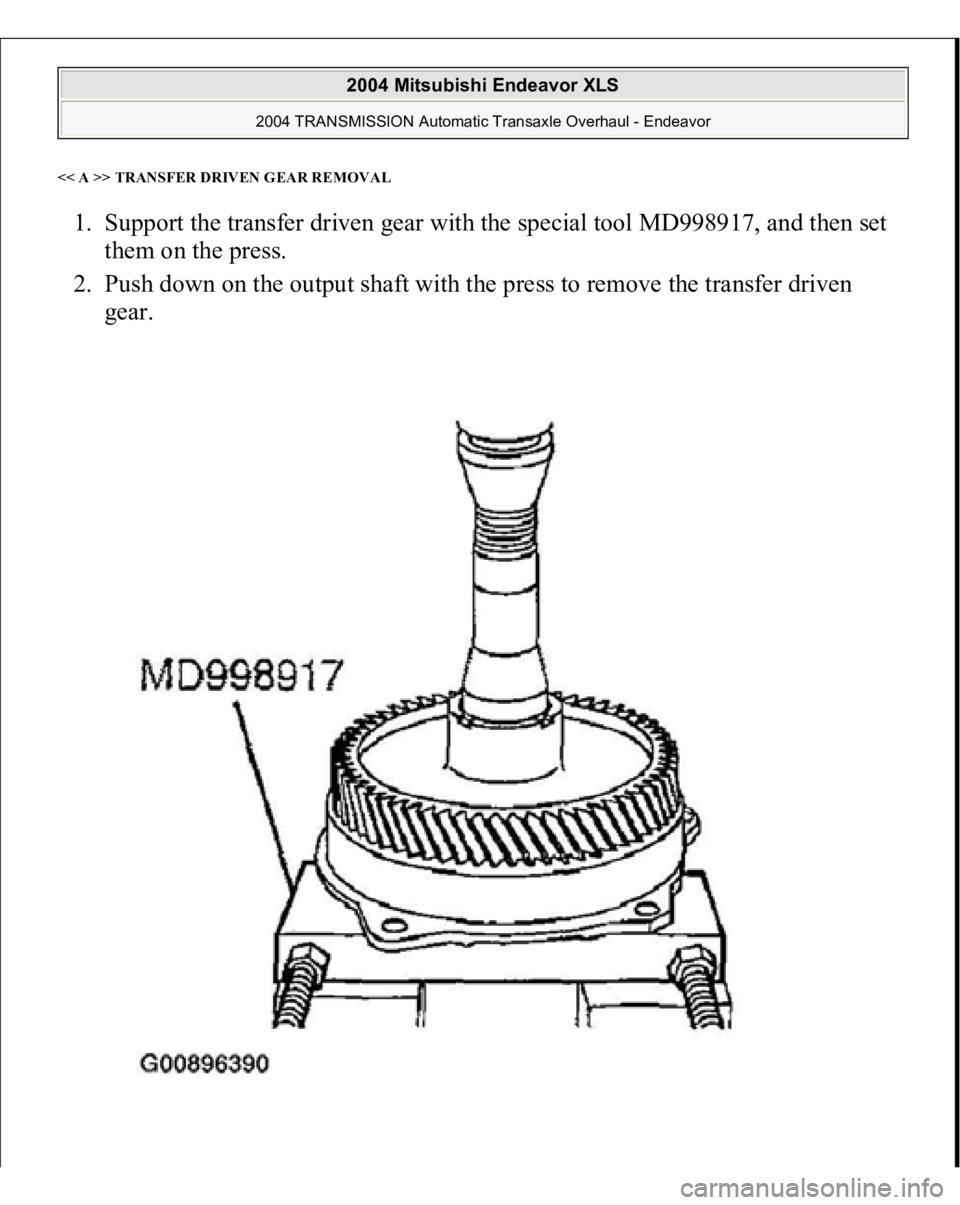

MITSUBISHI ENDEAVOR 2004 Service Repair Manual << A >> TRANSFER DRIVEN GEAR REMOVAL1. Support the transfer driven gear with the special tool MD998917, and then set them on the press. 2. Push down on the output shaft with the press to remove the

Page 627 of 3870

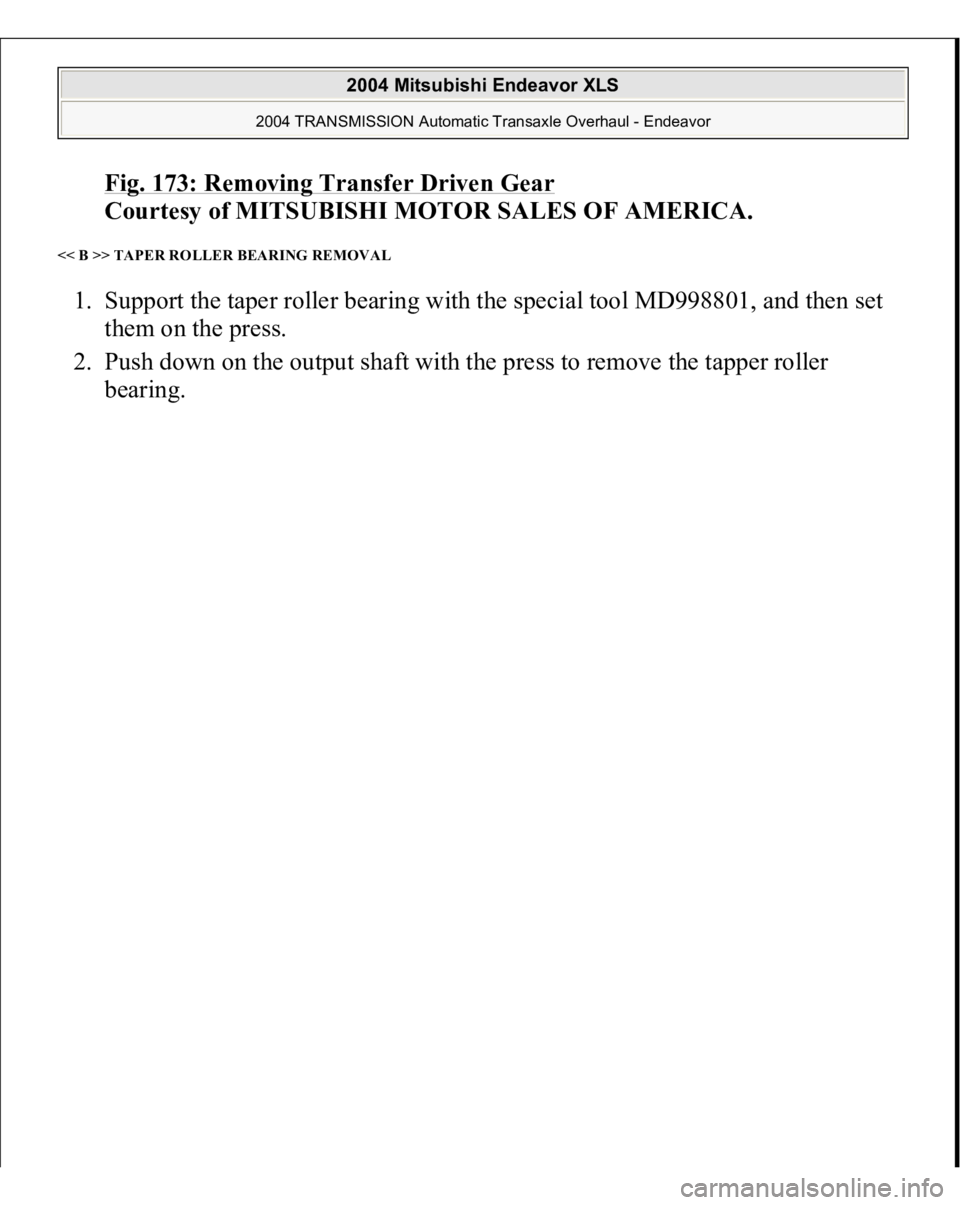

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 173: Removing Transfer Driven Gear Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. << B >> TAPER ROLLER BEARING REMOVAL 1. Support the taper roller bearing with the special tool MD998801, and t

Page 628 of 3870

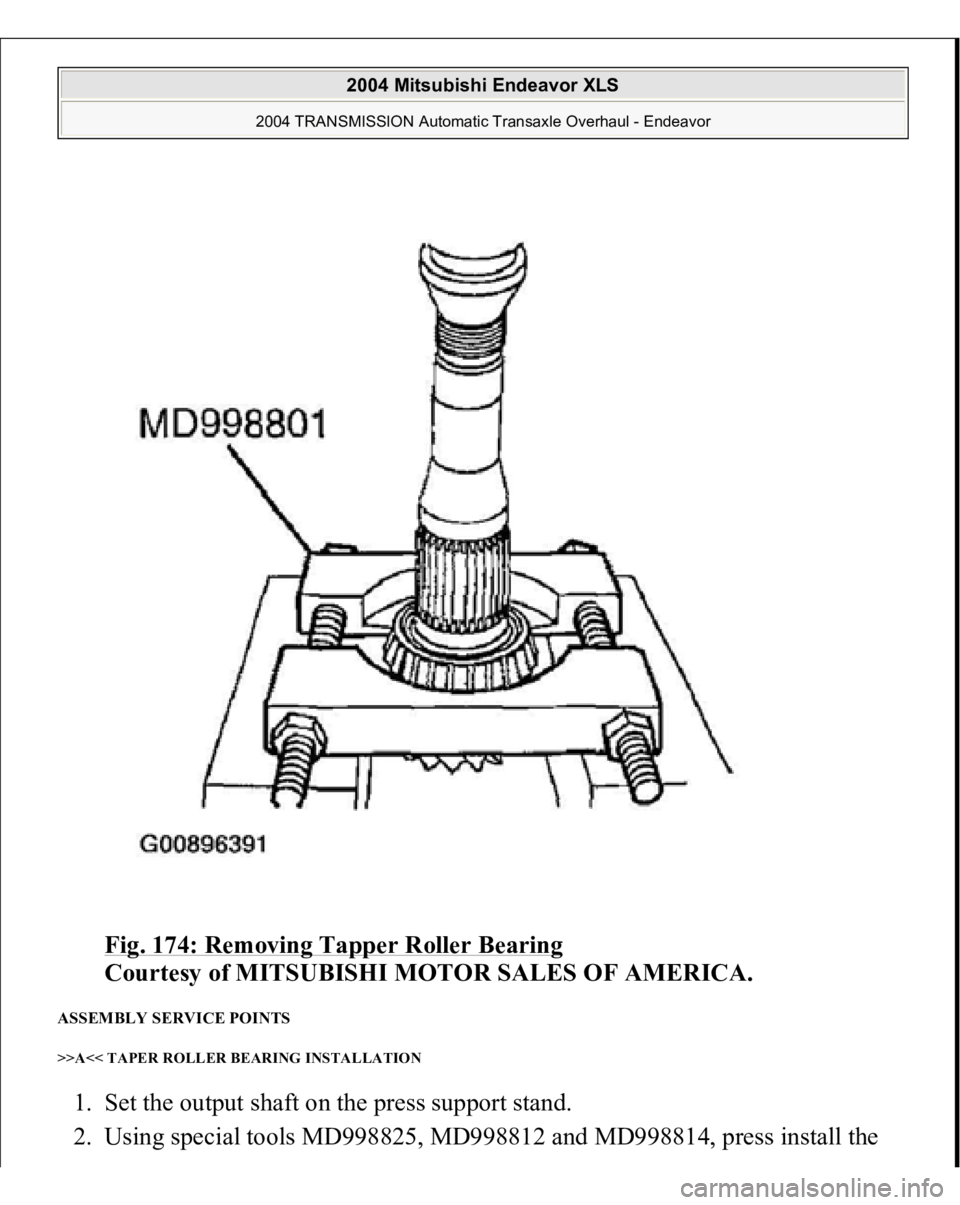

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 174: Removing Tapper Roller Bearing Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINTS >>A<< TAPER ROLLER BEARING INSTALLATION 1. Set the output shaft on the press support

Page 629 of 3870

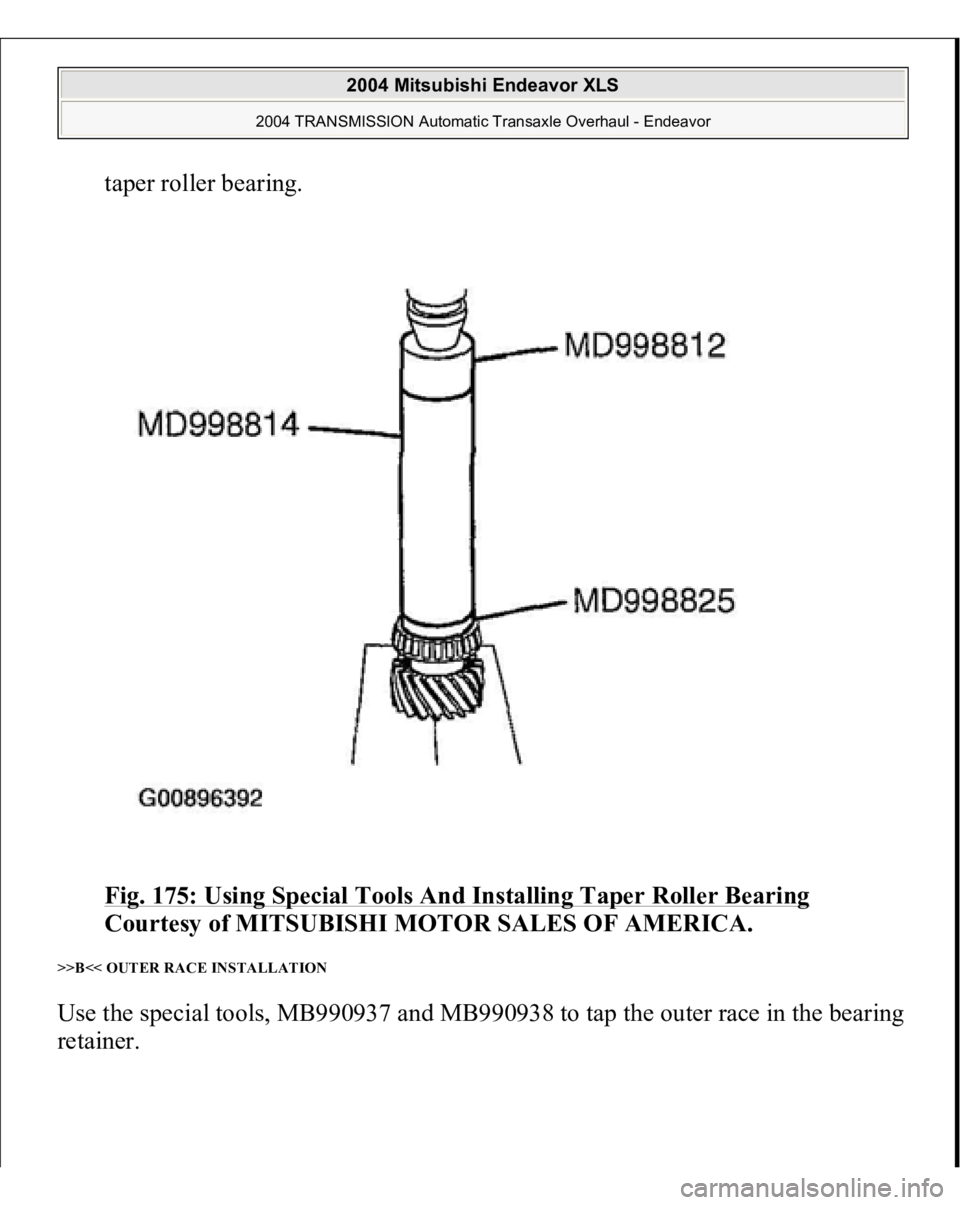

MITSUBISHI ENDEAVOR 2004 Service Repair Manual taper roller bearing. Fig. 175: Using Special Tools And Installing Taper Roller Bearing Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>B<< OUTER RACE INSTALLATION Use the special tools, MB990937

Page 630 of 3870

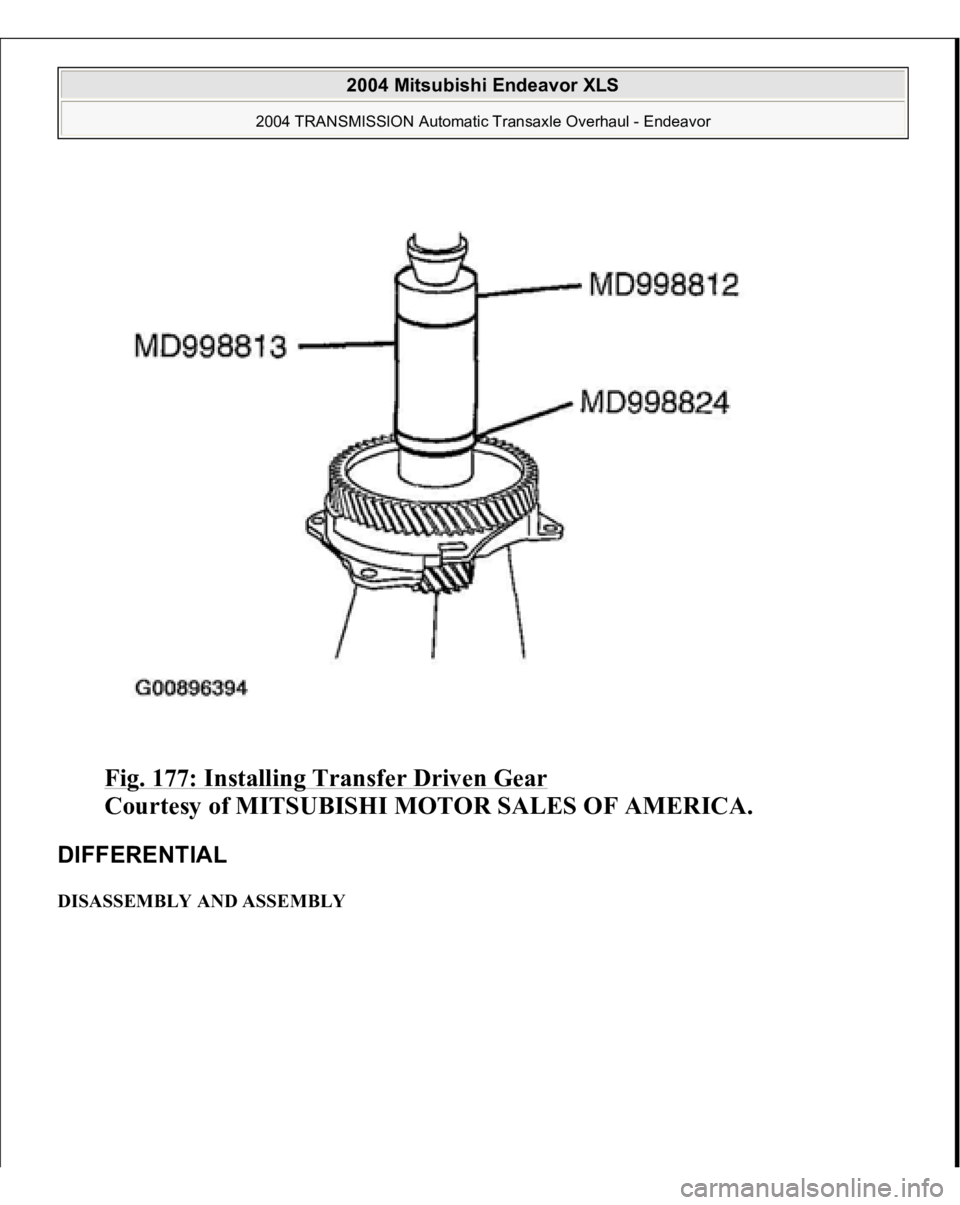

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 176: Using Special Tools And taping Outer Race In Bearing Retainer Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>C<< TRANSFER DRIVEN GEAR INSTALLATION 1. Set the output shaft on the press s

Page 631 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 177: Installing Transfer Driven Gear Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DIFFERENTIAL DISASSEMBLY AND ASSEMBLY 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle O

Page 632 of 3870

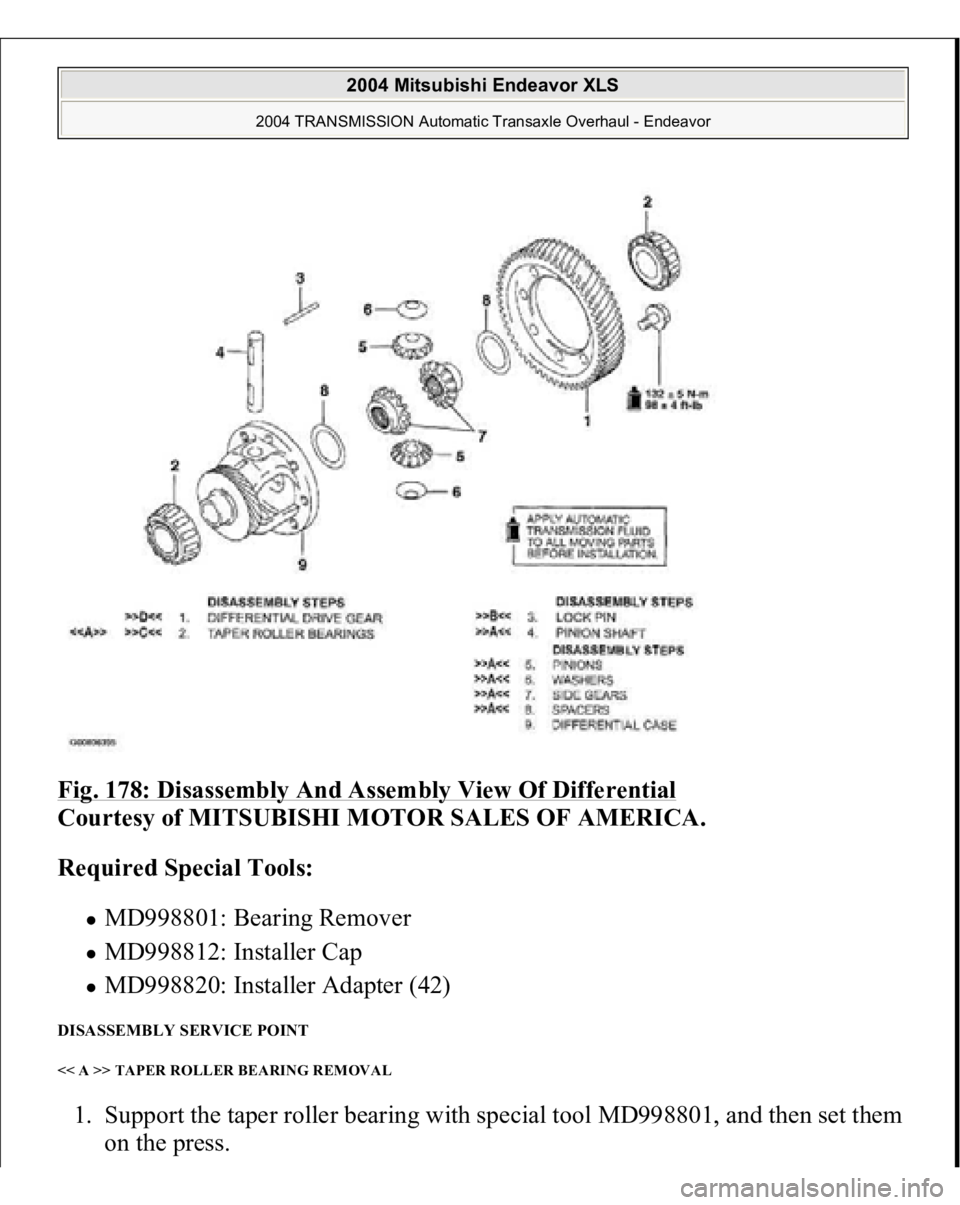

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 178: Disassembly And Assembly View Of Differential Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Required Special Tools: MD998801: Bearing Remover MD998812: Installer Cap MD998820: Instal
