Page 1217 of 3870

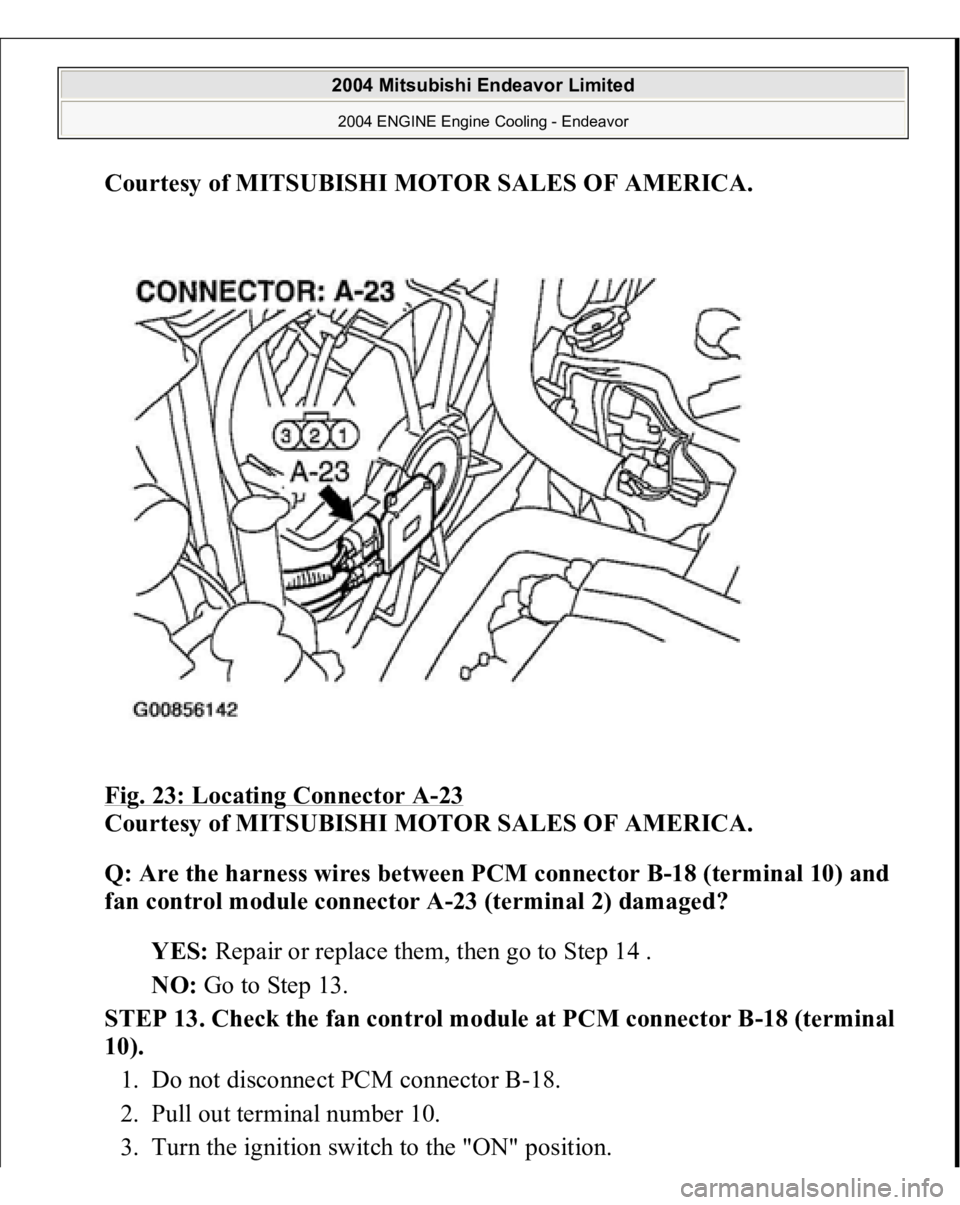

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Fig. 23: Locating Connector A -23 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are the harness wires between PCM connector B-18 (terminal 10) an

Page 1218 of 3870

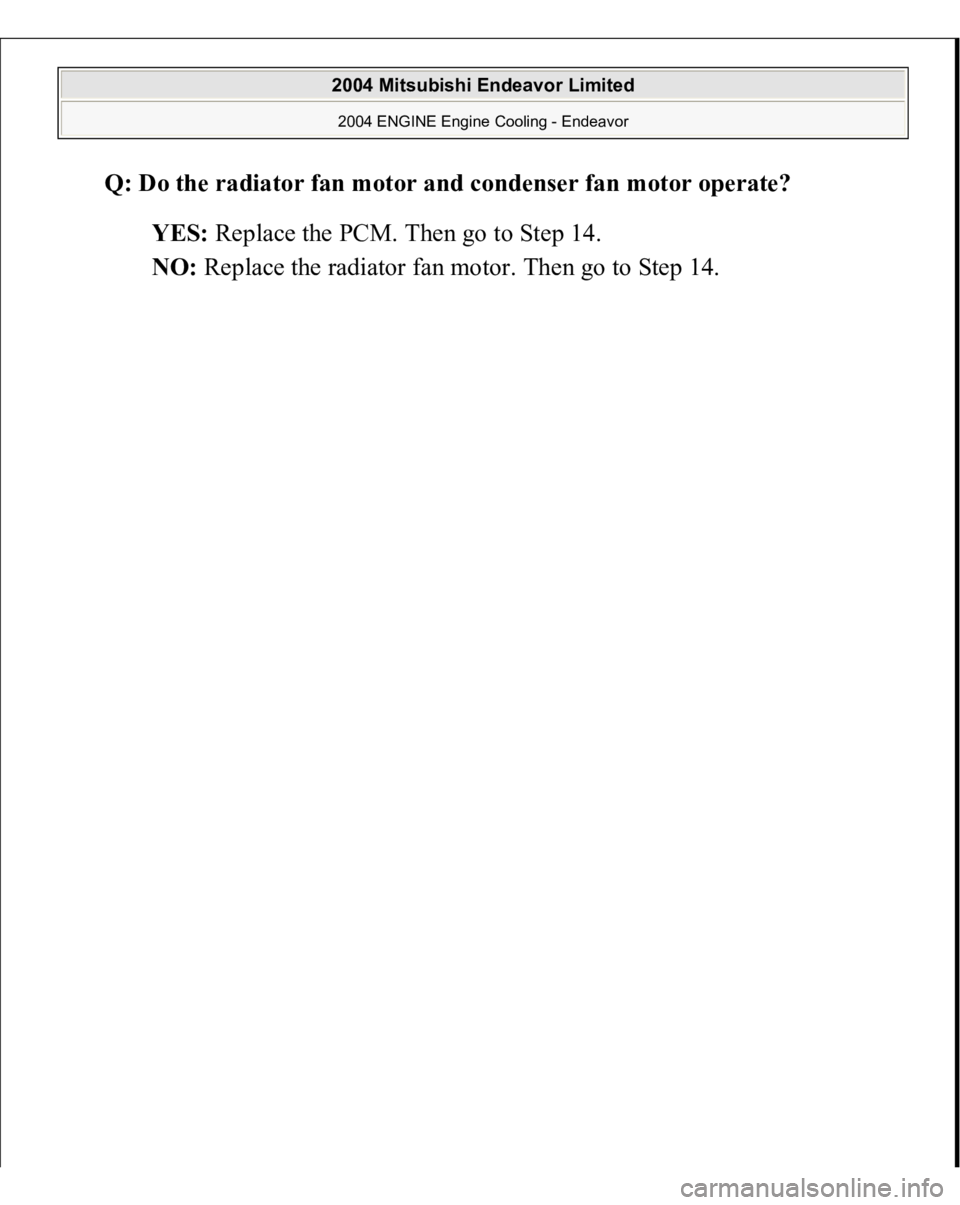

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Do the radiator fan motor and condenser fan motor operate? YES: Replace the PCM. Then go to Step 14. NO: Replace the radiator fan motor. Then go to Step 14. 2004 Mitsubishi Endeavor Limited

Page 1219 of 3870

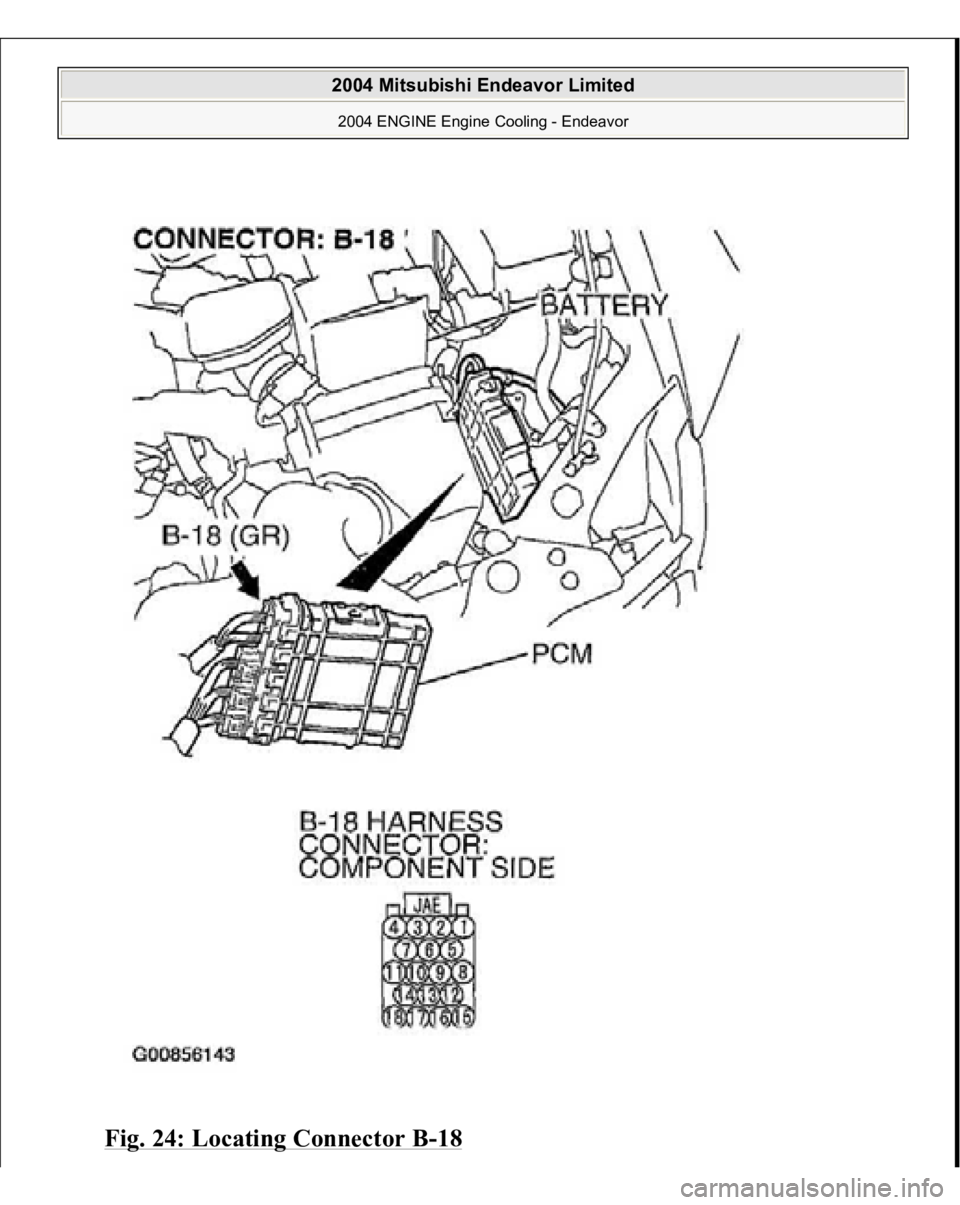

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 24: Locating Connector B -18 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Page 1220 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . STEP 14. Check the symptoms. Q: Do the radiator fan and condenser fan operate correctly? YES: The procedure is complete. NO: Return to Step 1 .

Page 1221 of 3870

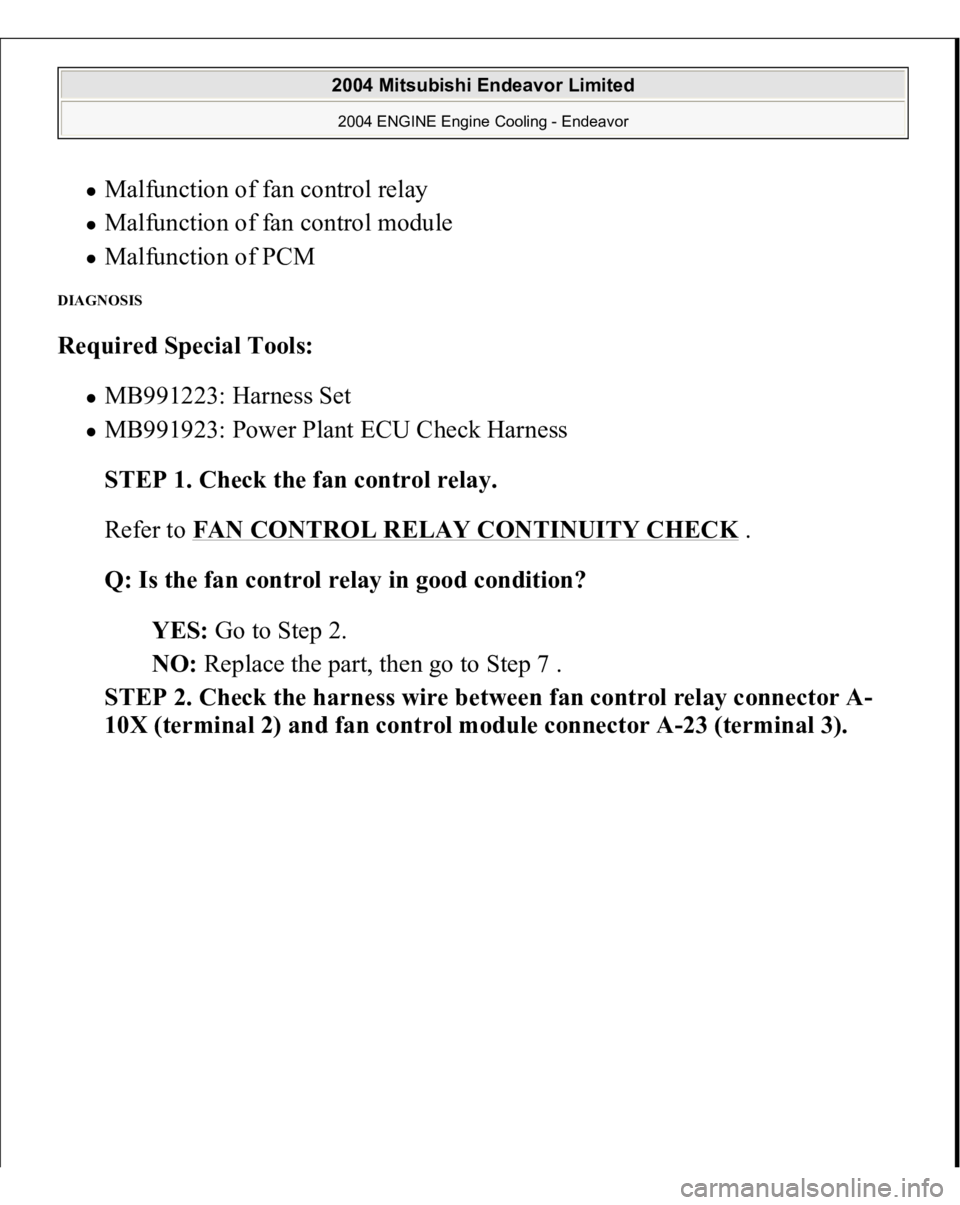

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Malfunction of fan control relay Malfunction of fan control module Malfunction of PCM DIAGNOSIS Required Special Tools: MB991223: Harness Set MB991923: Power Plant ECU Check Harness STEP 1. C

Page 1222 of 3870

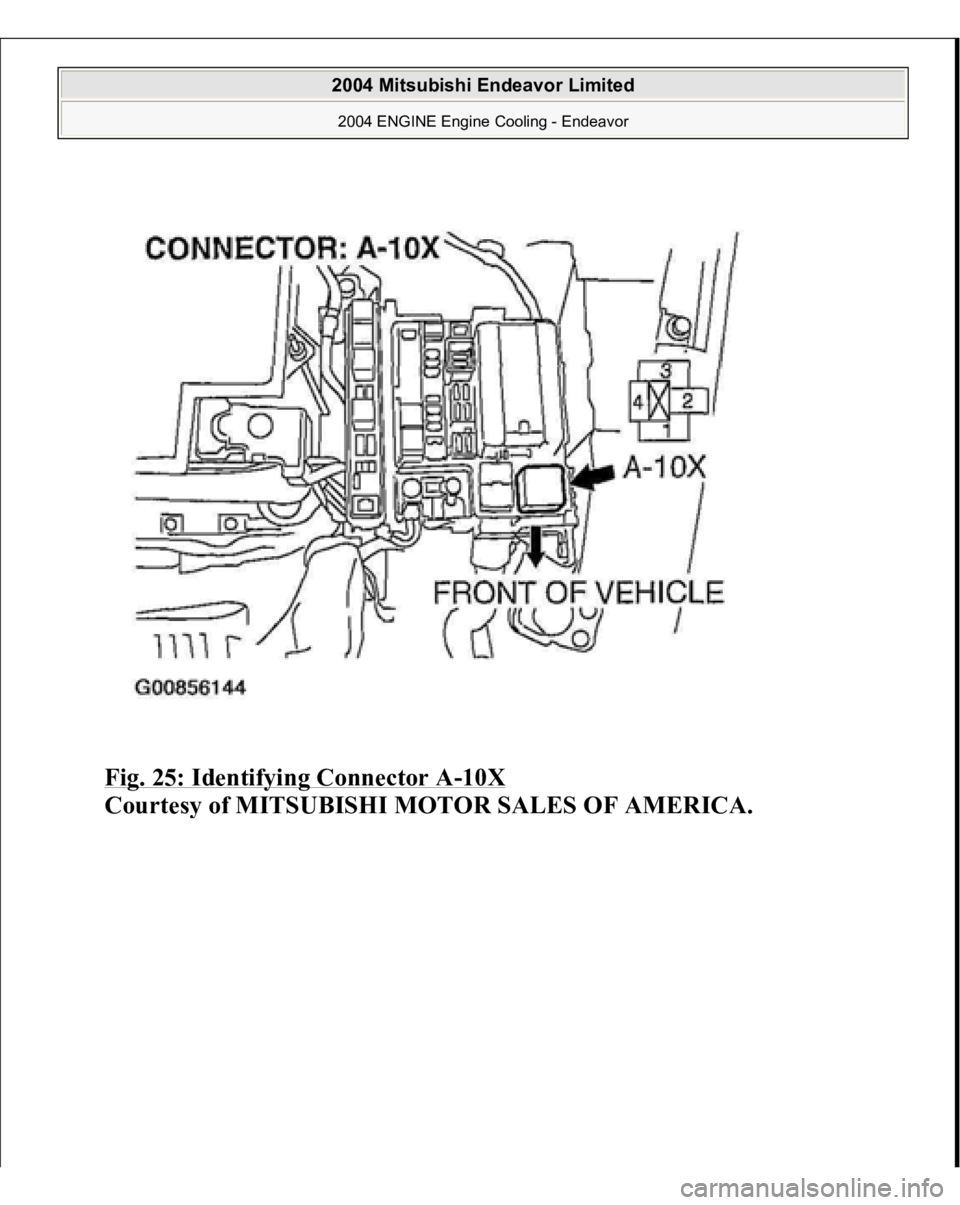

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 25: Identifying Connector A -10X Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor

Page 1223 of 3870

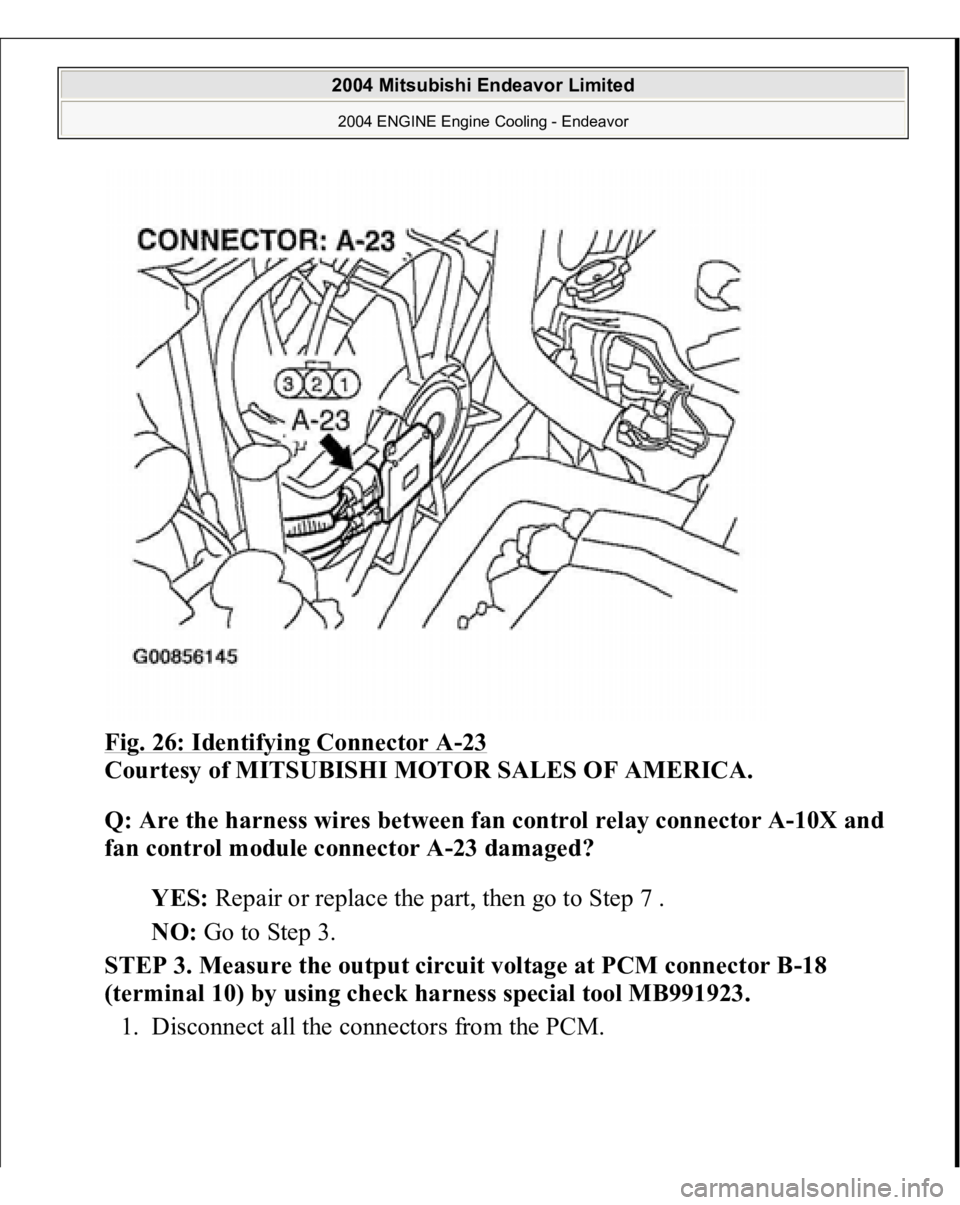

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 26: Identifying Connector A -23 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are the harness wires between fan control relay connector A-10X and fan control module connector A-23 damaged?

Page 1224 of 3870

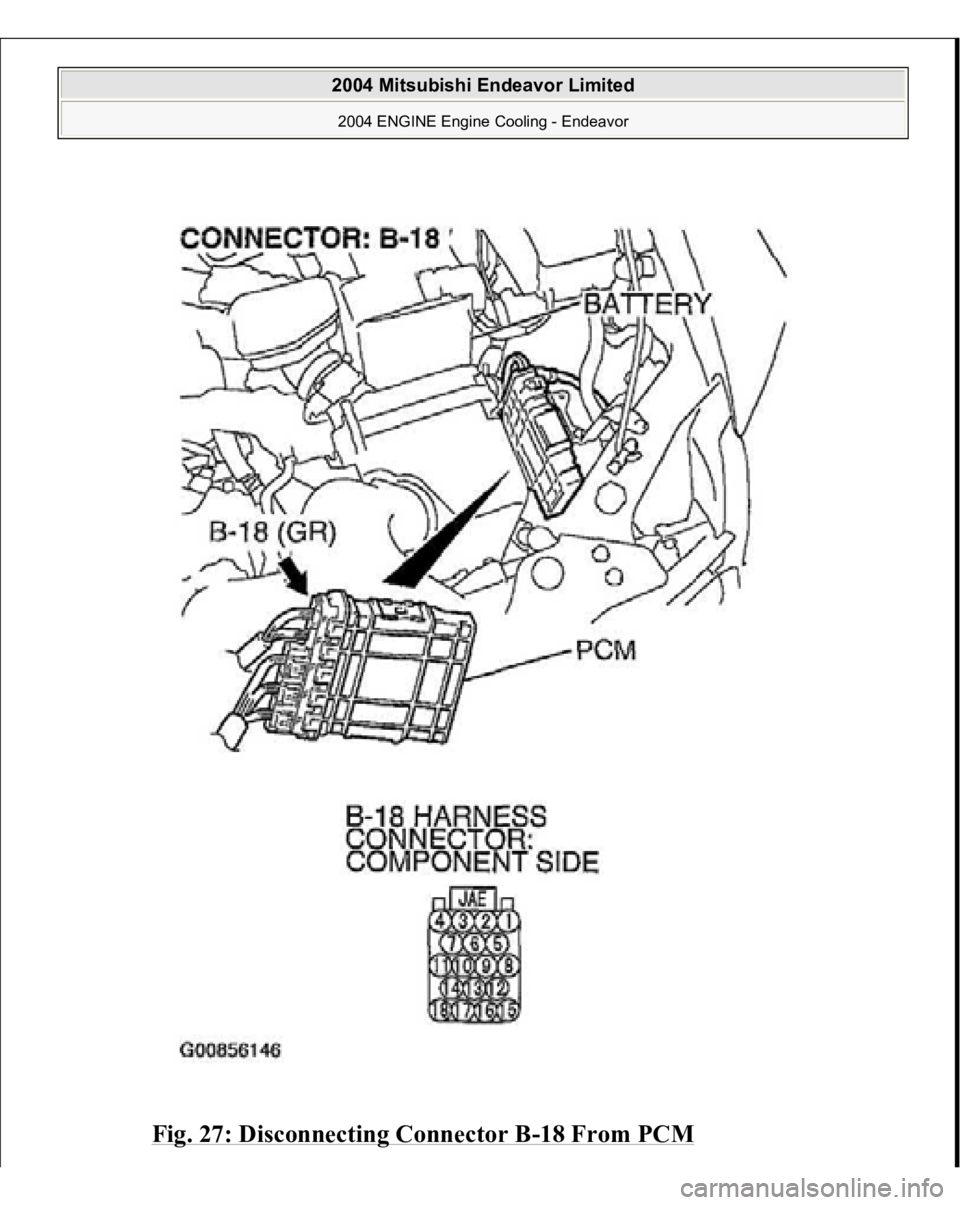

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 27: Disconnecting Connector B -18 From PCM 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor
