Page 2249 of 3870

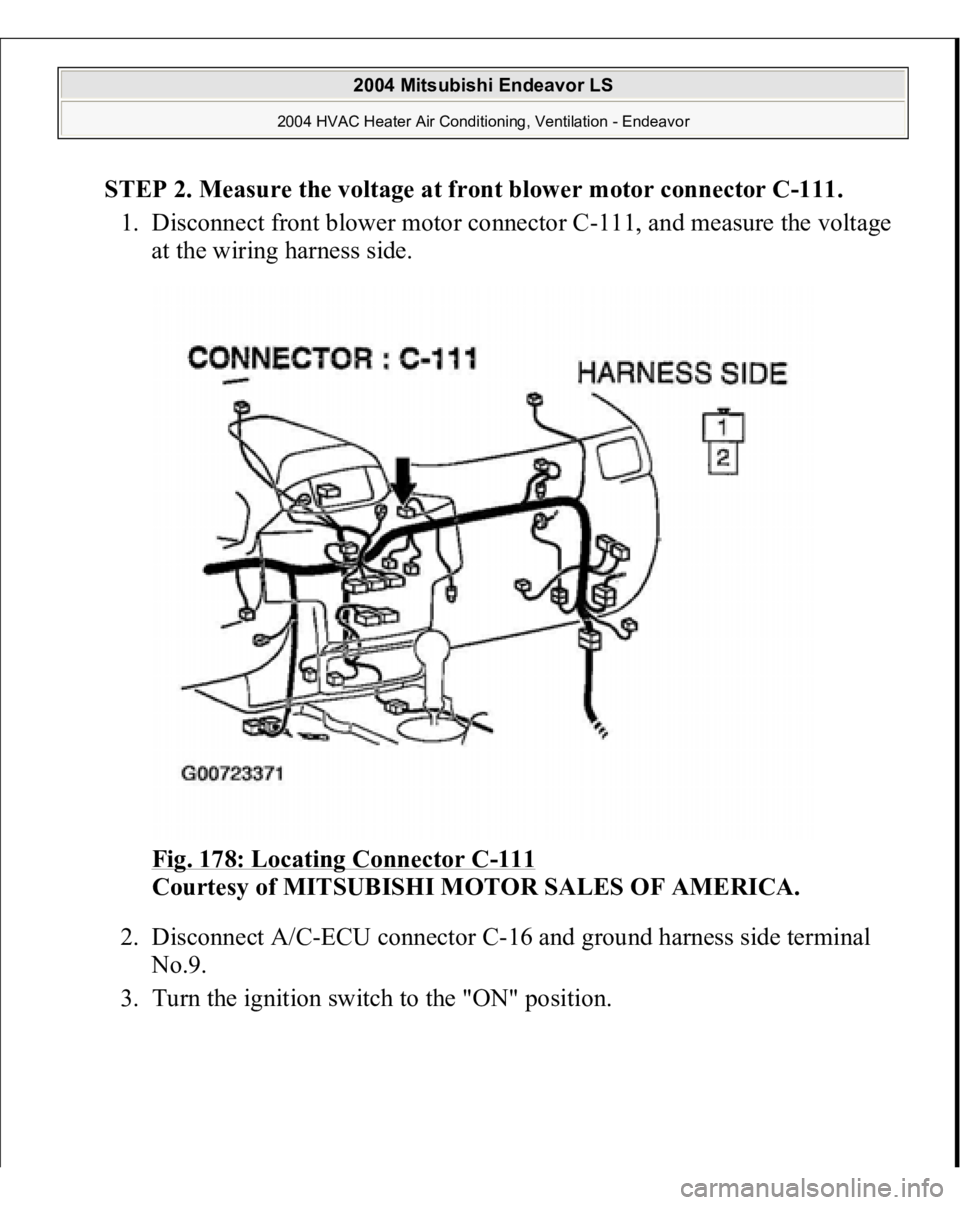

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 2. Measure the voltage at front blower motor connector C-111. 1. Disconnect front blower motor connector C-111, and measure the voltage at the wiring harness side. Fig. 178: Locating Connecto

Page 2250 of 3870

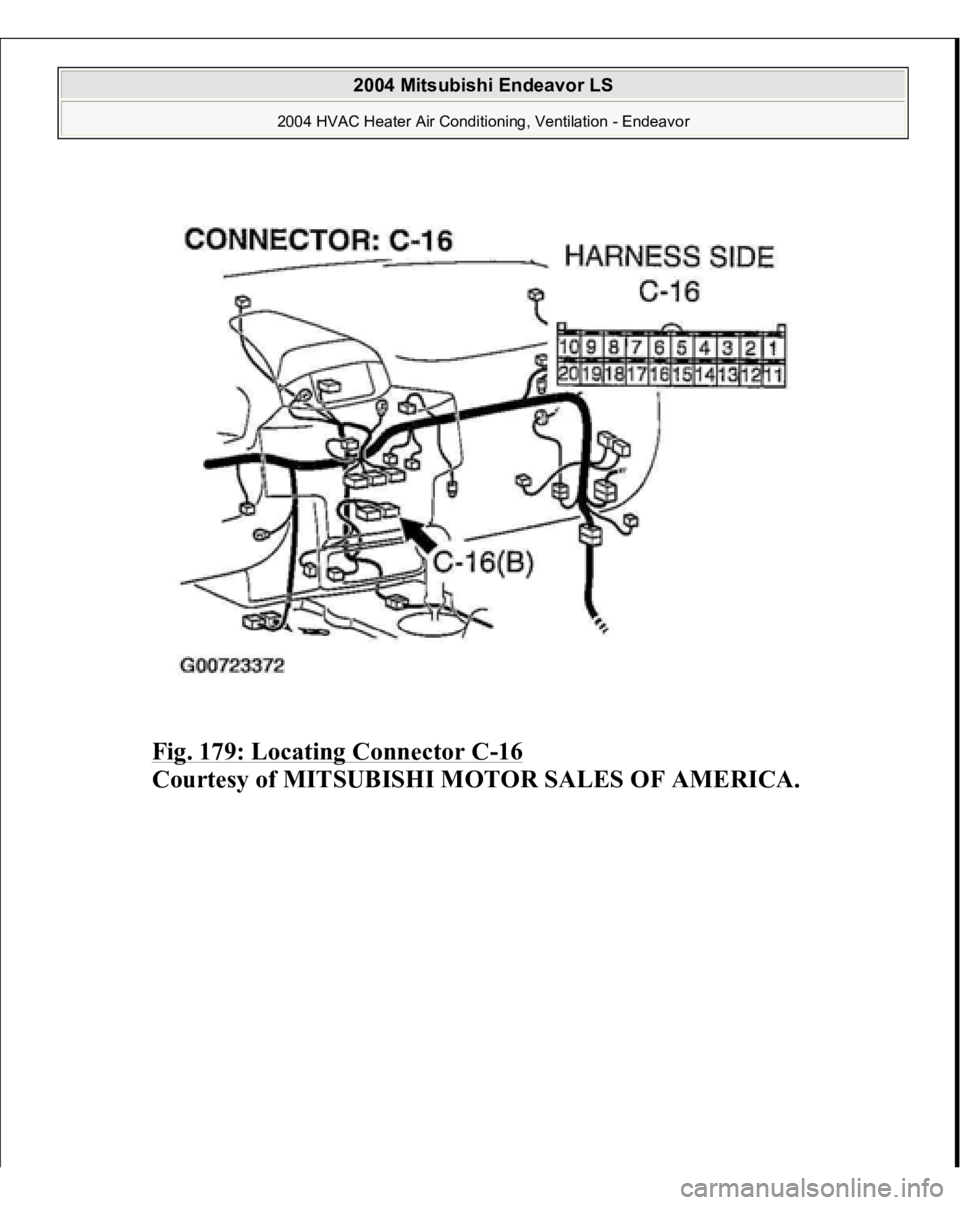

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 179: Locating Connector C -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2251 of 3870

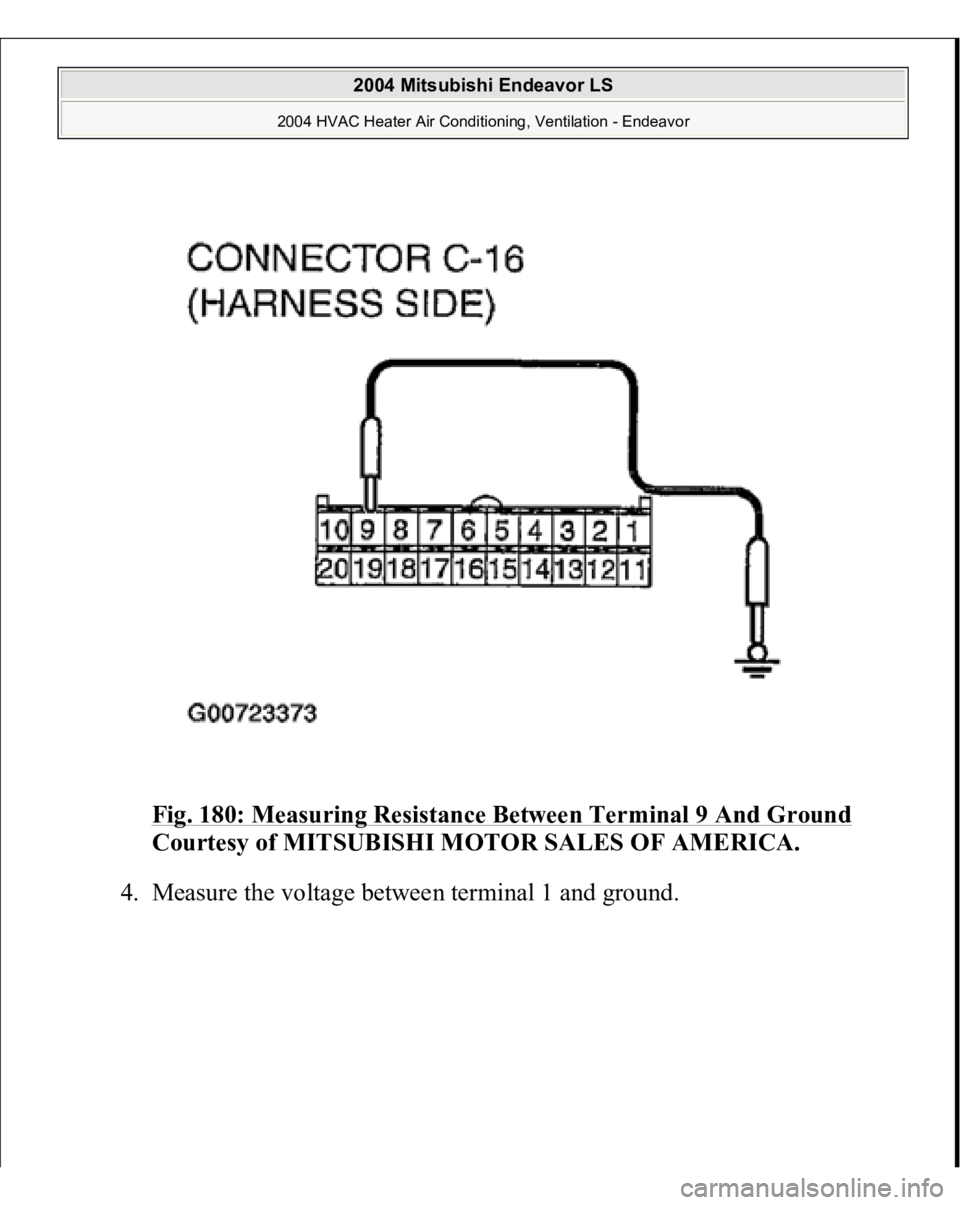

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 180: Measuring Resistance Between Terminal 9 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 4. Measure the volta ge between terminal 1 and ground. 2004 Mitsubishi Endeavor LS

Page 2252 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 181: Measuring Voltage Between Terminal 1 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. The measured value should be approx. 12 volts (battery positive voltage). Q: Is the meas

Page 2253 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is front blower relay connector C-202 in good condition? YES: Go to Step 4. NO: Repair or replace the connector. Refer to HARNESS CONNECTOR INSPECTION . The blower motor should operate n

Page 2254 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 183: Identifying Front Blower Relay Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2255 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 184: Front Blower Relay Continuity Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the front blower relay continuity in good condition? YES: Go to Step 5. NO: Replace the fr

Page 2256 of 3870

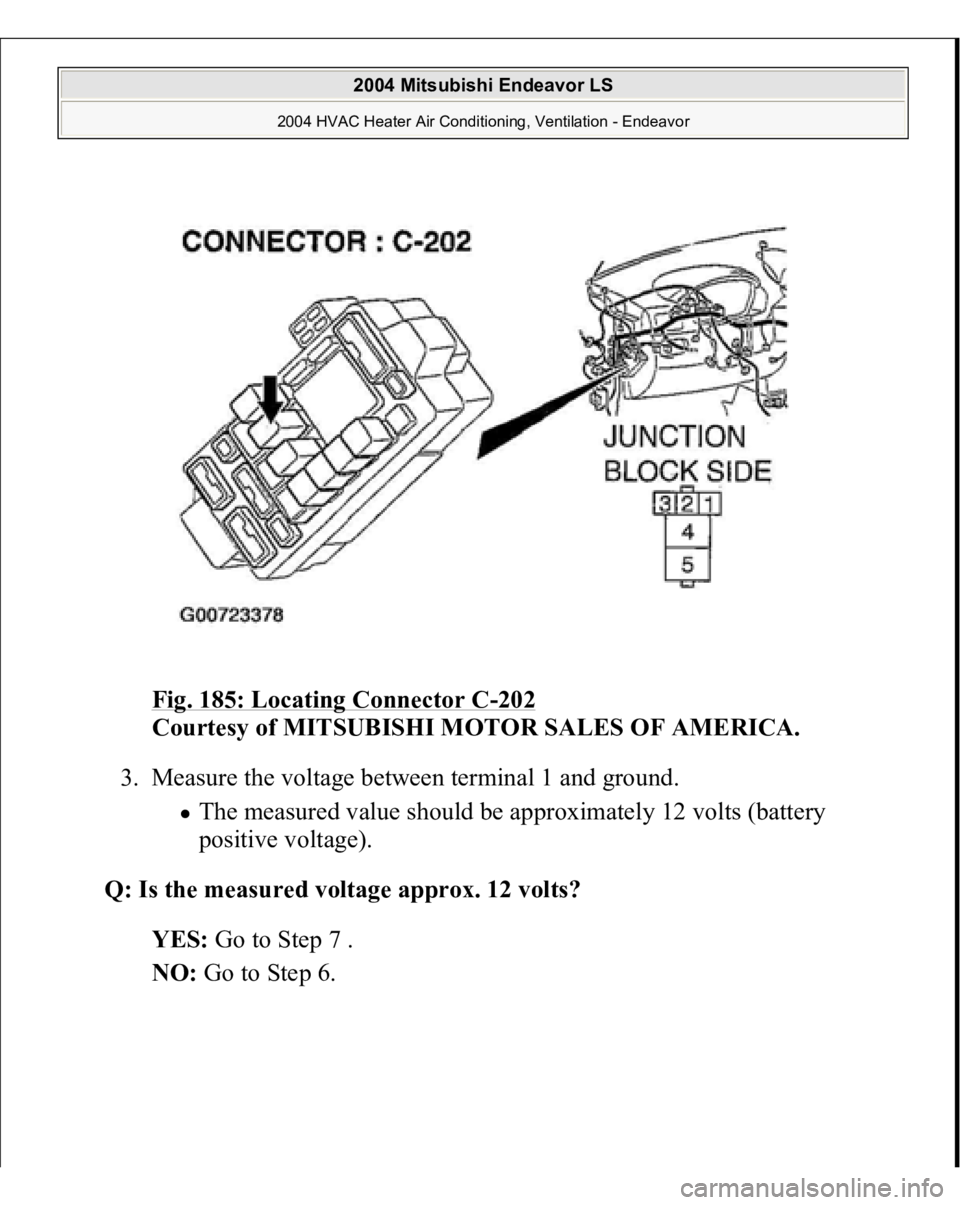

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 185: Locating Connector C -202 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Measure the voltage between terminal 1 and ground. The measured value should be approximately 12 volts (batte
