1. Remove the transfer and O-ring < W4A5A >
2. Use a dial gauge to measure the input shaft end play.
3. Remove the torque converter.
4. Remove each bracket.
5. Remove the dipstick.
6. Remove the eye bolt, gaskets and the oil cooler feed tube.
Fig. 13: Measuring Input Shaft End Play
transmission fluid (ATF). If the transaxle body has been damaged,
disassemble and clean the cooler system.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Fig. 18: Identifying Manual Control Shaft Detent

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
12. Disconnect the solenoid valve harness from the valve by undoing the fluid
tem
perature sensor and all the connectors.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Fig. 136: Installing Valve Body Mounting Bolts

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
96. Attach the solenoid valve harness to the valve body by connecting the fluid
tem
perature sensor and all the connectors.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

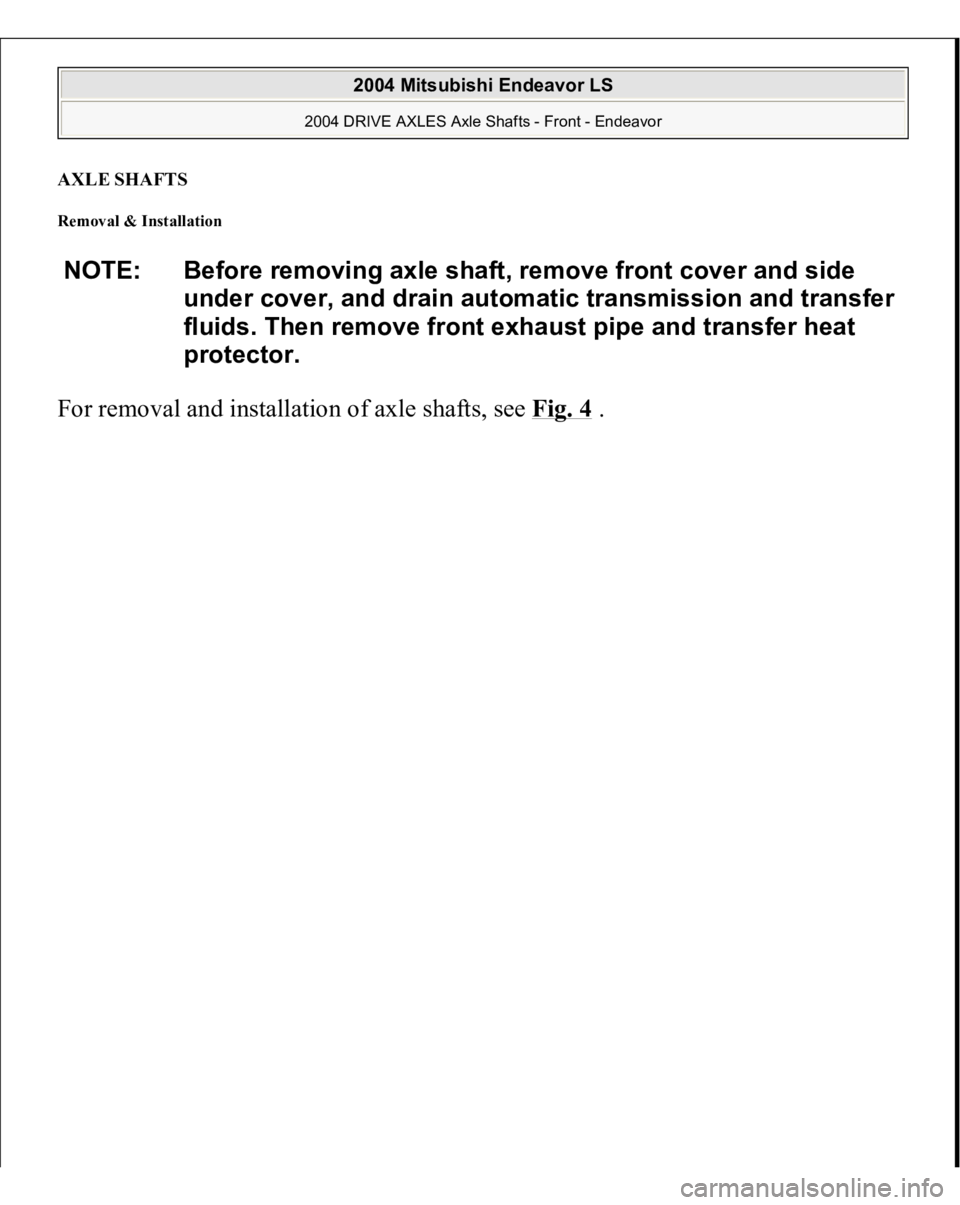

AXLE SHAFTS Removal & Installation For removal and installation of axle shafts, see Fig. 4
. NOTE: Before removing axle shaft, remove front cover and side
under cover, and drain automatic transmission and transfer
fluids. Then remove front exhaust pipe and transfer heat
protector.

2004 Mitsubishi Endeavor LS
2004 DRIVE AXLES Axle Shafts - Front - Endeavor
