Page 2337 of 3870

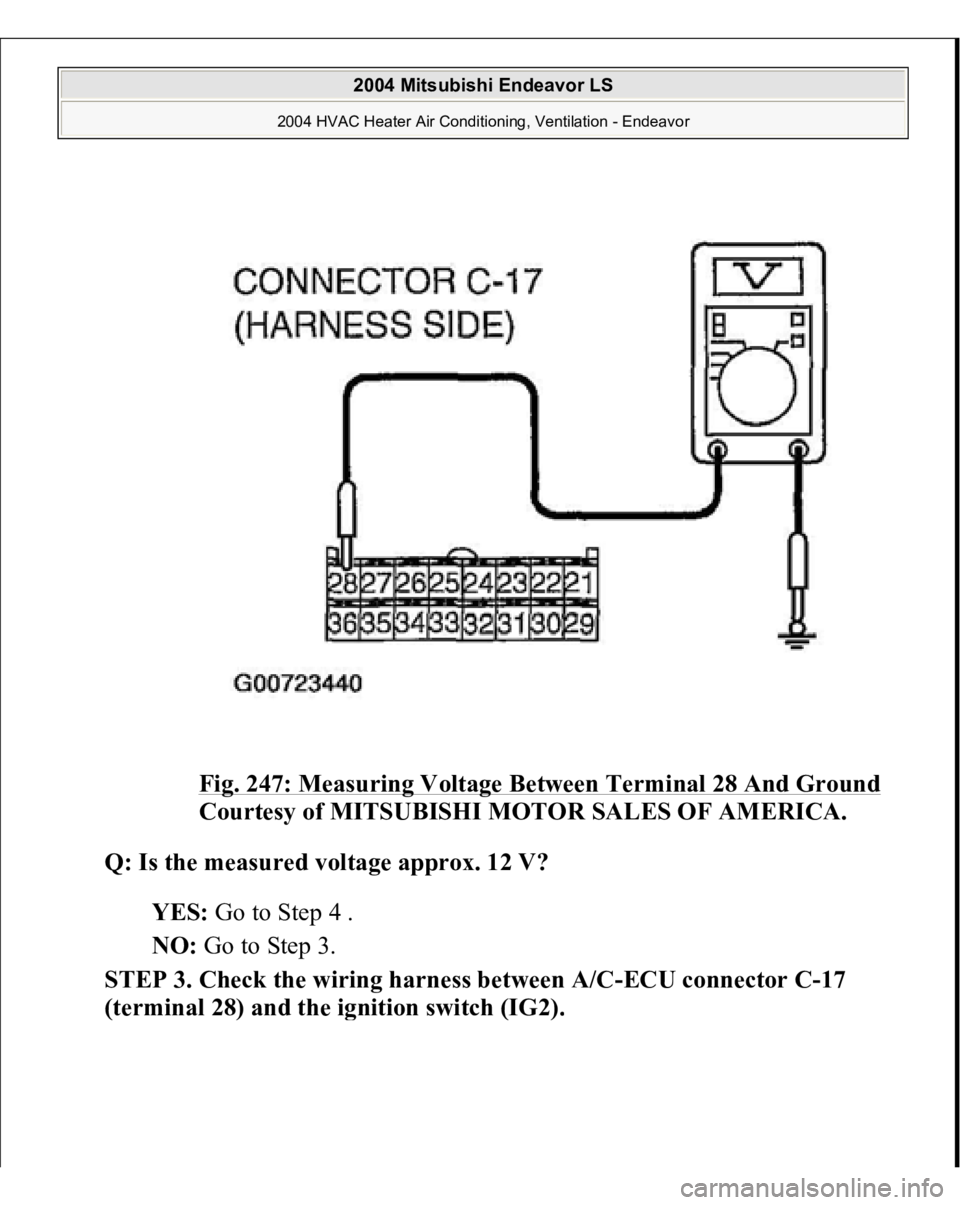

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 247: Measuring Voltage Between Terminal 28 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the measured voltage approx. 12 V? YES: Go to Step 4 . NO: Go to Step 3. ST

Page 2338 of 3870

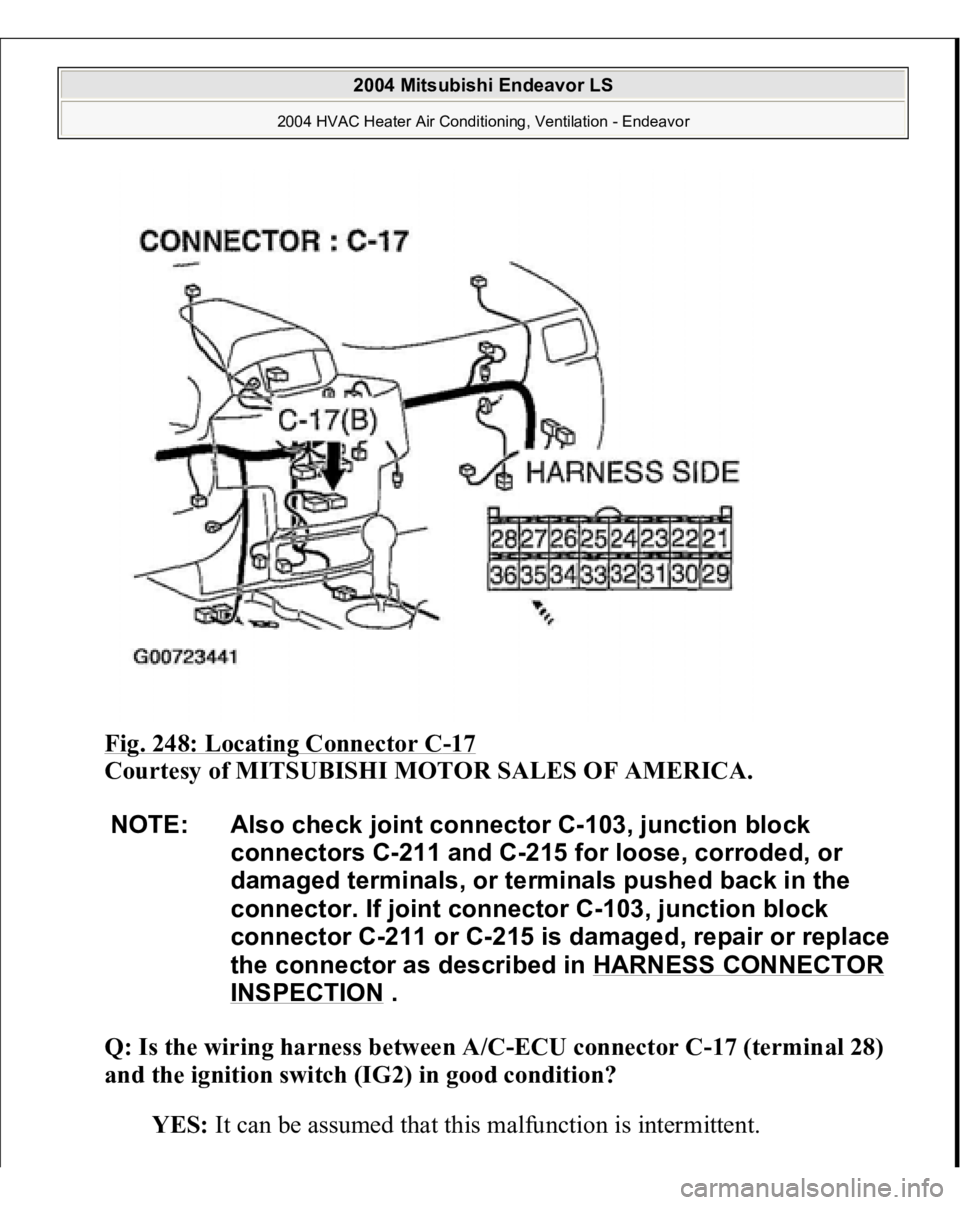

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 248: Locating Connector C -17 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between A/C-ECU connector C-17 (terminal 28) and the ignition switch (IG2) in good condit

Page 2339 of 3870

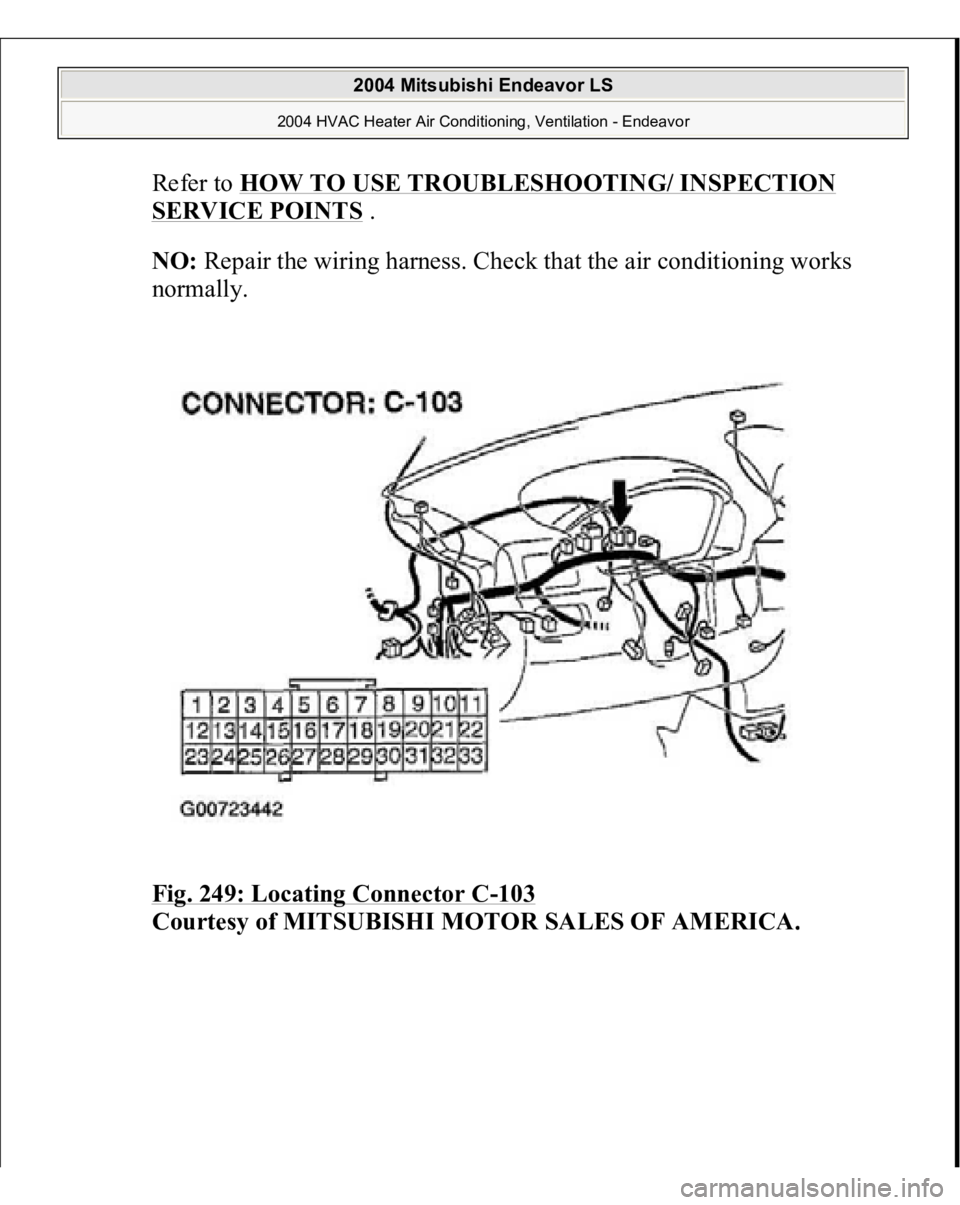

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Refer to HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS . NO: Repair the wiring harness. Check that the air conditioning works normally. Fig. 249: Locating Connector C -103 Courtes y

Page 2340 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2341 of 3870

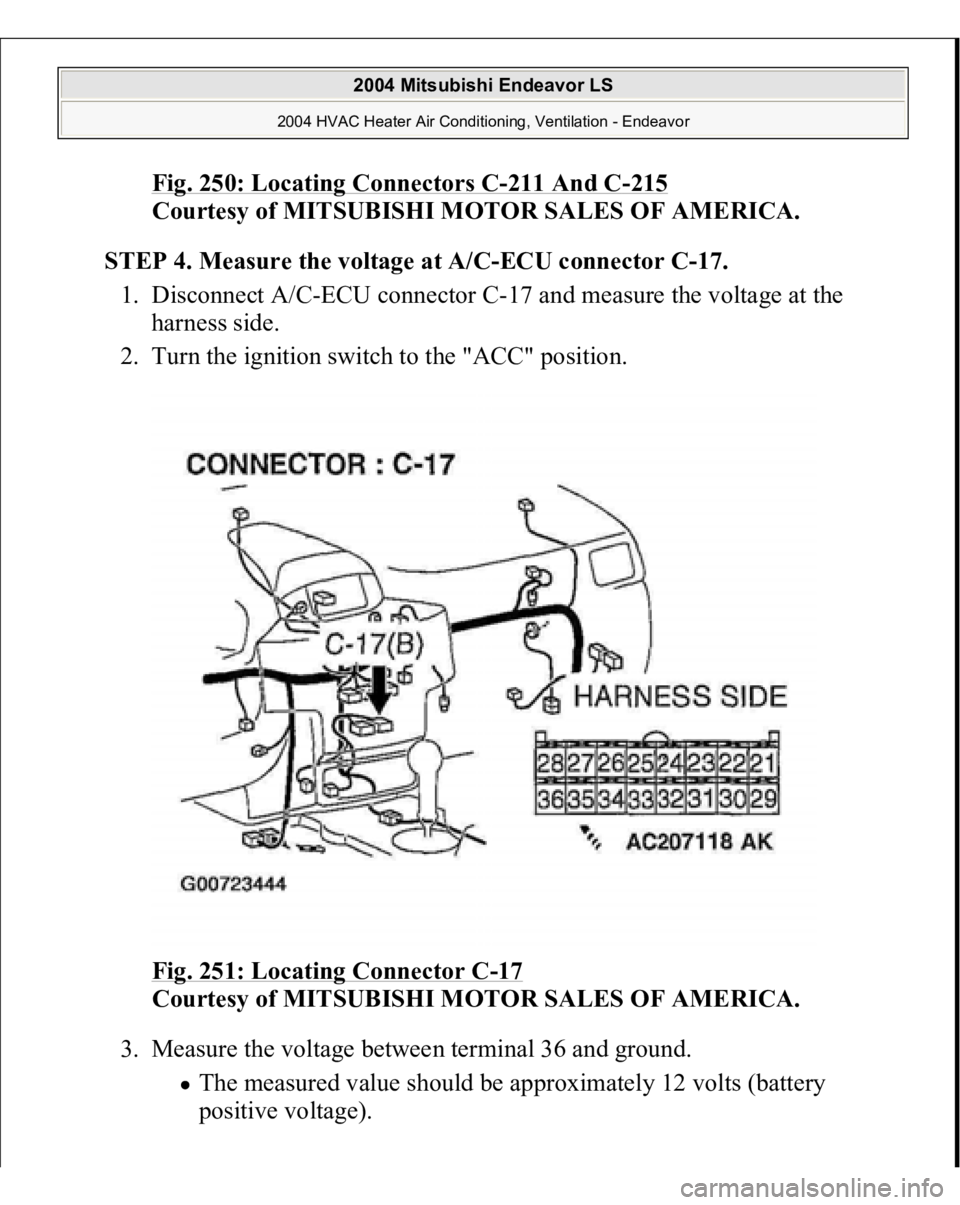

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 250: Locating Connectors C -211 And C -215 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 4. Measure the voltage at A/C-ECU connector C-17. 1. Disconnect A/C-ECU connector C-17 and mea

Page 2342 of 3870

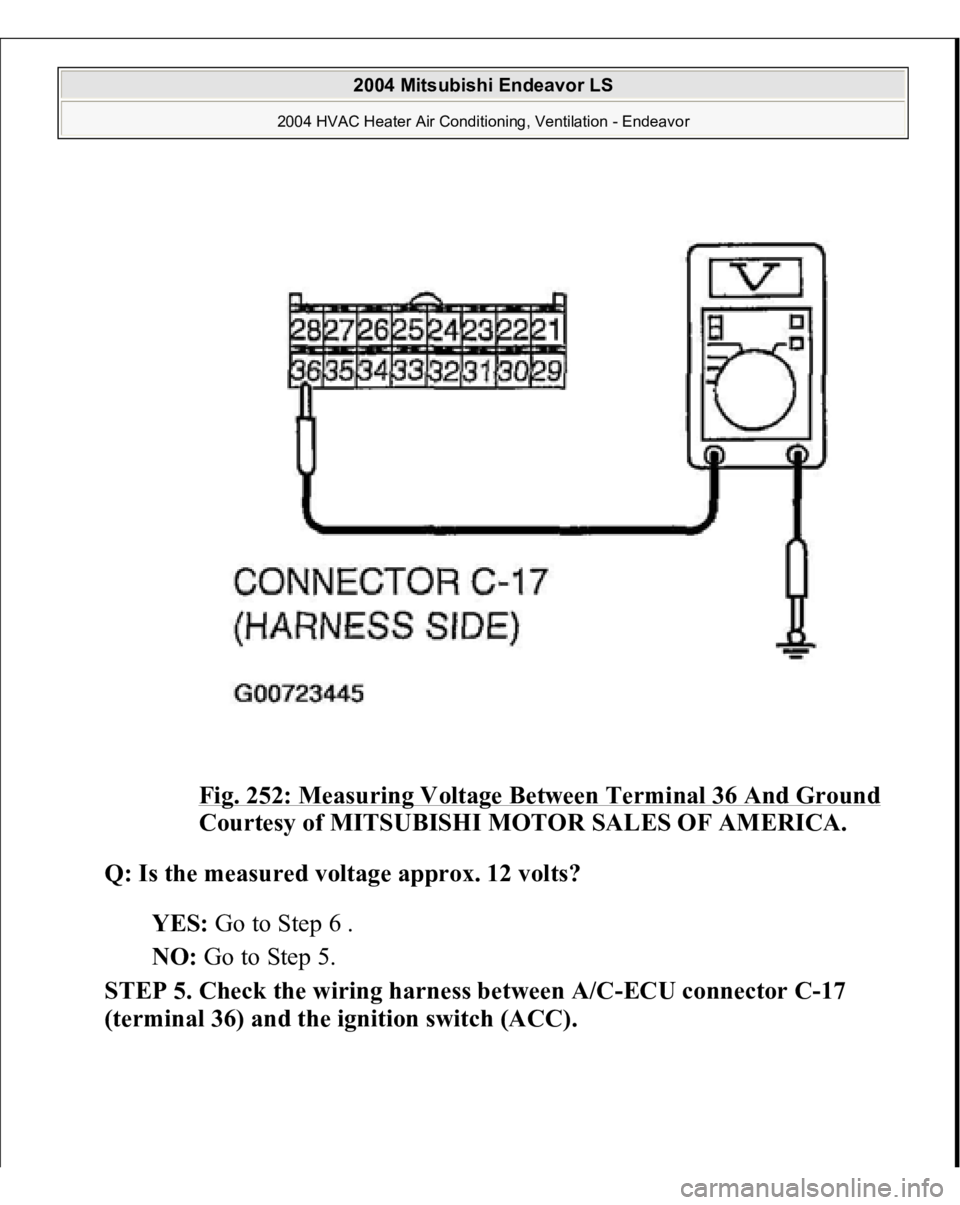

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 252: Measuring Voltage Between Terminal 36 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the measured voltage approx. 12 volts? YES: Go to Step 6 . NO: Go to Step 5.

Page 2343 of 3870

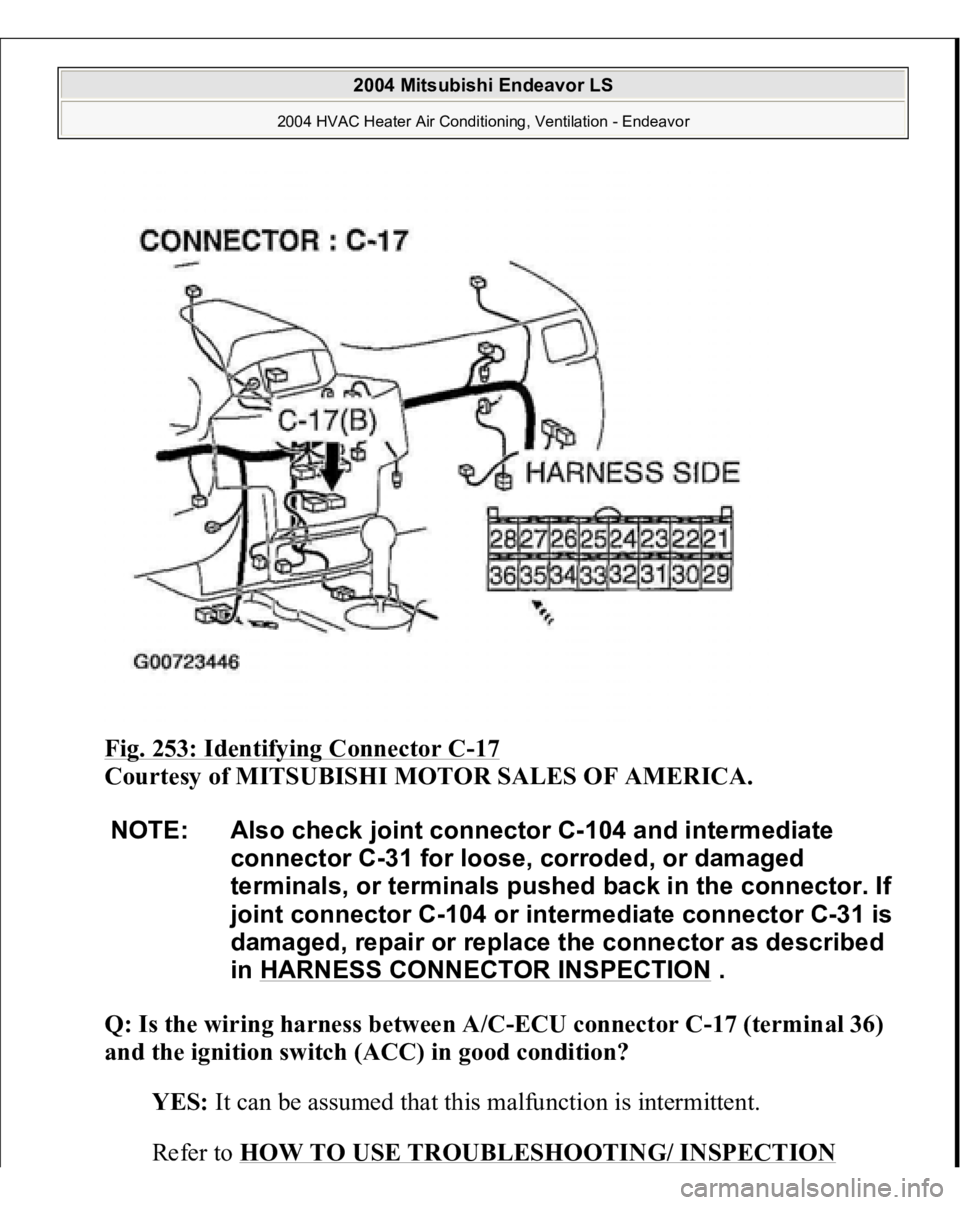

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 253: Identifying Connector C -17 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between A/C-ECU connector C-17 (terminal 36) and the ignition switch (ACC) in good con

Page 2344 of 3870

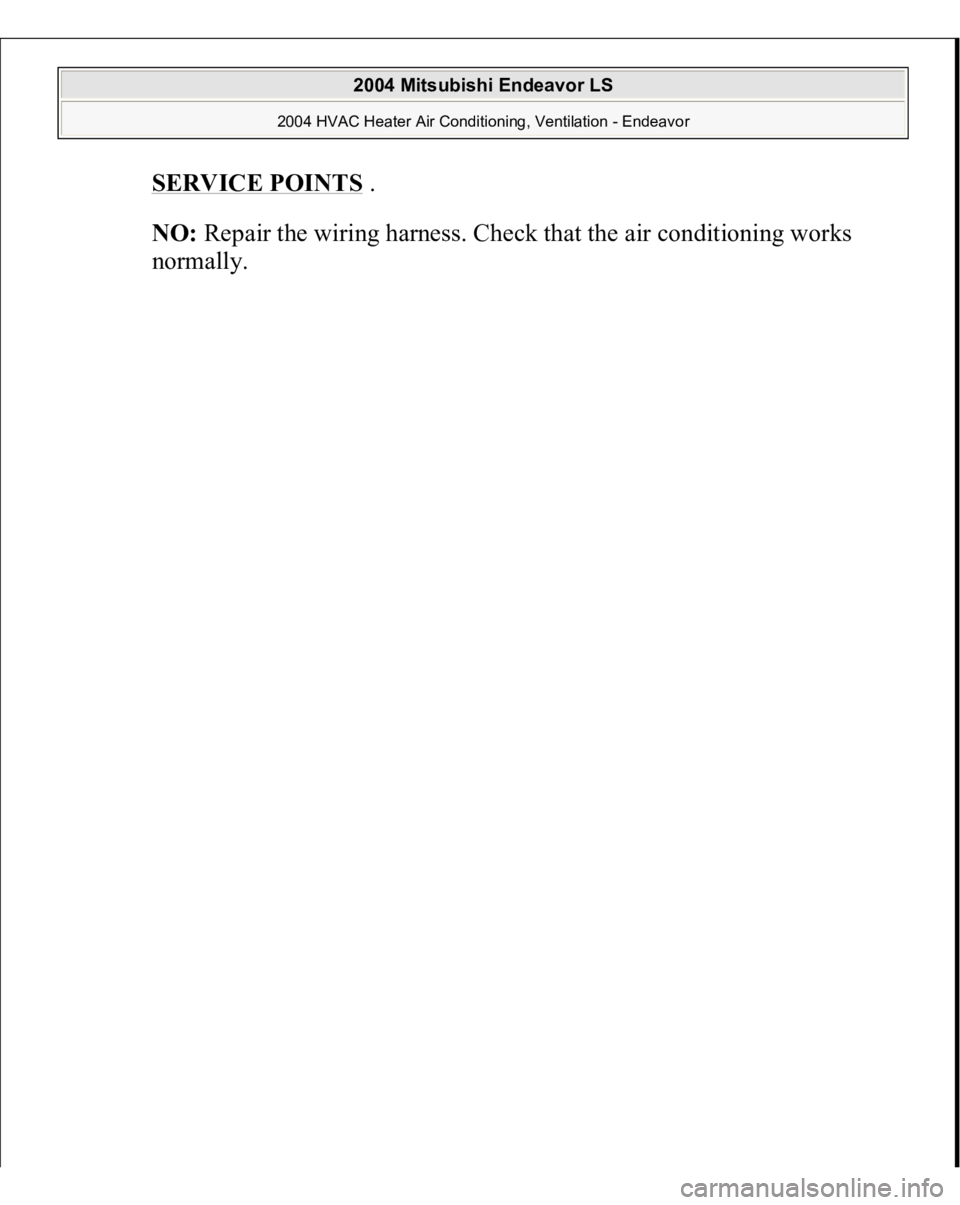

MITSUBISHI ENDEAVOR 2004 Service Repair Manual SERVICE POINTS . NO: Repair the wiring harness. Check that the air conditioning works normall y. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
