MITSUBISHI ENDEAVOR 2004 Service Repair Manual The measured value should be approximately 12 volts (battery positive voltage). Q: Is the measured voltage approx. 12 volts? YES: Go to Step 13 . NO: Go to Step 12. Fig. 148: Measuring Vol

Page 2218 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 149: Locating Connector B -16X Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between A/C compressor clutch relay connector B-16X (terminal 1) and the battery in goo

Page 2219 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO: Repair the wiring harness. Check that the air conditioning works normally. STEP 13. Check the wiring harness between A/C compressor clutch relay connector B-16X (terminal 4) and A/C compresso

Page 2220 of 3870

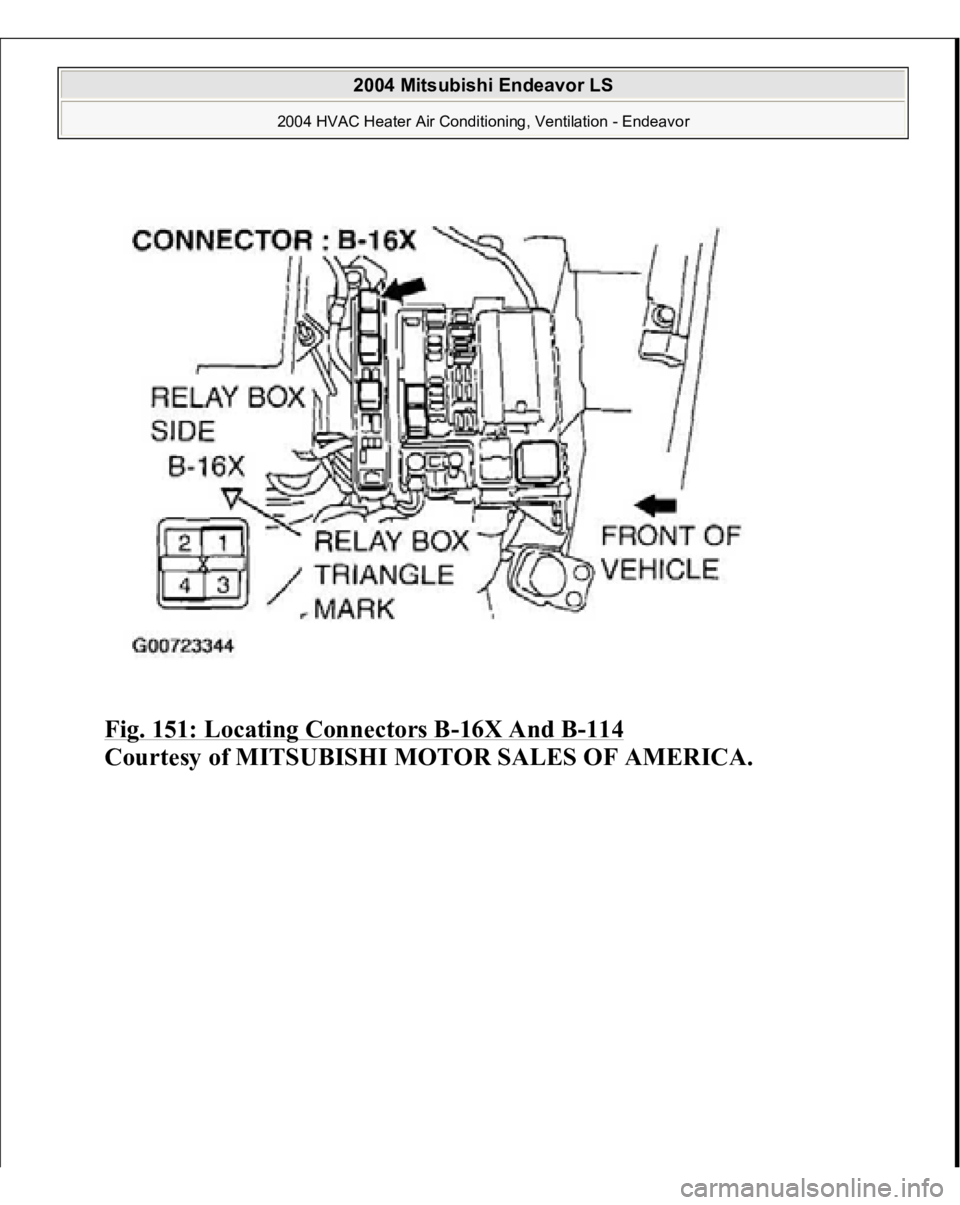

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 151: Locating Connectors B -16X And B -114 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2221 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 152: Locating Connectors B -16X And B -114 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 14. Check the wiring harness between powertrain control module connector B-20 (terminal 81) and

Page 2222 of 3870

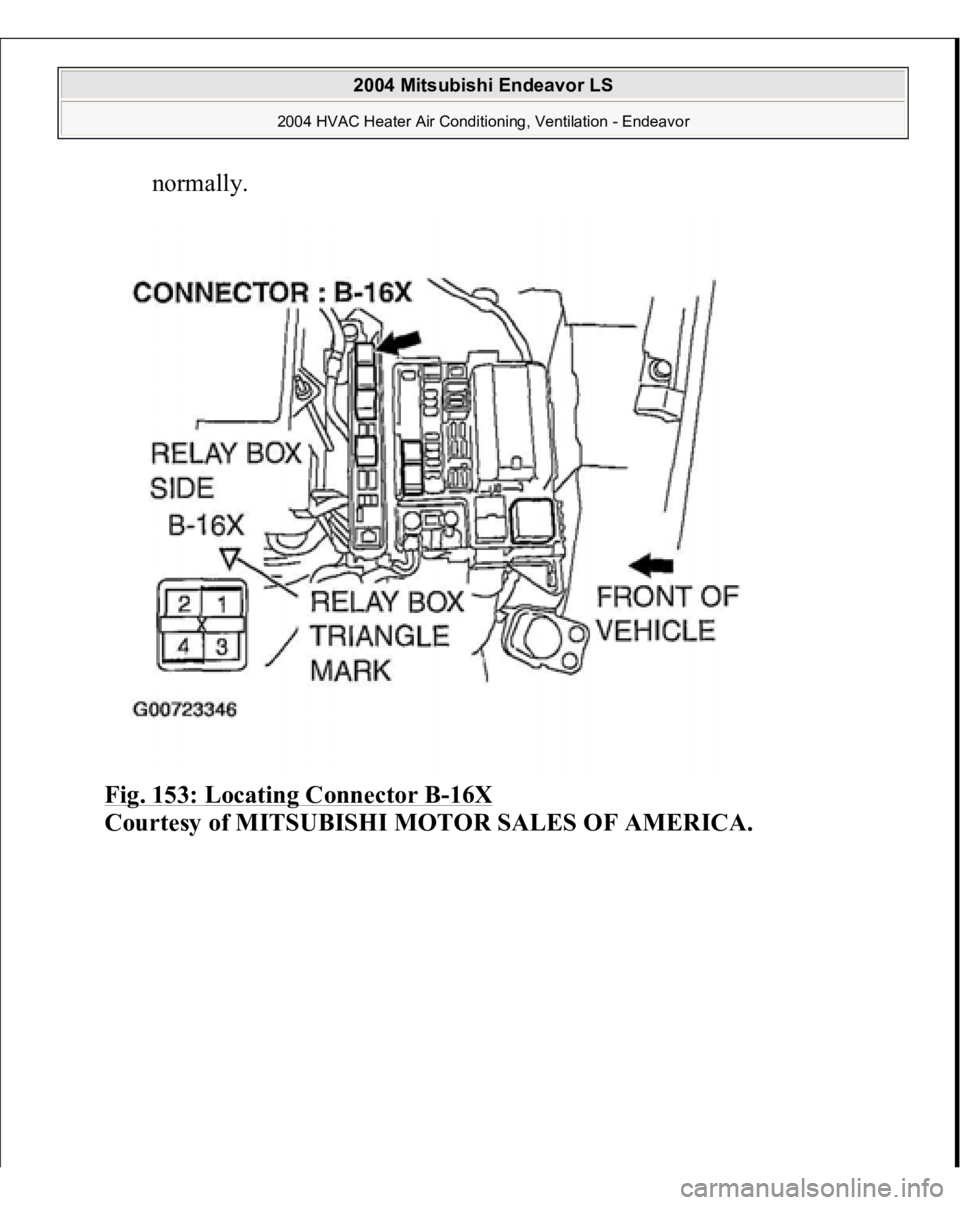

MITSUBISHI ENDEAVOR 2004 Service Repair Manual normally. Fig. 153: Locating Connector B -16X Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2223 of 3870

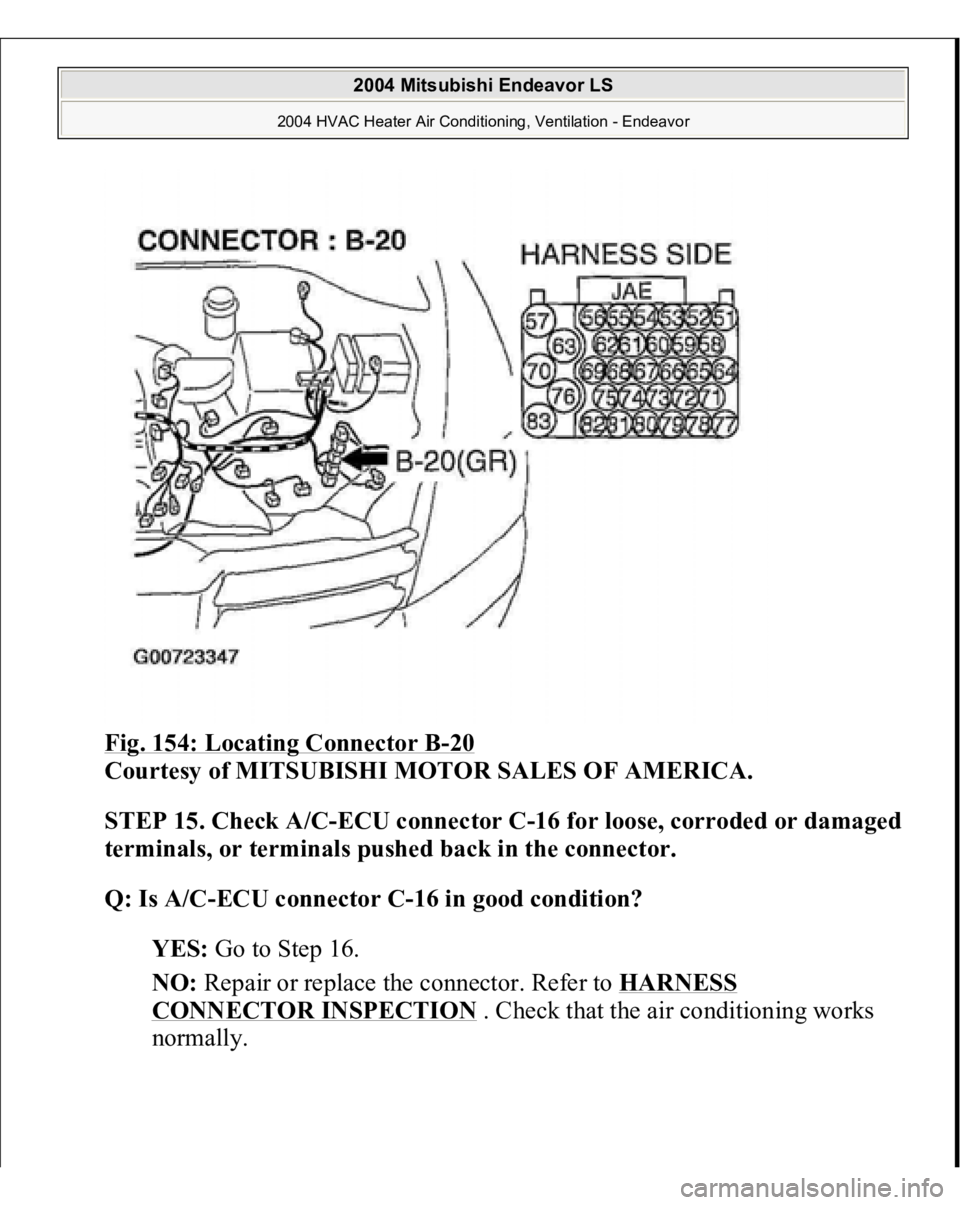

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 154: Locating Connector B -20 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 15. Check A/C-ECU connector C-16 for loose, corroded or dama ged terminals, or terminals pushed back in the c

Page 2224 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 155: Locating Connector C -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 16. Measure the voltage at A/C-ECU connector C-16. 1. Disconnect A/C-ECU connector C-16 and measure the volt
