Page 1057 of 3870

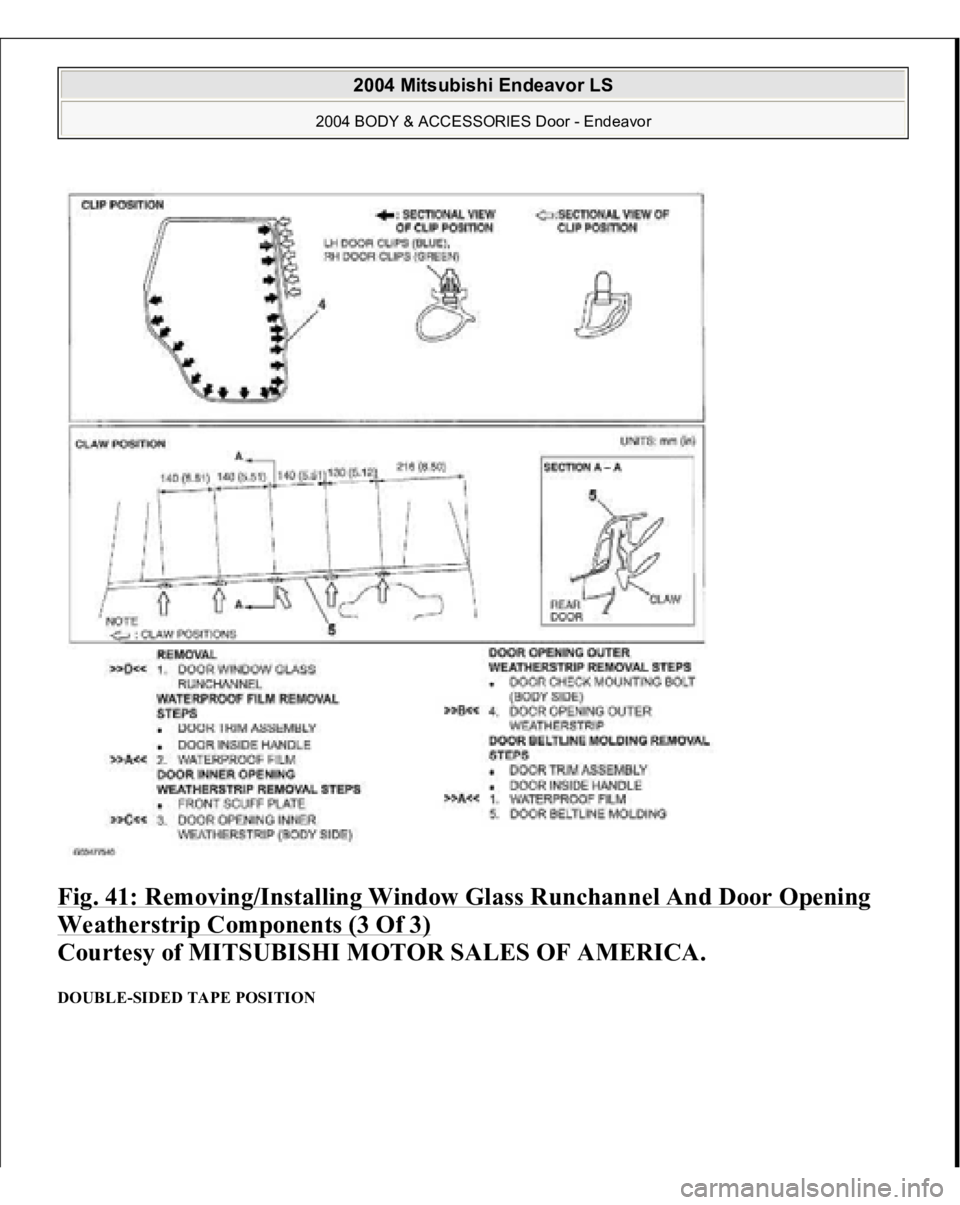

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 41: Removing/Installing Window Glass Runchannel And Door Opening Weatherstrip Components (3 Of 3) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DOUBLE-SIDED TAPE POSITION 2004 Mitsubishi En

Page 1058 of 3870

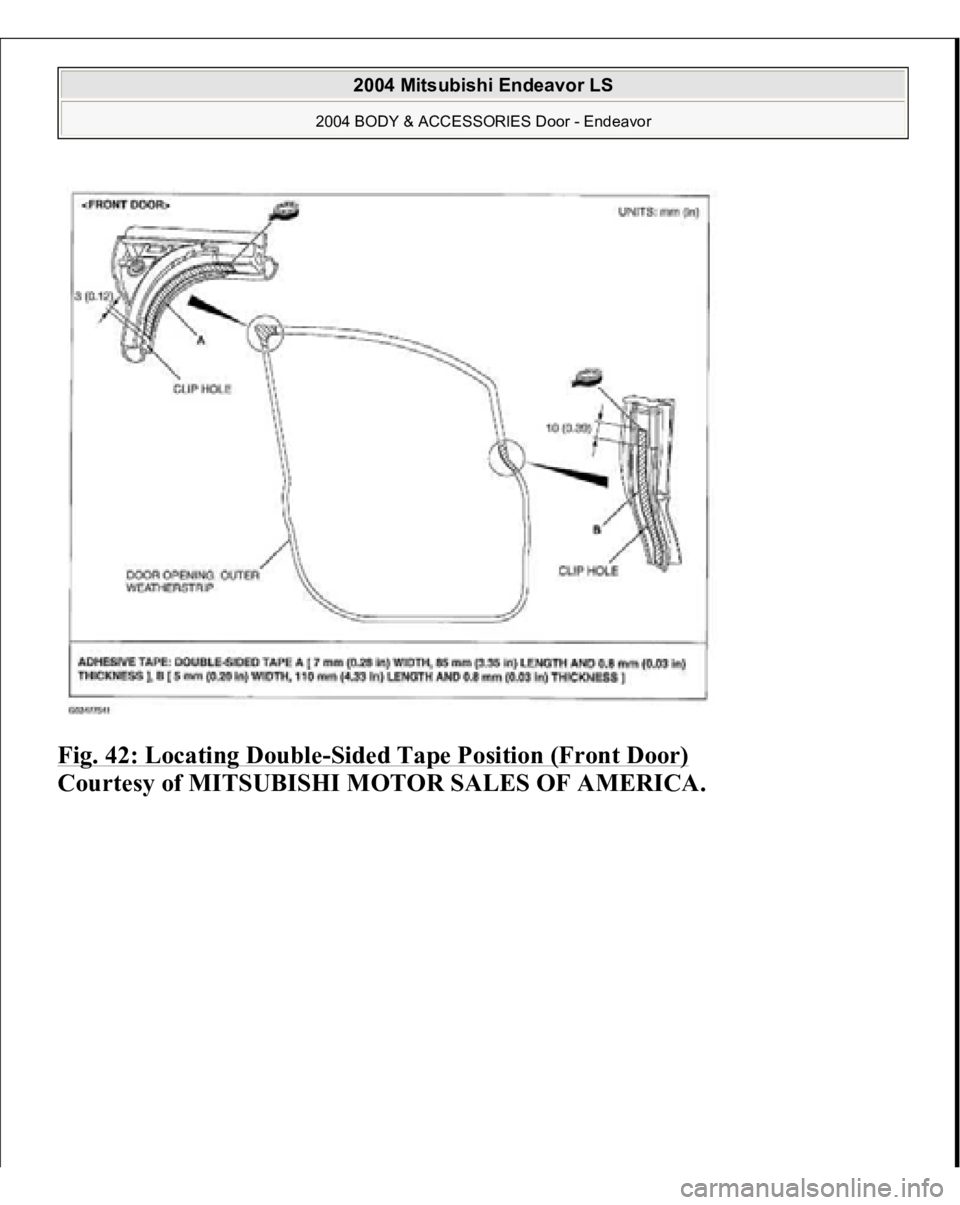

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 42: Locating Double -Sided Tape Position (Front Door) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door - Endeavor

Page 1059 of 3870

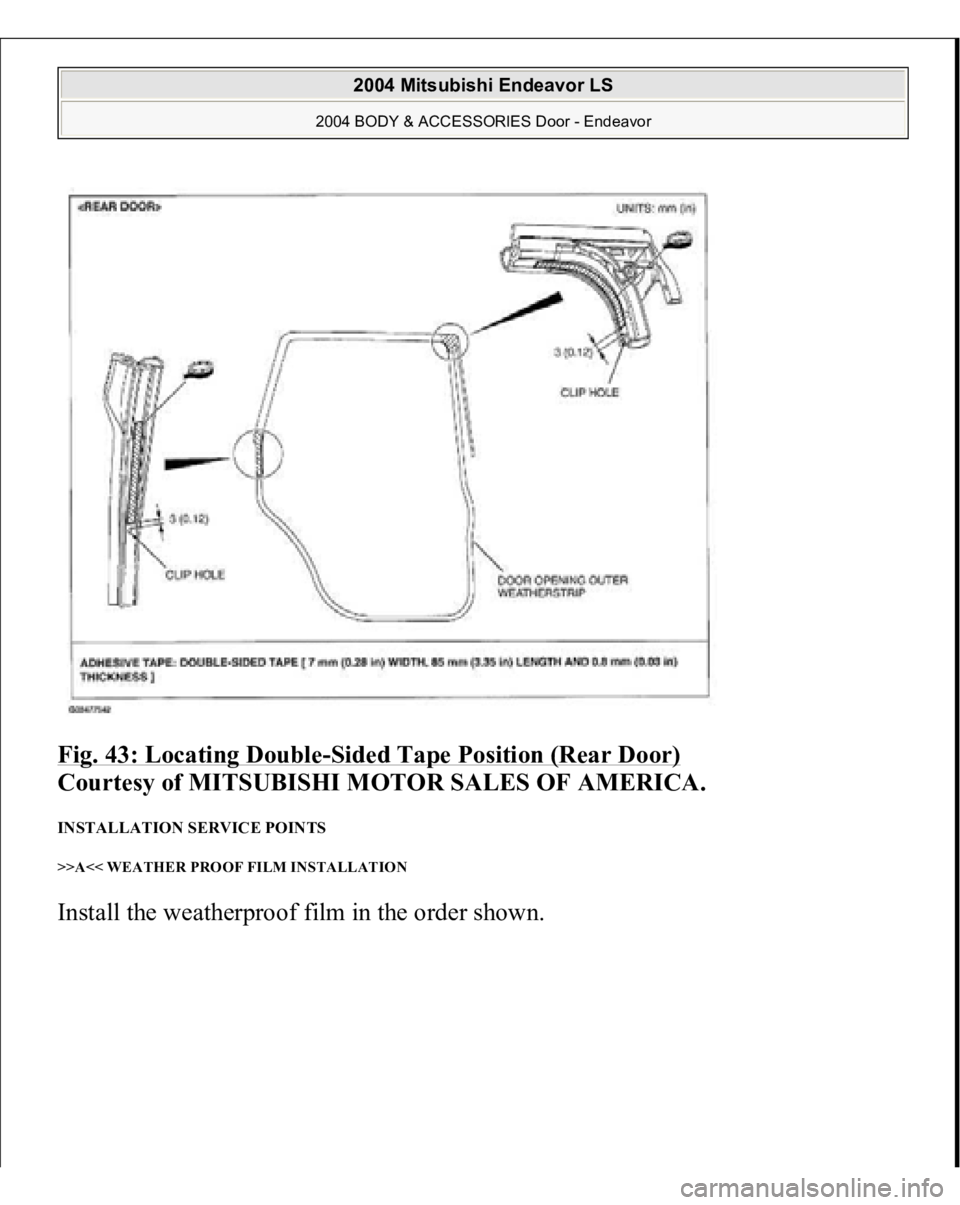

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 43: Locating Double -Sided Tape Position (Rear Door) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINTS >>A<< WEATHER PROOF FILM INSTALLATION Install the weather proof

Page 1060 of 3870

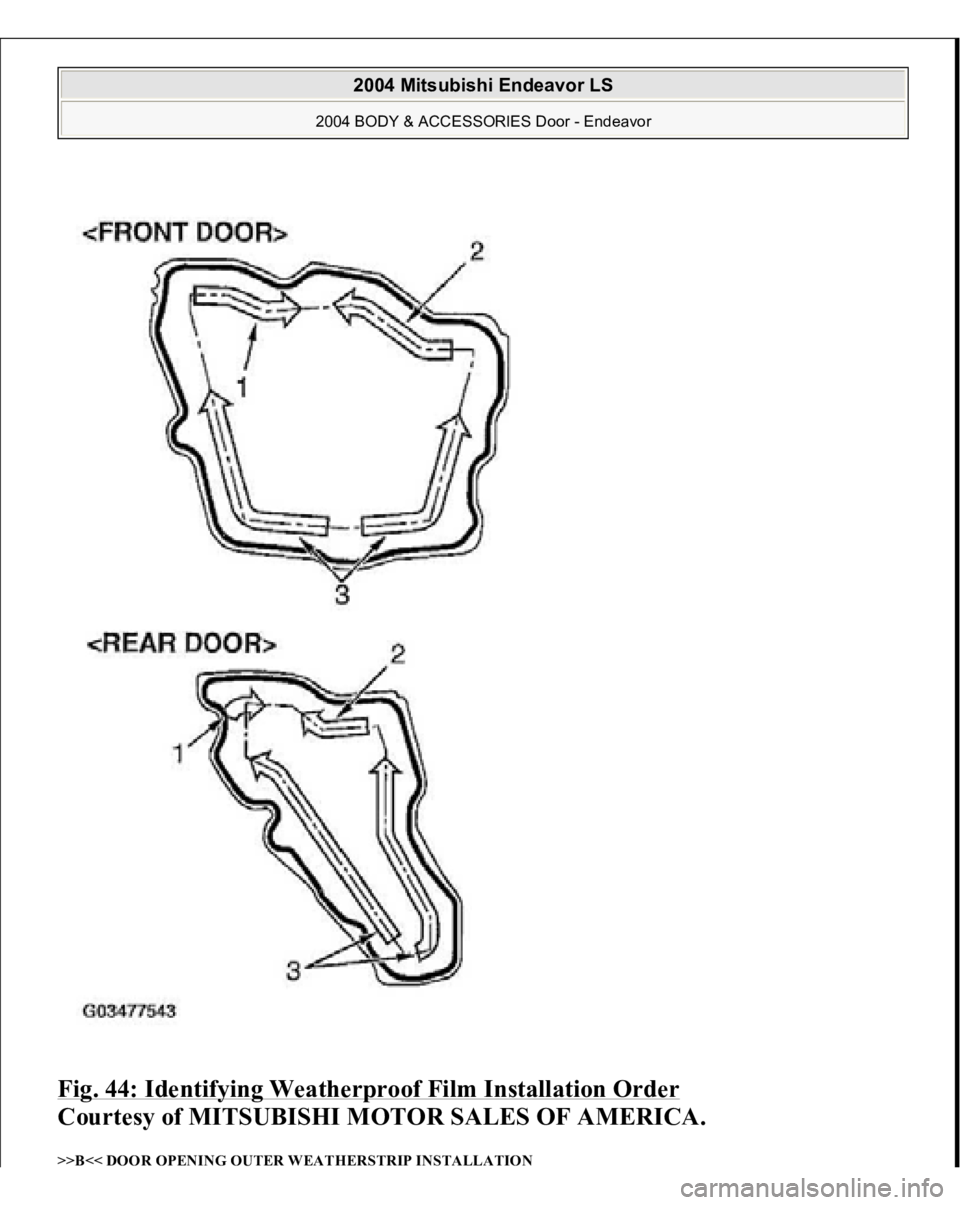

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 44: Identifying Weatherproof Film Installation Order Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>B<< DOOR OPENING OUTER WEATHERSTRIP INSTALLATION 2004 Mitsubishi Endeavor LS 2004 BODY

Page 1061 of 3870

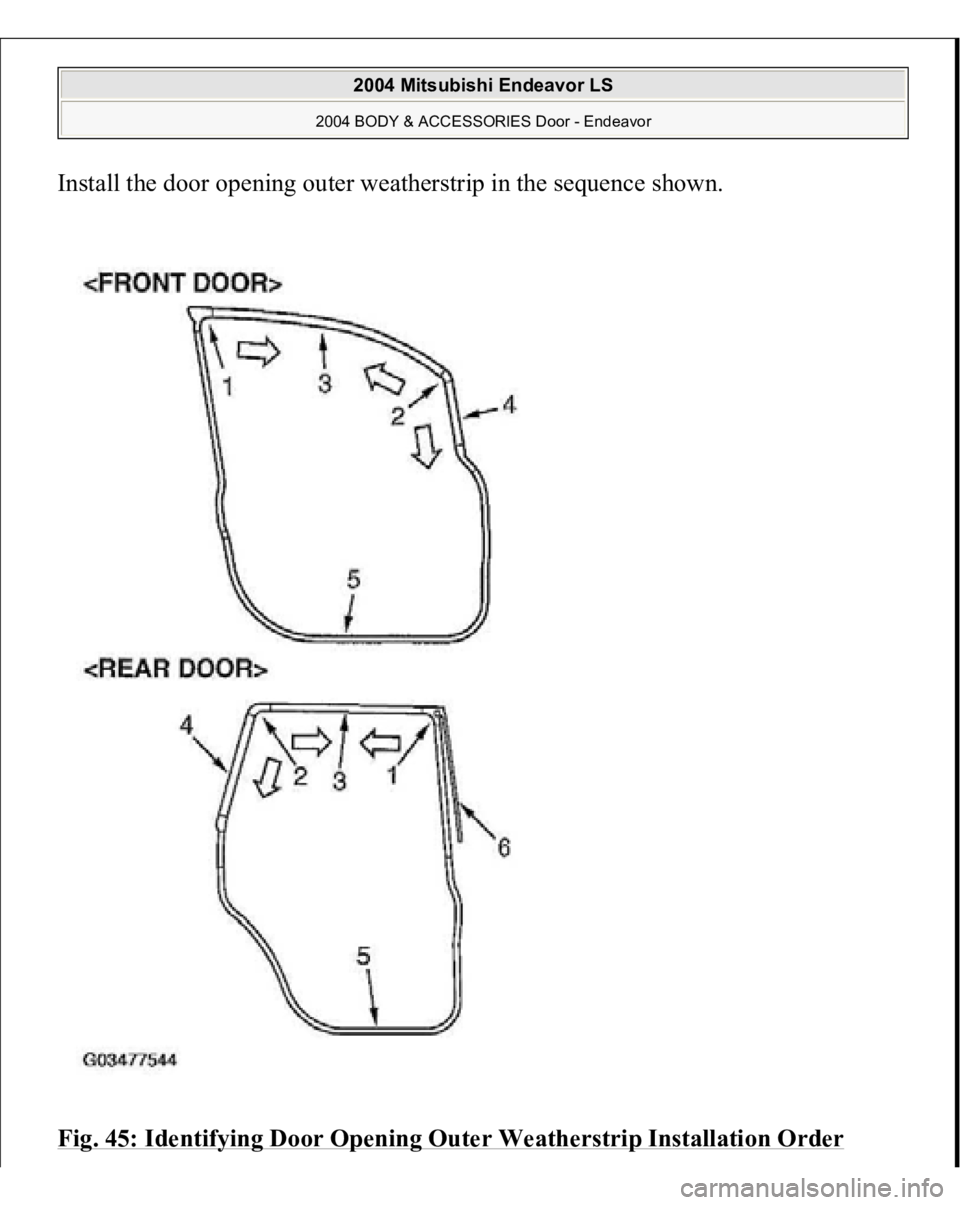

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Install the door opening outer weatherstrip in the sequence shown. Fig. 45: Identifying Door Opening Outer Weatherstrip Installation Order 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door -

Page 1062 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . >>C<< DOOR OPENING INNER WEATHERSTRIP INSTALLATION Install the door o penin g inner weatherstri p in the se quence shown. 2004 Mitsubishi Endeavor LS

Page 1063 of 3870

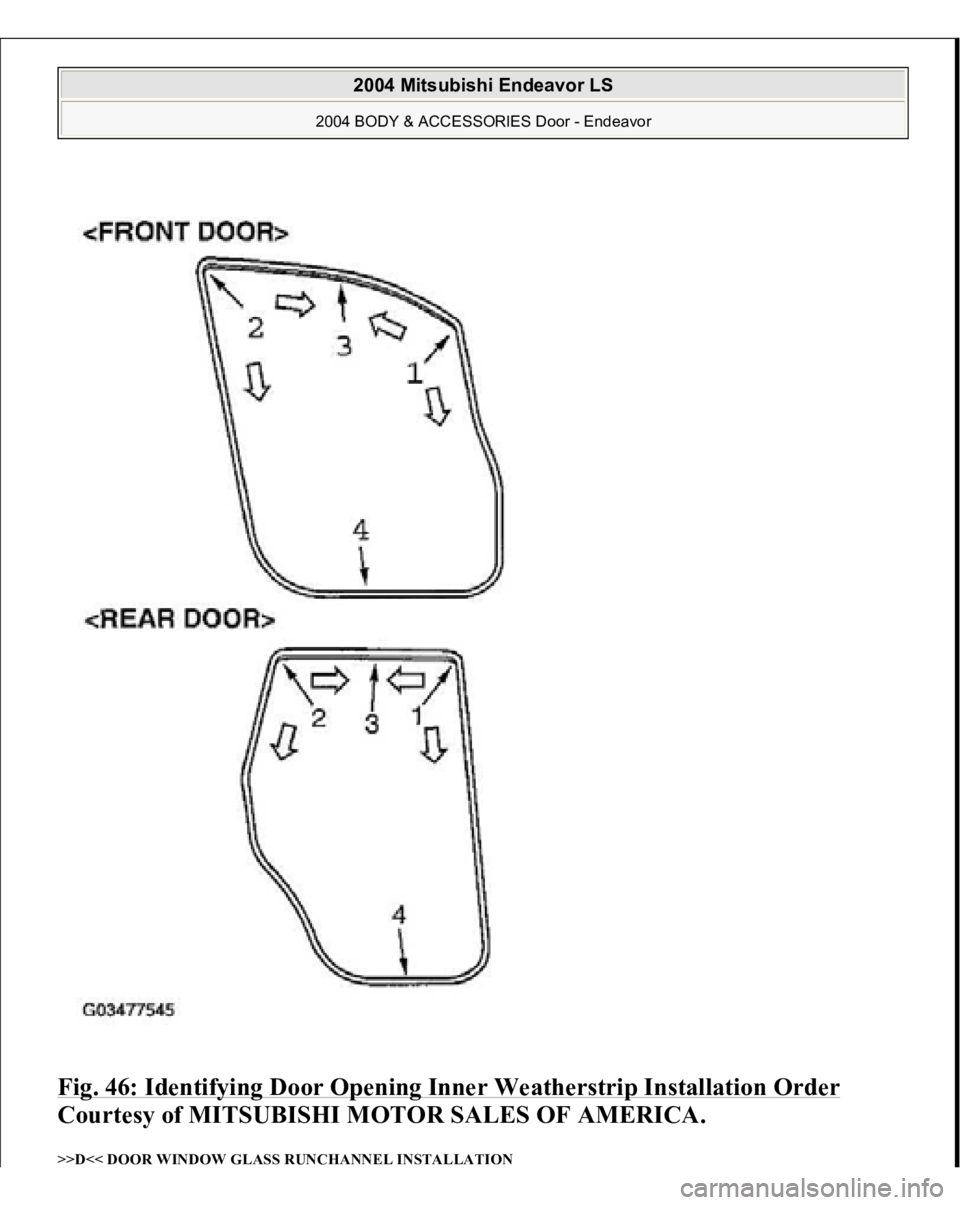

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 46: Identifying Door Opening Inner Weatherstrip Installation Order Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>D<< DOOR WINDOW GLASS RUNCHANNEL INSTALLATION 2004 Mitsubishi Endeavor LS

Page 1064 of 3870

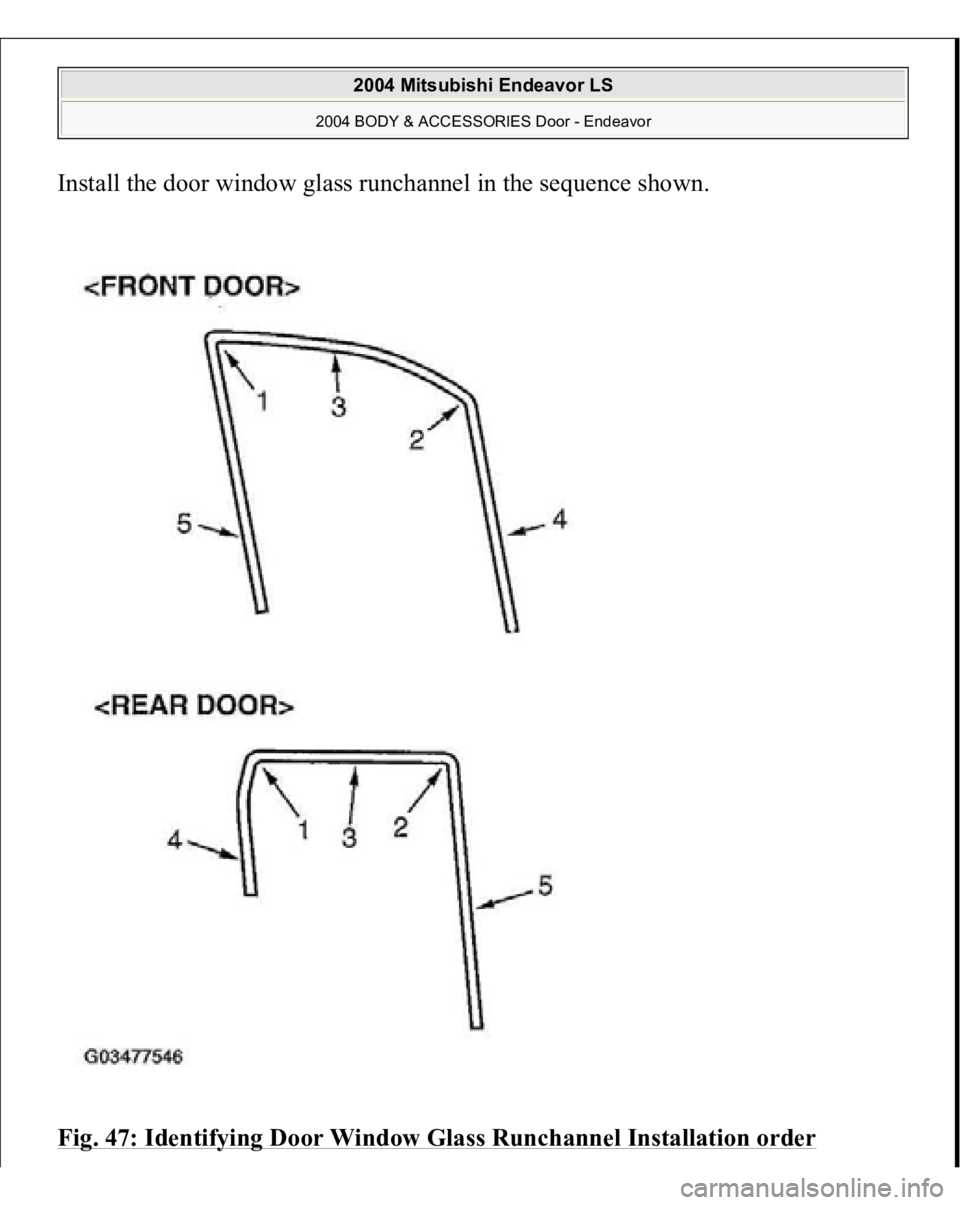

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Install the door window glass runchannel in the sequence shown. Fig. 47: Identifying Door Window Glass Runchannel Installation order 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door - Endea
