Page 121 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Repair or replace the damaged component(s). Then go to Step 8 . NO: An open circuit may be present in the ground circuit. Repair the wiring harness between ABS-ECU connector A-02 terminal 18 a

Page 122 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 73: Rechecking For Diagnostic Trouble Code Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 123 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1266, C1273 or C1274 set? YES: Replace the hydraulic unit (integrated with ABS-ECU). Then go to Step 8. NO: It can b

Page 124 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 74: Rechecking For Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 125 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1266, C1273 or C1274 set? YES: Go to Step 1 . NO: The procedure is c

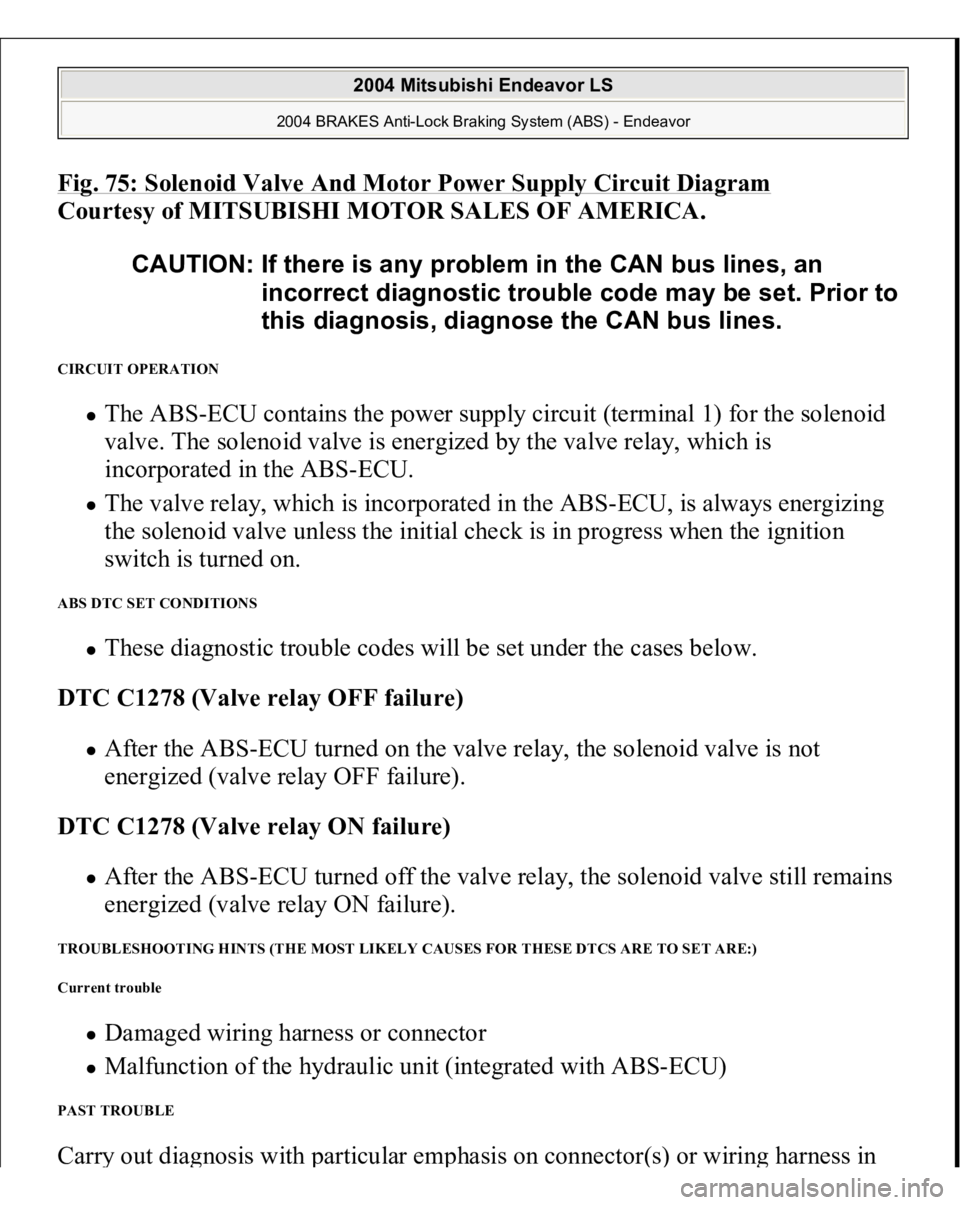

Page 126 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 75: Solenoid Valve And Motor Power Supply Circuit Diagra m Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION The ABS-ECU contains the power supply circuit (terminal 1) for the s

Page 127 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual the power supply circuit (terminal 1) to the ABS-ECU solenoid valve or ground circuit (terminal 2). For diagnosis procedures, refer to HOW TO USE TROUBLESHOOTING/ INSPECTION SERVIC . DIAGNOSIS Requ

Page 128 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 76: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
