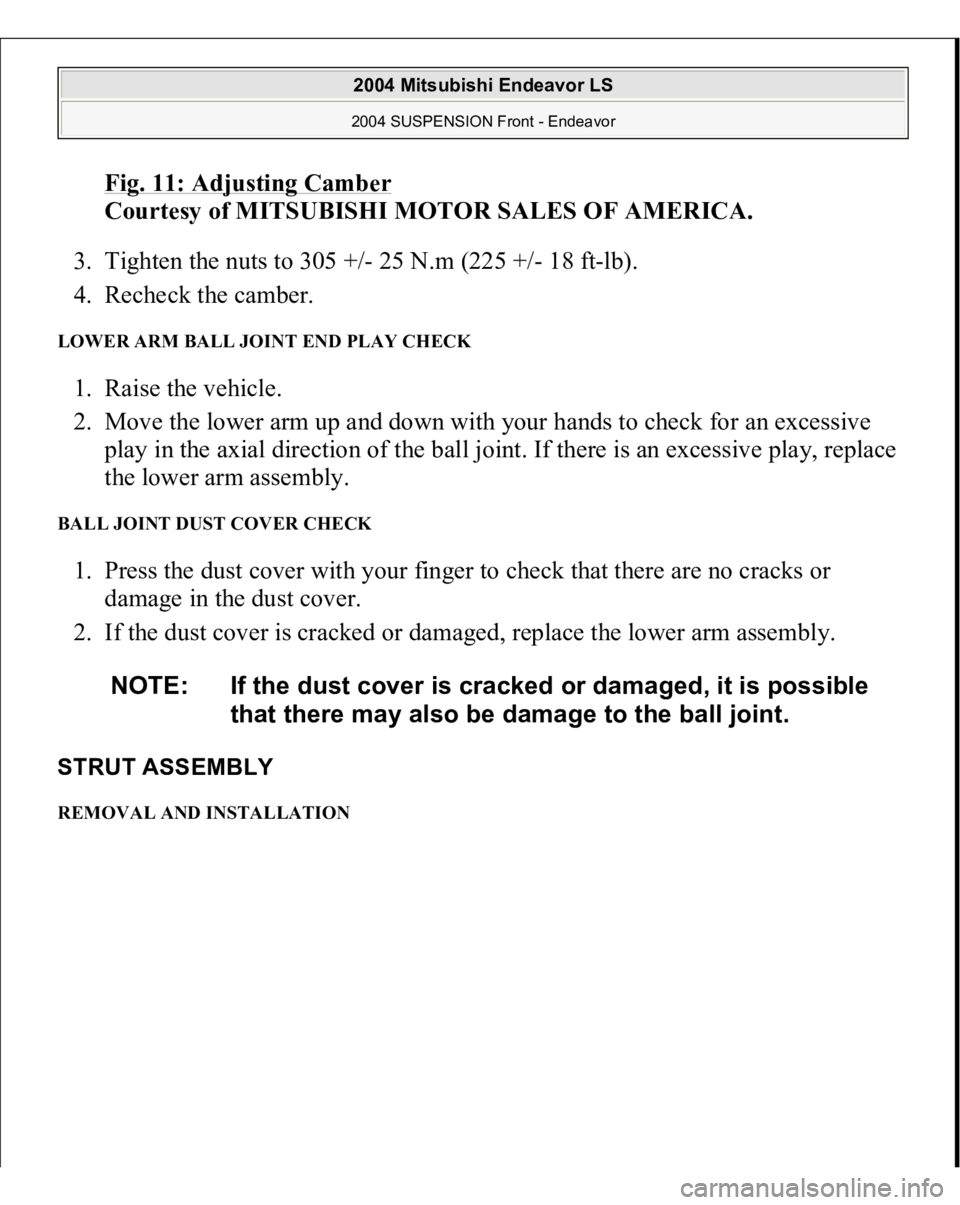

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 11: Adjusting Camber Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Tighten the nuts to 305 +/- 25 N.m (225 +/- 18 ft-lb). 4. Recheck the camber. LOWER ARM BALL JOINT END PLAY CHECK 1.

Page 1954 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 12: Removing & Installing Strut Assembly Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSPECTION Check for oil leaks from the strut assembly. Check the strut assembly for damage or deforma

Page 1955 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 13: Disassembly And Assembly Of Strut Assembly Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Required Special Tools: MB991237: Spring Compressor MB991238: Arm Set MB991681: Wrench and Soc

Page 1956 of 3870

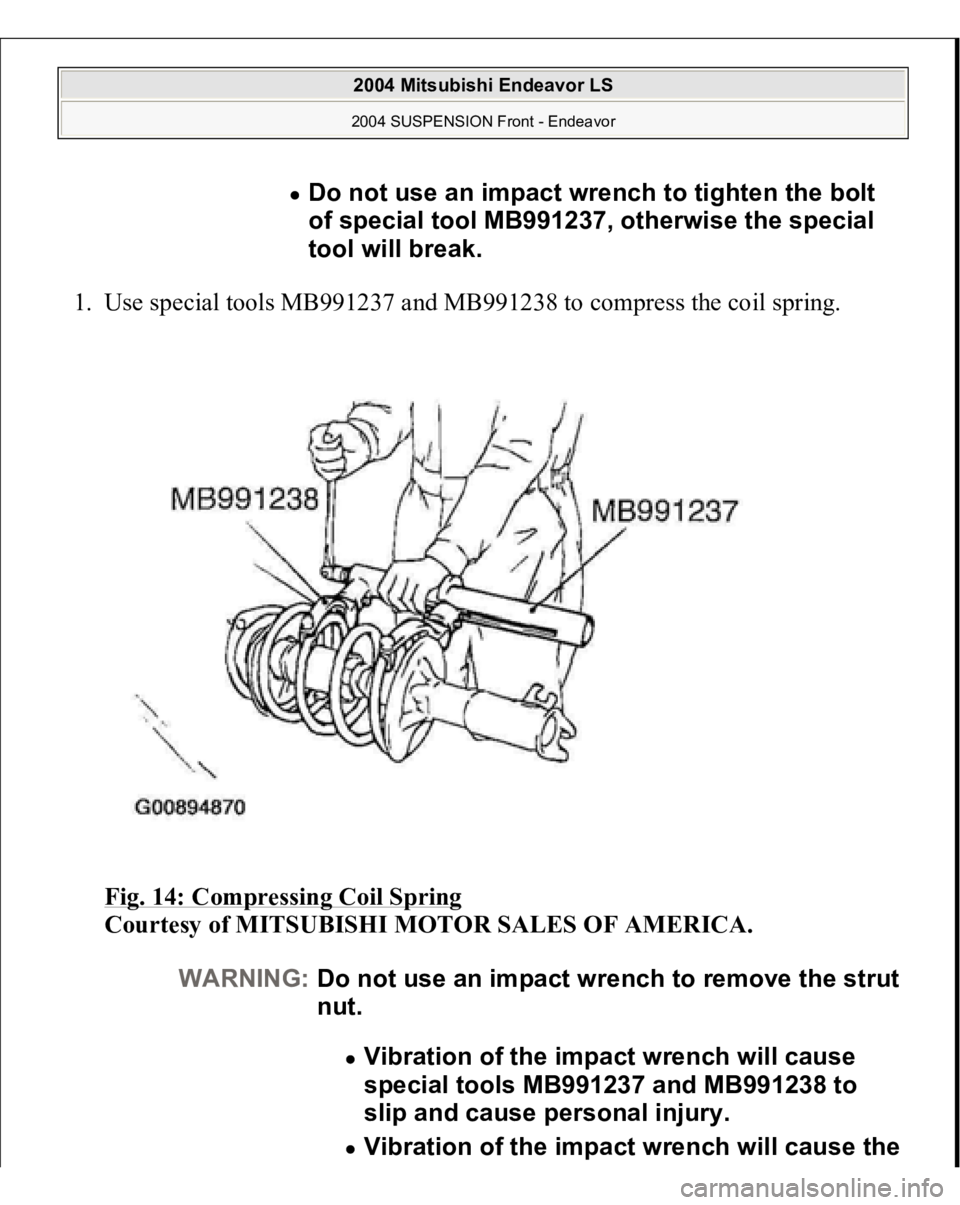

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Use special tools MB991237 and MB991238 to compress the coil spring. Fig. 14: Compressing Coil Spring Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Do not use an impact wrench to tighten the b

Page 1957 of 3870

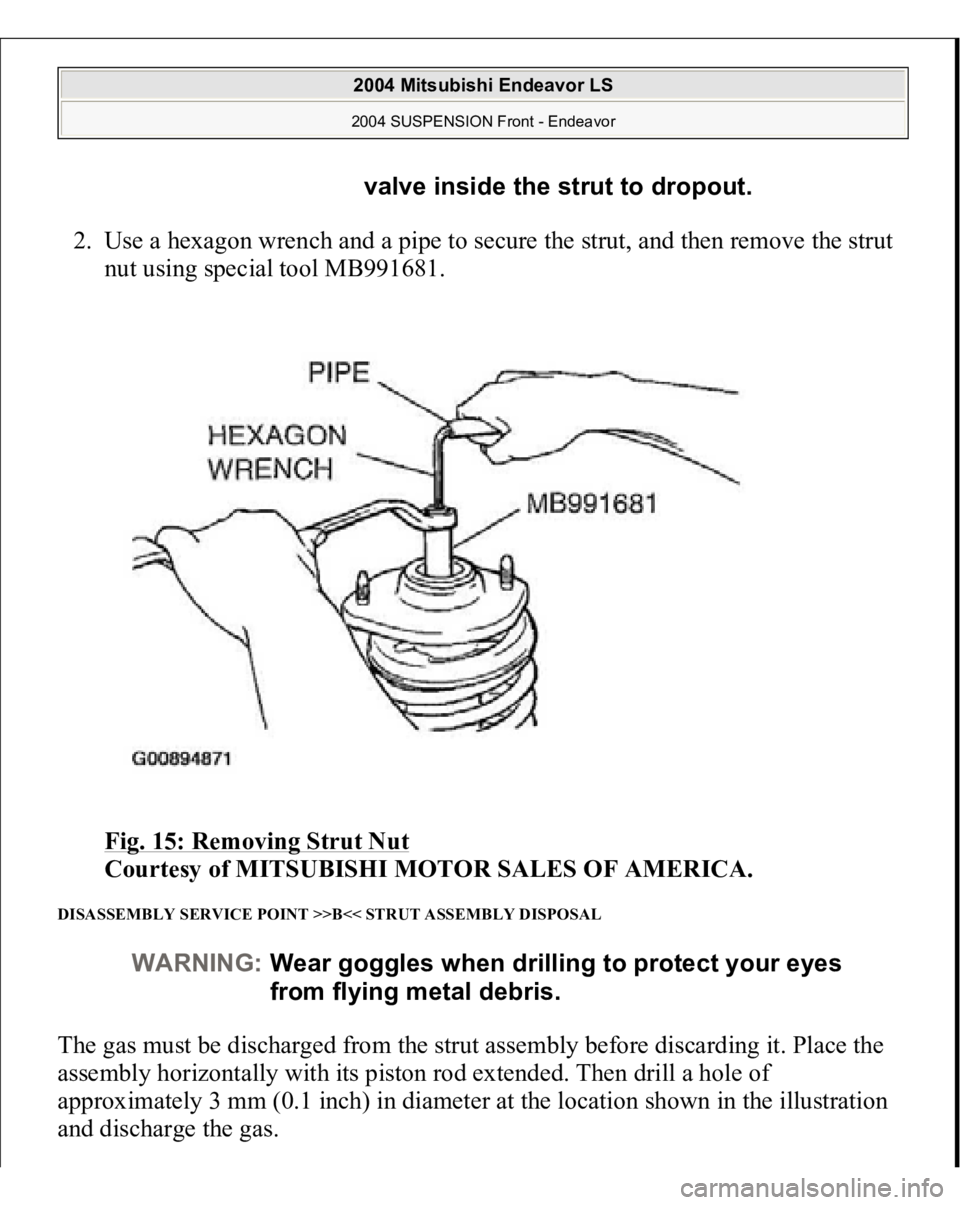

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Use a hexagon wrench and a pipe to secure the strut, and then remove the strut nut using special tool MB991681. Fig. 15: Removing Strut Nut Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DISAS

Page 1958 of 3870

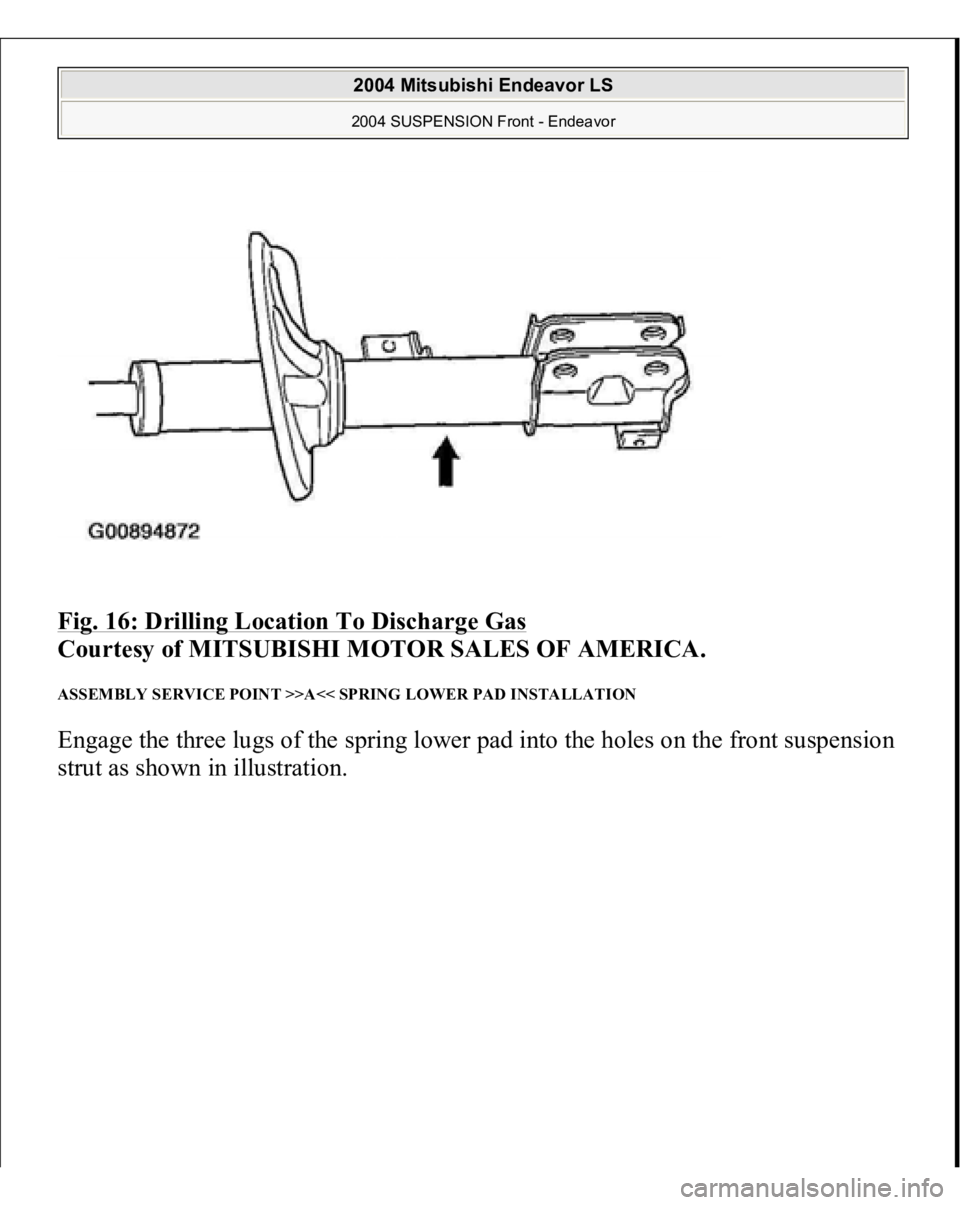

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 16: Drilling Location To Discharge Gas Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINT >>A<< SPRING LOWER PAD INSTALLATION Engage the three lugs of the spring lower pad i

Page 1959 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 17: Aligning Spring Lower Pad Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINT >>B<< STRUT INSULATOR INSTALLATION If the upper plate and lower plate of the strut insulator

Page 1960 of 3870

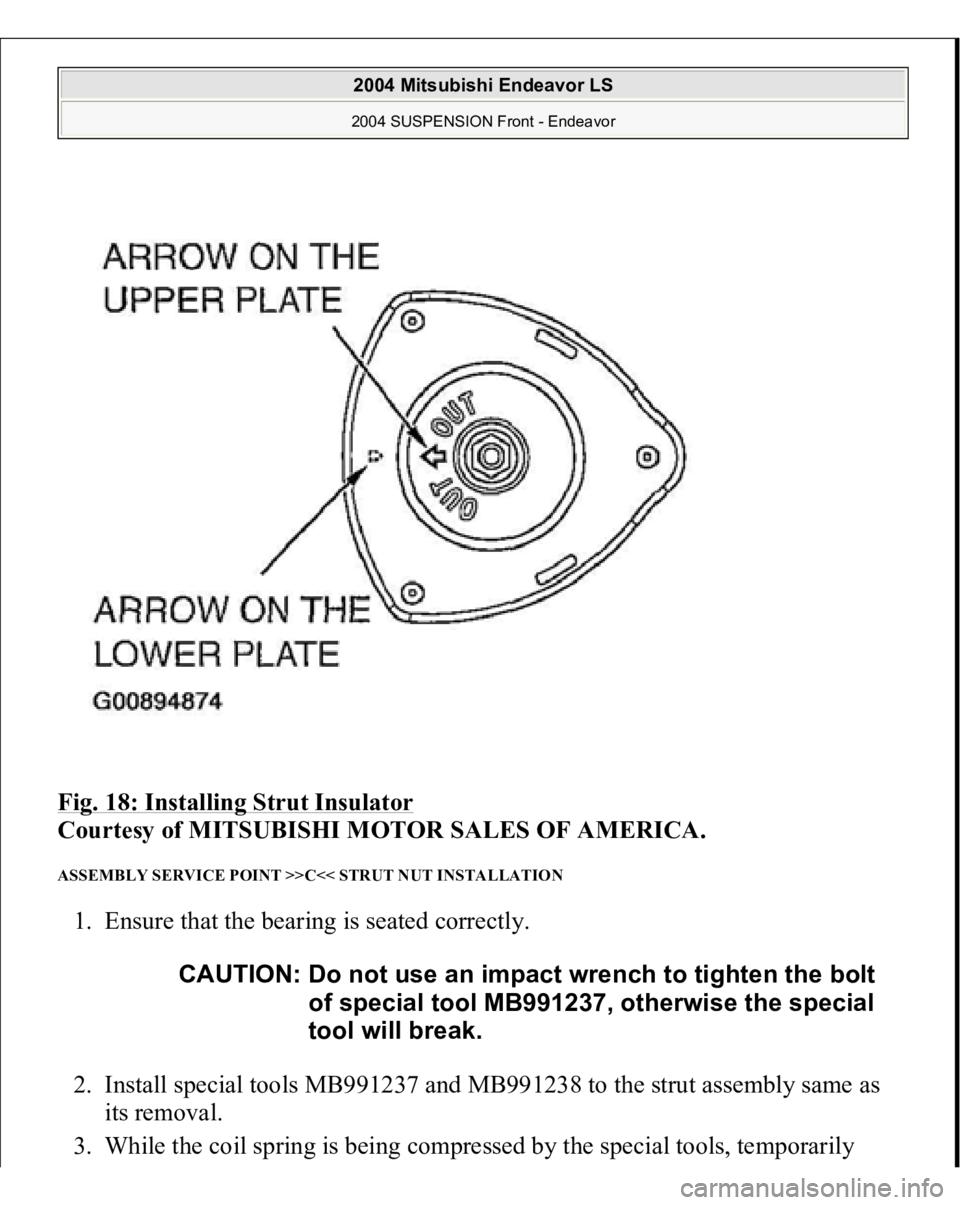

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 18: Installing Strut Insulator Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINT >>C<< STRUT NUT INSTALLATION 1. Ensure that the bearing is seated correctly. 2. Install sp
