Page 3401 of 3870

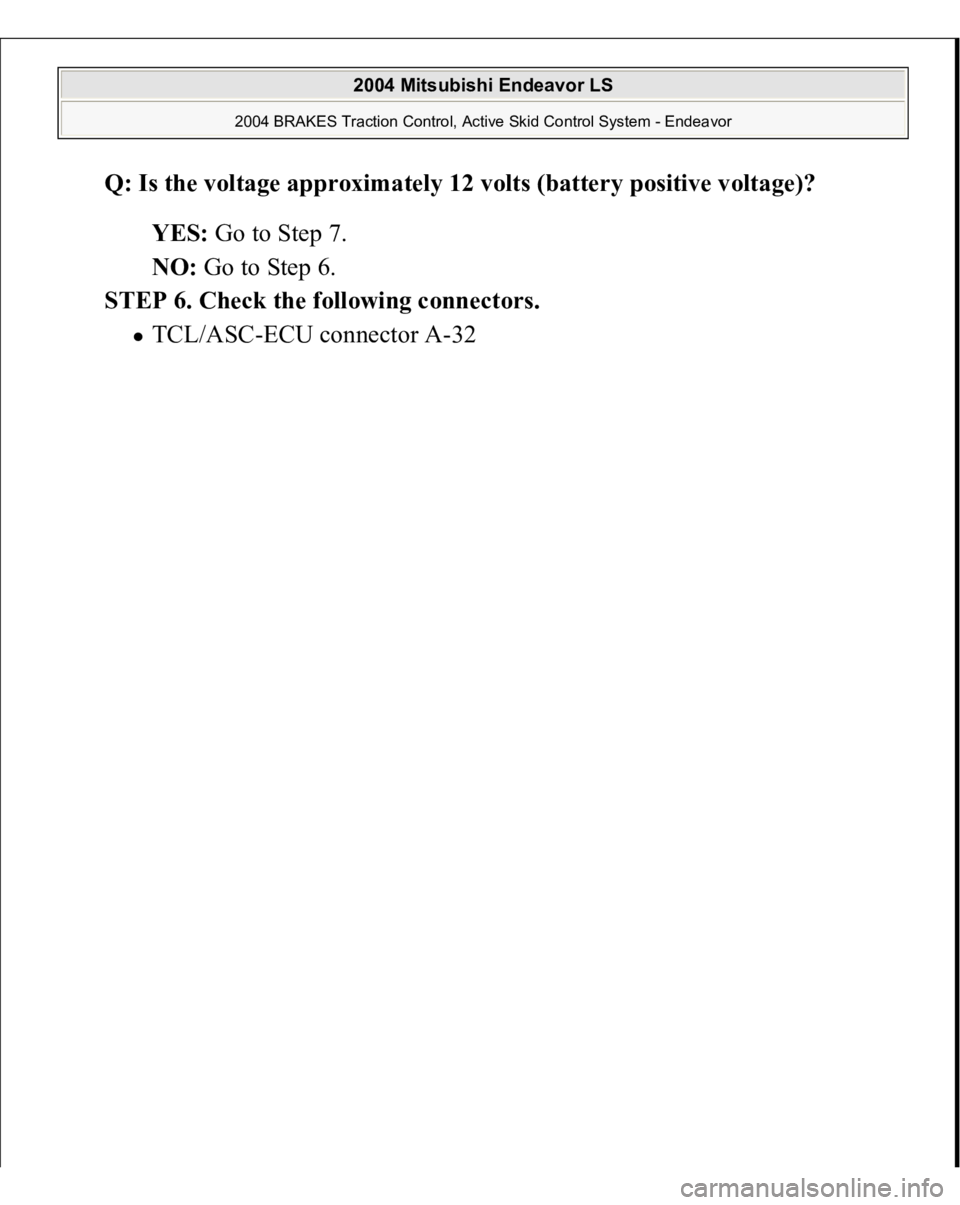

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the voltage approximately 12 volts (battery positive voltage)? YES: Go to Step 7. NO: Go to Step 6. STEP 6. Check the following connectors. TCL/ASC-ECU connector A-32 2004 Mitsubishi E

Page 3402 of 3870

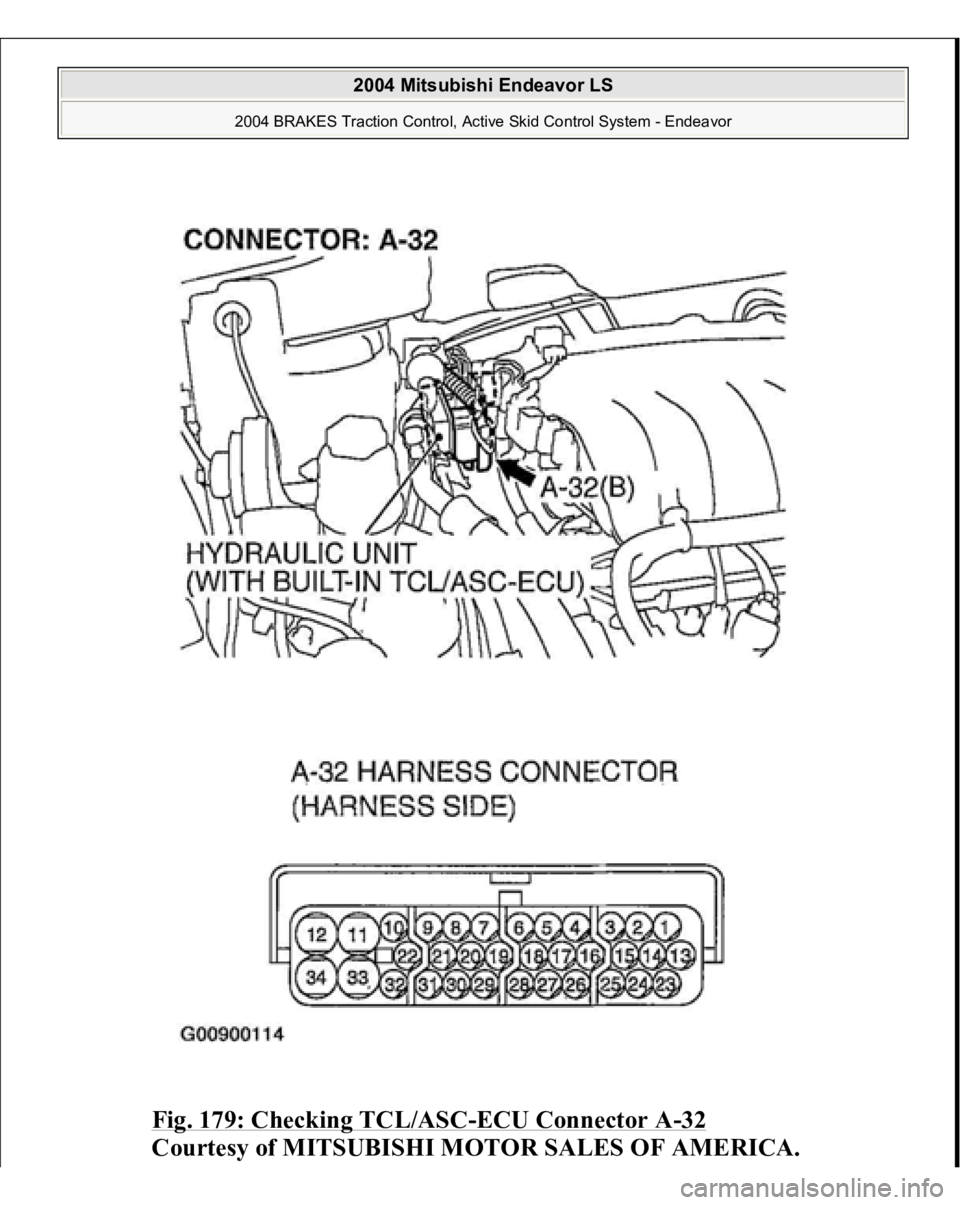

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 179: Checking TCL/ASC -ECU Connector A -32 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3403 of 3870

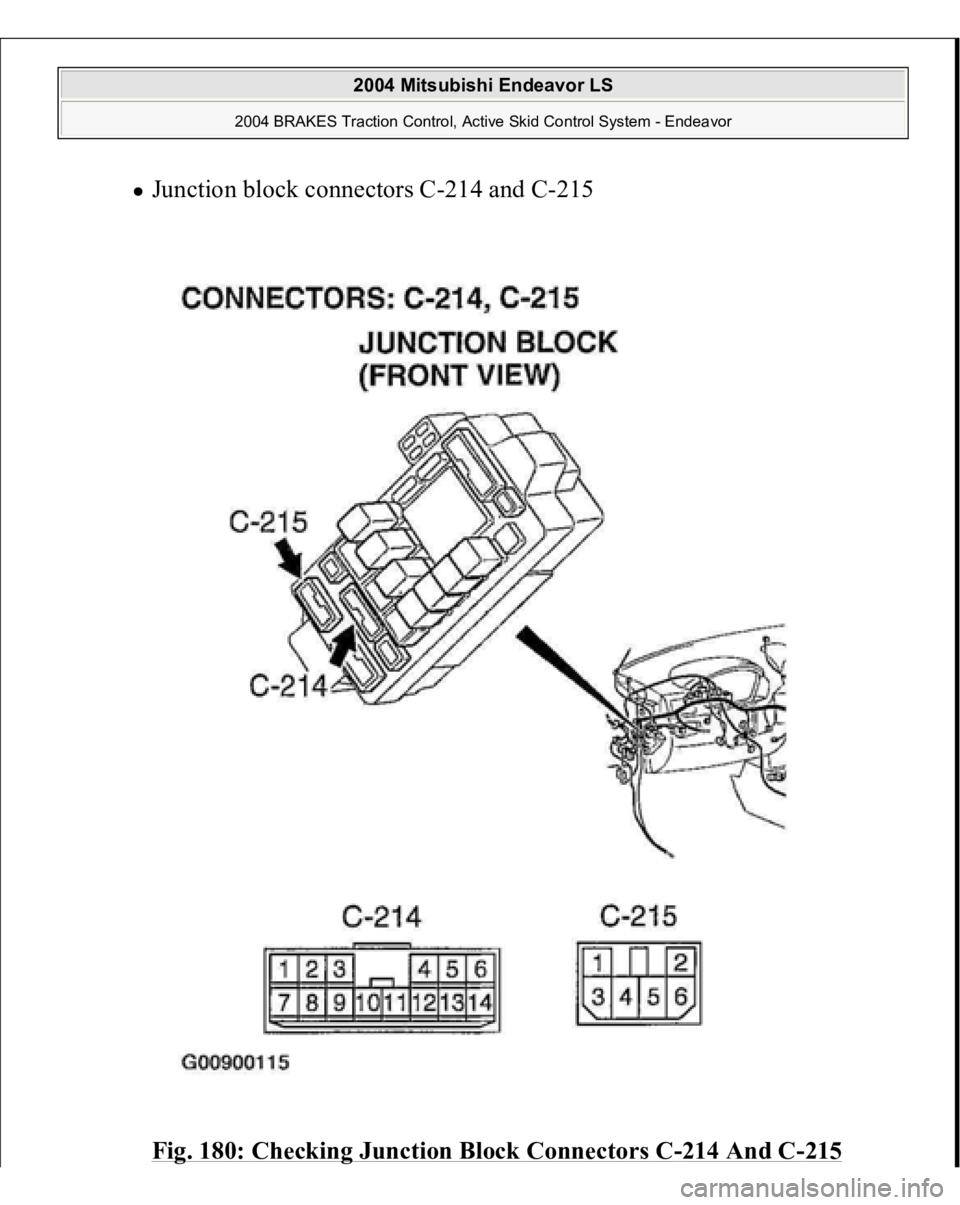

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Junction block connectors C-214 and C-215 Fig. 180: Checkin g Junction Block Connectors C -214 And C -215 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - End

Page 3404 of 3870

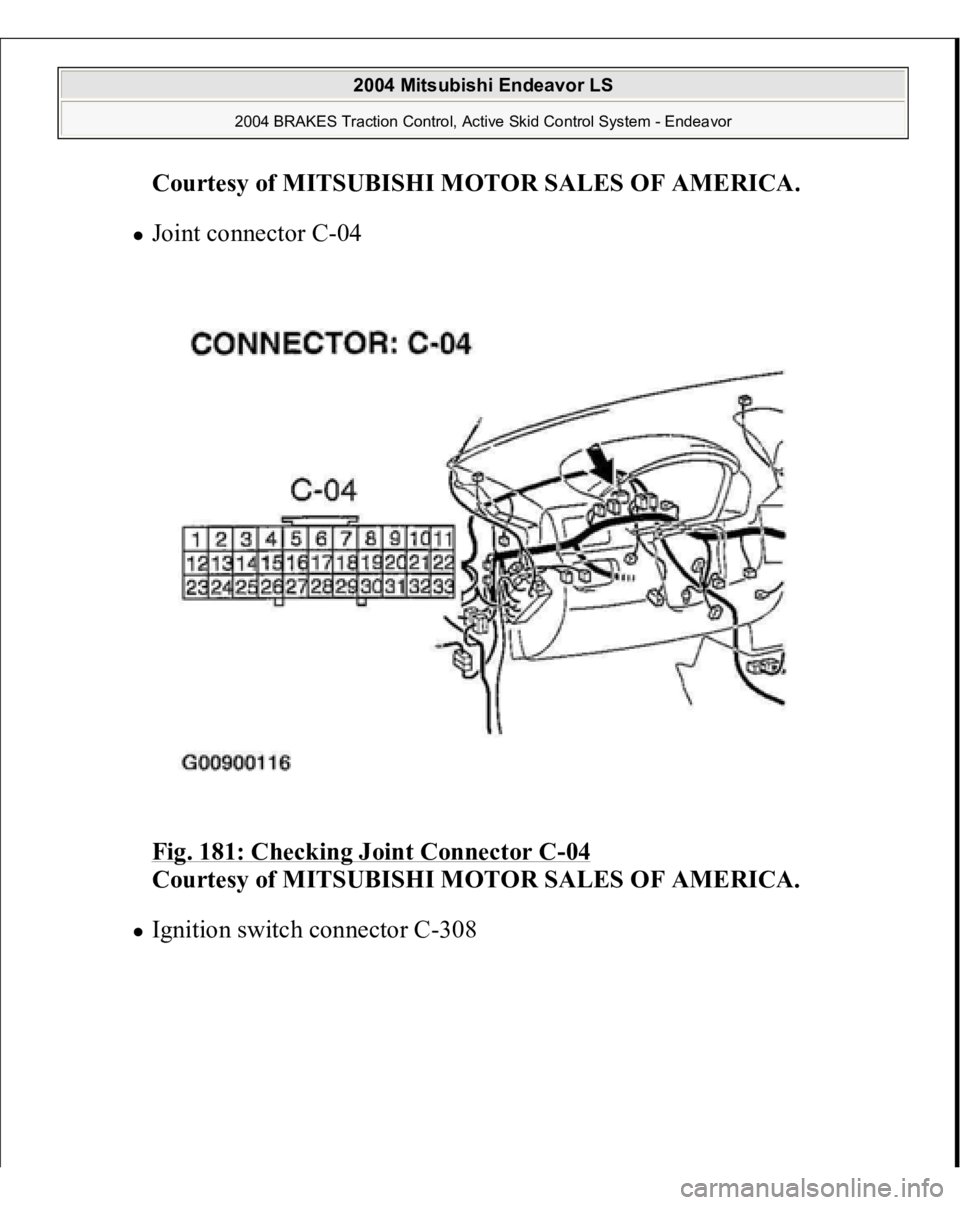

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Joint connector C-04 Fig. 181: Checking Joint Connector C -04 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Ignition switch connector C-308 2004

Page 3405 of 3870

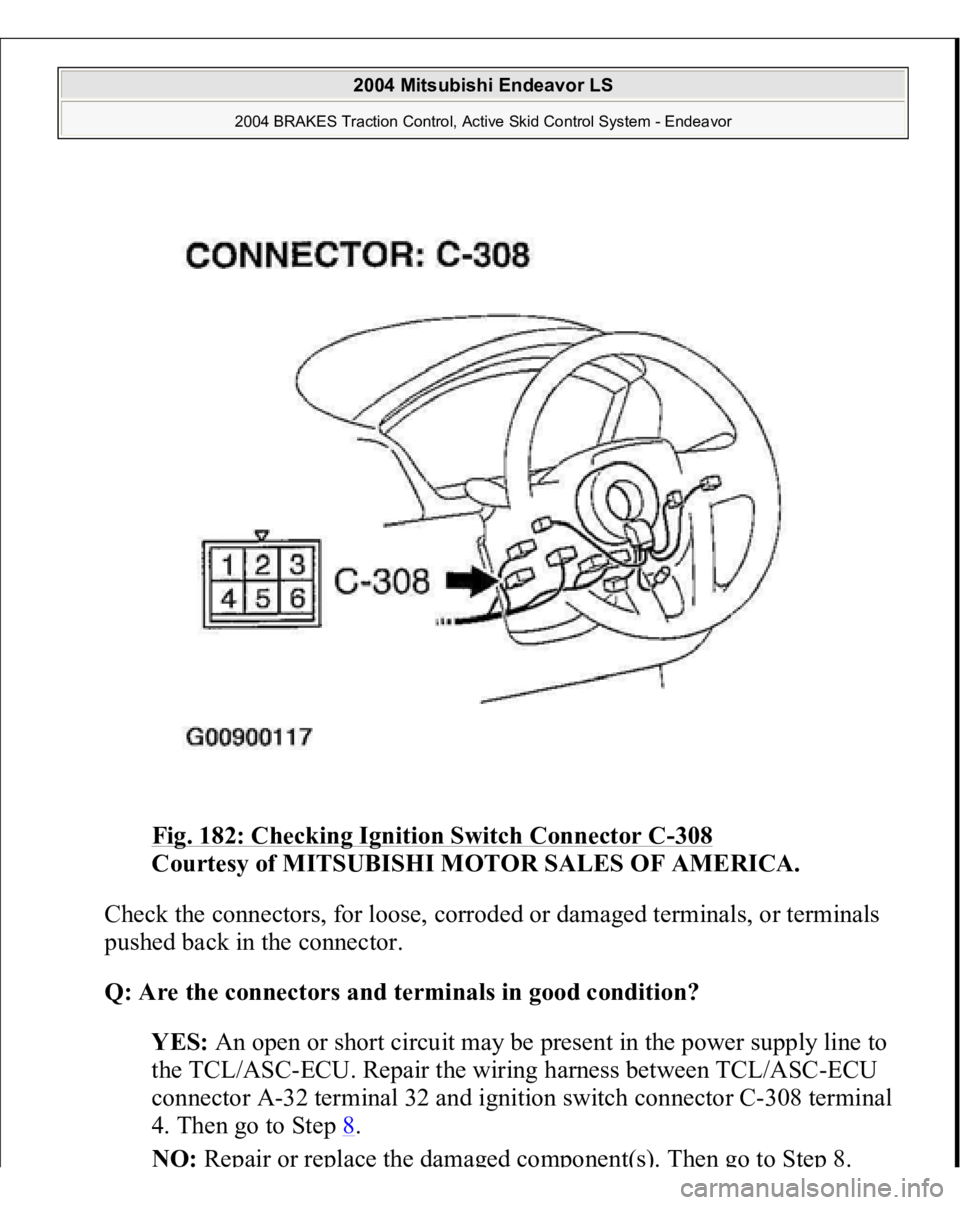

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 182: Checking Ignition Switch Connector C -308 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Check the connectors, for loose, corroded or damaged terminals, or terminals pushed back in the c

Page 3406 of 3870

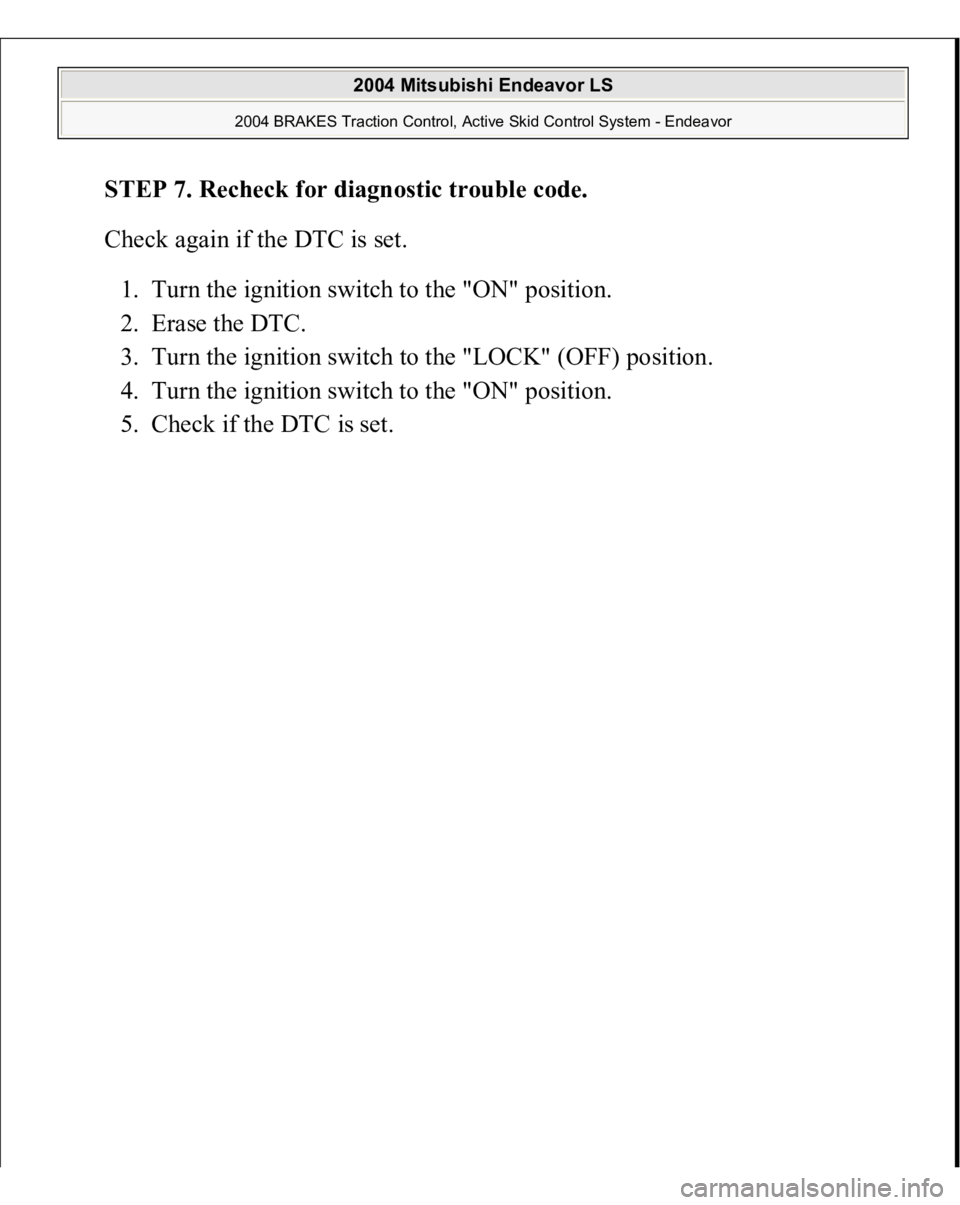

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 7. Recheck for diagnostic trouble code. Check again if the DTC is set. 1. Turn the ignition switch to the "ON" position. 2. Erase the DTC. 3. Turn the ignition switch to the "LO

Page 3407 of 3870

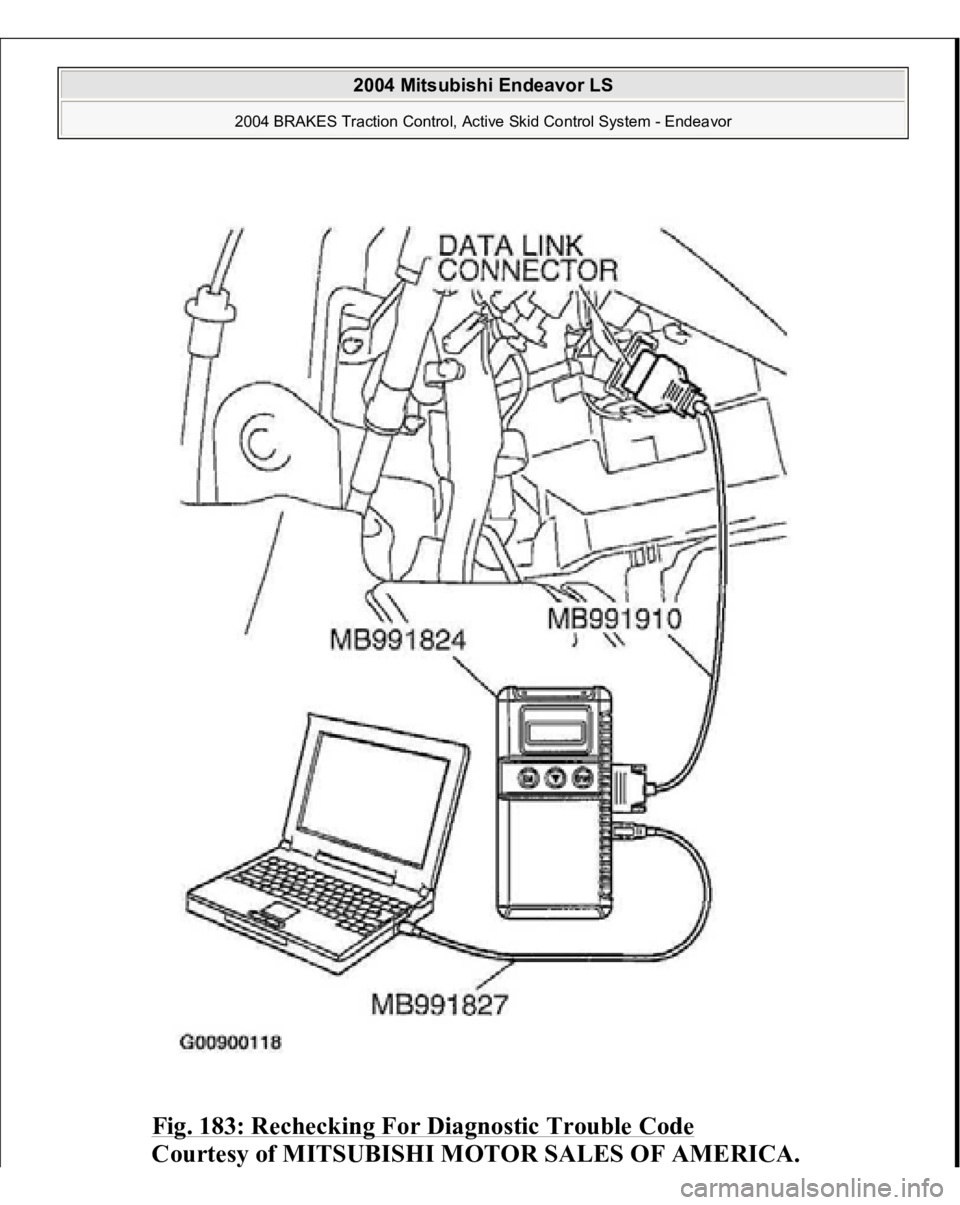

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 183: Rechecking For Diagnostic Trouble Code Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3408 of 3870

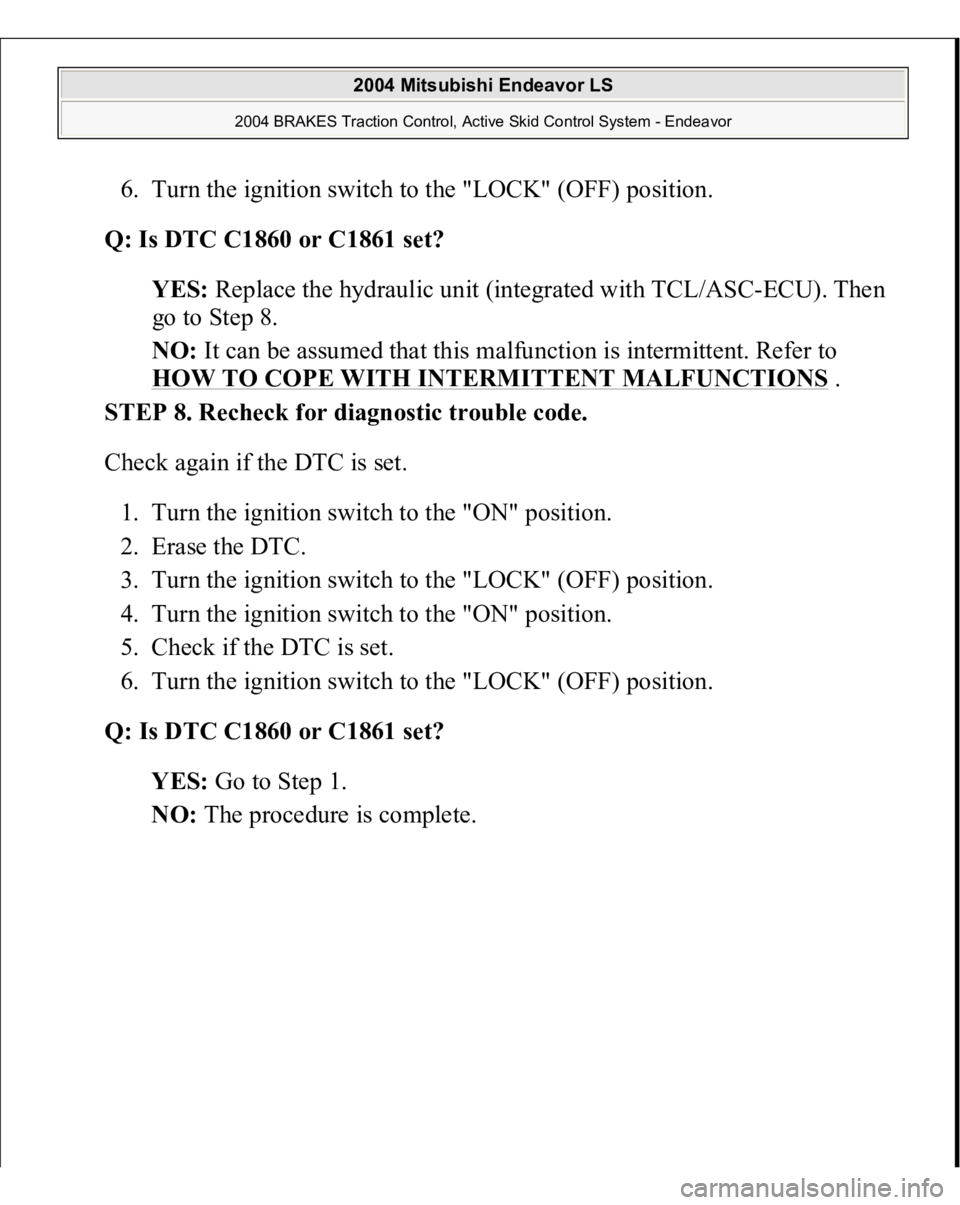

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1860 or C1861 set? YES: Replace the hydraulic unit (integrated with TCL/ASC-ECU). Then go to Step 8. NO: It can be a
