Page 809 of 3870

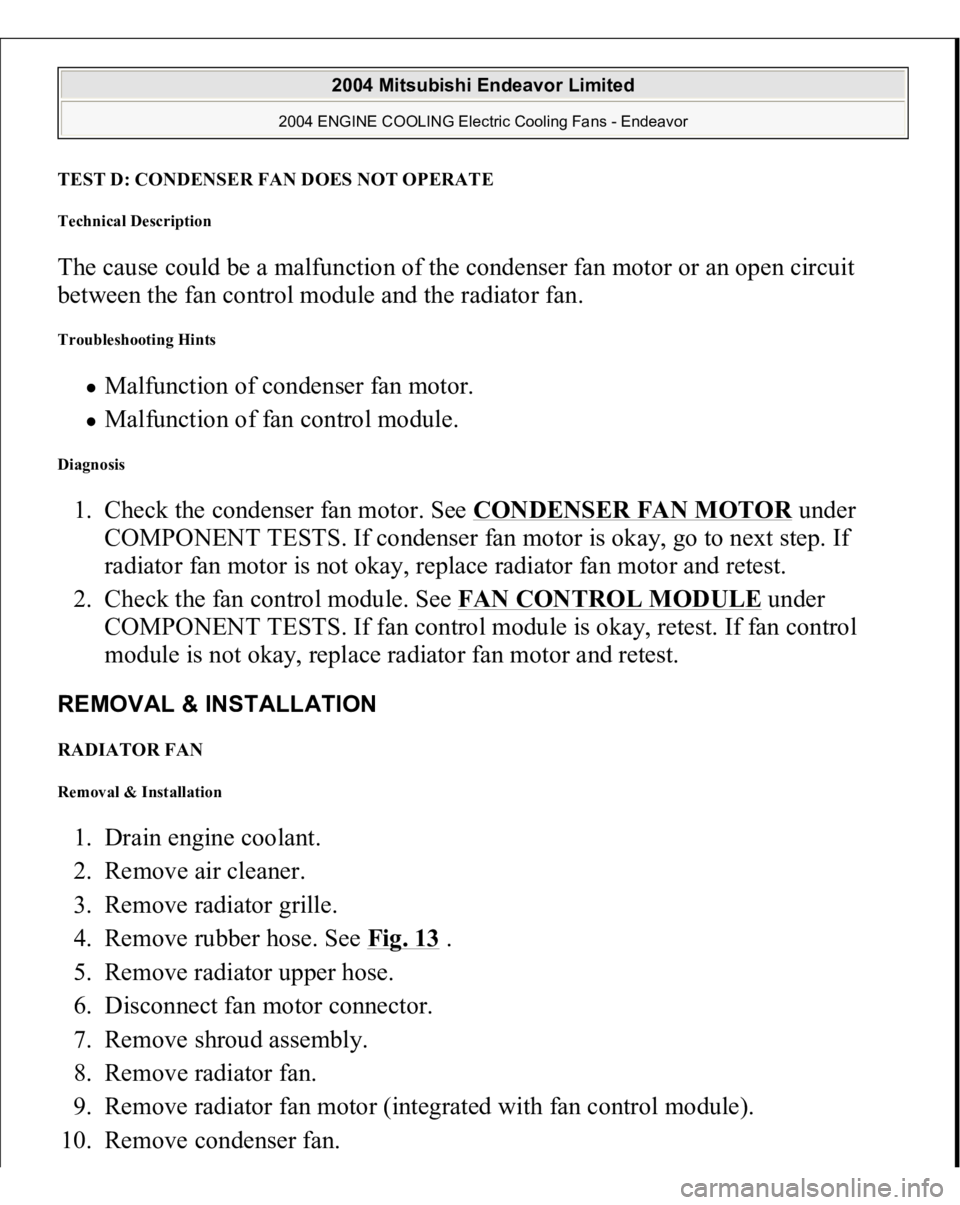

MITSUBISHI ENDEAVOR 2004 Service Repair Manual TEST D: CONDENSER FAN DOES NOT OPERATETechnical Description The cause could be a malfunction of the condenser fan motor or an open circuit between the fan control module and the radiator fan. Trouble

Page 810 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 11. Remove condenser fan motor. 12. To install, reverse removal procedures. Fig. 13: Exploded View Of Radiator & Radiator Fans Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. WIRING DIAGRAMS See

Page 811 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor GENERAL DESCRIPTION By using the auto-cruise control, the driver can select and maintain a desired cruising speed [between 40 km/h (25

Page 812 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 2: Identifying Special Tools (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 813 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Identifying Special Tools (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS INTRODUCTION TO AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS The auto-cruise c

Page 814 of 3870

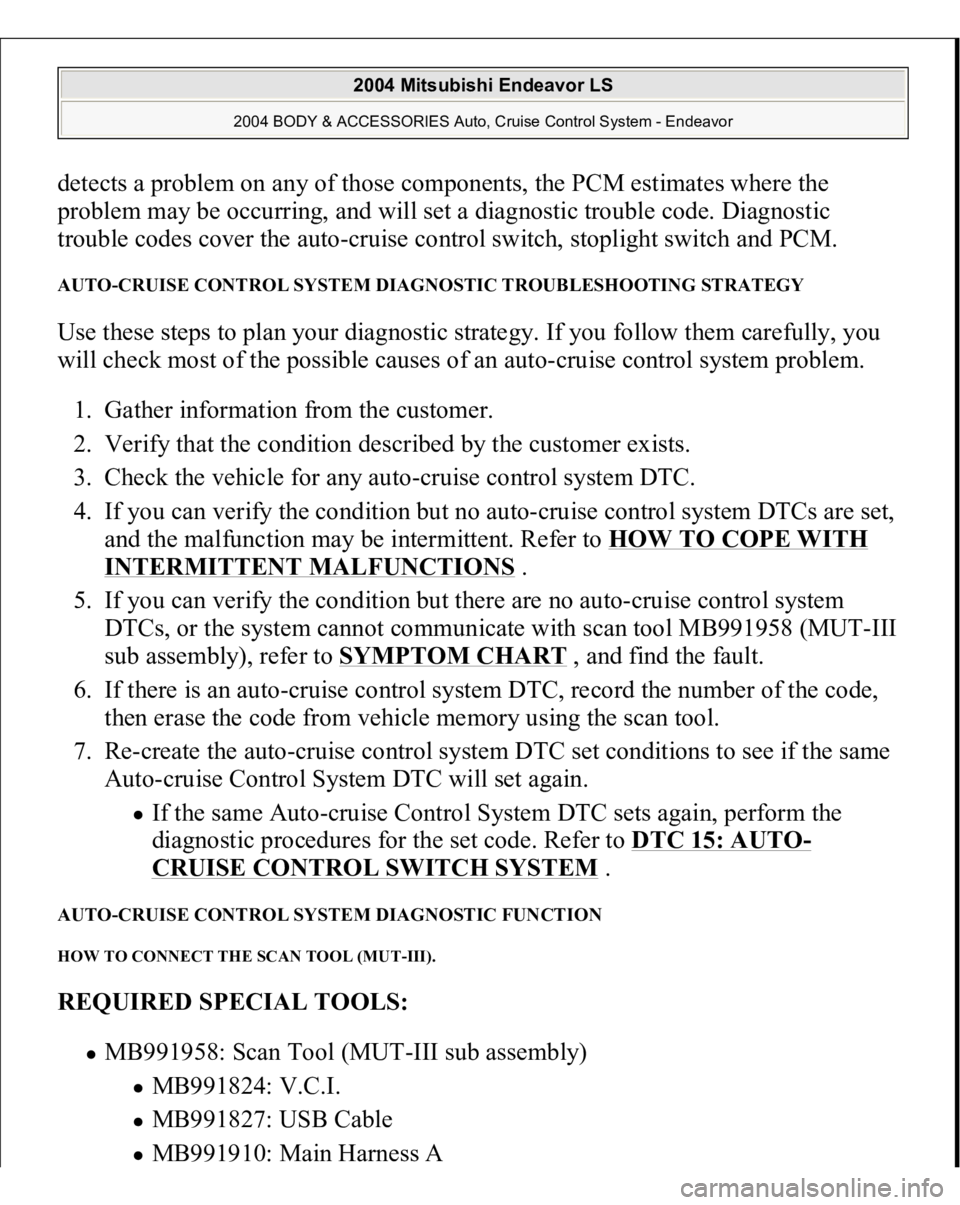

MITSUBISHI ENDEAVOR 2004 Service Repair Manual detects a problem on any of those components, the PCM estimates where the problem may be occurring, and will set a diagnostic trouble code. Diagnostic trouble codes cover the auto-cruise control swi

Page 815 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Ensure that the ignition switch is at the "LOCK" (OFF) position. 2. Start up the personal computer. 3. Connect special tool MB991827 to special tool MB991824 and the personal com puter

Page 816 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 4: Connecting Special Tool MB991827 To Special Tool MB991824 And Personal Computer 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
