Page 2809 of 3870

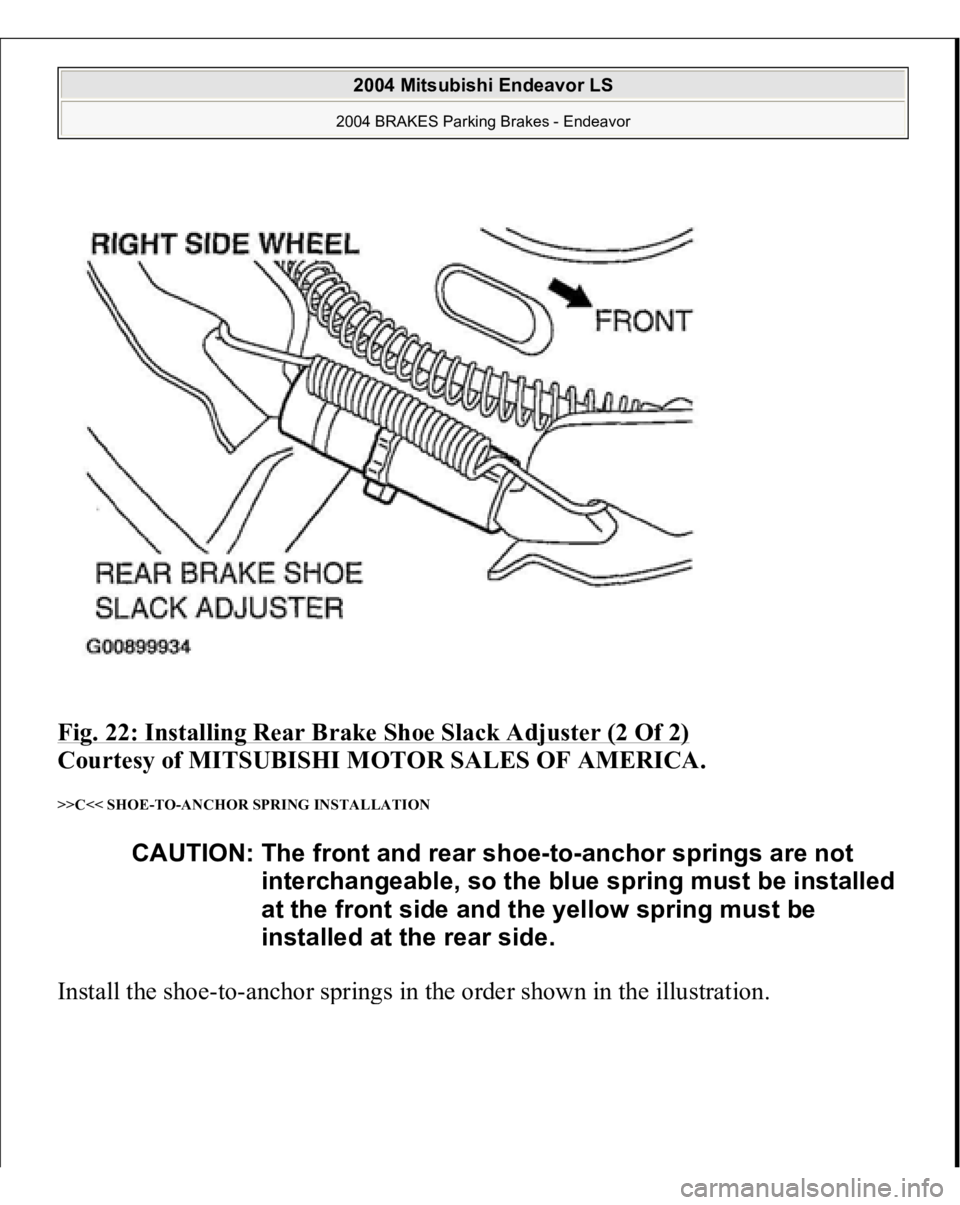

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 22: Installing Rear Brake Shoe Slack Adjuster (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>C<< SHOE-TO-ANCHOR SPRING INSTALLATION Install the sho e-to-anchor s prin gs in the orde

Page 2810 of 3870

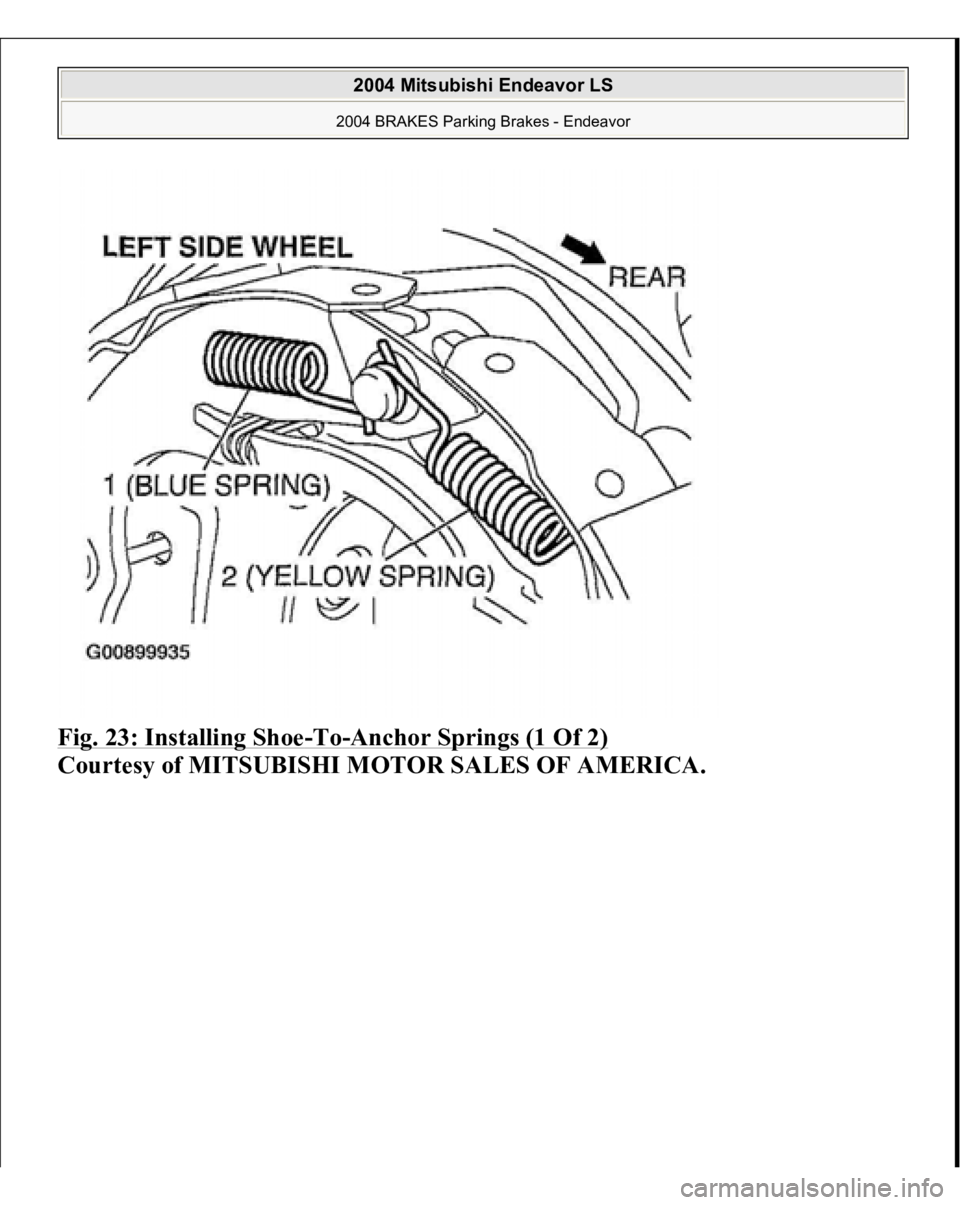

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 23: Installing Shoe -To -Anchor Springs (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

Page 2811 of 3870

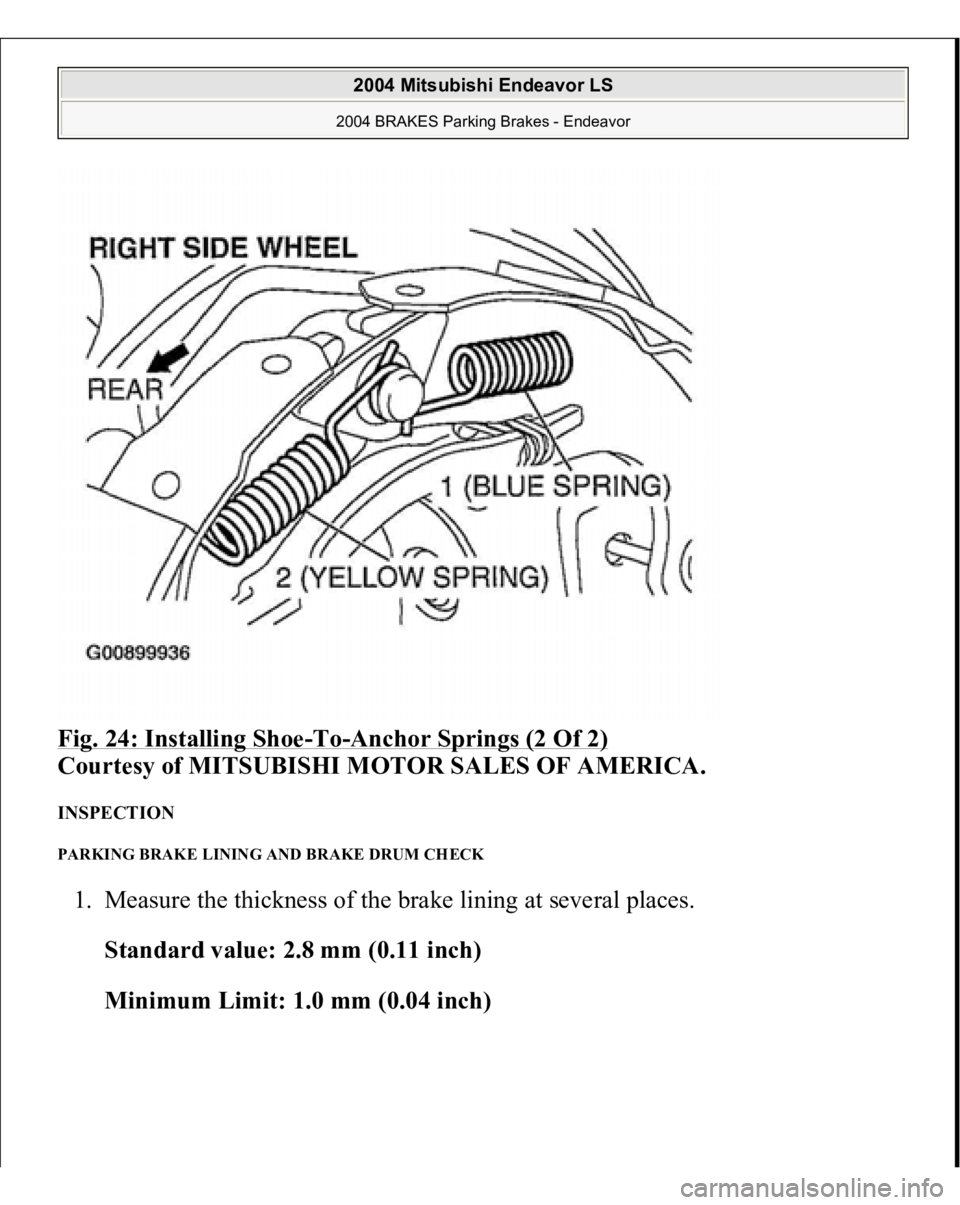

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 24: Installing Shoe -To -Anchor Springs (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSPECTION PARKING BRAKE LINING AND BRAKE DRUM CHECK 1. Measure the thickness of the brake linin

Page 2812 of 3870

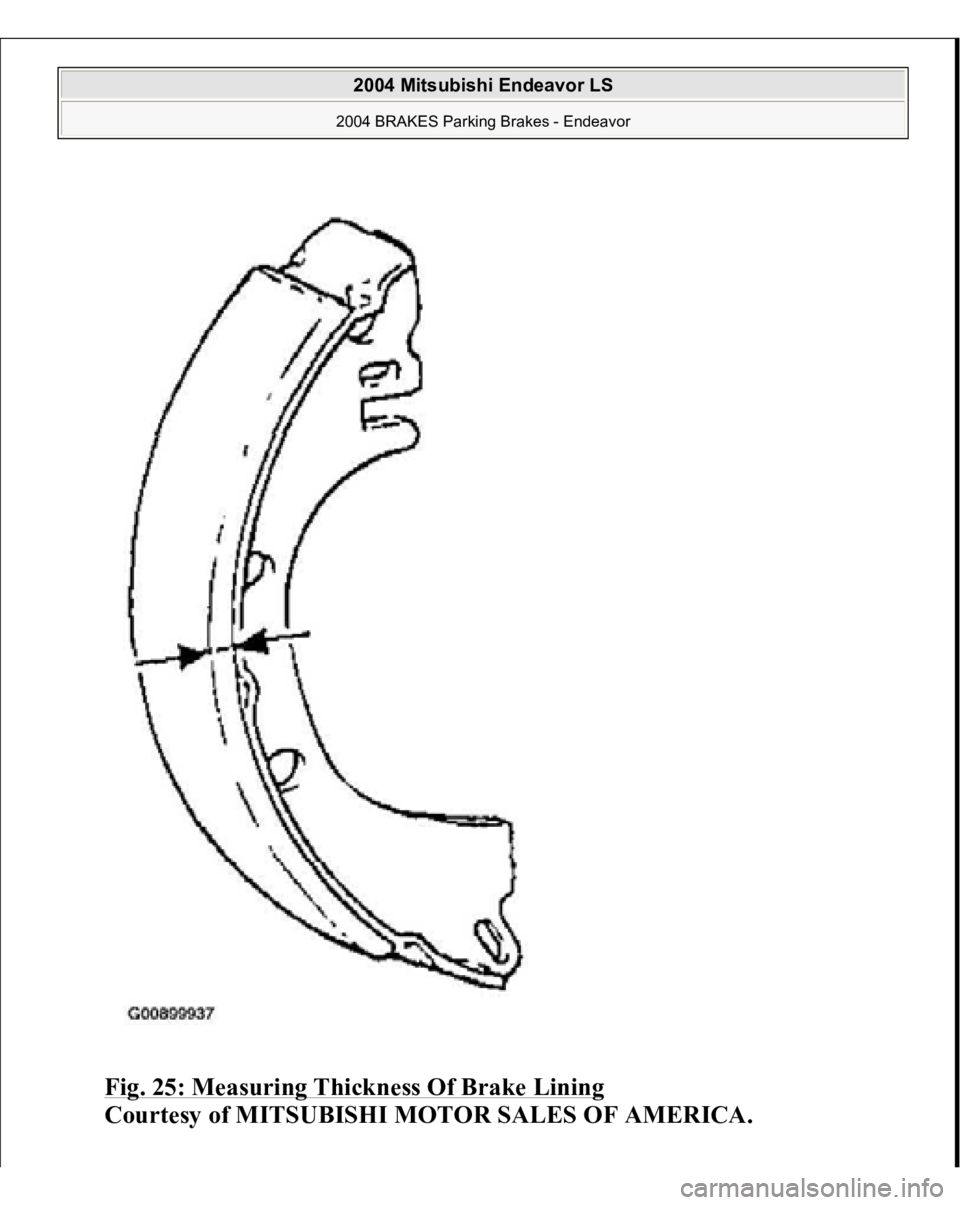

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 25: Measuring Thickness Of Brake Lining Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

Page 2813 of 3870

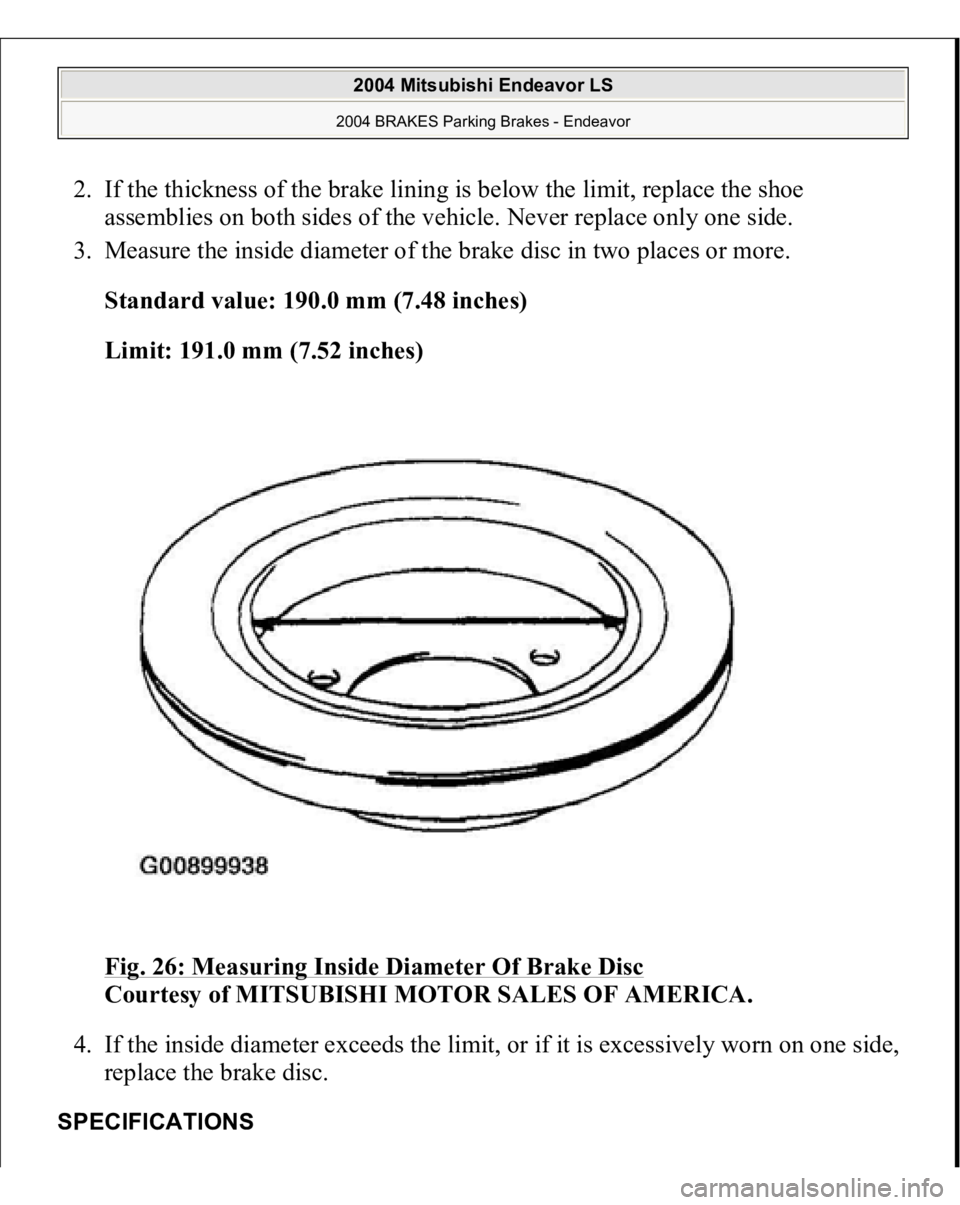

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. If the thickness of the brake lining is below the limit, replace the shoe assemblies on both sides of the vehicle. Never replace only one side. 3. Measure the inside diameter of the brake disc i

Page 2814 of 3870

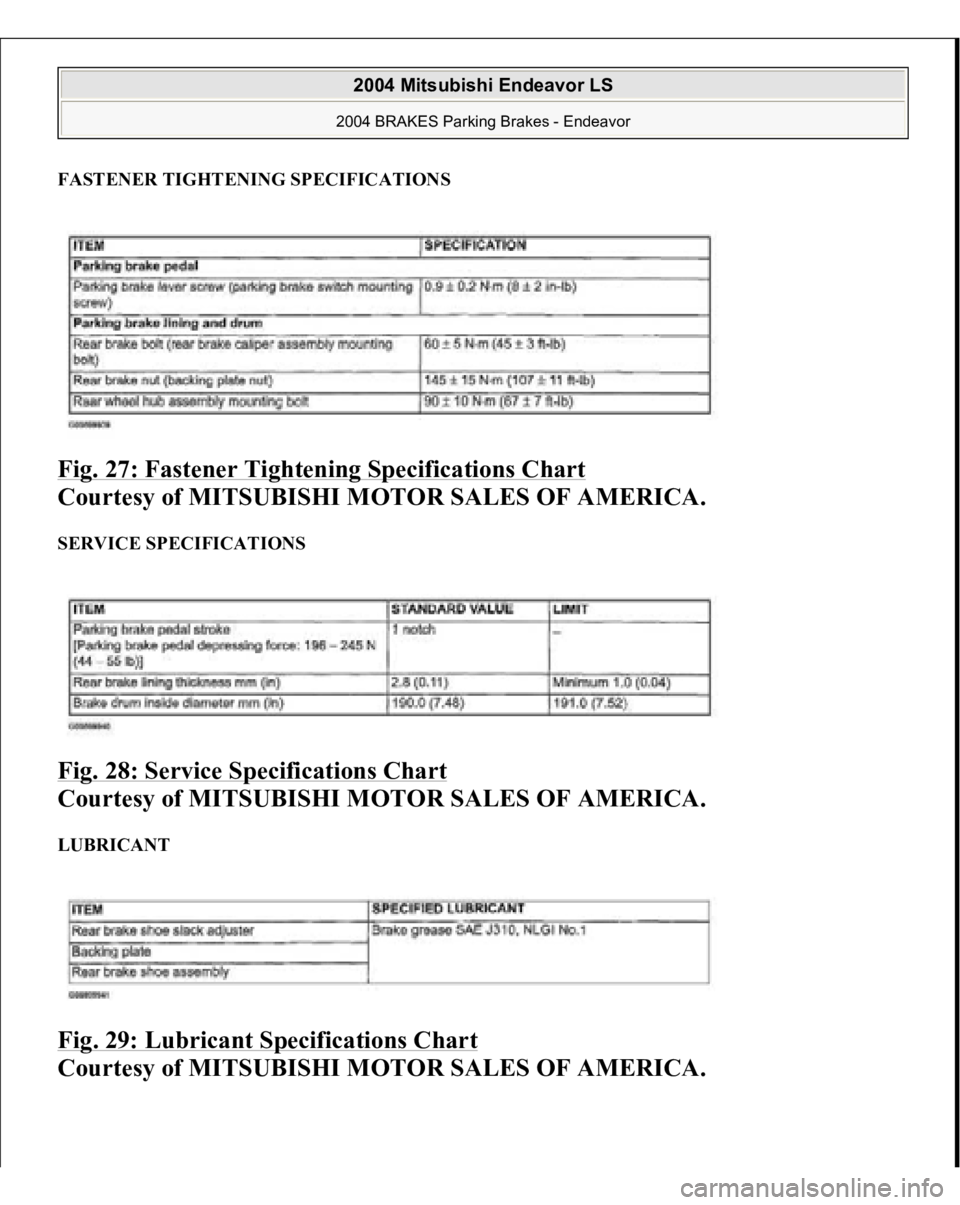

MITSUBISHI ENDEAVOR 2004 Service Repair Manual FASTENER TIGHTENING SPECIFICATIONSFig. 27: Fastener Tightening Specifications Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SERVICE SPECIFICATIONS Fig. 28: Service Specifications Chart Cou

Page 2815 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 STEERING Power Steering - Endeavor GENERAL DESCRIPTION Power steering has been adopted in all vehicles to make the steering system easier to handle. A 4-spoke steering wheel is used. A steeri

Page 2816 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual INTRODUCTION TO POWER STEERING DIAGNOSISHydraulic power steering is used for all vehicles. Faults in the power steering can include excessive play of the steering wheel, difficult steering wheel oper
