Page 665 of 3870

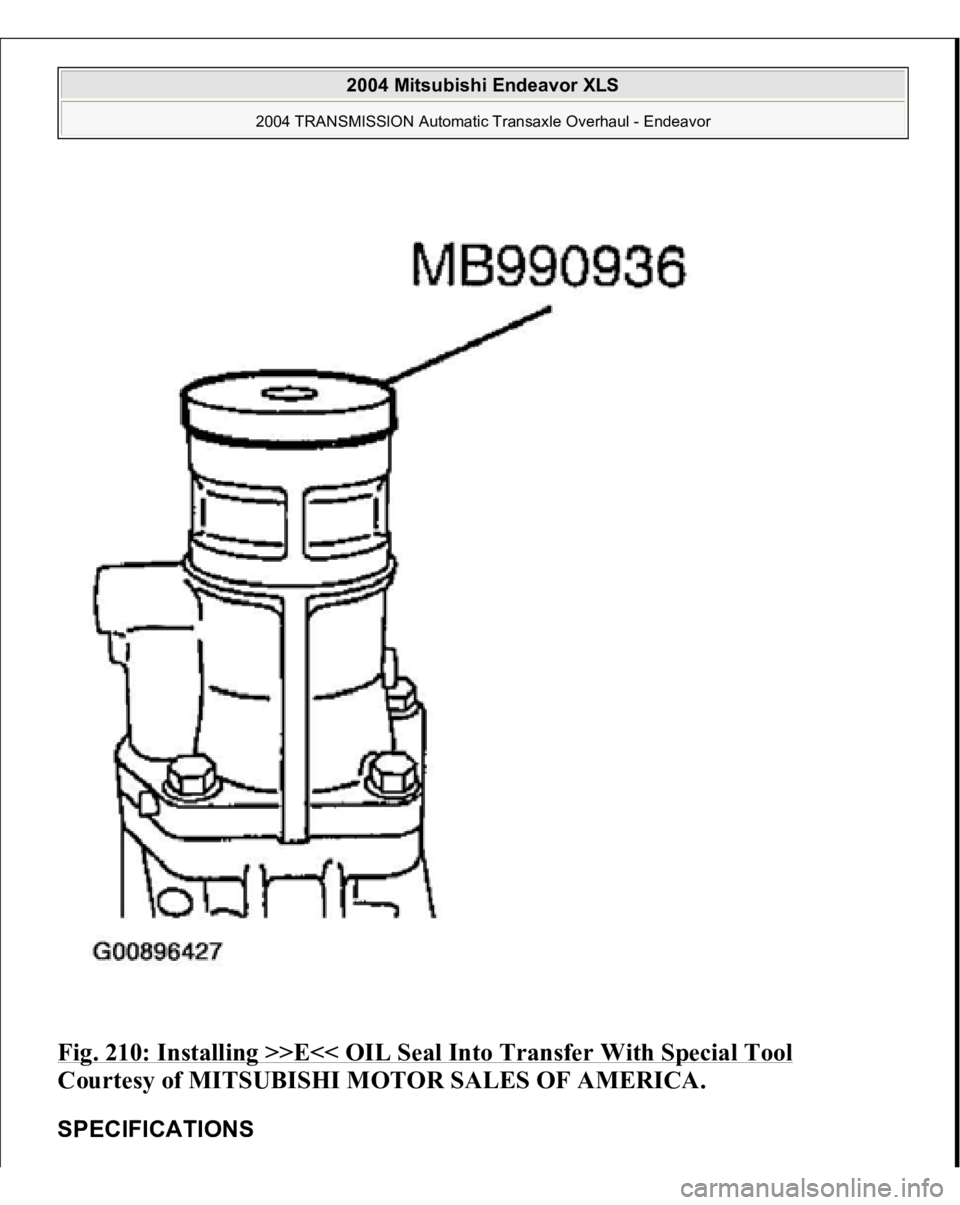

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 210: Installing >>E<< OIL Seal Into Transfer With Special Tool Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SPECIFICATIONS 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transax

Page 666 of 3870

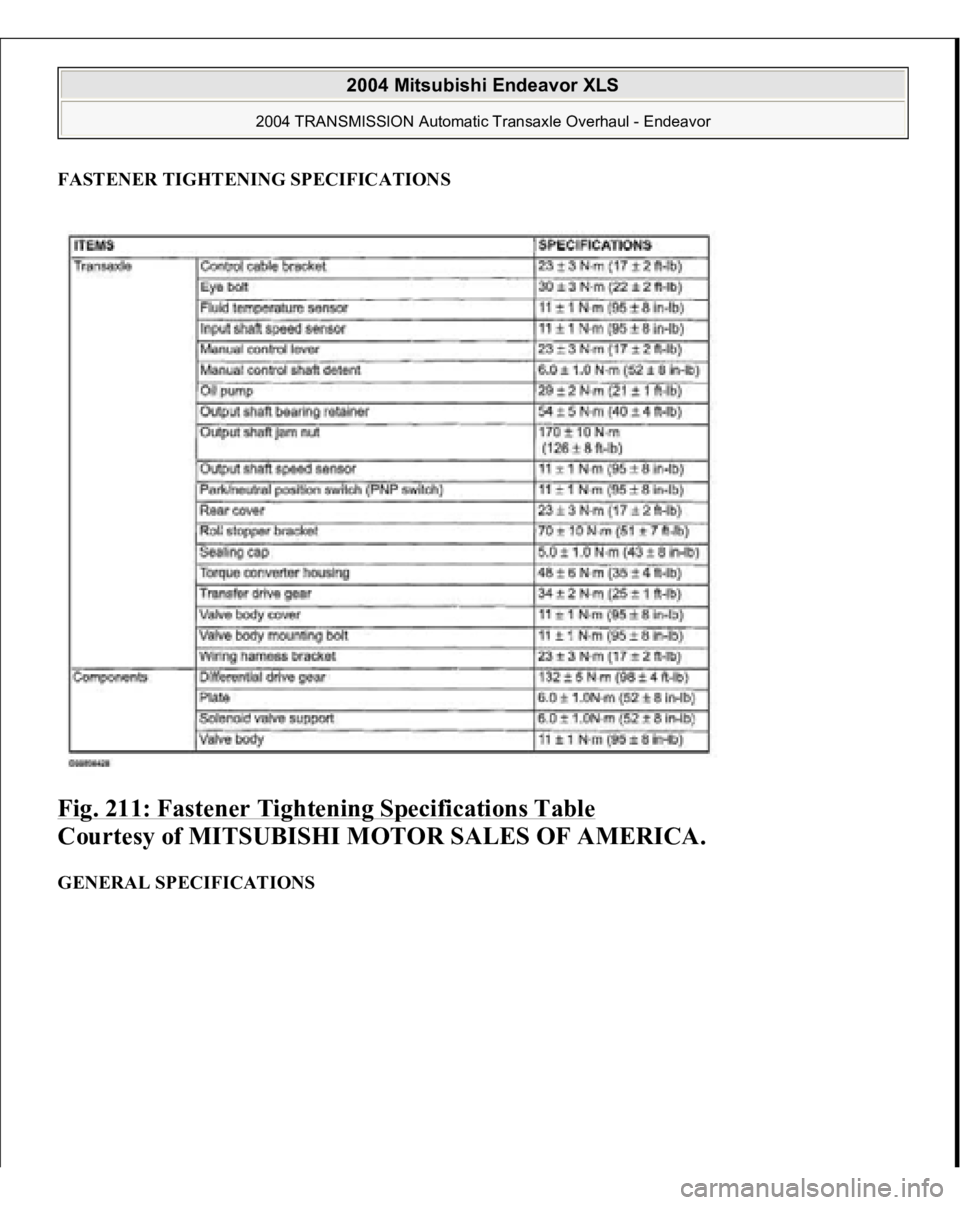

MITSUBISHI ENDEAVOR 2004 Service Repair Manual FASTENER TIGHTENING SPECIFICATIONSFig. 211: Fastener Tightening Specifications Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. GENERAL SPECIFICATIONS 2004 Mitsubishi Endeavor XLS 2004 TRANS

Page 667 of 3870

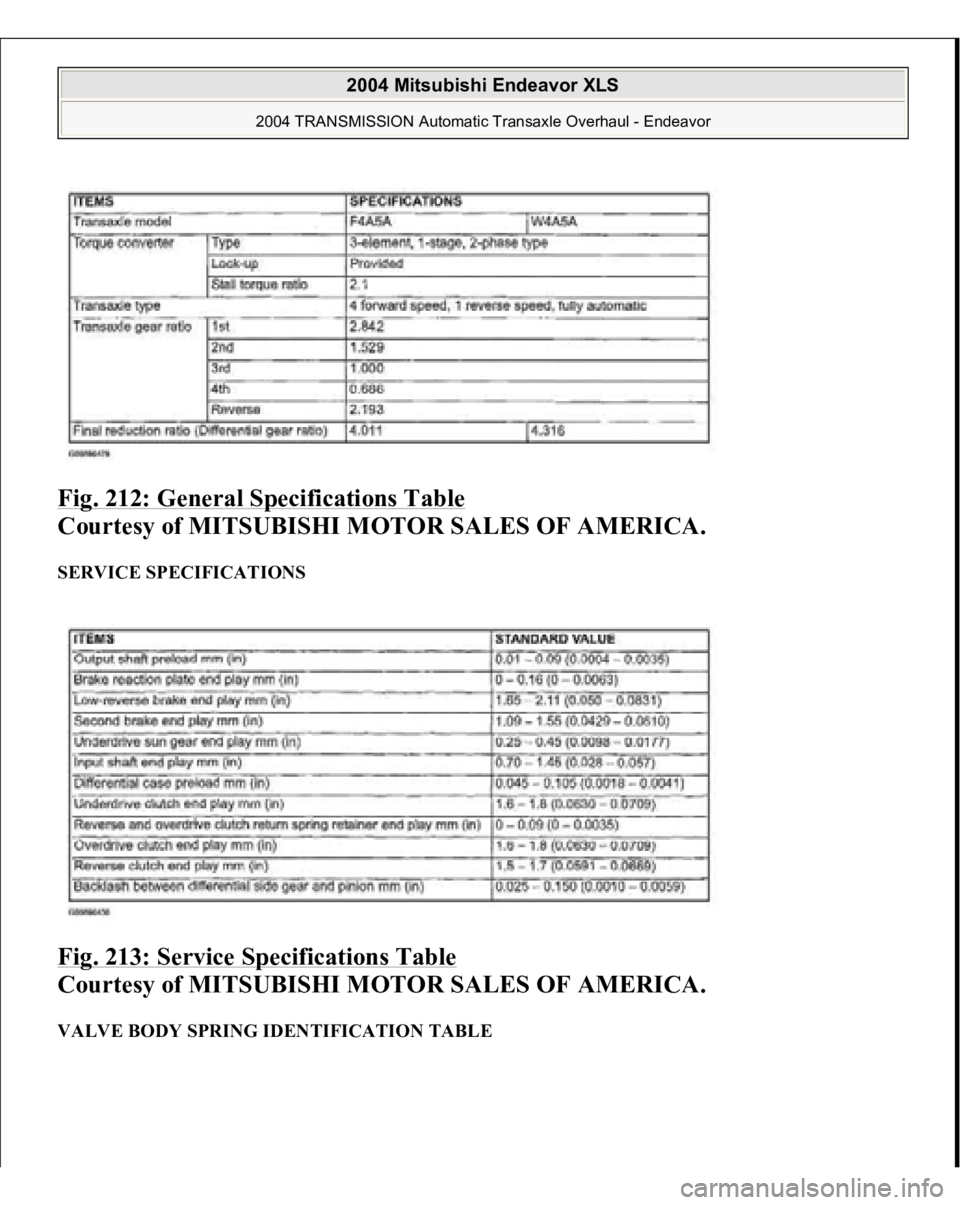

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 212: General Specifications Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SERVICE SPECIFICATIONS Fig. 213: Service Specifications Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Page 668 of 3870

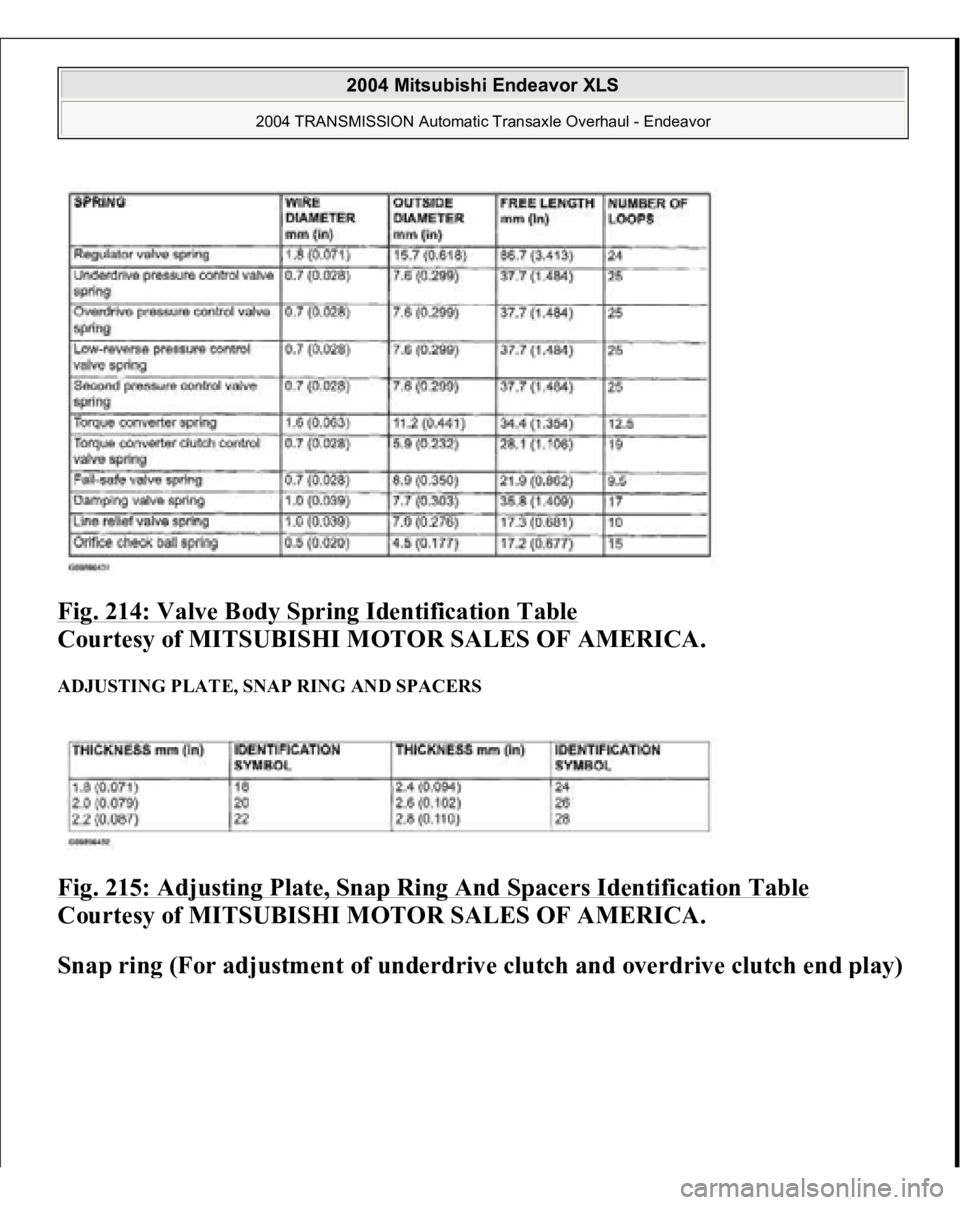

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 214: Valve Body Spring Identification Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ADJUSTING PLATE, SNAP RING AND SPACERS Fig. 215: Adjusting Plate, Snap Ring And Spacers Identificatio

Page 669 of 3870

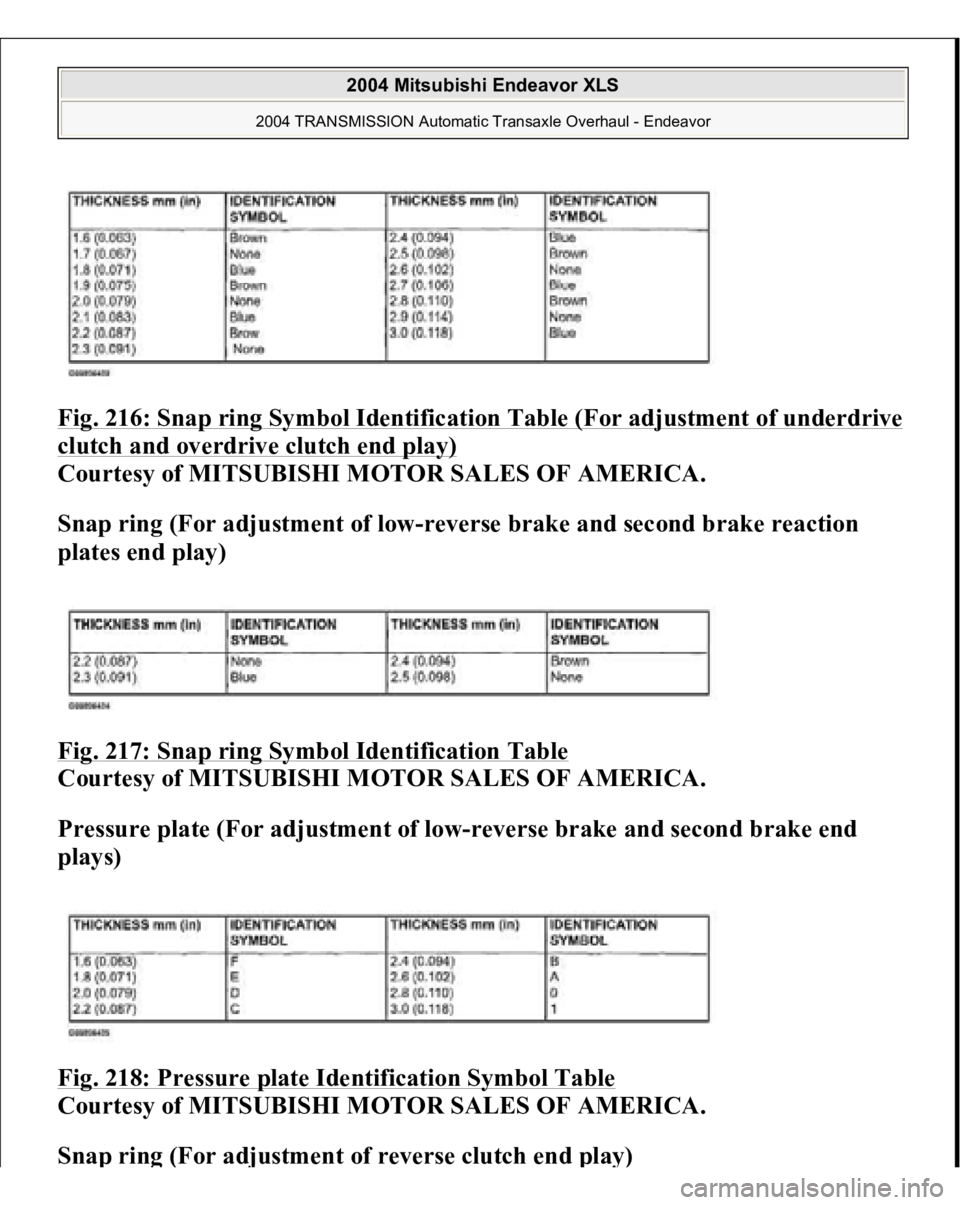

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 216: Sna p rin g Symbol Identification Table (For ad justment of underdrive clutch and overdrive clutch end play) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Snap ring (For adjustment of l

Page 670 of 3870

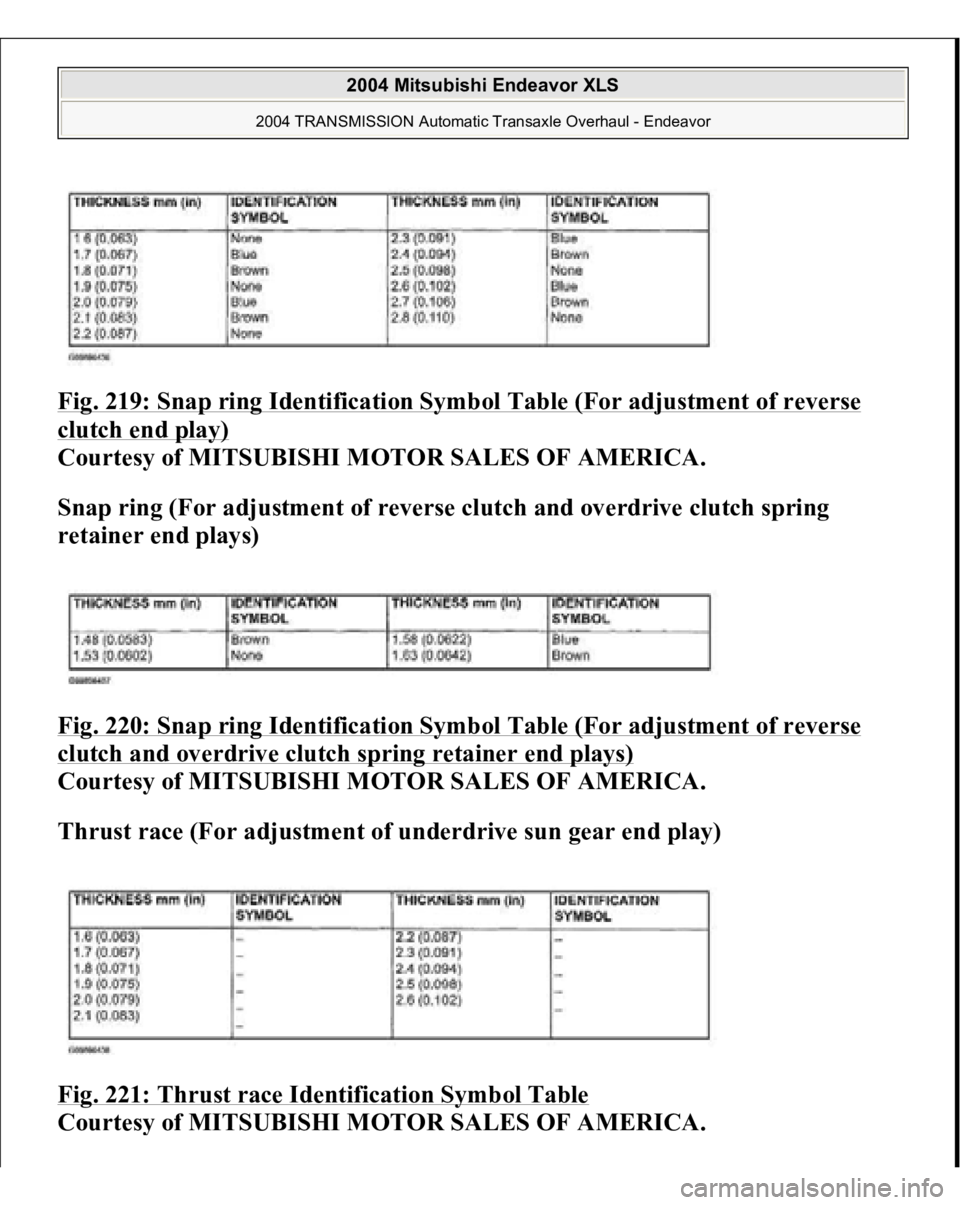

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 219: Snap ring Identification Symbol Table (For adjustment of reverse clutch end play) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Snap ring (For adjustment of reverse clutch and overdrive

Page 671 of 3870

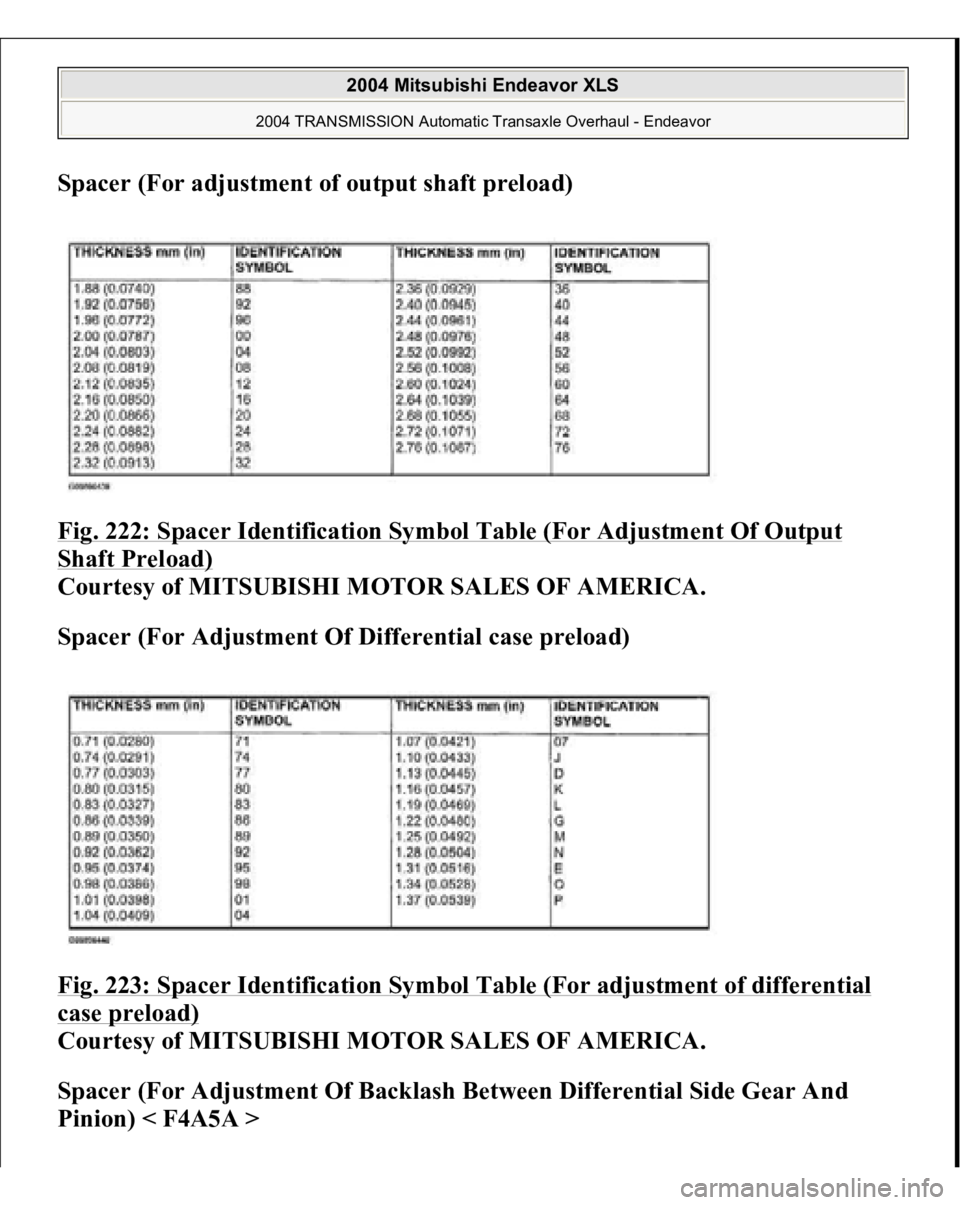

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Spacer (For adjustment of output shaft preload) Fig. 222: Spacer Identification Symbol Table (For Adjustment Of Output Shaft Preload) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Spacer (For Ad

Page 672 of 3870

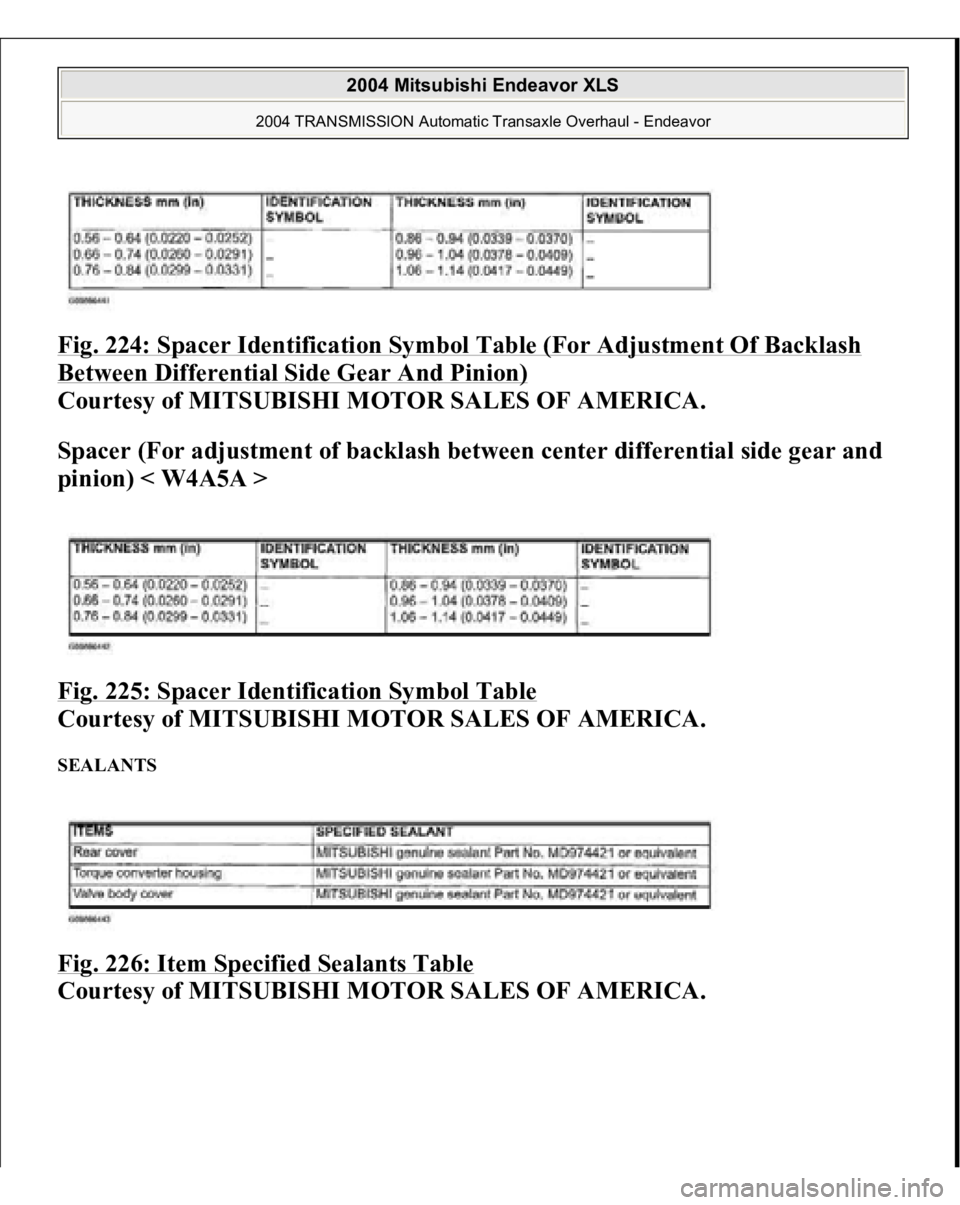

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 224: Spacer Identification Symbol Table (For Adjustment Of Backlash Between Differential Side Gear And Pinion) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Spacer (For adjustment of backlash
