Page 1737 of 3870

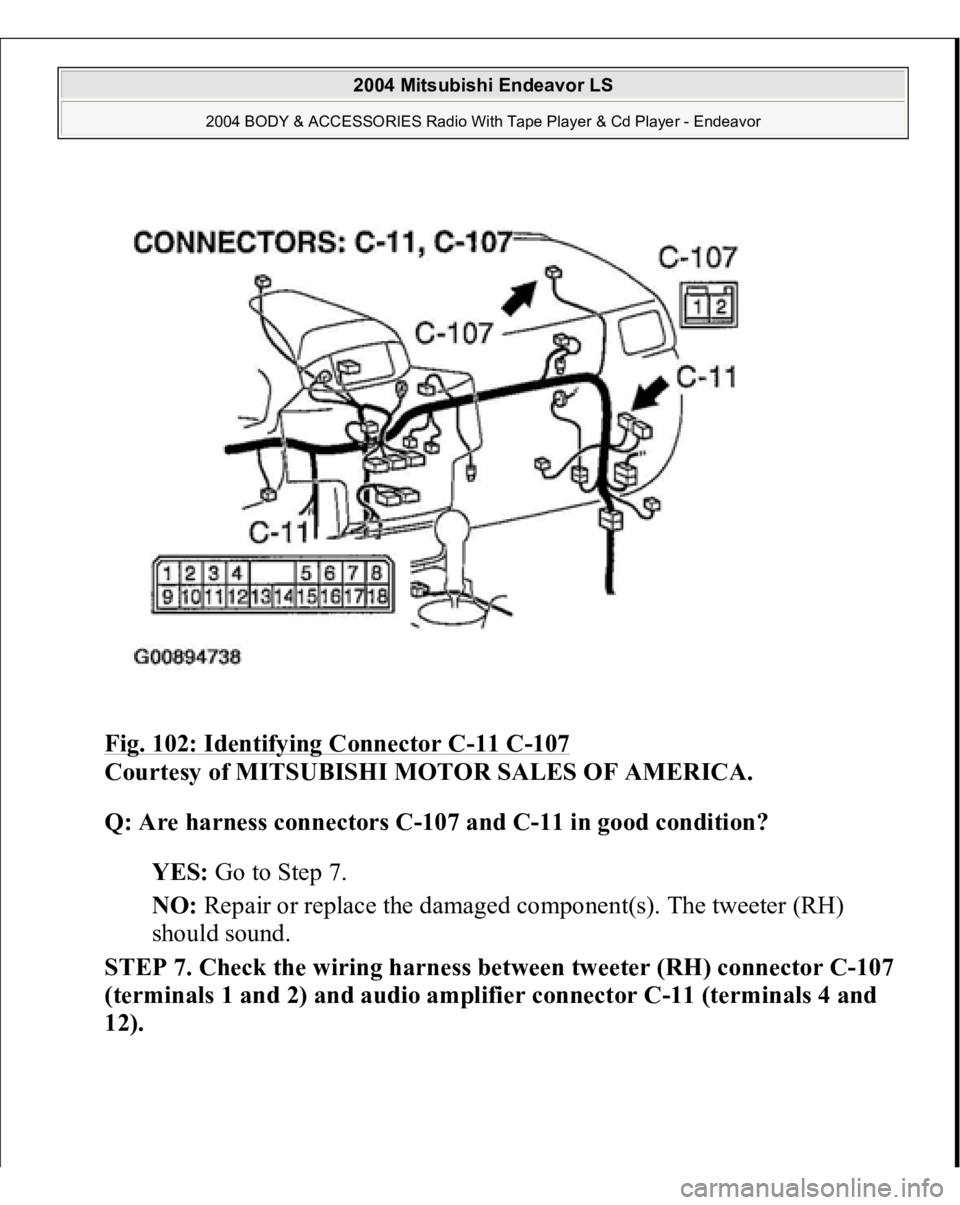

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 102: Identifying Connector C -11 C -107 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are harness connectors C-107 and C-11 in good condition? YES: Go to Step 7. NO: Repair or replace

Page 1738 of 3870

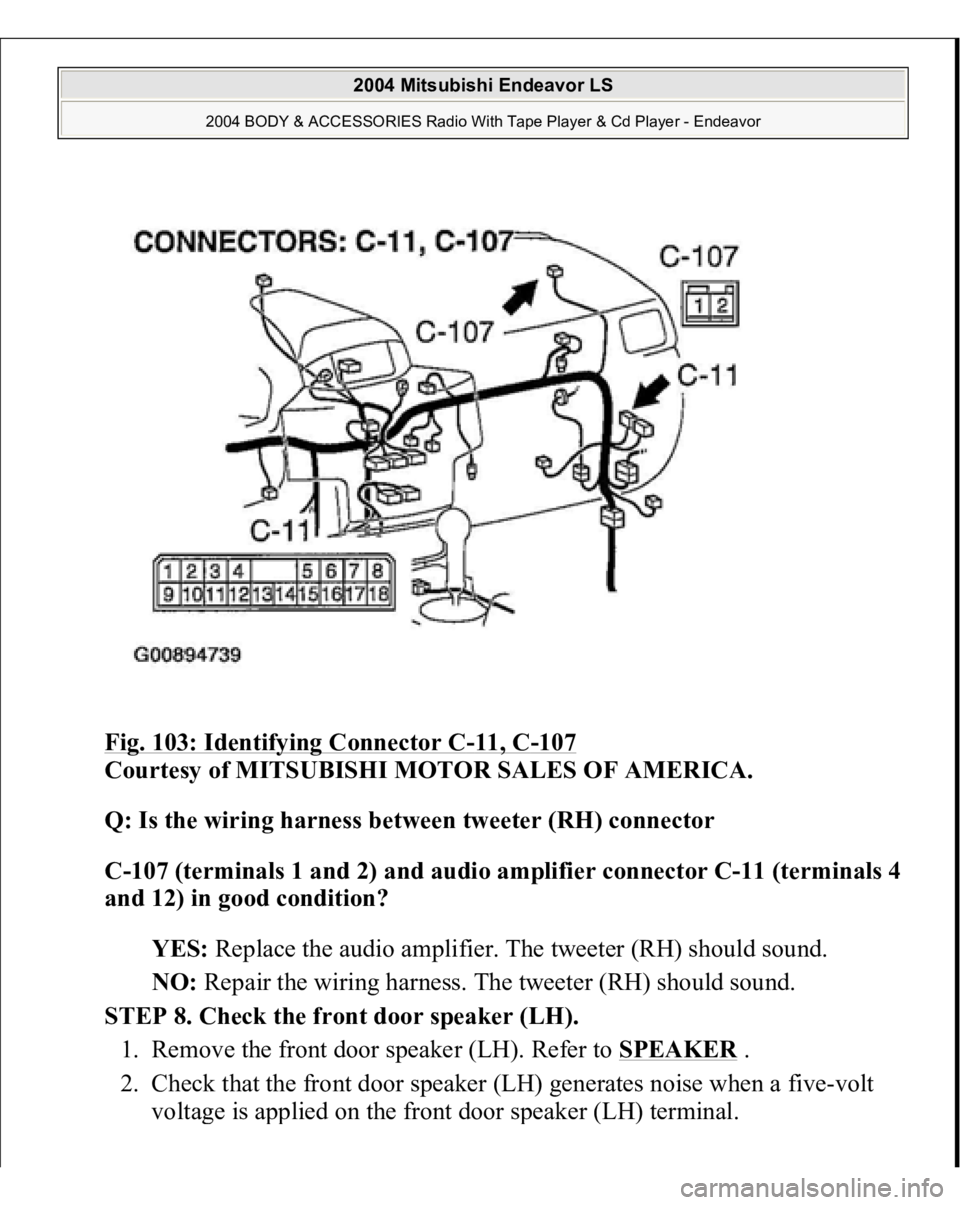

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 103: Identifying Connector C -11, C -107 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between tweeter (RH) connector C-107 (terminals 1 and 2) and audio amplifier

Page 1739 of 3870

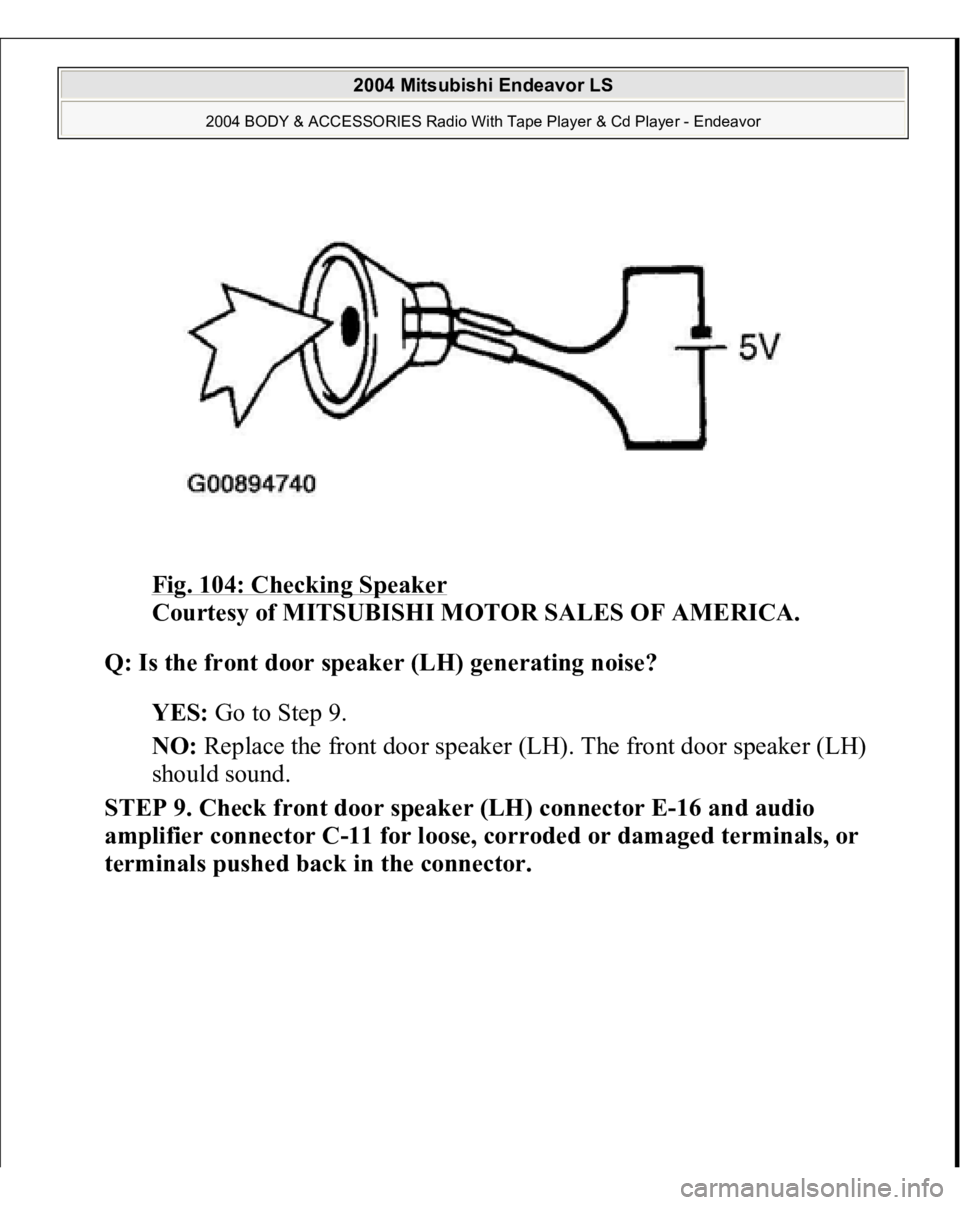

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 104: Checking Speaker Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the front door speaker (LH) generating noise? YES: Go to Step 9. NO: Replace the front door speaker (LH). The fro

Page 1740 of 3870

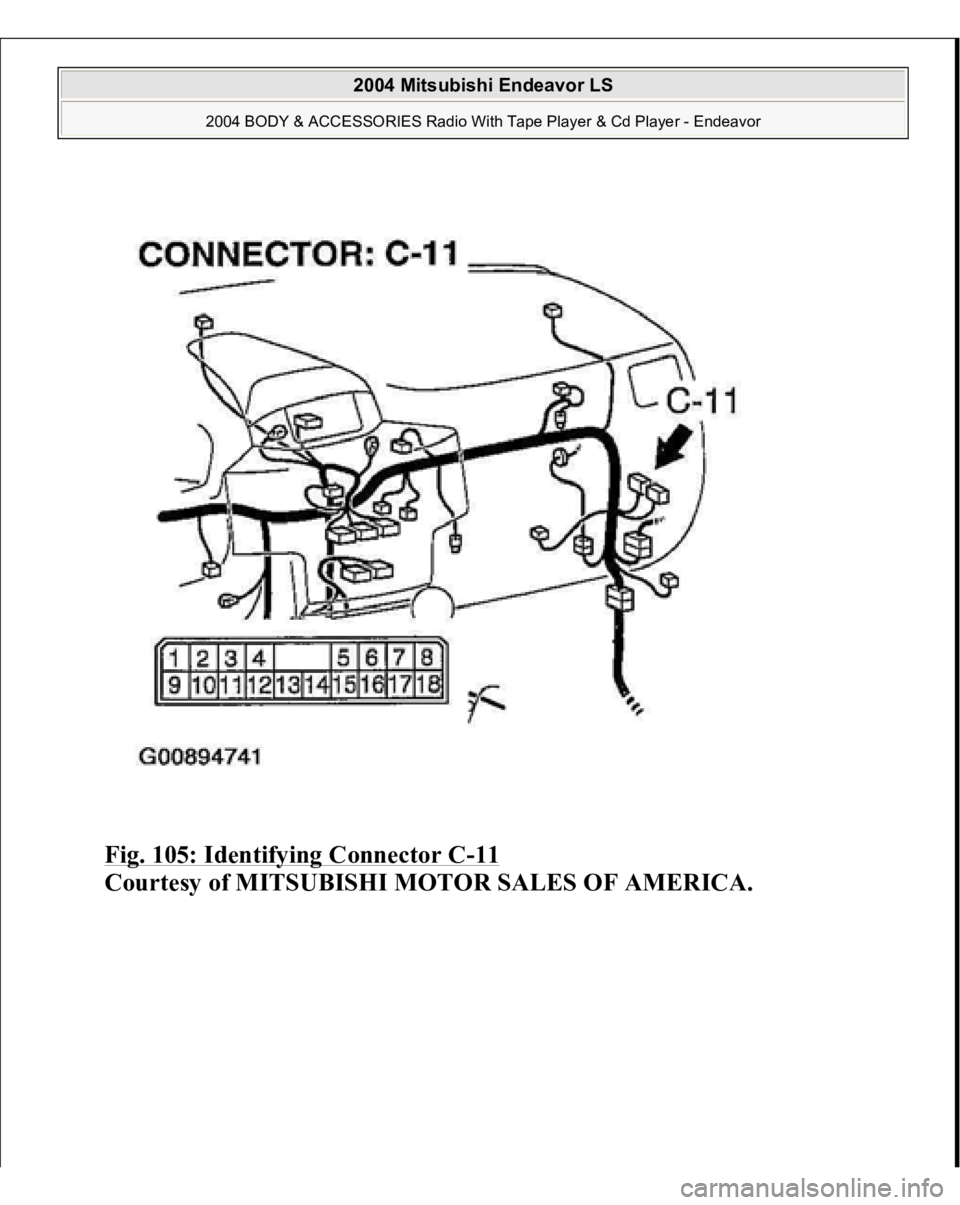

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 105: Identifying Connector C -11 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Page 1741 of 3870

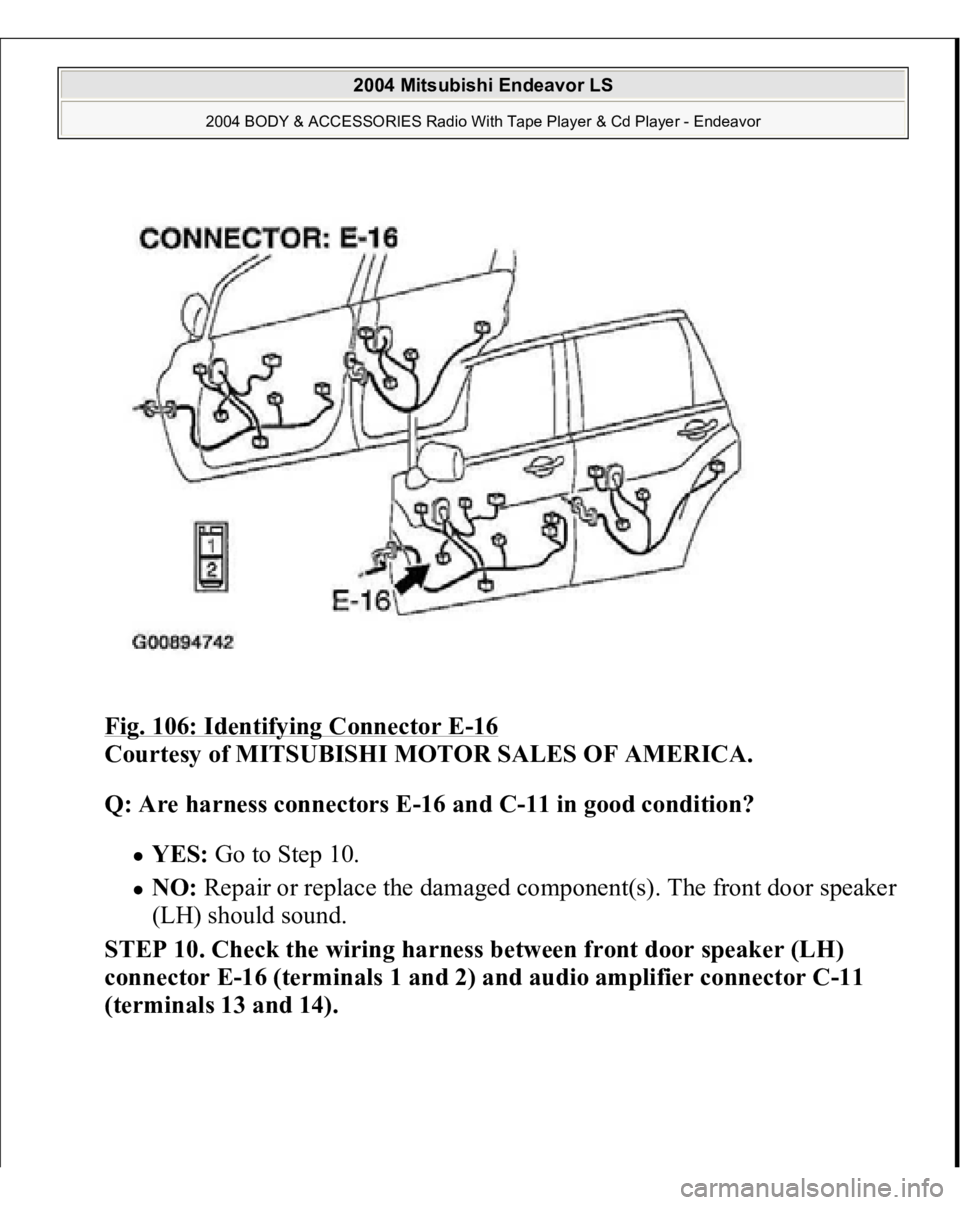

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 106: Identifying Connector E -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are harness connectors E-16 and C-11 in good condition? YES: Go to Step 10. NO: Repair or replace the damag

Page 1742 of 3870

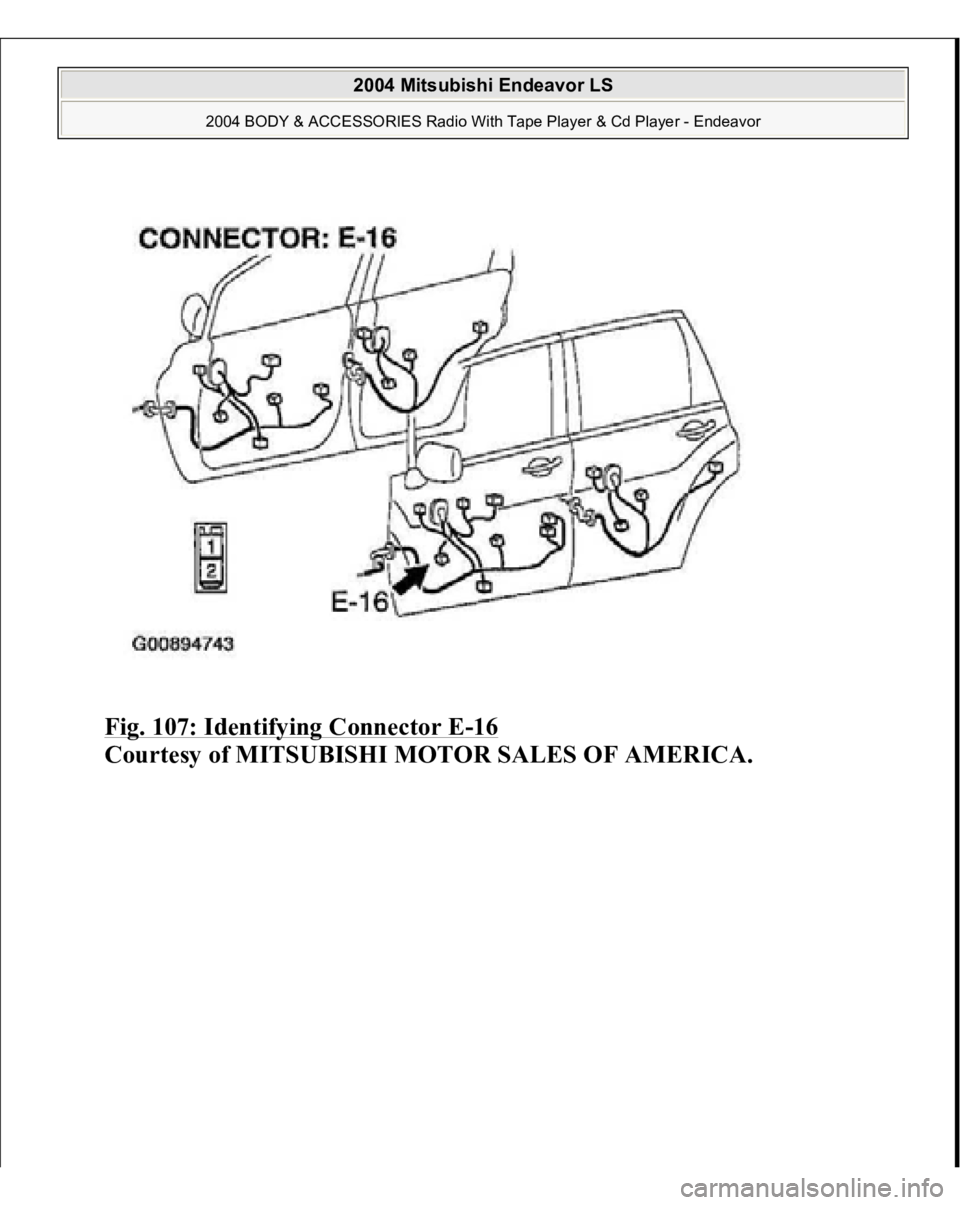

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 107: Identifying Connector E -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Page 1743 of 3870

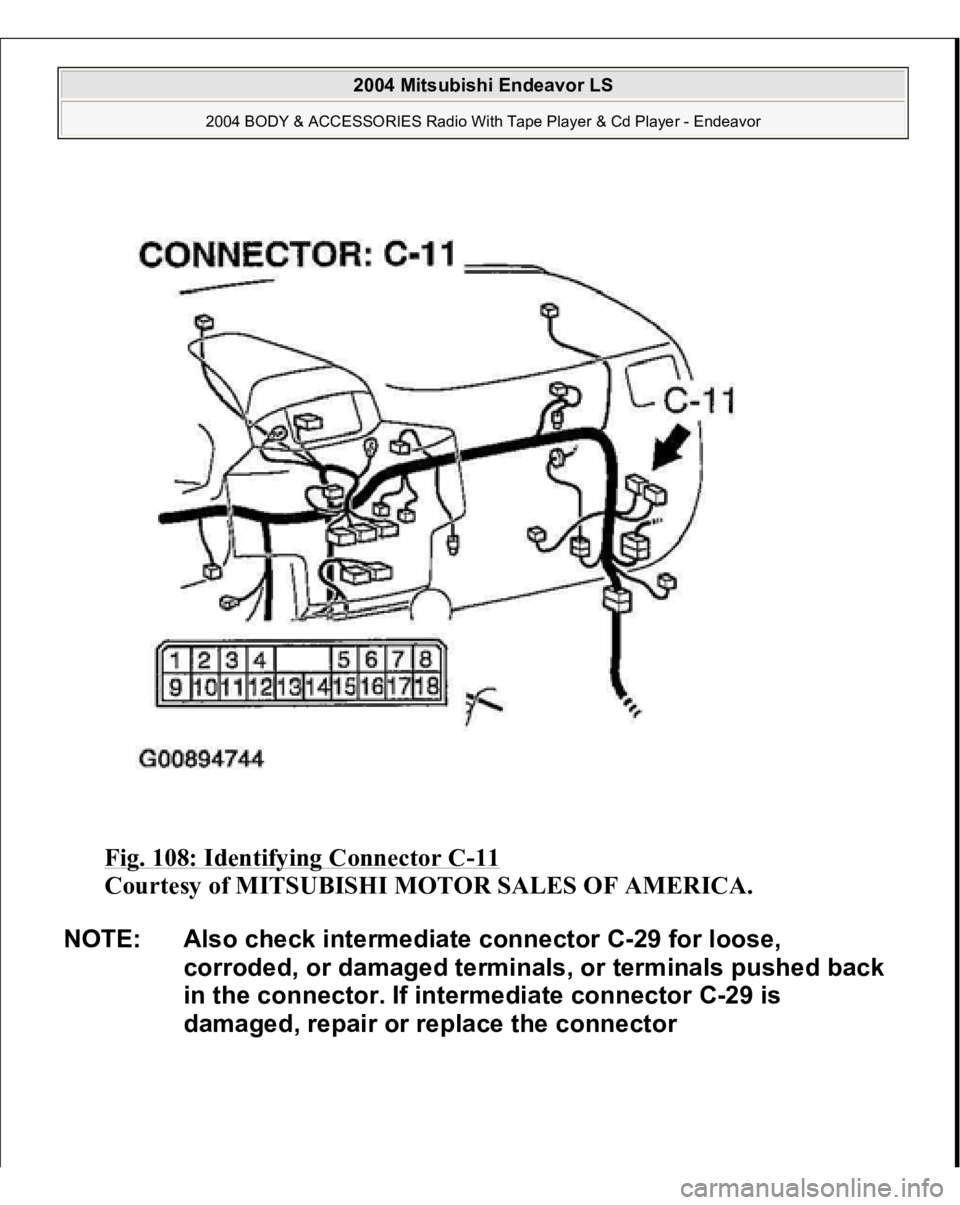

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 108: Identifying Connector C -11 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. NOTE: Also check intermediate connector C-29 for loose, corroded, or damaged terminals, or terminals pushed back

Page 1744 of 3870

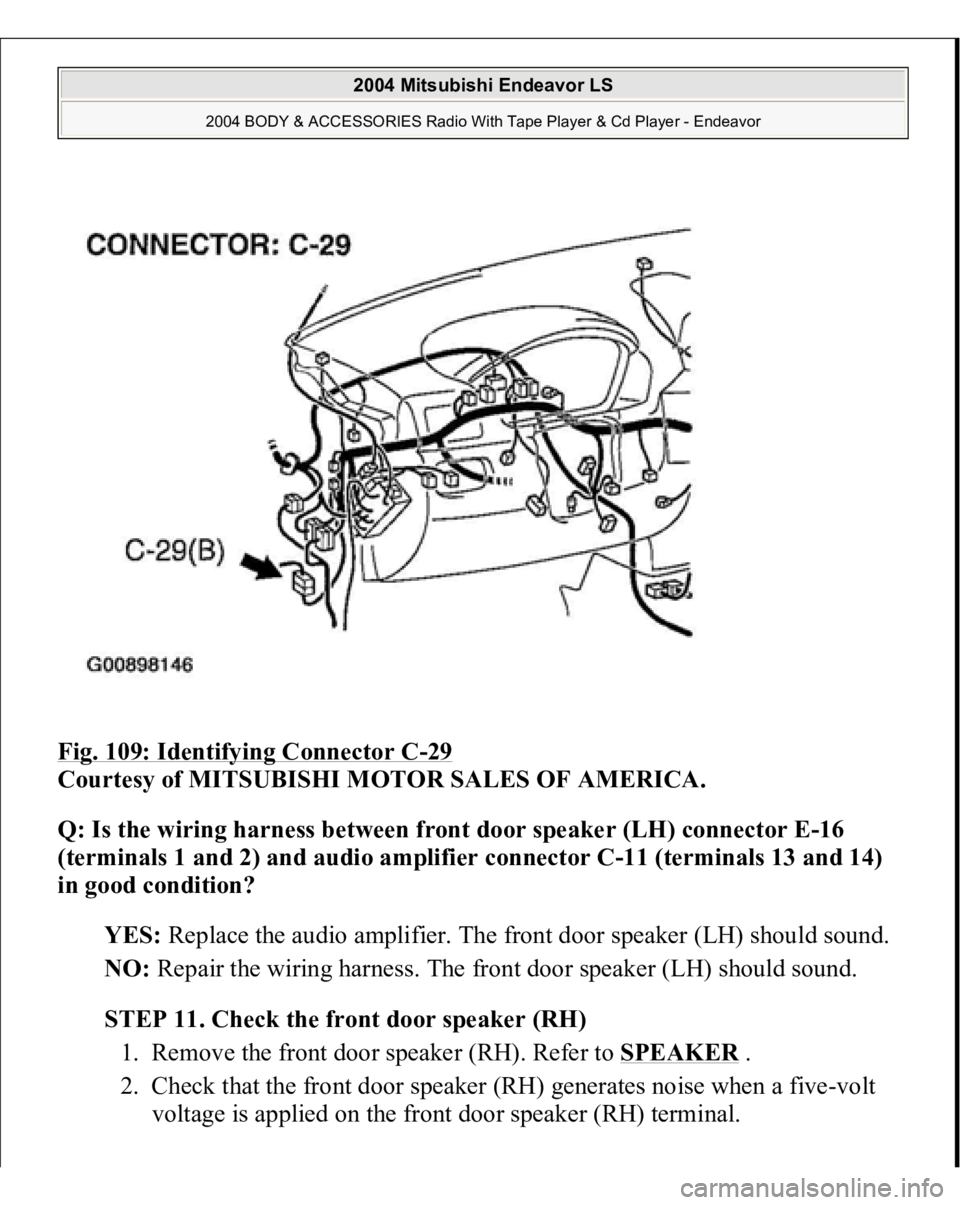

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 109: Identifying Connector C -29 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between front door speaker (LH) connector E-16 (terminals 1 and 2) and audio amplifier
