MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Page 458 of 3870

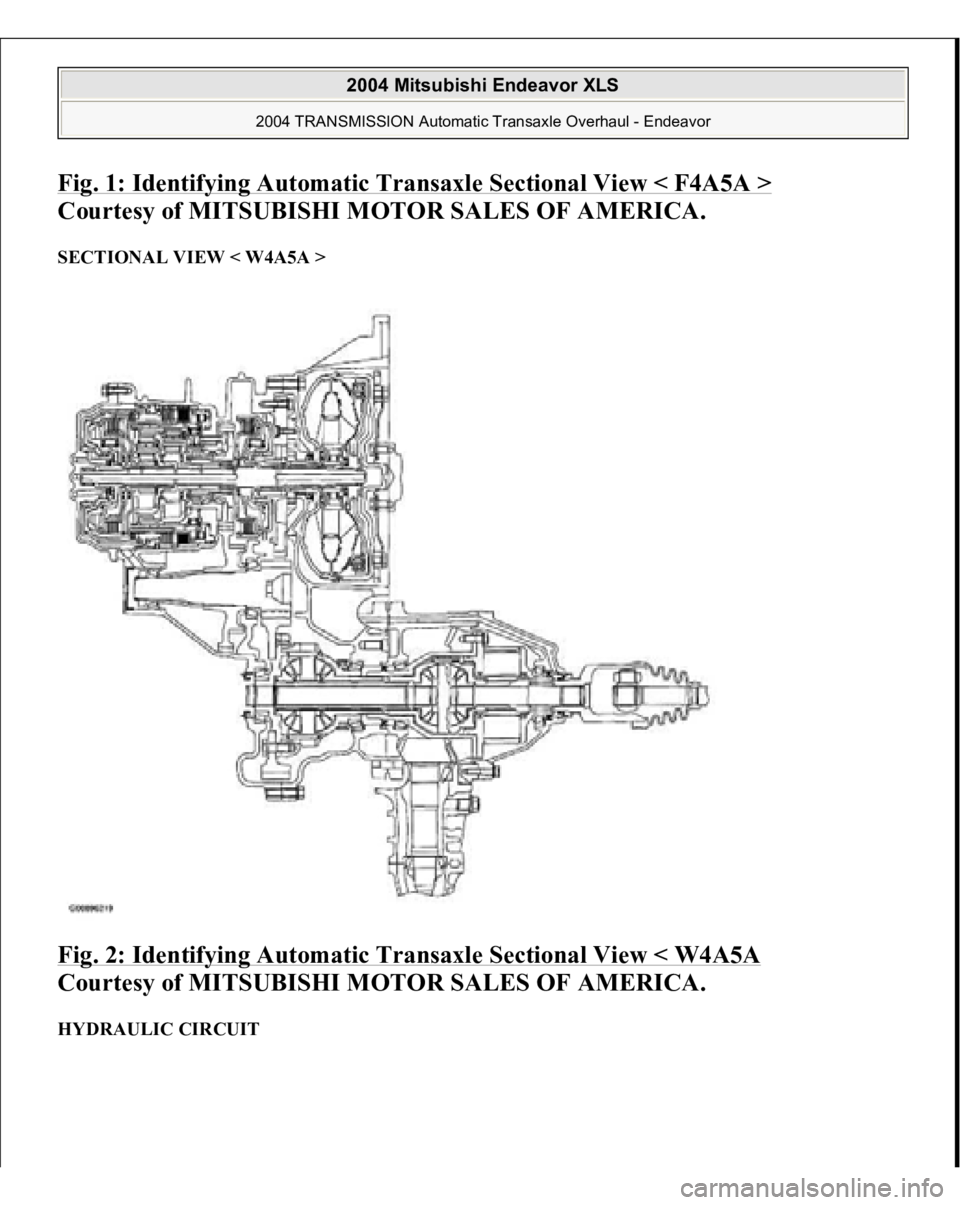

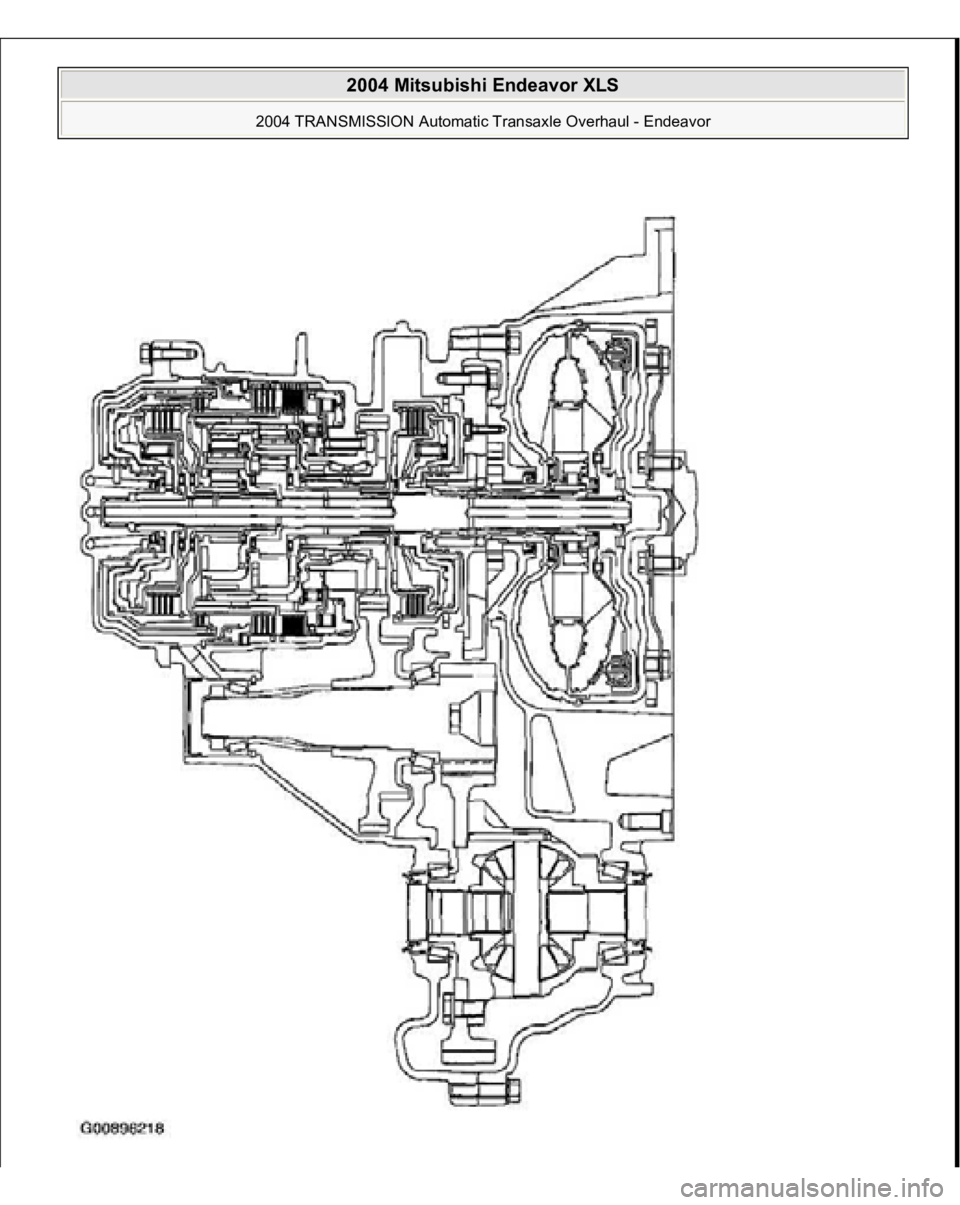

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 1: Identifying Automatic Transaxle Sectional View < F4A5A > Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SECTIONAL VIEW < W4A5A > Fig. 2: Identifying Automatic Transaxle Sectional View < W4A

Page 459 of 3870

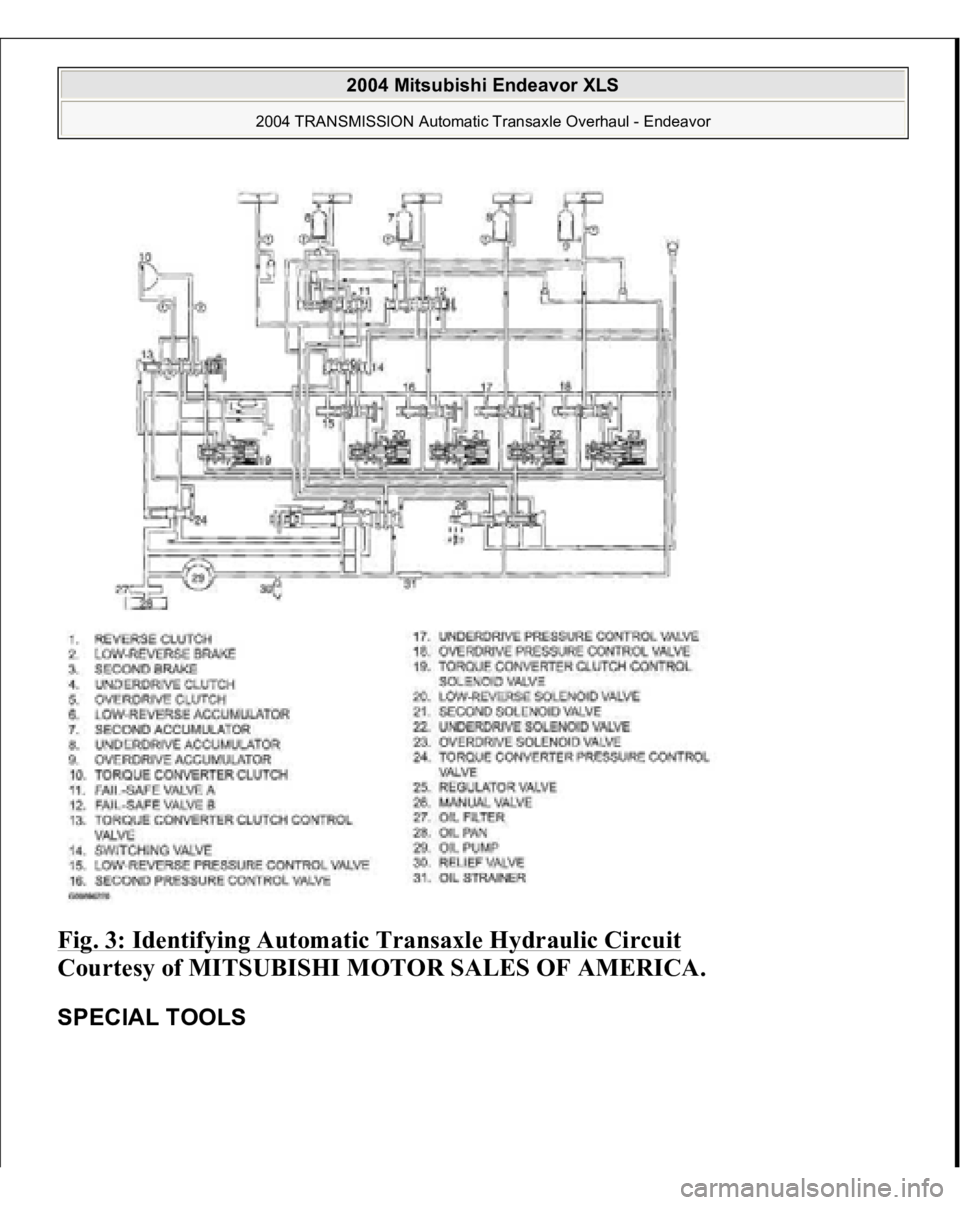

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Identifying Automatic Transaxle Hydraulic Circuit Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SPECIAL TOOLS 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul

Page 460 of 3870

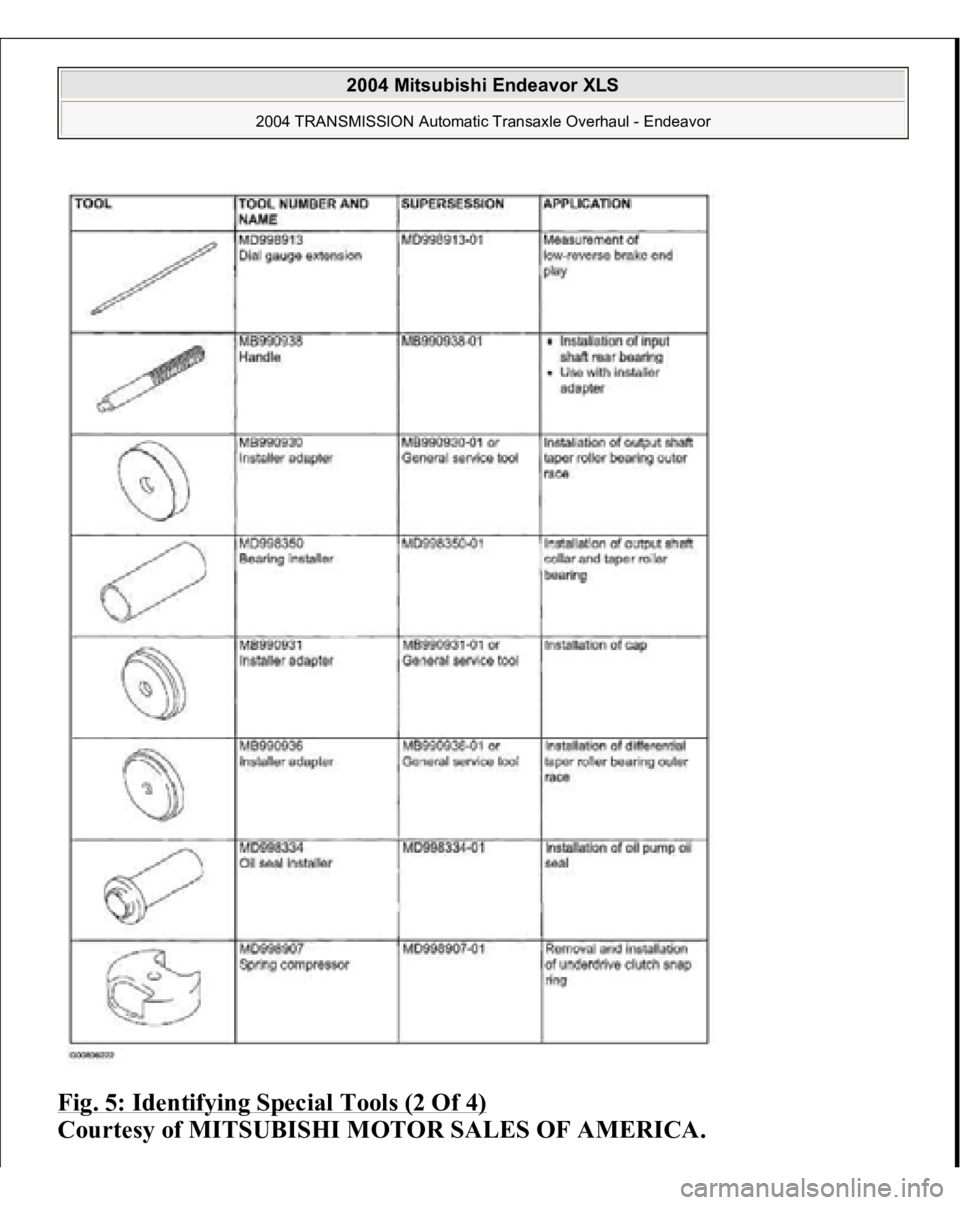

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 4: Identifying Special Tools (1 Of 4) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Page 461 of 3870

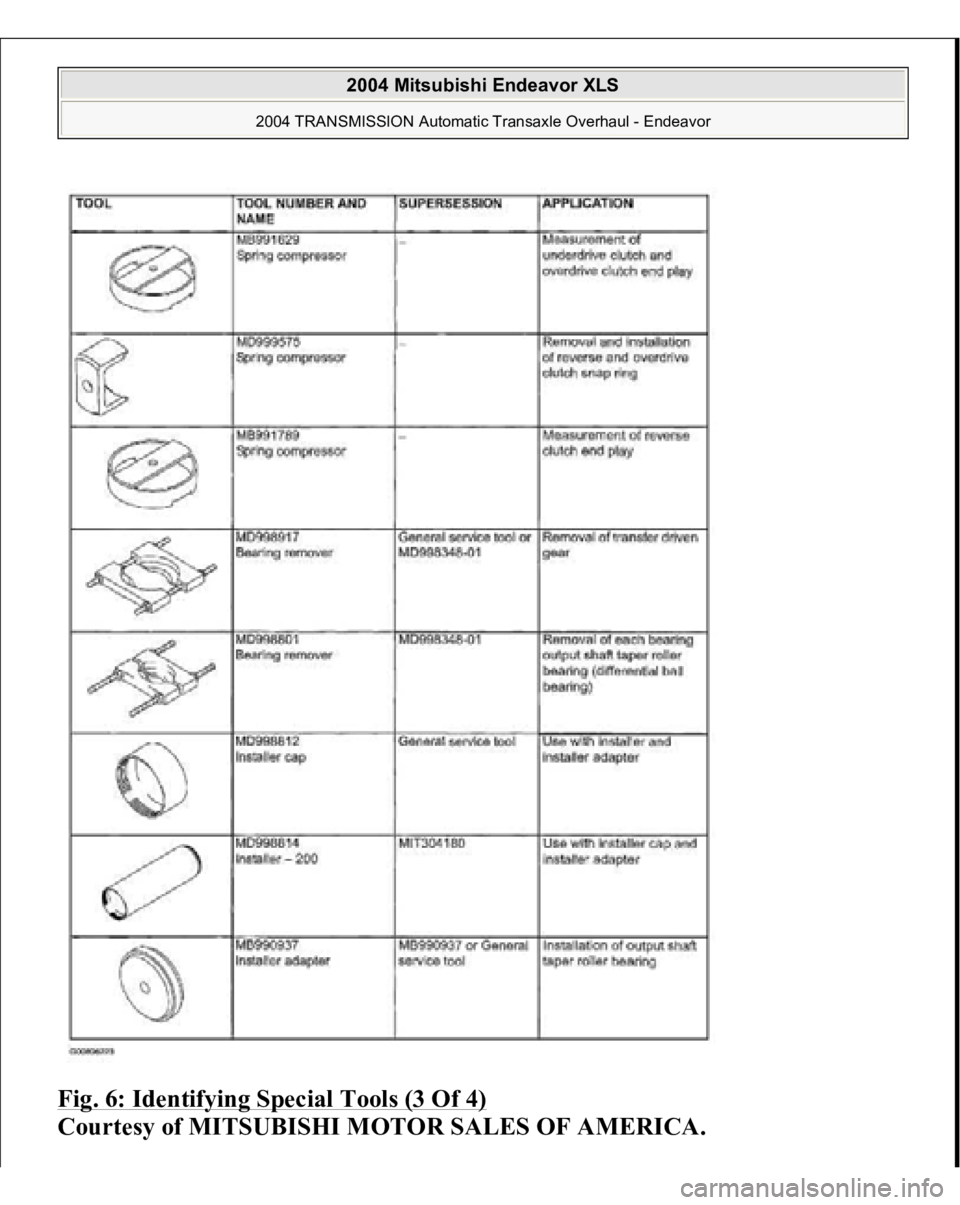

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Identifying Special Tools (2 Of 4) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Page 462 of 3870

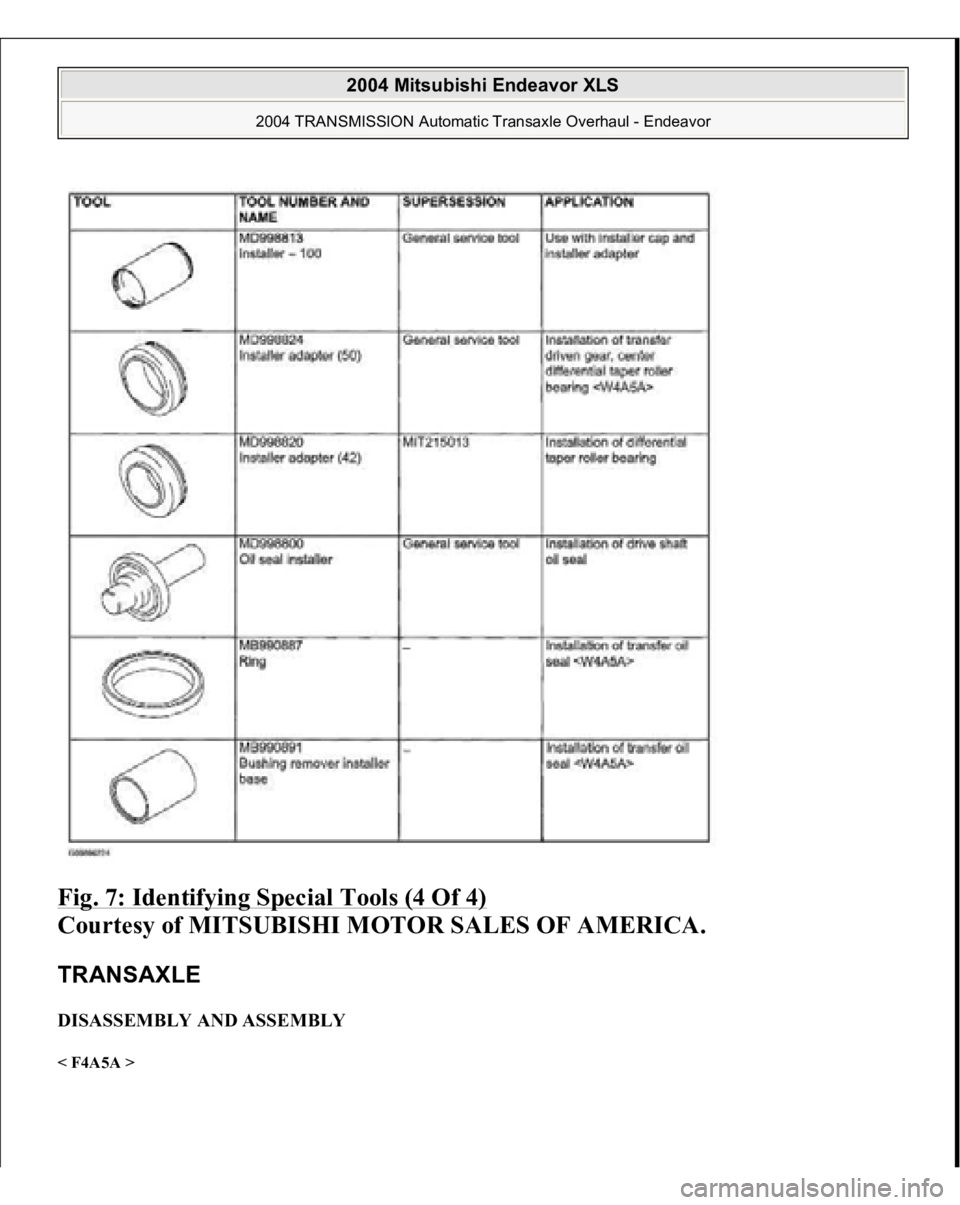

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 6: Identifying Special Tools (3 Of 4) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Page 463 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: Identifying Special Tools (4 Of 4) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. TRANSAXLE DISASSEMBLY AND ASSEMBLY < F4A5A > 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Tr

Page 464 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 8: Exploded View And Torque Specification Automatic Transaxle System (1 Of 5 )) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Trans
