Page 2745 of 3870

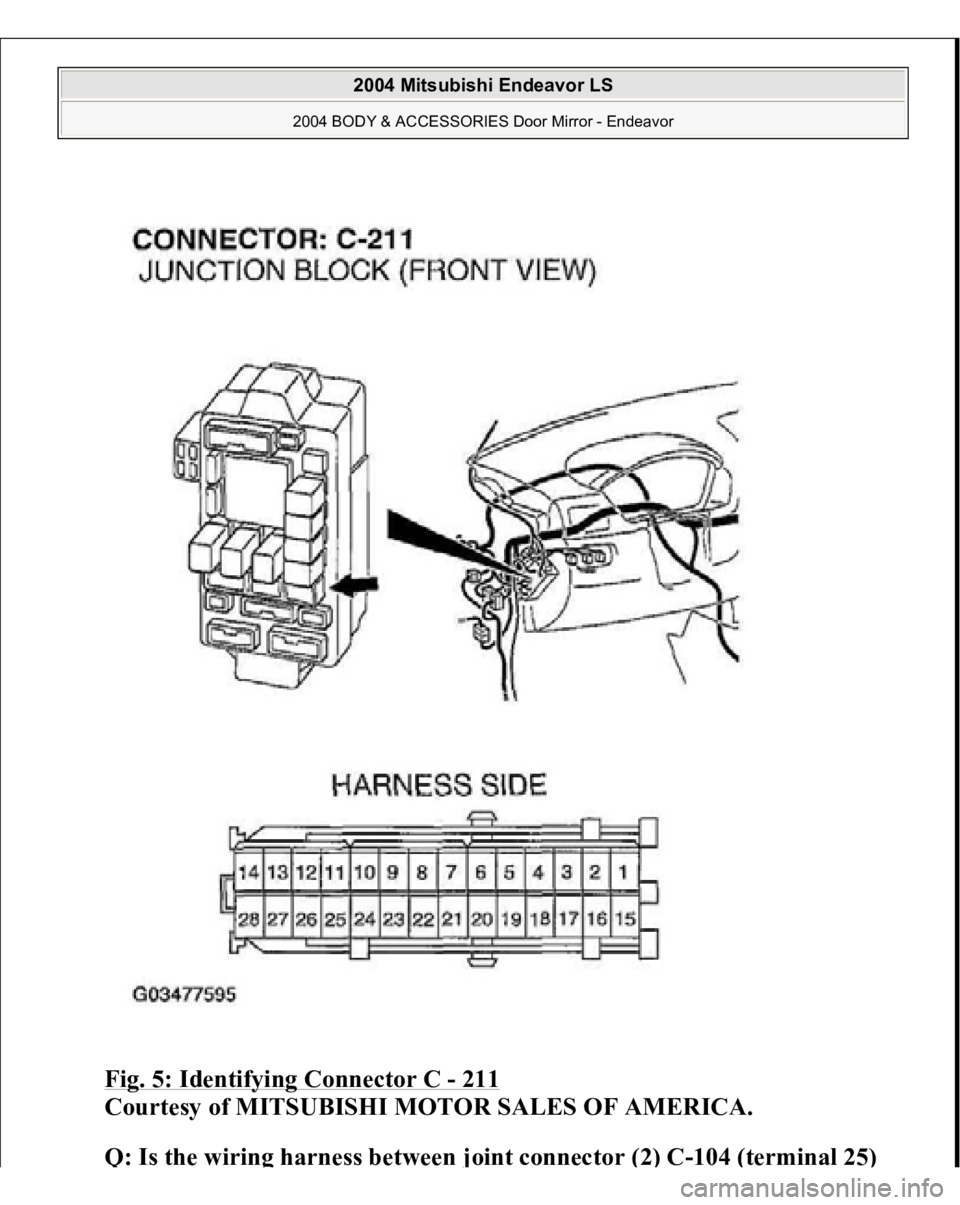

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Identifying Connector C - 211 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wirin g harness between joint connector (2) C-104 (terminal 25 ) 2004 Mitsubishi Endeavor LS 2

Page 2746 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual and junction block connector C-211 (terminal 3) in good condition? YES: Go to Step 4. NO: Repair the wiring harness as necessary. Check if the all heated door mirrors works normally. STEP 4. Ch

Page 2747 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Go to Step 5. NO: Repair or replace the damaged connector. Check if the all heated door mirrors works normally. STEP 5. Check the wiring harness between joint connector (2) C-104 (terminal

Page 2748 of 3870

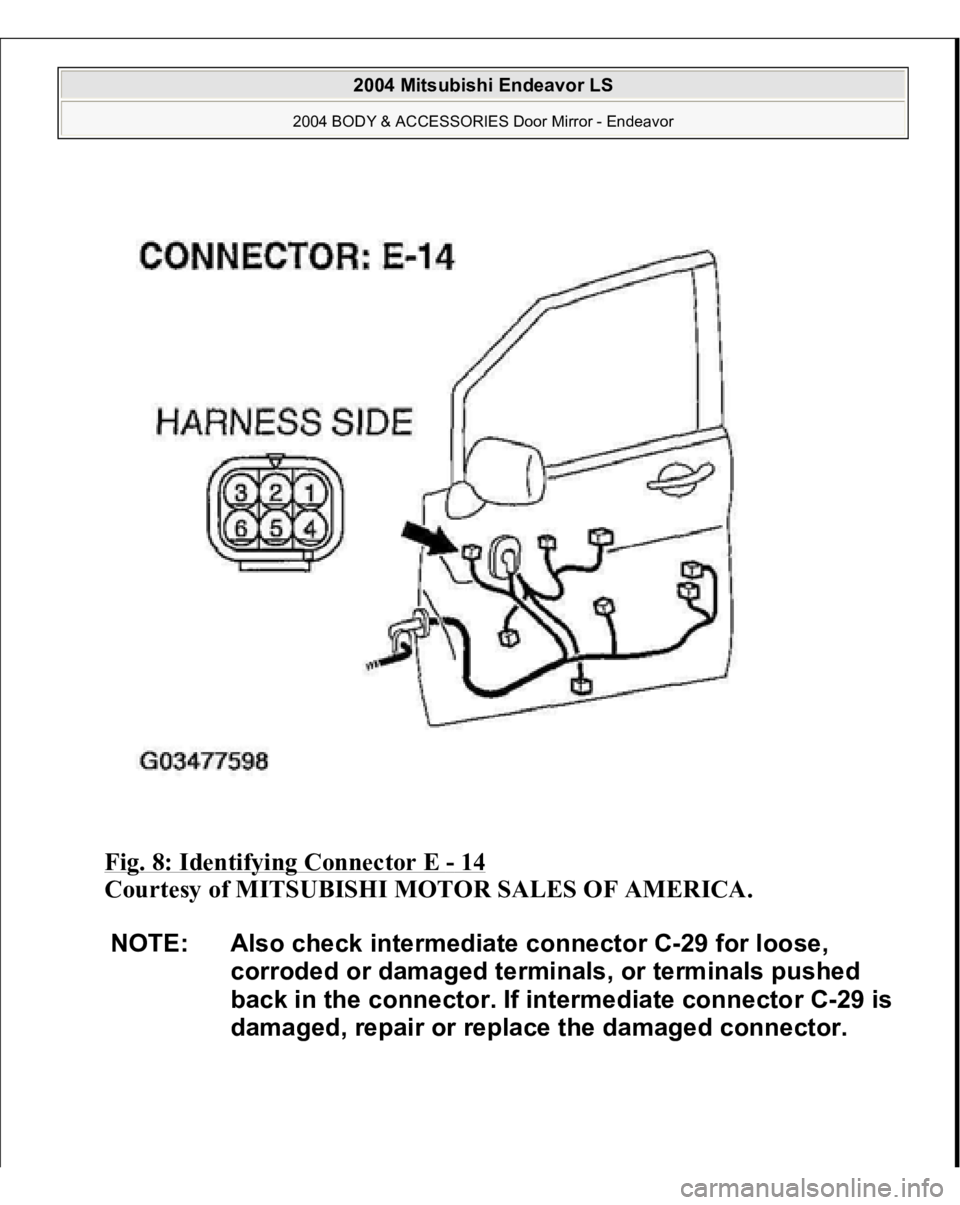

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 8: Identifying Connector E - 14 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. NOTE: Also check intermediate connector C-29 for loose, corroded or damaged terminals, or terminals pushed bac

Page 2749 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 9: Identifying Connector C - 29 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between joint connector (2) C-104 (terminal 23) and remote controlled mirror (LH) conn

Page 2750 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 10: Identifying Connector E - 01 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is remote controlled mirror (RH) connector E-01 in good condition? YES: Go to Step 7. NO: Repair or repl

Page 2751 of 3870

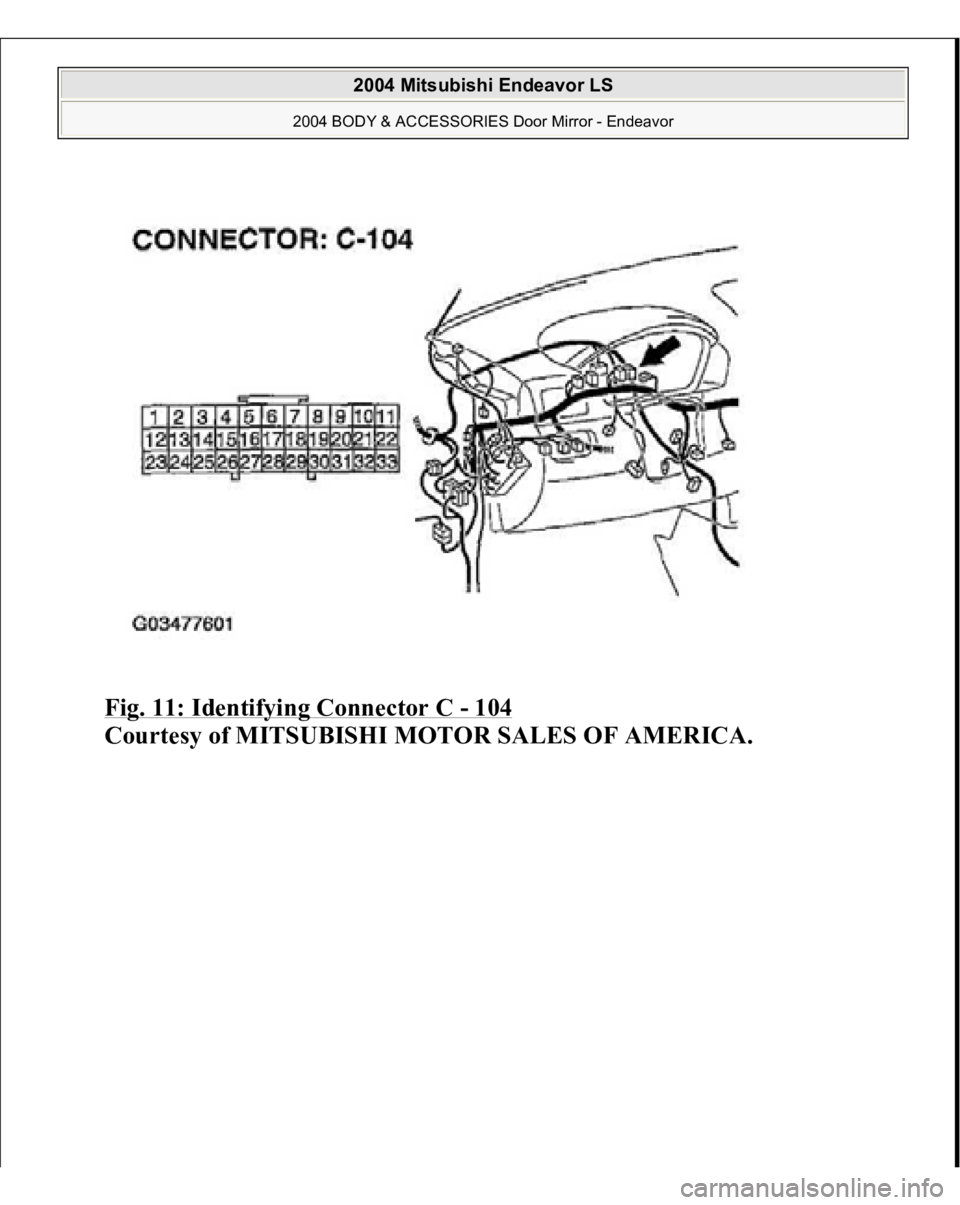

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 11: Identifying Connector C - 104 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door Mirror - Endeavor

Page 2752 of 3870

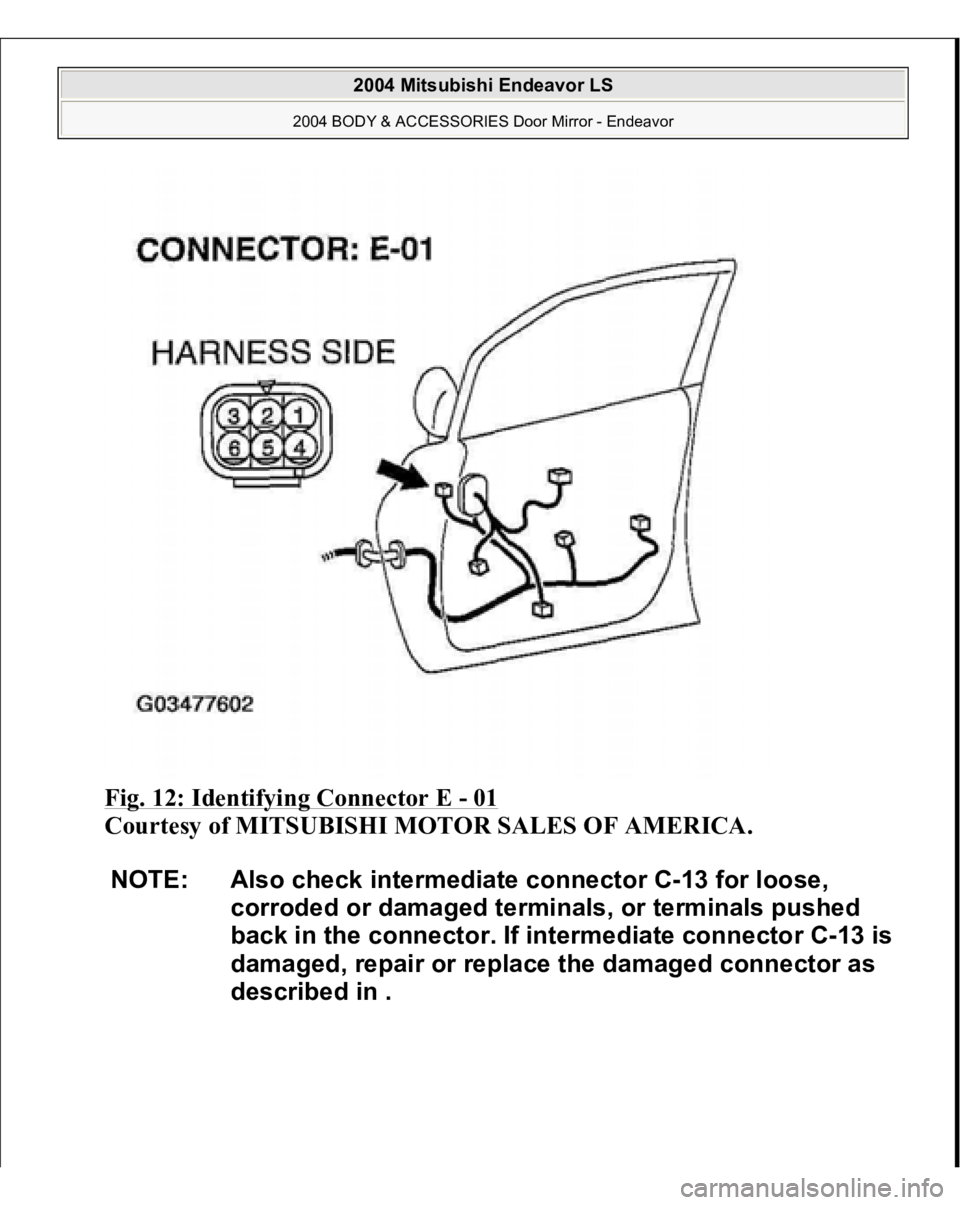

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 12: Identifying Connector E - 01 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. NOTE: Also check intermediate connector C-13 for loose, corroded or damaged terminals, or terminals pushed ba
