Page 2537 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 11: Connecting Special Tool MB -991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2538 of 3870

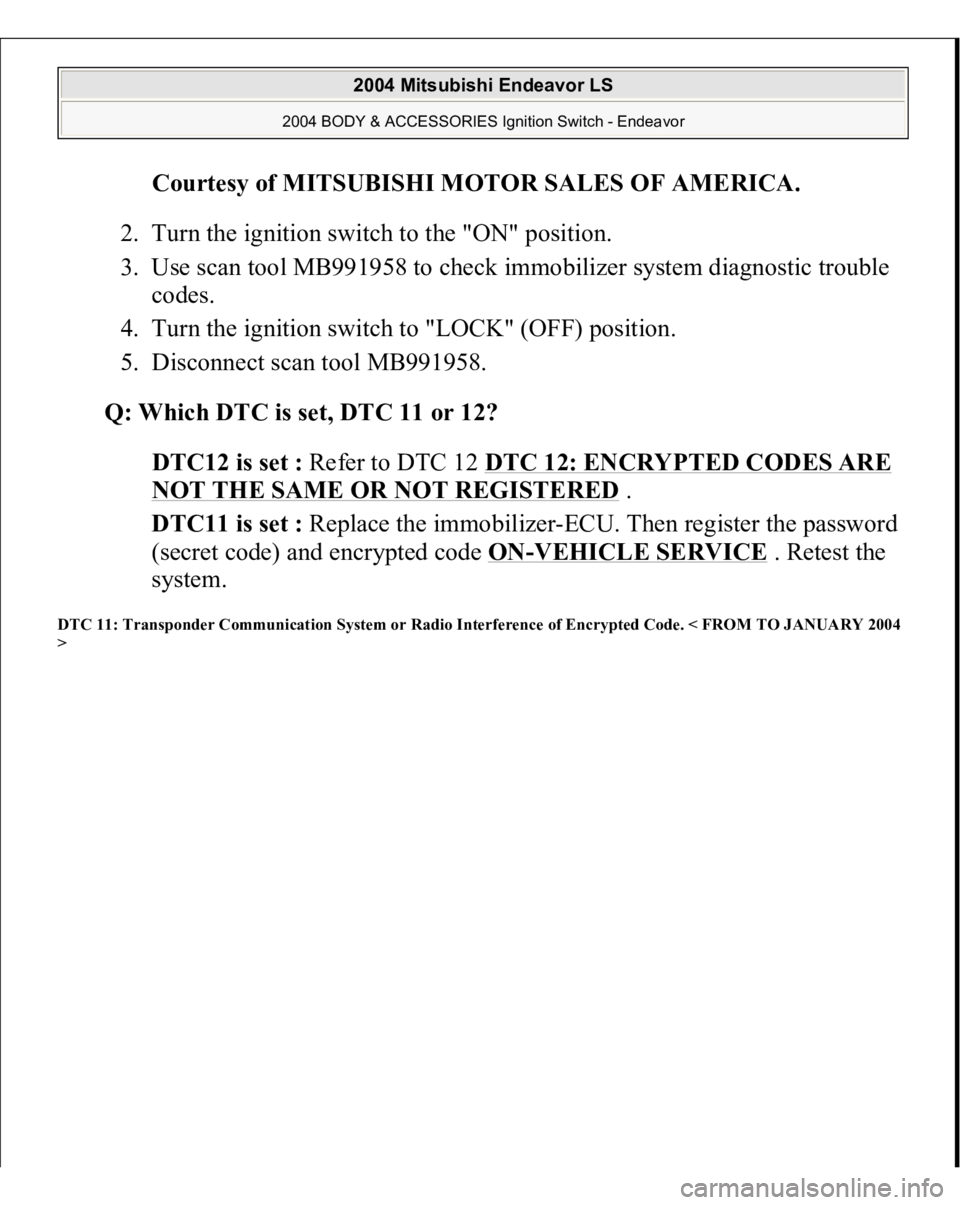

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Use scan tool MB991958 to check immobilizer system diagnostic trouble codes. 4. Turn

Page 2539 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 12: Ignition Key Ring and Immobilizer -ECU Circuit Diagram & Connector Identification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION The ignition key is powered by the ignit

Page 2540 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual TROUBLESHOOTING HINTS Radio interference of the encrypted code Malfunction of the transponder Malfunction of the immobilizer-ECU DIAGNOSIS Required Special Tools: MB991958: Scan Tool (MUT-III S

Page 2541 of 3870

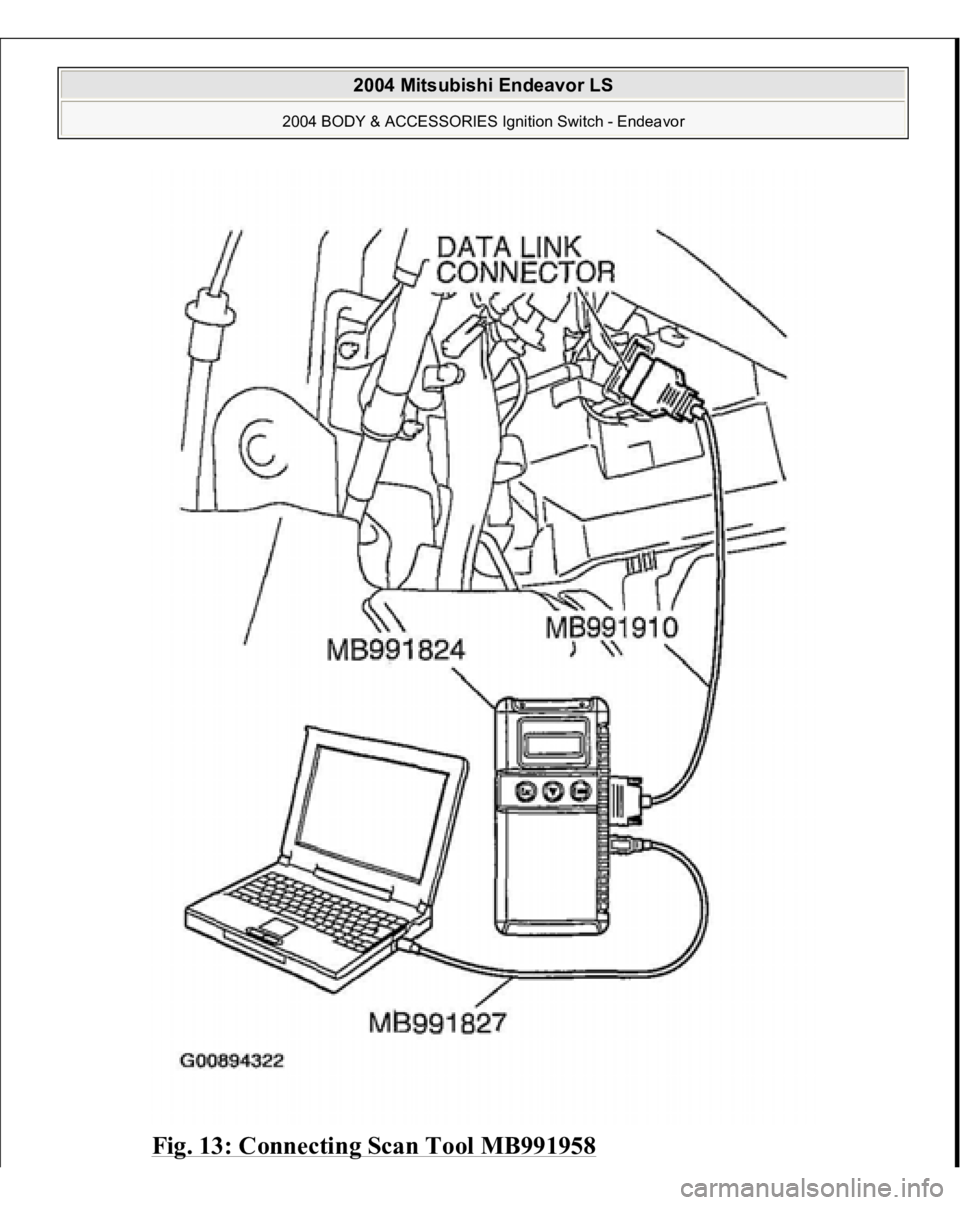

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 13: Connecting Scan Tool MB991958 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2542 of 3870

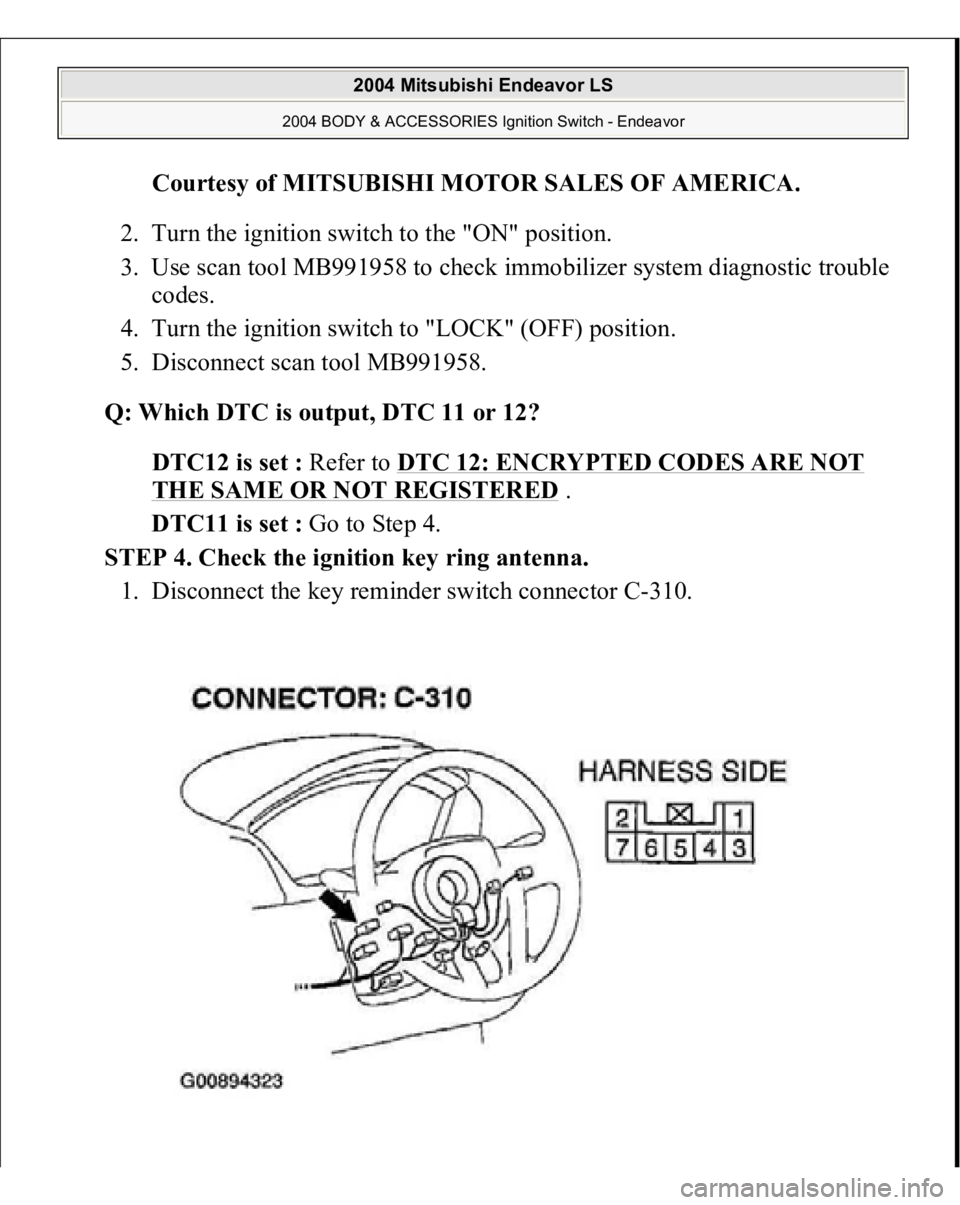

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Use scan tool MB991958 to check immobilizer system diagnostic trouble codes. 4. Turn

Page 2543 of 3870

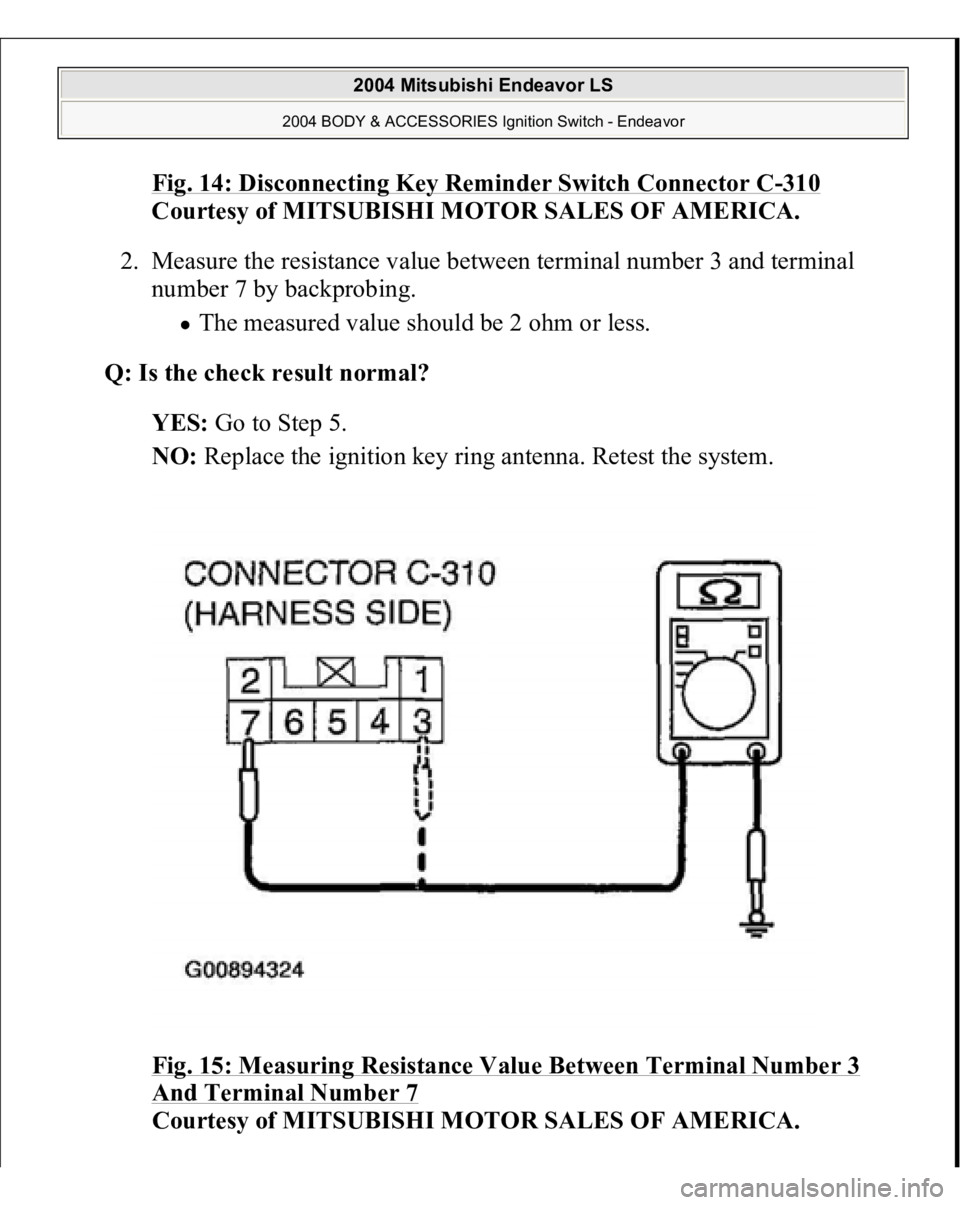

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 14: Disconnecting Key Reminder Switch Connector C -310 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Measure the resistance value between terminal number 3 and terminal number 7 by backpr

Page 2544 of 3870

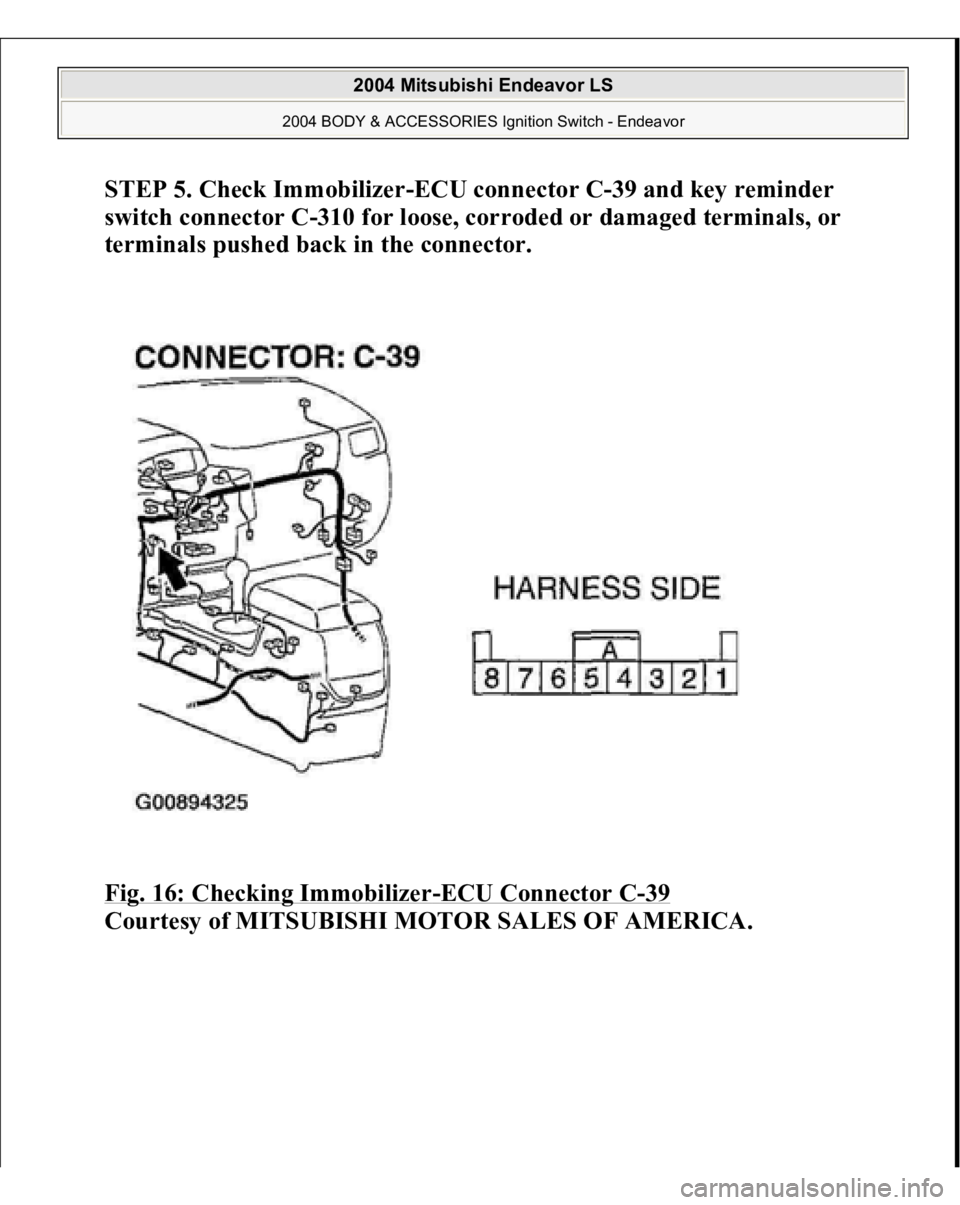

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 5. Check Immobilizer-ECU connector C-39 and key reminder switch connector C-310 for loose, corroded or damaged terminals, or terminals pushed back in the connector. Fig. 16: Checking Immobiliz
