Page 2897 of 3870

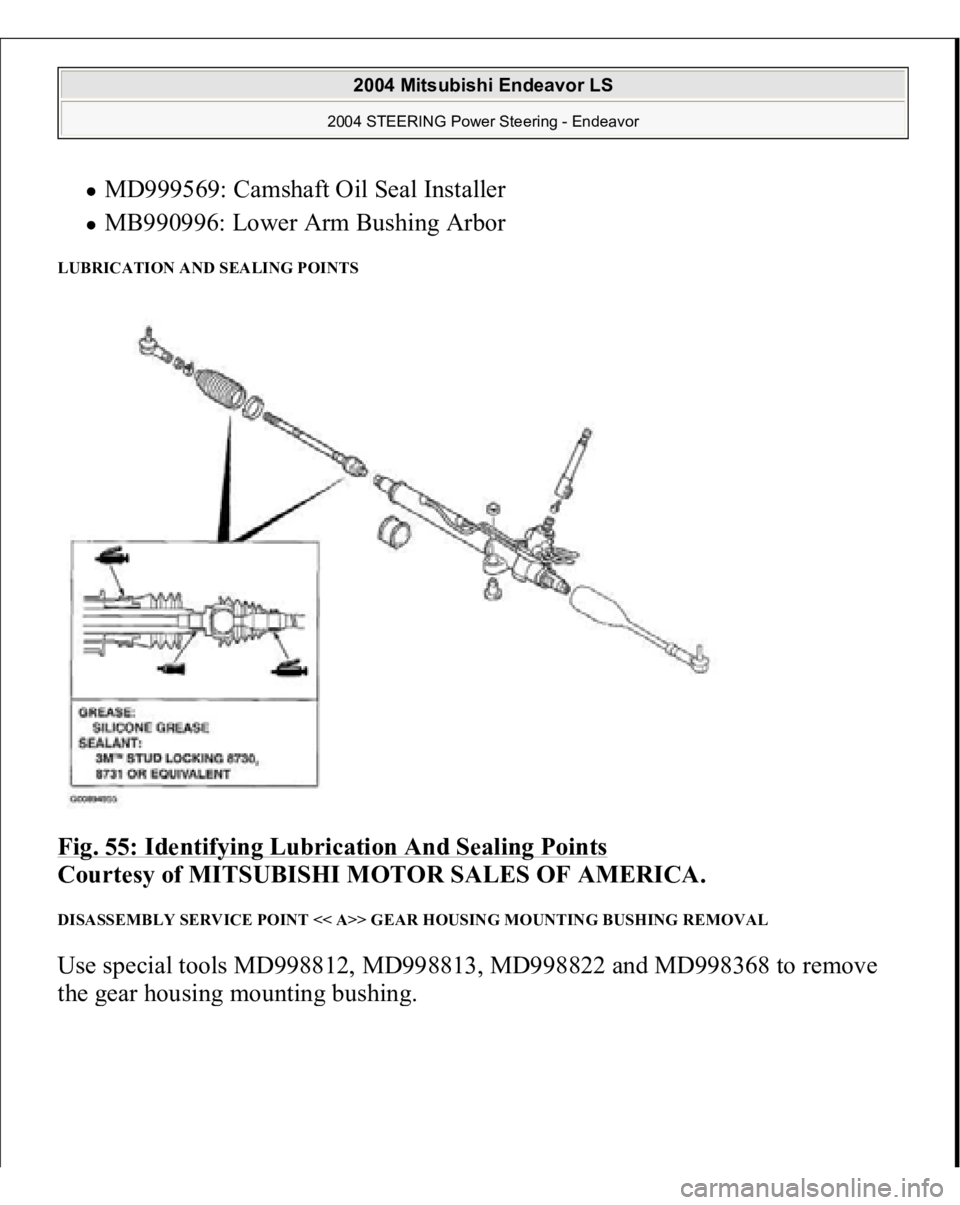

MITSUBISHI ENDEAVOR 2004 Service Repair Manual MD999569: Camshaft Oil Seal Installer MB990996: Lower Arm Bushing Arbor LUBRICATION AND SEALING POINTS Fig. 55: Identifying Lubrication And Sealing Points Courtesy of MITSUBISHI MOTOR SALES OF AM

Page 2898 of 3870

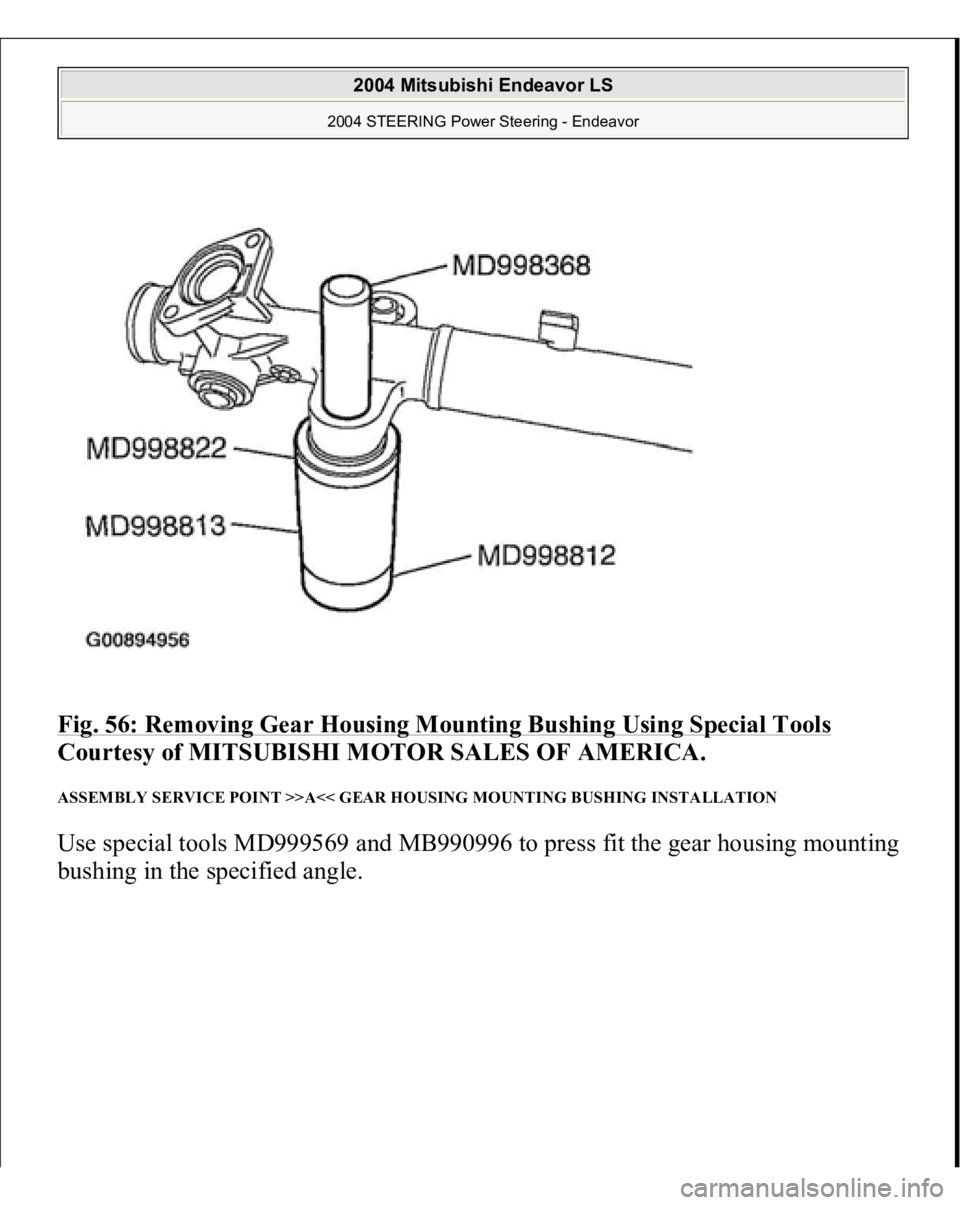

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 56: Removing Gear Housing Mounting Bushing Using Special Tools Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINT >>A<< GEAR HOUSING MOUNTING BUSHING INSTALLATION Use specia

Page 2899 of 3870

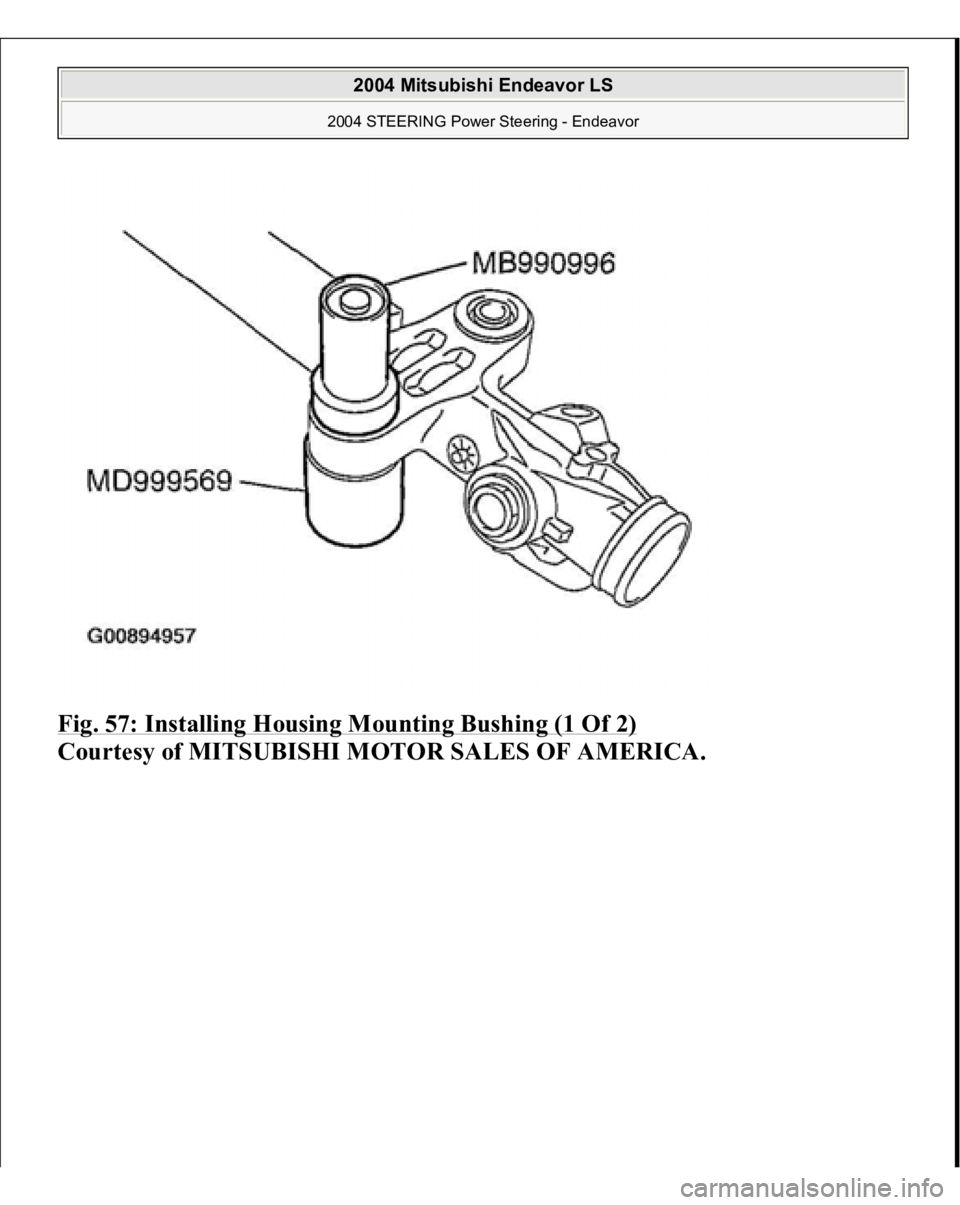

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 57: Installing Housing Mounting Bushing (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 STEERING Power Steering - Endeavor

Page 2900 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 58: Installing Housing Mounting Bushing (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINT >>B<< TOTAL PINION TORQUE ADJUSTMENT CAUTION: Be sure there is no ratche

Page 2901 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Using special tool MB991006, rotate the pinion shaft at the rate of one rotation in four to six seconds to check the total pinion torque and the change in torque. Standard value: Total pinion t

Page 2902 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 59: Adjusting Pinion Torque Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINT >>C<< BELLOWS BAND INSTALLATION 1. Turn the adjusting bolt of special tool MB991561 to adjust

Page 2903 of 3870

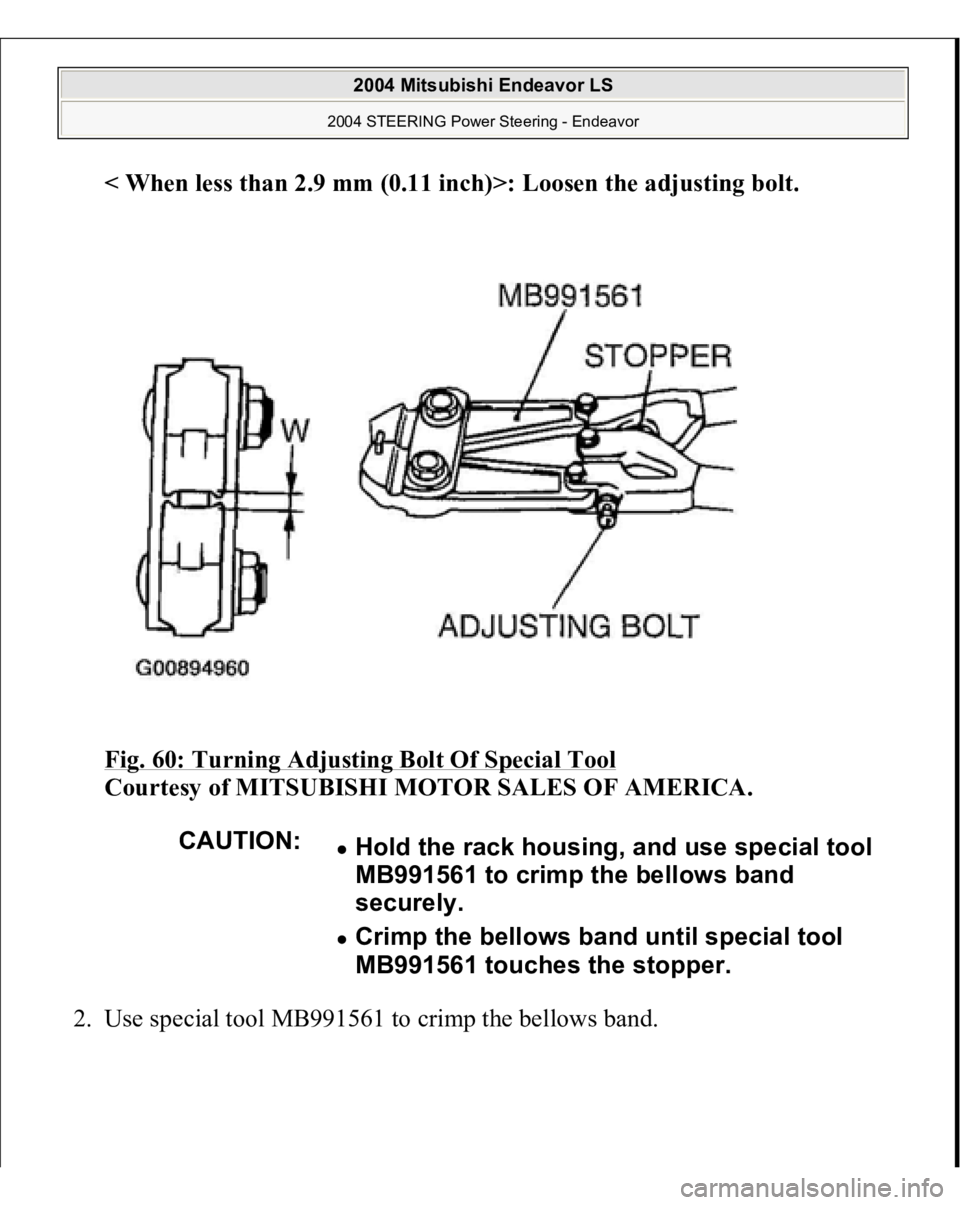

MITSUBISHI ENDEAVOR 2004 Service Repair Manual < When less than 2.9 mm (0.11 inch)>: Loosen the ad justing bolt . Fig. 60: Turning Adjusting Bolt Of Special Tool Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Use s pecial tool MB991561 to

Page 2904 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 61: Crimping Bellows Band Using Special Tool Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Check that crimped width (A) is within the standard value. Standard value (A): 2.4 - 2.8 mm (0.0
Load next 8 pages
