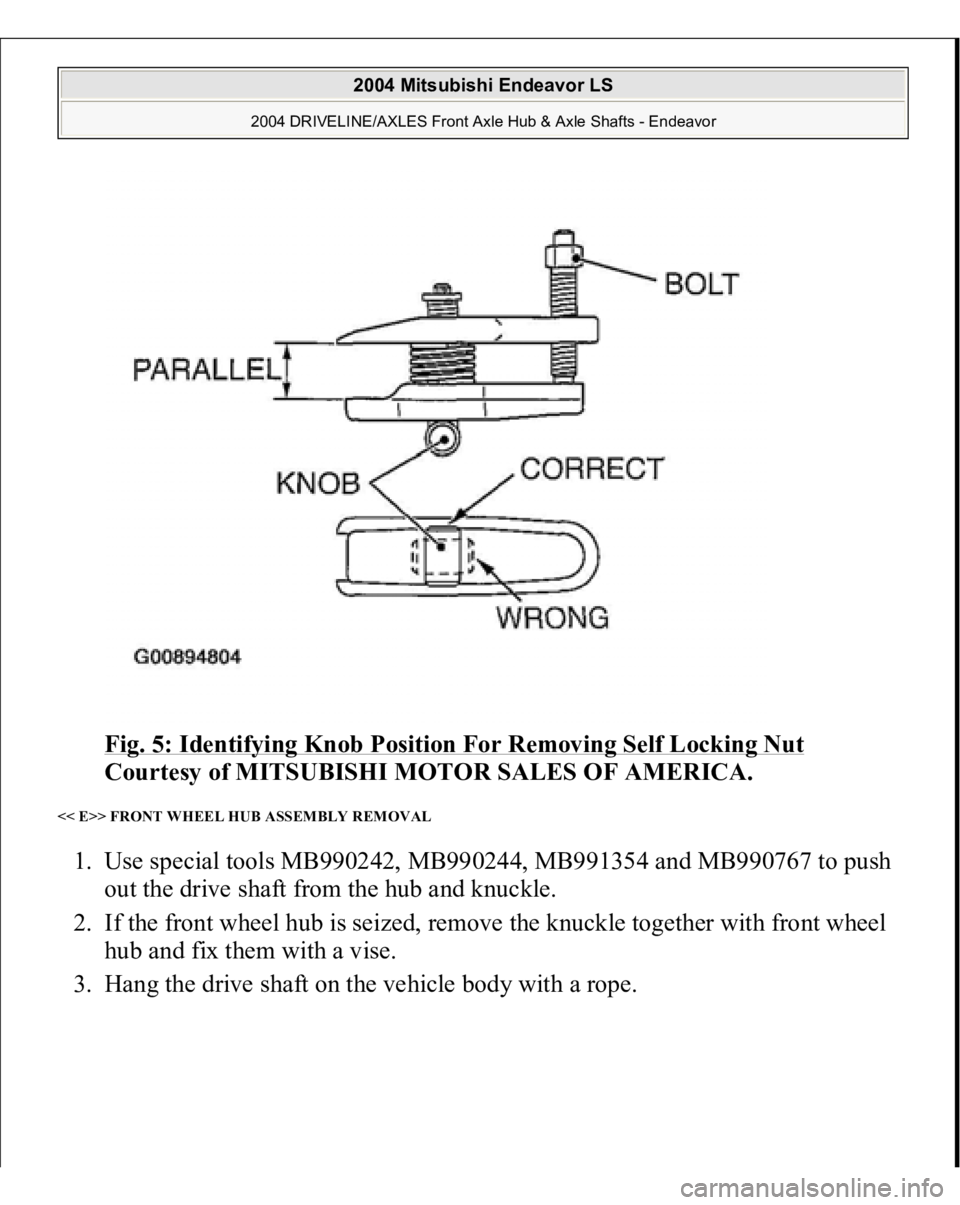

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Identifying Knob Position For Removing Self Locking Nut Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. << E>> FRONT WHEEL HUB ASSEMBLY REMOVAL 1. Use special tools MB990242, MB990244, MB991

Page 1858 of 3870

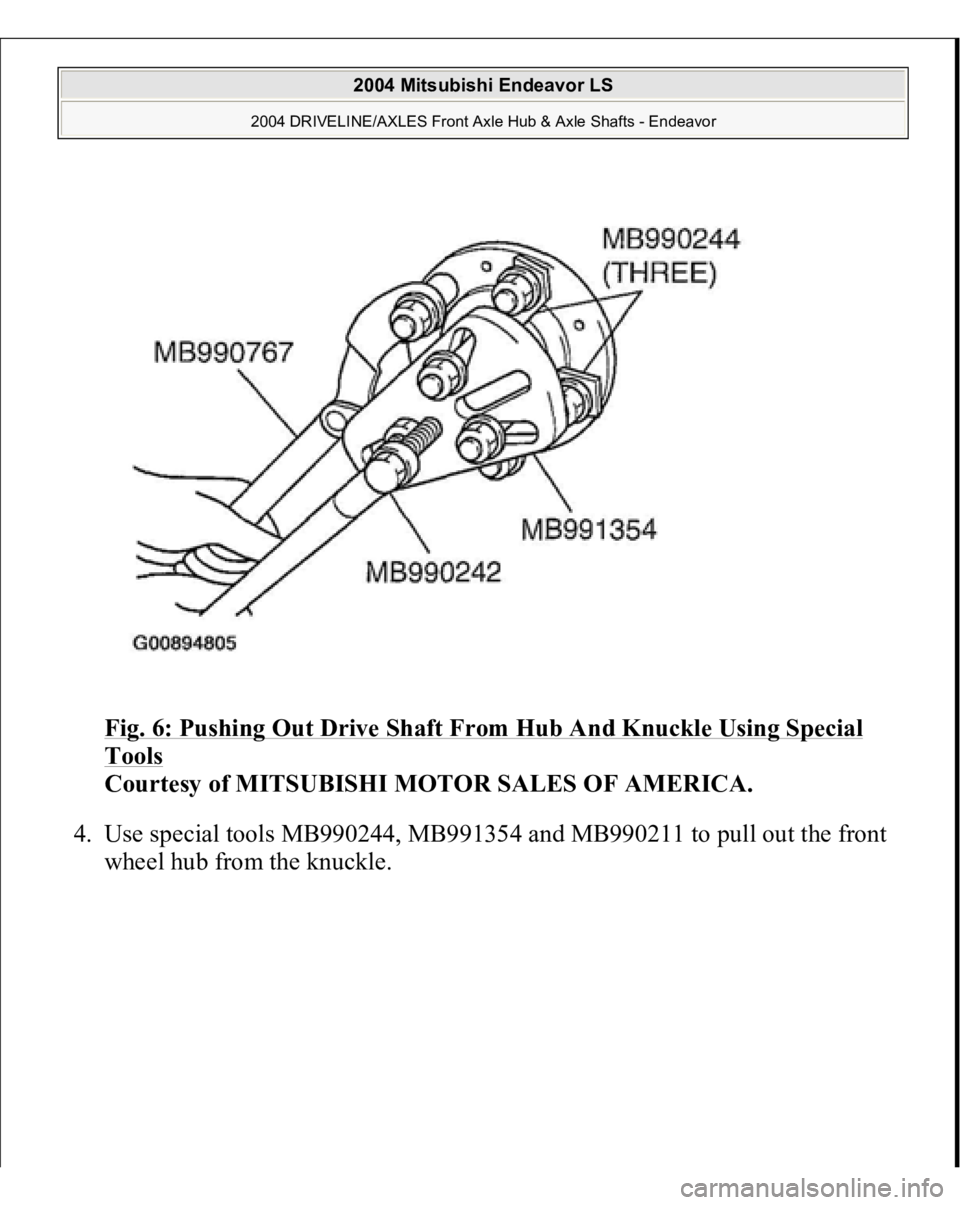

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 6: Pushing Out Drive Shaft From Hub And Knuckle Using Special Tools Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 4. Use special tools MB990244, MB991354 and MB990211 to pull out the front w

Page 1859 of 3870

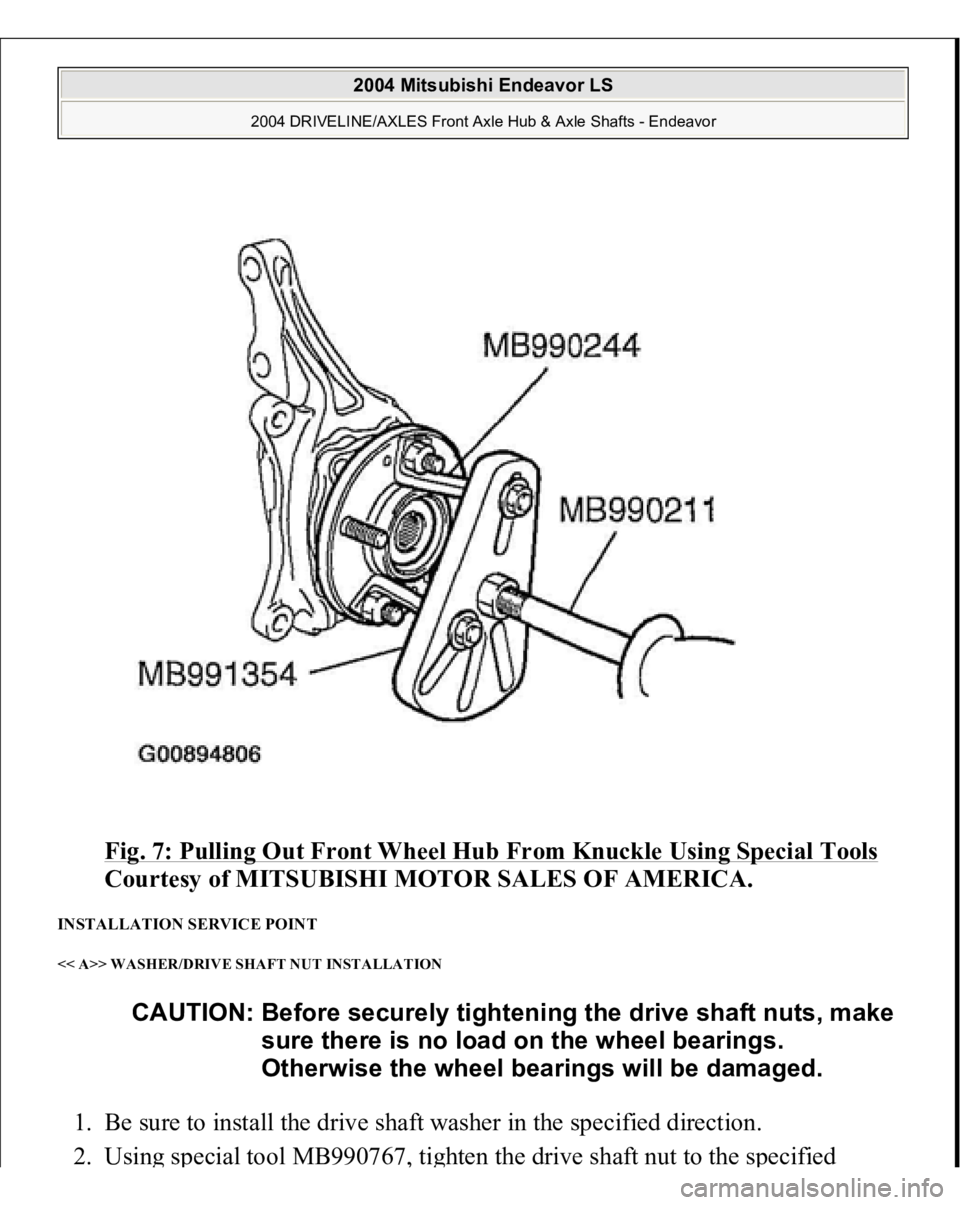

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: Pulling Out Front Wheel Hub From Knuckle Using Special Tools Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINT << A>> WASHER/DRIVE SHAFT NUT INSTALLATION 1. Be sure

Page 1860 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual torque 236 +/- 19 N.m (174 +/- 14 ft-lb). Fig. 8: Tightening Drive Shaft Nut Using Special Tool MB990767 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSPECTION WHEEL BEARING ROTATION STARTING T

Page 1861 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual torque. Tightening torque: 236 +/- 19 N.m (174 +/- 14 ft-lb) 2. Hold front wheel hub assembly in a vice, using wooden blocks. 3. Rotate the hub in order to seat the bearing. Fig. 9: Identifying

Page 1862 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual there is any signs of binding or tight spots when the wheel bearing turns, replace it. Fig. 10: Measuring Wheel Bearing Rotation Starting Torque By Using Special Tools Courtesy of MITSUBISHI MOTOR

Page 1863 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 11: Measuring Wheel Bearing Axial Play Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DRIVE SHAFT ASSEMBLY REMOVAL AND INSTALLATION CAUTION: For vehicles with ABS, do not strike the ABS roto

Page 1864 of 3870

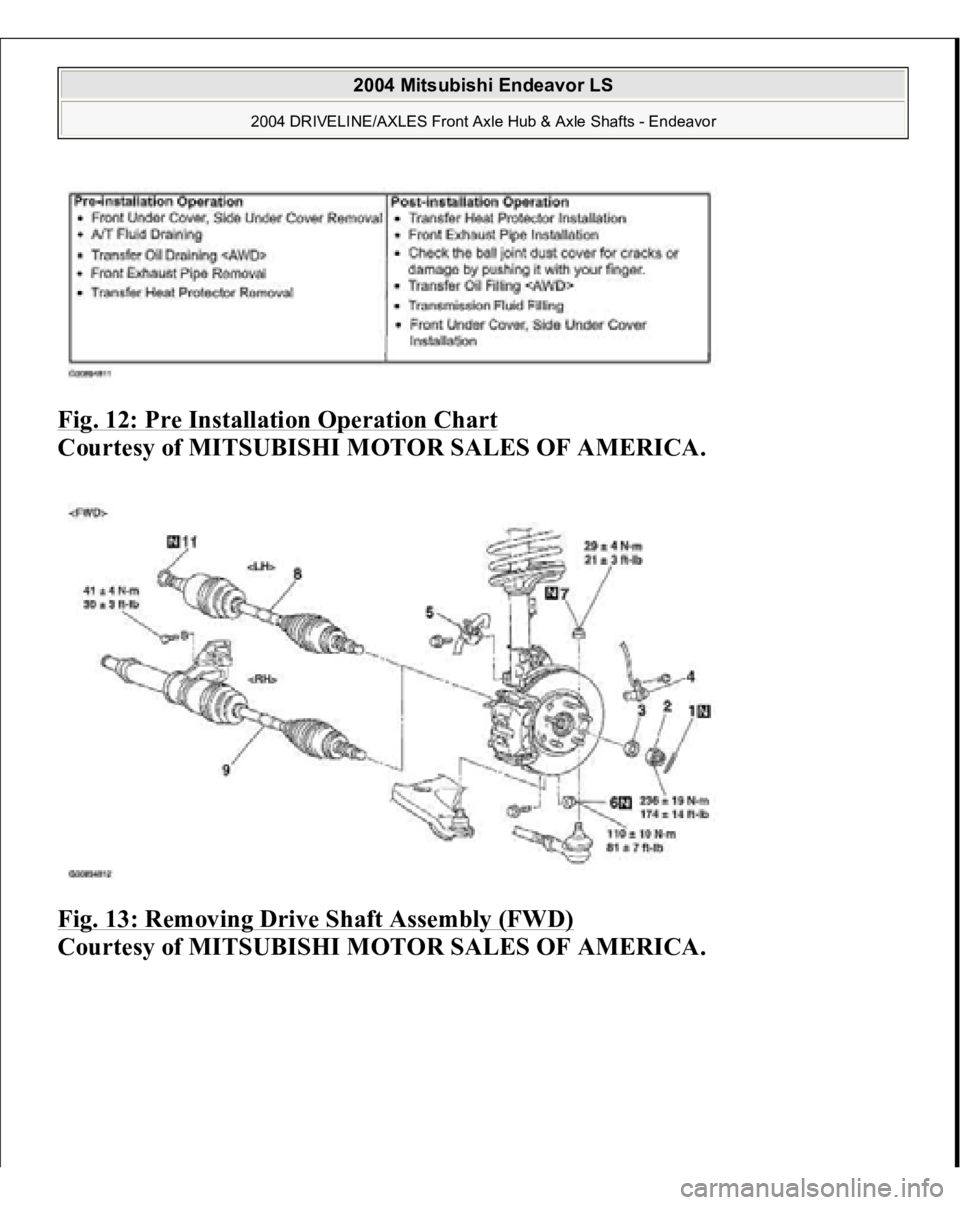

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 12: Pre Installation Operation Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 13: Removing Drive Shaft Assembly (FWD) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubi
