Page 289 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Removal & Installation 1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Remove passenger-side front seat assembly. 2. To

Page 290 of 3870

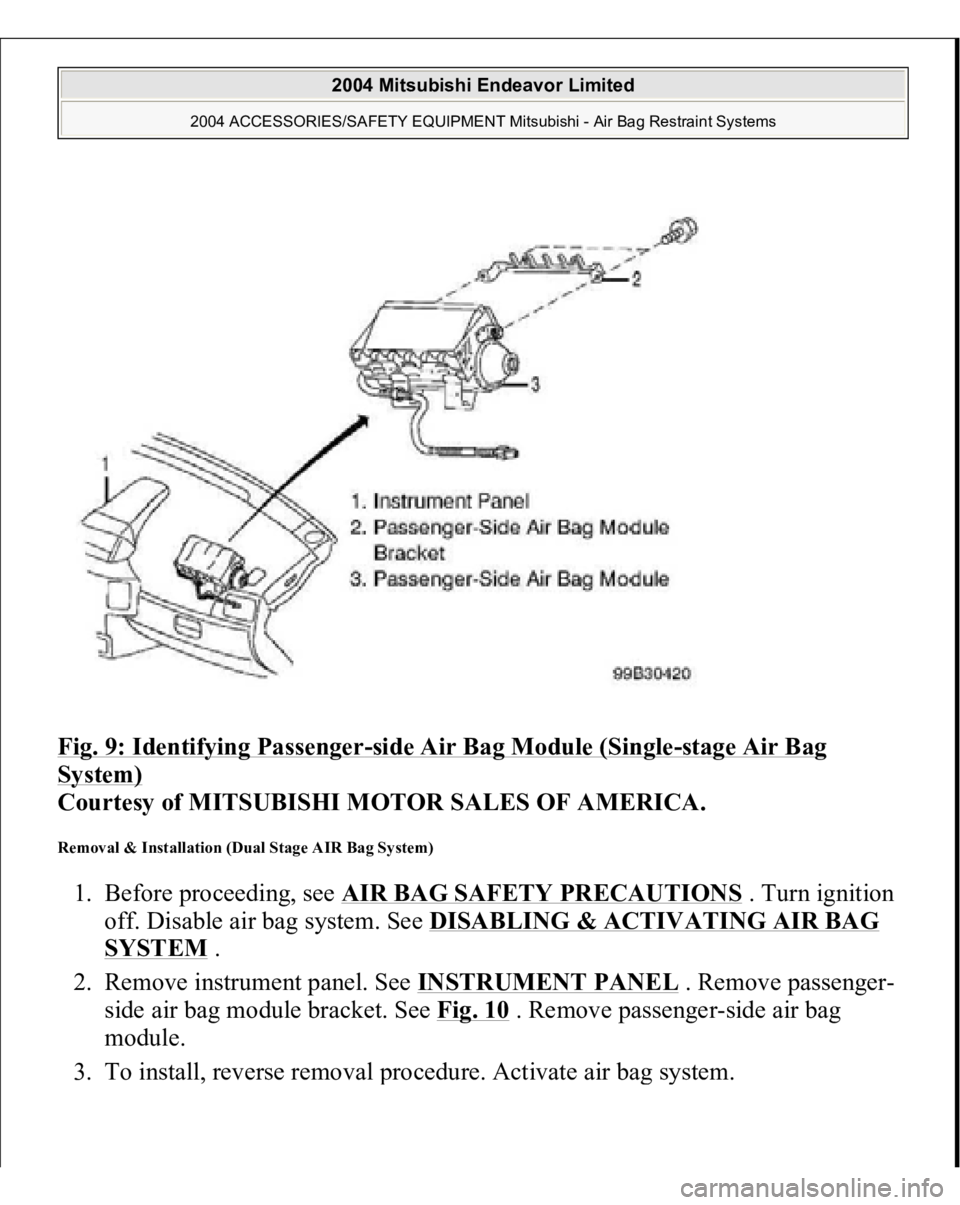

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 9: Identifying Passenger -side Air Bag Module (Single -stage Air Bag System) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Removal & Installation (Dual Stage AIR Bag System) 1. Before procee

Page 291 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 10: Identifying Passenger -side Air Bag Module (Dual -stage Air Bag System) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SEAT BELT PRETENSIONER (DUAL STAGE AIR BAG SYSTEM) Removal & Install

Page 292 of 3870

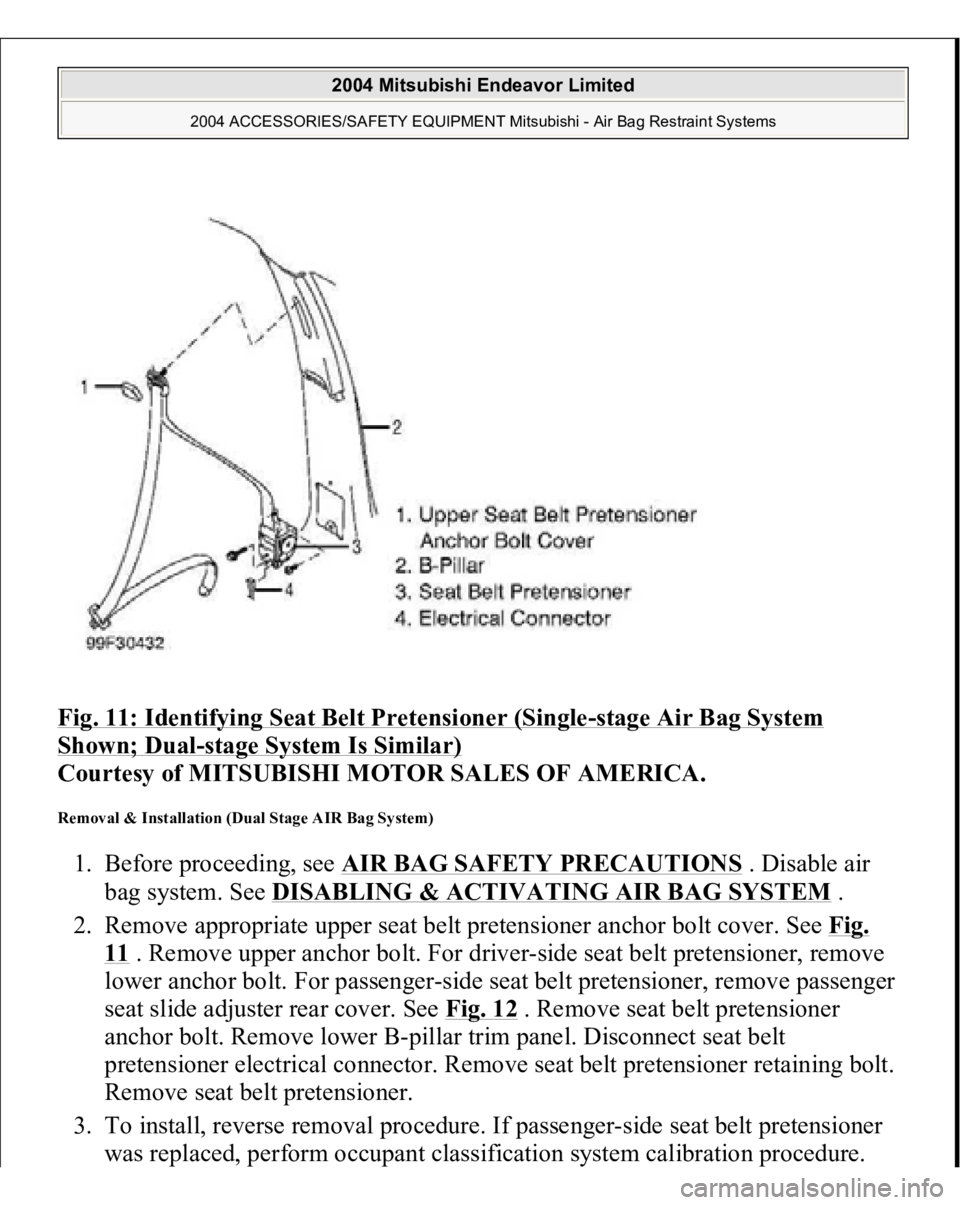

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 11: Identifying Seat Belt Pretensioner (Single -stage Air Bag System Shown; Dual -stage System Is Similar) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Removal & Installation (Dual Stage AI

Page 293 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual See OCCUPANT CLASSIFICATION SENSOR CALIBRATION under COMPONENT TESTING. Tighten seat belt pretensioner anchor bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. Fig. 12

Page 294 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual slide sensor. 3. To install, reverse removal procedure. Tighten seat slide sensor bolt and front seat bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. Fig. 13: Ident

Page 295 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. To install, reverse removal procedure. Tighten front seat nuts and bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. SIDE IMPACT SENSOR Removal & Installation 1. Befo

Page 296 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Removal & Installation (Single Stage AIR Bag System ) 1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Turn ignition off. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
