Page 2889 of 3870

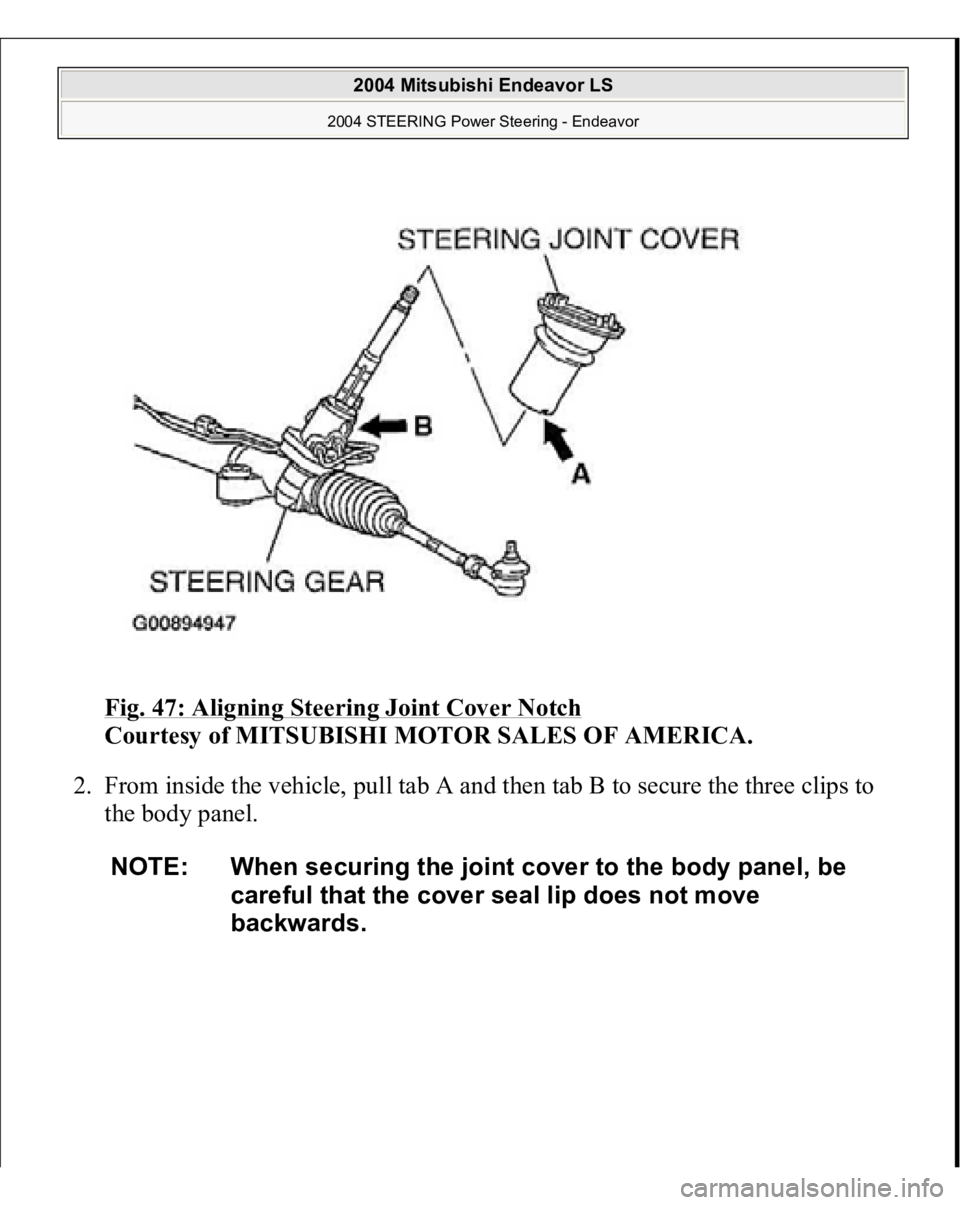

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 47: Aligning Steering Joint Cover Notch Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. From inside the vehicle, pull tab A and then tab B to secure the three clips to the body panel. NOTE

Page 2890 of 3870

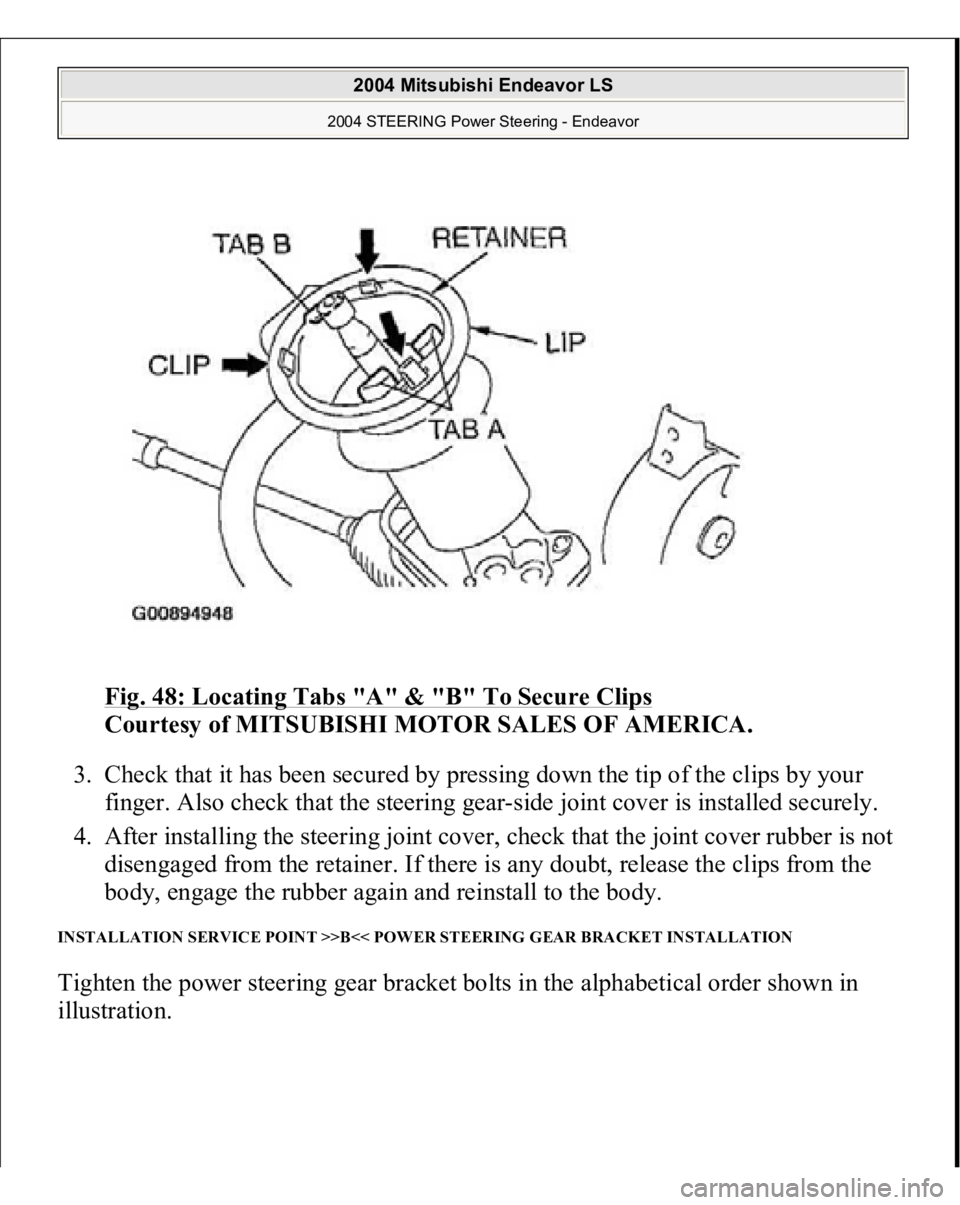

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 48: Locating Tabs "A" & "B" To Secure Clips Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Check that it has been secured by pressing down the tip of the clips by your fing

Page 2891 of 3870

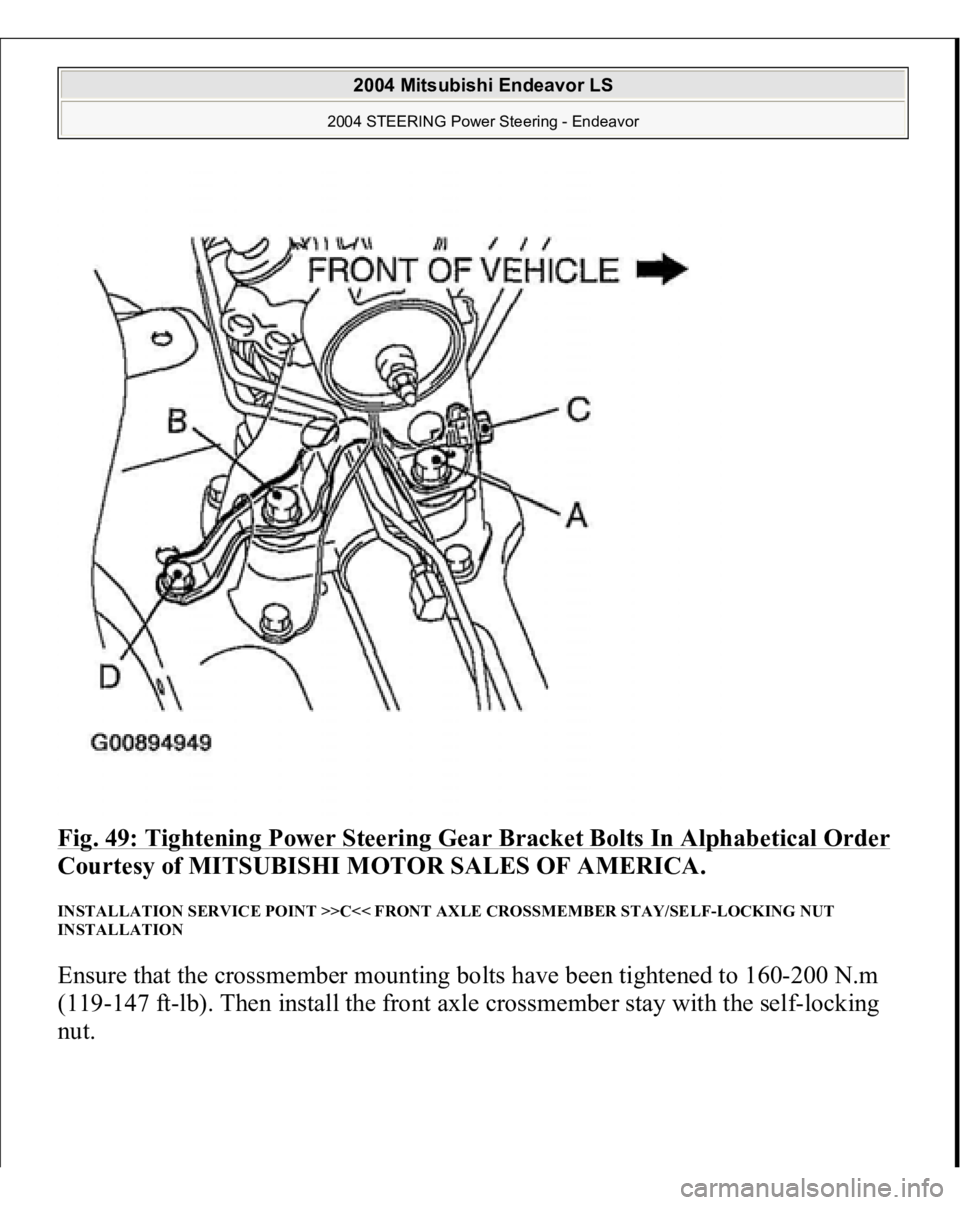

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 49: Tightening Power Steering Gear Bracket Bolts In Alphabetical Order Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINT >>C<< FRONT AXLE CROSSMEMBER STAY/SELF-LOCKING

Page 2892 of 3870

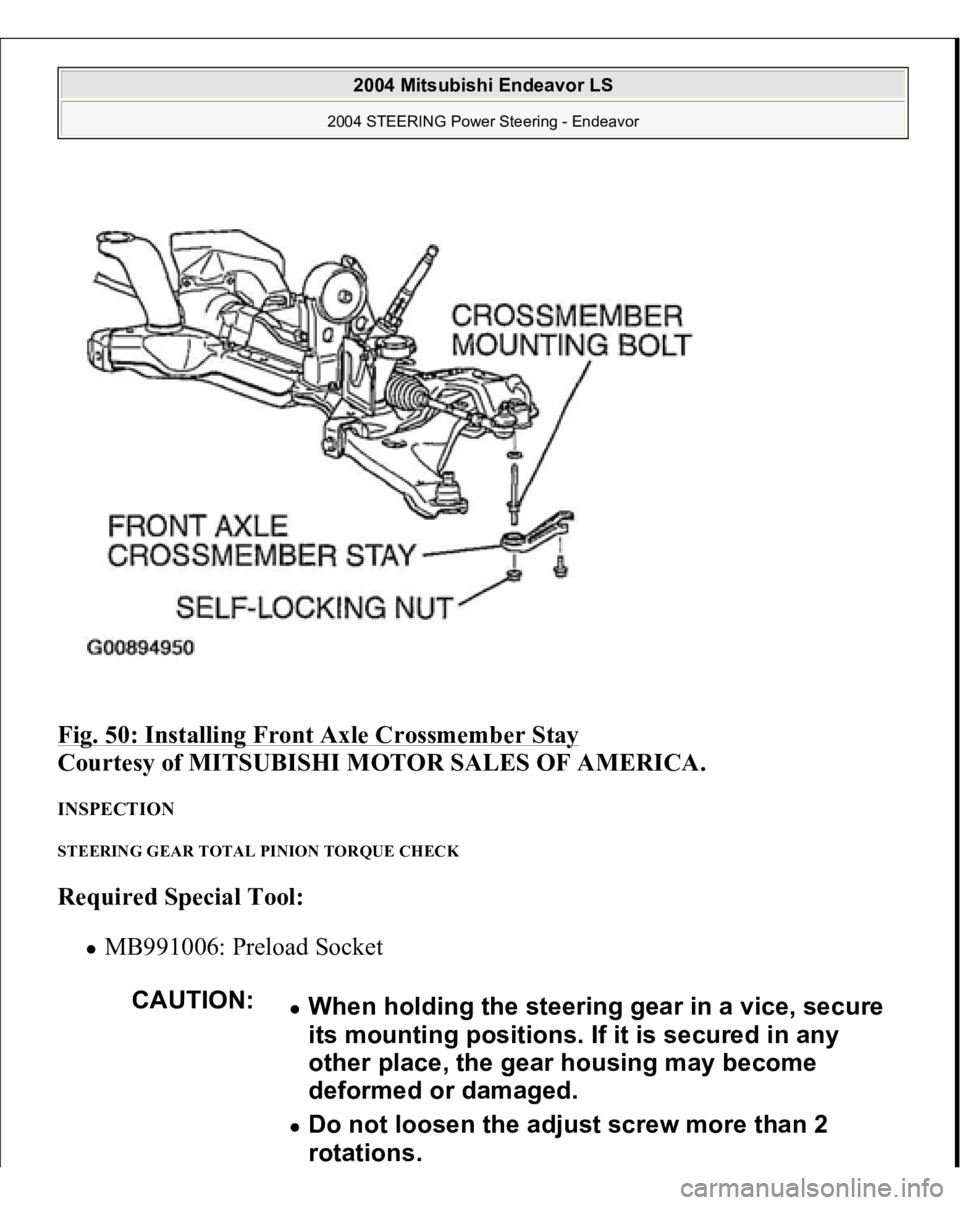

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 50: Installing Front Axle Crossmember Stay Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSPECTION STEERING GEAR TOTAL PINION TORQUE CHECK Required Special Tool: MB991006: Preload Socket

Page 2893 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Using special tool MB991006, rotate the pinion gear at the rate of one rotation in approximately 4 to 6 seconds to check the total pinion torque. Standard value: 0.8 - 1.9 N.m (7.1 - 16.8 in-lb)

Page 2894 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual If the measured value is not within the standard range, first adjust the adjust screw, and then check the total pinion torque again. 2. If the total pinion torque cannot be adjusted to within the

Page 2895 of 3870

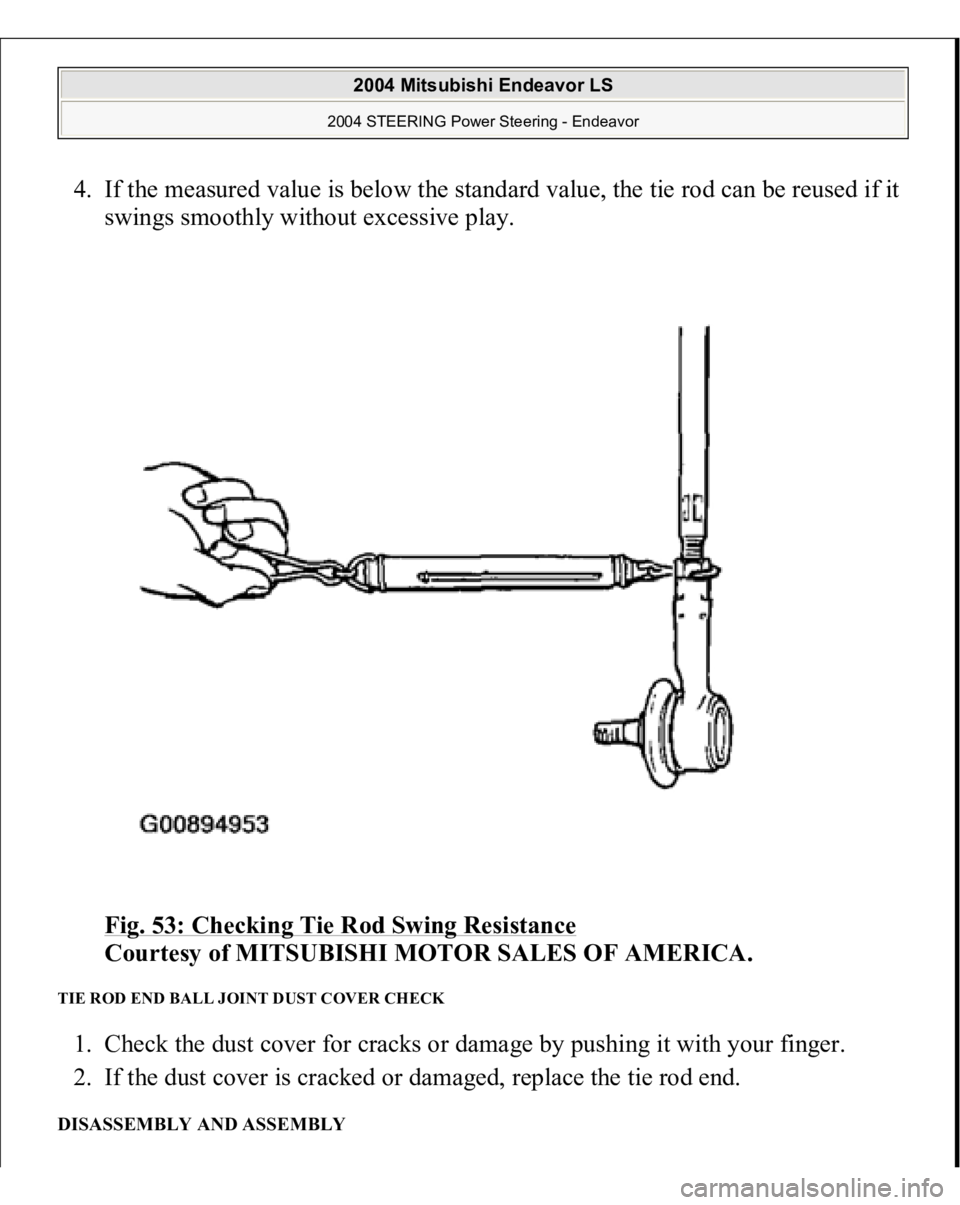

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 4. If the measured value is below the standard value, the tie rod can be reused if it swings smoothly without excessive play. Fig. 53: Checking Tie Rod Swing Resistance Courtesy of MITSUBISHI MOTO

Page 2896 of 3870

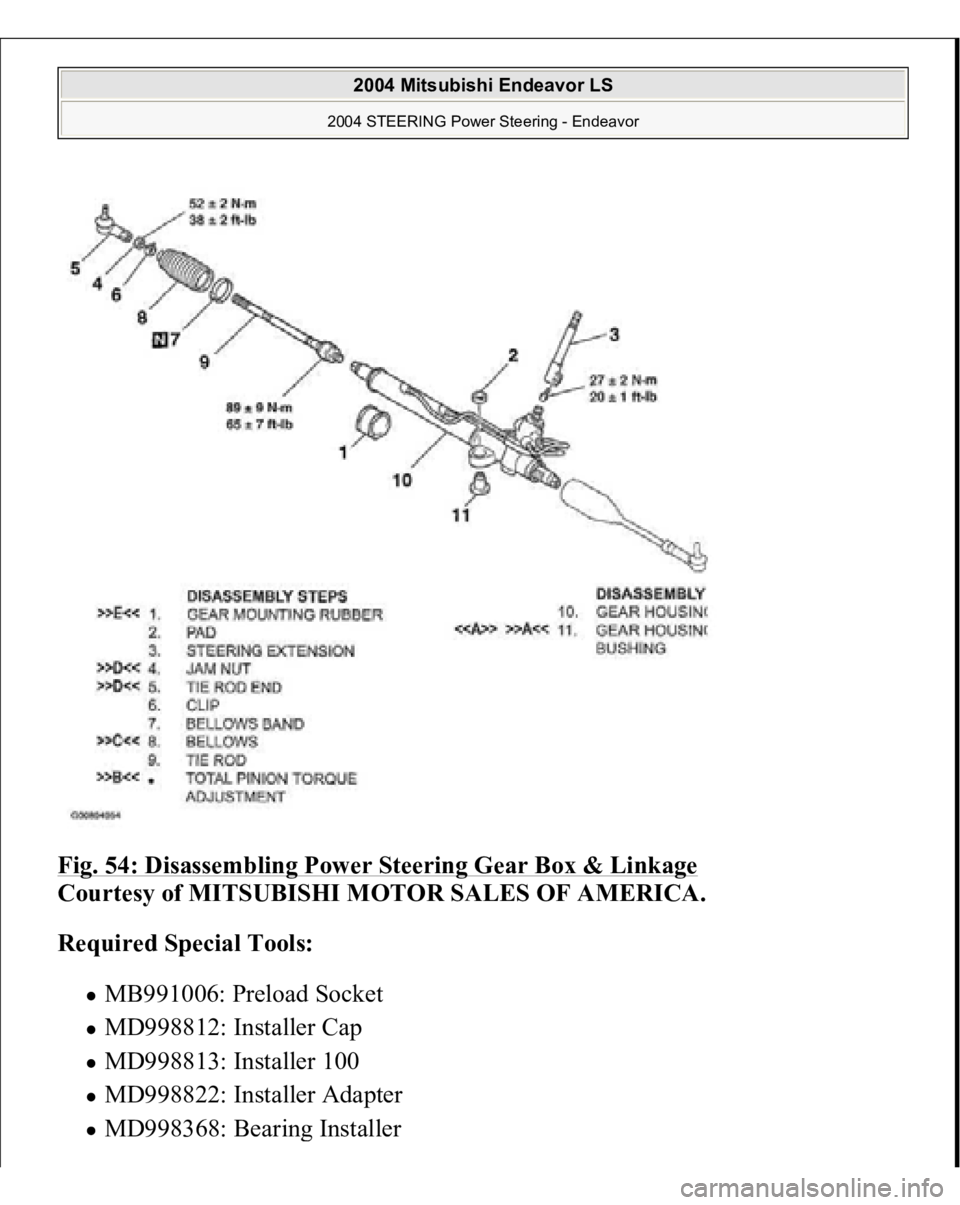

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 54: Disassembling Power Steering Gear Box & Linkage Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Required Special Tools: MB991006: Preload Socket MD998812: Installer Cap MD998813: Instal
