Page 65 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Check whether DTC C1200, C1205, C1210 or C1215 have been set. 4. Turn the ignition swi

Page 66 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the ABS sensor in good condition? YES: Go to Step 6. NO: Replace the ABS sensor. Then go to Step 16 . STEP 6. Check the wheel bearing for looseness. DTC C1201 is set: Check the front righ

Page 67 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 7. Check the ABS rotor. Check the ABS rotor, which DTC code indicates, for foreign material or deformation. DTC C1201 is set: Front right ABS sensor DTC C1206 is set: Front left ABS sensor D

Page 68 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 42: Measuring Voltage At ABS -ECU Connector A -02 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 69 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Measure the voltage between the relevant signal and ground terminals in the ABS sensor circuit and body ground. It should be less than 1

Page 70 of 3870

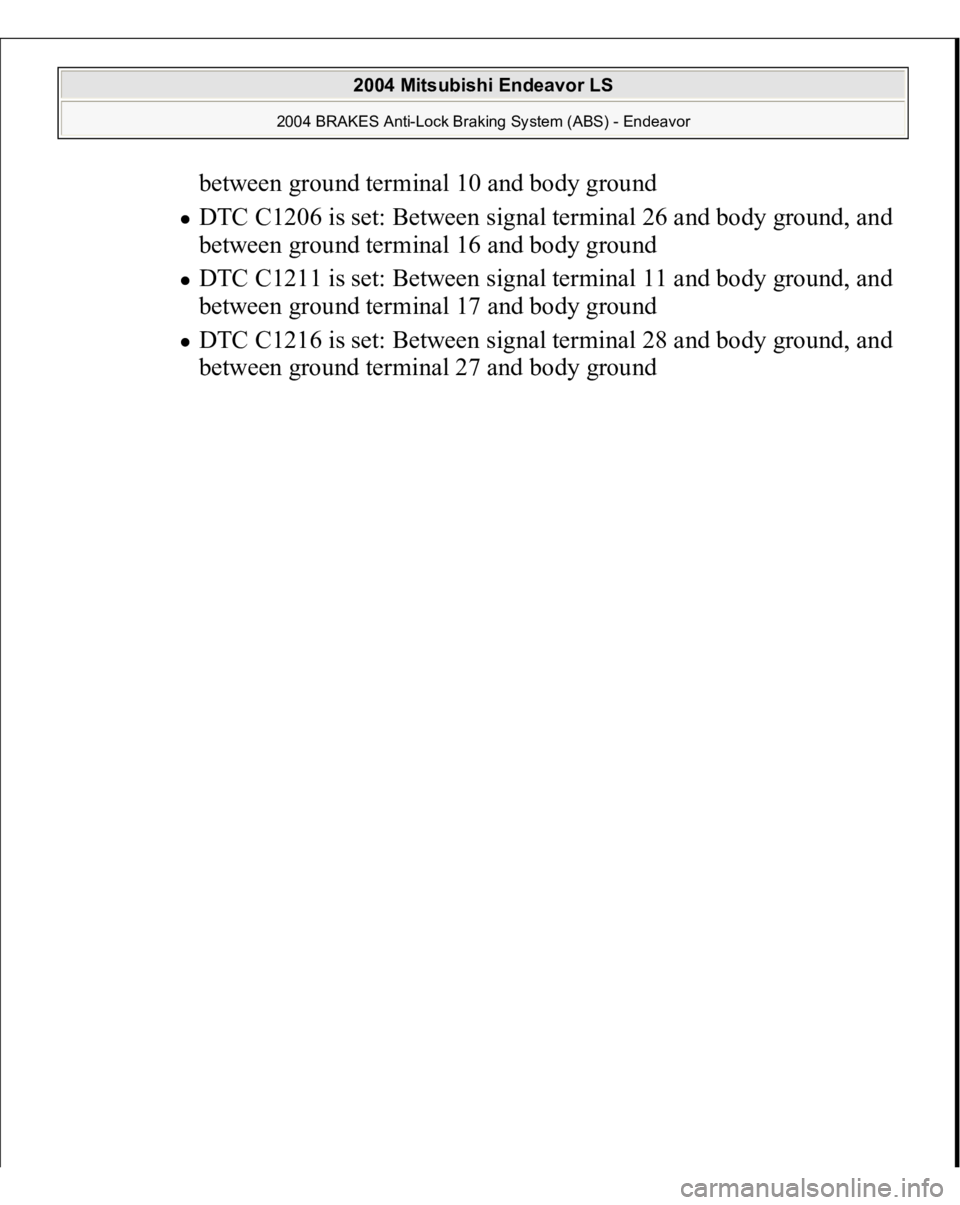

MITSUBISHI ENDEAVOR 2004 Service Repair Manual between ground terminal 10 and body ground DTC C1206 is set: Between signal terminal 26 and body ground, and between ground terminal 16 and body ground DTC C1211 is set: Between signal terminal 11

Page 71 of 3870

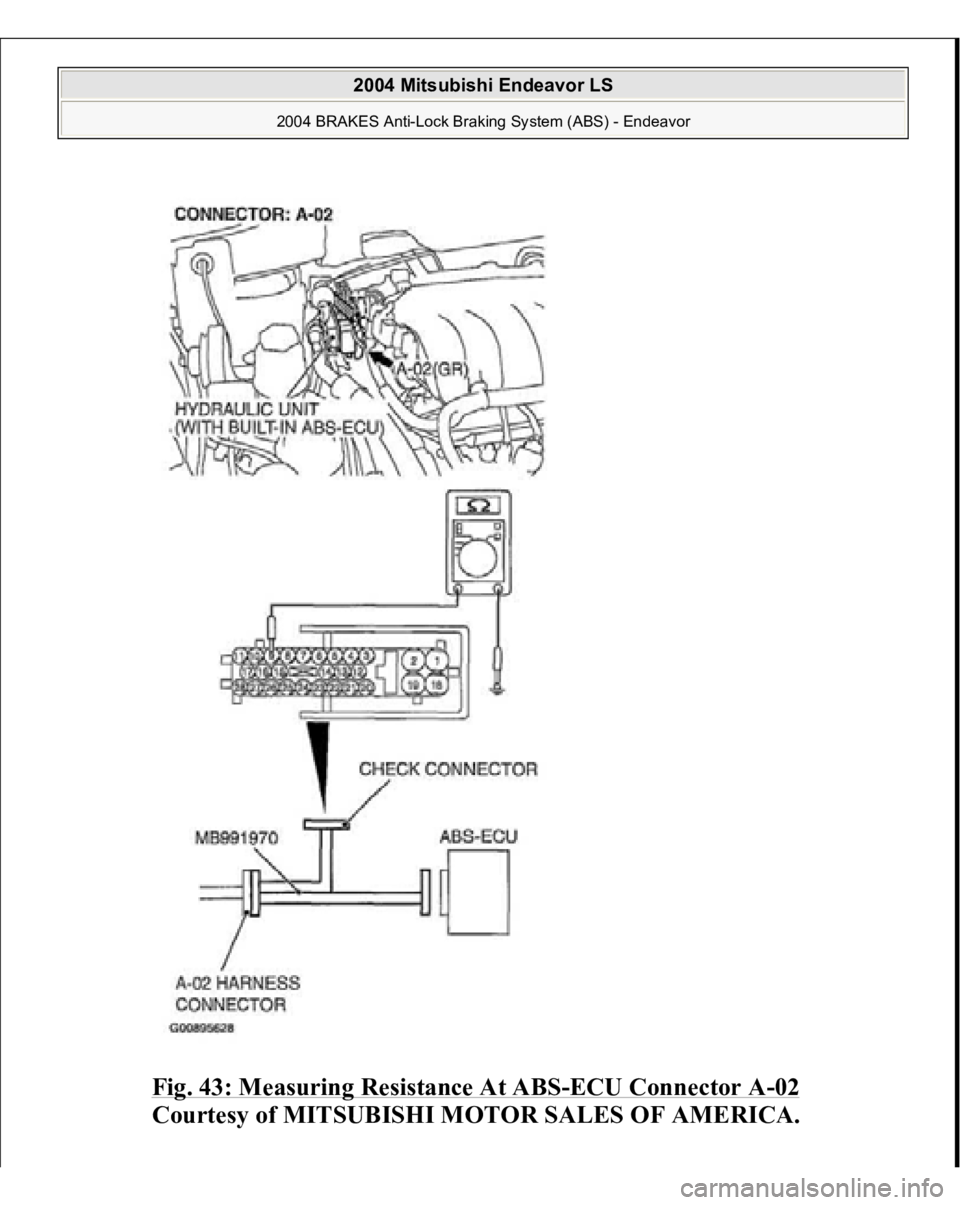

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 43: Measuring Resistance At ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 72 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Does continuity exist? YES (Continuity exists between terminal 9 or terminal 10 and body ground): Go to Step 11 . YES (Continuity exists between terminal 26 or terminal 16 and body ground): G
