Page 3569 of 3870

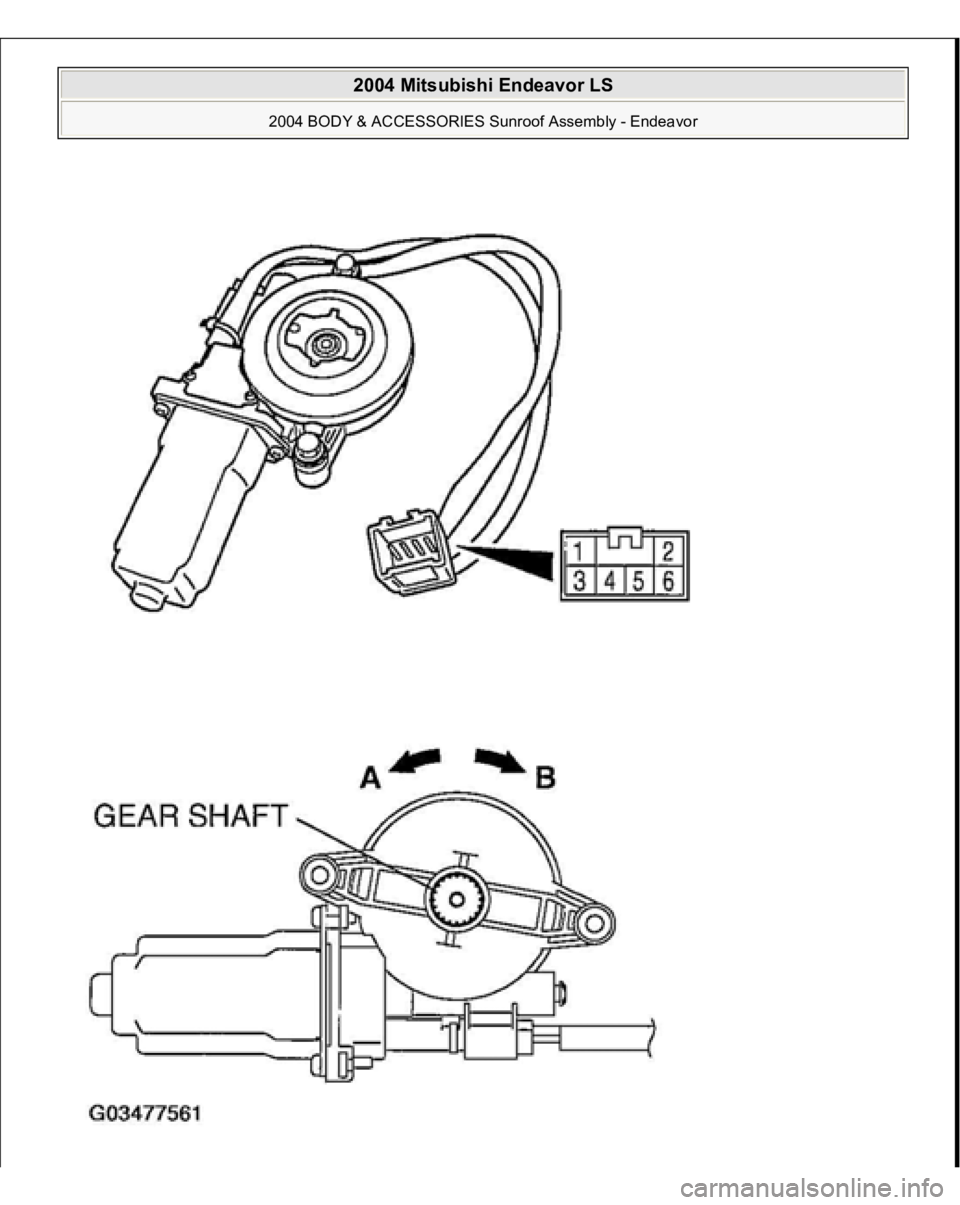

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . SUNROOF MOTOR CHECK MOTOR SECTION CHECK (EXCEPT MOTOR ROTATION SENSOR INSPECTION) 1. Connect a battery directly to the motor terminals and check that

Page 3570 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Sunroof Assembly - Endeavor

Page 3571 of 3870

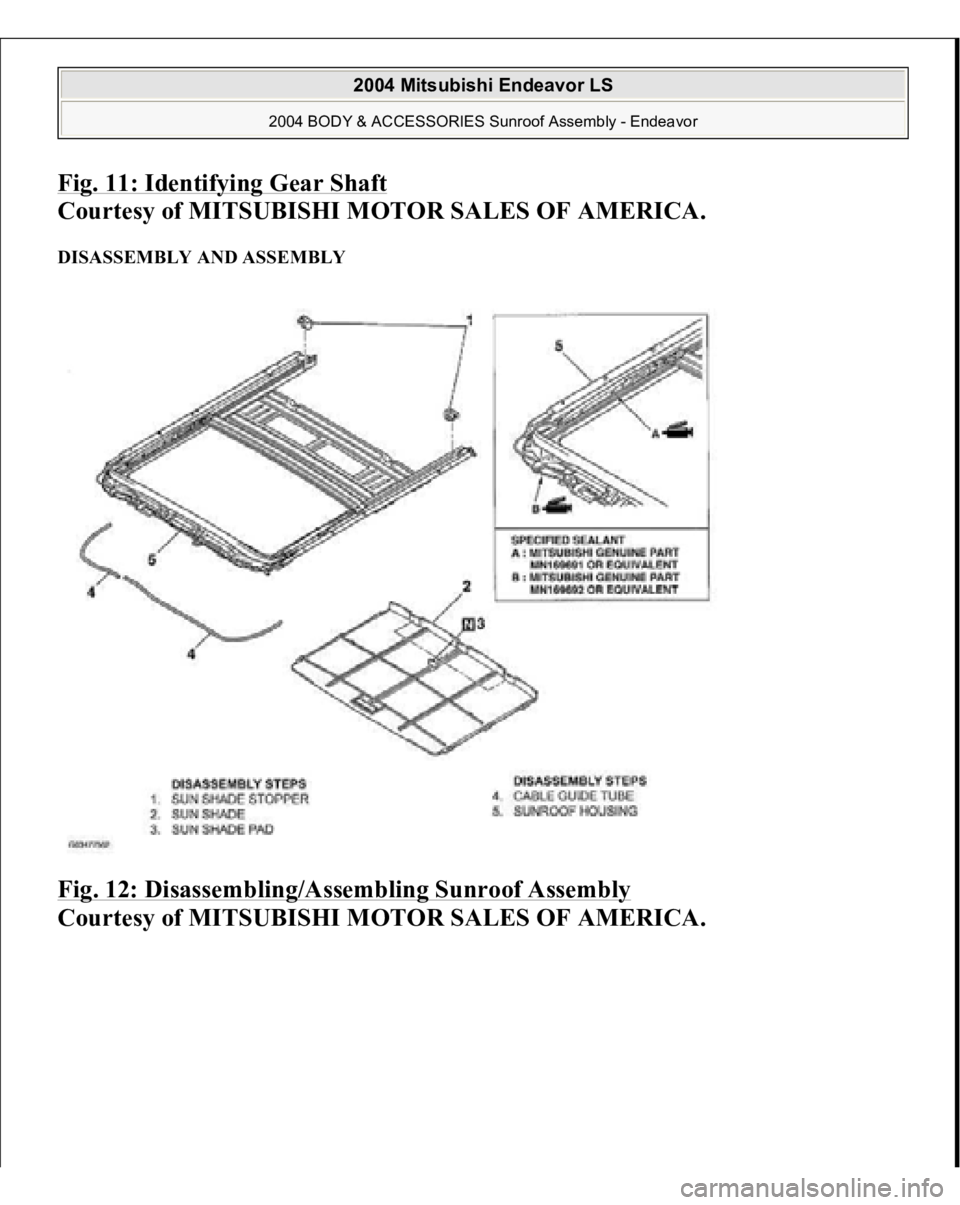

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 11: Identifying Gear Shaf t Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DISASSEMBLY AND ASSEMBLY Fig. 12: Disassembling/Assembling Sunroof Assembly Courtesy of MITSUBISHI MOTOR SALES OF AM

Page 3572 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual MITSUBISHI 3.8L V6 - SOHC - Endeavor & Galant MANUFACTURER'S SUGGESTED SCHEDULED MAINTENANCE Manufacturer recommends the belt be replaced every 60,000 miles except in California, Massachusetts a

Page 3573 of 3870

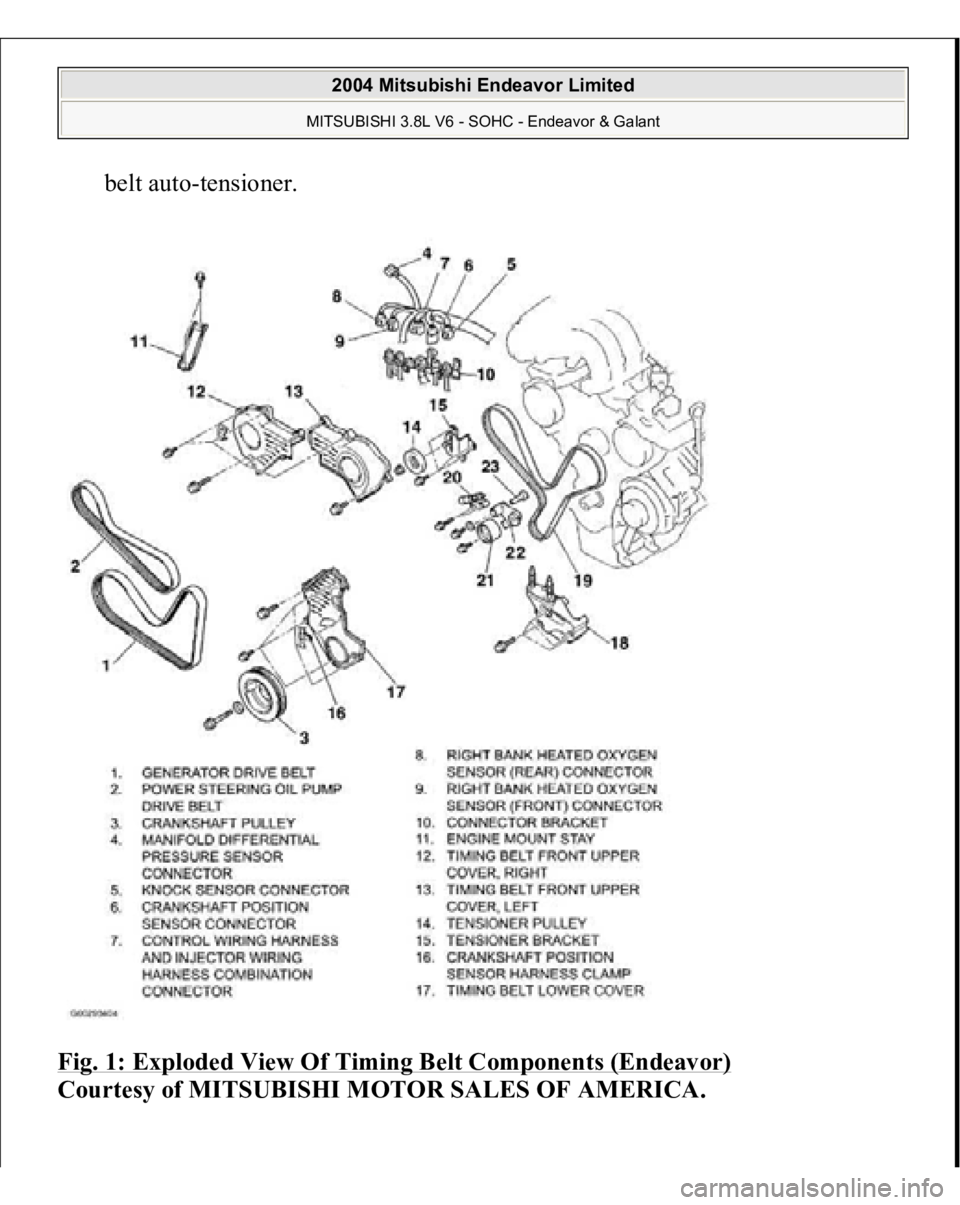

MITSUBISHI ENDEAVOR 2004 Service Repair Manual belt auto-tensioner. Fig. 1: Exploded View Of Timing Belt Components (Endeavor) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited MITSUBISHI 3.8L V6 - SOHC - Endeav

Page 3574 of 3870

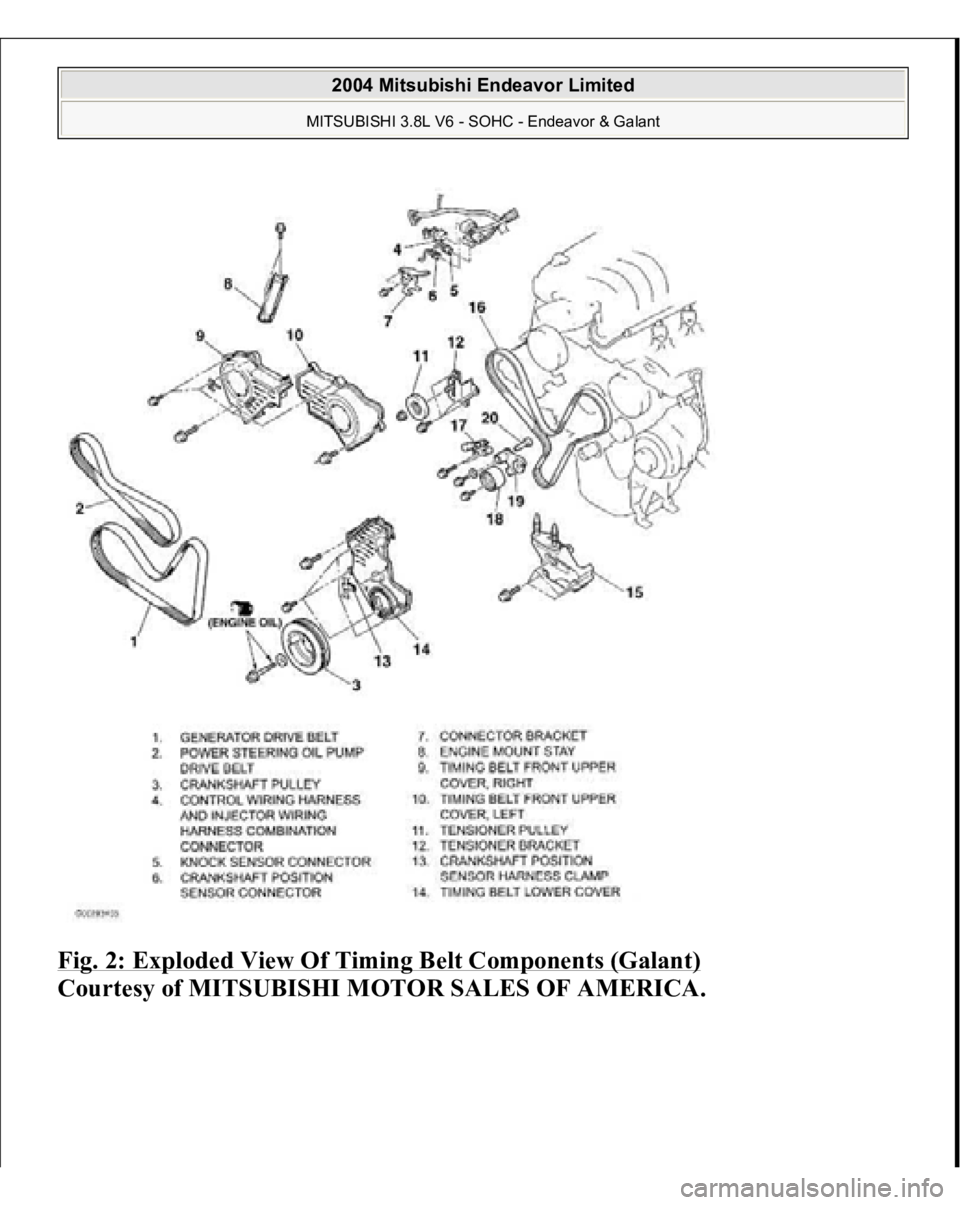

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 2: Exploded View Of Timing Belt Components (Galant) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited MITSUBISHI 3.8L V6 - SOHC - Endeavor & Galant

Page 3575 of 3870

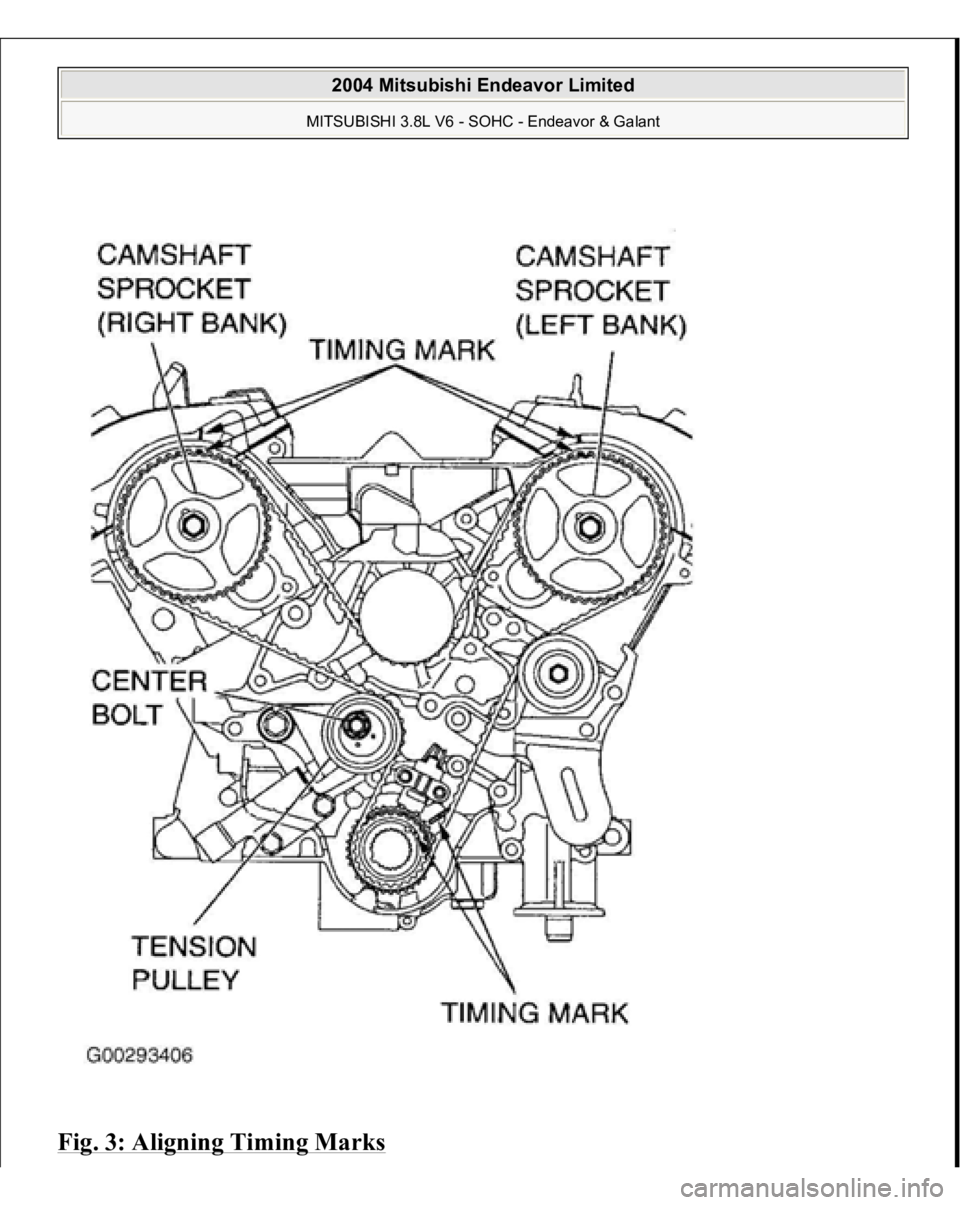

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Aligning Timing Marks 2004 Mitsubishi Endeavor Limited MITSUBISHI 3.8L V6 - SOHC - Endeavor & Galant

Page 3576 of 3870

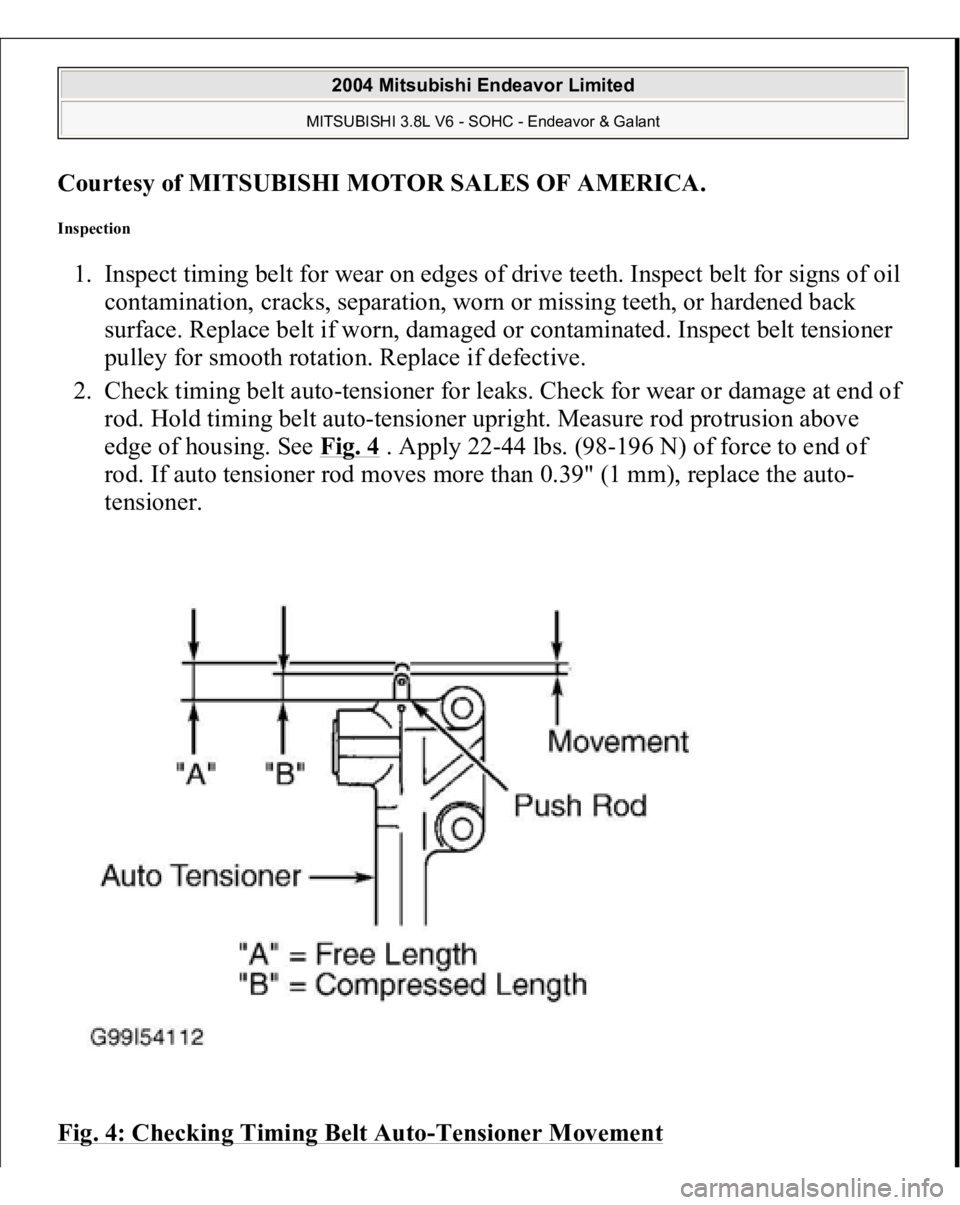

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Inspection 1. Inspect timing belt for wear on edges of drive teeth. Inspect belt for signs of oil contamination, cracks, separation, worn or missing t
